Series 3 SWB Nut and Bolt rebuild

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

Having freshly galvanized the original chassis do I paint it black or leave it as it is ?

  • Yes - Etch, prime and paint black

    Votes: 10 90.9%
  • No - Leave it galvanized

    Votes: 1 9.1%

  • Total voters
    11
  • Poll closed .
Spent a day off in the garage ! Heaven

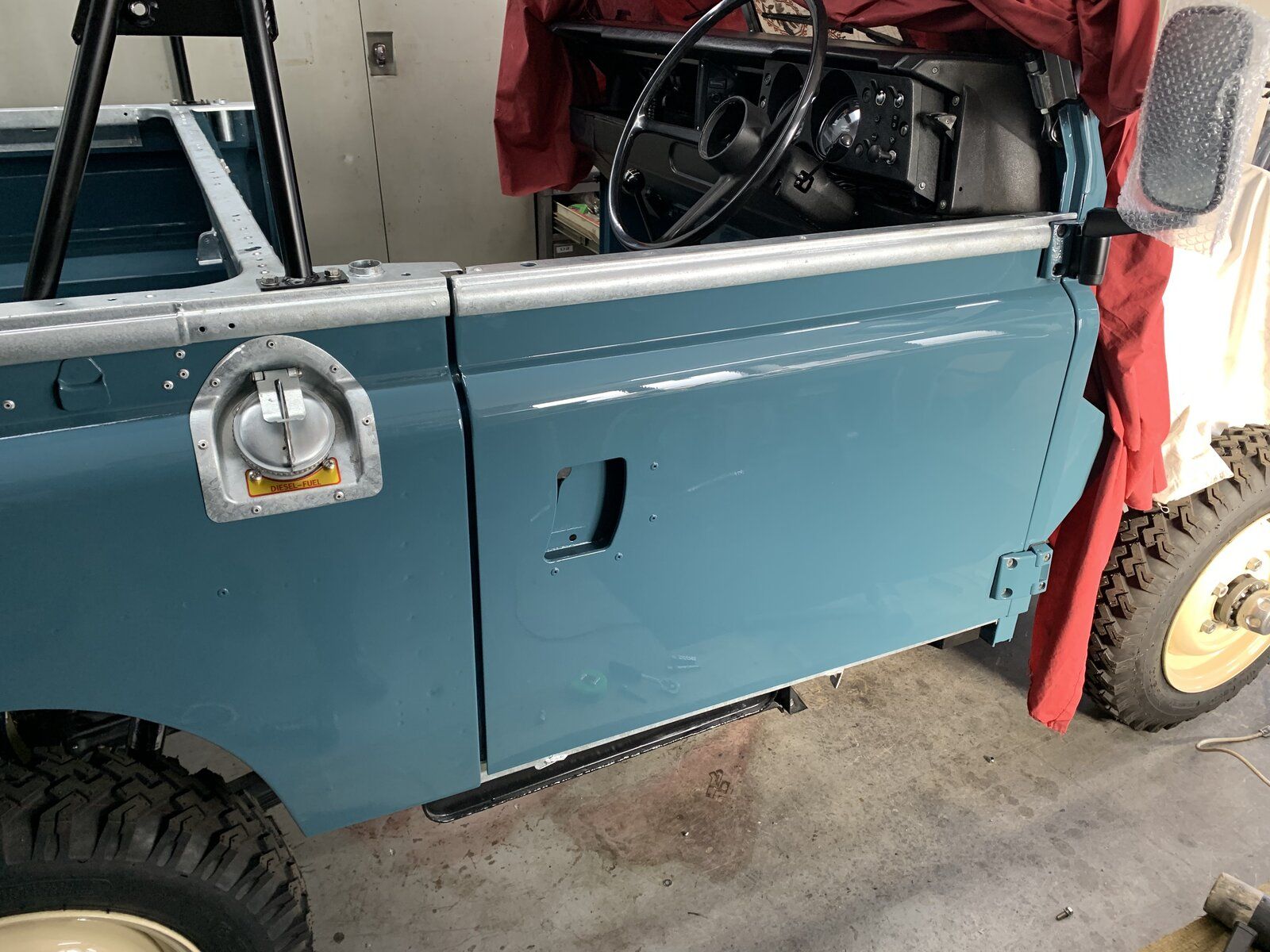

Doors fitted, fettled, and finished ! Wow never again ! What a fiddley job, thank god for an old black washing up bowl (cut it up to make some plastic shims for the door hindges) finally got the buggers lighend up.


Attachments

  • 848D3037-1398-4C80-8CA8-490416762CB2.jpeg
    268.8 KB · Views: 115
Last edited:

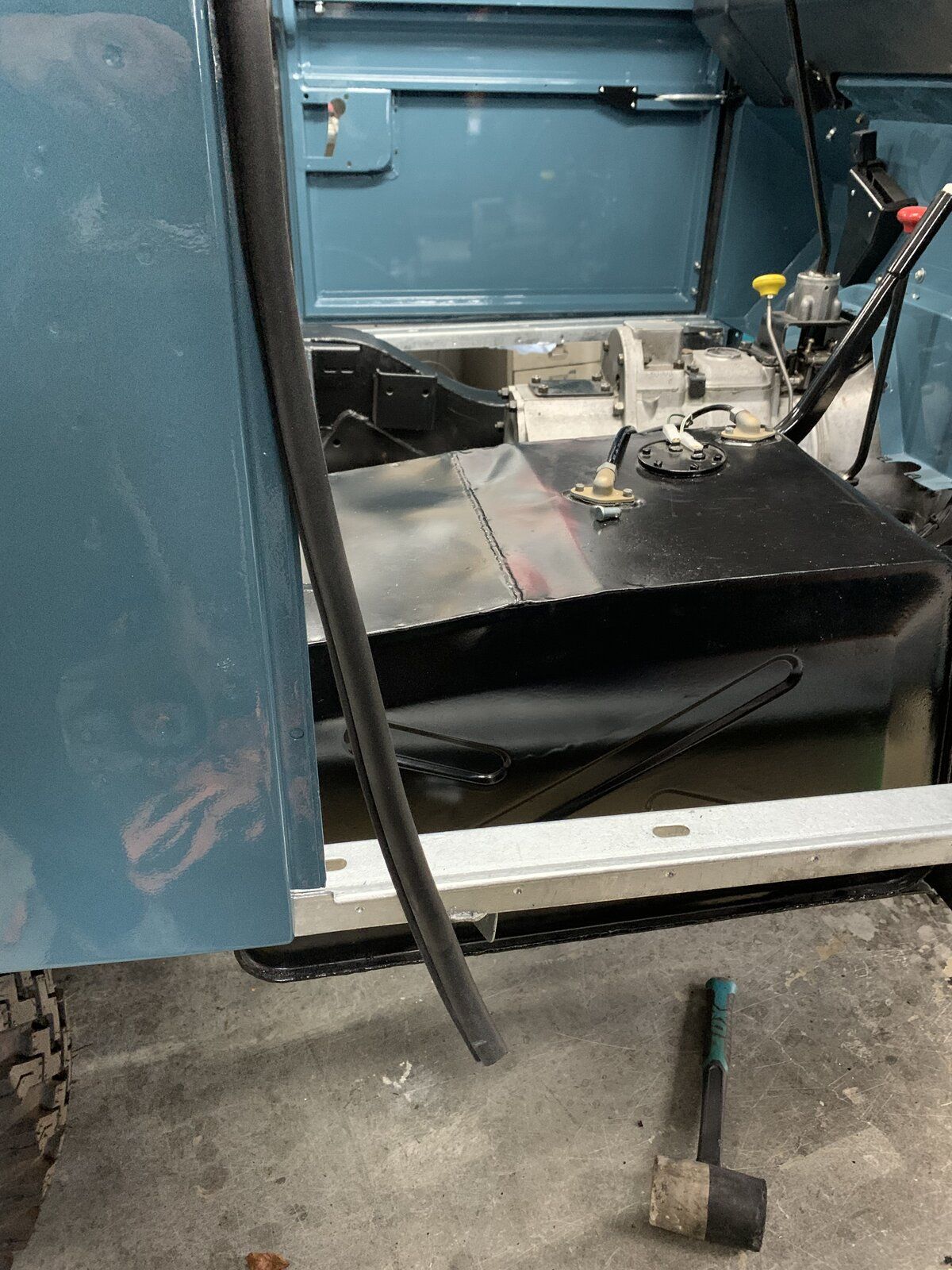

Next was the Exmoor full hoop kit ! another fiddley bloody job. Started fitting the door seals just to find out that somehow I was sent two left hand ones ??? Even thought the pack stated RH ?


Attachments

  • 85C5EBE3-92AE-44E5-B15B-07E46952ECC6.jpeg
    289.7 KB · Views: 111
  • FE84A39C-5B23-4B2F-9350-15D008FE3889.jpeg
    348.3 KB · Views: 107
  • F2CECBBA-3740-4945-8D40-9A61A12239AF.jpeg
    325.4 KB · Views: 105
Hoop kit all bolted together and door gaps adjusted for the 15th time
Next job, fit the sills and door locks

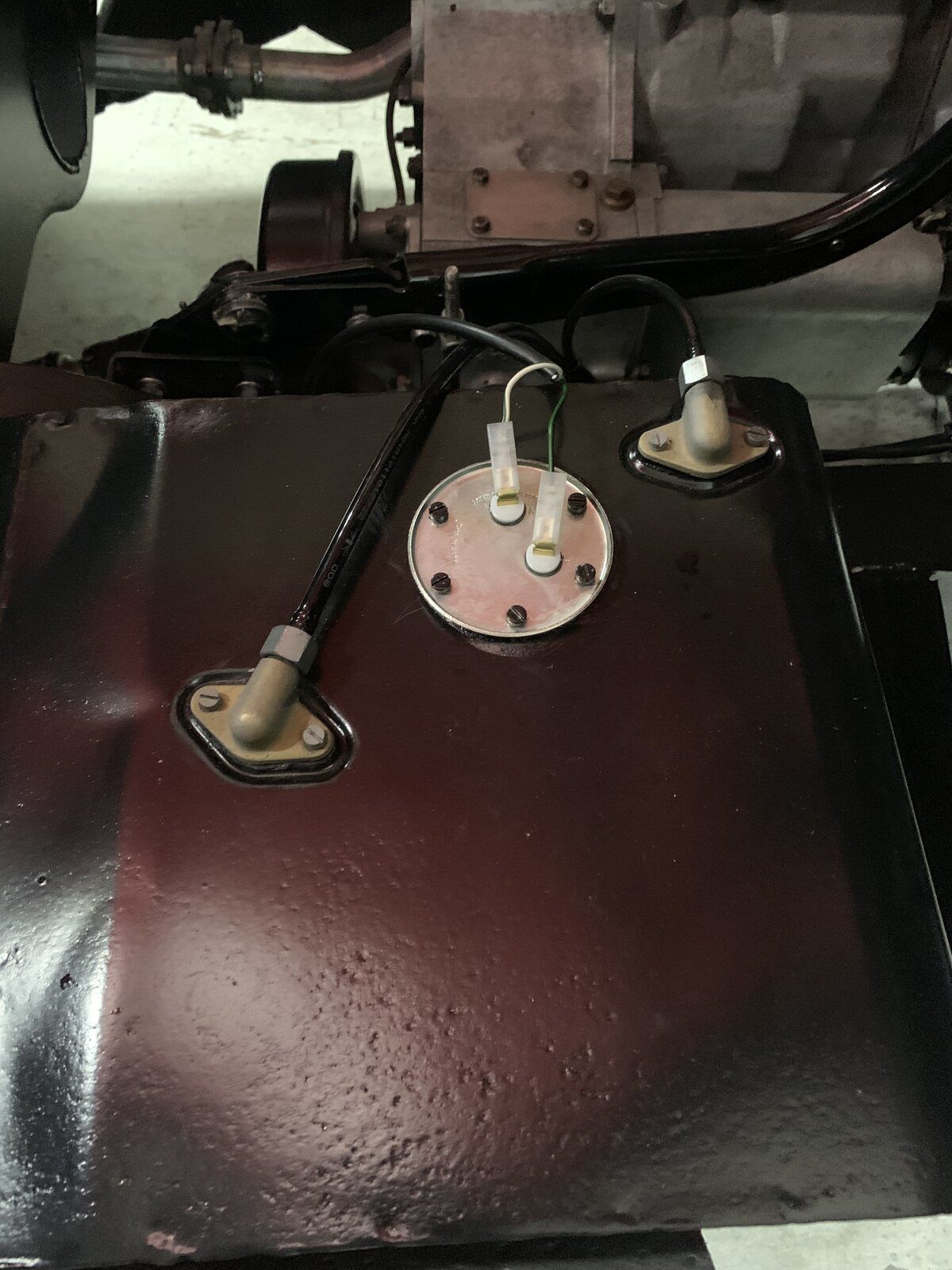

Investigation into the fuel guage?


Attachments

  • C5E28246-E45A-43F3-A8E0-A5D6B18607BD.jpeg
    283.2 KB · Views: 101

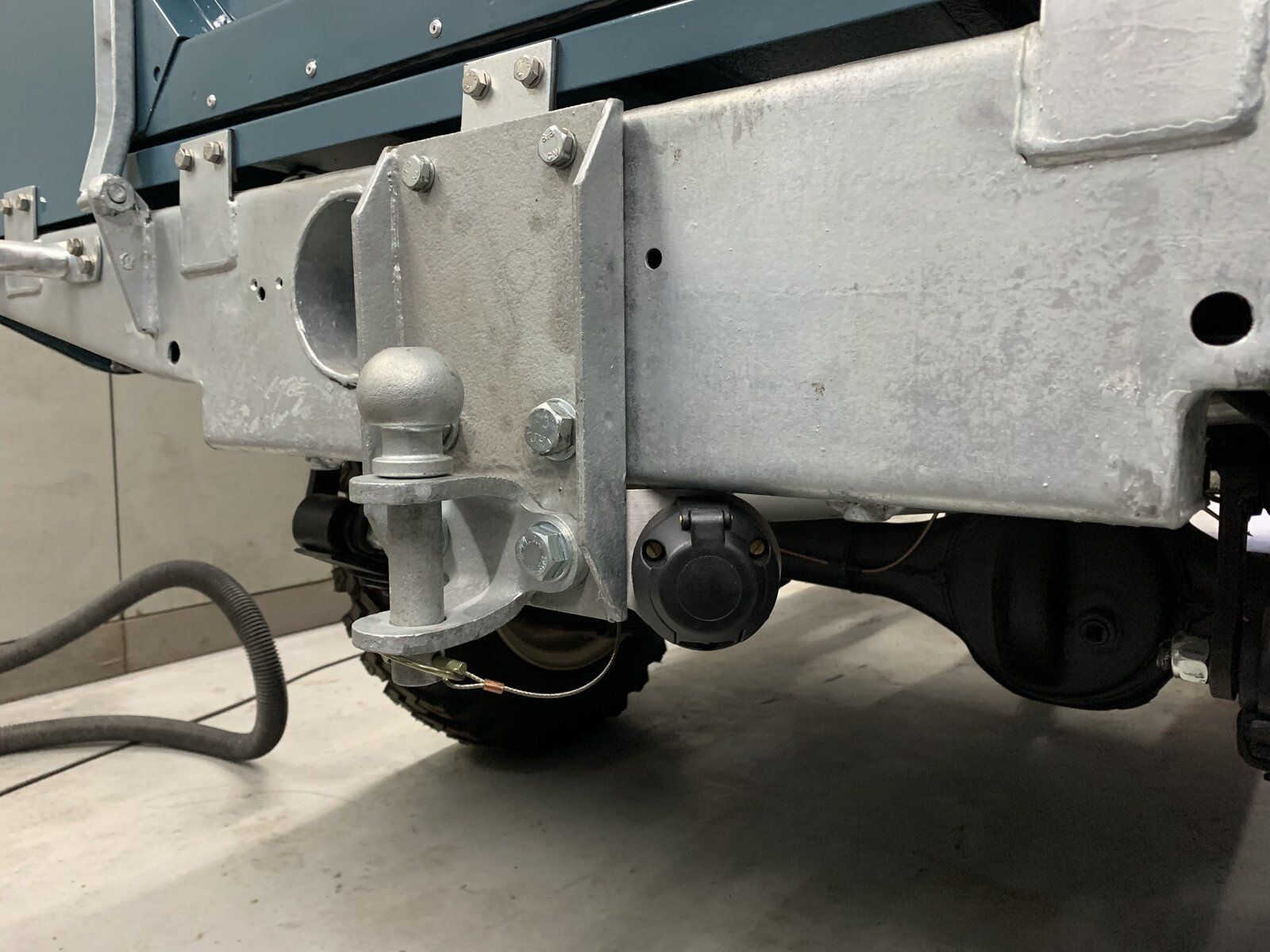

Forgot to mention made a stainless steel bracket for the trailer socket.


Attachments

  • 15B65929-382E-4177-8F79-16C5C6DA9F3D.jpeg
    152.6 KB · Views: 105
  • CD135BE5-F7F9-4C36-85DA-3E31470598B3.jpeg
    232.6 KB · Views: 107

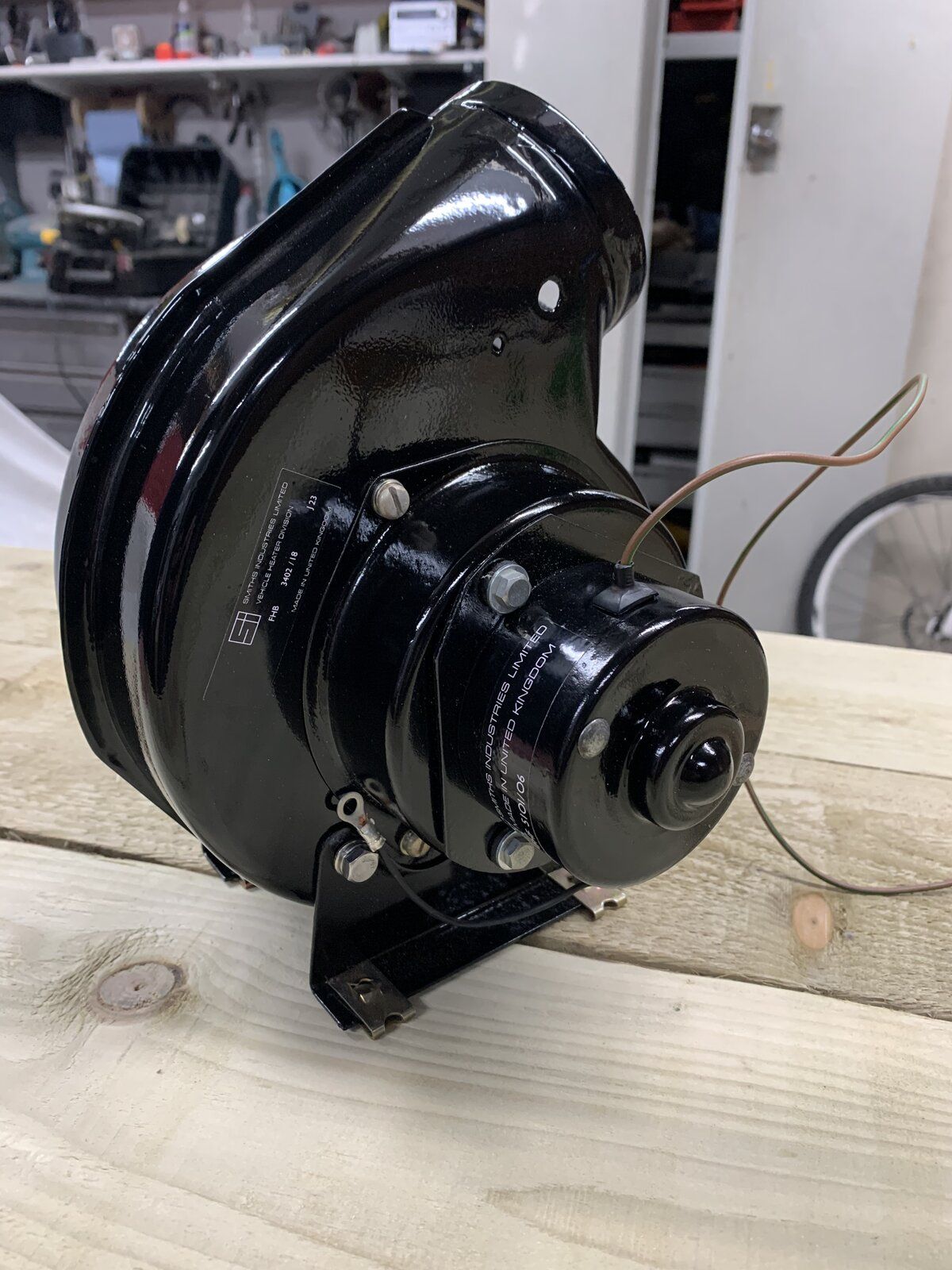

Snail shell fan and motor refurbished ready to bolt back on once the wings are fitted


Attachments

  • 2D3710D7-F811-434F-A386-67CE783324D9.jpeg
    387.8 KB · Views: 114
  • 578DFCBC-2D28-4D24-BAA5-103AB5E37074.jpeg
    258.2 KB · Views: 118
Seat box and floor panels fitted


Attachments

  • C4DC8969-67CC-42D0-AC53-BEFA3B067E1D.jpeg
    296.5 KB · Views: 104
  • 9B1F28EC-D46D-4D88-81C0-0C4D7D9D00B2.jpeg
    282.1 KB · Views: 100
  • B774E780-FE31-489F-BF77-A5CE82D6F96C.jpeg
    295.3 KB · Views: 100
Last edited:
Made a stainless steel front number plate holder, cut a plastic milk bottle to make packers to go between the stainless and galv bumper (they dont mix well)


Attachments

  • 7BF47BE6-079C-4983-80EF-75BFB8E6E55E.jpeg
    207.4 KB · Views: 117
  • C4551672-C753-4FF3-BA08-F093C553F5FD.jpeg
    190.2 KB · Views: 99
Last edited:
Exmoor full hood fitted this morning! looks great.


Attachments

  • 6213A48F-D087-44CB-B32B-78164151C73E.jpeg
    240.2 KB · Views: 112
  • EABF3A77-BC5D-4270-A966-1F60AA8088F2.jpeg
    250.1 KB · Views: 86
Exmoor delux seats fitted, took some time to work out how to fit them with the frames and steel flat bar stop. (Thanks google!)


Attachments

  • 77D78163-847F-4D1D-8069-9B0D1041C770.jpeg
    265 KB · Views: 88
She will drive like a brand new LR did back then:eek::D.

Have to say I have been watching and you have done some cracking work you should be very proud of:).

Time to enjoy it now:).

J

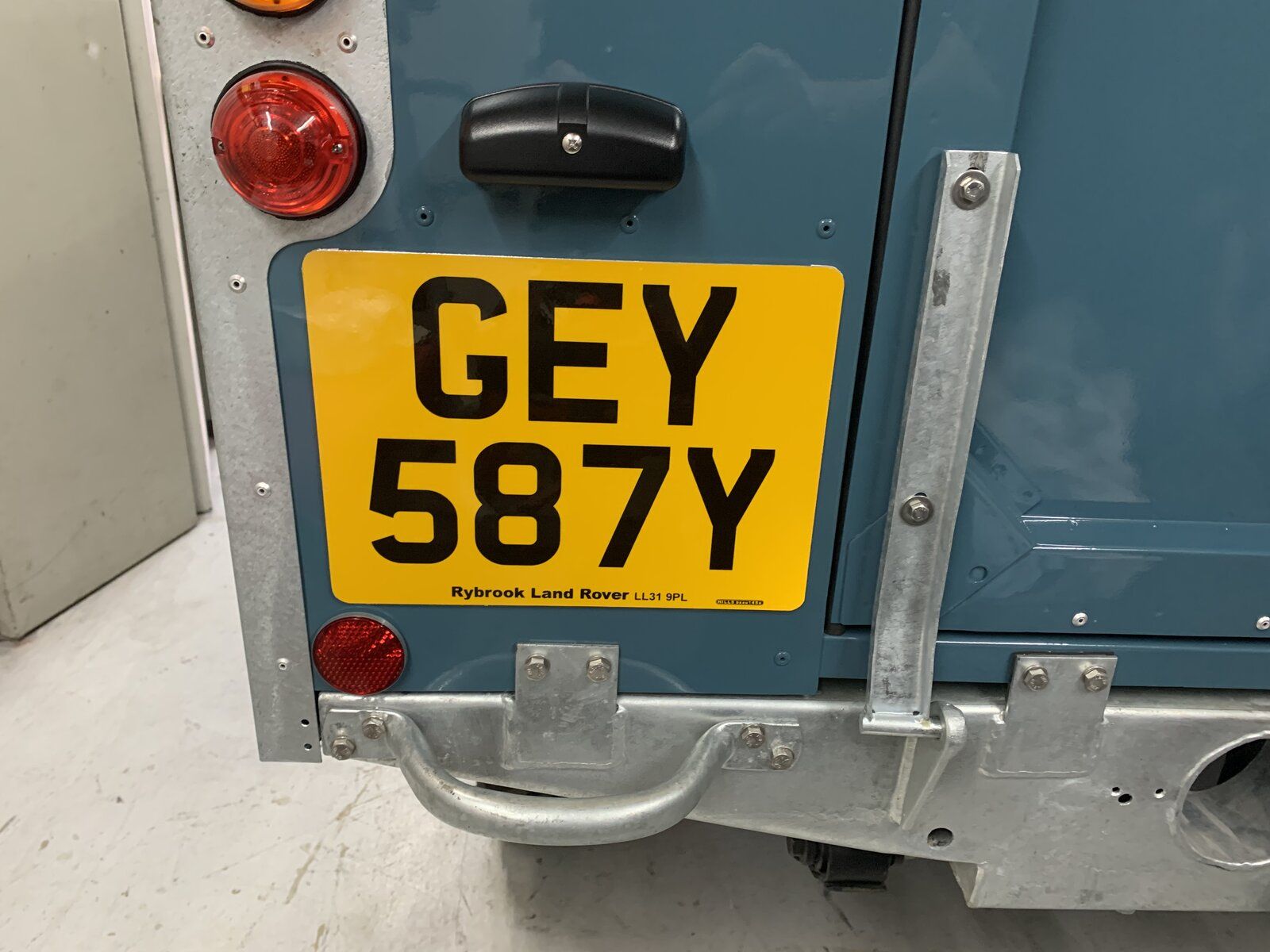

Number plates fitted courtesy of Rybrook Landrover (conwy landrover)


Attachments

  • DC39E7F3-CE72-4EF1-8625-7D3175085C25.jpeg
    182.3 KB · Views: 80
  • DFBF35A6-5C0D-435F-9F51-B0D9D13004D9.jpeg
    209.3 KB · Views: 84
Is that it complete then? Are you ready to take her out for her maiden journey?
Not quite there, just waiting for the front wings to come back from the painters, bolt them on, bolt the bonnet and need to order some headlight bowls and lamps fingers crossed may be ready next week

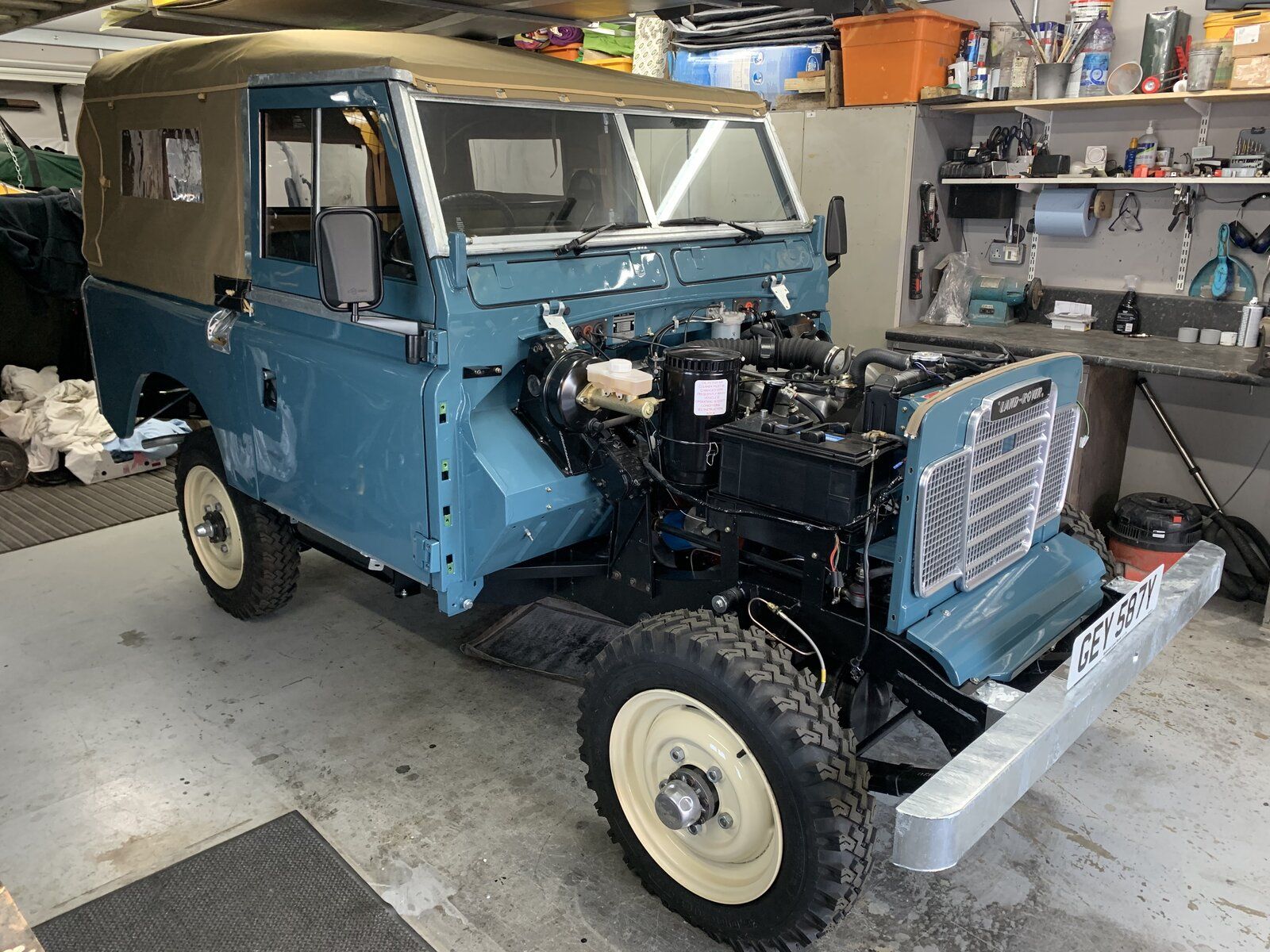

Here she is from the front


Attachments

  • FB07E068-B9D8-48F0-88D9-D08E55A51344.jpeg
    402.6 KB · Views: 85
  • 26310AA7-D23F-438A-AF98-84188734C383.jpeg
    374.4 KB · Views: 83
