Defender nut and bolt rebuild

It’s been a while since I rebuilt my series3 https://www.landyzone.co.uk/land-rover/series-3-swb-nut-and-bolt-rebuild.368569/ since then I’ve been looking for my next project. The criteria was quite simple, it had to be a Landrover and registered on Anglesey, how hard could it be ………

Pictures!!!

Watching already even though nothing to see yet.

J

Cant seem to be able to post photos off my phone atm

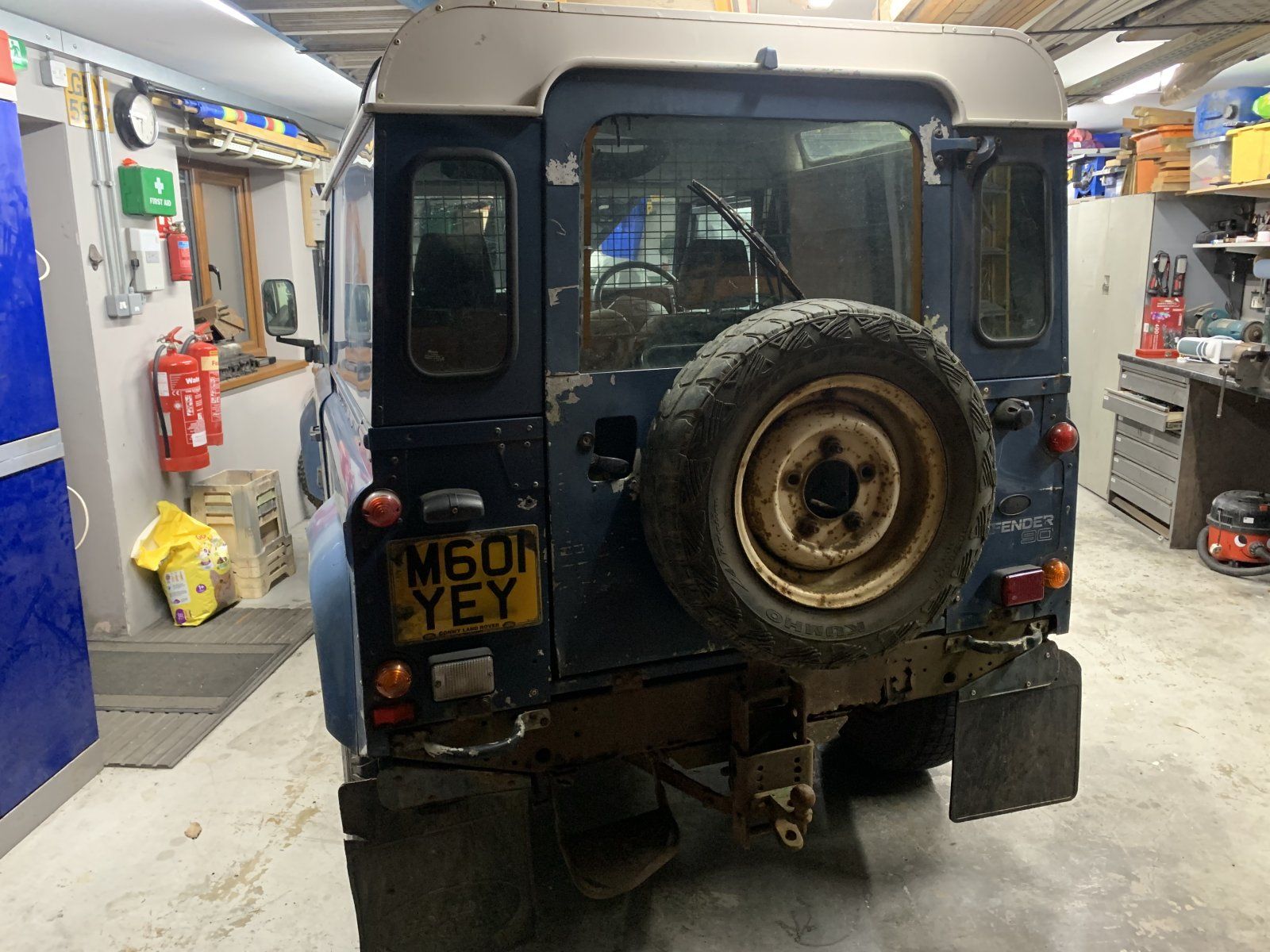

If the post title didnt give it a way, yup you may have guessed by now that I have found, purchased and collected a defender 90 registered from nowhere else other than the birth place of Mr Wilks’ dream Anglesey or should I say Ynys Mon ! Let the hammering, swearing and sweating begin…. And yes before you ask in that order

UpandOver said:

hammering, swearing and sweating

Click to expand...

is that after sweeping & shovelling the 'loose' bits?

Rich.

UpandOver said:

Cant seem to be able to post photos off my phone atm

Click to expand...

I downloaded the imgur app,
add photos to it from your phone gallery, copy the url of the image,
Then press the little chain link icon (or whatever it is) on the top line (to the right of the 'A') and paste the text into the box.

Now let's see that rust bucket, lol

https://drive.google.com/drive/folders/1yaTkXkhSFRQY-f4Buge4u0fvUhdOBrNh
Here is a link to a google drive folder with photos of the rust bucket !

Have to say, you do like a challenge!!!

adrianhartopp said:

Have to say, you do like a challenge!!!

Click to expand...

Wowww. You can’t say that about Anglesey. Well not out loud anyway.

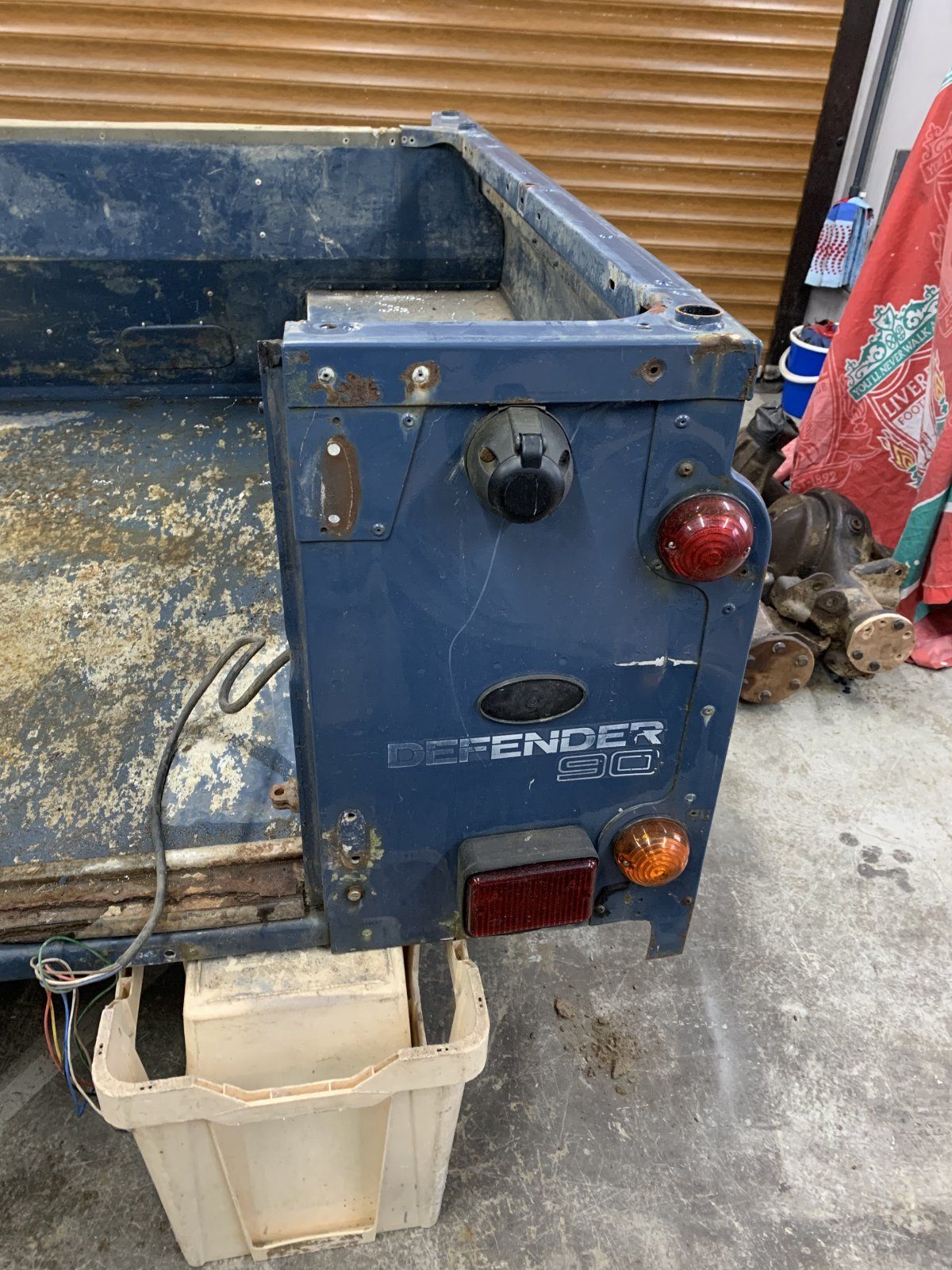

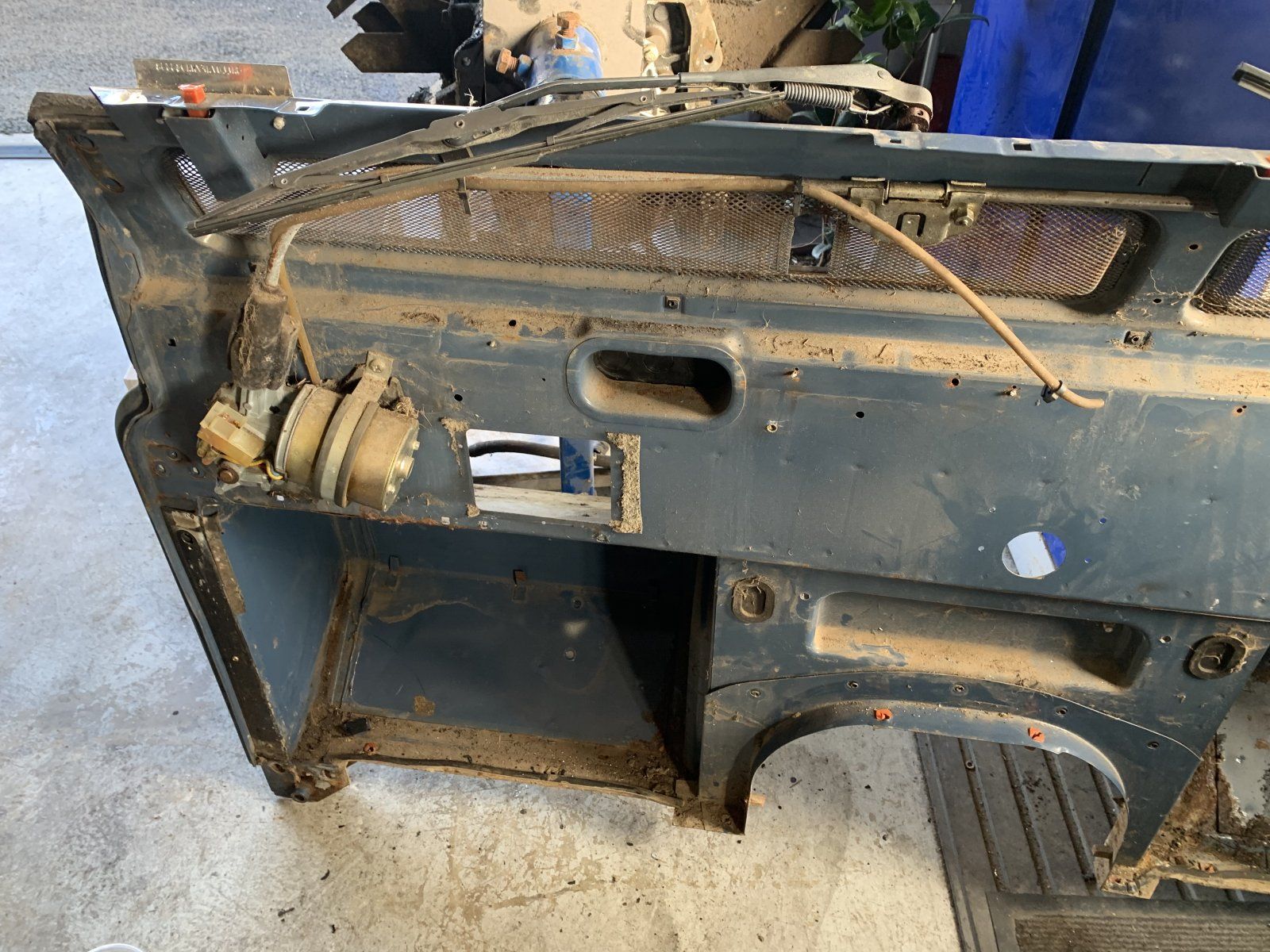

Now that the web page allows me to upload photos let the updates begin, here’s some photos of the strip down

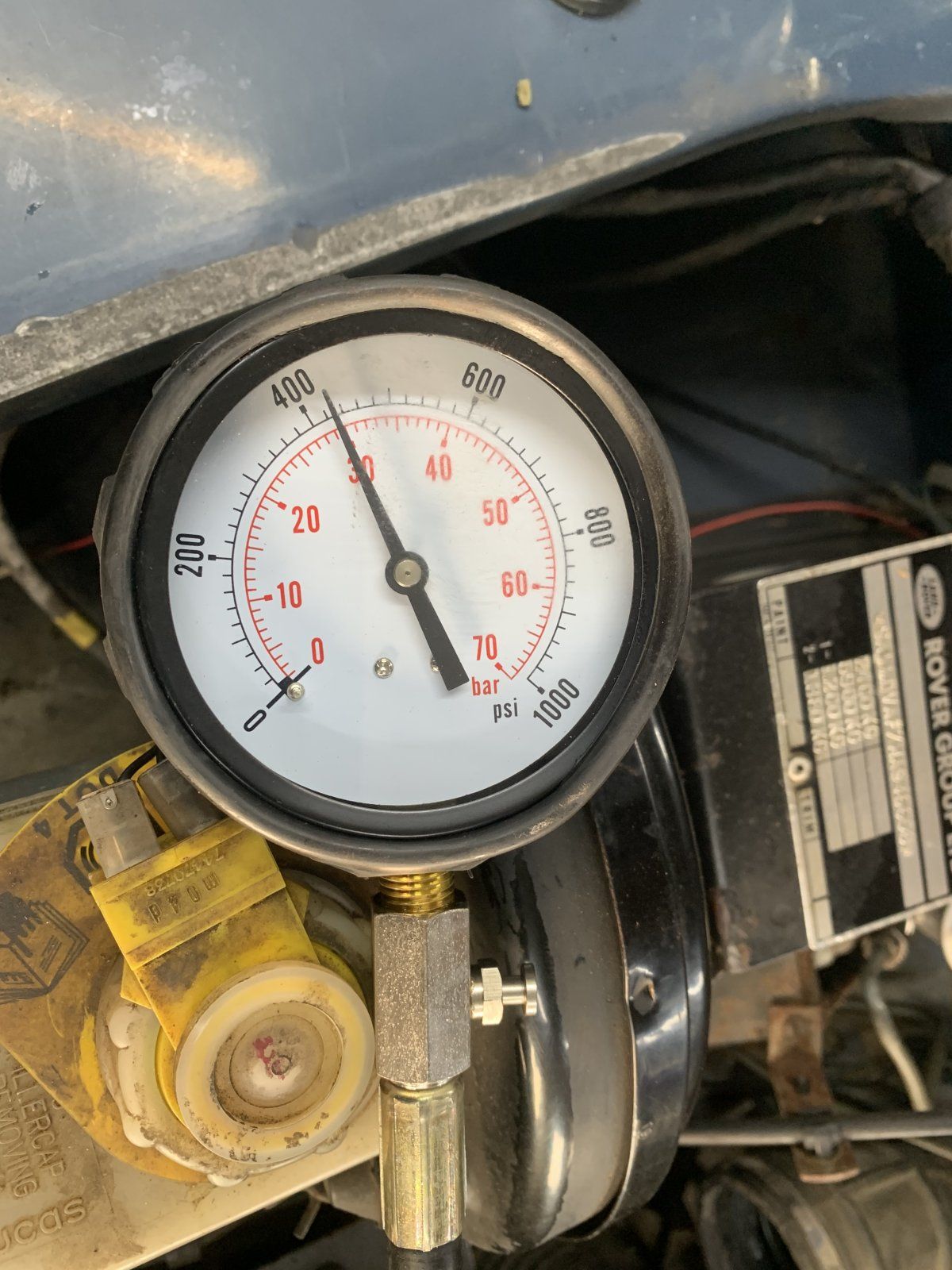

A pleasing test result with the Engine compression tester

That looks to be in good nick ..... just needs attacking with a pressure washer

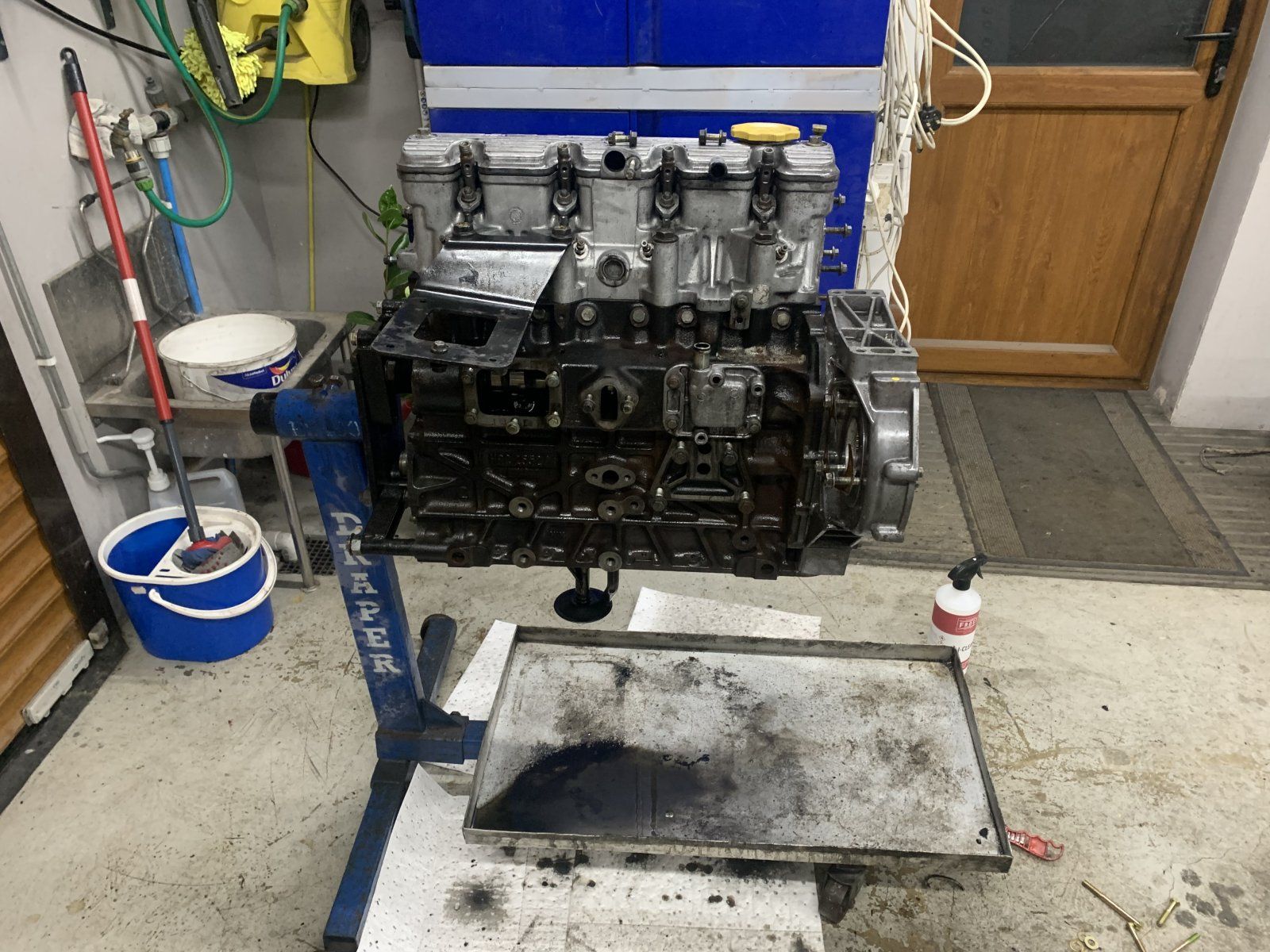

Engine cleaned, painted, new oil stem seals, new , refurbished fuel pump and injectors, new water pump, cam belt kit, new lift pump and inj pipes

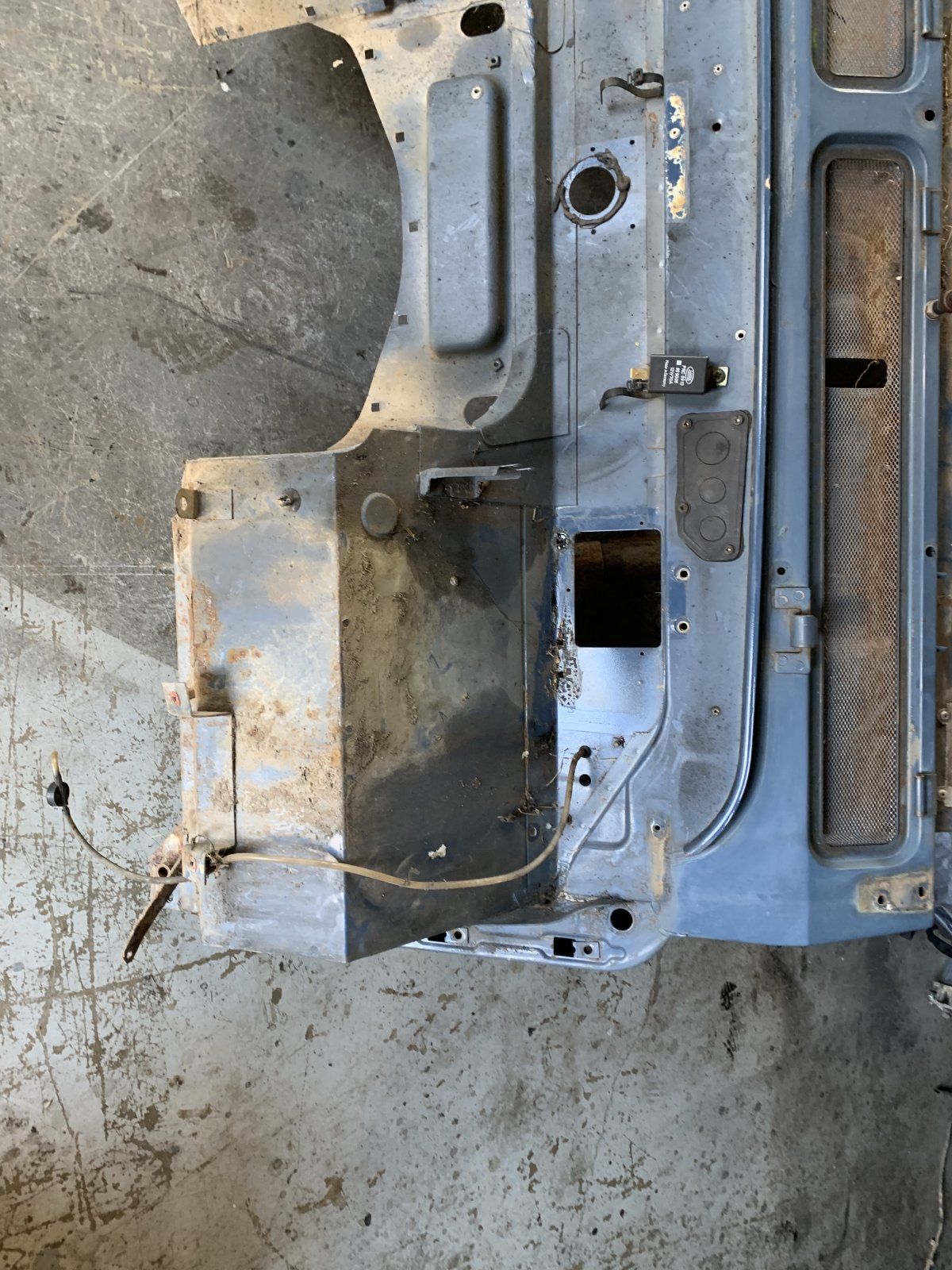

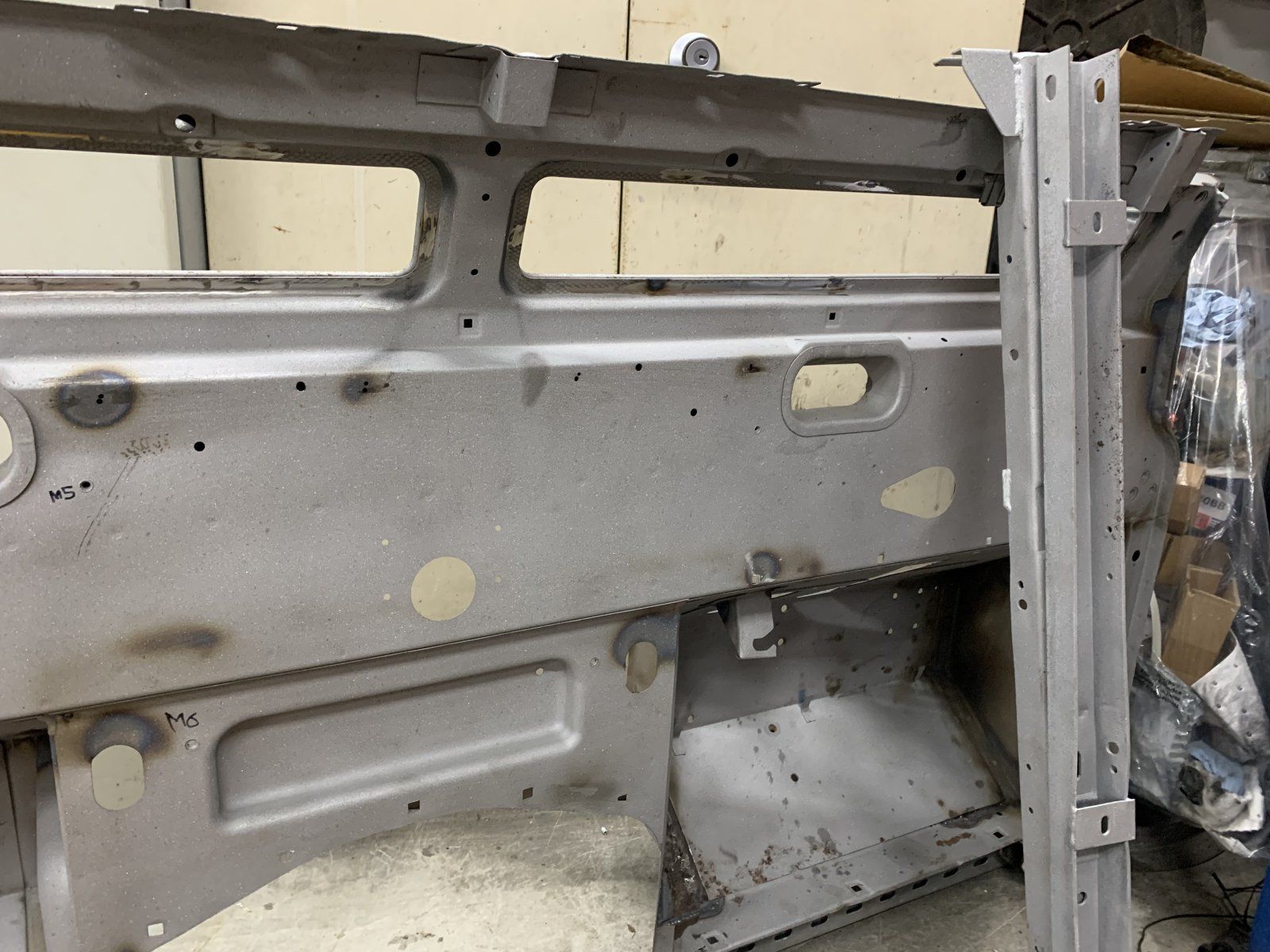

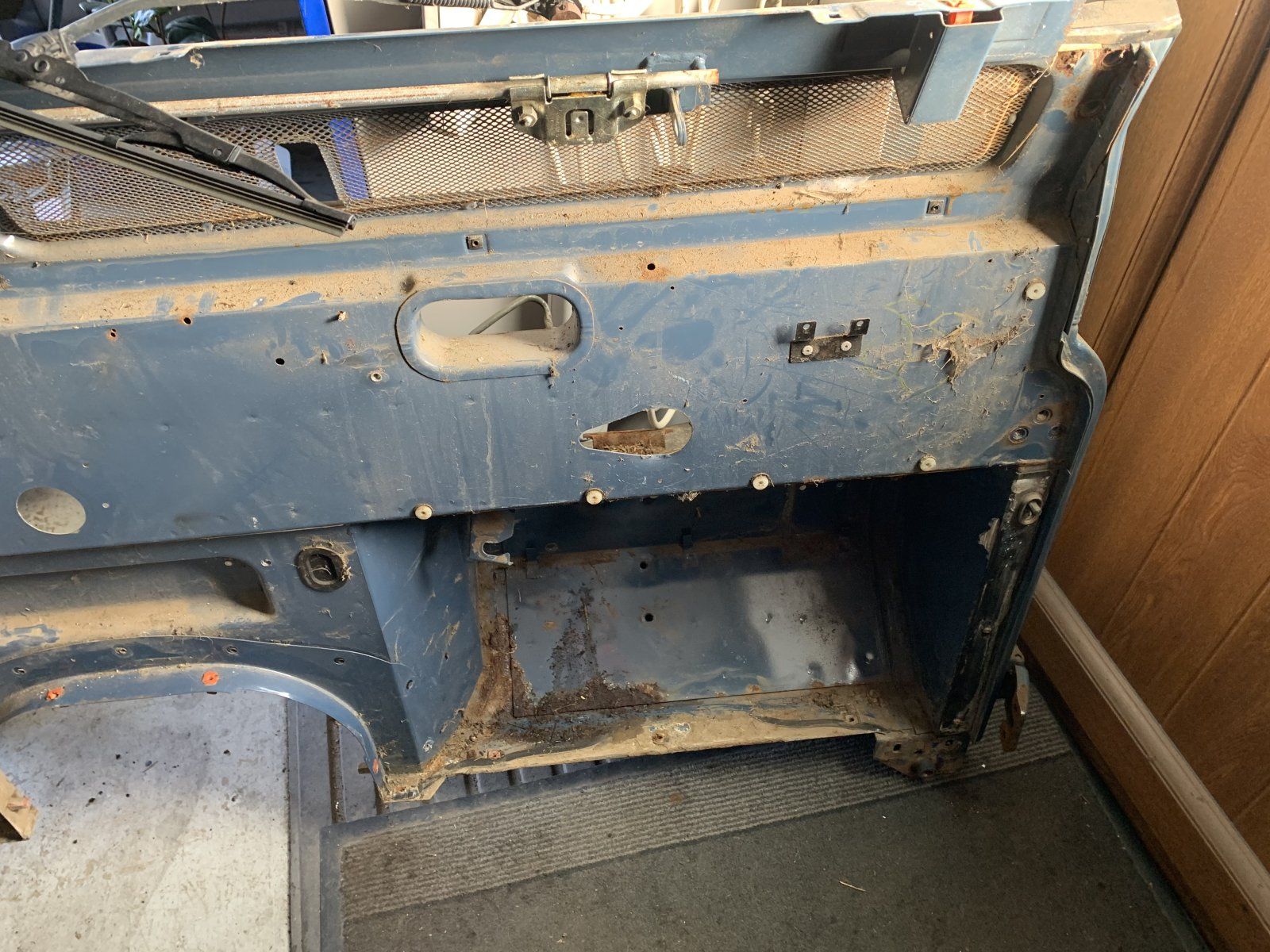

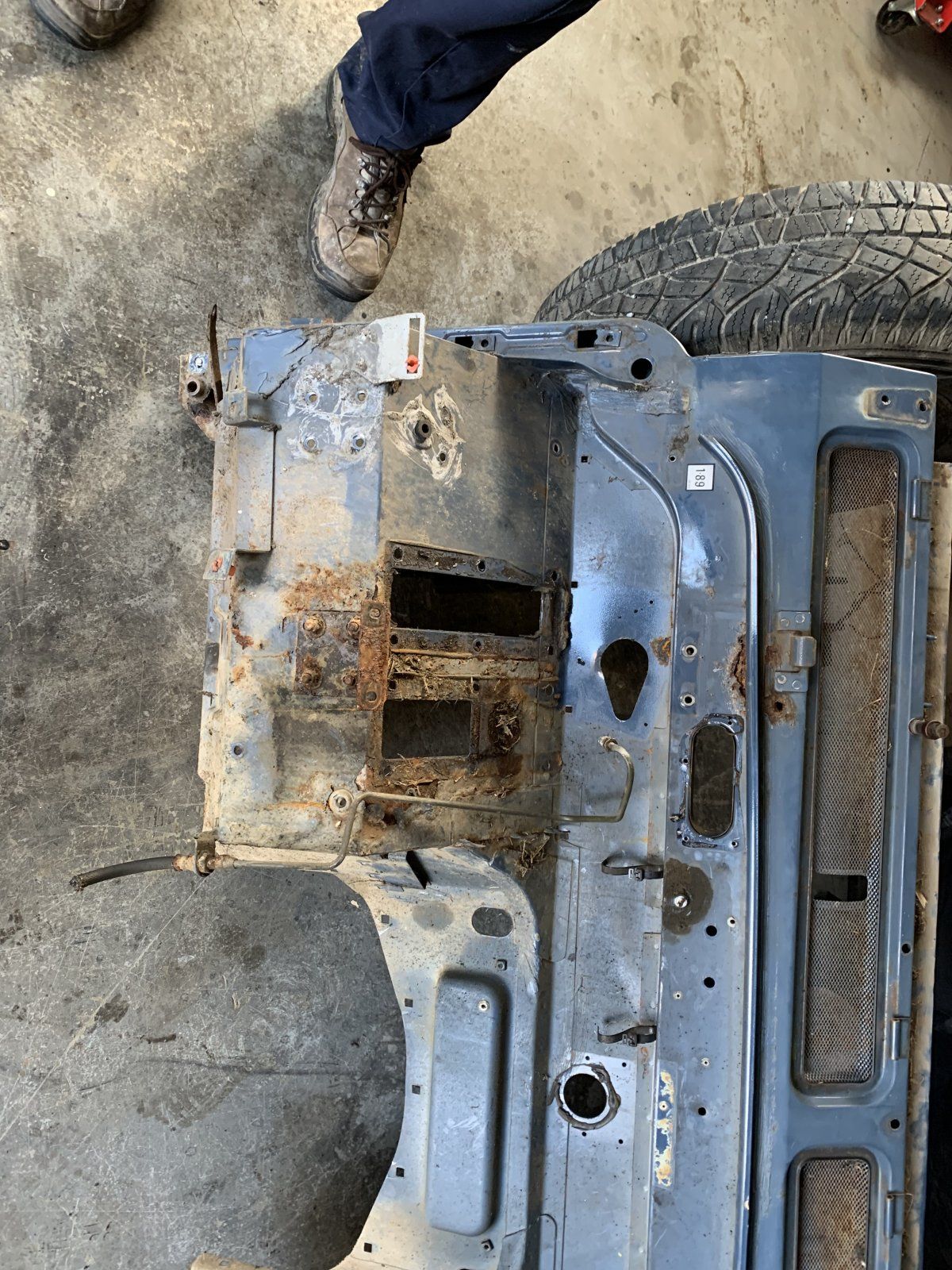

Bulkhead sand blasted, repaired in the usual places pillars, foot wells and around unused wiper arm hole. Braced up with some unistrut and sent to the galvanisers.

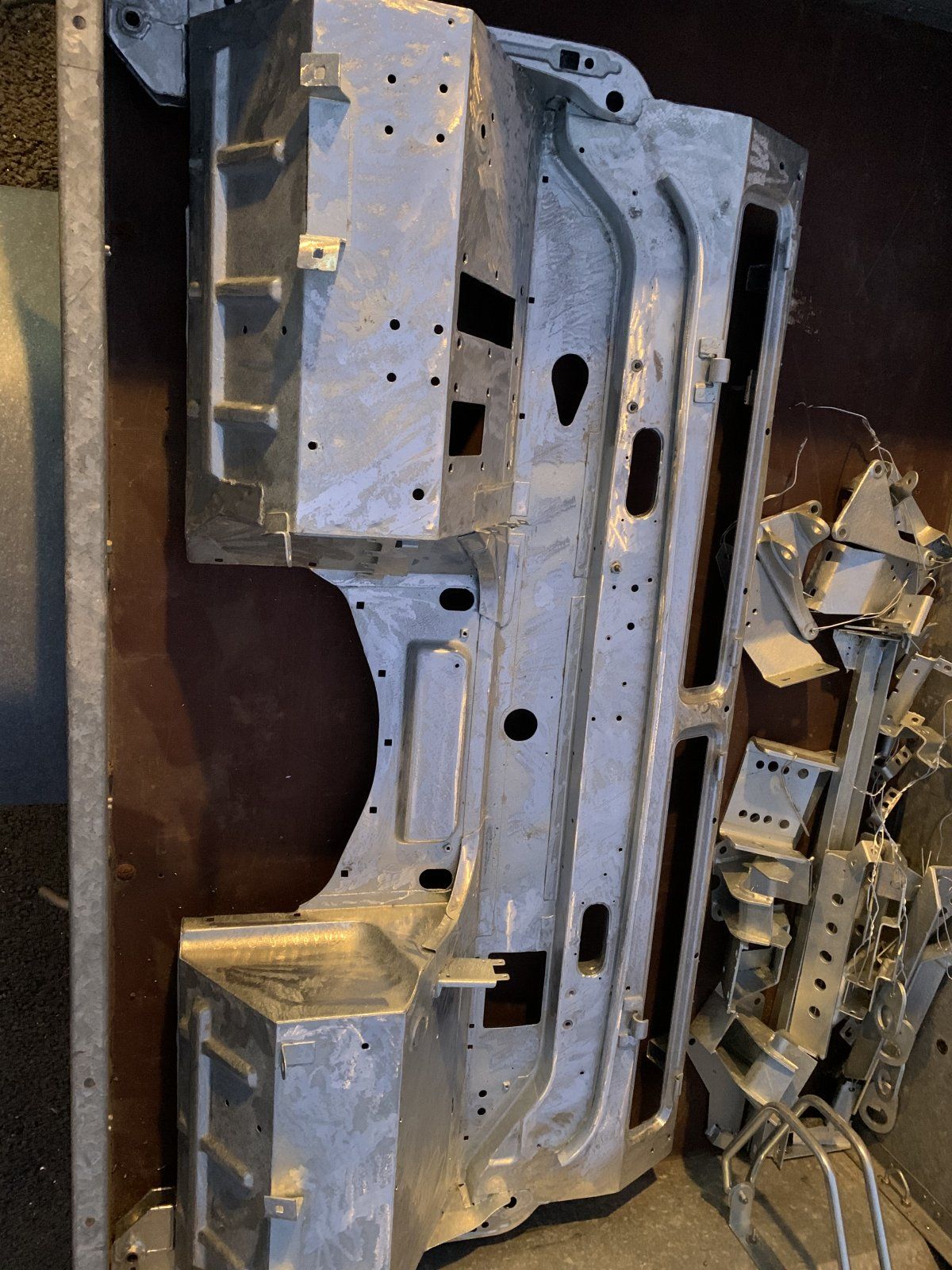

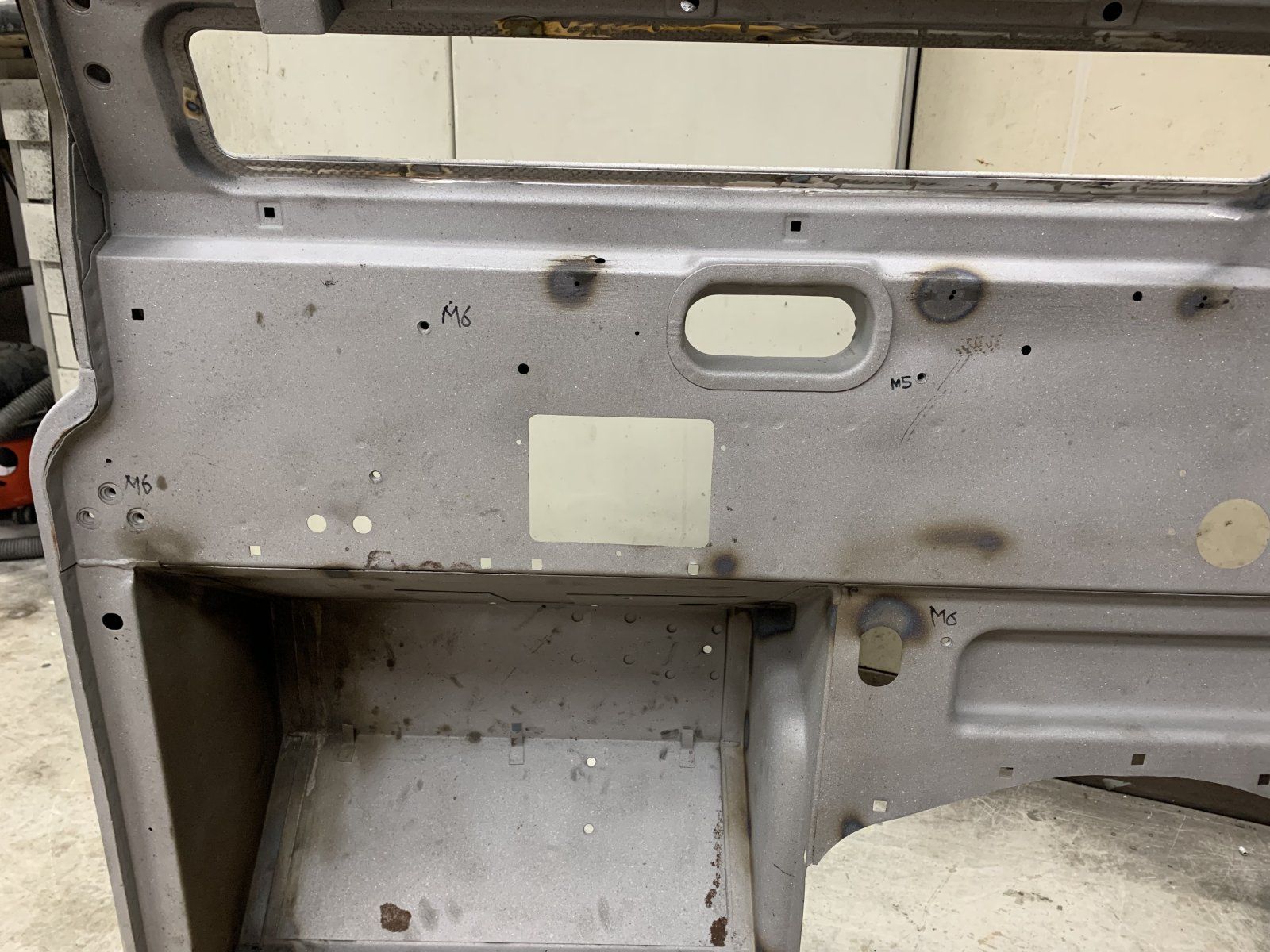

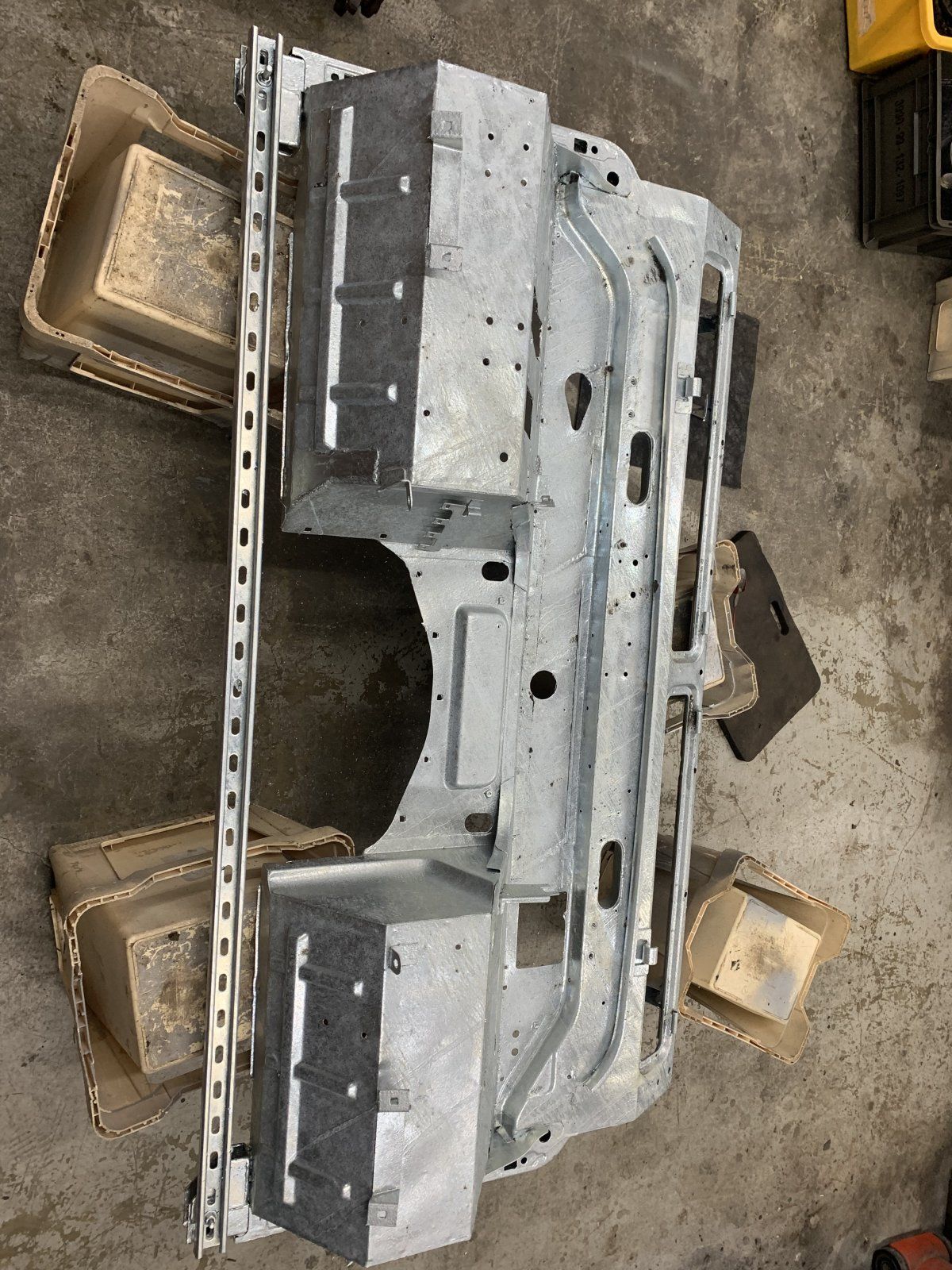

Returned from galv, cleaned up holes re tapped.
Next job etch, and prime

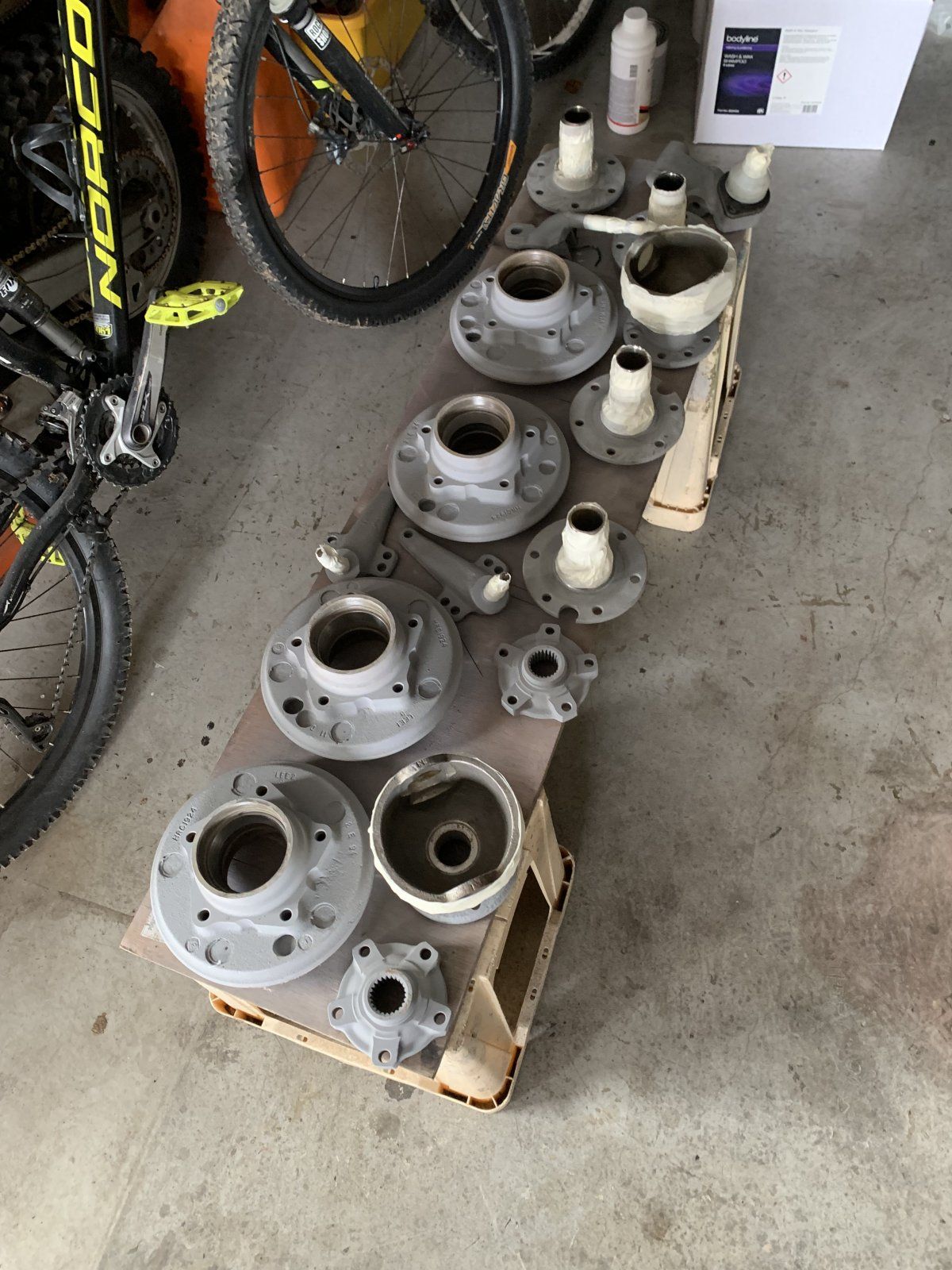

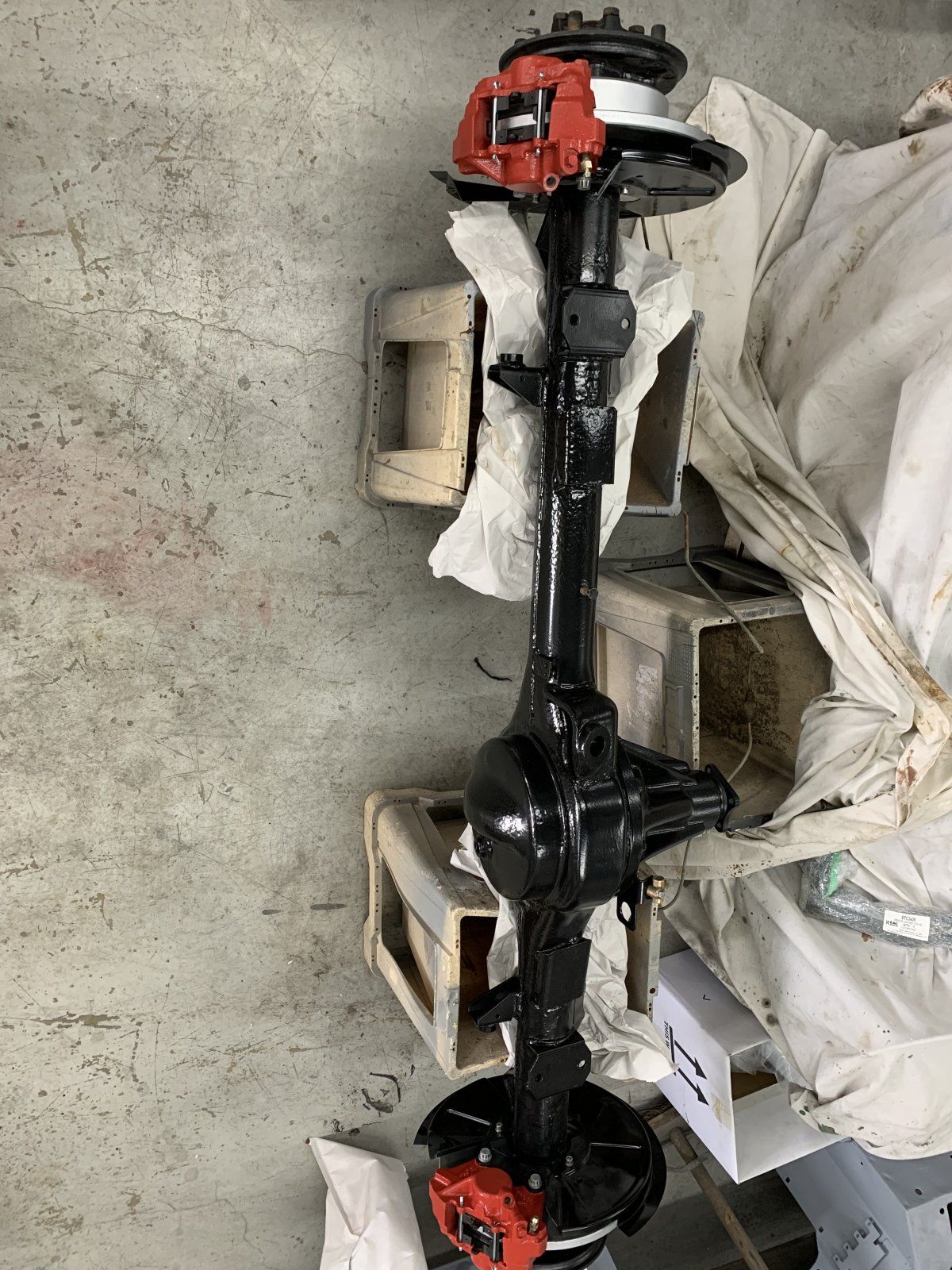

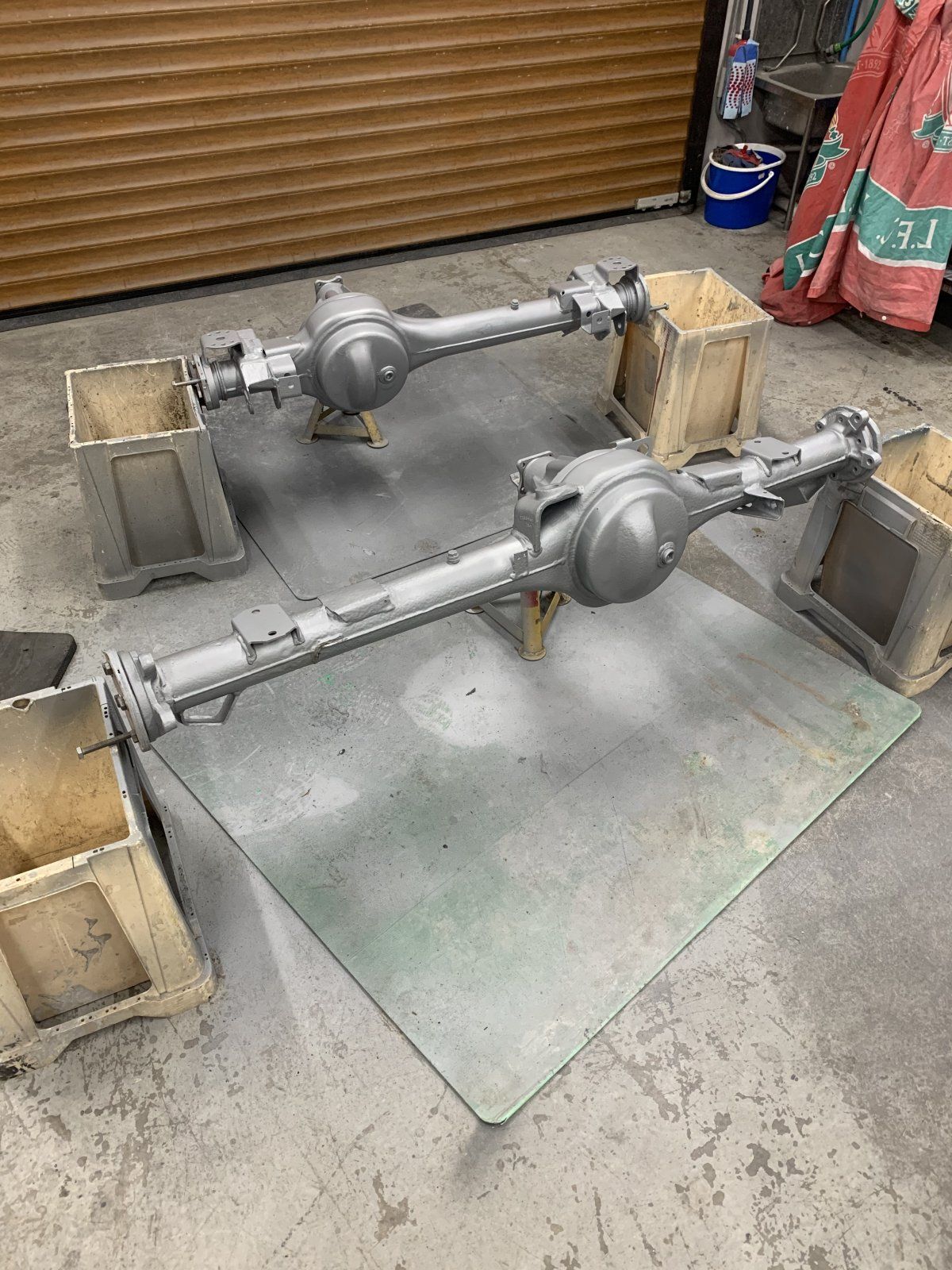

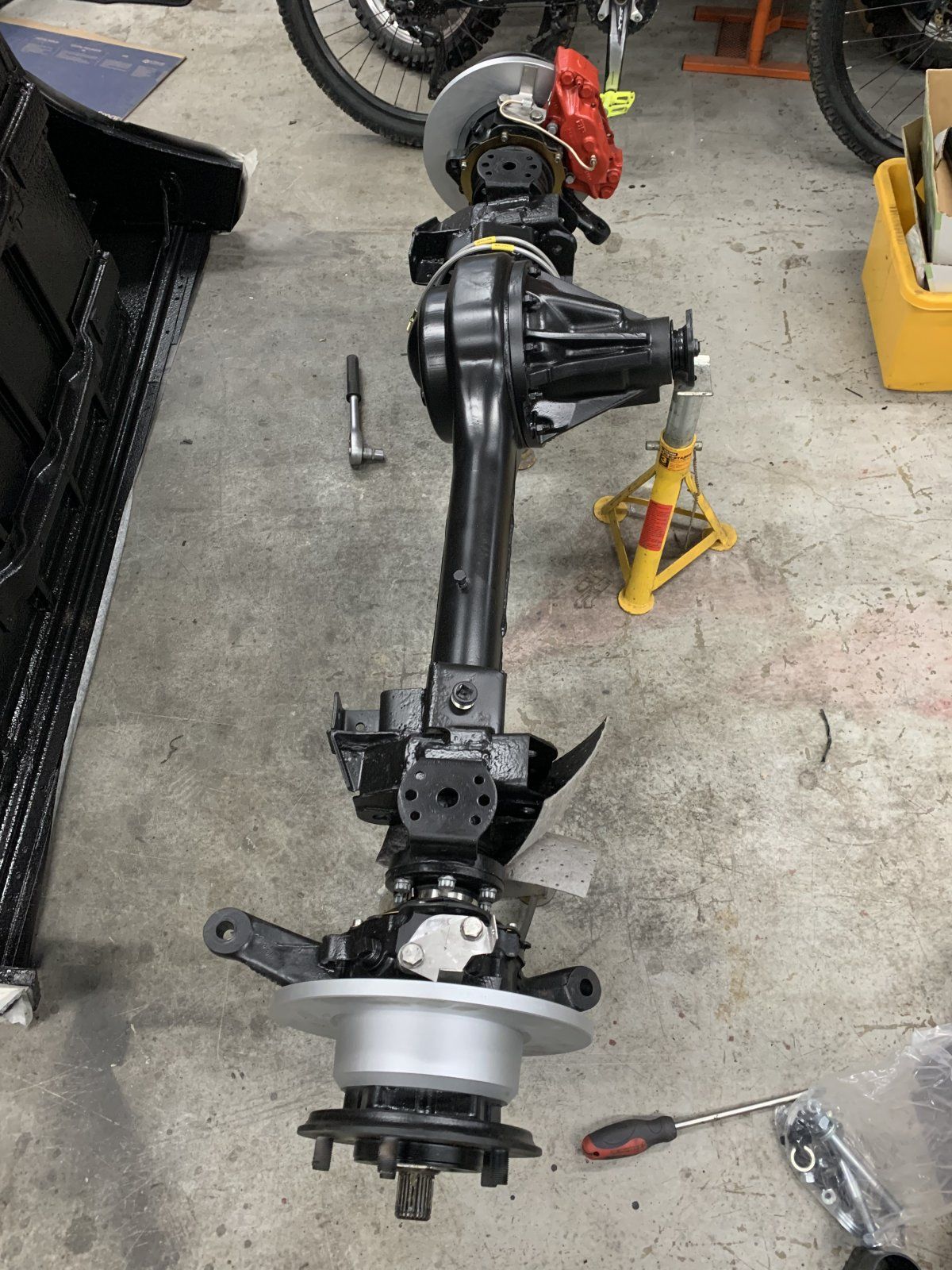

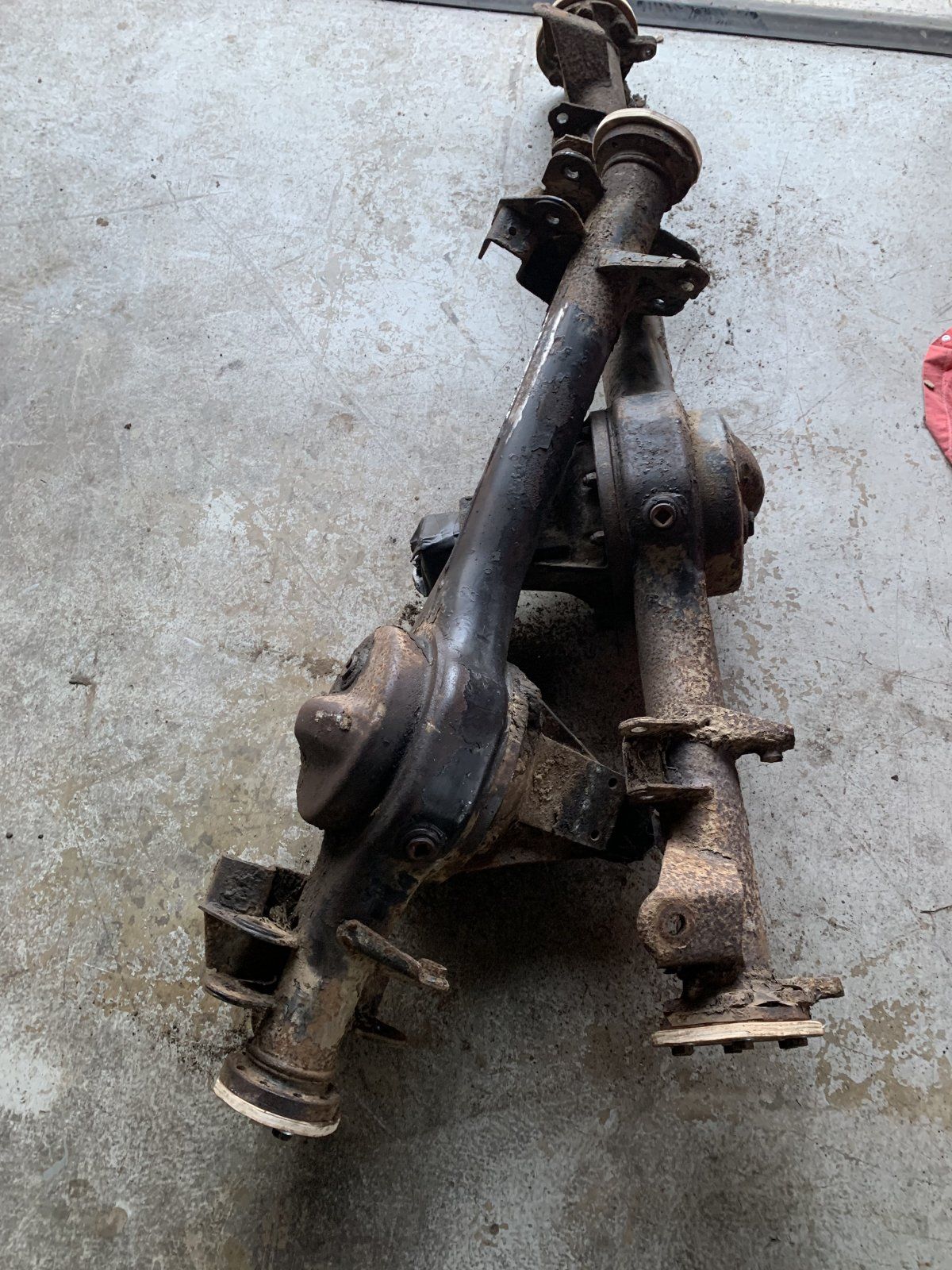

axles stripped blasted and painted, new seals, bearings, bolts, discs, swivel kits, gater kits

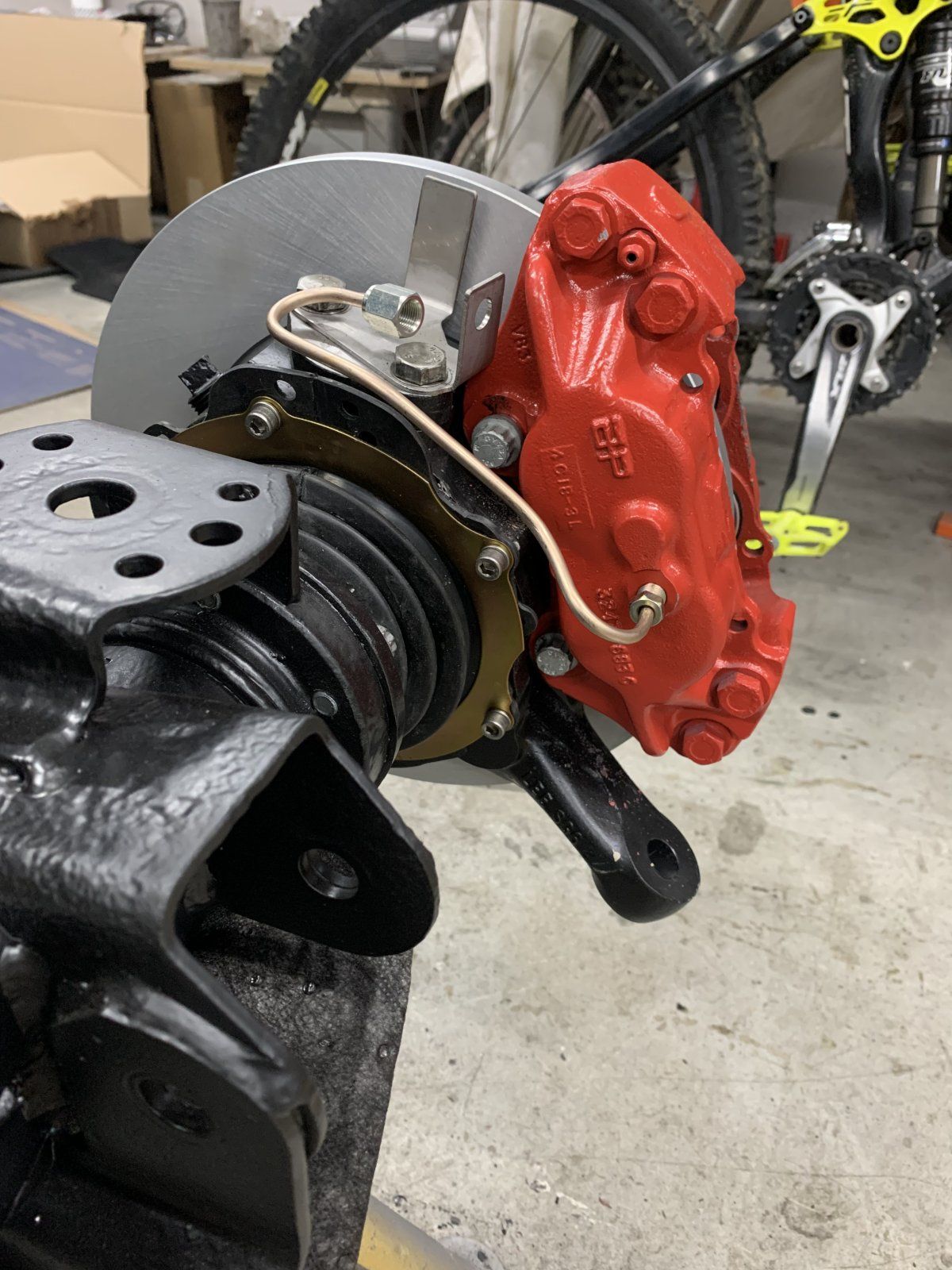

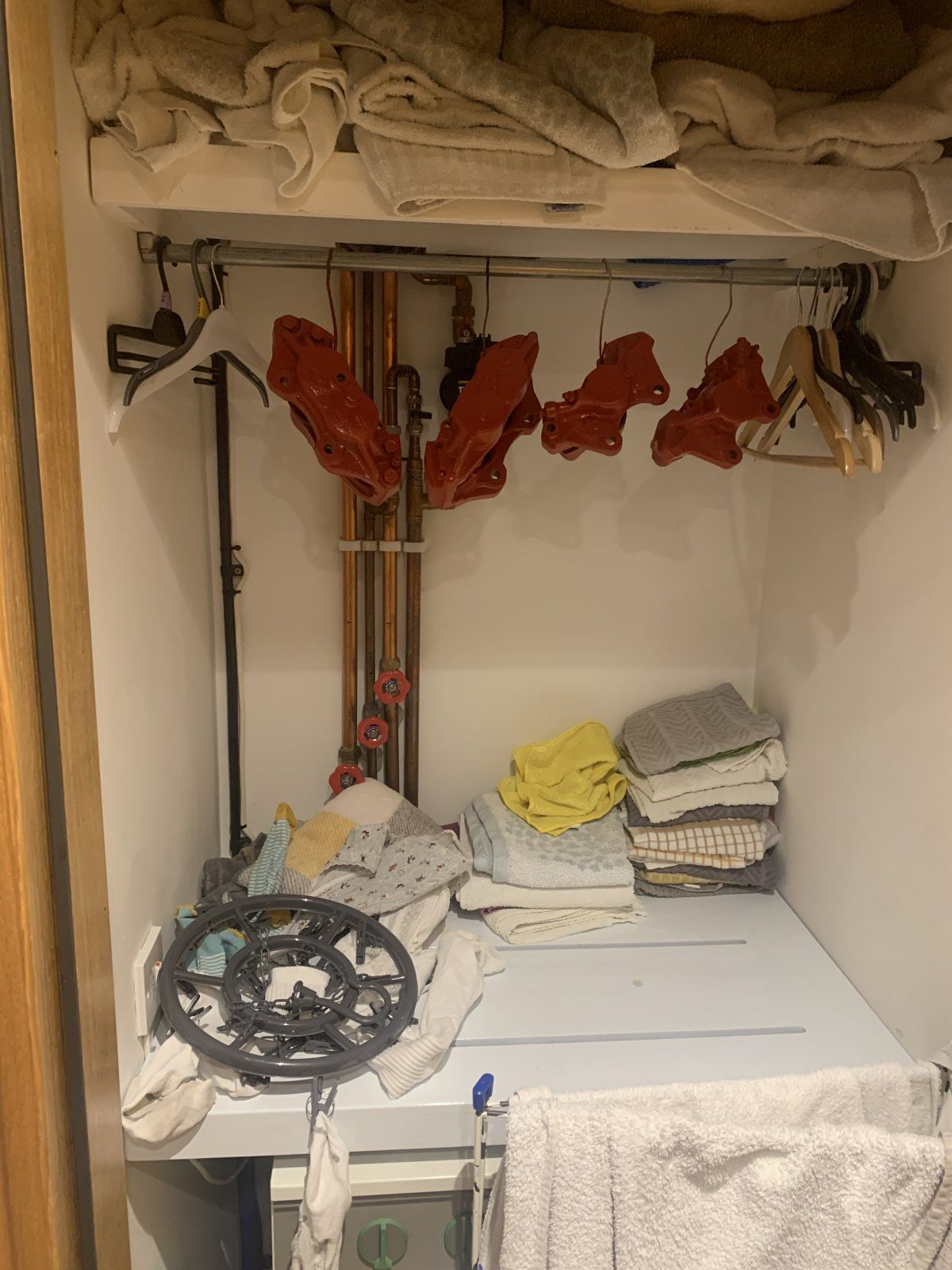

Brake calipers blasted, painted with HT enamel, although Mrs Hughes wasn’t impressed to find them hanging up in the airing cupboard ! new pistons and seals fitted with some home made stainless steel upper and lower mud guard brackets

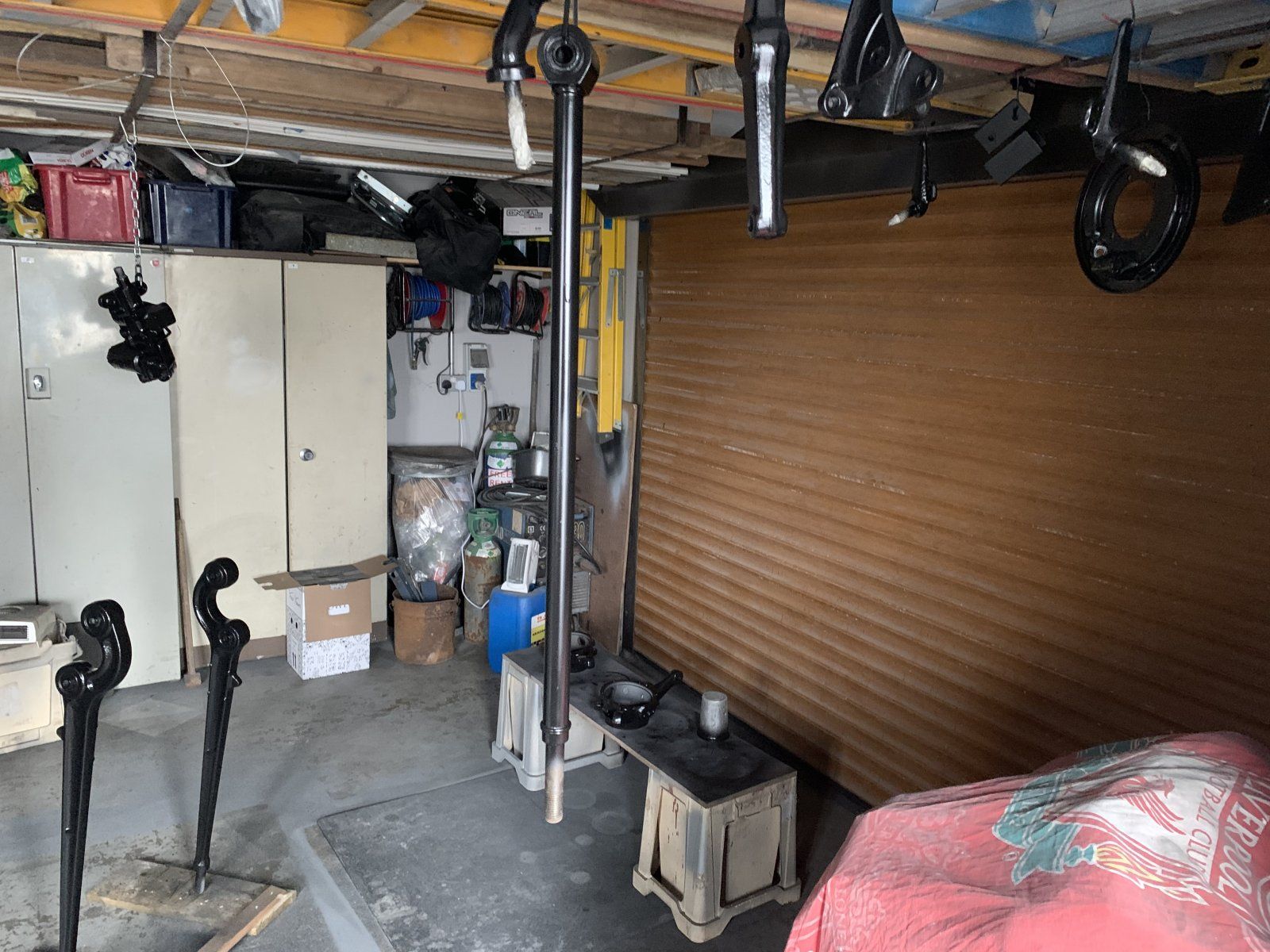

All the suspension parts blasted painted and new bushes fitted

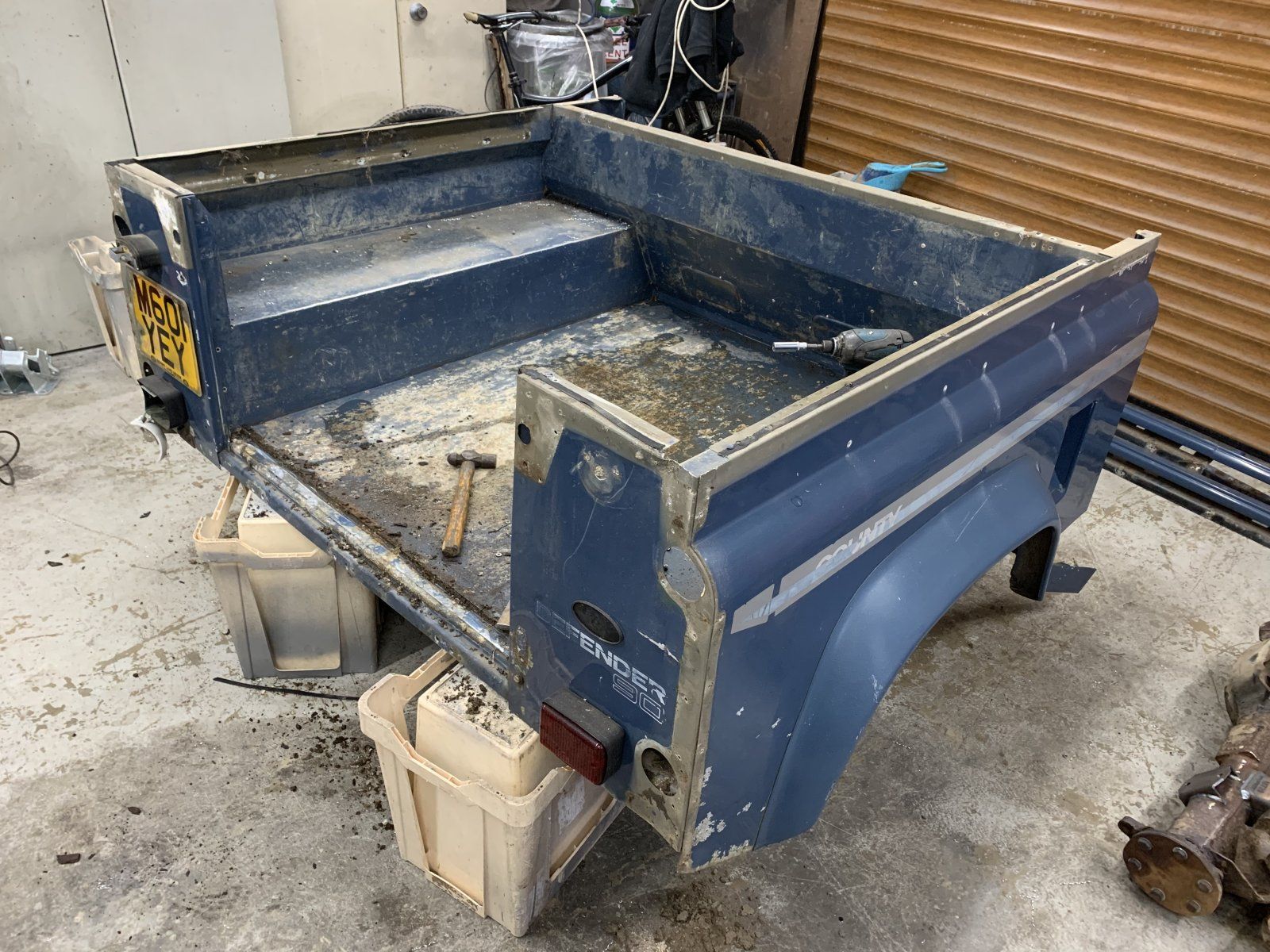

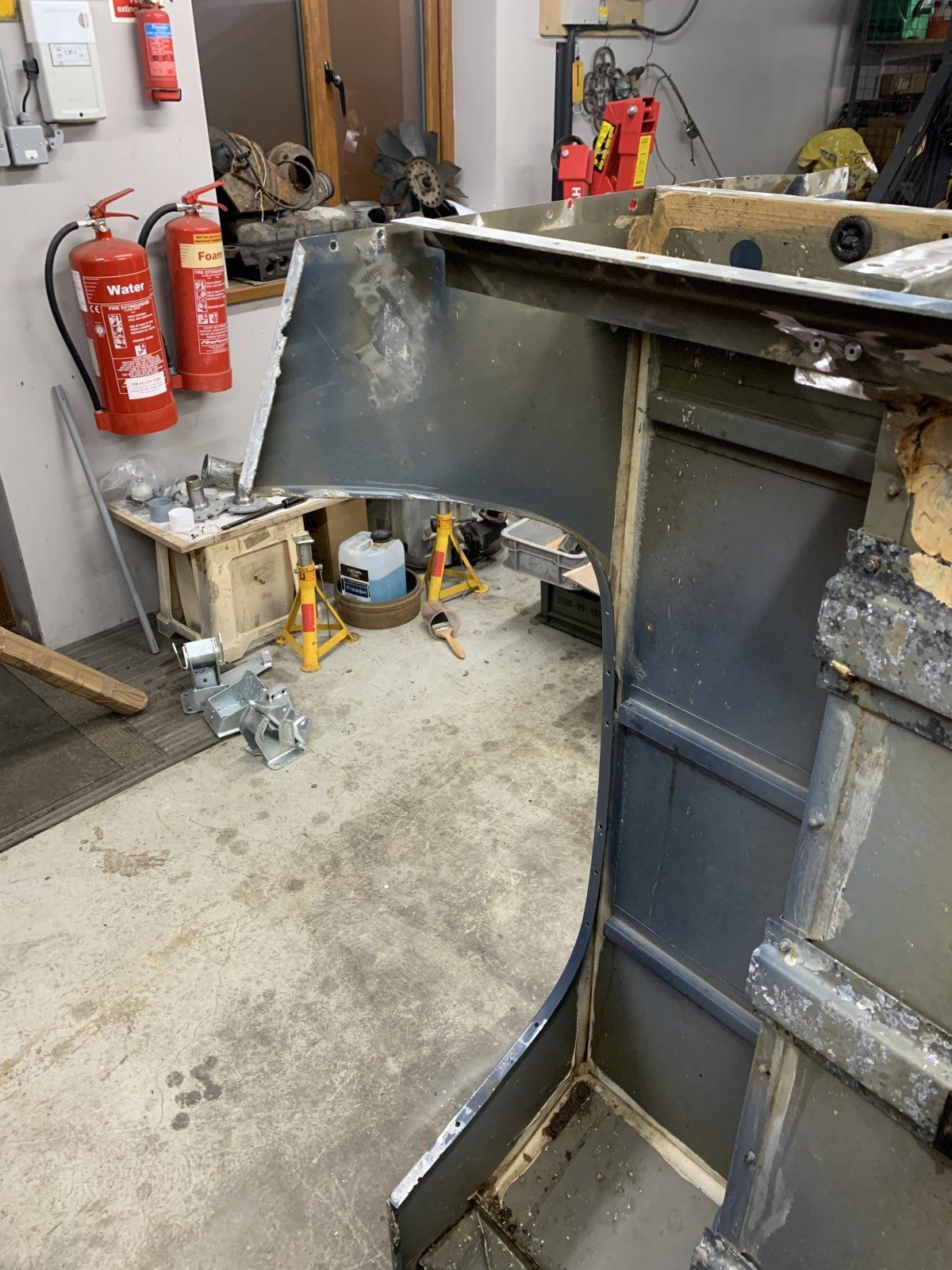

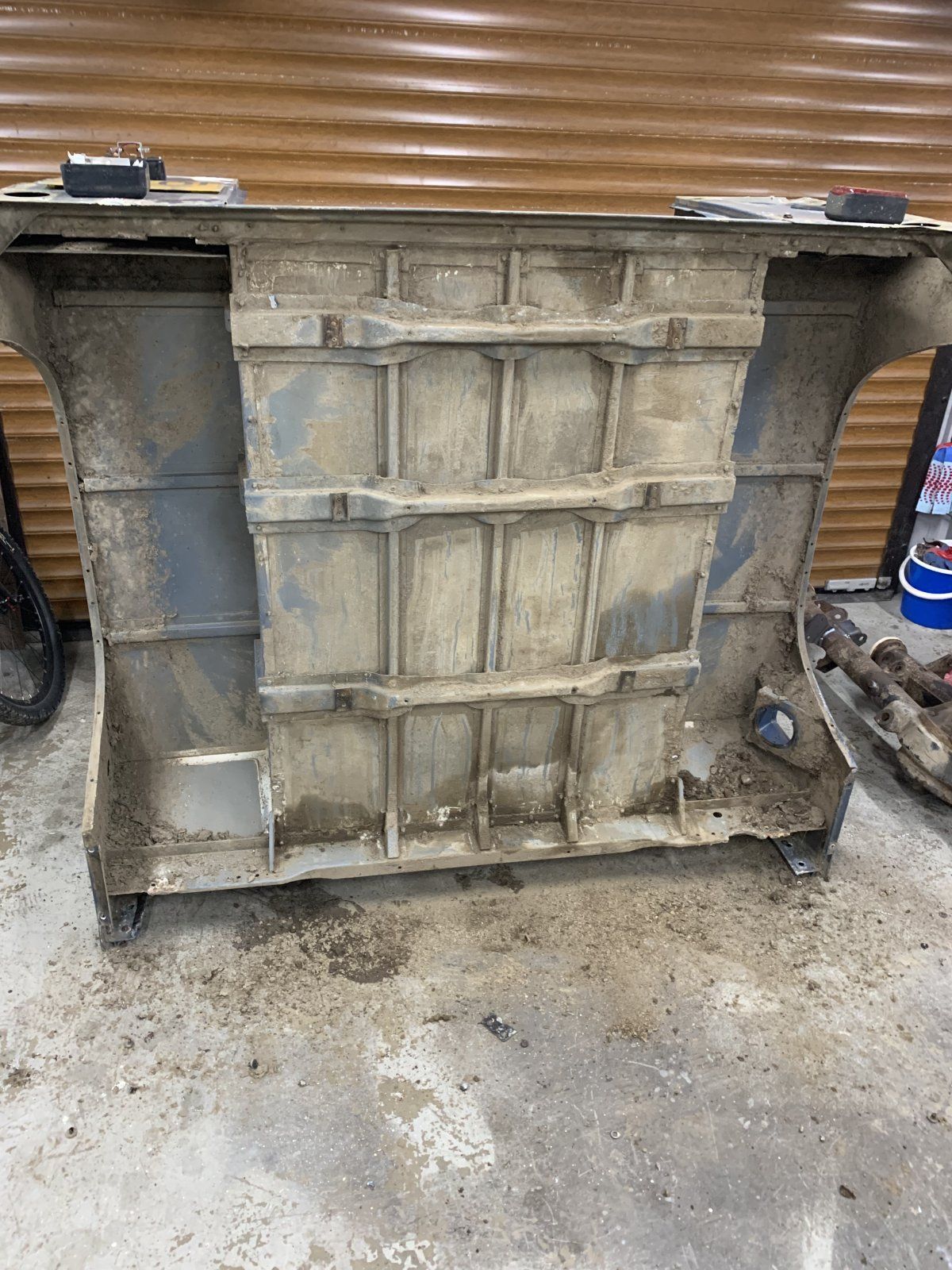

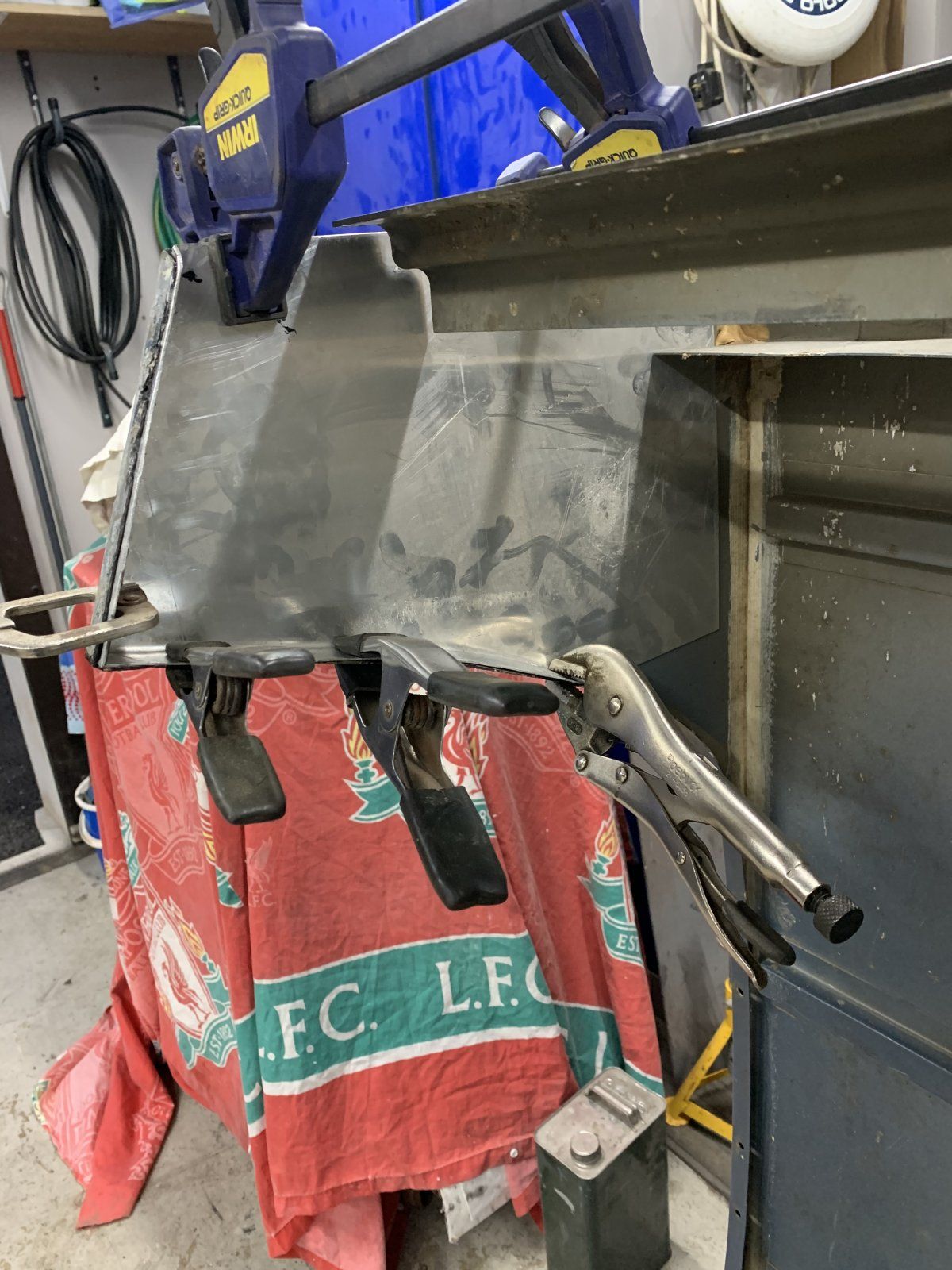

Rear tub time, new rear panels fitted and rear quarters reinforced from the inside with some hand made 3mm ali

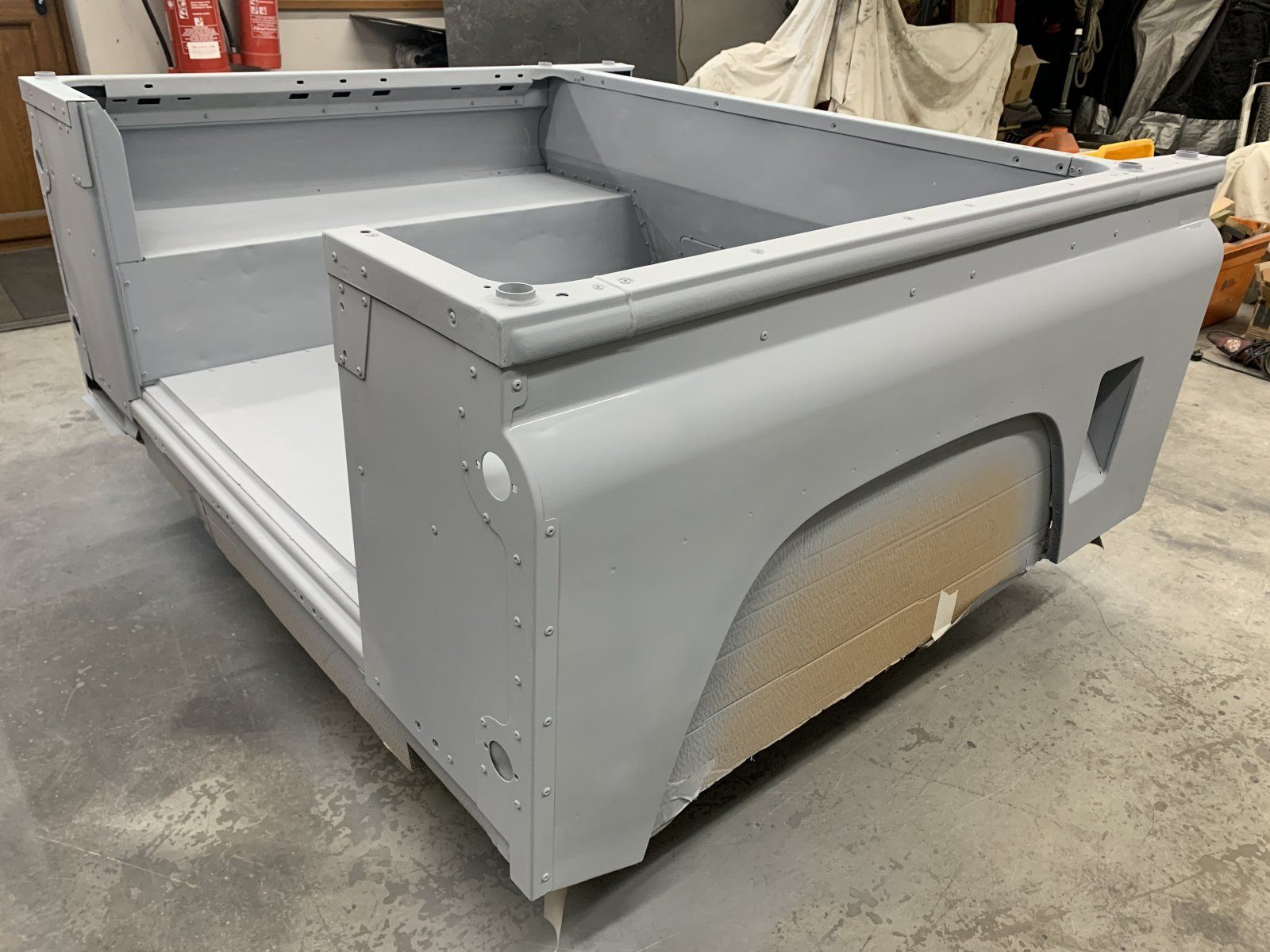

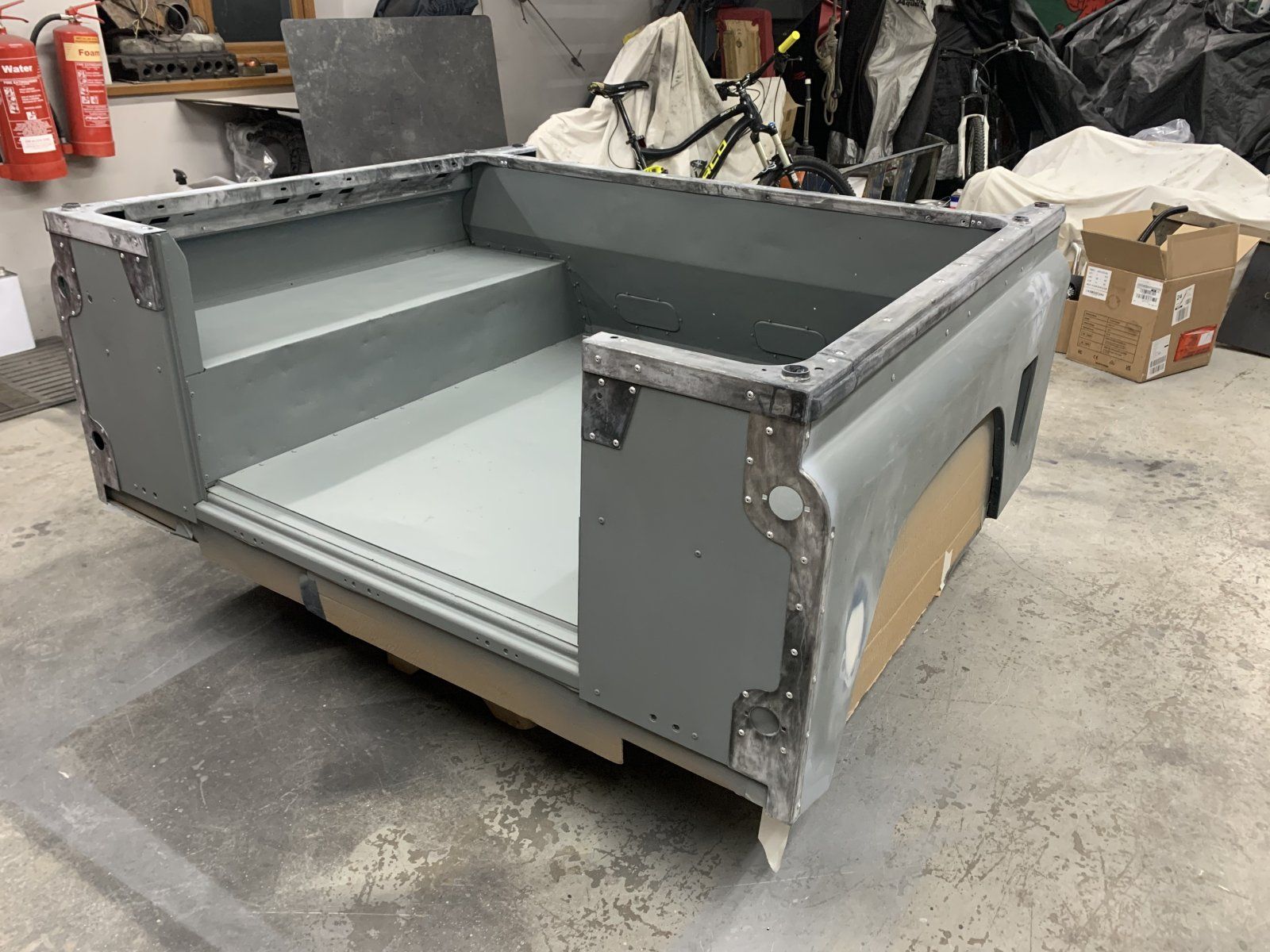

All the steel cappings and rear corners were blasted and galvanized. Twashed the galv parts prior to fitting. Rear tub etched with 2pk then primed in 2k ready for paint
