Transfer Box Cover - Tight Nuts

Will Turtle · Sep 19, 2020

Hi there, new to Landys and Landyzone, so treat me gently please.

In trying to re-seal my transfer box cover on my 300 I have a bolt that has been over tightened and is now beginning to round. Of course it is the centre top one, tucked behind the exhaust pipe, so access to get a bolt remover in is limited, 10m socket circling, 9m still too small. Have the option of heat, but wary of using this as there is oil residue around from various weeps. Any help gratefully received...

Bennehboy · Sep 19, 2020

You could cold chisel the head off and get the stud out with stilsons - may even just wind out once the clamping pressure is gone.

Or.. cut a groove in the head with a saw blade and use a screw driver bit on a ratchet..

marjon · Sep 19, 2020

welcome

Are you using 6 point socket

Pics of said tracter is the rulz by the way

J

Will Turtle · Sep 19, 2020

Bennehboy said:
You could cold chisel the head off and get the stud out with stilsons - may even just wind out once the clamping pressure is gone.

Or.. cut a groove in the head with a saw blade and use a screw driver bit on a ratchet..

Thanks for the screwdriver idea, really appreciated ....

Will Turtle · Sep 19, 2020

marjon said:
welcome

Are you using 6 point socket

Pics of said tracter is the rulz by the way
J

Hmmm - will check ... who knew there was anything other than 6 point !
Picture to follow

brianp38dse · Sep 20, 2020

Hello and welcome

These work well, there are other makes and prices
https://www.ebay.co.uk/itm/Irwin-10...355862&hash=item2aabe3c1af:g:738AAOSw~U5bIU2v

jamesmartin · Sep 20, 2020

Will Turtle said:
Hi there, new to Landys and Landyzone, so treat me gently please.

In trying to re-seal my transfer box cover on my 300 I have a bolt that has been over tightened and is now beginning to round. Of course it is the centre top one, tucked behind the exhaust pipe, so access to get a bolt remover in is limited, 10m socket circling, 9m still too small. Have the option of heat, but wary of using this as there is oil residue around from various weeps. Any help gratefully received...

hammer the head till it mushrooms slightly so you have to hammer socket on,repeat till its removed, the hammering relaxes the bolt and shocks the corrosion plus socket fits better

Will Turtle · Sep 20, 2020

brianp38dse said:
Hello and welcome
These work well, there are other makes and prices
https://www.ebay.co.uk/itm/Irwin-10...355862&hash=item2aabe3c1af:g:738AAOSw~U5bIU2v

Thanks, I do have these, but struggling for good access behind the exhaust pipe, it would be that bolt wouldn’t it !

Will Turtle · Sep 20, 2020

jamesmartin said:
hammer the head till it mushrooms slightly so you have to hammer socket on,repeat till its removed, the hammering relaxes the bolt and shocks the corrosion plus socket fits better

Thanks for this idea, it’s been soaked in WD 40 so with the banging it may free up, thanks

RangeRoller dt · Sep 20, 2020

Plusgas would do a far better job penetrating but something is better than nothing
Sometimes you can get a punch in on one edge and start it off if you cant get spanners in there

Will Turtle · Sep 20, 2020

RangeRoller dt said:
Plusgas would do a far better job penetrating but something is better than nothing
Sometimes you can get a punch in on one edge and start it off if you cant get spanners in there

Thanks for your help, Plusgas purchase tomorrow and hopefully better than WD40 as although I have cut a slot for a screw driver in the bolt head, I am not able to get any movement yet ...

RangeRoller dt · Sep 20, 2020

The main ingredient is persistence

Good luck

Mark Piercy · Sep 21, 2020

Welcome take off the exhaust and your perception will change and you will win young jedi, you will win!!

Will Turtle · Sep 22, 2020

[GALLERY=][/GALLERY]

Mark Piercy said:
Welcome take off the exhaust and your perception will change and you will win young jedi, you will win!!

Will Turtle · Sep 22, 2020

Will Turtle said:
[GALLERY=][/GALLERY]

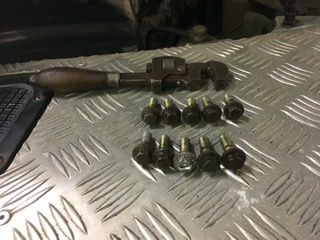

The bolt is OUT ! Although I could put it down to the first stage of Jedi mastery it was a combination of Plusgas, wire brush, Dremel work to cut a Screwdriver groove, a whack or two with a hammer and persistent patience.... thank you all

RangeRoller dt · Sep 22, 2020

Good work young padawan

Shippers · Sep 23, 2020

In future use a 50/50 mix of ATF fluid and Acetone best release agent ever...

Hippo · Sep 23, 2020

Welcome to the forum
