Landrover Range Sport L320 suspension fault
- Thread starter csohkrisztian
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
- Posts
- 12,661
- Location
- Sud ouest France !
Hi @csohkrisztian , do you have a diagnostic tool that can check the sensor voltage and heights for the standard setting.
Is the compressor running at any point?
Is the compressor running at any point?
csohkrisztian
Member
- Posts
- 11
- Location
- Hungary
yes, i have diagnostic tools.

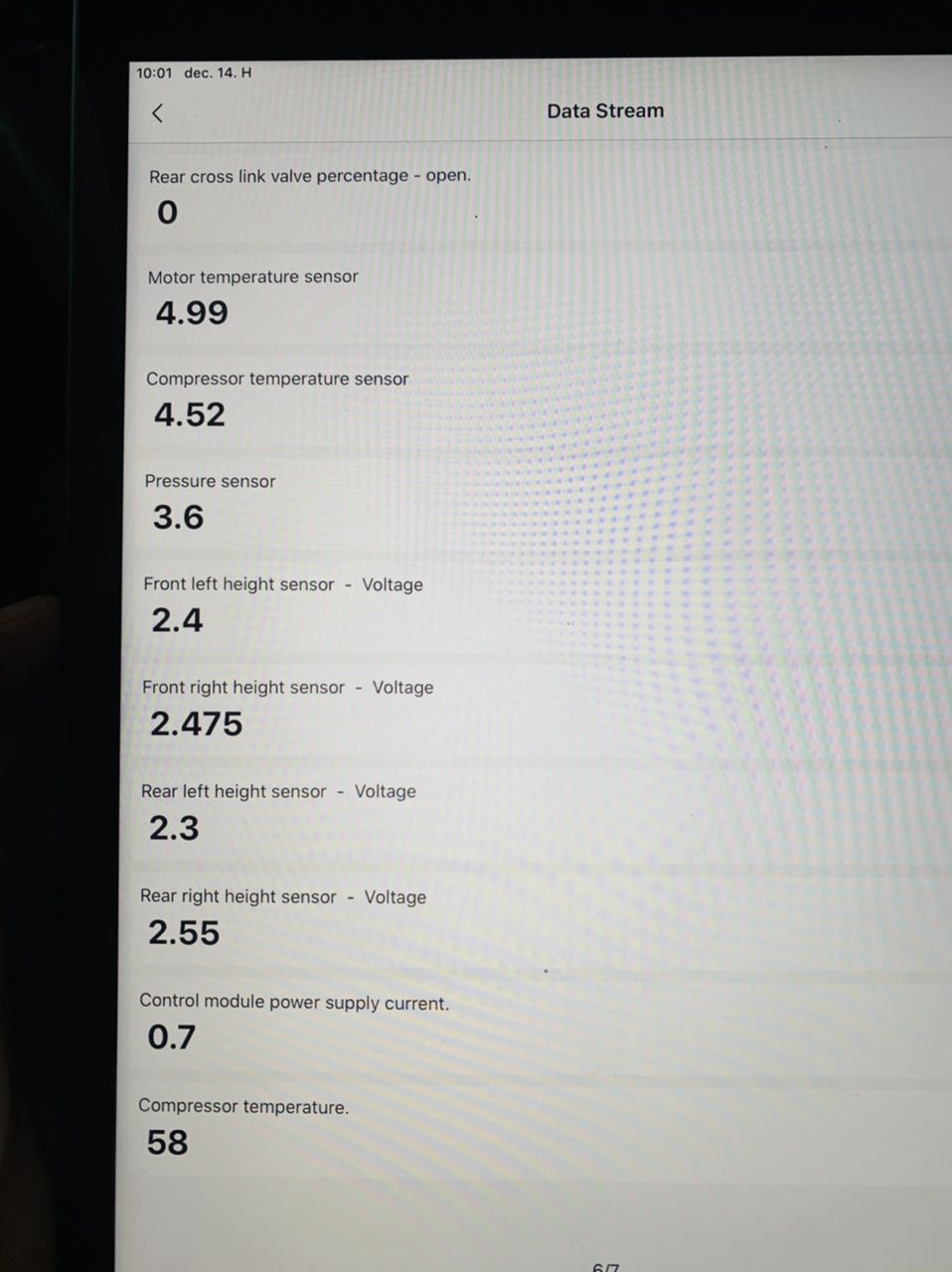

This is the realtime data. The compressor is running but, sometimes have a message “the raising slowly” and if it shuts down then it starts up again with a slight twist.
Attachments
brianp38dse
Well-Known Member
- Posts
- 20,097
- Location
- heathrow
(Raising slowly) will probably mean the compressor is a bit worn and struggling to make enough air.
csohkrisztian
Member
- Posts
- 11
- Location
- Hungary

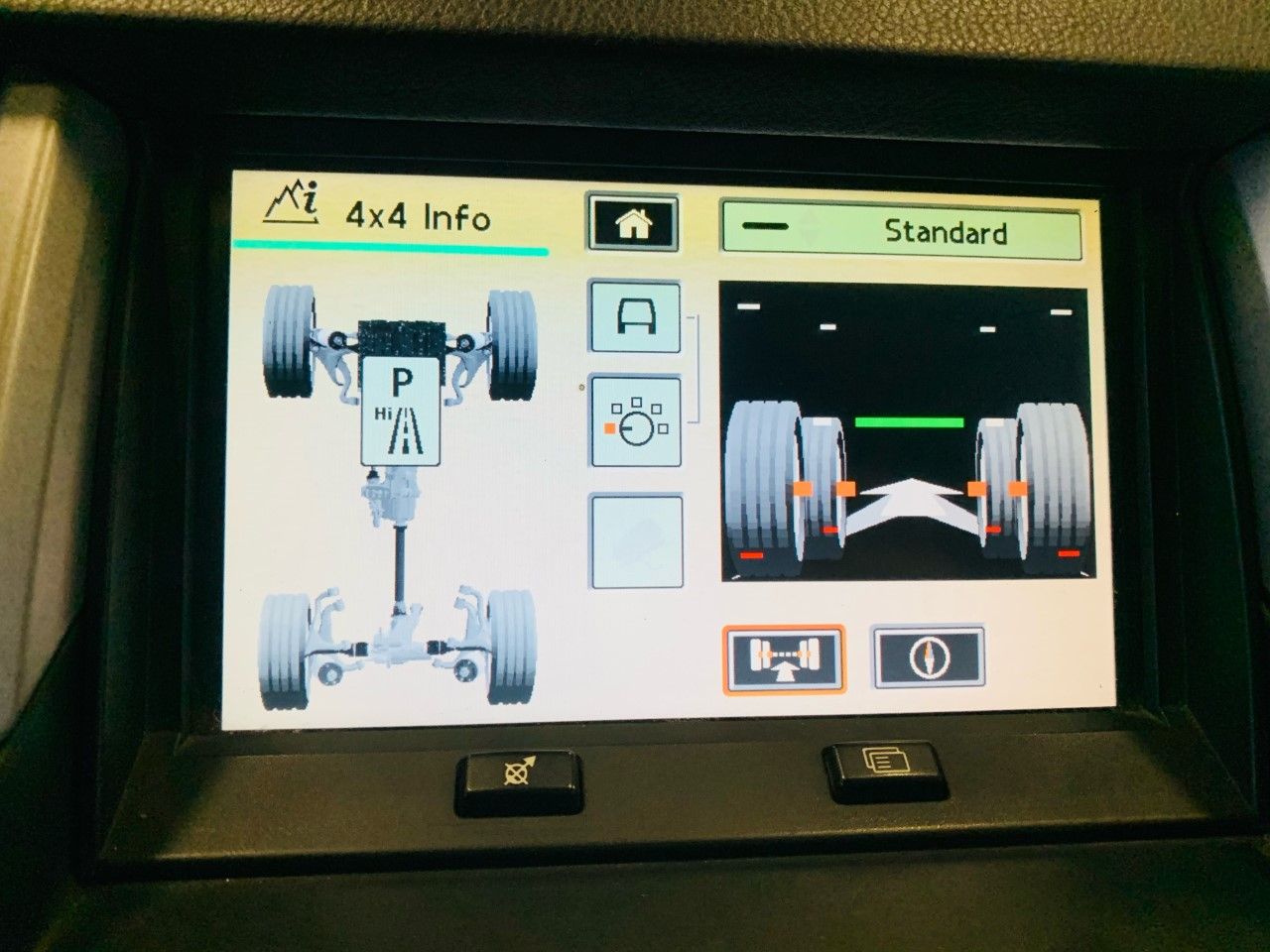

I understand you, when i lower the car the level is not good... and when the raising in finish, it's not good either. I dont understand, and the 4x4 info screen its not correct.
brianp38dse
Well-Known Member
- Posts
- 20,097
- Location
- heathrow
Above my pay grade them.
- Posts
- 12,661
- Location
- Sud ouest France !
What's not correct? You have a fault, most likely with the compressor, so until the fault is fixed, the screen won't necessarily be right.
- Posts
- 16,479
As above....it looks like the compressor is working too hard due to either a leak or the compressor is worn.
It is reading a low tank pressure...my first thing would be to remove the compressor and bench test it and see if it is capab le of creating pressure.
From what I know the temp sensors are 0-5v...so with it reading upper 4's the system will shutdown to prevent overheat damage...that being said, the reading of 58 in the compressor temp section would suggest it is warm but not above the usual shutdown threshold which Ithink is in the 120's....but that maybe the P38 threshold.
Rising slowly faults indicate the system is not seeing the expected height change in a set amount of time, again, this points to a compressor fault or a leak.
It is reading a low tank pressure...my first thing would be to remove the compressor and bench test it and see if it is capab le of creating pressure.
From what I know the temp sensors are 0-5v...so with it reading upper 4's the system will shutdown to prevent overheat damage...that being said, the reading of 58 in the compressor temp section would suggest it is warm but not above the usual shutdown threshold which Ithink is in the 120's....but that maybe the P38 threshold.
Rising slowly faults indicate the system is not seeing the expected height change in a set amount of time, again, this points to a compressor fault or a leak.
- Posts
- 12,661
- Location
- Sud ouest France !
I saw the pressure sensor at 3.6 but I don't know enough on this model and didn't want to point our op in the wrong direction.
What's the normal operating pressure on the system?
What's the normal operating pressure on the system?
