Front Axle is this Right

border · May 1, 2018

Hicap phill said:
Get the black teflon balls. You don't notice the chrome falling off
You can get a swivel gator but that would be nearly another £100 for the pair.

Seen them Gators they seem a right faff on to fit, will give them a miss, and hope the diff oil doesn't start seeping out when I finally get it all back together.

Al2O3 · May 1, 2018

border said:
Thanks James, Would you have the part numbers handy ?

Does he have the part numbers handy

Hicap phill · May 1, 2018

Da3057
Won't be bad as you are stripping the whole hub

All will be fine on rebuilding

Al2O3 · May 1, 2018

border said:
Anyway when he has put the discs on they have just sat for a few years and rusted in photo, Are they still usable ? if so whats the best thing to clean them back up again to look new ??

It's a shame he didn't oil them up.
Ideally a light skin on a lathe, in order to keep them true. You could try carefully and evenly taking the thick off with some emery paper on a small flat former and let the pads do the rest.
EDIT
Probably a former the depth of a pad and long enough to do a full tangent across the face. That way, as you worked your way around, you'd stand the best chance of maintaining a flat and true face.

border · May 1, 2018

Hicap phill said:
Da3057
Won't be bad as you are stripping the whole hub
All will be fine on rebuilding

Cheers Mate

Al2O3 said:
It's a shame he didn't oil them up.
Ideally a light skin on a lathe, in order to keep them true. You could try carefully and evenly taking the thick off with some emery paper on a small flat former and let the pads do the rest.

Might give it a go don't want to put new ones on again and leave sitting for a long while.

jamesmartin · May 1, 2018

wire wheel on an angle grinder works well

Al2O3 · May 1, 2018

jamesmartin said:
wire wheel on an angle grinder works well

Ok, maybe I was over thinking it

border · May 1, 2018

jamesmartin said:
wire wheel on an angle grinder works well

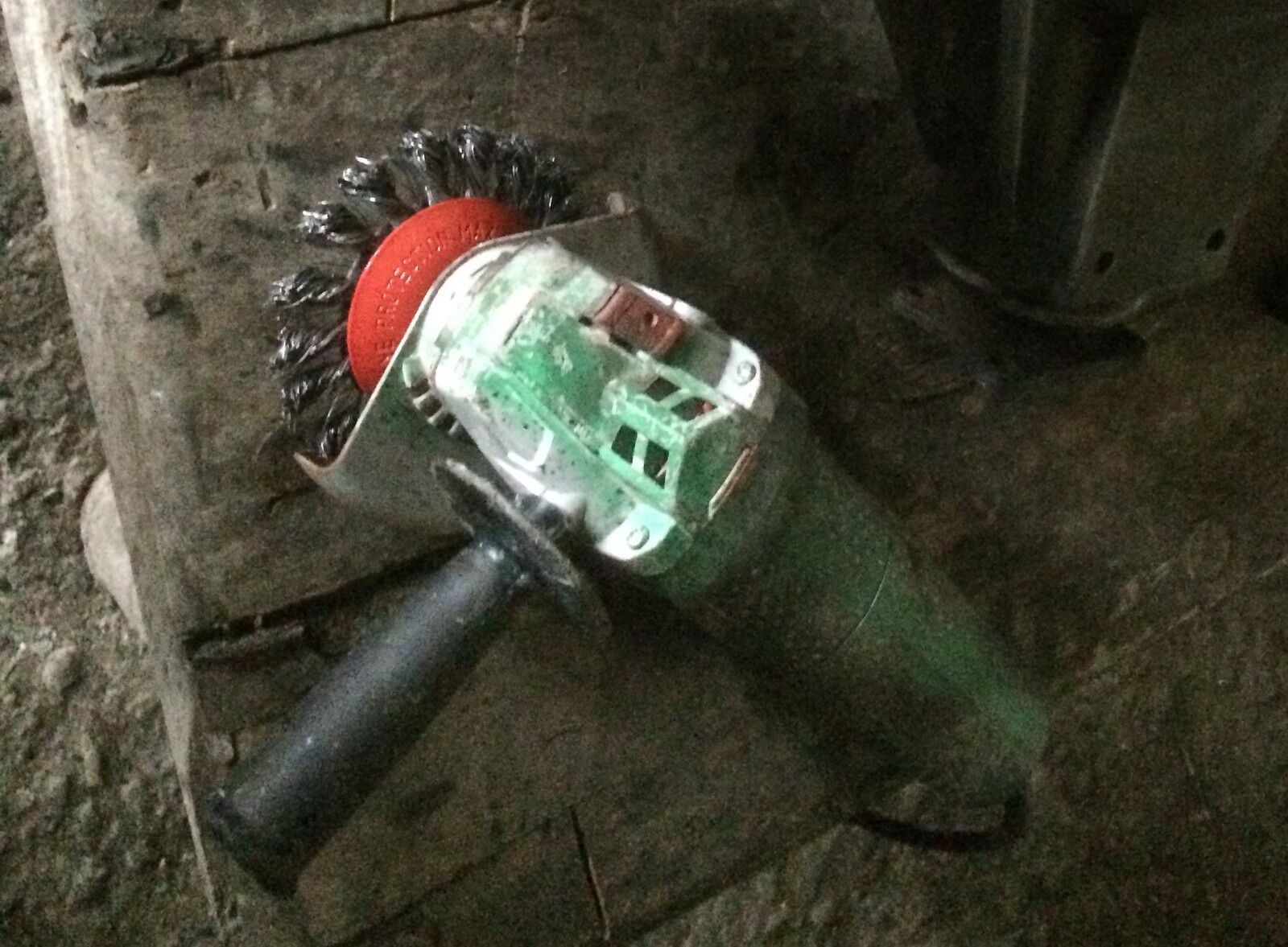

Like this one or is it a bit to harsh ?

border · May 1, 2018

Job Sorted

Al2O3 · May 1, 2018

border said:
Job Sorted

Aye, precision engineering that.

nobber · May 1, 2018

Do yourself a favour, these are the front hubs you are rebuilding, buy genuine/OEM parts, Go to LRSeries or LRDirect and get the right bits, Paddocks/Craddocks may as well be crack dealers! You will be buying the same bits off them again this time next month!
I did mine with OEM from LRSeries and it cost very little considering what I bought.
This was my parts list.

FTC3648

FRONT STUB AXLE GASKET

Brand New (Genuine)

1

2.02

2.02

AEU2522

CV JOINT

Brand New (Replacement)

1

29.99

29.99

FTC3401

CHROME BALL SWIVEL OIL SEAL

Brand New (Genuine)

1

10.28

10.28

FTC3646

CHROME BALL TO AXLE CASE GASKET

Brand New (Genuine)

1

1.92

1.92

FTC4785

HUB OIL SEAL INNER

Brand New (Genuine)

1

4.51

4.51

FRC3099

STUB AXLE OIL SEAL

Brand New (Genuine)

1

8.41

8.41

FRC4206

SWIVEL OIL SEAL RETAINER GASKET

Brand New (Genuine)

1

2.77

2.77

217353

STUB AXLE LOCK NUT LOCK WASHER

Brand New (Genuine)

1

1.49

1.49

FRC3988

AXLE DRIVE MEMBER GASKET

Brand New (Genuine)

1

1.63

1.63

RTC3429

HUB BEARING

Brand New (Genuine)

2

4.85

9.70

STC3435G

SWIVEL HSG GREASE GENUINE

Brand New (Genuine)

1

7.44

7.44

FRC2883

SHIM SWIVEL PIN .003MM

Brand New (Replacement)

1

1.01

1.01

FRC2884

SHIM SWIVEL PIN .005

Brand New (Replacement)

1

1.01

1.01

FRC2886

SWIVEL PIN SHIM 0.03

Brand New (Replacement)

1

1.08

1.08

Subtotal:

83.26

Courier: Interlink Express:

6.95

Total:

90.21

Total VAT:

18.04

Grand Total:

£108.25

VAT rate (%):

20

jamesmartin · May 1, 2018

nobber said:
Do yourself a favour, these are the front hubs you are rebuilding, buy genuine/OEM parts, Go to LRSeries or LRDirect and get the right bits, Paddocks/Craddocks may as well be crack dealers! You will be buying the same bits off them again this time next month!
I did mine with OEM from LRSeries and it cost very little considering what I bought.
This was my parts list.

FTC3648

FRONT STUB AXLE GASKET

Brand New (Genuine)

1

2.02

2.02

AEU2522

CV JOINT

Brand New (Replacement)

1

29.99

29.99

FTC3401

CHROME BALL SWIVEL OIL SEAL

Brand New (Genuine)

1

10.28

10.28

FTC3646

CHROME BALL TO AXLE CASE GASKET

Brand New (Genuine)

1

1.92

1.92

FTC4785

HUB OIL SEAL INNER

Brand New (Genuine)

1

4.51

4.51

FRC3099

STUB AXLE OIL SEAL

Brand New (Genuine)

1

8.41

8.41

FRC4206

SWIVEL OIL SEAL RETAINER GASKET

Brand New (Genuine)

1

2.77

2.77

217353

STUB AXLE LOCK NUT LOCK WASHER

Brand New (Genuine)

1

1.49

1.49

FRC3988

AXLE DRIVE MEMBER GASKET

Brand New (Genuine)

1

1.63

1.63

RTC3429

HUB BEARING

Brand New (Genuine)

2

4.85

9.70

STC3435G

SWIVEL HSG GREASE GENUINE

Brand New (Genuine)

1

7.44

7.44

FRC2883

SHIM SWIVEL PIN .003MM

Brand New (Replacement)

1

1.01

1.01

FRC2884

SHIM SWIVEL PIN .005

Brand New (Replacement)

1

1.01

1.01

FRC2886

SWIVEL PIN SHIM 0.03

Brand New (Replacement)

1

1.08

1.08

Subtotal:

83.26

Courier: Interlink Express:

6.95

Total:

90.21

Total VAT:

18.04

Grand Total:

£108.25

VAT rate (%):

20

these parts have been obsolete for years even genuine are pattern

nobber · May 1, 2018

Yeah but they are not a lottery like the parts you might or might not get from the usual suspects.

nobber · May 1, 2018

Thinking about it, how can OEM be pattern?

jamesmartin · May 1, 2018

nobber said:
Yeah but they are not a lottery like the parts you might or might not get from the usual suspects.

unfortunately they often are on obsolete parts,orgininal company now just a badge,but some stuff like rtc3429g is timken so is a decent real genuine part

jamesmartin · May 1, 2018

nobber said:
Thinking about it, how can OEM be pattern?

badged

nobber · May 1, 2018

You mean Corteco? I would fully trust a Corteco sourced part than a Britpart sourced part, Britpart supply cheap parts that simply cannot be the same quality.

border · May 2, 2018

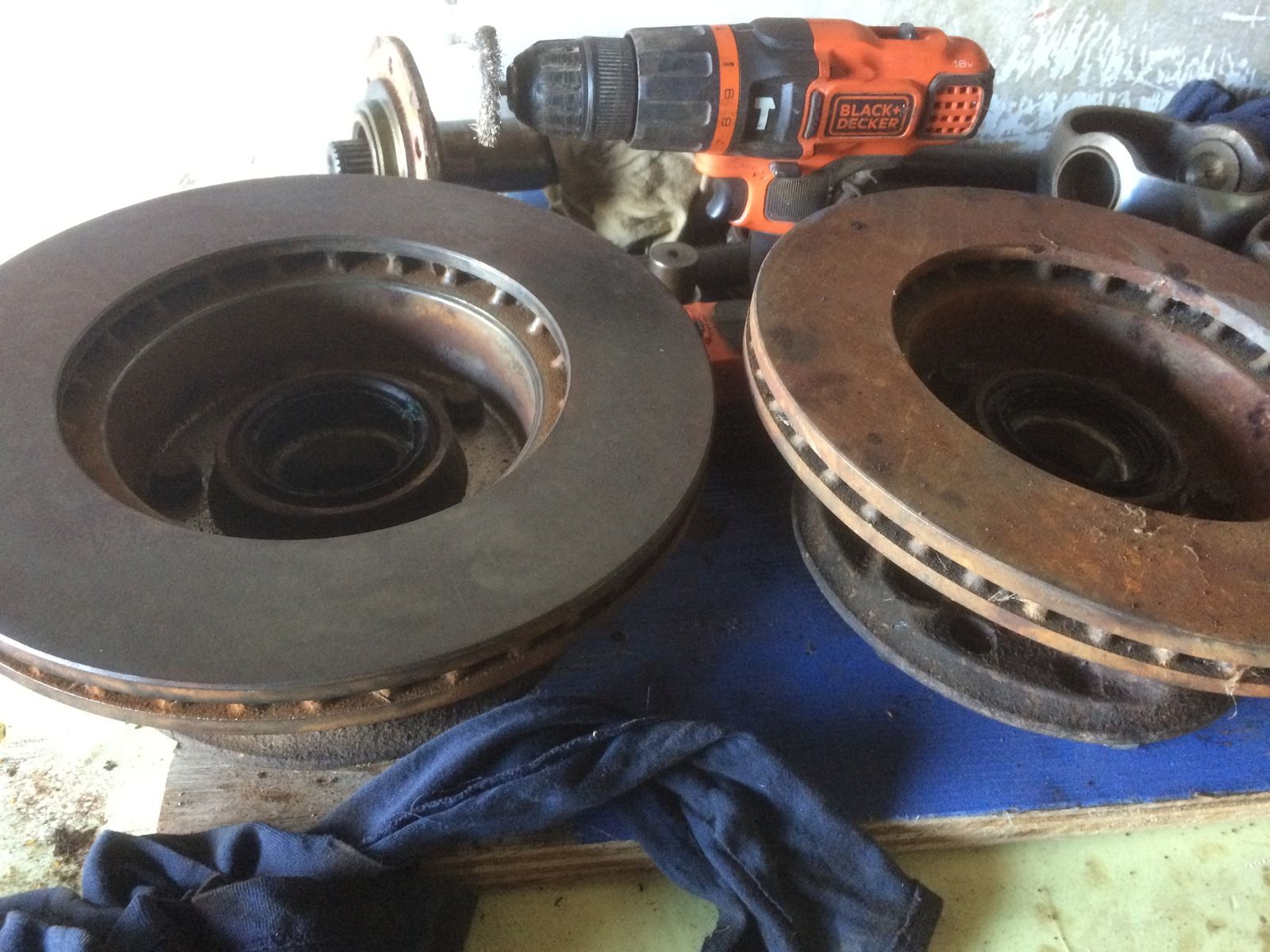

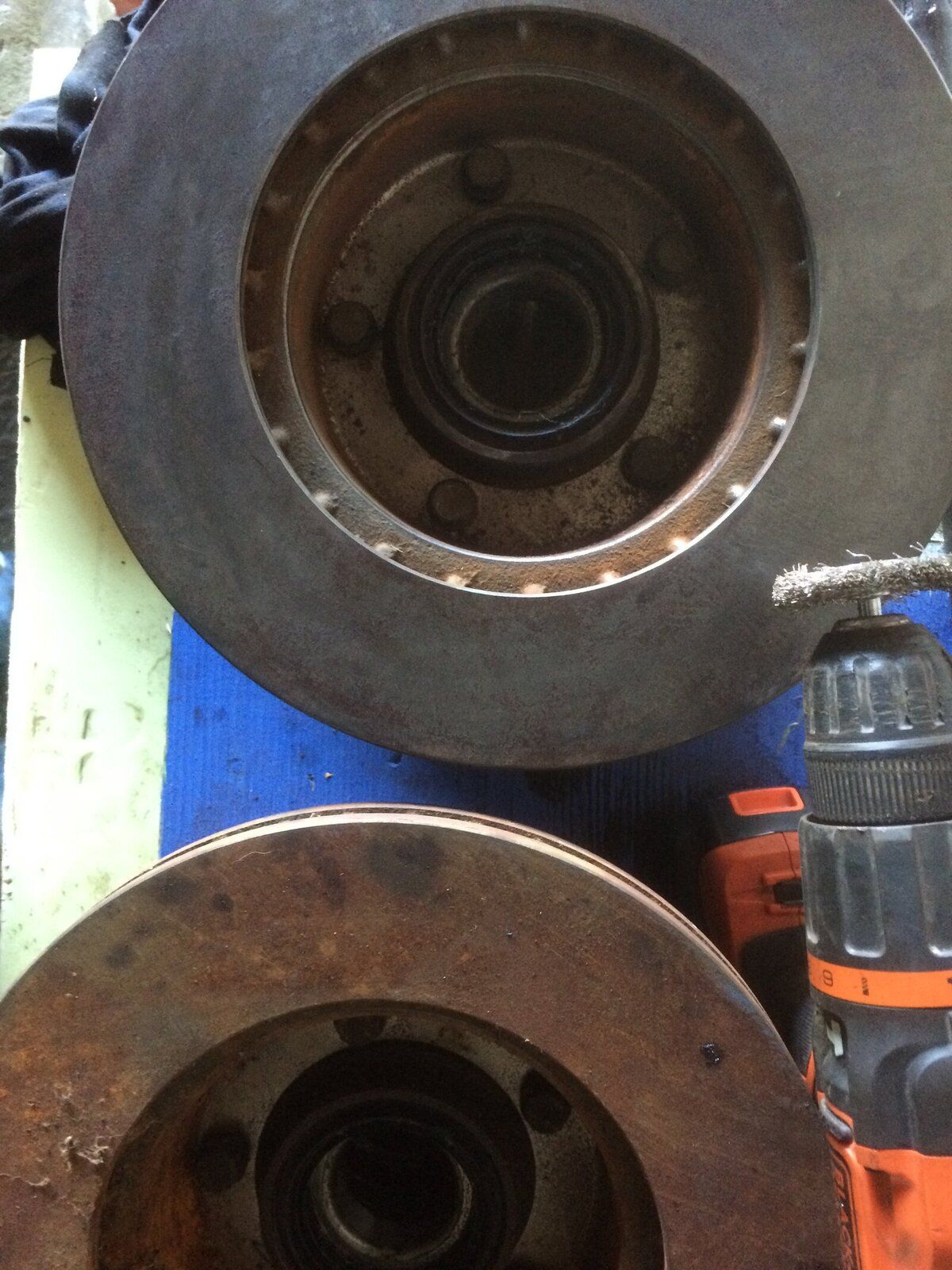

Getting there slowly with the rusty discs might put similar brush on Grinder be much quicker.

border · May 3, 2018

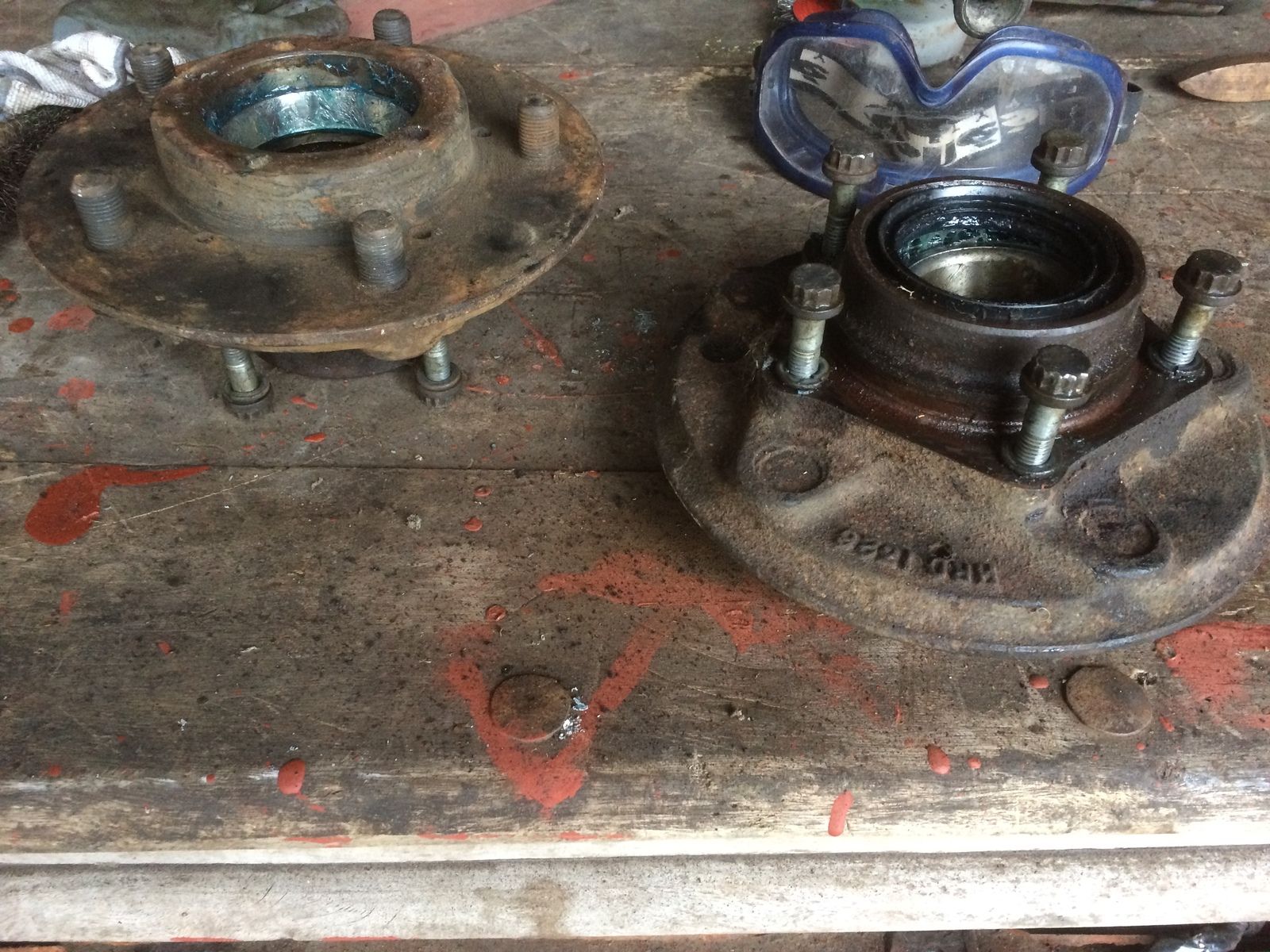

Might as well clean these up while I'm on, Is this the right bearing kit for my 1987 110 C S W ? http://www.paddockspares.com/da2379-hub-bearing-kit-defender-front-to-end-of-ka.html

jamesmartin · May 3, 2018

nobber said:
You mean Corteco? I would fully trust a Corteco sourced part than a Britpart sourced part, Britpart supply cheap parts that simply cannot be the same quality.

britpart sell corteco and other decent brands as well as pattern ,they have 2 swivel kits pattern and a decent g suffix one
