P38A Crankshaft Pully Holding Tool - Front Cover Coming Off!

Discussion in 'Range Rover' started by ukadamwest, Sep 15, 2018 at 10:10 PM.

< Previous Thread | Next Thread >
  1. ukadamwest

    ukadamwest Well-Known Member

    Joined:
    Feb 28, 2012
    Posts:
    2,218
    Likes Received:
    384
    Location:
    Surrey
    i've decided to take a few weekend to sort out some issues with the P38. having done the hub, and the front propshaft UJ's i have a pair of front discs and pads awaiting pick up from DPD collection point (they astrted to look a little lipped at the hub change...

    the next on the list is the front cover gasket, which is weeping.. so its sump down, front cover off, and as usual.. while i'm in there, might as well take care of the timing chain and sprockets .

    however..... there's always a however.. i dont have a pully holding tool. i hate to be a borrower, but if anyone has one they can lend out i would appreciate it.. i dont to want to drop £100 for a tool, that will *hopefully* be a one time use.

  2. ukadamwest

    ukadamwest Well-Known Member

    Joined:
    Feb 28, 2012
    Posts:
    2,218
    Likes Received:
    384
    Location:
    Surrey

    i'd also appreciate any items for the order list.

    front cover gasket
    crank oil seal
    water pump gasket
    timing chain
    sprockets
    sump gasket
    the Saint V8 oil pickup O ring
    serpentine belt
    1 bag of luck

  3. Saint.V8

    Saint.V8 Dyed-in-the-wool 100% RR Junkie

    Joined:
    Apr 27, 2008
    Posts:
    15,049
    Likes Received:
    1,253
    Location:
    Surrey - Near the middle, close to some green bits
    Contact @Grrrrrr ,He may have one to lend out....if asked nicely....

    I see you have already listed the pick up O ring - yeah, er....don't forget that one!

    ukadamwest likes this.
  4. Ratae

    Ratae Well-Known Member

    Joined:
    Dec 16, 2008
    Posts:
    589
    Likes Received:
    221
    To be able to undo - & do up - the front pulley bolt on my RRC (3.5 auto) I removed the cover plate on the lower front of the gearbox bellhousing & used a 'V' shaped piece of steel between the ring gear & the lower flat part of the bellhousing to lock the engine.
    Done it a few times & not had a problem.

  5. ukadamwest

    ukadamwest Well-Known Member

    Joined:
    Feb 28, 2012
    Posts:
    2,218
    Likes Received:
    384
    Location:
    Surrey
    i'll be following your write up !

  6. ukadamwest

    ukadamwest Well-Known Member

    Joined:
    Feb 28, 2012
    Posts:
    2,218
    Likes Received:
    384
    Location:
    Surrey
    where do you lock it into ? does it take someone to hold it in place.. i'll be doing it on my own.. unless another LZ fancies pitching in to help with wise cracks and insults ?

    i'll have to have someone fabricate something if that is the way to go

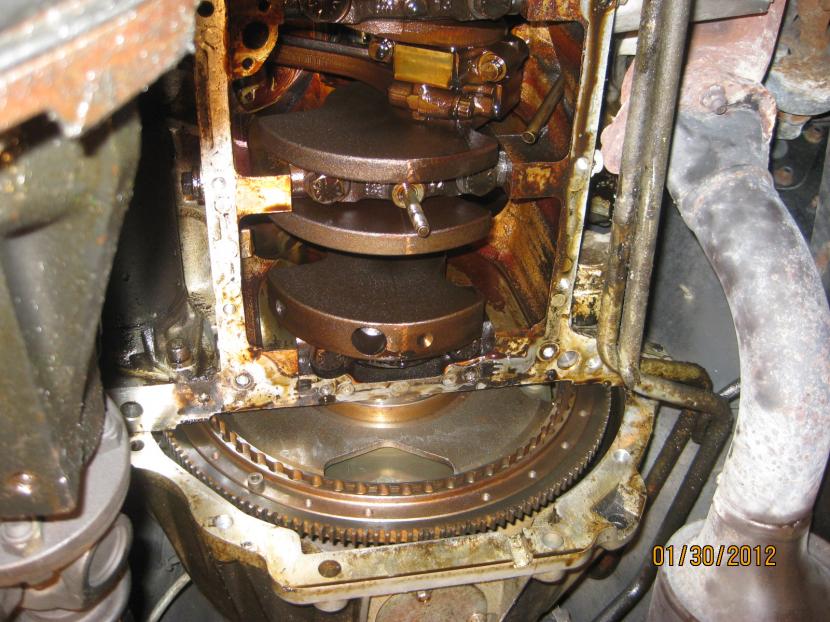

    d1 reluctor ring oil pan.jpg

  7. Saint.V8

    Saint.V8 Dyed-in-the-wool 100% RR Junkie

    Joined:
    Apr 27, 2008
    Posts:
    15,049
    Likes Received:
    1,253
    Location:
    Surrey - Near the middle, close to some green bits
    There have been those who have used a a bit of 4x4" wood under the bigend, and braced against the floor to stop the engine rotating while you hang of the crank bolt.

    ukadamwest likes this.
  8. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    74,228
    Likes Received:
    7,357
    Location:
    louth lincs

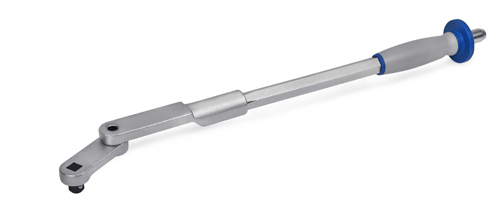

    one of these is good for undoing crank bolts as you dont need to lock the crank
    [​IMG]

    Grrrrrr likes this.
  9. ukadamwest

    ukadamwest Well-Known Member

    Joined:
    Feb 28, 2012
    Posts:
    2,218
    Likes Received:
    384
    Location:
    Surrey
    good plan.. thanks Saint.

  10. ukadamwest

    ukadamwest Well-Known Member

    Joined:
    Feb 28, 2012
    Posts:
    2,218
    Likes Received:
    384
    Location:
    Surrey
    what is james .. what do i search for ?

  11. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    74,228
    Likes Received:
    7,357
    Location:
    louth lincs
  12. The Mad Hat Man

    The Mad Hat Man Well-Known Member LZIR Despatch Agent

    Joined:
    Sep 11, 2005
    Posts:
    79,785
    Likes Received:
    6,227
    Location:
    Embasinga stocæ
  13. Grrrrrr

    Grrrrrr Well-Known Member

    Joined:
    Jul 8, 2012
    Posts:
    9,206
    Likes Received:
    1,392
    Location:
    Buckinghamshire, UK. ('95 DT)
    Yep, got the one you made hanging up in the garage.

  14. ukadamwest

    ukadamwest Well-Known Member

    Joined:
    Feb 28, 2012
    Posts:
    2,218
    Likes Received:
    384
    Location:
    Surrey
  15. Grrrrrr

    Grrrrrr Well-Known Member

    Joined:
    Jul 8, 2012
    Posts:
    9,206
    Likes Received:
    1,392
    Location:
    Buckinghamshire, UK. ('95 DT)
    It can be braced against a chassis leg if no-one about.

  16. ukadamwest

    ukadamwest Well-Known Member

    Joined:
    Feb 28, 2012
    Posts:
    2,218
    Likes Received:
    384
    Location:
    Surrey
  17. ukadamwest

    ukadamwest Well-Known Member

    Joined:
    Feb 28, 2012
    Posts:
    2,218
    Likes Received:
    384
    Location:
    Surrey

    ohh you have one.. and youre in Bucks.. save you lending it out.. i could come over your yours !!! :D:rolleyes::p

  18. Ratae

    Ratae Well-Known Member

    Joined:
    Dec 16, 2008
    Posts:
    589
    Likes Received:
    221
    Look at the bottom of your pic. The bottom of the bellhousing under the starter ring gear is flat & at each end of the flat part the gap between gear & housing is wider. Short piece of 'V' section (or right angle) steel slid in in the wide part on the appropriate side (to undo put it in on the left of your pic) & then turn the crank bolt to undo it.
    The ring gear will turn & jam the 'V' against the flat bit.
    No need to have anyone to hold it & I haven't broken anything - yet!

    Last edited: Sep 16, 2018 at 12:03 AM
  19. johnnyb70

    johnnyb70 Active Member

    Joined:
    Nov 9, 2013
    Posts:
    419
    Likes Received:
    91
    I've got a crank seal and a rubber sump gasket. I guess it's a Thor. I undid the front pulley with my 18v Makita impact wrench btw .

  20. Grrrrrr

    Grrrrrr Well-Known Member

    Joined:
    Jul 8, 2012
    Posts:
    9,206
    Likes Received:
    1,392
    Location:
    Buckinghamshire, UK. ('95 DT)
    You're welcome to visit. It'll give me something entertaining to watch while I'm drinking tea. :)

    ukadamwest likes this.
