Already been a year since my 90 was sold!
Bankz's 110 Double Cab
- Thread starter bankz5152
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
bankz5152
Well-Known Member
- Posts
- 9,137
- Location
- South London/North Kent

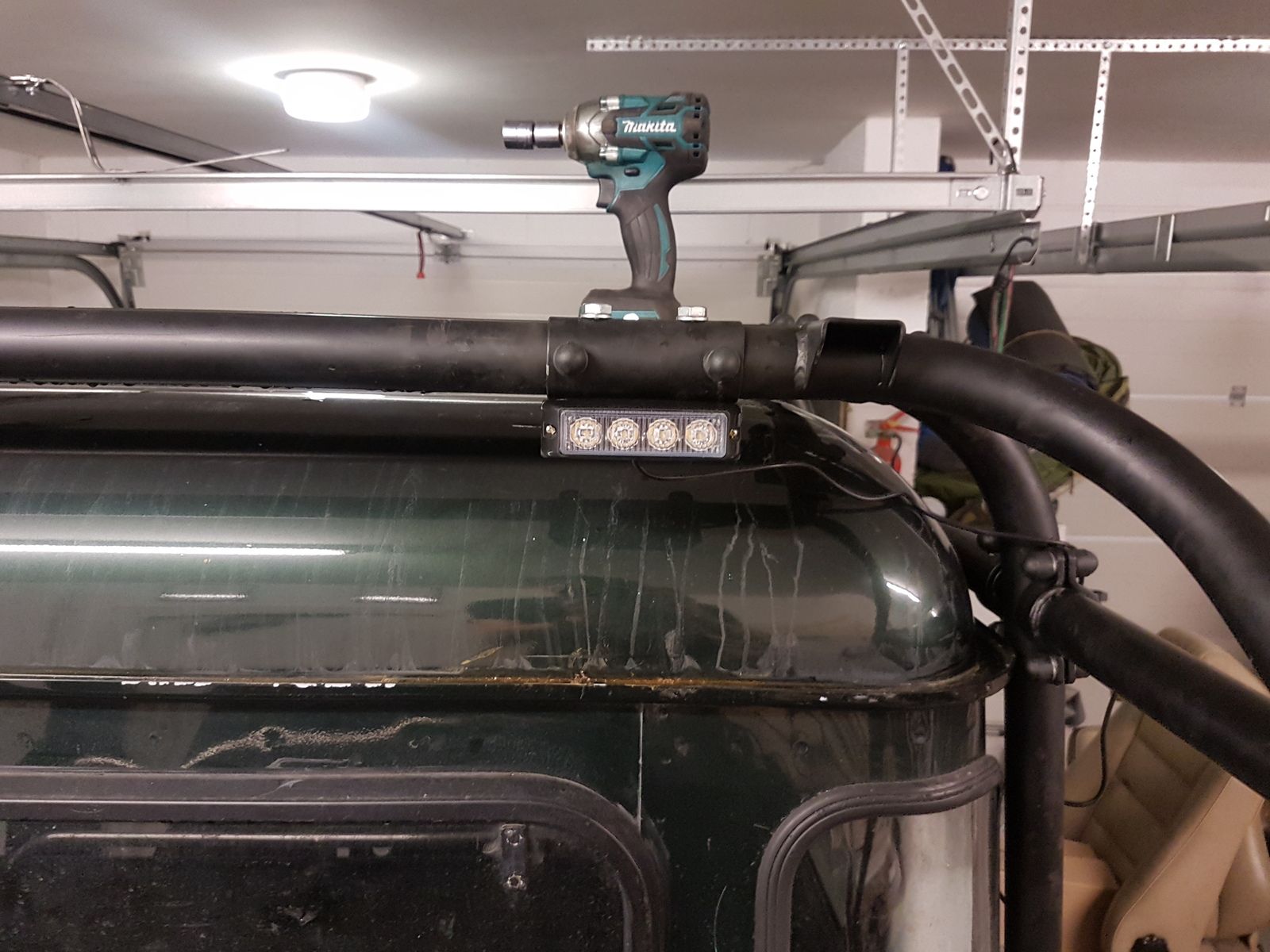

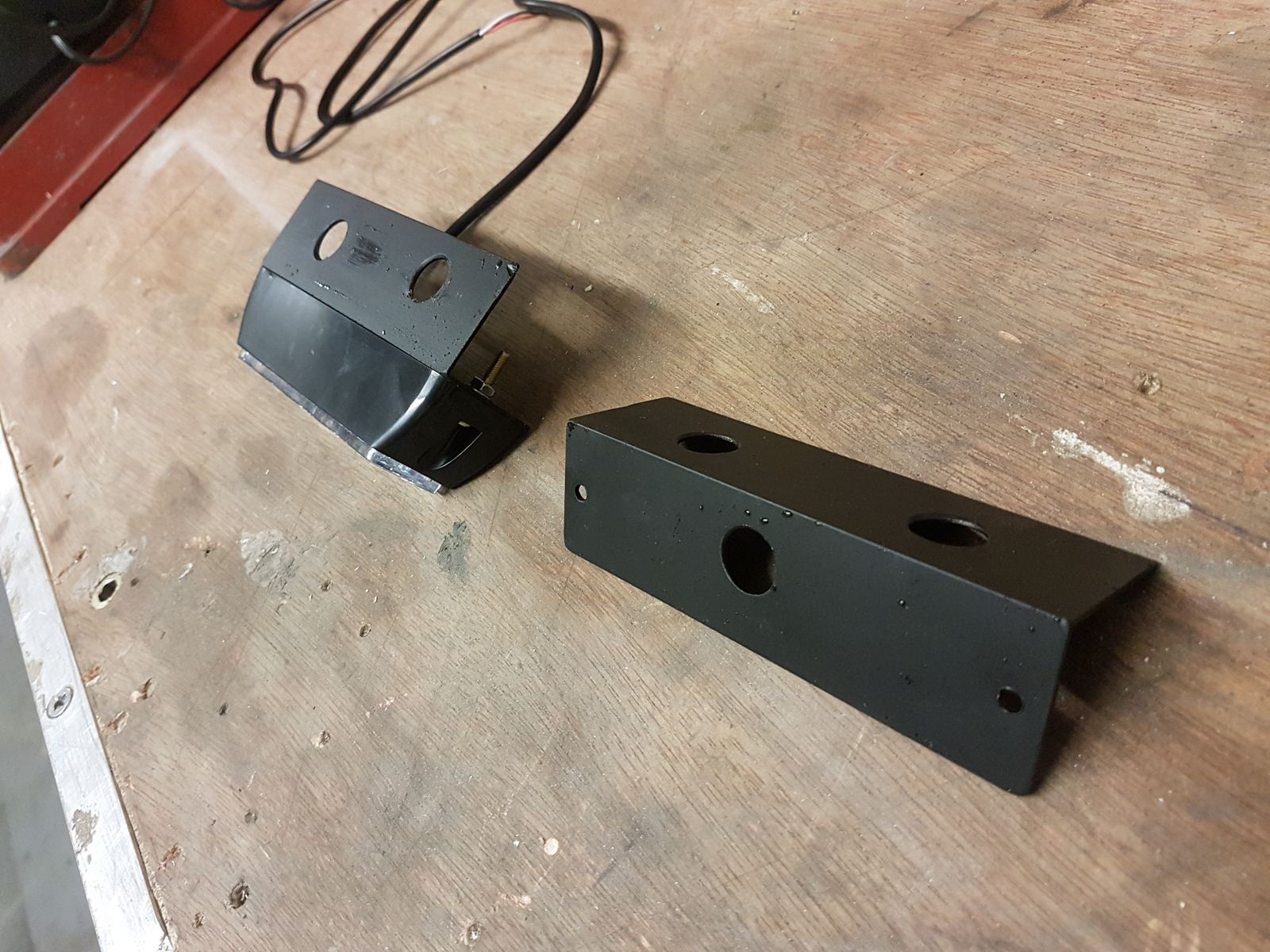

Knocked up some brackets for the rear beacons from some ali L section. Couple coats of CIO and all done.
Perfect spot!
That iant rust btw, its mess i havnt cleaned up yet.
Fronts will be a little more difficult but ive worked out a method.
Perfect spot!
That iant rust btw, its mess i havnt cleaned up yet.
Fronts will be a little more difficult but ive worked out a method.
bankz5152
Well-Known Member
- Posts
- 9,137
- Location
- South London/North Kent
Also decided to go for a single RAC Parts 3" snorkel, I mocked up a 4" snorkel and it looked a little too large... Either way the RAC snorkel will be an improvement on the old set up as that was around 2.70". Without the snorkel now it is a little more spritely and a little less smokey!
Last edited:
- Posts
- 9,105
- Location
- Roaming the UK on assignments
bankz5152
Well-Known Member
- Posts
- 9,137
- Location
- South London/North Kent
That ∆∆∆∆
Do that
I changed my mine again
Gone for a custom 3.5" snorkel in RAC style.
- Posts
- 9,105
- Location
- Roaming the UK on assignments
I changed my mine again
Gone for a custom 3.5" snorkel in RAC style.
You bin hangin out with wimmins in't ya!
They're always changing their minds too
But I am fully expecting a class bit of custom work
bankz5152
Well-Known Member
- Posts
- 9,137
- Location
- South London/North Kent
may have been Cheers
Sadly I cannot weld! But I do have a mate that can (fixed me doors) so he shall be doing the welding.
All made of 1.5mm mild steel exhaust parts so should do the job well!
Tell ya with out the snorkel it comes on boost a fair bit faster!! Got to actually drive the ****er for once
neilly
Well-Known Member
- Posts
- 20,000
- Location
- Oxfordshireness
Tell ya with out the snorkel it comes on boost a fair bit faster!! Got to actually drive the ****er for once
So what you need is a servo actuated flap that opens the air inlet at a place closer to the air filter when using on road and closes when going and doing dirty stuff. Simples.
Cheers
bankz5152
Well-Known Member
- Posts
- 9,137
- Location
- South London/North Kent
@neilly dont start already been through the idea, quite tough to make it water tight!
Tbh 3.5" (ID) raised intake mating to a 95mm induction pipe direct to the airbox with minimal bends should do the trick. As you know already whittled out the airbox too.
Been lookong at BAS MAF adjustment device too, may be worth it...
already been through the idea, quite tough to make it water tight! Tbh 3.5" (ID) raised intake mating to a 95mm induction pipe direct to the airbox with minimal bends should do the trick. As you know already whittled out the airbox too.
Been lookong at BAS MAF adjustment device too, may be worth it...
neilly
Well-Known Member
- Posts
- 20,000
- Location
- Oxfordshireness
Yeah, but what an awesome idea, a rotating snorkel top, so that when you go through a deep water splash it can be rotated to the back , but then re positioned to give max air flow.........Go on, you know you love it, plus another switch......
Cheers
bankz5152
Well-Known Member
- Posts
- 9,137
- Location
- South London/North Kent
It would be awesome hahaha
Ill give it some extra thought!!
Ill give it some extra thought!!
bankz5152
Well-Known Member
- Posts
- 9,137
- Location
- South London/North Kent
Safe to say I think itll have plenty of air
- Posts
- 9,105
- Location
- Roaming the UK on assignments
If there are any V8 Scannia's missing some induction pipework it's here!
That's massive! (I know "that's what she said" lol)
That's massive! (I know "that's what she said" lol)
bankz5152
Well-Known Member
- Posts
- 9,137
- Location
- South London/North Kent
Glad i didnt go for the 4 inch!!
For the time being I think Ill do just Buzzweld CIO but Raptor maybe! Didnt think of it tbh!
bankz5152
Well-Known Member
- Posts
- 9,137
- Location
- South London/North Kent

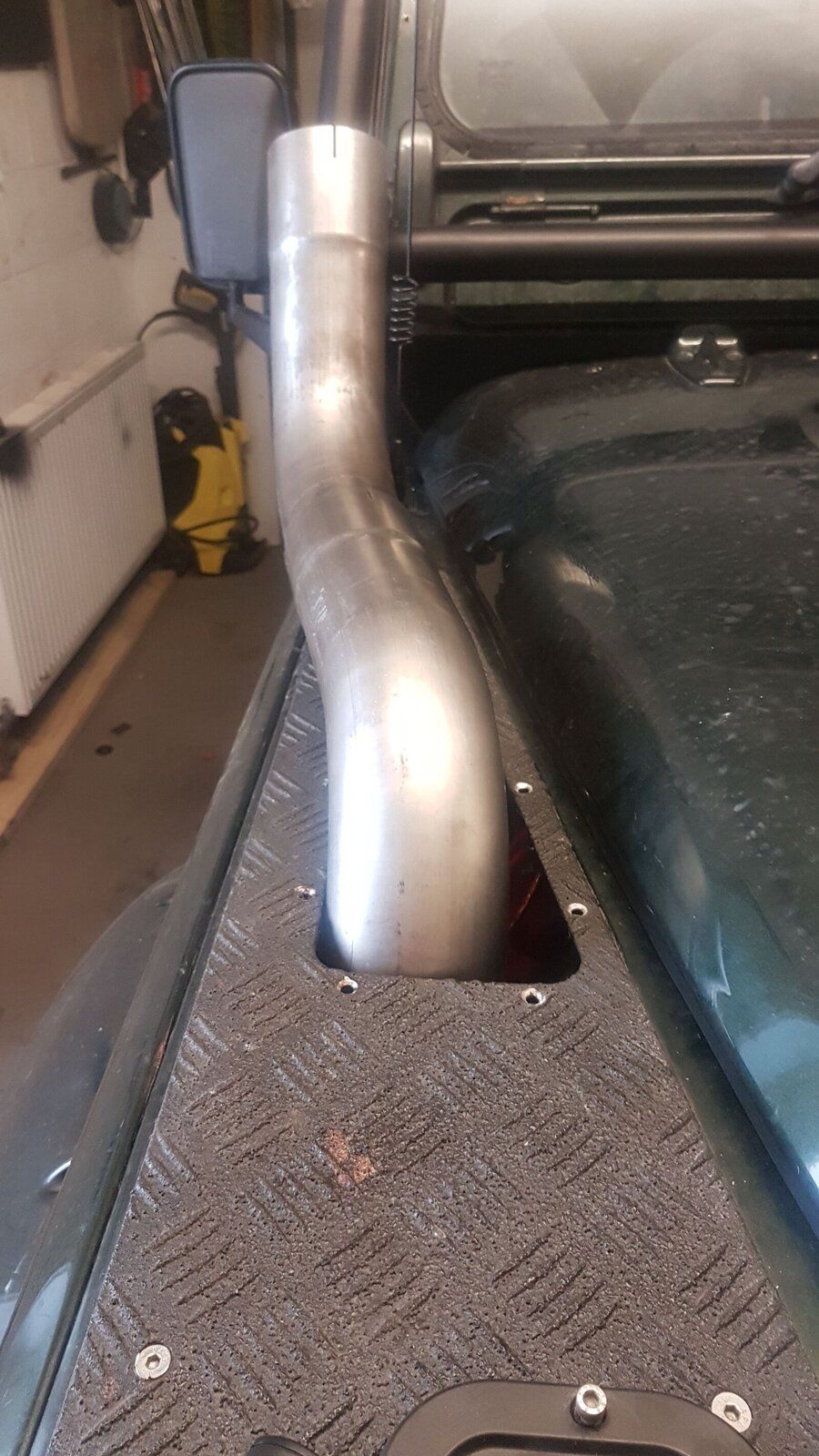

New 90mm induction pipe to match the huge snorkel. It makes a lot of turbo noise now . Fair improvment over the old induction pipe, comes on boost quicker and hits full boost much faster too, which is nice!
Annoyingly due to the size of it, I've had to order another tight 90 degree bend for the snorkel as I couldnt run the intake the way I wanted. Makes it a little more expensive as more welding and more bends involved but hey its custom work haha
. Fair improvment over the old induction pipe, comes on boost quicker and hits full boost much faster too, which is nice! Annoyingly due to the size of it, I've had to order another tight 90 degree bend for the snorkel as I couldnt run the intake the way I wanted. Makes it a little more expensive as more welding and more bends involved but hey its custom work haha
bankz5152
Well-Known Member
- Posts
- 9,137
- Location
- South London/North Kent
It could be tooo big... haha what do you think?
bankz5152
Well-Known Member
- Posts
- 9,137
- Location
- South London/North Kent

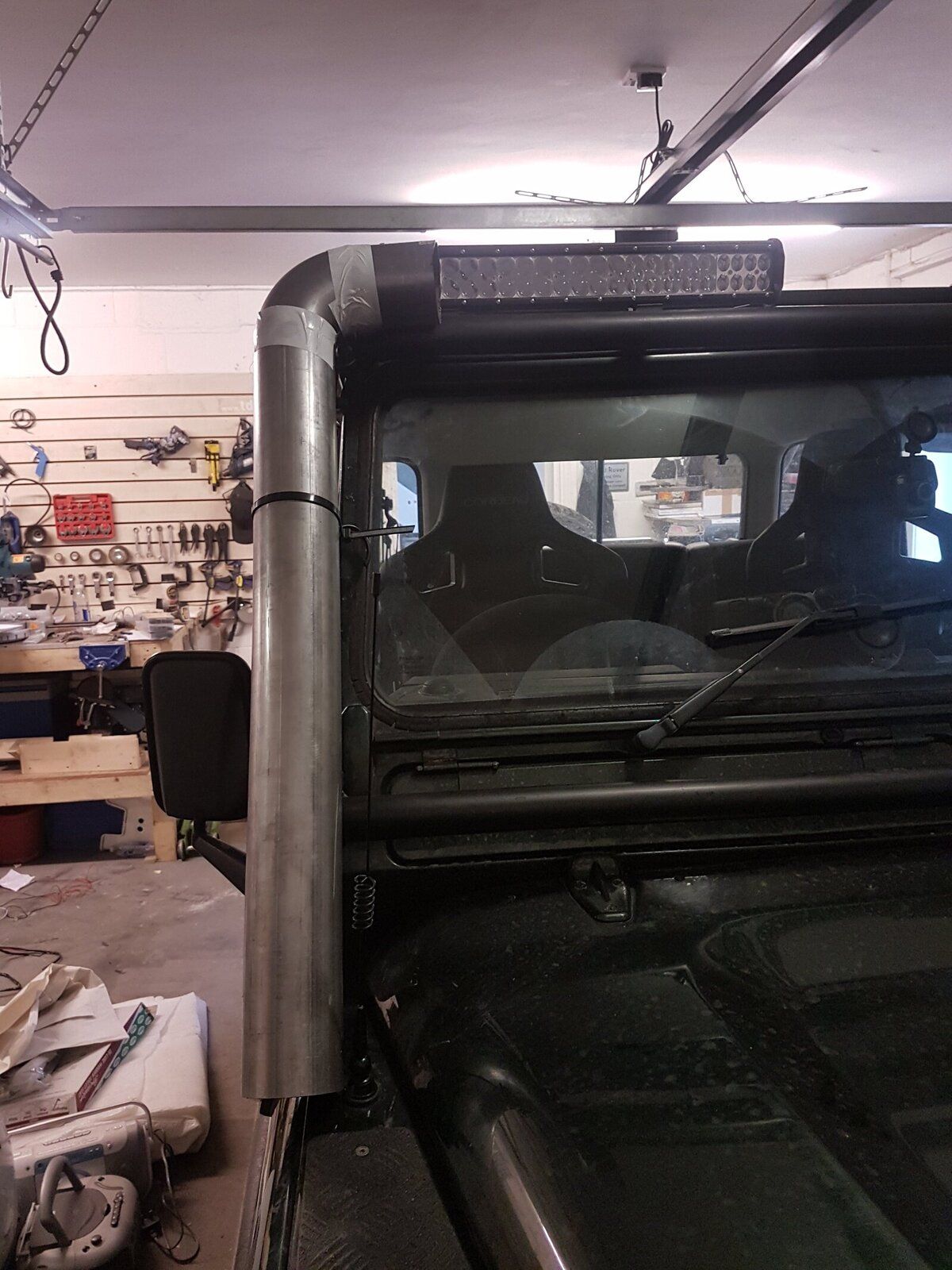

Tweaked and cut the snorkel today, looks better and not so bloody huge when adjusted better lol sadly my full 90 degree bend will not fit at all. I have to use two "tight" 90 degree bends so the 90mm induction pipe can be fitted properly. Got some nice look hexagonal mesh to cover the intake end. May look quite nice when done! Maybe...
Do you think I'm a bit obsessed with air flow?
Also on a side note I did a "quick fit" of the lightbars I've had sitting for months on end. Not done the wiring properly as it'll be changed in the near future anyway when the switch pod goes in. All I can say is they are beyond bright I'll get some pics up tomorrow when I finish the wiring
Do you think I'm a bit obsessed with air flow?
Also on a side note I did a "quick fit" of the lightbars I've had sitting for months on end. Not done the wiring properly as it'll be changed in the near future anyway when the switch pod goes in. All I can say is they are beyond bright
I'll get some pics up tomorrow when I finish the wiring
- Posts
- 9,105
- Location
- Roaming the UK on assignments
Bloody hell.......
Seriously, there are commercial vehicles with smaller intakes
Gonna look fab when it's done.
Seriously, there are commercial vehicles with smaller intakes
Gonna look fab when it's done.
bankz5152
Well-Known Member
- Posts
- 9,137
- Location
- South London/North Kent
Bloody hell.......
Seriously, there are commercial vehicles with smaller intakes
Gonna look fab when it's done.
Smaller yes but not efficient!!
0.5 of an inch really makes a difference haha
