Bankz's 110 Double Cab

Discussion in 'Members Vehicles/Projects' started by bankz5152, Oct 22, 2016.

< Previous Thread | Next Thread >
  1. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    8,681
    Likes Received:
    2,568
    Location:
    South London/North Kent
    Tbh I was not expecting flat pack! Certainly makes life easier though :D all stripped out and been hard at work all day, only just finished in fact! Got a load of pics to upload but yall may have to wait!

    So far it has been pretty straight forward, though I can tell the rear mounts are going to be a pain..


  2. neilly

    neilly Well-Known Member Full Member

    Joined:
    Jan 10, 2011
    Posts:
    19,617
    Likes Received:
    9,951
    Location:
    Oxfordshireness
    Is that a comp spec roll cage @bankz5152 ?

    Cheers

  3. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    8,681
    Likes Received:
    2,568
    Location:
    South London/North Kent
    @neilly Unsure to be honest mate! Its the Safety Devices L243 cage if that helps. Full external with no internal B-Hoop didnt want the agro!

    Also got 25 pics so far ready to upload, in far more detail than the SD manual! When I get some time I'll do a proper write up/thread on how to do so. So far if you can measure well, use an angle grinder/drill and sling a spanner you should be able to fit a cage. I say this now but come Friday I'll probably be in tears :rolleyes::D:p

    Overall gone very well so far. Got the right hand wing done, left wing is ready to go on after I run the intake for the snorkel, cut and fit the bracket for the right C pillar too.

    So far round about 10 hours in.

    Last edited: Feb 14, 2018
    dieseldog69 likes this.
  4. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    8,681
    Likes Received:
    2,568
    Location:
    South London/North Kent

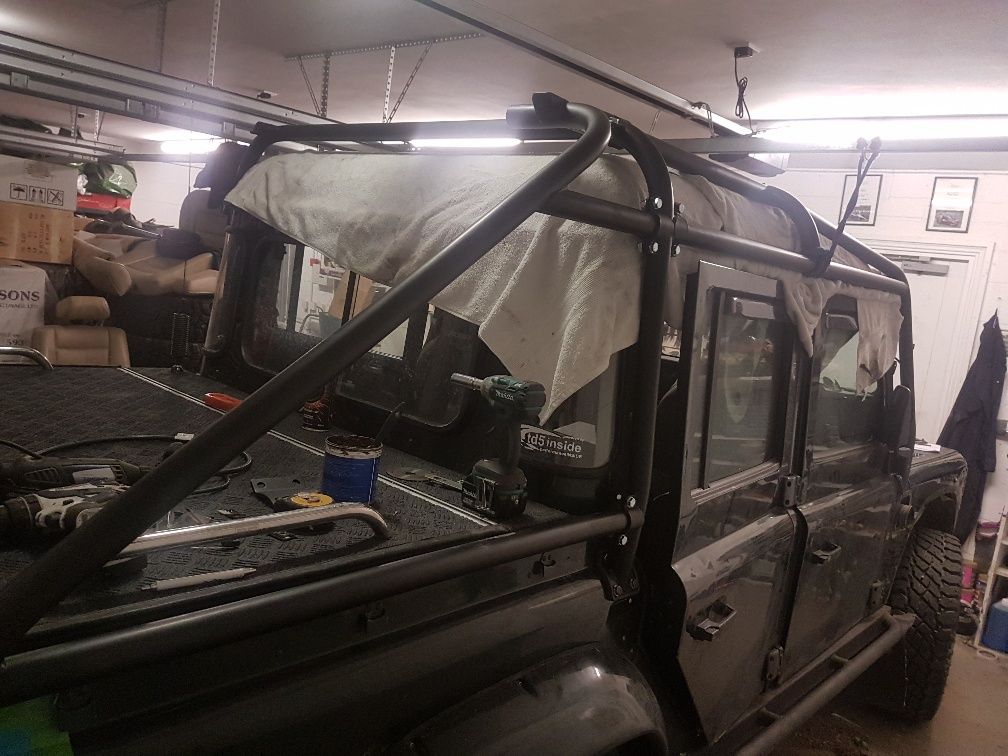

    Won't keep y'all waiting too long, few teaser pics!

    20180214_181251_resized.jpg 20180214_200542_resized.jpg

    Been going well-ish. Front was the most daunting but so far the easiest to actually do. C pillars where pretty easy as well, just time consuming. The rears however have been an absolute nightmare. Trying to get the crossmember support in place and the rear tub support took me just shy of 5 hours over all. 45 minutes of that was getting ONE BOLT to fit.:confused::mad::mad::mad:

    One side is close to being done, however I have made a couple errors... Some how I've managed to damage the threads on the bottom holes of the front mount and one bottom on the rear. So much so that a bolt will no longer go in... Not ideal. Going to buy an M10 tap kit and attempt repair as replacement parts are well VERY VERY expensive.

    Seems to happen because 3 bolts will go in happily, 1 never will, so its undo put the one that wont fit in nicely, try the other 3, rinse & repeat until youre sick. I think what happened is the cage dropped as I was removing a section damaging the thread.

    So far I can see why companies are charging £2k+ for fitting! Only thing keeping me going is the money I'm saving!

    With any luck I'll be done by tomorrow, taking many many pics as I go. Plan is to do a full write up to use in addition to the SD instructions which couldnt be any worse if done by Ikea China

    neilly likes this.
  5. neilly

    neilly Well-Known Member Full Member

    Joined:
    Jan 10, 2011
    Posts:
    19,617
    Likes Received:
    9,951
    Location:
    Oxfordshireness
    Looks like you will never be able to open your flaps once the front bottom windscreen bar is in place..is that right?

    Looking good, make sure to buy a decent tap set. not a cheapy set.

    Cheers

  6. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    8,681
    Likes Received:
    2,568
    Location:
    South London/North Kent
    Nope you can open the flaps happily, the touch but do open. at least they did on my 90 haha

    Yeah trying to find one locally, reckon Halfrauds will have a half decent set?

  7. neilly

    neilly Well-Known Member Full Member

    Joined:
    Jan 10, 2011
    Posts:
    19,617
    Likes Received:
    9,951
    Location:
    Oxfordshireness
    They have complete Sealey sets, if you are just recutting a slightly damaged thread they may do , but on something critical which I did not want to mess around with I would look at getting a good set, On an M10 tap to turn it, I found one of the sockets in my 200pc Halfords socket set worked well this week . Space was too tight to use the std tap wrench.

    My local plant / tool rental place has dormer taps sets on the shelf , may be worth looking at a place like that.

    Cheers

  8. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    8,681
    Likes Received:
    2,568
    Location:
    South London/North Kent
    Two are alright, just the first one or two threads, one is bad though at least half of it is damaged.

    Space isnt an issue. Bottom two threads on that mount, bottom right is alright, bottom left is badly damaged. Bottom left on the rear same place.


  9. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    91,825
    Likes Received:
    20,211
    Location:
    louth lincs
    if your trying to start difficult bolts a speed brace is the best tool as you can apply pressure and align bolt whilst turning

  10. neilly

    neilly Well-Known Member Full Member

    Joined:
    Jan 10, 2011
    Posts:
    19,617
    Likes Received:
    9,951
    Location:
    Oxfordshireness
    Obviously, one thing to check is what pitch the bolts have. I would expect them to be M10 x 1.5 , but double check to make sure you do not get a nasty surprise and find them to be fine pitch threads..LOL.

    Cheers

  11. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    8,681
    Likes Received:
    2,568
    Location:
    South London/North Kent
  12. neilly

    neilly Well-Known Member Full Member

    Joined:
    Jan 10, 2011
    Posts:
    19,617
    Likes Received:
    9,951
    Location:
    Oxfordshireness
    As you are only recutting a damaged thread then personally, If I had to I would go for the CK kit , but it only has one tap for M10 x 1.5 not sure if it is taper or plug? Halfords kit if it is in stock, it has two taps for M10 x1.5 so gives you a good chance of finishing the job, but reviews say they break and are not the best. The sealey kit is web exclusive only !.

    I would still look for a set of good name taps from a local tool shop. More expensive but generally better quality.

    Cheers

    Cheers

  13. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    8,681
    Likes Received:
    2,568
    Location:
    South London/North Kent
    Cheers dude. Not 100% sure what Im looking for so appreciate the advice! I'll grab the CK kit, should be good enough to repair the two lightly damaged threads. Hopefully the other one isnt as a bad as I think.

  14. neilly

    neilly Well-Known Member Full Member

    Joined:
    Jan 10, 2011
    Posts:
    19,617
    Likes Received:
    9,951
    Location:
    Oxfordshireness
    If the threads just needed "cleaning" then you could get a good quality bolt and cut a lead in taper on the end and a groove down either side , this could then be screwed in to clean the thread up. Something to do when in dire need , but is a bodge.

    Cheers

    bankz5152 likes this.
  15. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    8,681
    Likes Received:
    2,568
    Location:
    South London/North Kent
    Good plan. Just a right pain trying to get the feet in!

  16. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    91,825
    Likes Received:
    20,211
    Location:
    louth lincs
    you can buy similar ,its no bodge

    bankz5152 likes this.
  17. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    8,681
    Likes Received:
    2,568
    Location:
    South London/North Kent
    Going to crack on with the other side tomorrow, should be a bit easier as that side has no damaged threads! Also know how to fit the crossmember support now so should cut that from 5 hours to 2 maybe hahaha

  18. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    8,681
    Likes Received:
    2,568
    Location:
    South London/North Kent
    Engineer mate came through! Lent me his excelelnt quality tap ! :D

    dieseldog69 and neilly like this.
  19. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    8,681
    Likes Received:
    2,568
    Location:
    South London/North Kent
    Was a fancy Dormer tap! Cleaned those threads up easy peasy! Im very grateful.

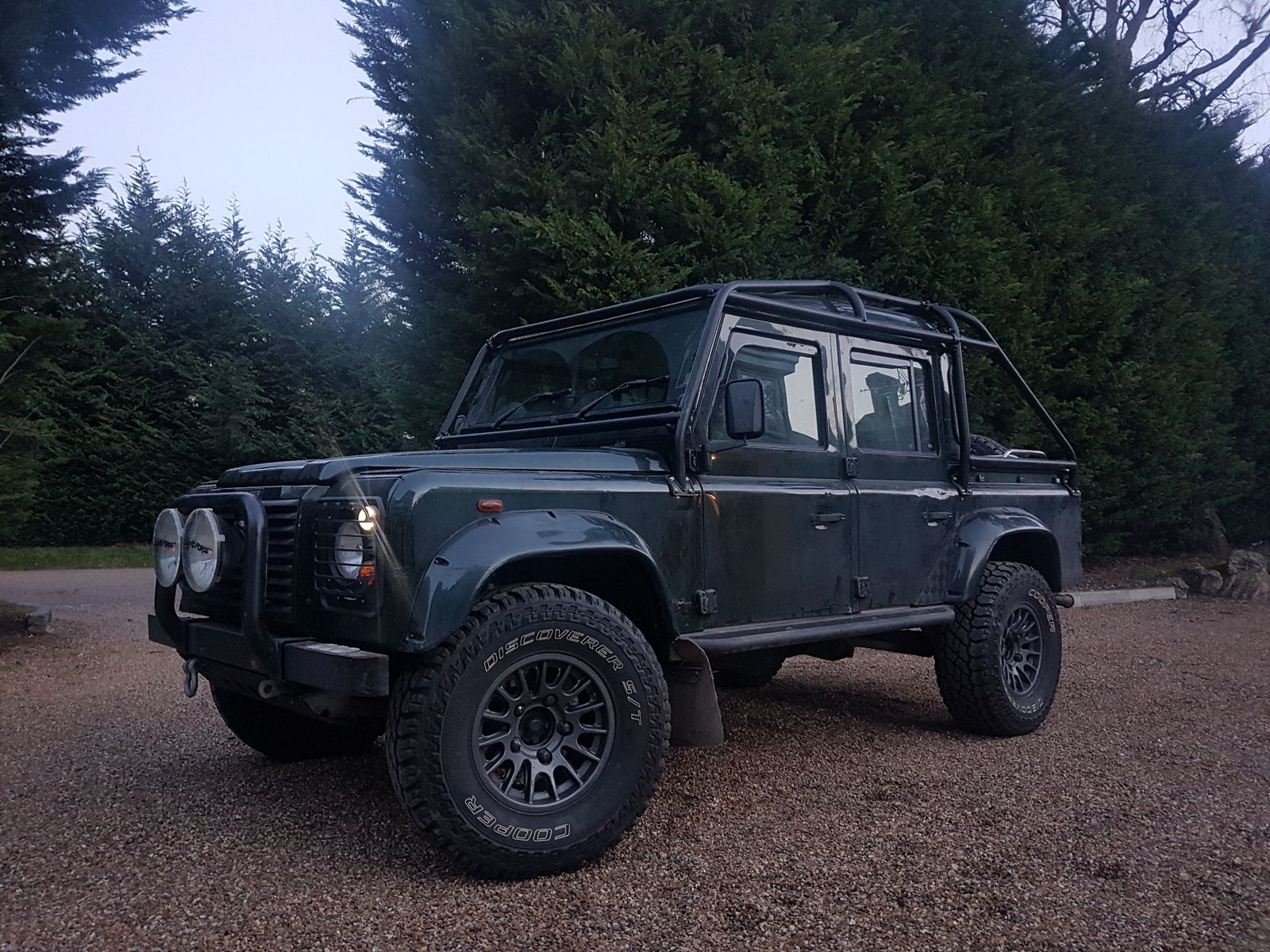

    Alsooo its done!!


    Loads of pics to come, most likely Sunday! Very pleased with myself :D:D:D

  20. neilly

    neilly Well-Known Member Full Member

    Joined:
    Jan 10, 2011
    Posts:
    19,617
    Likes Received:
    9,951
    Location:
    Oxfordshireness
    Stylin'

    Looking good,

    Just one little thing..can you please align the spotlight writing ??...Pretty please.

    Cheers
