L322 4 wheel alignment - track rod seized to chassis

Discussion in 'Range Rover' started by smartkhan, Jun 1, 2019.

< Previous Thread | Next Thread >
  1. smartkhan

    smartkhan Member

    Joined:
    Jun 1, 2019
    Posts:
    11
    Likes Received:
    0
    Location:
    London
    Apologies for the long post

    Range Rover Vogue 4.4 Petrol 2006

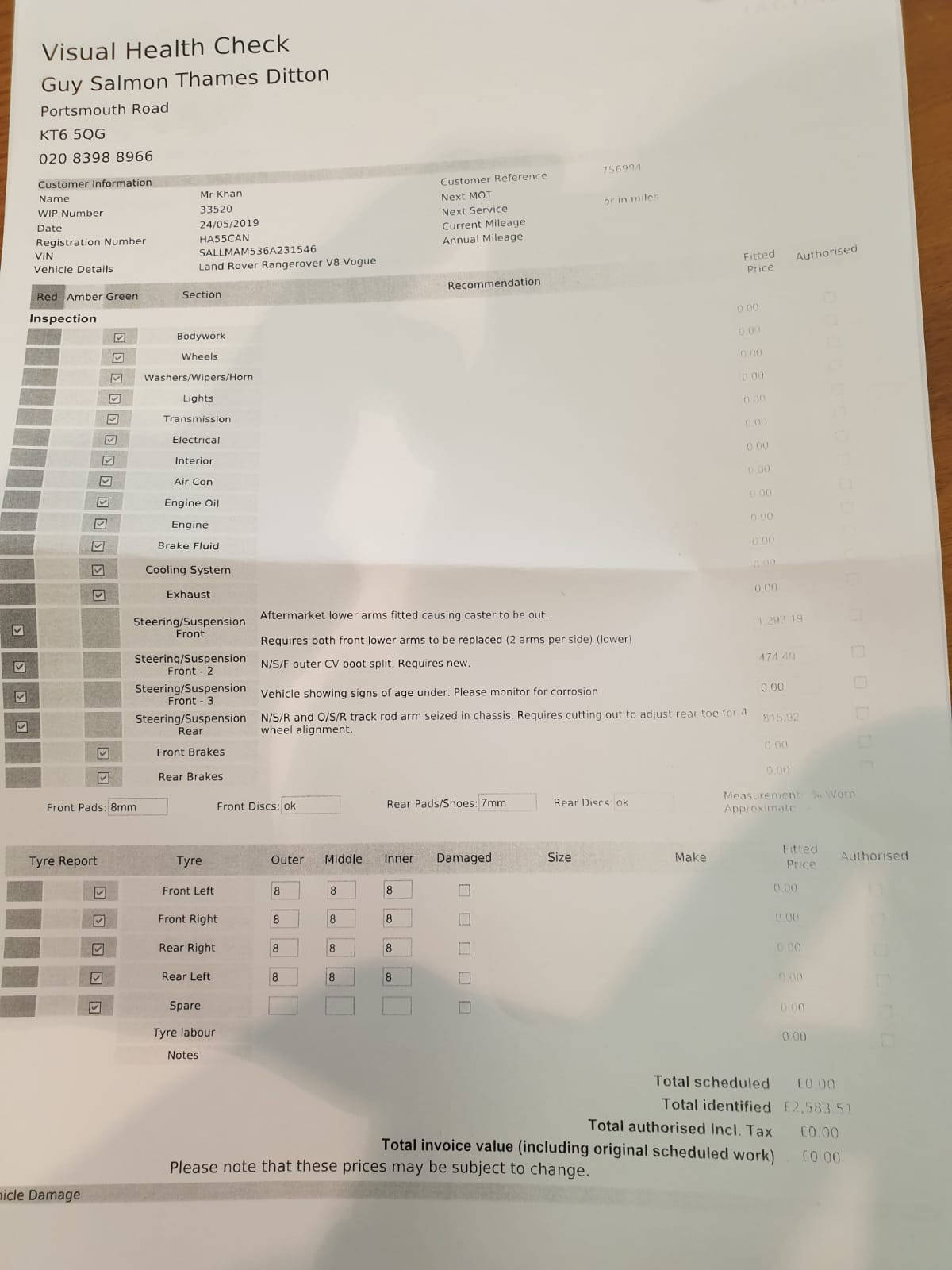

    Front lower and upper arms changed last week by an independent. I went to Land Rover Ditton for wheel alignment and they said they can't do it as front arms are non genuine and something is wrong with them. They can't do the rear wheel alignment as track rod arm seized to chassis. They still charged me £100 for just checking and letting me know that they can't do it. Below is the paperwork for the work needs to be done before wheel alignment. £2600 is the cost.

    I took it to another place for 4 wheel alignment and they said both rear toe adjustment seized.

    When I called rimmerbros for parts they said they are not sure of rear end adjustable toe links etc.

    I am confused what needs changing at the rear end for 4 wheel alignment.

    Could anyone please help? I am in Hounslow, London.


    Attached Files:

  2. Henry_b

    Henry_b Well-Known Member

    Joined:
    Jan 29, 2018
    Posts:
    5,287
    Likes Received:
    3,540
    Location:
    Stefanesti, Arges.- Romania.
    £100 for just checking?! Fook 'orf ;)

    That £2600 bill looks hilarious but thats part of l322 ownership if you rely on garages.. ;)

    "seized to chassis" surely they can't be that stupid, replace if they're that bad or free it off!!!! ;)

    As for the front arm's being wrong? whats wrong with 'em?

  3. myfirstl322

    myfirstl322 Well-Known Member

    Joined:
    Dec 29, 2012
    Posts:
    12,572
    Likes Received:
    4,084
    Location:
    Geroutavit.....
    Monkeys nowadays are either scared or untrained in using oxy to unsieze components.

    The garage are merely testing whether you are a naive and solvent mug,
    best vote against them with your feet and find a decent indy.

    £100 quid to check your alignment without adjustment is nothing short of robbery!

    Shimsteriom likes this.
  4. exmed wayne

    exmed wayne Well-Known Member

    Joined:
    Jun 10, 2018
    Posts:
    249
    Likes Received:
    155
    Location:
    On my way to Scotlandshire
    That's Londonshire for you...
    That £2k+ quote is their way of saying that they can't be bothered doing the work - they probably make more than enough doing easy routine servicing etc.
    and nowadays, they probably prefer fixing things with a computer, rather than getting their nice manicured hands grubby.
    Real mechanics used to find something that was broken and fix it.
    Today, most of them are Vehicle fitters - computer says that bit doesn't work, so we'll take it off and fit a brand new one instead.
    God forbid, they would consider trying to fix something - their Grandads used to do that in the old days, and they used real tools that were made in Britain ;)

  5. ukadamwest

    ukadamwest Well-Known Member

    Joined:
    Feb 28, 2012
    Posts:
    2,666
    Likes Received:
    635
    Location:
    Surrey
    I just paid £39 for 4 wheel alignment at my local tyre place.

    And that's in Surrey.

    £100 to check, and not do it, that's diabolical. And then to talk bo**socks about remedial work.

    Name and shame.

    Too many of these place rip off the unsuspecting and vulnerable.

  6. gold rover

    gold rover Well-Known Member

    Joined:
    Nov 22, 2010
    Posts:
    5,329
    Likes Received:
    2,681
    Location:
    Scotland,
    @smartkhan rather than going to a Land Rover dealer, find yourself a knowledgeable , independant Land Rover specialist. Bills will still be high but not quite as bad.

  7. freelance

    freelance Well-Known Member

    Joined:
    Mar 5, 2009
    Posts:
    6,730
    Likes Received:
    2,467
    Location:
    essex and beyond
    Why can’t your independent complete the task and sort the problem and the alignment ?

  8. Saint.V8

    Saint.V8 Dyed-in-the-wool 100% RR Junkie

    Joined:
    Apr 27, 2008
    Posts:
    15,847
    Likes Received:
    1,753
    Location:
    Surrey - Near the middle, close to some green bits
    I have aftermarket front control arms & trackrods fitted and when I had the front end aligned after fitting the trackrods, there was no issue with castor.

    The rear is not adjustable for castor as far as I am aware as this is set via the physical locations of the upper and lower wishbones, but is adjustable for toe and camber via eccentric washers.

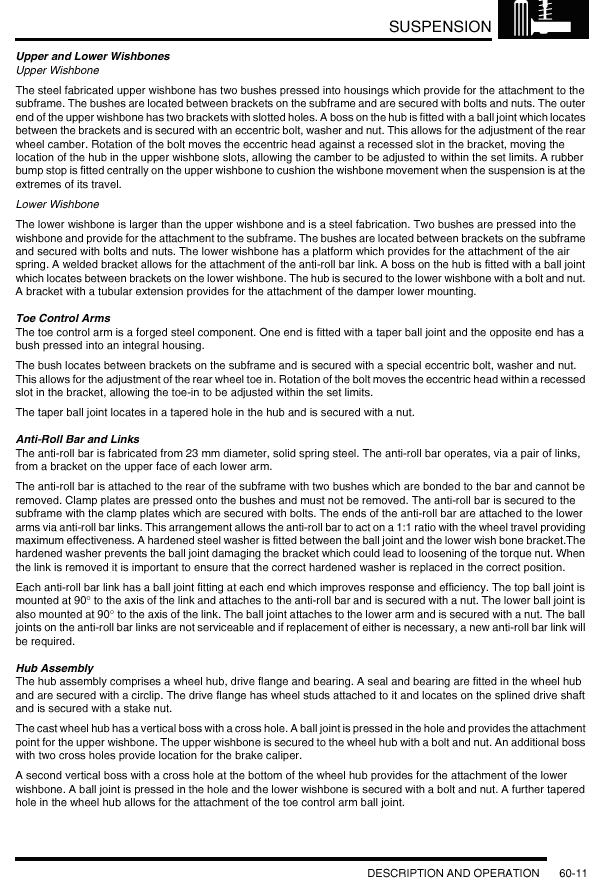

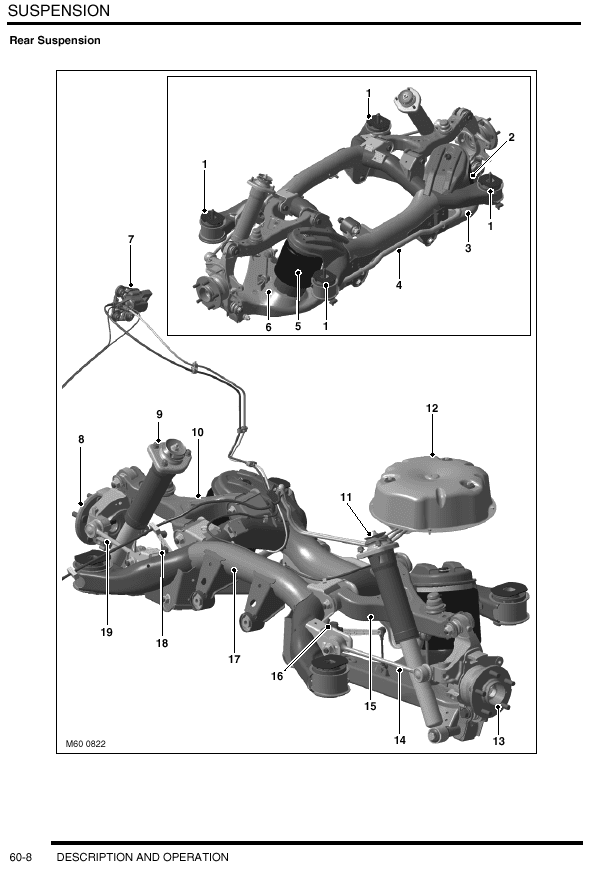

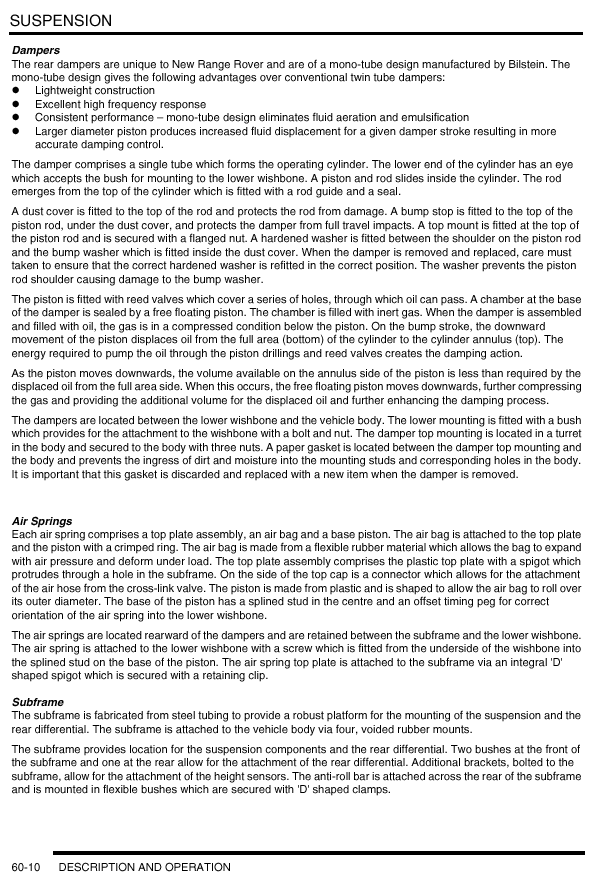

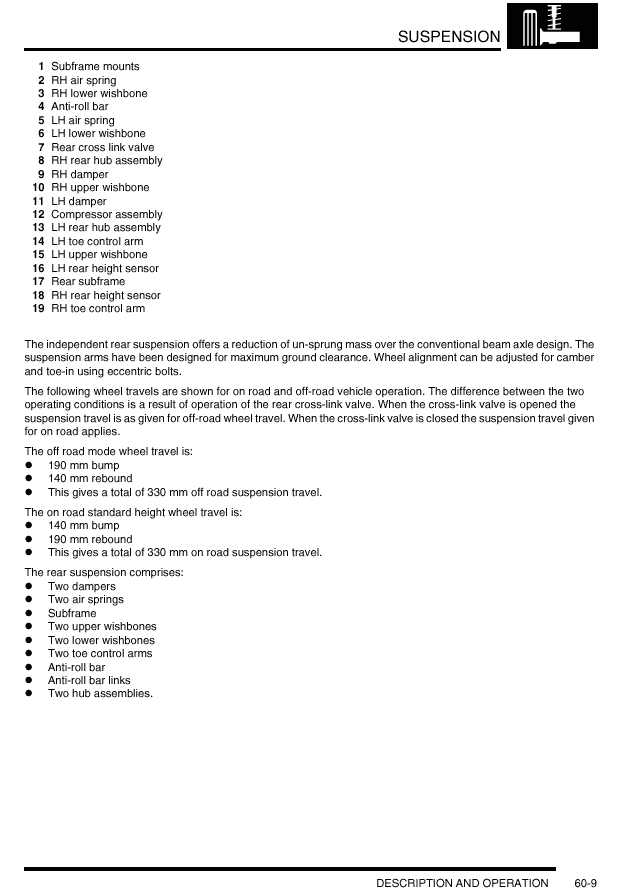

    Read the excerpts from the workshop manual.

    upload_2019-6-1_21-25-12.png upload_2019-6-1_21-25-30.png upload_2019-6-1_21-25-45.png upload_2019-6-1_21-26-2.png

    ukadamwest likes this.
  9. kds

    kds Well-Known Member

    Joined:
    Nov 10, 2008
    Posts:
    1,296
    Likes Received:
    296
    Location:
    old ugly wornout tired unloved unwanted but still
    You need to find an independent that knows Land Rovers, the problem with the rear seized is a common problem on l322. An independent will know the way out is to cut the bolt on chassis end of tie bar and fit new bar, bolt and eccentric washers its part number 14 in drawing @Saint.V8. put up.

  10. smartkhan

    smartkhan Member

    Joined:
    Jun 1, 2019
    Posts:
    11
    Likes Received:
    0
    Location:
    London
    I know one landrover specialist who did the gearbox service for me. I asked him couple of times but he didn't reply. I think he is not bothered to do it as he might not make money out of me.

    Anybody know any good independent in London? I am in Hounslow, West London.

  11. ukadamwest

    ukadamwest Well-Known Member

    Joined:
    Feb 28, 2012
    Posts:
    2,666
    Likes Received:
    635
    Location:
    Surrey
    If you fancy a drive just 20 min down the M3 try challenger 4x4 in Tongham

    Or

    You're welcome to borrow my angle grinder

  12. smartkhan

    smartkhan Member

    Joined:
    Jun 1, 2019
    Posts:
    11
    Likes Received:
    0
    Location:
    London
    I'm not expert in doing such stuff myself. I'll give challenger 4x4 a call tomorrow.

  13. ukadamwest

    ukadamwest Well-Known Member

    Joined:
    Feb 28, 2012
    Posts:
    2,666
    Likes Received:
    635
    Location:
    Surrey
    We'll get you turning spanners yet !

    1988smithy likes this.
  14. smartkhan

    smartkhan Member

    Joined:
    Jun 1, 2019
    Posts:
    11
    Likes Received:
    0
    Location:
    London
    I'm going to Manchester from London tomorrow Saturday 15th June 2019. Is there anyone in the way who can help fix it? Of course I'll pay for it.

  15. 1988smithy

    1988smithy Well-Known Member

    Joined:
    Jul 11, 2015
    Posts:
    2,927
    Likes Received:
    1,885
    Location:
    West midlands
    Go to A line in Dudley on the way/way back. You can go M42/M5 on way to manc or come off J10 M6 on way back, either way it'll be about 15mins from motorway. Be warned it is first come first served, you will queue. You can't book a time slot. If they can't sort it...well I dunno. They've always done alright by me.

    www.alineyourcar.co.uk

    Do em a favour and spray the track rod threads and all of the main bolts for upper and lower arms with penetrating spray before you go. That goes for wherever you end up taking it

    myfirstl322 likes this.
  16. smartkhan

    smartkhan Member

    Joined:
    Jun 1, 2019
    Posts:
    11
    Likes Received:
    0
    Location:
    London
    I'll give them a call tomorrow.

  17. 1988smithy

    1988smithy Well-Known Member

    Joined:
    Jul 11, 2015
    Posts:
    2,927
    Likes Received:
    1,885
    Location:
    West midlands
    Just turn up if you want it done. Google the address

  18. smartkhan

    smartkhan Member

    Joined:
    Jun 1, 2019
    Posts:
    11
    Likes Received:
    0
    Location:
    London
    OK. I'll do that. Any rough estimate of cost?

  19. 1988smithy

    1988smithy Well-Known Member

    Joined:
    Jul 11, 2015
    Posts:
    2,927
    Likes Received:
    1,885
    Location:
    West midlands
    They price for front and rear/toe and camber all separately. So e.g if you just have front toe adjusted it's like, £15. I had a tyre fitted, balanced and old one disposed, front toe/camber and rear camber adjusted on my wife's 1 series there the other week, £75.

    But you've got a range rover and shìt is seized up under there so I'd allow for their £50 (iirc) per hour labour charge X a couple of hours just to be safe.

    You don't have to wait with the car, as long as the cars there, you're in the queue so you can sample Dudley's delights if you don't want to sit around.

  20. smartkhan

    smartkhan Member

    Joined:
    Jun 1, 2019
    Posts:
    11
    Likes Received:
    0
    Location:
    London
    I popped in to aline and they said they can't do it. They said you'll have to change the arms first. 2 hours queue only to check. They said if it's siezed they can't do anything. Trip wasted.
