I currently have my defender in pieces ..... Alot of pieces , decided that id start putting it back together starting with my chassis , but it needed a new cross member so got that and now am struggling to get the new one to sit right , looks like I'm going to have to sit the rear tub back on and have a go that way , hope the bulk head out righted go on easier .
Why did I do it
- Thread starter Kawak
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
wiltshire landyman
I’m back
- Posts
- 15,062
- Location
- salisbury plain wiltshire
what make did u buy some xmembers are shocking to fit
Sounds like britpart
Dr_evil
Banned
- Posts
- 29,535
- Location
- Perched on the naughty step
return it and buy a decent one from brookwells or one of the metal fabricators online
I got my outriggers from brookwells and they were a straight swap not grinding to line up or anything
I got my outriggers from brookwells and they were a straight swap not grinding to line up or anything
corgi2
New Member
- Posts
- 53
- Location
- high wycombe
speak or pm pressbreak on here, he makes them by hand, he did mine and its a fantastic job, he also ifts them
good luck Plod
good luck Plod
wickford90
Well-Known Member
- Posts
- 3,623
- Location
- wickford essex
He made a brilliant cross member and fitted it on 666george 90.

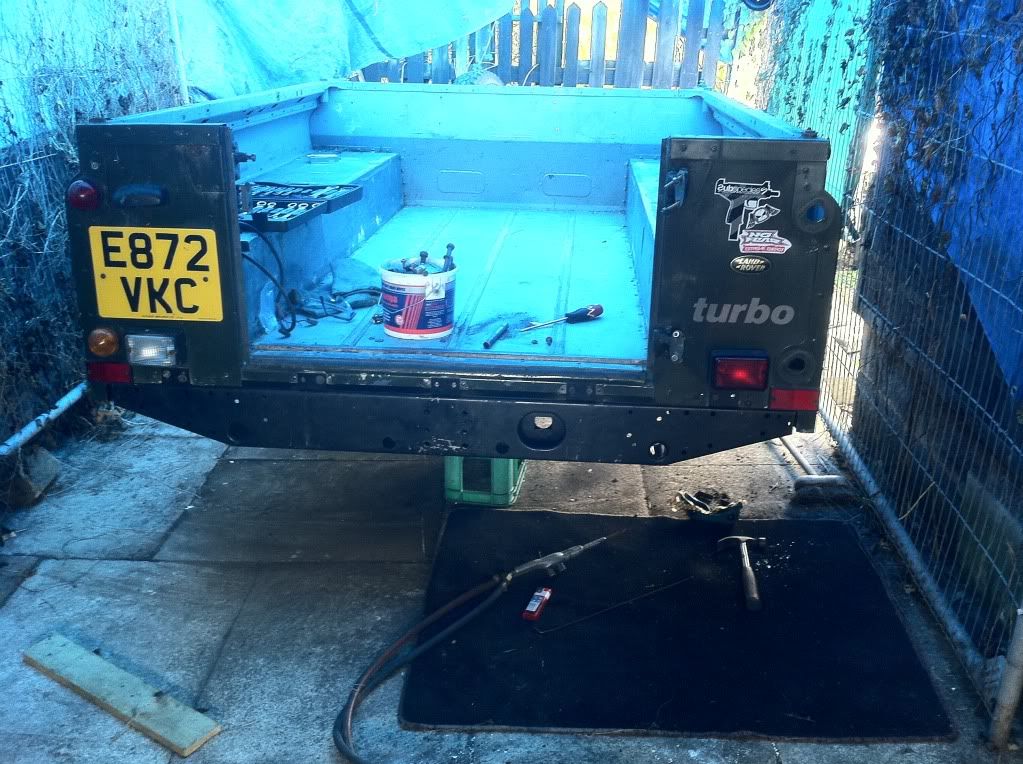

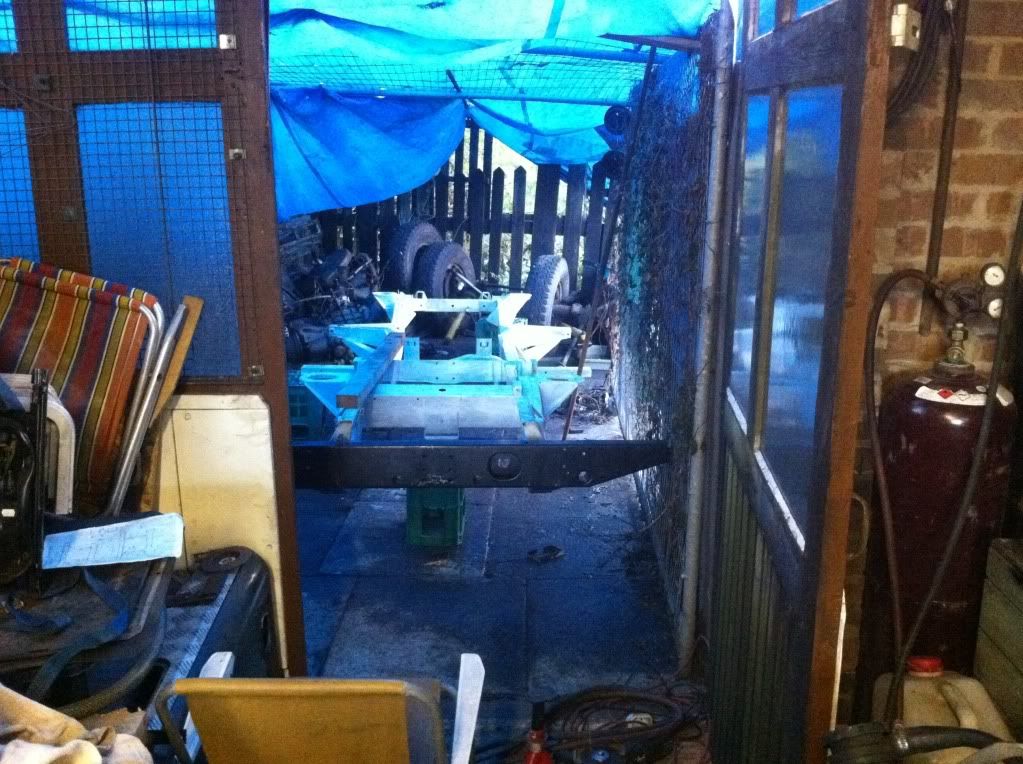

got the rear crossmember on yesterday , had to put the tub on first which was fun carrying it threw a packed garage and back again lol but its done now just need to flip the chassis and weld the bottom , saves me filling my head with welding sparks lol
and heres a close up , i have only been welding about 3 -5 days so its not perfect lol but it seems to be holding well
also got a bulkhead out rigger mostly welded on will finish it off today hopefully .

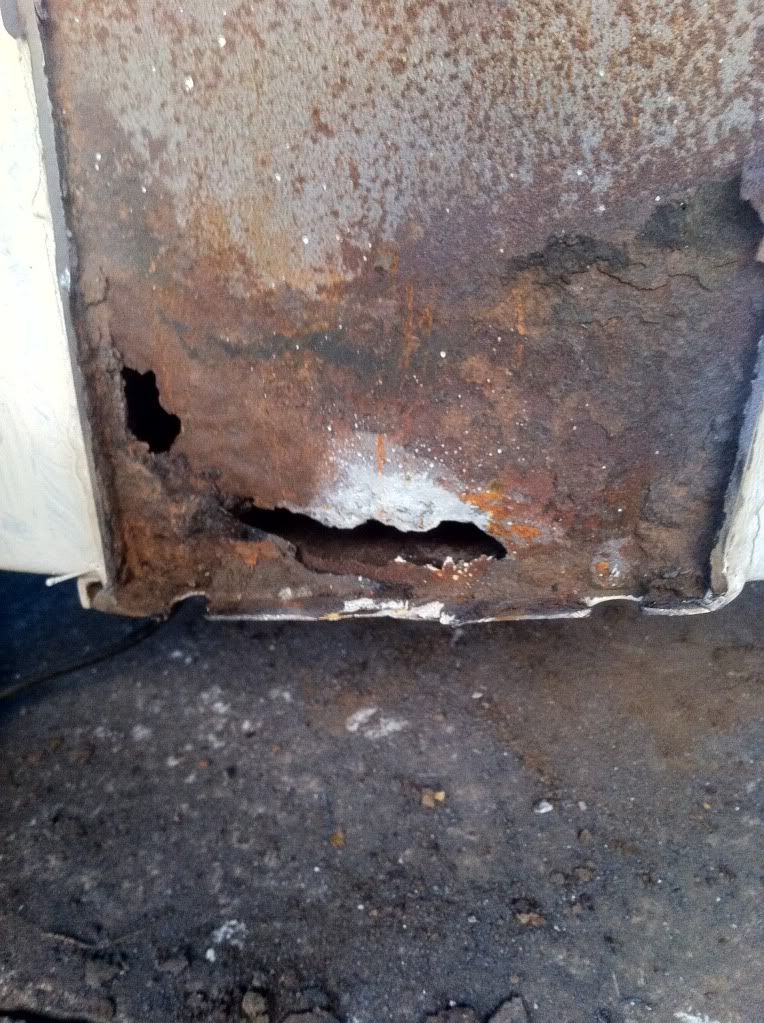

Need to plate the chassis under the other rigger before i can put it on as its rotted through as can be seen here
just wondered which would be best cutting/burning the rotten metal out and plating over it or cutting and burning the rot out and cutting a plate to sit in the hole ? also thinking of getting the chassis galvanised but am having second thought with the number of patches im going to have to do on it , any thoughts?
waldershelf
Well-Known Member
- Posts
- 2,397
- Location
- In the hills north west of Sheffield
You definitely need to cut out the rot and weld in new! If you plate over you will just be making problems for later, the two faces between the original and new will rot so quickly you will be able to watch it happening.
got the rear crossmember on yesterday , had to put the tub on first which was fun carrying it threw a packed garage and back again lol but its done now just need to flip the chassis and weld the bottom , saves me filling my head with welding sparks lol
and heres a close up , i have only been welding about 3 -5 days so its not perfect lol but it seems to be holding well
also got a bulkhead out rigger mostly welded on will finish it off today hopefully .
Need to plate the chassis under the other rigger before i can put it on as its rotted through as can be seen here
just wondered which would be best cutting/burning the rotten metal out and plating over it or cutting and burning the rot out and cutting a plate to sit in the hole ? also thinking of getting the chassis galvanised but am having second thought with the number of patches im going to have to do on it , any thoughts?
well plated up under the bulkhead out rigger and wedled new out rigger on few patches covered up, still got plenty to be getting on with tho cant decide if i should get it all galv'ed after its all welded up or just paint it up and wax oil the insides ?
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
paint ,unless you can sress relieve it it will bend like a banana if you galv it
ebbadger
Well-Known Member
- Posts
- 1,518
- Location
- Twickenham, Middlesex
You need to measure from as many exact reference points as possible, I scribed lines on the chassis in 6 different places in order to fit the new x-member in the correct place.
As the old engineering adage goes ... measure twice and cut once
Cheers Steve
