Disco 2 What on earth is this....?
- Thread starter Keith_L
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
- Posts
- 45,037
- Location
- East Dorset

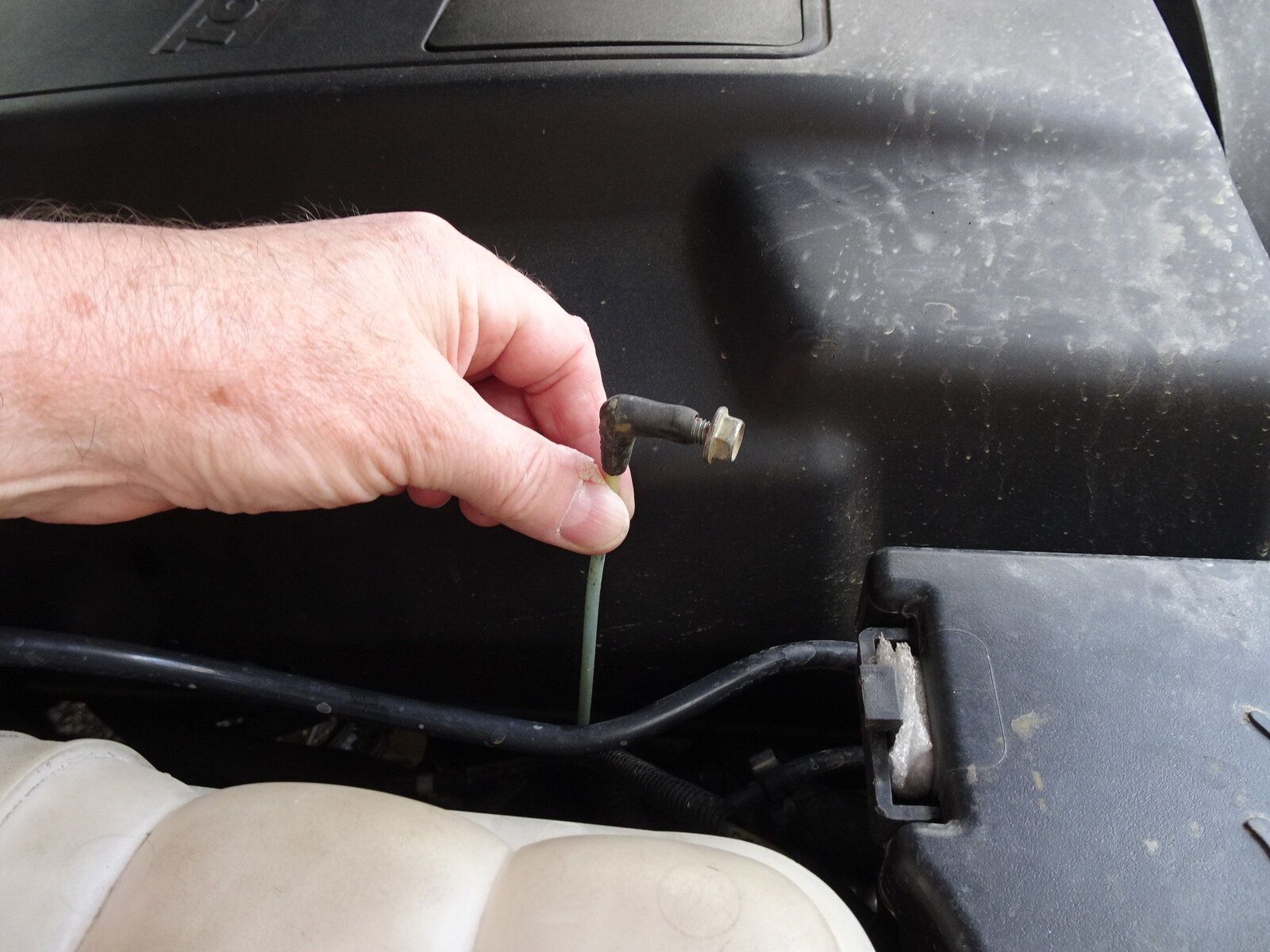

Looks like someone has done an EGR delete and that is the end of the vacuum tube to it, sealed off with a nut. A bigger picture would make me more sure of my idea!
Take the engine cover off and look where the EGR should be, it might still be there mind you!
It could have the exhaust pipe to it blanked off somewhere else.
EDIT maybe he shoved a bolt in the end of it, not a nut, sorry, that would be daft!
sierrafery
Well-Known Member
- Posts
- 17,905
- Location
- Arad/Romania
Yes, that's the EGR vacuum pipe which should go to the valve, maybe the PO just simply blanked it to stop exhaust gas going into the inlet and the system is still intact...or you'll find the delete pipe there instead of the valve, then it's completely bypassed
Keith_L
Well-Known Member
- Posts
- 408
- Location
- Worcestershire, UK
Thank you both. I haven't forgotten you - we've got builders in at the moment but as soon as I get a chance I will take a look at this and get back to you.
Keith_L
Well-Known Member
- Posts
- 408
- Location
- Worcestershire, UK
At last I've had a chance to look at this. We still have the builders with us but they are at the finishing off stage.

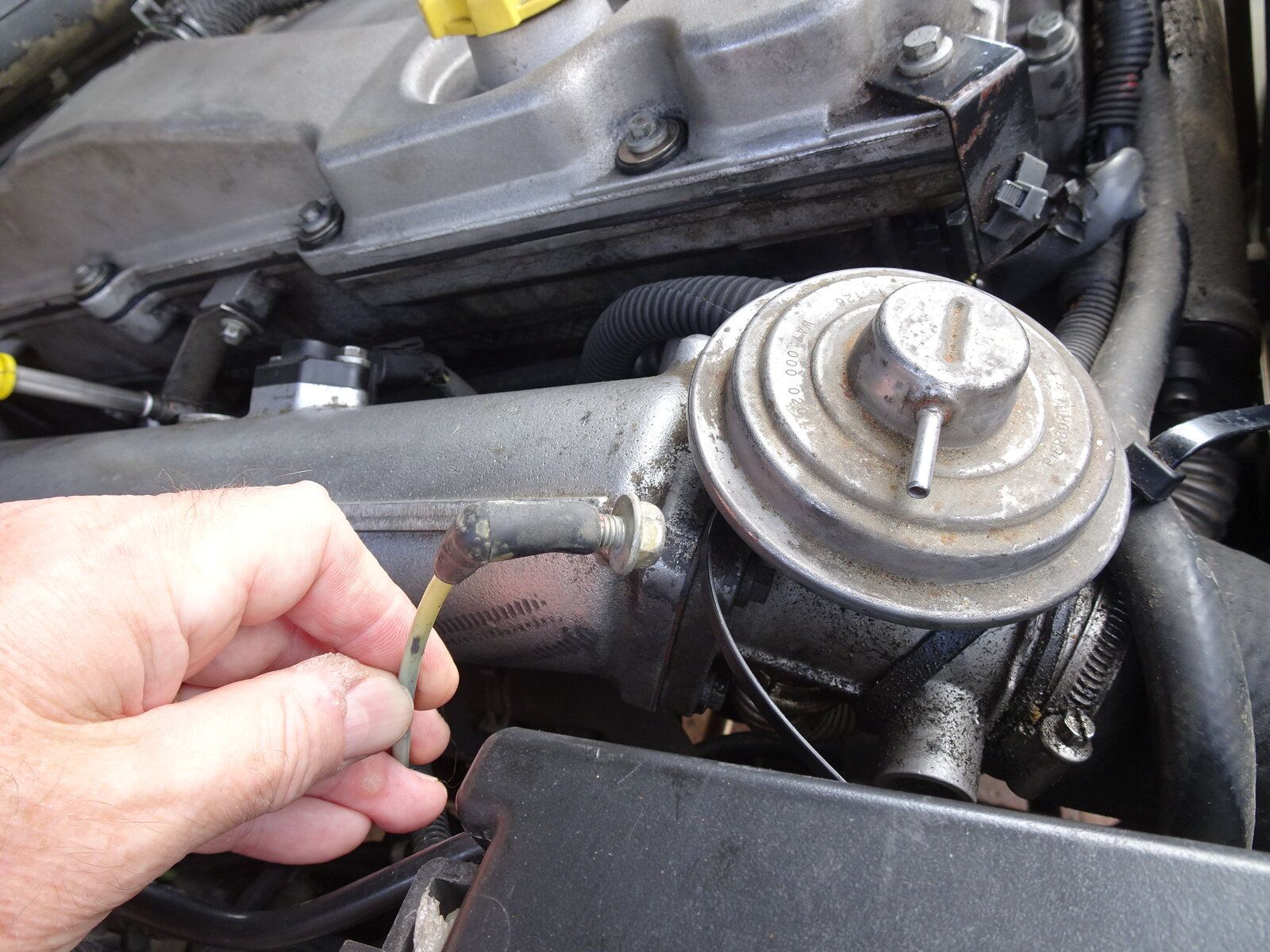

I took the engine cover off and found this so I'm guessing someone has just pulled the pipe off and blocked it off with the bolt. Is my best approach just to plug it back in (assuming the bolt hasn't stretched the pipe to much) or leave it as is? I'm not entirely sure about the pros and cons of this system.
I took the engine cover off and found this so I'm guessing someone has just pulled the pipe off and blocked it off with the bolt. Is my best approach just to plug it back in (assuming the bolt hasn't stretched the pipe to much) or leave it as is? I'm not entirely sure about the pros and cons of this system.
Attachments
sierrafery
Well-Known Member
- Posts
- 17,905
- Location
- Arad/Romania
Leave it as it is or bypass the whole thing for good with the proper kit.... this system has ZERO pro's for the engine but more that zero con's
Keith_L
Well-Known Member
- Posts
- 408
- Location
- Worcestershire, UK
I've just been looking again and I've found the second vacuum hose floating around, also blocked off with a bolt, as well as an 1/4" drive 8mm socket caught against the engine block. The engine doesn't seem to rattle as much as it did.....
