Timing belt change - anyone in Gloucestershire?

Saint.V8 said:

As promised.....

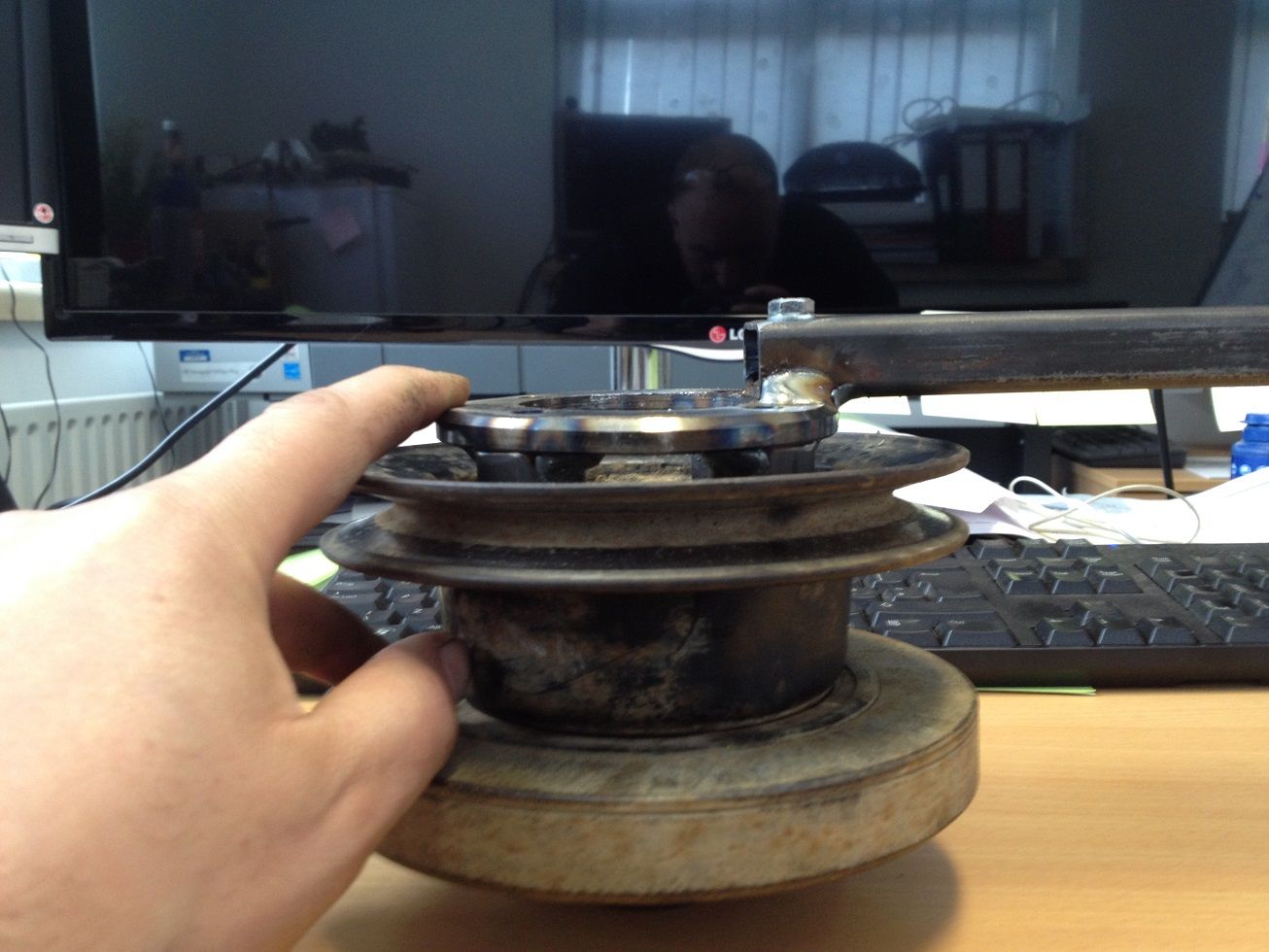

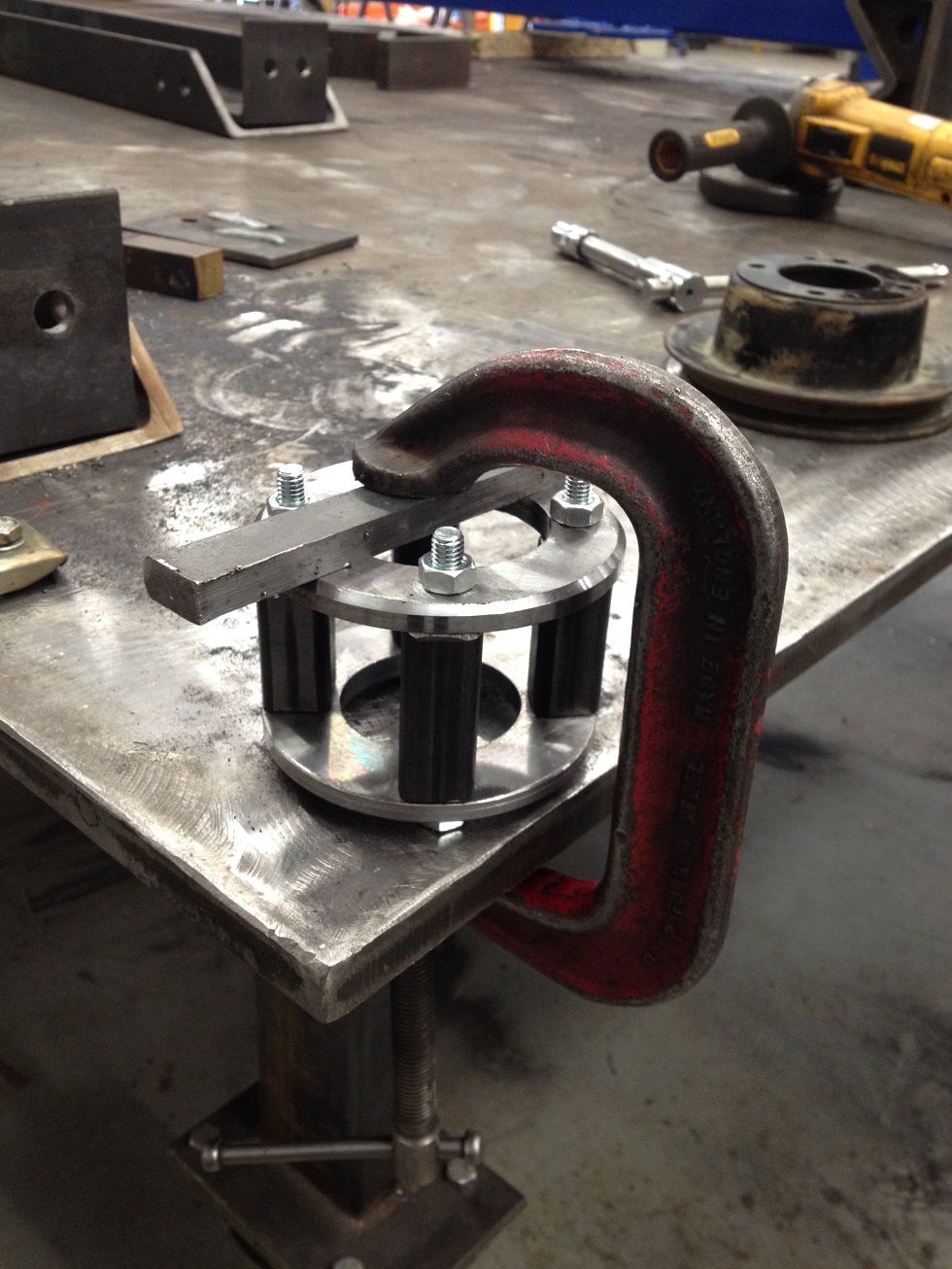

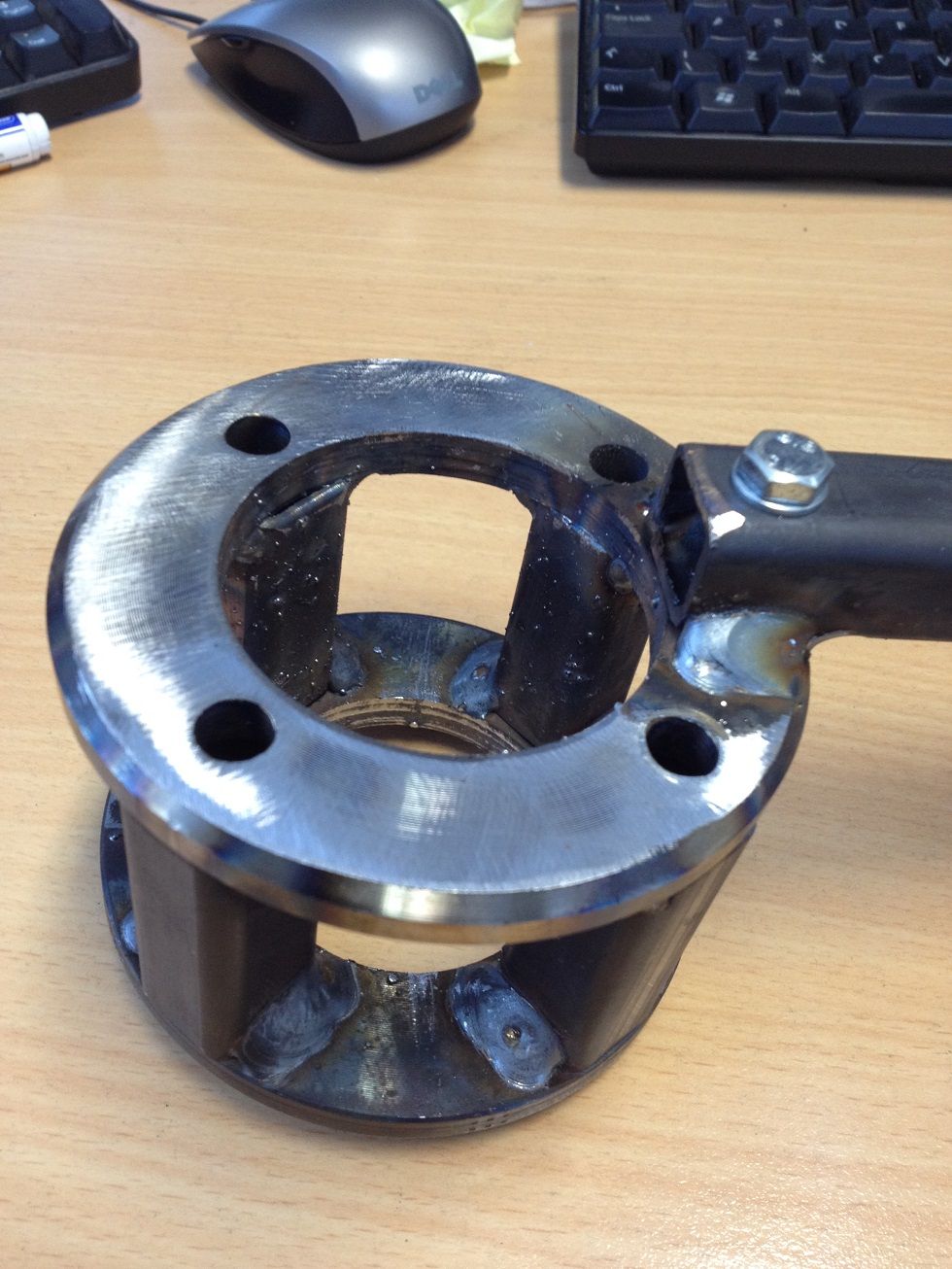

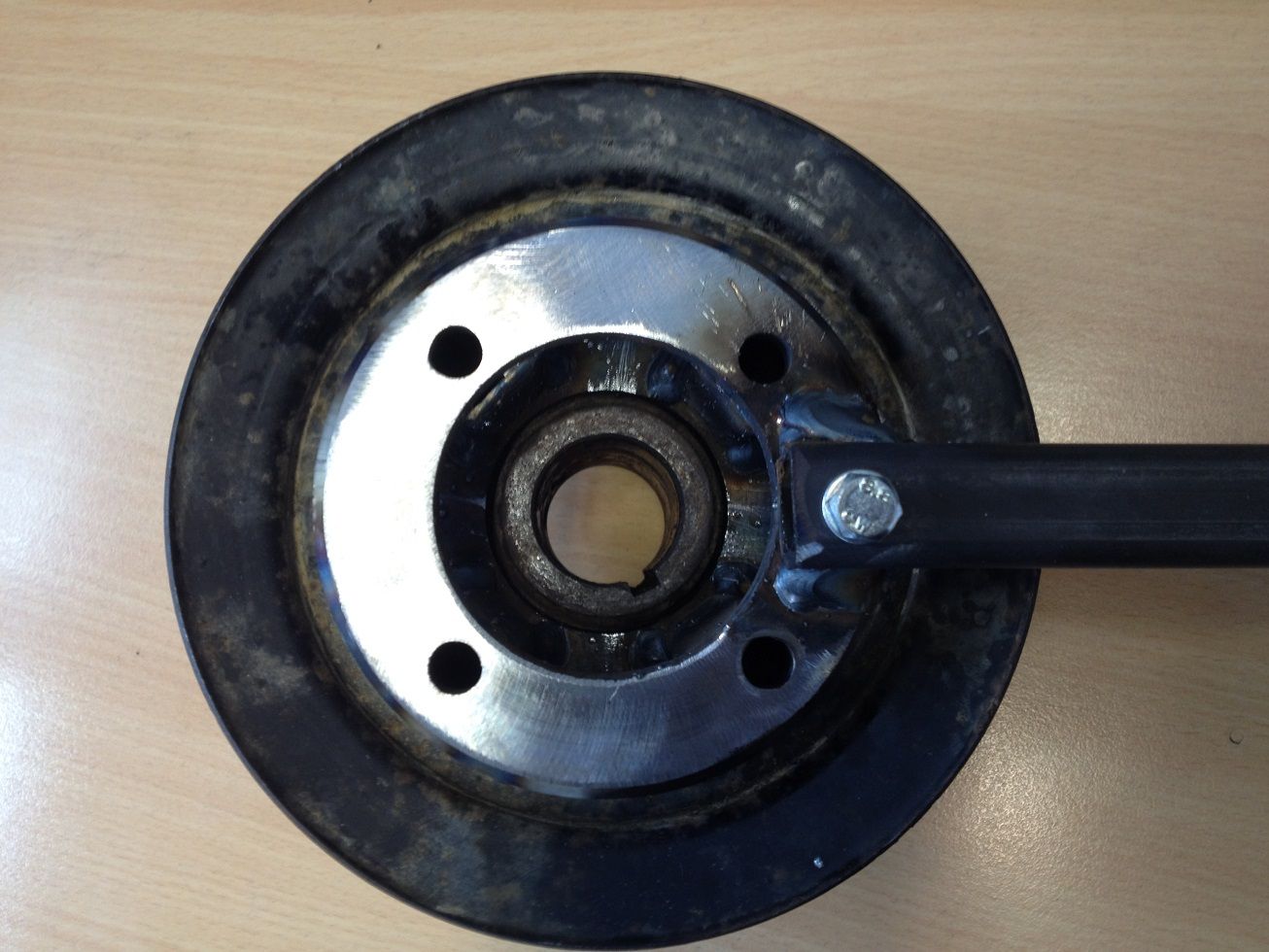

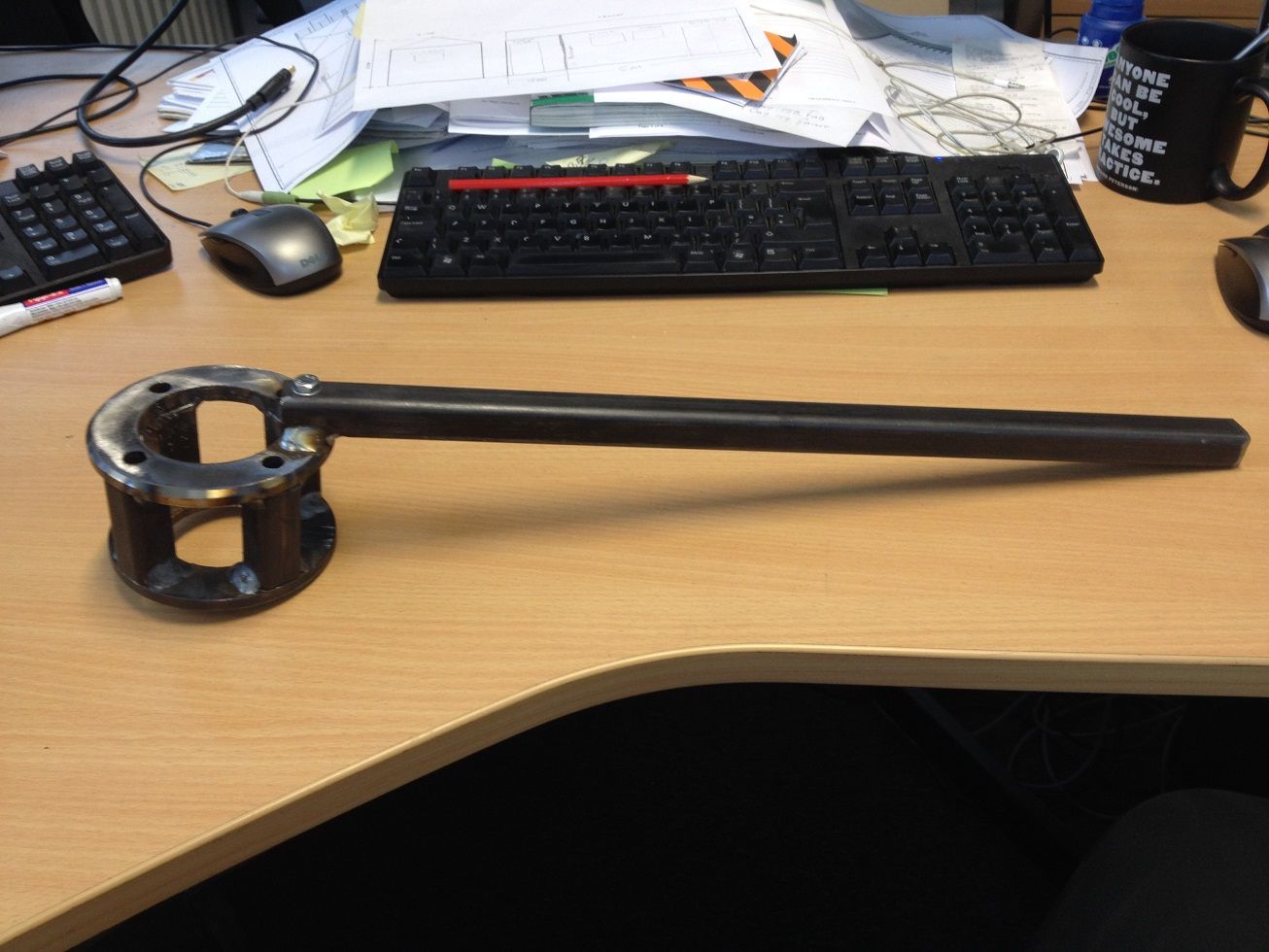

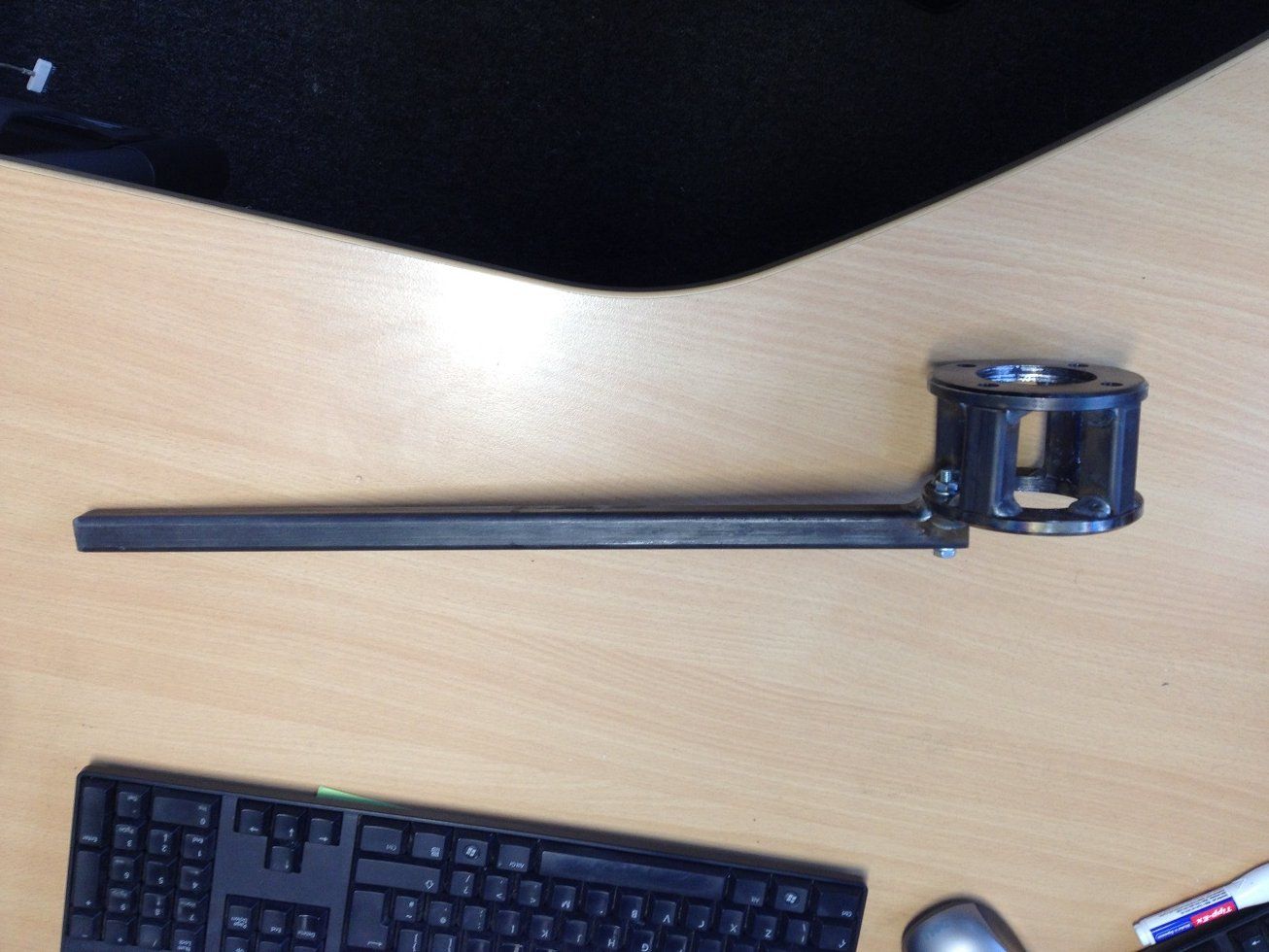

Please find attached my first attempt at the crank pulley tool (excuse the spatter - but it'll do the job!)

Dims are also in the attachments!

Click to expand...

Saint.V8 said:

As promised.....

Please find attached my first attempt at the crank pulley tool (excuse the spatter - but it'll do the job!)

Dims are also in the attachments!

Click to expand...

Karls said:

Well, I've got the LR all stripped down to the chassis bar the bulkhead and this gives me excellent access to the front of the engine to change the timing belt. I've got all the parts I need from Turner Engineering but I haven't got one of these to undo the dog nut:
Land Rover 300Tdi, 200Tdi / Jaguar Crank Locking tool (LRT 12 080) (VS4985) | eBay

I'm not really keen on spending £60 for something I'm not going to use much more than once! So I'm looking to borrow one if I can from someone hopefully within the same County!

By the way, the gearbox is out, axles are off so I can't do the usual solutions. Any other ideas very welcome.

Willing to leave a good deposit to the borrowee or even willing to offer a suitable financial reward if they wish to show me how it's done! :biggrin1:

Click to expand...

trax said:

got jump leads?

neg to bat, other end to engine block.

pos to bat, other end to the starter pos stud. then you use a screwdriver to bridge the pos stud to the lil spade.

no need to spin it mad, just touch a few times.

and iirc isn't the 300tdi a 27mm socket?

Click to expand...

Chr1s said:

I used this kit and an electric impact gun when I rebuilt my 300tdi:

New Land Rover Diesel Engine Timing Tool Kit for 200Tdi, 300Tdi 2.5D (12J) 2.5TD | eBay

I'm in Oxfordshire but you're welcome to borrow the kit if that helps at all..?

Click to expand...

Karls said:

Thanks for the offer. Bought this kit last night!

Click to expand...
