Freelander 1 Td4 Air filter

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

Disco Magic

Active Member
Posts
136

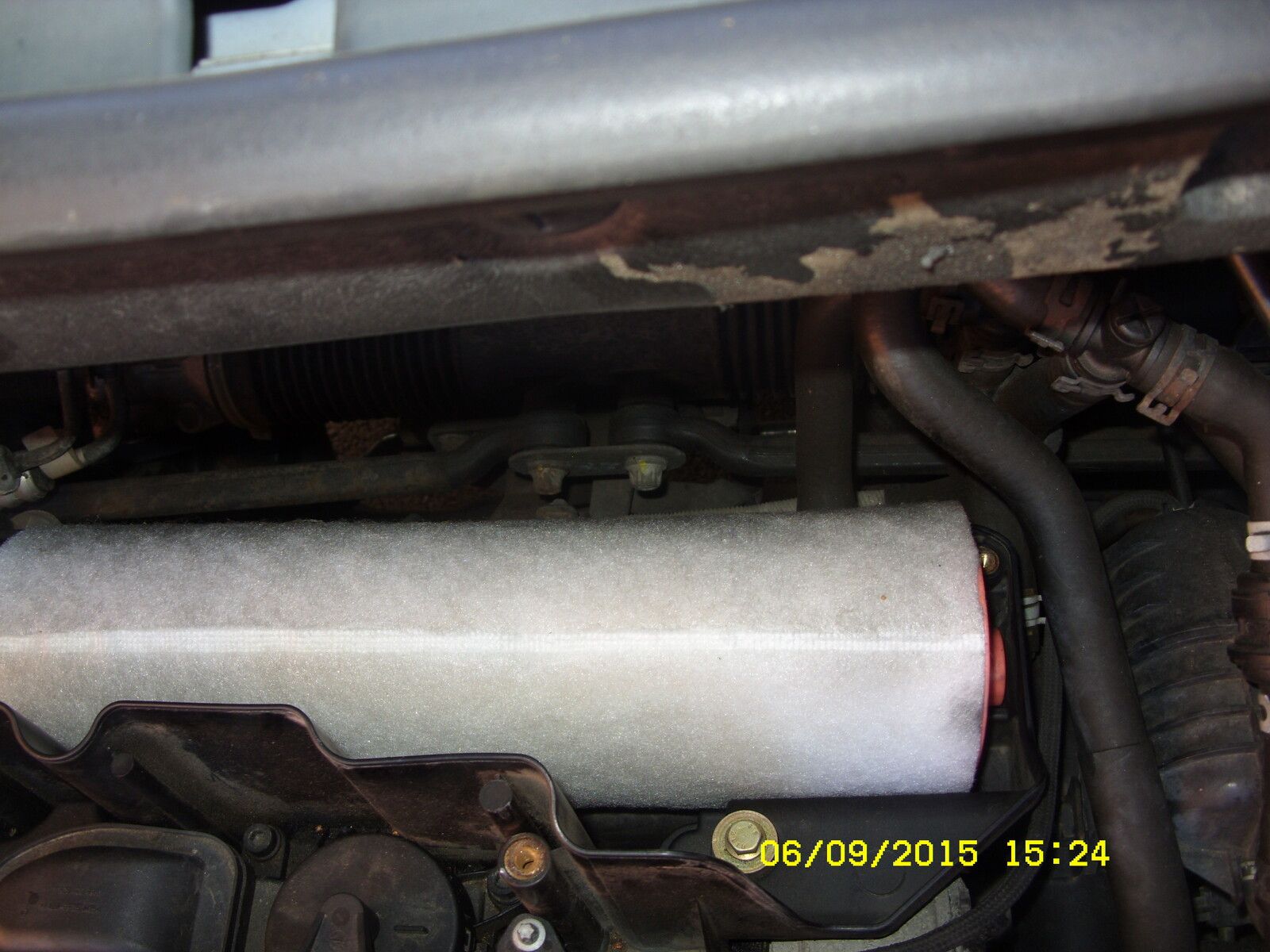

I've changed many an air filter in my time and would usually change this one in a flash.

It was serviced 6,000 miles ago by a BMW main dealer, service book stamped and signed. Unipart air filter rather than BMW off the their shelf and when I checked with their service dept yesterday they didn't change the PCV/crankcase breather!!!!!!!

The turbo vent hose looks so old and crappy it's probably original and the car has done 64,000 miles.

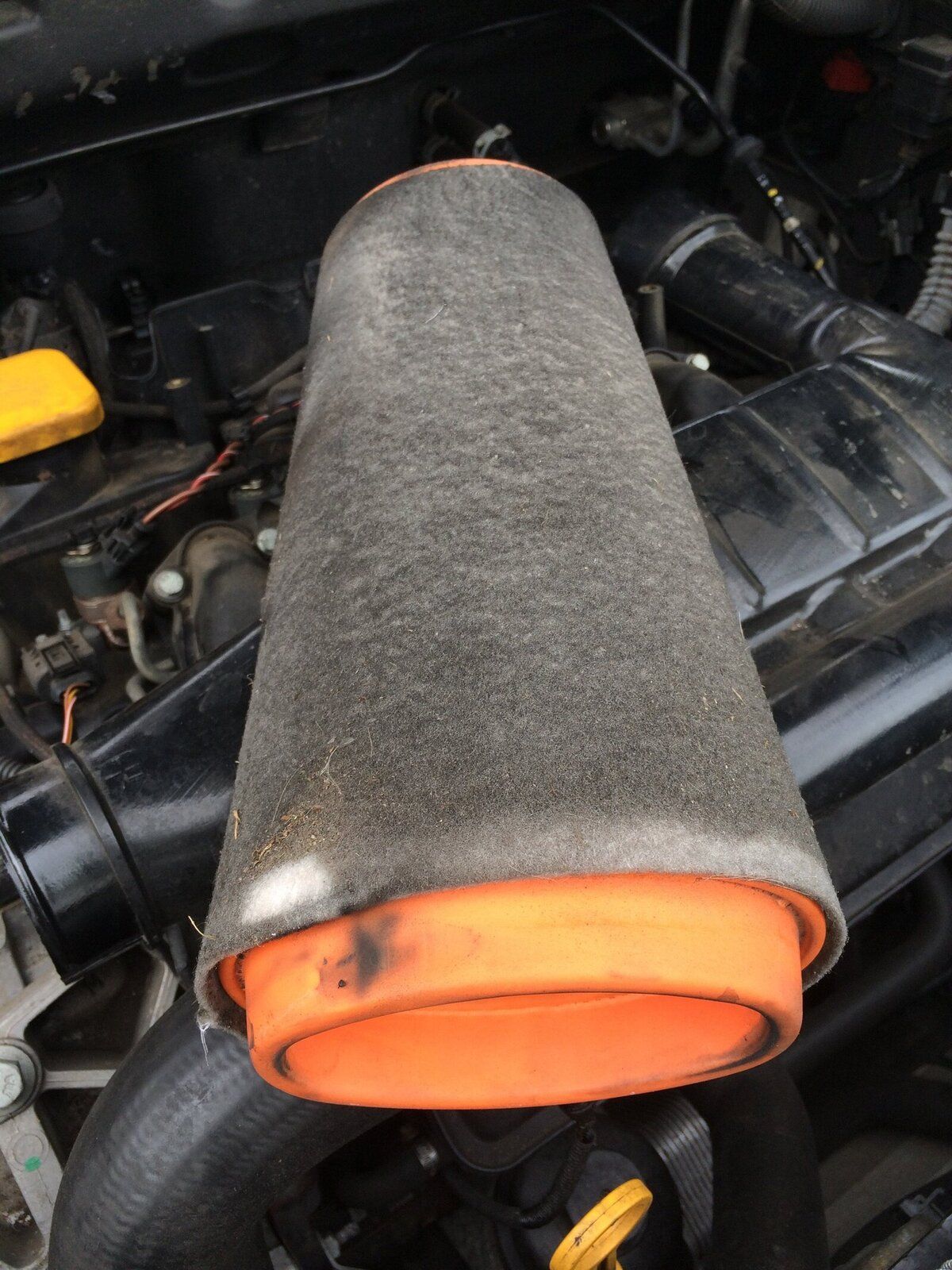

This looks more than a 6,000 mile old filter to me but as this is my first Td4 I don't know how crappy they get from general road use only.

I'm suspecting is was a check over service and they didn't do the 12,000 work at all but I could never prove it.

Only reason for not changing this filter is that an official service is required in 8 weeks time to continue the warranty (although I could refit this one and keep an 8 week old one for a future change when out of warranty.

If it looks good for a Td4 I'll leave it.

Then again, perhaps I should pop out for a Fram later on.

Many thanks for any opinions.


Edit: service was prior to my purchasing the vehicle.

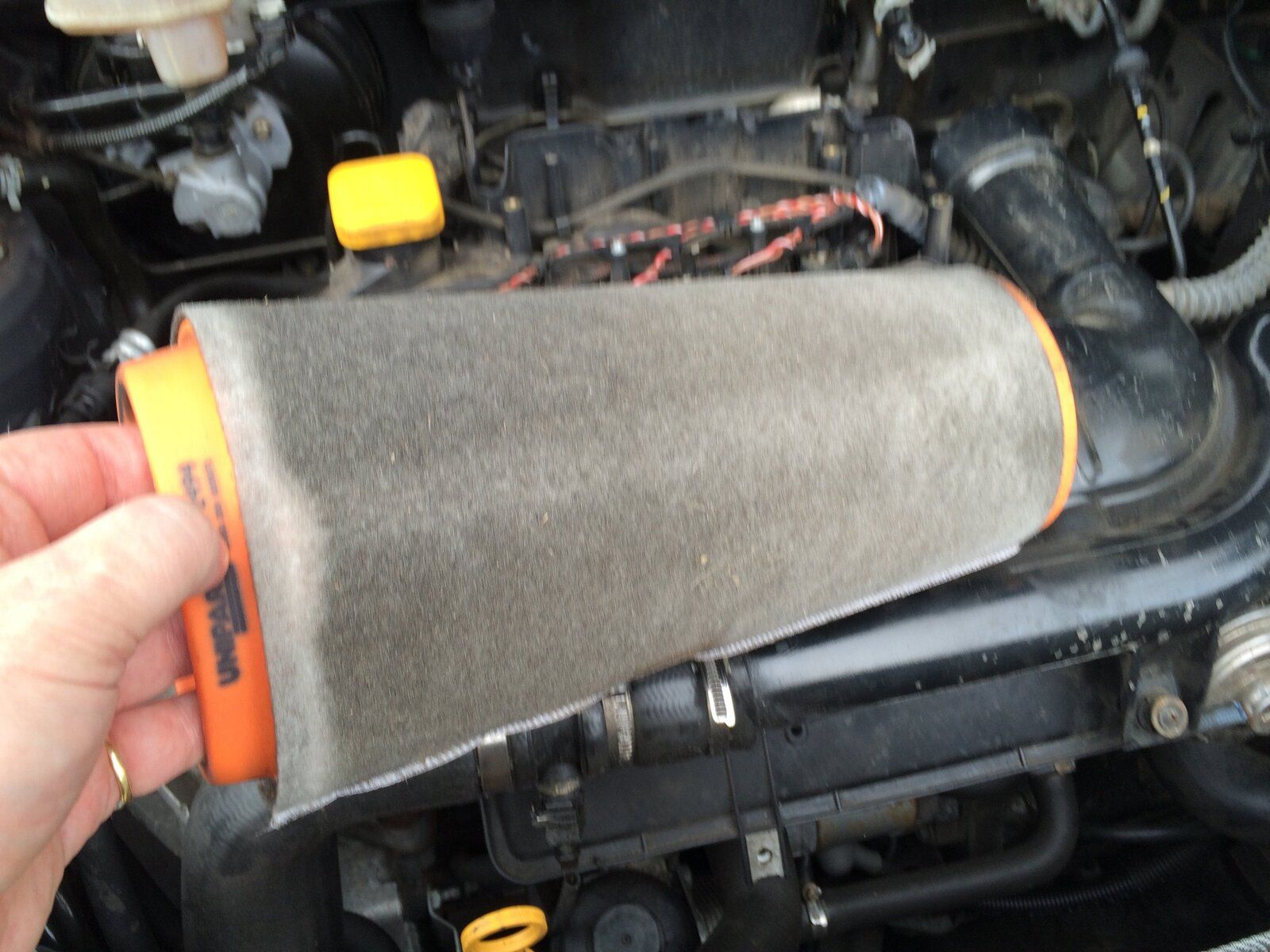

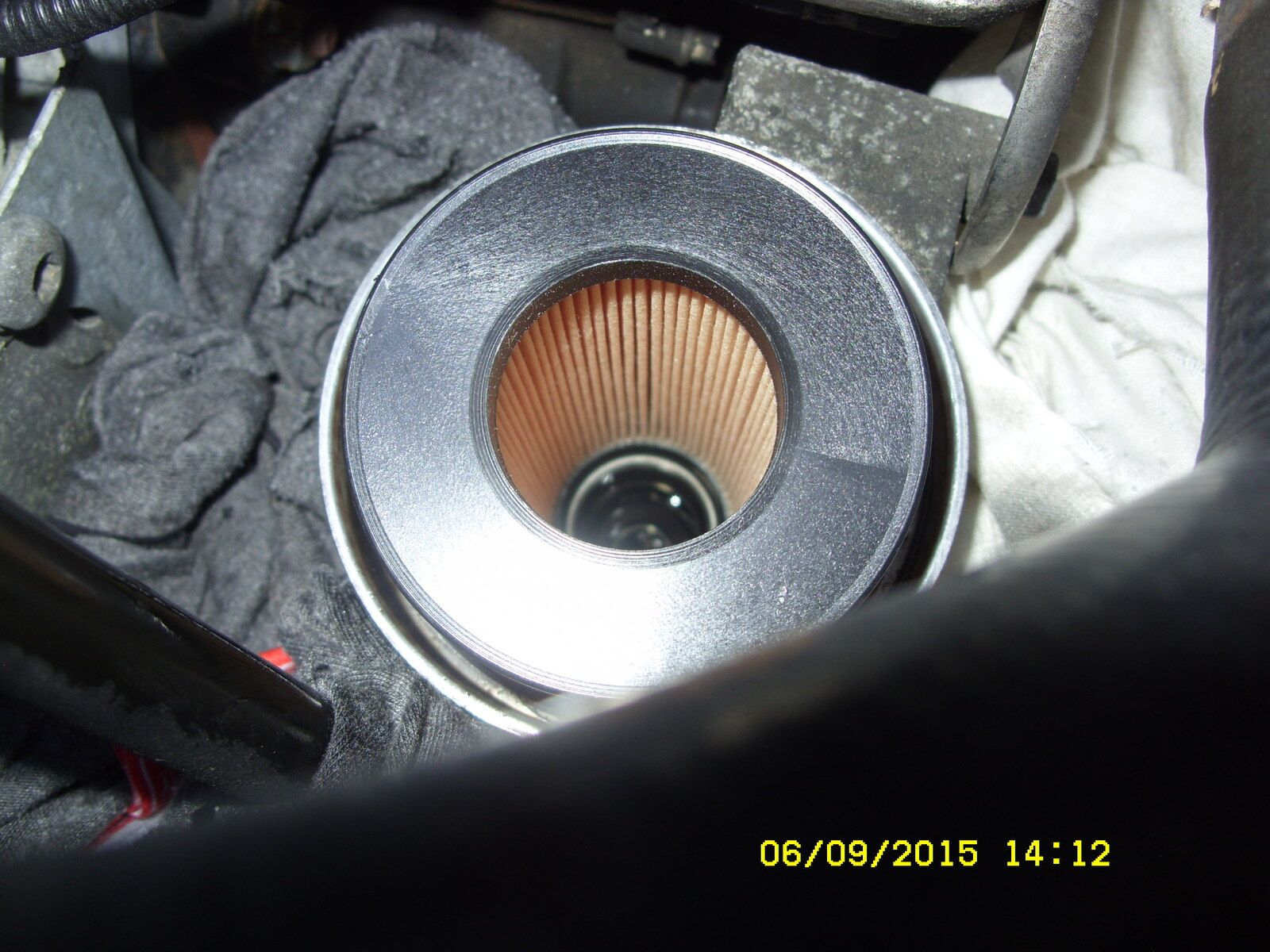

That is more than six months old in my opinion, I changed mine recently after 11 months no were near that colour, also I change the PCV filter every 12months as they only cost £5 or there about, good link below, I doubt they will clean out the oil filter pot but just change it over, hopefully they will cove up the alternator before carrying out the oil filter change,

http://www.ebay.co.uk/itm/291564993111?_trksid=p2055119.m1438.l2649&ssPageName=STRK:MEBIDX:IT


Attachments

  • SDC11328.JPG
    215.6 KB · Views: 404
  • SDC11354.JPG
    280.1 KB · Views: 331
  • SDC11341.JPG
    169.1 KB · Views: 338
  • SDC11279.JPG
    207.5 KB · Views: 295
  • SDC11280.JPG
    277.1 KB · Views: 324

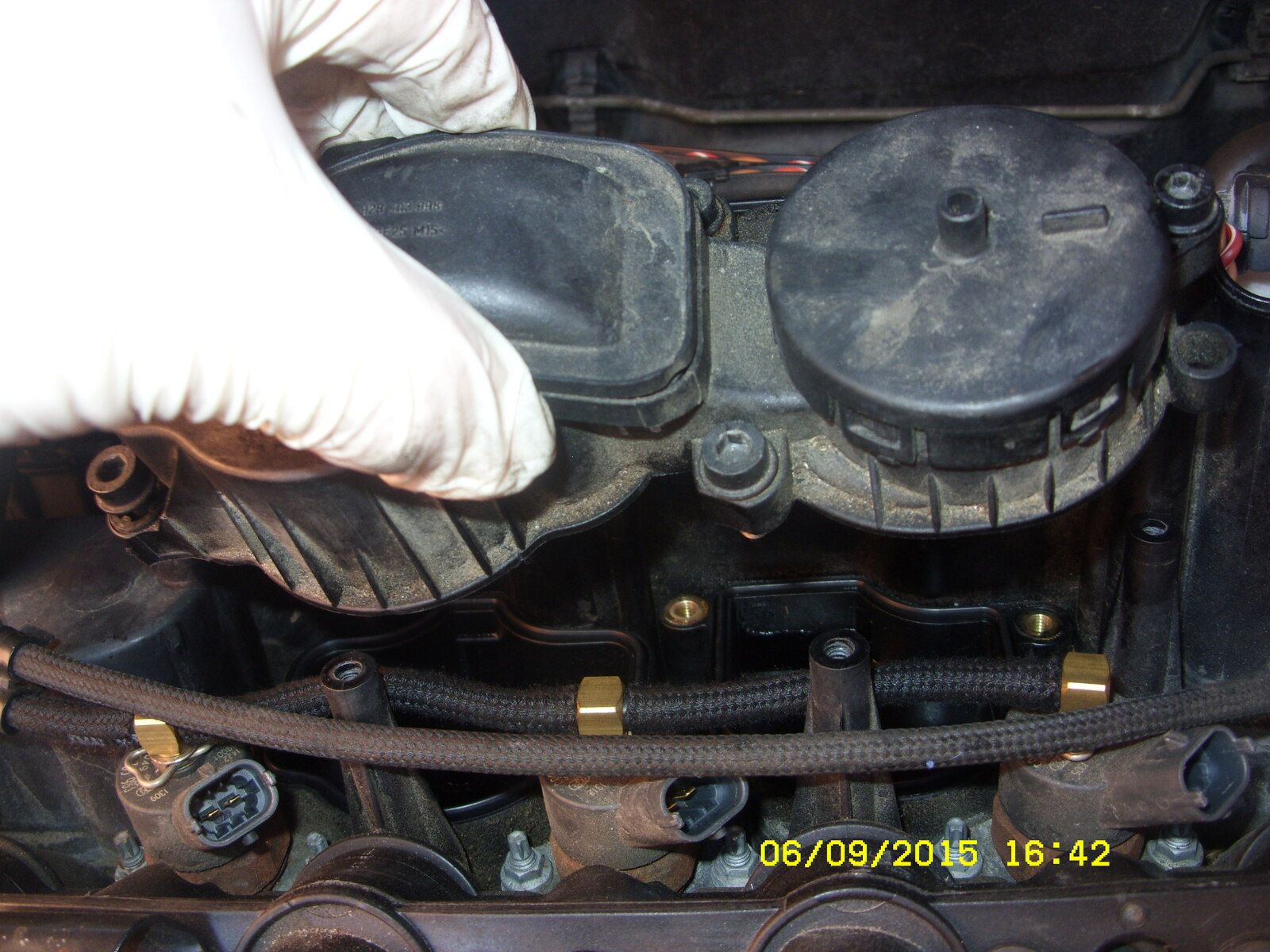

I've just got the EGR off and the inlet manifold.

Will nip out for a Fram filter and swap again before service.

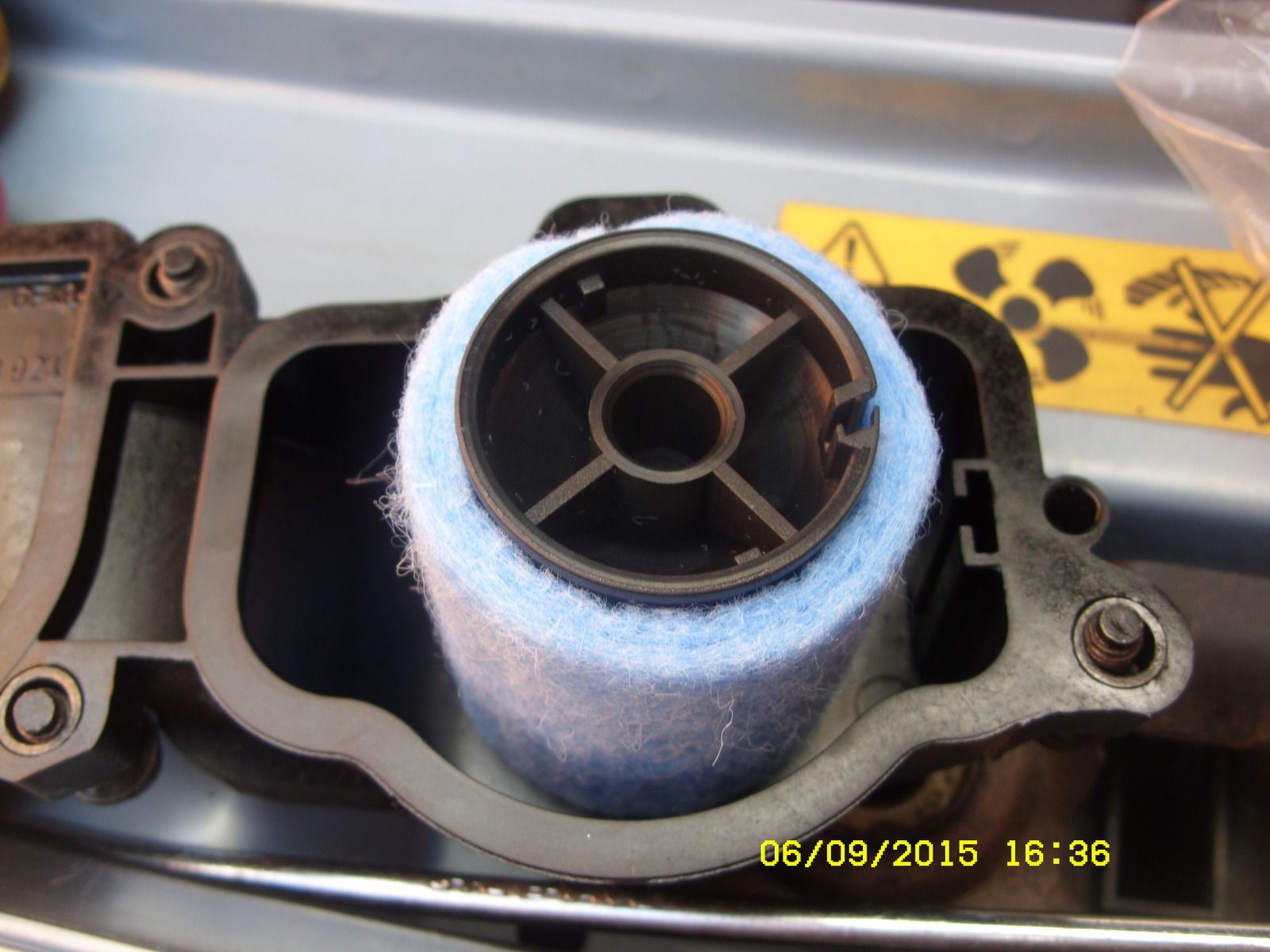

Also have a new BMW cyclone to fit whilst I'm at it and turbo vent filter.

Will spray Mr muscle before I go out!!!!

I've just got the EGR off and the inlet manifold.

Will nip out for a Fram filter and swap again before service.

Also have a new BMW cyclone to fit whilst I'm at it and turbo vent filter.

Will spray Mr muscle before I go out!!!!


Before cleaning the manifold make sure you remove the MAP sensor otherwise damage can occur

Before cleaning the manifold make sure you remove the MAP sensor otherwise damage can occur
Yup, took it out and cleaning with contact cleaner.

Sorry to double post, just started a new thread about how dry should the manifold be before refitting.

It, a merely damp but does it need to be bone dry?

Never have I come across such an awkward cussing air filter housing when refitting. What on earth were BMW thinking when they designed that??
