Squeal and smoke

If all this checks out great we will move on to the next check ... under the vehicle ...

If you haven't already got a copy of a workshop manual or RAVE (the electronic version), lets us know we can usually do pics and/or downloads pointers ...

Dippypud said:

If all this checks out great we will move on to the next check ... under the vehicle ...

Click to expand...

Don't worry it's not too tricky, just to check the UJ's ... Universal Joints on the prop shafts, these should be checked periodically for wear ... some have grease nipples built in ...

Dutchy7 said:

Hav

i haven't touched the engine at all except for an oil change. It was imported from Europe.

Click to expand...

rear out put seal is leaking and throwing oil on the silencer

Dippypud said:

Don't worry it's not too tricky, just to check the UJ's ... Universal Joints on the prop shafts, these should be checked periodically for wear ... some have grease nipples built in ...

Click to expand...

Yes, and if they have nipples, grease em while you are under there. Save the UJs and sliding joint failing soon.

T

Dippypud said:

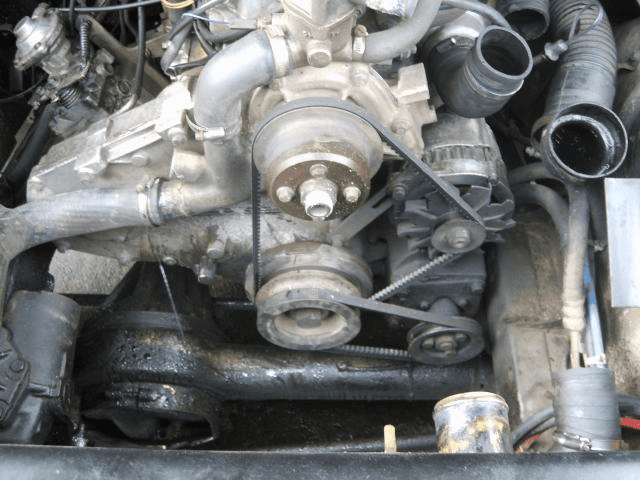

Not to worry, the 200TDi only has two belts anyway; the main belt (fan belt), goes from crankshaft pulley to fan, then to water pump, then alternator (this has a double-grooved pulley) ...

the other belt (aux belt), goes from the same double pulley to the power steering pump ...

View attachment 122710

If this looks different lets us know as you may have a 200TDi Discovery engine instead ...

Click to expand...

That's it.
I want to give the most information possible. So when going at those speeds I shouldn't have any issues with the drive shaft or anything in that department. But when I would push the 45-55 mph it would hmmm like something wasn't right. Any idea or just tell me to follow along so we can get to that area.

Dutchy7 said:

T



That's it.
I want to give the most information possible. So when going at those speeds I shouldn't have any issues with the drive shaft or anything in that department. But when I would push the 45-55 mph it would hmmm like something wasn't right. Any idea or just tell me to follow along so we can get to that area.

Click to expand...

Our super gearbox specialist says the output seal is leaking, this makes life a bit more expensive for you ...

Do you have a decent shop near you that is good with 4X4 or even knows about Land Rovers ?

Have a read of this, it'll explain what, where etc. https://www.landyzone.co.uk/land-rover/how-to-replace-the-front-transfer-box-output-oil-seal.59242/
Edited cos I is thicko ...

Dippypud said:

Our super gearbox specialist says the output seal is leaking, this makes life a bit more expensive for you ...

Do you have a decent shop near you that is good with 4X4 or even knows about Land Rovers ?

Have a read of this, it'll explain what, where etc. https://www.landyzone.co.uk/land-rover/how-to-fit-200tdi-rear-crank-oil-seal.86912/

Click to expand...

It's Killeen Texas. One of the worst places known to man. But I have a shop I go to. I'm just worried they aren't up to the task. It's not a specialty in 4x4 but they do it all. Plus the only ones I trust in this area. How expensive are we looking? And why wasn't the defender built to go those kinds of speeds and anyway I can upgrade it so it can?

Dutchy7 said:

It's Killeen Texas. One of the worst places known to man. But I have a shop I go to. I'm just worried they aren't up to the task. It's not a specialty in 4x4 but they do it all. Plus the only ones I trust in this area. How expensive are we looking? And why wasn't the defender built to go those kinds of speeds and anyway I can upgrade it so it can?

Click to expand...

You might be able to order parts off the net, and get them mailed.

Its an off road vehicle, most of the time you only go a few mph off road.

You might go faster by fitting a V8, if you havent got one already.

And yes, the USA is a Sh!thole. Or rather, it s nice place, but with a lot of idiots living in it.

Turboman said:

You might be able to order parts off the net, and get them mailed.

its an off road vehicle, most of the time you only go a few mph off road.

You might go faster by fitting a V8, if you havent got one already.

And yes, the USA is a Sh!thole. Or rather, it s nice place, but with a lot of idiots living in it.

Click to expand...

Absolutely and idiots who think they can fix anything. So where the gear box is is where the leak is at? The seal that needs replacing?

I don't mind ordering the parts I just have to know what I'm getting myself into. Weekend job or longer? Can it be a one man job. I was a horrible owner and instead of greasing everything up or making sure I have good fluid within my axles and transmission. I just took it out and drove it. So now I sit and reap what I sewn. I have to replace the u joints anyway as it is clanking quite a bit when I shift. So I might as well drop and fix that seal.

Dutchy7 said:

It's Killeen Texas. One of the worst places known to man. But I have a shop I go to. I'm just worried they aren't up to the task. It's not a specialty in 4x4 but they do it all. Plus the only ones I trust in this area. How expensive are we looking? And why wasn't the defender built to go those kinds of speeds and anyway I can upgrade it so it can?

Click to expand...

45 - 55mph is fine on the highway, cruising at that will give great fuel returns, but it'll need to be serviced regular, (which isn't difficult and will save you money to spend on toys for it) or even for the bigger repairs that you can't do yourself ...

Dutchy7 said:

Absolutely and idiots who think they can fix anything. So where the gear box is is where the leak is at? The seal that needs replacing?

I don't mind ordering the parts I just have to know what I'm getting myself into. Weekend job or longer? Can it be a one man job. I was a horrible owner and instead of greasing everything up or making sure I have good fluid within my axles and transmission. I just took it out and drove it. So now I sit and reap what I sewn. I have to replace the u joints anyway as it is clanking quite a bit when I shift. So I might as well drop and fix that seal.

Click to expand...

look at the hand brake drum, to get to seal prop needs to come off ,drum and 30mm nut holding the drive flange on ,but id check t/box has oil in it first, level plug is an 1/2 inch square drive a 1/2 ratchet and short extension are ideal for removing it

Dutchy7 said:

Absolutely and idiots who think they can fix anything. So where the gear box is is where the leak is at? The seal that needs replacing?

I don't mind ordering the parts I just have to know what I'm getting myself into. Weekend job or longer? Can it be a one man job. I was a horrible owner and instead of greasing everything up or making sure I have good fluid within my axles and transmission. I just took it out and drove it. So now I sit and reap what I sewn. I have to replace the u joints anyway as it is clanking quite a bit when I shift. So I might as well drop and fix that seal.

Click to expand...

Need to be sure of where the problem(s) is first.

You'll probably need to clean it up a bit underneath before you can be sure where oil is coming from.

Photos help as well

Dutchy7 said:

Absolutely and idiots who think they can fix anything. So where the gear box is is where the leak is at? The seal that needs replacing?

I don't mind ordering the parts I just have to know what I'm getting myself into. Weekend job or longer? Can it be a one man job. I was a horrible owner and instead of greasing everything up or making sure I have good fluid within my axles and transmission. I just took it out and drove it. So now I sit and reap what I sewn. I have to replace the u joints anyway as it is clanking quite a bit when I shift. So I might as well drop and fix that seal.

Click to expand...

Dropping the box isn't really a novice job especially on your own ... but luckily you are in good hands with the advice on here and if you need it step-by-step instructions ...

Dutchy7 said:

Absolutely and idiots who think they can fix anything. So where the gear box is is where the leak is at? The seal that needs replacing?

I don't mind ordering the parts I just have to know what I'm getting myself into. Weekend job or longer? Can it be a one man job. I was a horrible owner and instead of greasing everything up or making sure I have good fluid within my axles and transmission. I just took it out and drove it. So now I sit and reap what I sewn. I have to replace the u joints anyway as it is clanking quite a bit when I shift. So I might as well drop and fix that seal.

Click to expand...

I think James means the seal on the output shaft of the transfer box, bolted on the back of the gearbox. And it isnt a huge job, but time will depend on experience, how good your tools are, and if you discover other problems while you are in there.

Defenders like regular care and attention to the many small maintenance items, like oil changes and levels, grease points, and general TLC. Look after it, it will look after you. it is not like a modern disposable vehicle, with many sealed for life components.

Dutchy7 said:

Absolutely and idiots who think they can fix anything. So where the gear box is is where the leak is at? The seal that needs replacing?

I don't mind ordering the parts I just have to know what I'm getting myself into. Weekend job or longer? Can it be a one man job. I was a horrible owner and instead of greasing everything up or making sure I have good fluid within my axles and transmission. I just took it out and drove it. So now I sit and reap what I sewn. I have to replace the u joints anyway as it is clanking quite a bit when I shift. So I might as well drop and fix that seal.

Click to expand...

Small steps dude, let's be sure where we will be digging ...

Clean it up, check the oil level in the transfer box and we will go from there ...

Dippypud said:

Small steps dude, .

Click to expand...

Doubt it, everything is bigger in Texas. Although Ontario has a larger land area.

Turboman said:

Doubt it, everything is bigger in Texas. Although Ontario has a larger land area.

Click to expand...

Does he have RAVE or a WM ?

Dippypud said:

Does he have RAVE or a WM ?

Click to expand...

No idea, maybe he will inform?

RAVE comes off the net, assuming he can access a printer. And a reprint manual could be mailed form the UK if required.

Gentlemen I cannot thank you all enough for the advice. I just need to know where to start looking. So I can narrow it down from it being in the engine area and focus on other. So I will clean it up get some pictures and go from there. Please have patience with me to take care of this as I am a little slower at catching on but have the determination. So start with the transfer box and oil level of it??

Dutchy7 said:

Gentlemen I cannot thank you all enough for the advice. I just need to know where to start looking. So I can narrow it down from it being in the engine area and focus on other. So I will clean it up get some pictures and go from there. Please have patience with me to take care of this as I am a little slower at catching on but have the determination. So start with the transfer box and oil level of it??

Click to expand...

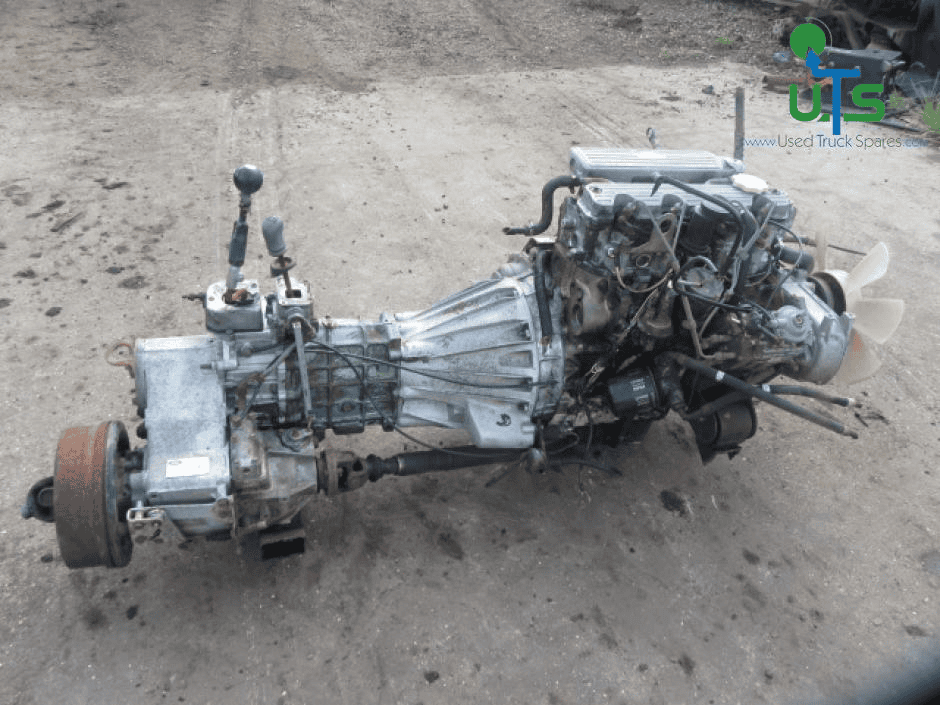

This is your mechanicals ...



The transfer box is the last shiny bit on the left, with the levers sticking out the top, (the rusty brown bit is the handbrake drum), the filler/level plug is behind(ish) the drum ...
