Roof Bar payload limits

Discussion in 'General Land Rover Forum' started by ruplaw, Feb 29, 2020.

< Previous Thread | Next Thread >
  1. ruplaw

    ruplaw New Member

    Joined:
    Jan 15, 2020
    Posts:
    9
    Likes Received:
    1
    Location:
    France
    Hi Folks,

    Looking to fit some roof bars to enable a roof top tent to be added to my Discovery 4. Many of the available roof bars on offer quote 75kg payload limit per bar. OK, so assuming two bars that gives 150kg payload, but simple maths says me + wife + tent adds up to ...... more than 150kg. And yet most of the tent suppliers claim two bars are all you need. Short of sourcing a lighter wife, am I missing something here?

    Thanks for any input.

  2. Western Slope Rover

    Western Slope Rover Well-Known Member

    Joined:
    Feb 7, 2017
    Posts:
    1,204
    Likes Received:
    1,819
    Location:
    Subterrainian
    Sounds like you're missing a third bar.

    Last edited: Feb 29, 2020
    Hicap phill likes this.
  3. Grahame of the shires

    Grahame of the shires Active Member

    Joined:
    Jun 9, 2012
    Posts:
    517
    Likes Received:
    34
    Location:
    The Shires

    This is on the standard roofbars/roofrails. Takes me and the wife no problem

  4. leeds

    leeds Well-Known Member

    Joined:
    Jul 23, 2010
    Posts:
    296
    Likes Received:
    115
    Roof bars load ratings are given for shall we say dynamic loading, i.e. driving down the road. Static loading they will take a much higher load.

    So unless you are going to get a third party to drive your D4 down the M1 at 70mph with you and your wife tucked up in your roof tent you will be fine.

    We have fitted many roof tents on two bars without issue.

    Now assuming you are going for roof bars which clamp onto the D4 factory fitted rails I would suggest you clamp them as close as possible to where the rails are attached to the roof.

    HTH


    Brendan

    goonarmy likes this.
  5. ruplaw

    ruplaw New Member

    Joined:
    Jan 15, 2020
    Posts:
    9
    Likes Received:
    1
    Location:
    France
    Thanks for the replies. I think Brendan above may be on to the right answer, it's all about static verses dynamic load limits.
    PS: will definitely try and avoid the trip down the M1 whilst actually in the tent on top!

  6. Si Click

    Si Click Well-Known Member

    Joined:
    Aug 21, 2018
    Posts:
    1,268
    Likes Received:
    632
    Location:
    Lincolnshire

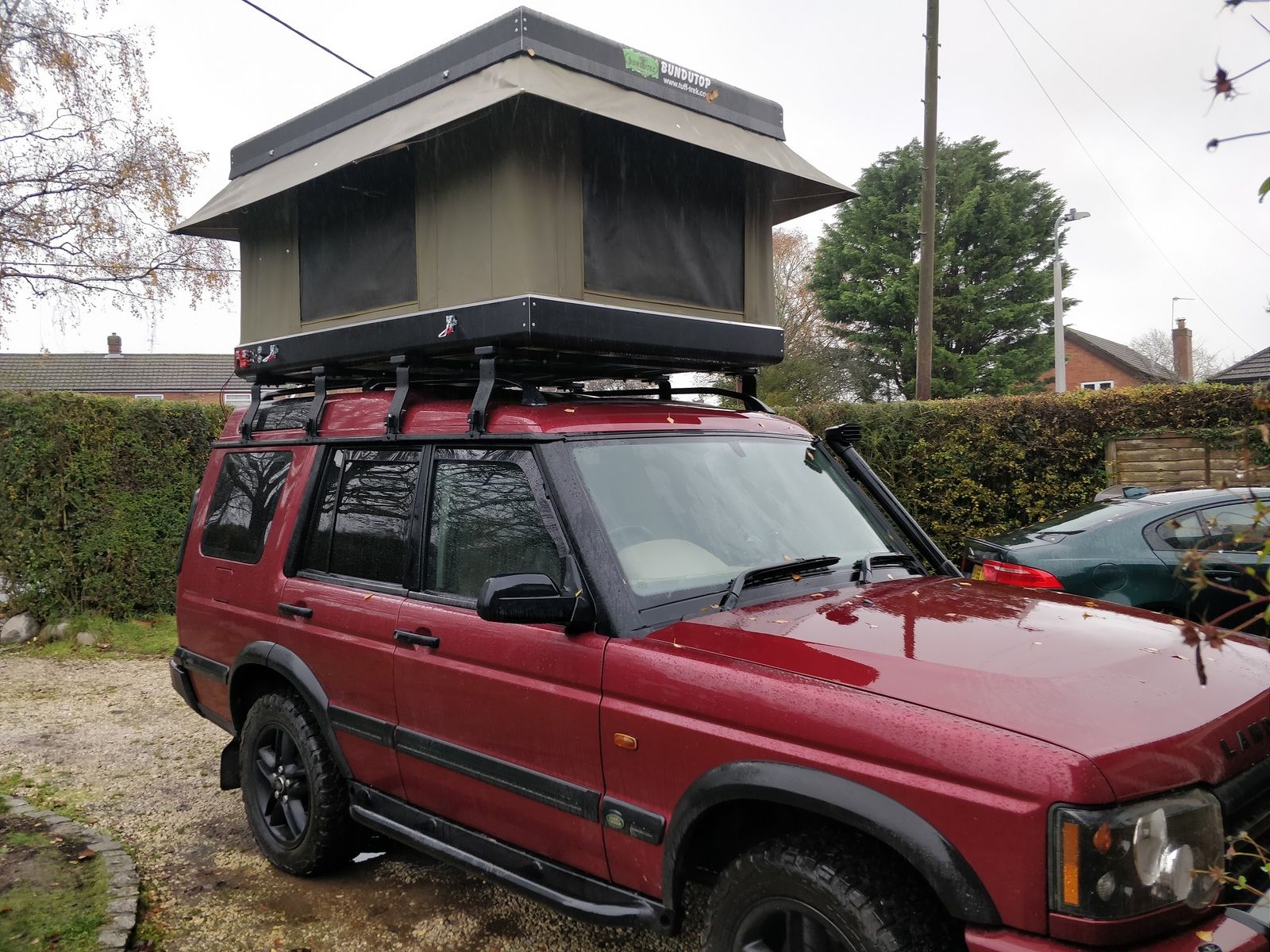

    The number of bars you need depends on the dynamic loading and where you are driving it. If you are planning on overland travel with some significant off road sections then I would go 3 bars minimum and ideally 4. If you have 2 bars and one fails you are stuffed; but with 3 bars you just redistribute the load and carry on, with 4 bars you probably don't even need to do that. IMG_20191126_141446a.jpg

    Hicap phill likes this.
  7. leeds

    leeds Well-Known Member

    Joined:
    Jul 23, 2010
    Posts:
    296
    Likes Received:
    115
    What tends to kill things are long distances on corrugated roads where things such as self tappers become self untappers

    Folding roof tents are typically in the width range of 1.2-1.6m wide compared to the 2.1 m length of hard shell tents. If considering the 4 bar route especially for a folding tent than you might as well consider a roofrack as the roofbar centres will be about 0.3 m. The next discussion would than be welded racks v bolted racks for offroad use.

    Two bars are in general more than adequate for folding tents for most peoples normal use.


    Brendan

    mick 1986 and Si Click like this.
  8. Si Click

    Si Click Well-Known Member

    Joined:
    Aug 21, 2018
    Posts:
    1,268
    Likes Received:
    632
    Location:
    Lincolnshire
    For a small folding tent then a roof rack is indeed a sensible way to go as there will still be exploitable space on the rack. Indeed, that it gives you that space is one good argument for a folding tent. For a hard top tent like mine which would completely fill a roof rack, then 4 good roof bars are a better option as it is easier to fit the tent (the bars can be moved), it is much cheaper and best of all much lighter.

    I absolutely agree about corrugations. If there is anything loose or of questionable quality on your truck, then a few days of constant vibration on a corrugated road will reveal it to you.

  9. ruplaw

    ruplaw New Member

    Joined:
    Jan 15, 2020
    Posts:
    9
    Likes Received:
    1
    Location:
    France
    Thanks everybody - all good info and advice. At the moment looks like the way ahead for us is a ProSpeed rack with Ventura folding roof tent on top. That should leave the front third of the rack spare for odds and ends. I'll send a photo or two when assembled, and then another one of any broken bits after some off roading........! Planning to tackle the Pyrenees this year.

  10. leeds

    leeds Well-Known Member

    Joined:
    Jul 23, 2010
    Posts:
    296
    Likes Received:
    115
    For a folding roof tent you need a flat roof rack without luggage rails. If it is a close fitting rack so you can not easily get your hands underneath to get to fixings you might want to consider something like the Nakatanenga roof tent quick mounting system here

    ruplaw likes this.
