Possibly another Project

jamesmartin said:

it looks like you need the full kit , in ay case rerplacing the bush and not bottom bearing wouldnt be good practice

Click to expand...

Got it now Mate, Stupid me was wondering where the bearing was in mine but Ive just realized it will be still in the housing on Bench.
So would you go for new balls too after seeing pic of mine ? makes the job a lot dearer but suppose it makes sense if mine are to Knackered

border said:

Got it now Mate, Stupid me was wondering where the bearing was in mine but Ive just realized it will be still in the housing on Bench.
So would you go for new balls too after seeing pic of mine ? makes the job a lot dearer but suppose it makes sense if mine are to Knackered

Click to expand...

they are past best ie chromes pitted and flaking off

jamesmartin said:

they are past best ie chromes pitted and flaking off

Click to expand...

OK will order full kit. Need to order everything else while Im on , bearings brakes stub axles, drums ect. Front and Rear, so am I looking at Late as some parts state Early

border said:

OK will order full kit. Need to order everything else while Im on , bearings brakes stub axles, drums ect. Front and Rear, so am I looking at Late as some parts state Early

Click to expand...

yes for swivels brakes will be either single cylinder or double

jamesmartin said:

yes for swivels brakes will be either single cylinder or double

Click to expand...

Cheers, thunk mine are double. and think stub axles are defferent front and rear. Im also sure the drums look bigger at the back will have to check.

This is what Ive got on my list so far, Shopping Cart - Paddock Spares still need brakes, cylinders, shoes and drums front and rear, my rears are bigger, so Im assuming there 11 inch and 10 inch at front, is that right ? cant think of anything else for Axle but I also need footwells for bulkhead and an outrigger for chassis so might as well get them on same order.
unless anyone can think of anything else I may need

Front should always be bigger than rear or same size.
Post some photo's of brakes with drums off

Blackburn said:

Front should always be bigger than rear or same size.
Post some photo's of brakes with drums off

Click to expand...

Well now Im really confused, mind you it does not take much. Im sure I read somewhere that some models had 11 inch rear and 10 inch at front

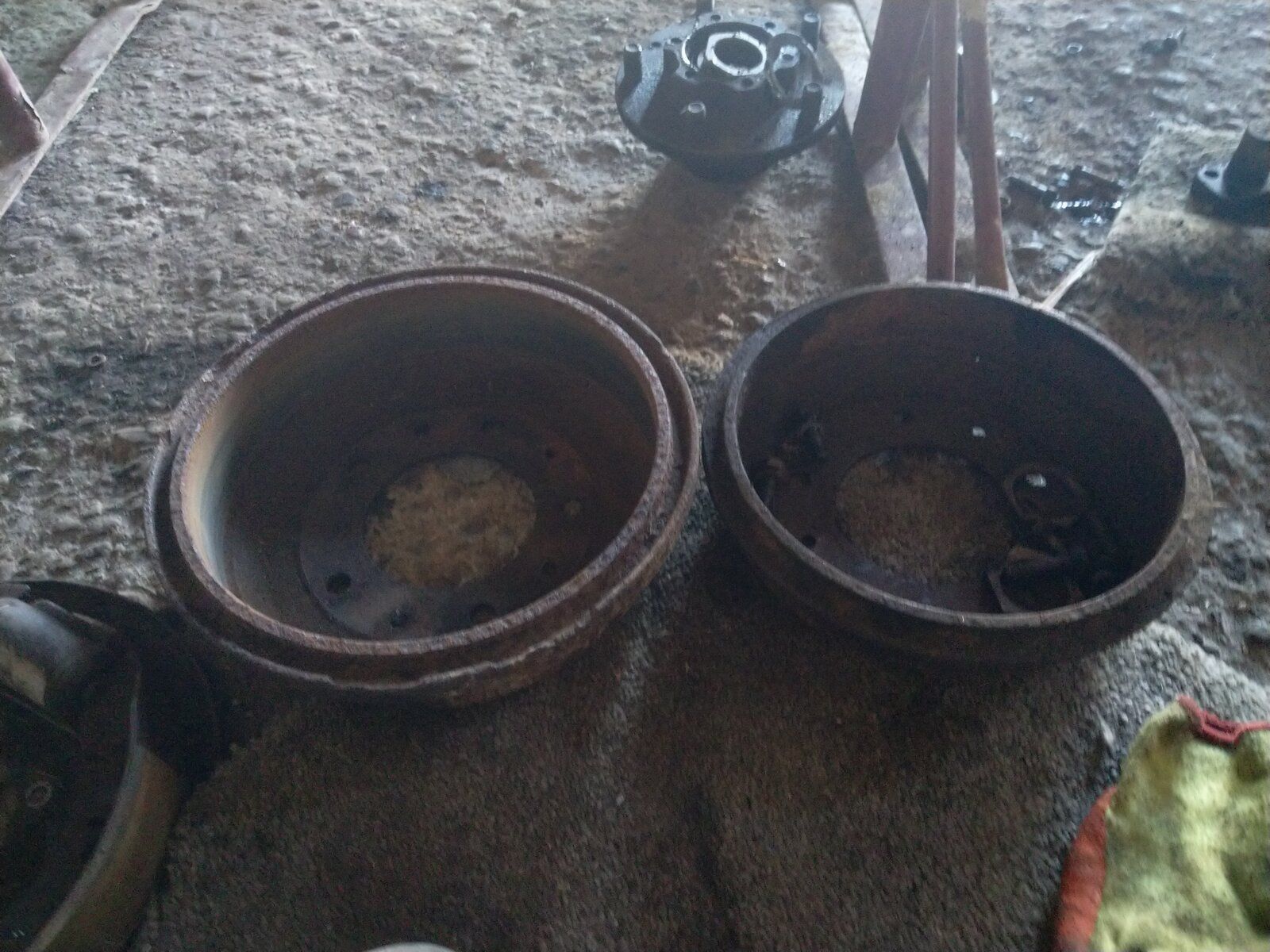

Anyway this is what I have just took off 109 axle, 11inch at rear and 10 inch at front. Now the rear had the backing plate and shoes fitted but they are missing from the front. First pic is Drums rear on the left and front on the right.

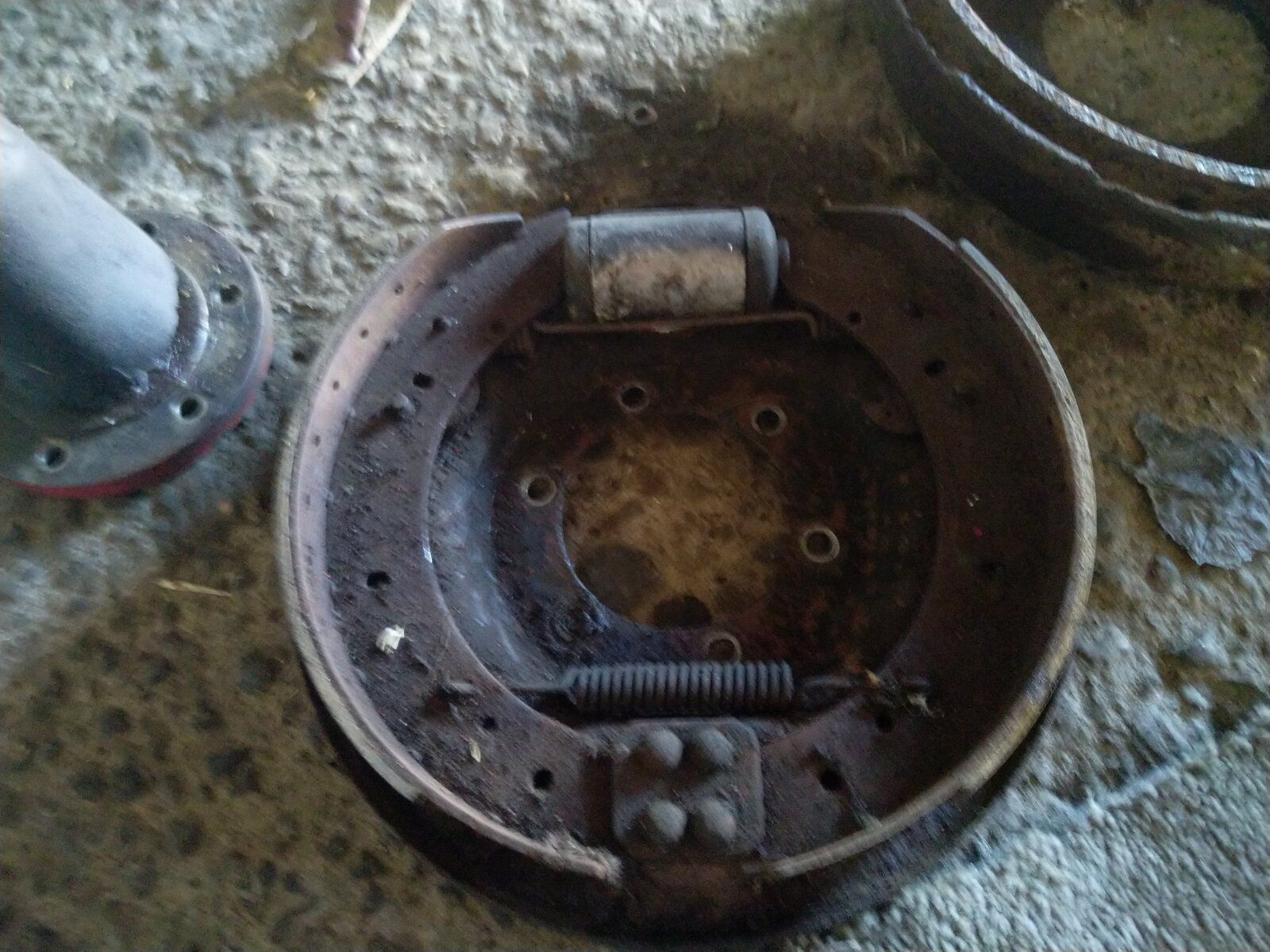

Second pic is brakes that were in rear,
Is this wrong,

Your fronts should also be 11" TLS type with the 11" rears.
https://pablanchard.co.uk/index.php?route=product/search&search=576973
If fronts are smaller when ever you brake rear will cause back end to skid.

Blackburn said:

Your fronts should also be 11" TLS type with the 11" rears.
https://pablanchard.co.uk/index.php?route=product/search&search=576973
If fronts are smaller when ever you brake rear will cause back end to skid.

Click to expand...

Thanks mate, th

Blackburn said:

Your fronts should also be 11" TLS type with the 11" rears.
https://pablanchard.co.uk/index.php?route=product/search&search=576973
If fronts are smaller when ever you brake rear will cause back end to skid.

Click to expand...

Cheers mate, think I've got it now, paddocks seem to think the front should have 2 cylinders on each side for some reason.

border said:

Thanks mate, th

Cheers mate, think I've got it now, paddocks seem to think the front should have 2 cylinders on each side for some reason.

Click to expand...

yes 109 should have twin cylinders thats what gives the increased front effort,88 only after 1980

jamesmartin said:

yes 109 should have twin cylinders thats what gives the increased front effort,88 only after 1980

Click to expand...

Do you have part number please james,

border said:

Do you have part number please james,

Click to expand...

for what

jamesmartin said:

for what

Click to expand...

Sorry the cylinders. forr front, they may come in a kit

border said:

Sorry the cylinders. forr front, they may come in a kit

Click to expand...

243744 x 2
243743 x 2
576973 drums
rtc3417 shoe set

jamesmartin said:

243744 x 2
243743 x 2
576973 drums
rtc3417 shoe set

Click to expand...

Perfect mate Thanks

jamesmartin said:

243744 x 2
243743 x 2
576973 drums
rtc3417 shoe set

Click to expand...

Would this kit fit ? DA6044

border said:

Would this kit fit ? DA6044

Click to expand...

yes

jamesmartin said:

yes

Click to expand...

Sorry to be a pain but are these ones ok for the rear ? Rear Brake Kit | LWB | Long Wheel Base | Overhaul Kits | Brakes | Series 2 and 3 | Parts & Accessories - Paddock Spares
Also will the drums 576973 fit front and rear ?
Thanks

border said:

Sorry to be a pain but are these ones ok for the rear ? Rear Brake Kit | LWB | Long Wheel Base | Overhaul Kits | Brakes | Series 2 and 3 | Parts & Accessories - Paddock Spares
Also will the drums 576973 fit front and rear ?
Thanks

Click to expand...

its ok mate ,yes right kit and drums are the same
