Location of fuel fliter - 2005 TD4

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

Mantamad

New Member
Posts
1,067
Location
Fife Scotland
I am going to do a service this afternoon and just realised I don't know where the diesel fuel filter is, assuming by the driver side back wheel but anyone know for sure?

Thanks

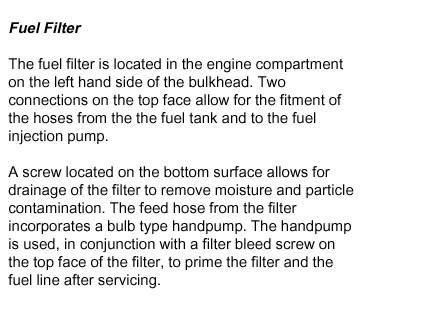

not sure if this helps - coz my rave only coveres the earlier L series - but its worth a look.


Attachments

  • untitled1.jpg
    44.9 KB · Views: 149
Yep, it's by the driver side rear wheel. You need to remove the wheel, most of the inner arch liner & three 10mm bolts hold the pump, sedimenter & filter carrier. The fuel pipes are the plastic snap on variety which unclip easily enough then you can take the whole unit on to the bench to change the filter. Make sure you push the pipes fully home during reconnection. Not a fun job, but do-able. The whole system is self priming as well so allow it a couple of minutes with ignition on before attempting restart.

ps don't forget to drain off the sedimenter.
