Disco 3 (LR3) Engine oil

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
freelance said:
What a swish looking can, and it says all the right things, she’ll or castrol for me, they only hold 6 litres, needs to be good imo
Click to expand...

does look ok, 6 x litres , does that include the filter change as well plse

did buy a genuine engine filter though and see u have to line it up onto the engine first then put the cover over after

can’t believe in a year i’ve ony done just over 2,000 miles and would rather just change the engine oil and filter

see that engine oil is also used if a dpf is fitted

however i haven’t got a DPF fitted , does it matter using this oil plse , as i see it’s also good for the catalytic converters which i do have fitted

“quote “

Thanks to its low phosphorus content it optimises the operation of the three-way catalytic converter by preventing soiling. It extends the maximum service life of the diesel particulate filter (DPF).

thks

I think my point is, if a v6 engine is expected to survive on 6 litres of oil, you ought to make sure it’s the best, rather than something that will do, I’m appalled the sump does not hold 8 litres minimum

gstuart said:
well , looks like it’s this one i need :)

https://www.ebay.co.uk/itm/5-L-MANN...3-B3-API-SL-/302451196681?hash=item466b7f0309
Click to expand...


I think you will find you need A5/B5 spec.
Im sure A3/B3 will be fine if you change it annually with your low miles, but I would get the right spec after all an engine is fooking expensive!

Ive just bought a load of 5/30 C3 oil for the wifes Audi and thats what my D3 is getting to.

Ps I think you will find its less than 6 litres, 5.5/5.7 rings a bell and like Freelance says way to small an amount of oil to be good for 10k miles and not have long term issues.
Wifes audi is a 3.0tdi v6 and holds 7.8 litres which is much more like it.

Read up on ACEA oil specs and be prepared to be baffled
In a nutshell A1/B1 spec is lowest but still good gear A5/B5 top notch and when they change the A for a C its pretty much the same idea but C = cat is DOC cat if it has one and a DPF, obviously thats very simplified!
I think C numbers go the other way so C1 is top dog and C3 is lowest, but please check!
A1 used to be top dog in the A number sequence but they changed it for some reason?

lynall said:
I think you will find you need A5/B5 spec.
Im sure A3/B3 will be fine if you change it annually with your low miles, but I would get the right spec after all an engine is fooking expensive!

Ive just bought a load of 5/30 C3 oil for the wifes Audi and thats what my D3 is getting to.

Ps I think you will find its less than 6 litres, 5.5/5.7 rings a bell and like Freelance says way to small an amount of oil to be good for 10k miles and not have long term issues.
Wifes audi is a 3.0tdi v6 and holds 7.8 litres which is much more like it.

Read up on ACEA oil specs and be prepared to be baffled
In a nutshell A1/B1 spec is lowest but still good gear A5/B5 top notch and when they change the A for a C its pretty much the same idea but C = cat is DOC cat if it has one and a DPF, obviously thats very simplified!
I think C numbers go the other way so C1 is top dog and C3 is lowest, but please check!
A1 used to be top dog in the A number sequence but they changed it for some reason?
Click to expand...


many thks and very true , indeed mind boggling and one thing i won’t skimp on is the engine oil , inc the engine oil filter , have bought a genuine one

ACEA as per book as u said is B1 or B3 , refil with filter 5.7 litres as @freelance also mentions

this one looks a better quality ,however as i haven’t got a DPF fitted would it do any damage

will also re check as u say ref the C classifications

thank u so much , always prefer to ask the daft questions when i’m unsure, especially as u say engines are expensive , no change out of 5k

https://www.ebay.co.uk/itm/7723-7L-...9255-0%26rvr_id%3D1434836078552&ul_noapp=true

spec

MANNOL 7723 O.E.M. 5W-30 API SN/CF


Corresponds with requirements / specifications / products:
SAE 5W-30
API SN/CF
ACEA C1/C2
LAND ROVER/JAGUAR ST JLR.03.5005
FORD WSS-M2C934-B

i have already bought

Mannol AG55 for the gearbox
Ravenol special transfer box oil
Ravenol diff oil


@lynall to confuse matters even more , lol

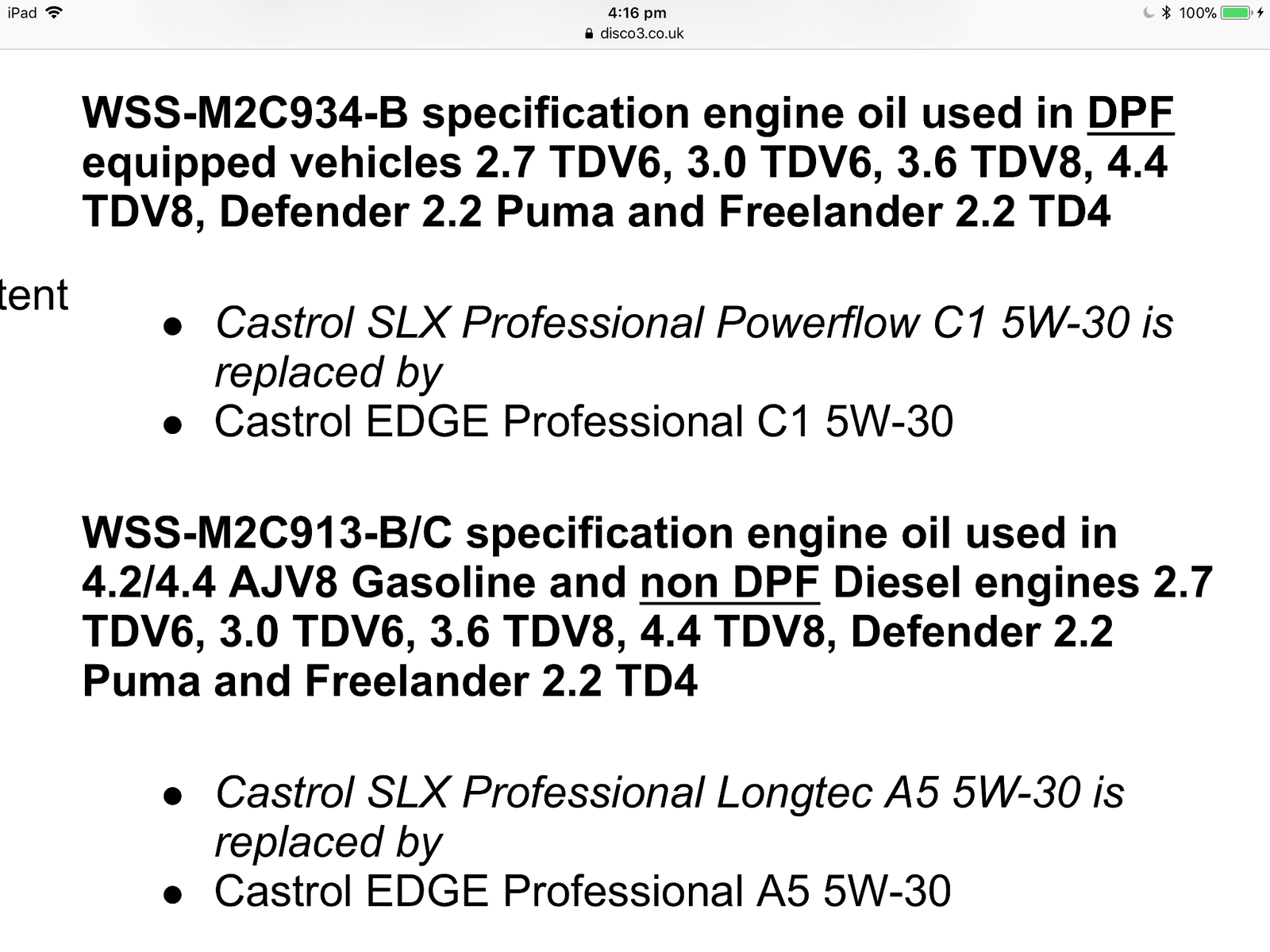

they use this on the D3 forum

just looking through the different C and A5s specs

A5/913C spec - Mannol 7707

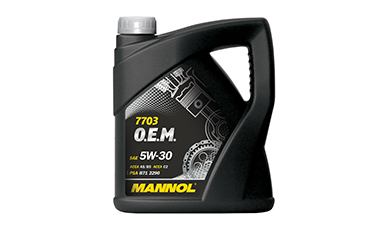

MANNOL 7703 O.E.M. 5W-30
Motor oils for cars and transporters > O.E.M. engine oils

Corresponds with requirements / specifications / products:
SAE 5W-30
ACEA A5/B5
ACEA C2
PSA B71 2290

Mannol 7703 O.E.M. 5W30 is a synthetic motor oil of the latest generation, specially designed for use in all gasoline and diesel engines for PEUGEOT and CITROEN vehicles. Modern additives with a low ash level (LOW SAPS), ensures optimal environment protection system, also provide reliable operation of the particular diesel filters (FAP, DPF). Effectively protects against wear and provide an exceptional clarity of details. Recommended for all modern petrol and diesel engines, including those engines which meets EURO V environmental standards. Designed to meet the requirements of operations in hard conditions and long maintenance intervals.


https://www.ebay.co.uk/itm/7703-8-L...626055&hash=item465cdc53fe:g:i7UAAOSwkr5ZjYRb


IMO it's not so complicated, the recomended oil for the TDV6 MUST have both 5W/30 and WSS–M2C934–B within it's specs, the brand is your choice..simple as that, provided you want to follow LR recomendation cos otherwise the web is full of oill "experts" who didnt compare two data sheets ever but recommend oils based on theyr's own "intelligence"

sierrafery said:
IMO it's not so complicated, the recomended oil for the TDV6 MUST have both 5W/30 and WSS–M2C934–B within it's specs, the brand is your choice..simple as that, provided you want to follow LR recomendation cos otherwise the web is full of oill "experts" who didnt compare two data sheets ever but recommend oils based on theyr's own "intelligence"
Click to expand...

many thks, i indeed always follow LR specs and know where ur coming from

didn’t know the C classification is designed for catalytic converters and have been reading up on the ACEA specs

@sierrafery

many thks ref the other spec , found some very interesting info, ref the DPF , i haven’t got one

but great for the heads up as i hadn’t heard of that spec until u mentioned it





so this is what i’ve found out so far , ref the engine oils

land rover spec ACEA B1 or B3 , non DPF WSS-M2C913-B 5/30w

Mannol oils

MN7723 C1 - C2. 7 x litres £33.00 , only needs 6x litres , spare for top up

MN7723 Synthetic engine oil of the latest generation, recommended for petrol and diesel engines from LAND ROVER and JAGUAR. It ensures maximum engine power and reduces fuel consumption. Thanks to its low phosphorus content it optimises the operation of the three-way catalytic converter by preventing soiling. It extends the maximum service life of the diesel particulate filter (DPF).


ACEA C1 Stable, stay-in-grade Engine Oil with Lowest SAPS-Level, intended for use as catalyst compatible Oil at extended Drain Intervals in Vehicles with all Types of modern Aftertreatment Systems and High Performance Passenger Car & Light Duty Van Gasoline & DI Diesel Engines that are designed to be capable of using Low Viscosity Oils with a minimum HTHS Viscosity of 2.9 mPa*s.

ACEA C2 Stable, stay-in-grade Engine Oil with Mid SAPS-Level, intended for use as catalyst compatible Oil at extended Drain Intervals in Vehicles with all Types of modern Aftertreatment Systems and High Performance Passenger Car & Light Duty Van Gasoline & DI Diesel Engines that are designed to be capable of using Low Viscosity Oils with a minimum HTHS Viscosity of 2.9 mPa*s.

——————-—————————————————————-

Mannol MN 7703 A5/ B5 - C2. same price

Mannol 7703 O.E.M. 5W30 is a synthetic motor oil of the latest generation, specially designed for use in all gasoline and diesel engines for PEUGEOT and CITROEN vehicles. Modern additives with a low ash level (LOW SAPS), ensures optimal environment protection system, also provide reliable operation of the particular diesel filters (FAP, DPF). Effectively protects against wear and provide an exceptional clarity of details. Recommended for all modern petrol and diesel engines, including those engines which meets EURO V environmental standards. Designed to meet the requirements of operations in hard conditions and long maintenance intervals.


ACEA A5/B5 Stable, stay-in-grade Engine Oil intended for use at extended Drain Intervals in Passenger Car & Light Duty Van Gasoline & Diesel Engines designed to be capable of using Low Viscosity Oils with HTHS Viscosity of 2.9 to 3.5 mPa*s. These Oils are unsuitable for use in certain Engines - consult vehicle-OEM’s owner’s manual/handbook in case of doubt.


ACEA C2 Stable, stay-in-grade Engine Oil with Mid SAPS-Level, intended for use as catalyst compatible Oil at extended Drain Intervals in Vehicles with all Types of modern Aftertreatment Systems and High Performance Passenger Car & Light Duty Van Gasoline & DI Diesel Engines that are designed to be capable of using Low Viscosity Oils with a minimum HTHS Viscosity of 2.9 mPa*s.

Last edited:
I make a correction for my previous post, i watched the D4 specs by mistake, sorry, for the D3 that's in the workshop manual: Use 5W/30 oil to specification WSS-M2C-913B meeting ACEA B1/B3

gstuart said:
many thks and very true , indeed mind boggling and one thing i won’t skimp on is the engine oil , inc the engine oil filter , have bought a genuine one

ACEA as per book as u said is B1 or B3 , refil with filter 5.7 litres as @freelance also mentions

this one looks a better quality ,however as i haven’t got a DPF fitted would it do any damage

will also re check as u say ref the C classifications

thank u so much , always prefer to ask the daft questions when i’m unsure, especially as u say engines are expensive , no change out of 5k

https://www.ebay.co.uk/itm/7723-7L-5W30-SN-CF-Fully-Synthetic-Engine-Oil-C1-C2-LAND-ROVER-JAGUAR-JLR035005-/302205658137?clk_rvr_id=1434836078552&rmvSB=true&ul_ref=http%3A%2F%2Frover.ebay.com%2Frover%2F1%2F710-53481-19255-0%2F1%3Fpub%3D5575131138%26toolid%3D10001%26campid%3D5337717012%26customid%3D%26mpt%3D6296260%26mpre%3Dhttps%253A%252F%252Fwww.ebay.co.uk%252Fitm%252F7723-7L-5W30-SN-CF-Fully-Synthetic-Engine-Oil-C1-C2-LAND-ROVER-JAGUAR-JLR035005-%252F302205658137%26srcrot%3D710-53481-19255-0%26rvr_id%3D1434836078552&ul_noapp=true

spec

MANNOL 7723 O.E.M. 5W-30 API SN/CF


Corresponds with requirements / specifications / products:
SAE 5W-30
API SN/CF
ACEA C1/C2
LAND ROVER/JAGUAR ST JLR.03.5005
FORD WSS-M2C934-B

i have already bought

Mannol AG55 for the gearbox
Ravenol special transfer box oil
Ravenol diff oil

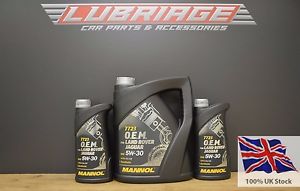

View attachment 141399
Click to expand...
Oh for the good old days when everything ran on 20/50 and the only choice was do I run it on duckhams or one of the others!

Joemac434 said:
Oh for the good old days when everything ran on 20/50 and the only choice was do I run it on duckhams or one of the others!
Click to expand...

True, even if the oil specification wasn't 20/50 is wasn't an issue in obtaining the correct oil even if the specification wasn't multigrade from the books/manuals available.
Now we have the common oil and tyre threads on Forums even though the information is easer to obtain with the www, for those that don't have a owners handbook:(

Last edited:
discool said:
True, even if the oil specification wasn't 20/50 is wasn't an issue in obtaining the correct oil, even if the specification wasn't multigrade.
There's still the confused that have to post oil and tyre threads even though they can now obtain information easer now on the www. :(
Click to expand...
I suppose not everyone has got a hand book that goes with the car but as you say it only takes a minute to goggle it

sierrafery said:
I make a correction for my previous post, i watched the D4 specs by mistake, sorry, for the D3 that's in the workshop manual: Use 5W/30 oil to specification WSS-M2C-913B meeting ACEA B1/B3
Click to expand...

bit of a minefield , lol, then later cars having to have adblue and god knows what else
