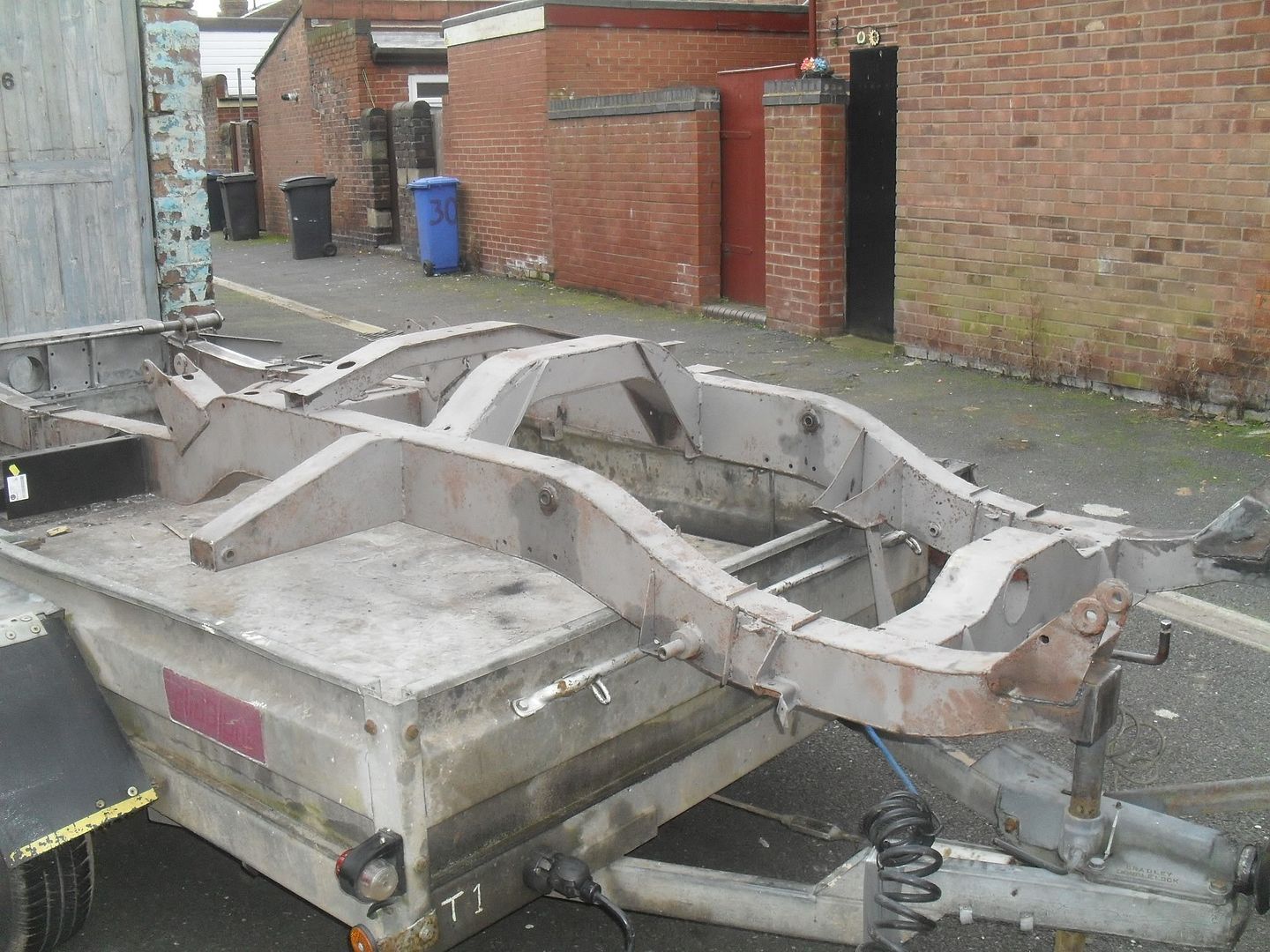

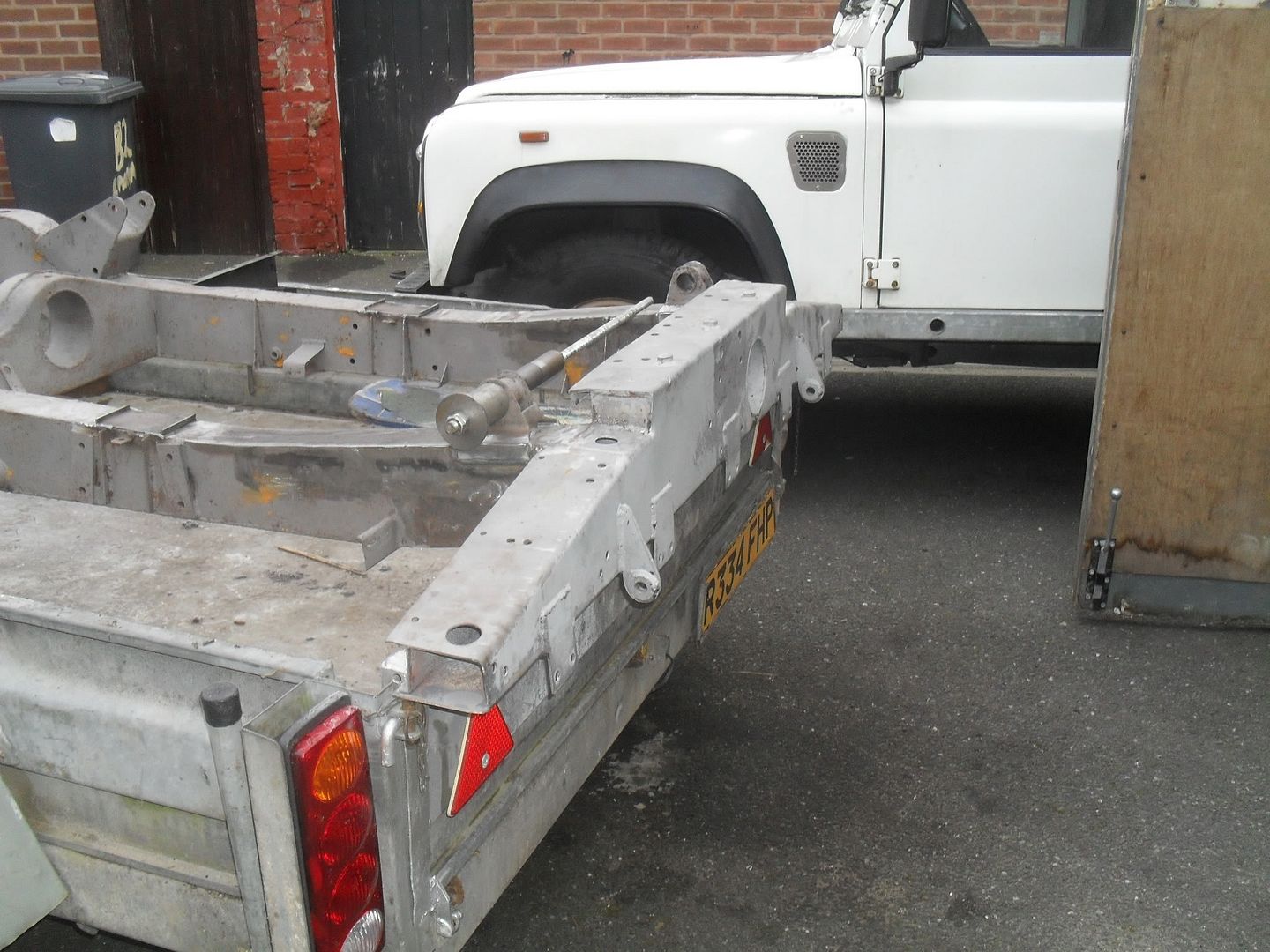

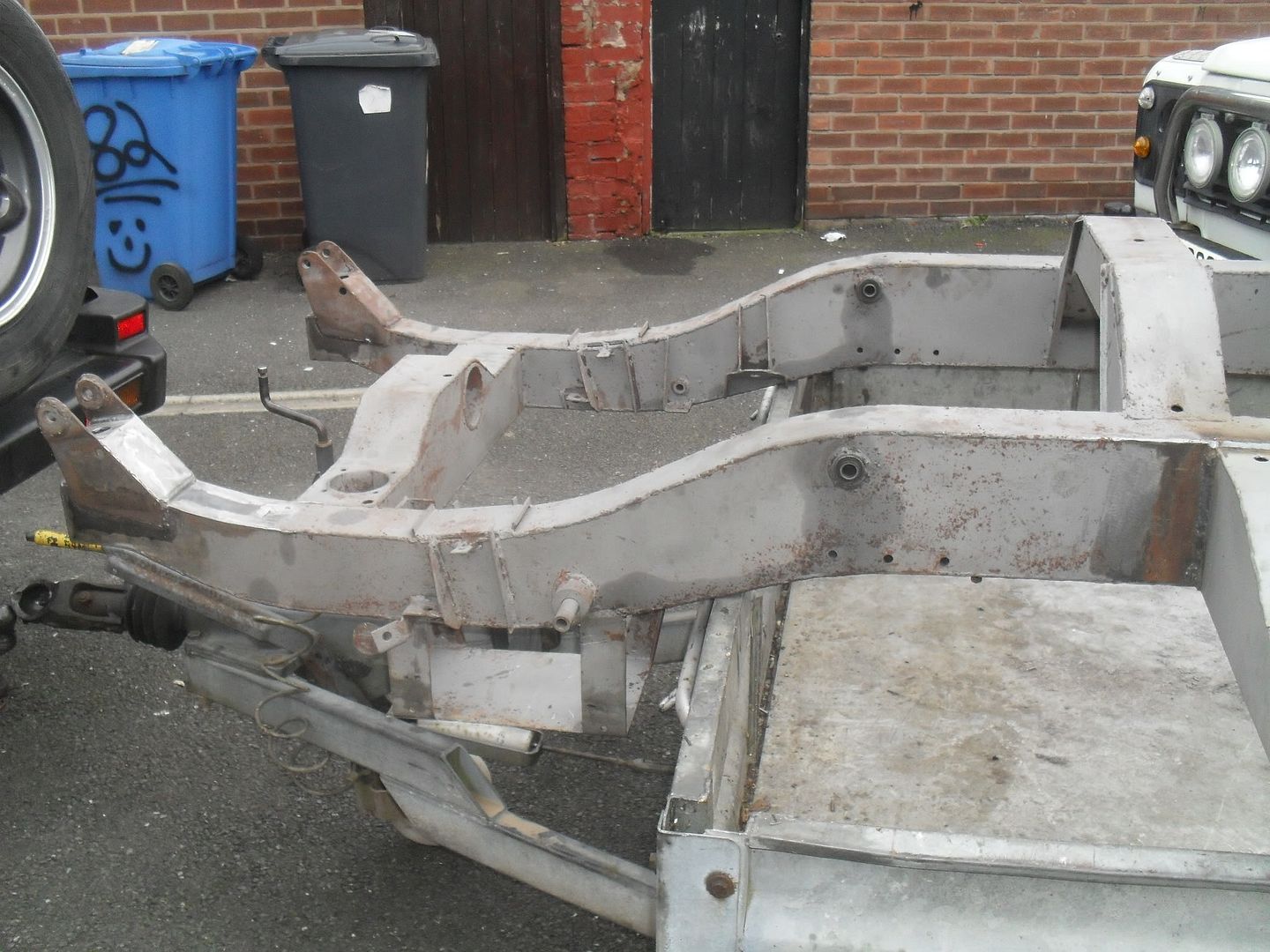

Can you identify this chassis ?
- Thread starter landowner
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
owl
Well-Known Member
- Posts
- 1,807
- Location
- Breaston Derbyshire
88" series, I would say S3
NiteMare
New Member
- Posts
- 836
- Location
- Birmingham
correct length wrong model
it's a 2 or 2a
and in my thoughts are that powder coating will do little to preserve it in the long term, if/when it cracks water will creep in and sit behind the coating with more chance of attacking the steel long term, i prefer paint that chips/cracks and falls away allowing the draught to dry the water off
Last edited:
Paulmitchell1984
Well-Known Member
- Posts
- 1,819
- Location
- Leeds
did the s2s have the steering inbuild into front cross member, id have said s 1
NiteMare
New Member
- Posts
- 836
- Location
- Birmingham
that is the steering "relay" hole
NiteMare
New Member
- Posts
- 836
- Location
- Birmingham
Clue is that it was a pre production chassis, No 002 of ten built.
Cant remember what year he said it was, I'll check when I go and pick it up for him
if that is really a "pre pro" chassis i know a few folks that would be swearing at you for powder coating it
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
powder coating is pointless on a chassis ,listen to it crack as you bolt the stuff back on it
muscrat
Active Member
- Posts
- 224
- Location
- south wales
88 inch series 2 or 2a , the fixings for the axle check straps are different on ser 3 and yes all series had the steering relay in the front x member except maybe the forward controls not sure about them, rear x member is wrong for series 1.
Dr_evil
Banned
- Posts
- 29,535
- Location
- Perched on the naughty step
coating will crack, water will get under and make it rot worse than normal
Not my problem really, my mates project, I just do the transport. You are probably right but that's how he wants it.
Dont think it'll ever get wet after he's done it though
Dr_evil
Banned
- Posts
- 29,535
- Location
- Perched on the naughty step
Not my problem really, my mates project, I just do the transport. You are probably right but that's how he wants it.
Dont think it'll ever get wet after he's done it though
It'll make repair harder too
Thing is as james says as soon as a bolt goes in and is tightened it'll crack, same as weight of the body, sharp edges cutting through it, stones hitting from the road. Rain, water in the air, puddles etc will then get in
if theres moisture anywhere it'll find a way in past the crack and rot that thing from the inside out. Just look at old bullbars
I'd talk him out of it
try to save that rare chassisNiteMare
New Member
- Posts
- 836
- Location
- Birmingham
i'm not sure but i think the "pre pro" S2s were built on modified S1 chassis' (or some of them were) as the S1 swb had grown to 88" in '56
so as to whether it's genuine "pre pro" i couldn't say as i really don't know my rivets that well
any chance of posting the chassis number and registration as i've a mate that is very heavily into the very early and factory registered S2s ('58/59 models) and he'd possibly know this vehicle personally
i'll link him to this thread if there's any more info' forthcoming
Cheers
Pete
so as to whether it's genuine "pre pro" i couldn't say as i really don't know my rivets that well
any chance of posting the chassis number and registration as i've a mate that is very heavily into the very early and factory registered S2s ('58/59 models) and he'd possibly know this vehicle personally
i'll link him to this thread if there's any more info' forthcoming
Cheers
Pete
Dropped it off this mornin dooh
I'll have a word tomorrow in case they havnt started it, I think it was galvanised at some point so it'll have some protection inside and its been waxoiled and is going to be waxoiled again after powdercoating.
just dip it in old engine oil eh, worked on old cars with leaks, they were good as new in the engine bay and underneath at the front where the oil got blown back along the chassis
I'll have a word tomorrow in case they havnt started it, I think it was galvanised at some point so it'll have some protection inside and its been waxoiled and is going to be waxoiled again after powdercoating.
just dip it in old engine oil eh, worked on old cars with leaks, they were good as new in the engine bay and underneath at the front where the oil got blown back along the chassis
Dr_evil
Banned
- Posts
- 29,535
- Location
- Perched on the naughty step
cant really dip it in old oil the coating wont let it stick to the steel
the coating wont let it stick to the steel cant really dip it in old oil
Ah haa,
Never thought of that, sticks to my Disco chassis, thick mix of old swivel oil and engine oil, preserve it till I sell it in the new year
Dr_evil
Banned
- Posts
- 29,535
- Location
- Perched on the naughty step
Ah haa,
Never thought of that, sticks to my Disco chassis, thick mix of old swivel oil and engine oil, preserve it till I sell it in the new year
powder coating is just a bad idea
I'd go galv or some serious waxing
powder coating is just a bad idea
I'd go galv or some serious waxing
Tried to get my TVR chassis powder coated a few years ago, they shot blasted it but the tubes are oil/wax/grease filled and it was running out when they heated it to powdercoat and the stuff wouldn't stick.
So I painted it in Hammerite black smooth and it looks very nice.
Dr_evil
Banned
- Posts
- 29,535
- Location
- Perched on the naughty step
Tried to get my TVR chassis powder coated a few years ago, they shot blasted it but the tubes are oil/wax/grease filled and it was running out when they heated it to powdercoat and the stuff wouldn't stick.
So I painted it in Hammerite black smooth and it looks very nice.
I coated the series one in hammerite and then it'll get some tar and waxoyl
