Series 3 chassis lug bracket

D

Demelza

Member

Posts

64

Location

Cornwall

• Jun 18, 2023

• #1

I am getting to the end of a full series 3 restoration with new chassis. I am missing 2 right angle brackets that attach the inner front chassis vertical lugs to the front of the tub. They may have slotted holes on the bulkhead vertical. I can find no reference to them on any parts diagrams. Can anyone help me identify them with a parts number or supplier please



W

Wildefalcon

Well-Known Member

Posts

1,685

• Jun 18, 2023

• #2

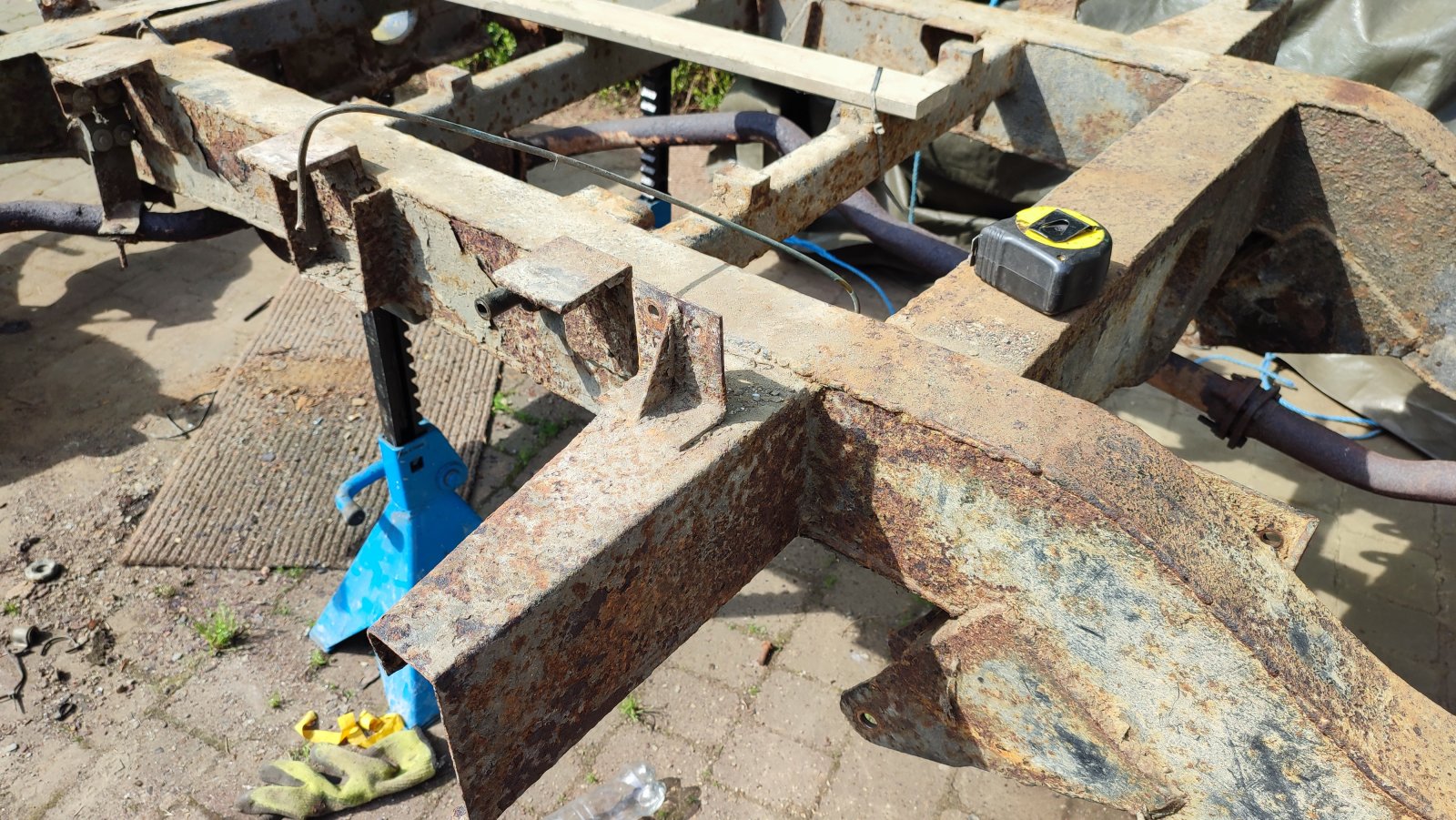

A bit like these? The chassis I'm working on now has them in the wrong place. The replacement half chassis didn't have them, so I'm going to make new ones.



Attachments

•

  191.7 KB · Views: 133
•

  410.2 KB · Views: 131

W

Wildefalcon

Well-Known Member

Posts

1,685

• Jun 18, 2023

• #3

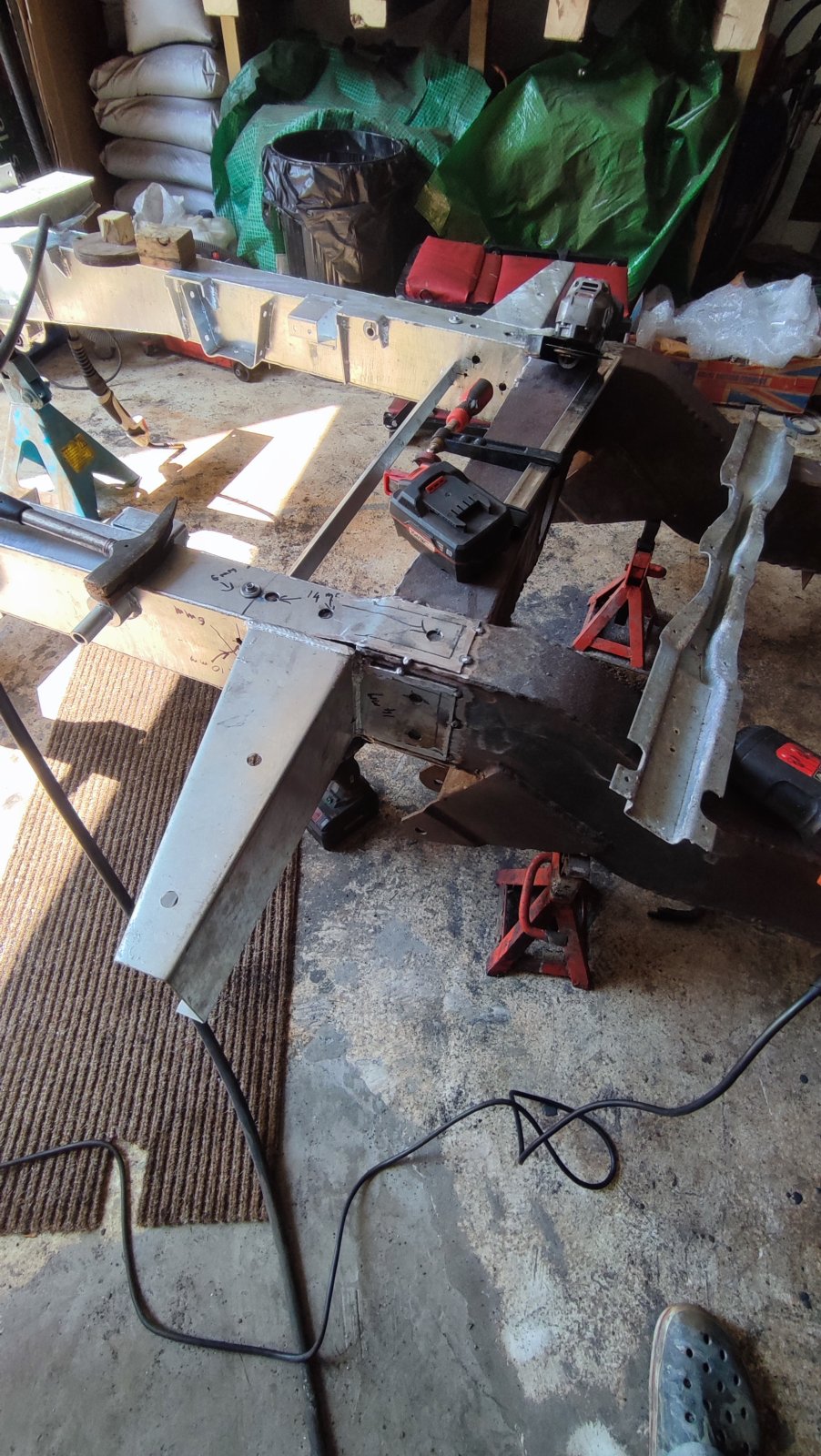

New half chassis



Attachments

•

  338.3 KB · Views: 134

D

Demelza

Member

Posts

64

Location

Cornwall

• Jun 18, 2023

• #4

Thank you. I think I might have found the part with yrm, it is a seat belt anchor!



W

Wildefalcon

Well-Known Member

Posts

1,685

• Jun 19, 2023

• #5

Ah, the inside brackets on the crossmember! Yep. Not necessary for the tub, but perfect for the seatbelt brackets.
