Bit of a build/repair thread (boot & body mounts)

[ellodave]

Well i thought i would do a bit of a build thread may be of use to someone.

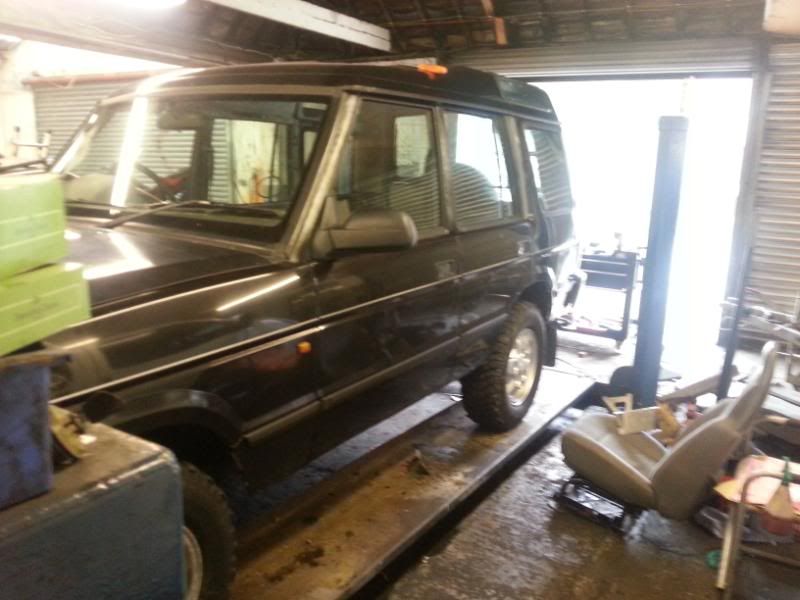

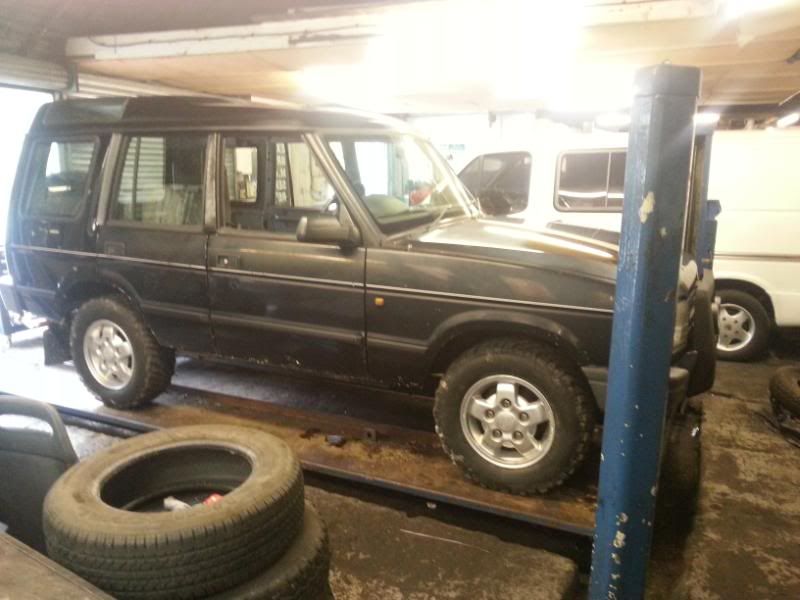

So I bought a M reg 300tdi

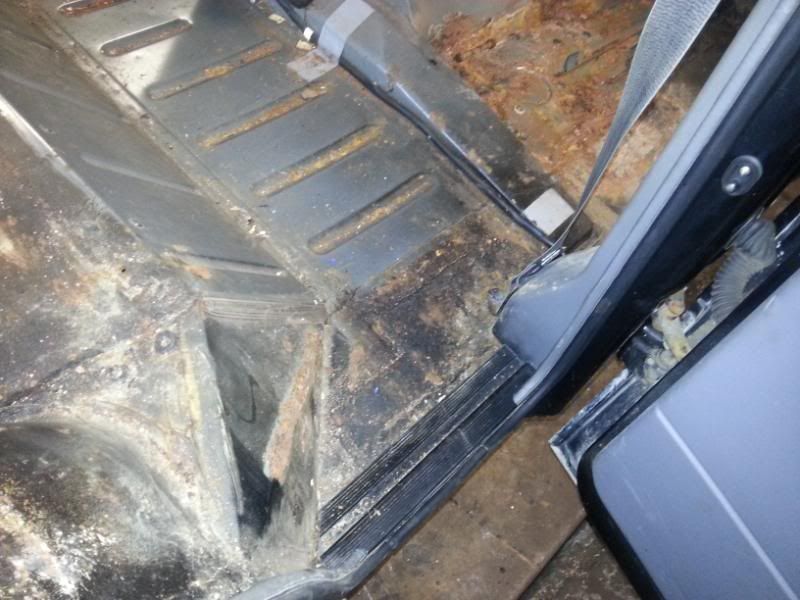

I then strip out the interior to see what needed doing.

Not to bad so looked underneath and see it needs a couple of body mounts. I got the drivers side front done this weekend as follows

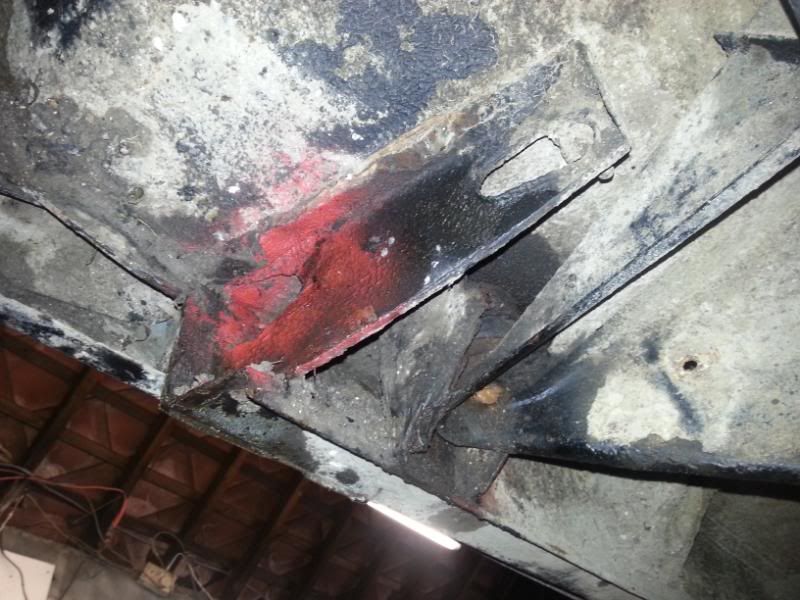

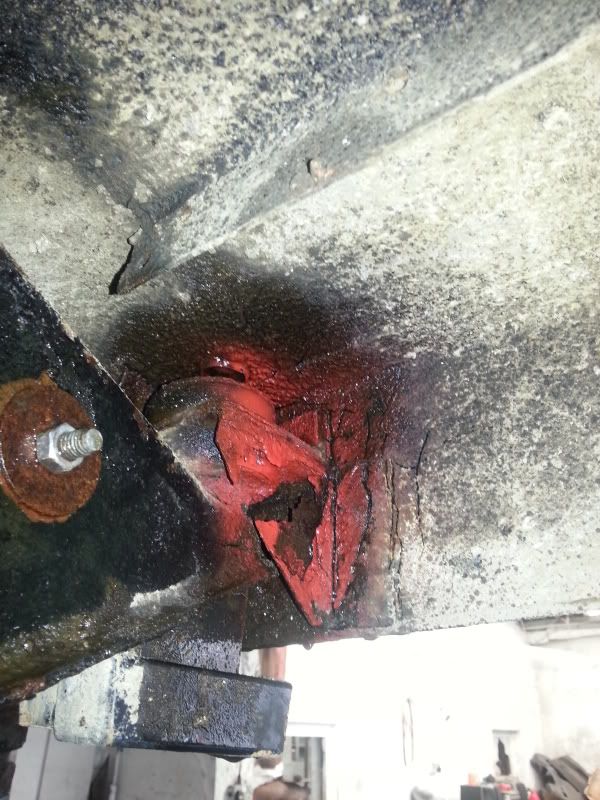

Started with this

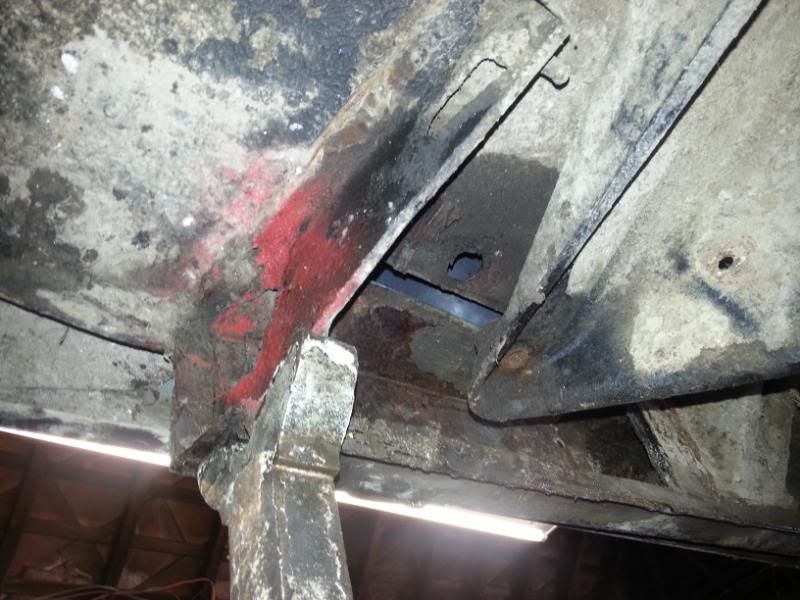

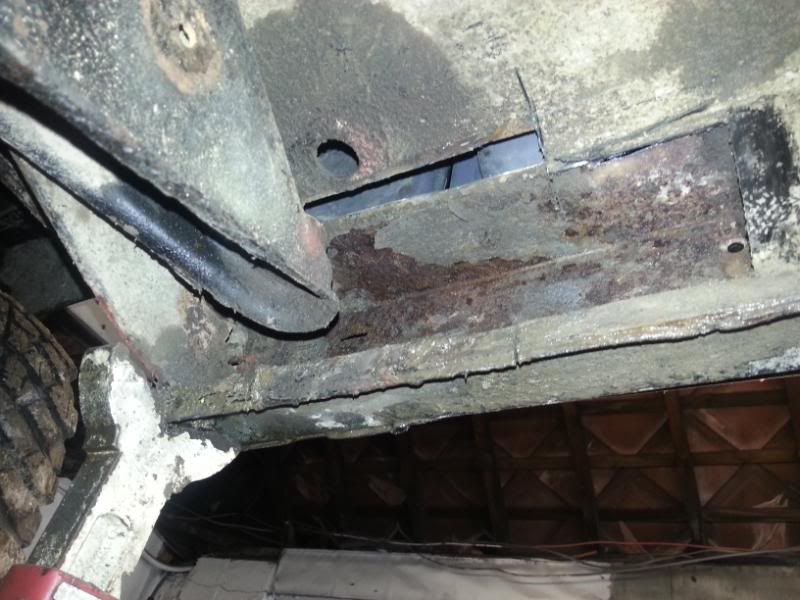

Doesnt look to bad!!! I then surported the body and removed the body mount. I then started to poke around with a hammer and screw driver and found lots of soft and weak metal. Anway i cut away the weak metal and was left with

I then made up some plates using carboard and guess work! :lol:

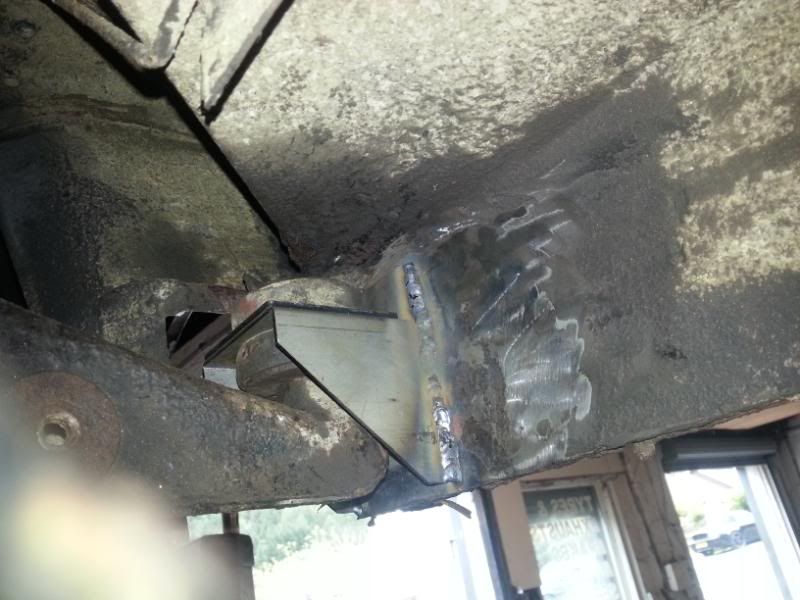

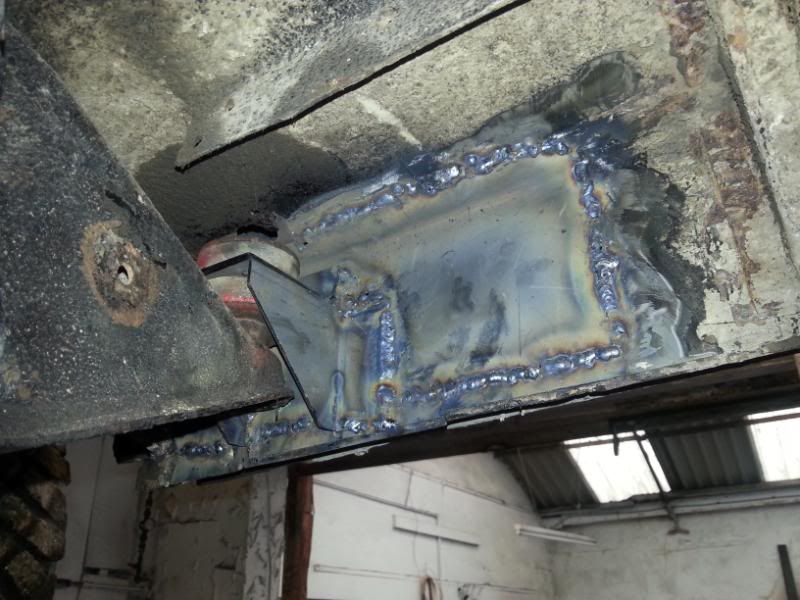

Grind back the metal to give you clean area to weld to which is really not easy as there is no room for a grinder! Then weld in the plates in then undersill.

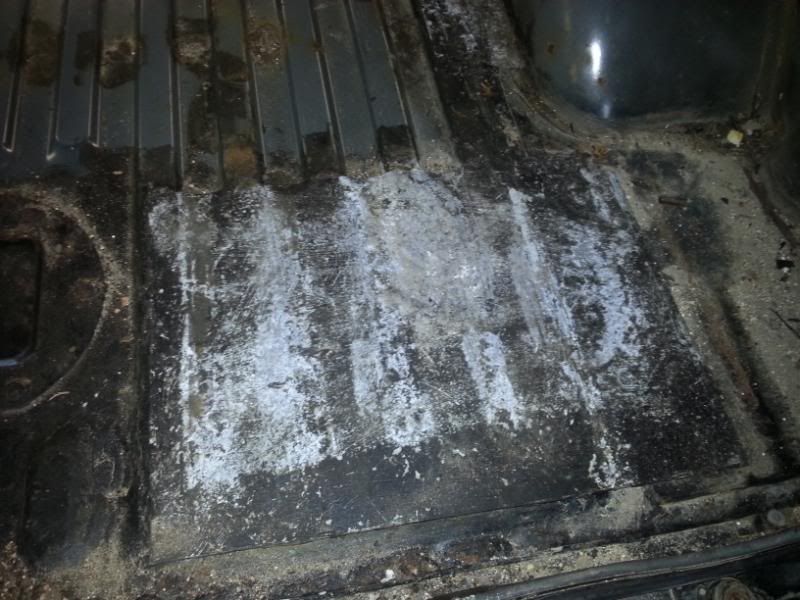

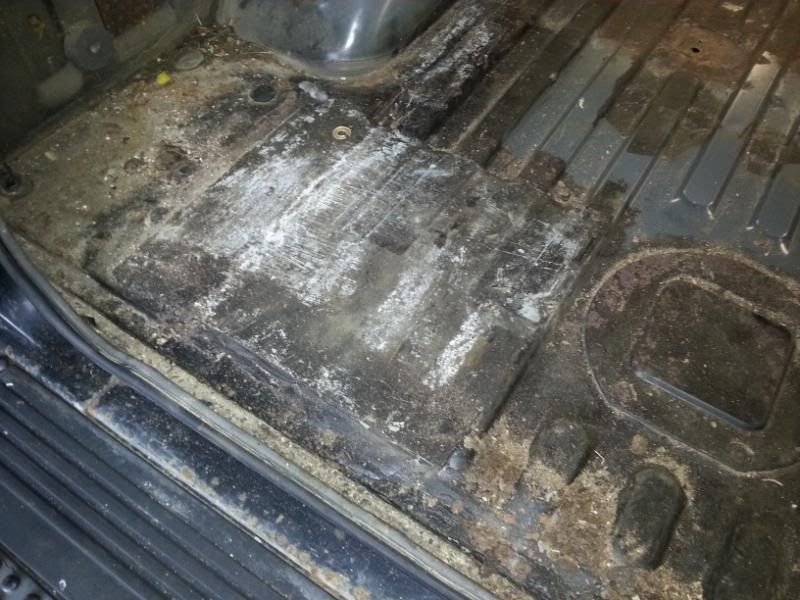

I then thought it would be a good idea to see what was under the plates in the boot!!!!

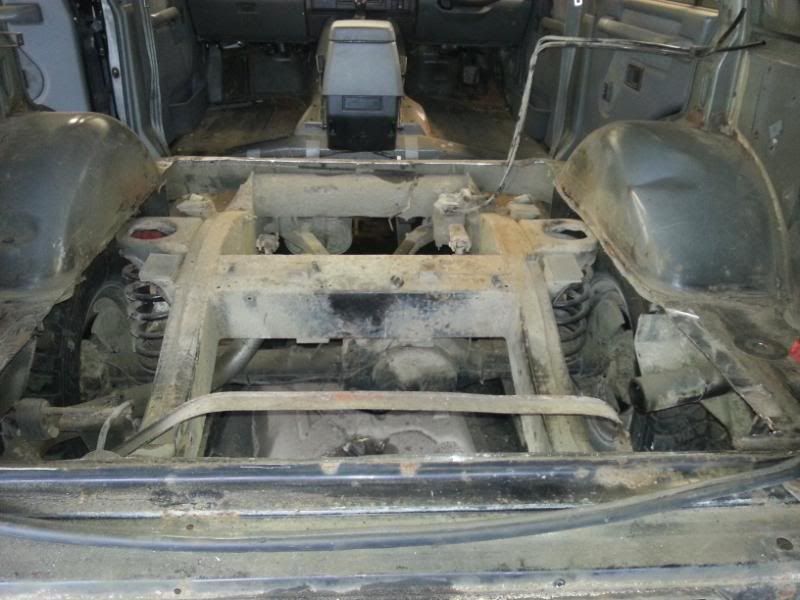

I discovered lots of rust so thought I would cut out the boot, must of had my brave pills!!

I then offered up the replacement panel just to get an idea of what work i have left.

Anyway I will keep this up to date if anyone's interested



[1spin]

nice to see another disco 1 being saved..



[jabbae46]

keep it comin mate, im just stock piling bits at mo inner, outer sills, inner wings, boot panel, cross member and ill be doing same thing, keep up good work



[Paul D]

Always interested in seeing how to repair Disco's .. 'specially if you come up with new/easier ways to do stuff ..



[The Mad Hat Man]

if it helps -Tufftee Repair Drawings



[trax99]

keep em coming, starting mine next Sunday - after one last day in the mud,op2:



[ellodave]

Thanks Im planning to get it done within 2 weeks as im waiting for a log book and hopping it will ready to go when I get it



[ellodave]

Well done a bit more today Just the rear engine mount and a bit of undersealing

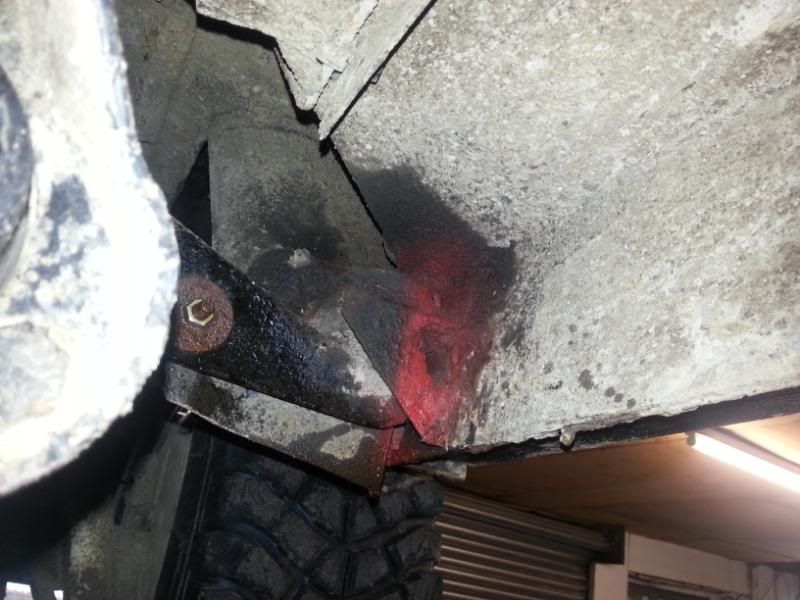

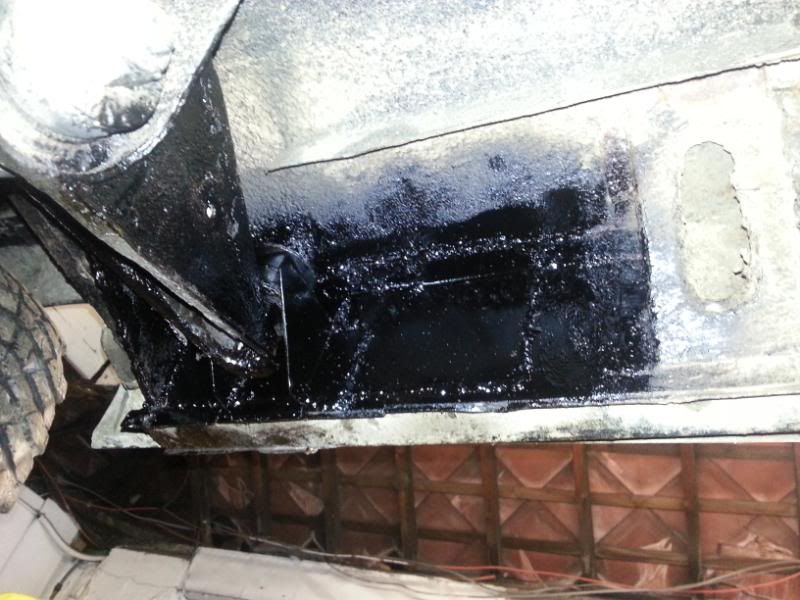

Rear engine mount

Thankfully not as bad as the front one so a bit easier

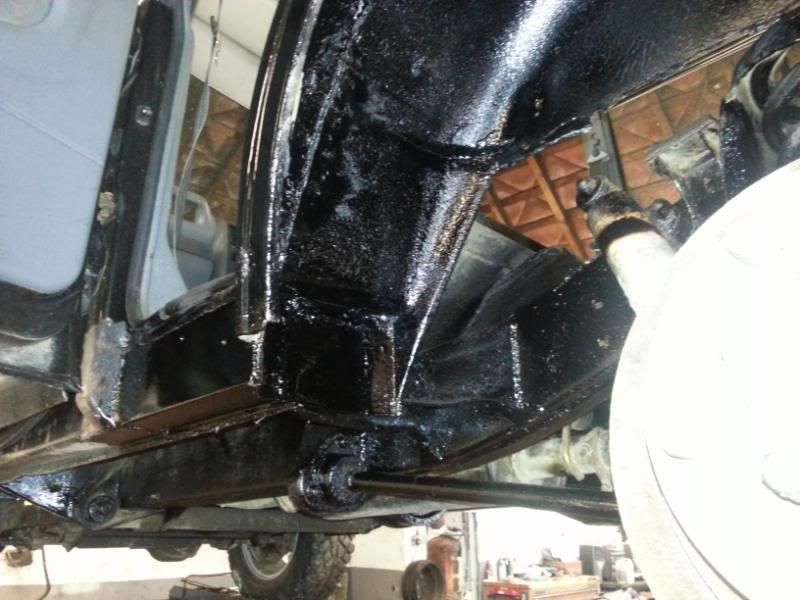

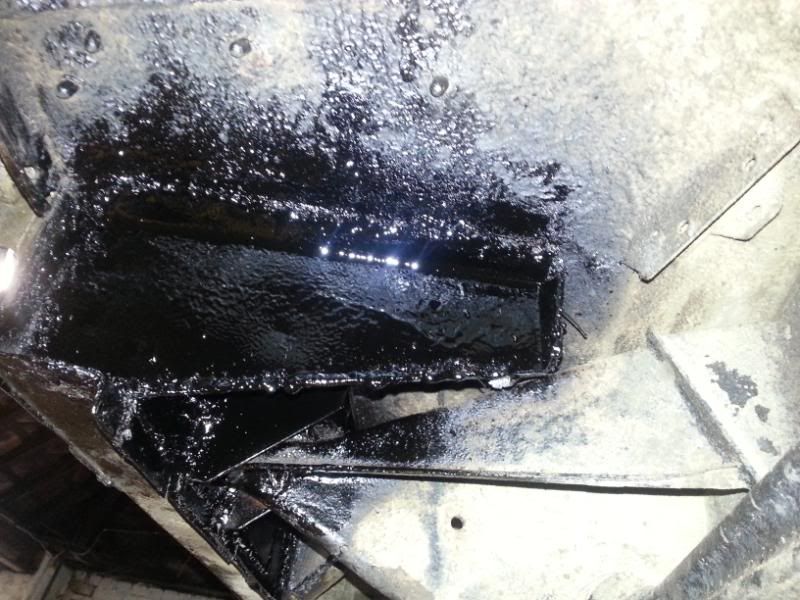

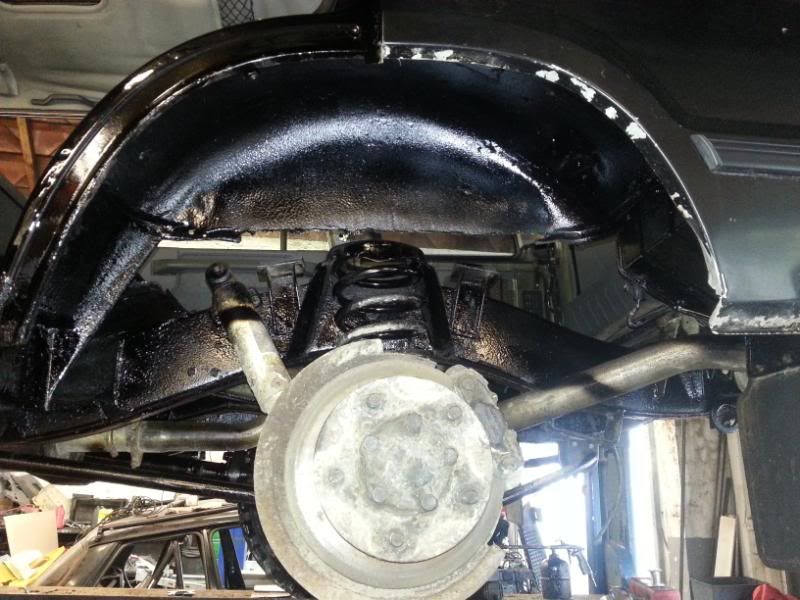

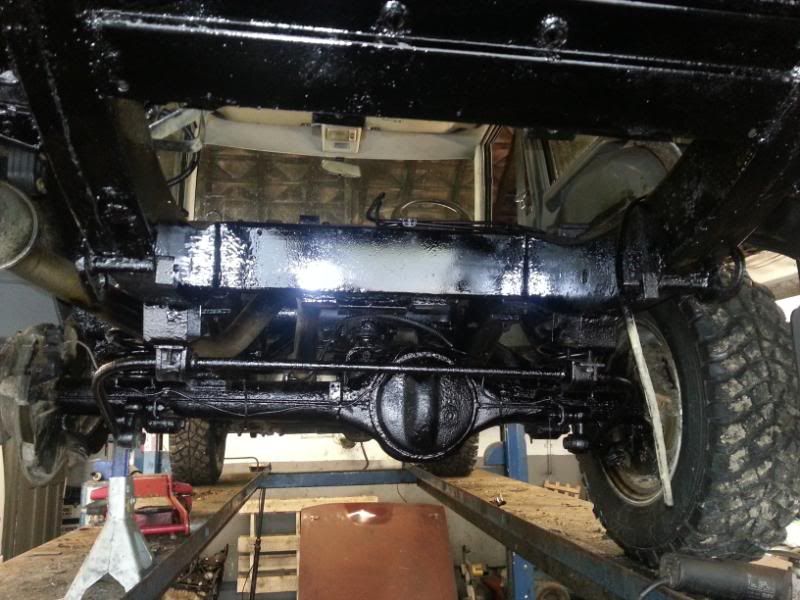

I then got carried away with the underseal! lol



[ellodave]

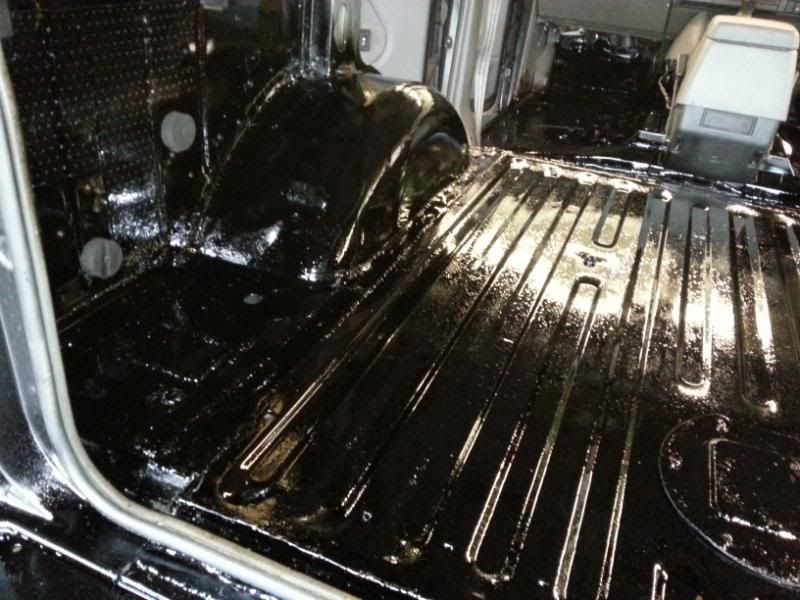

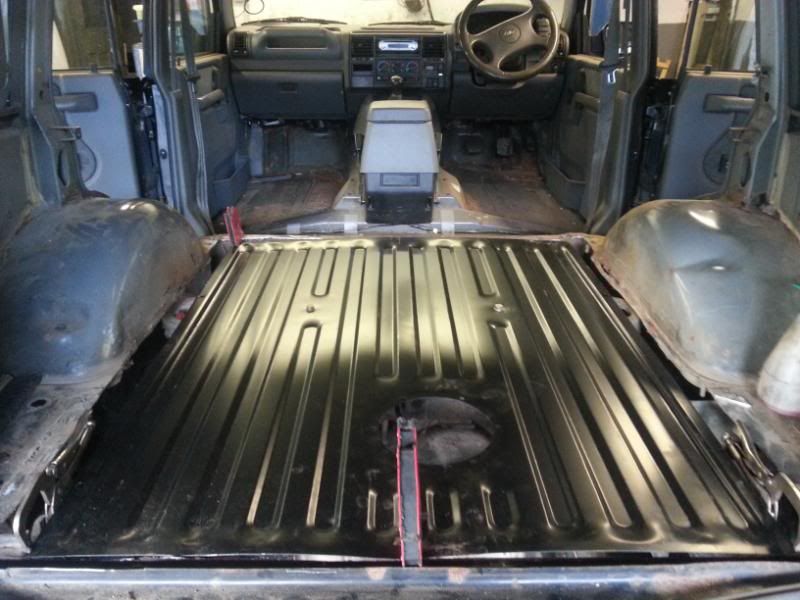

Well got round to doing some more on my Disco, I now have a boot floor!!!!

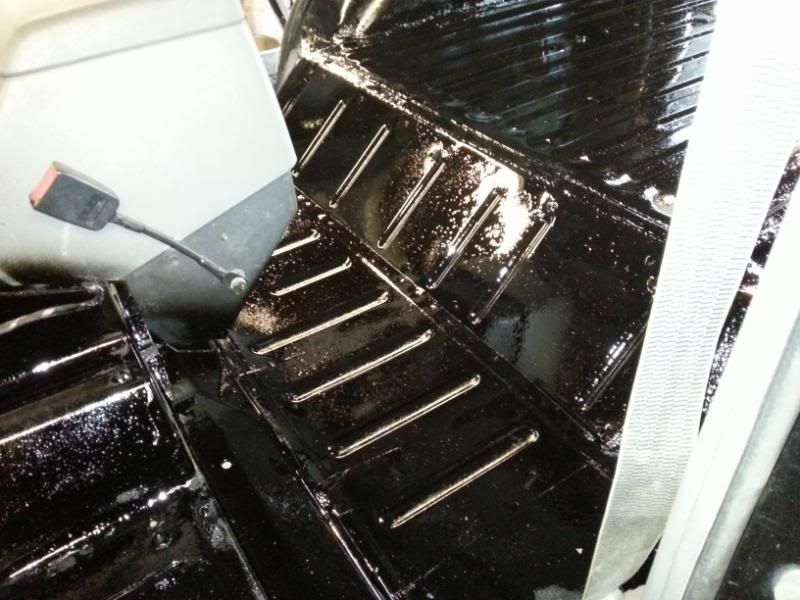

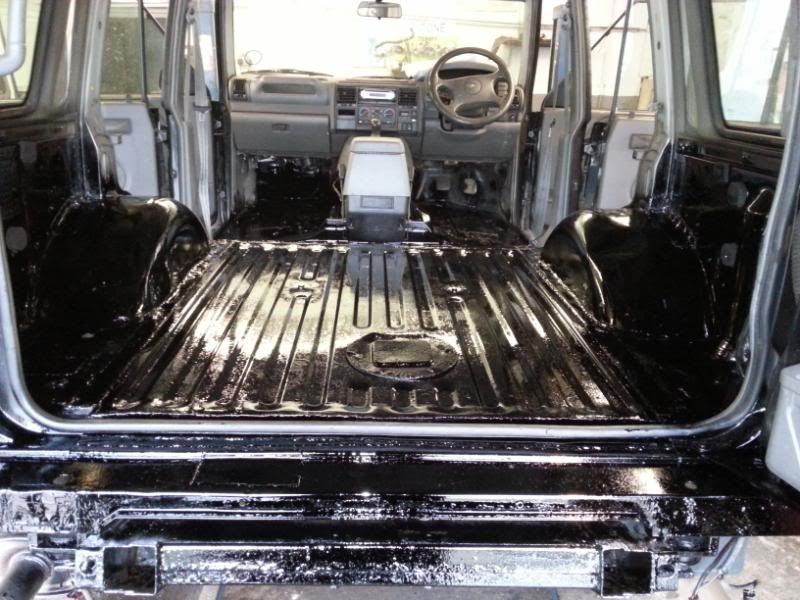

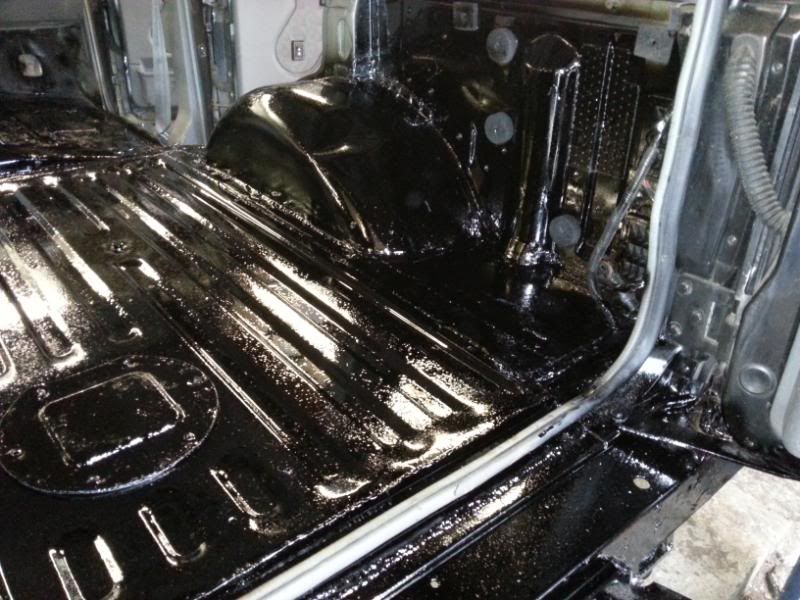

I also gave the whole interior a good coat of chassis black as i probably wont be putting the carpets back in

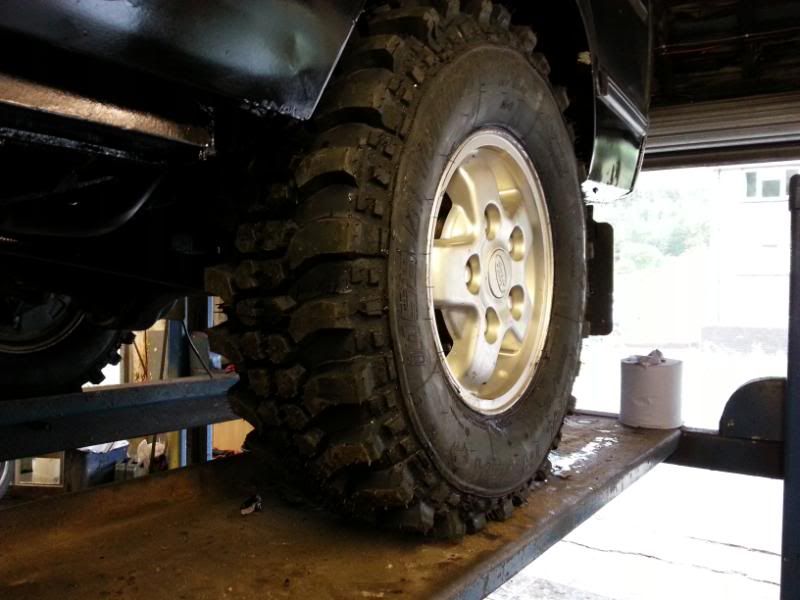

I also had my new Tyres!

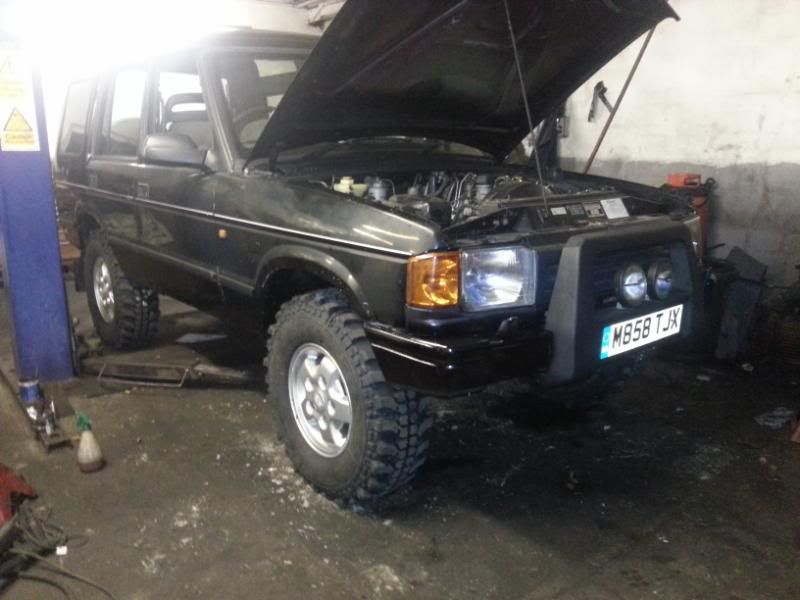

Ill be fitting my new lift kit tomorrow!



[jabbae46]

coming along nicely pal. keep up the good work



[ellodave]

Thanks it's not my neatest work but its only for off roading.

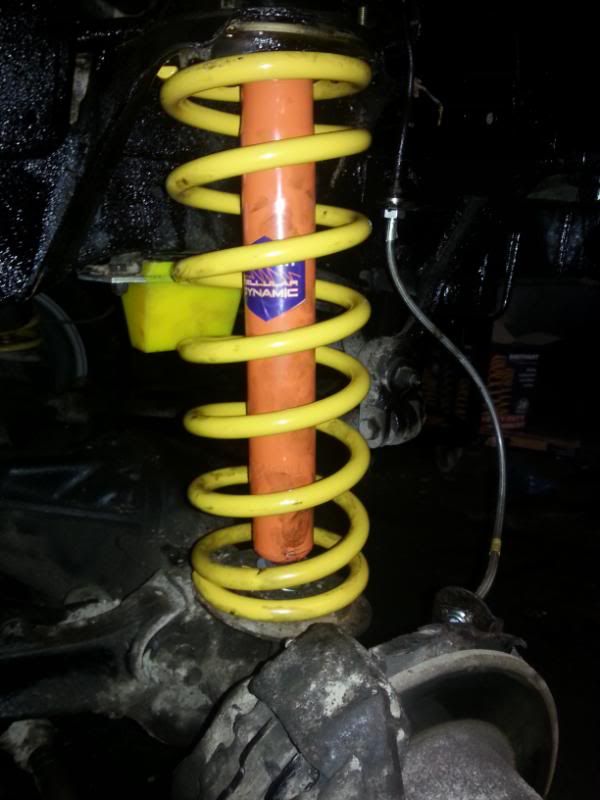

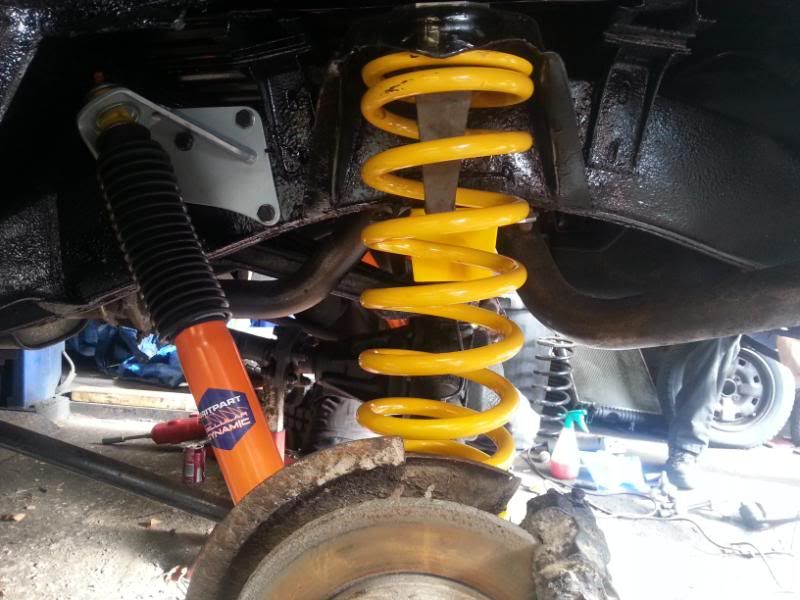

Well i went and treated my self to 2" lift springs, 5" shocks, Shock mounting brakets for the rear as im running front shocks all round, Dislocation cones, extended bump stop's and extended brake lines. Was too excited to take any pictures of the bits in the box but got straight on to getting it all fitted!

Just need to make up new copper brake line's for the whole disco and im nearly there!!! Just want the bloody log book to hurry up so i can show it some mud



[ellodave]

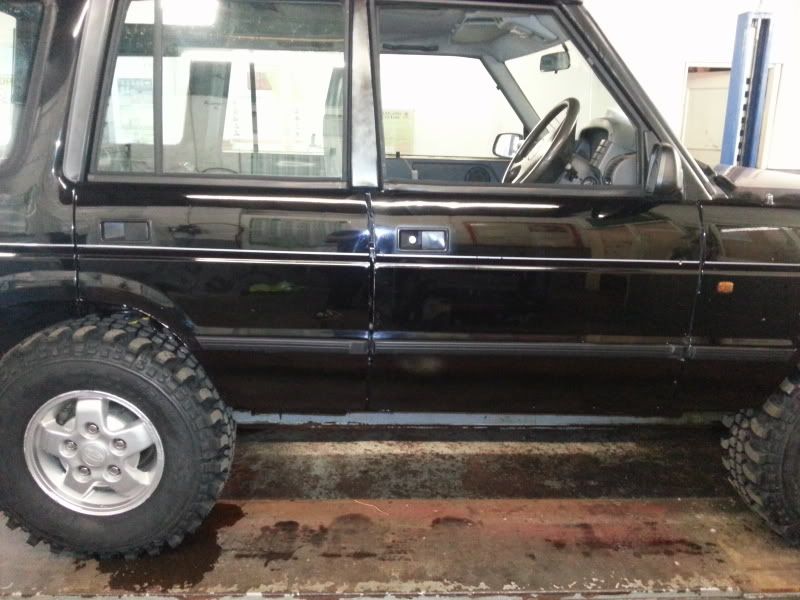

Well almost finished now so thought i would give the paint work a mop

Before

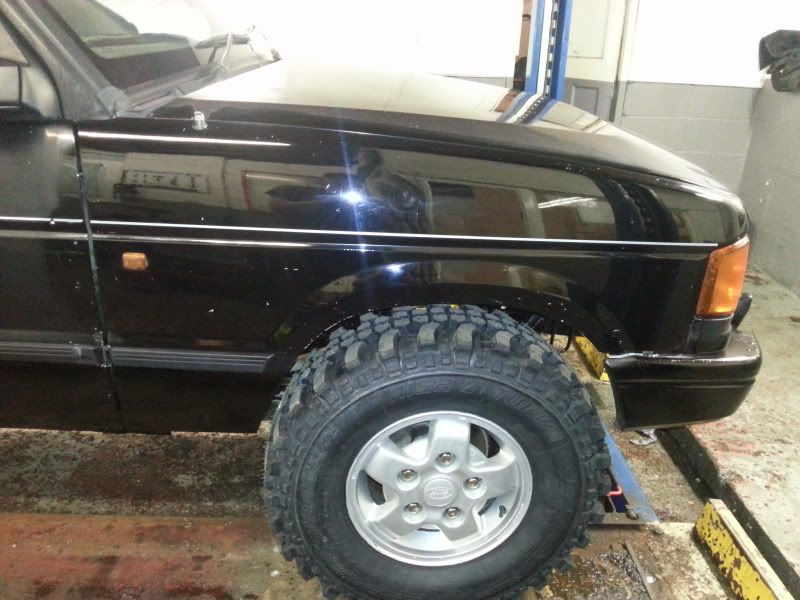

After

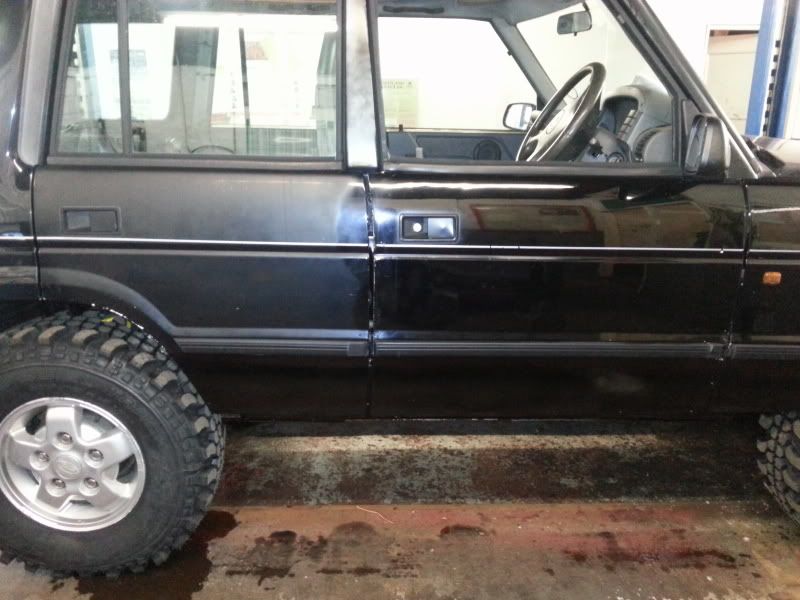

Guess which do I have done!

and after

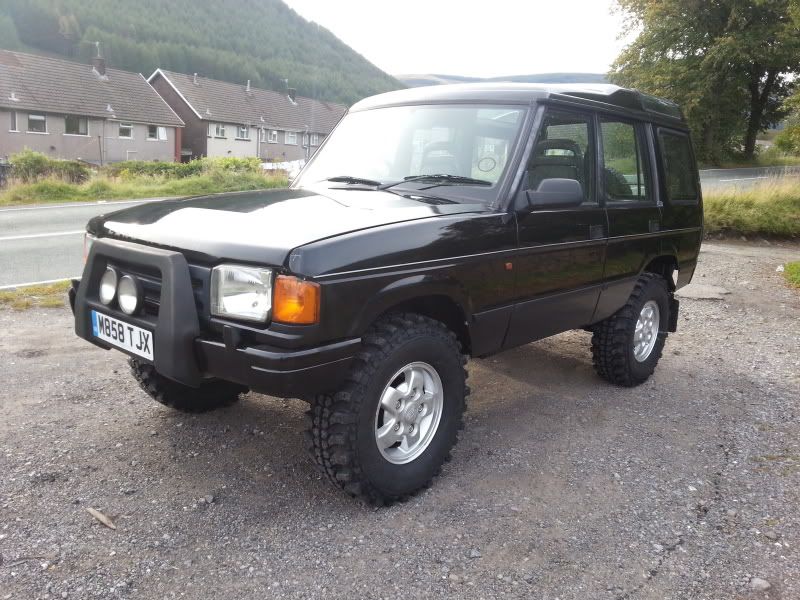

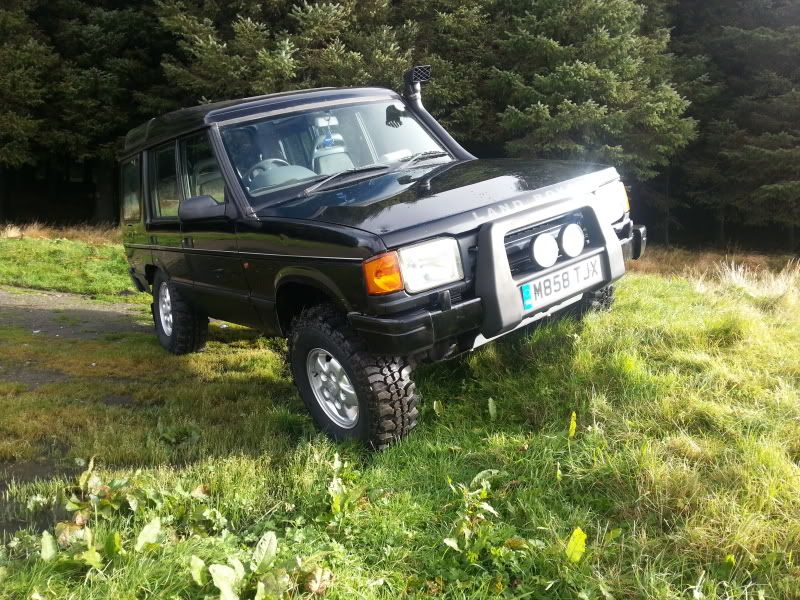

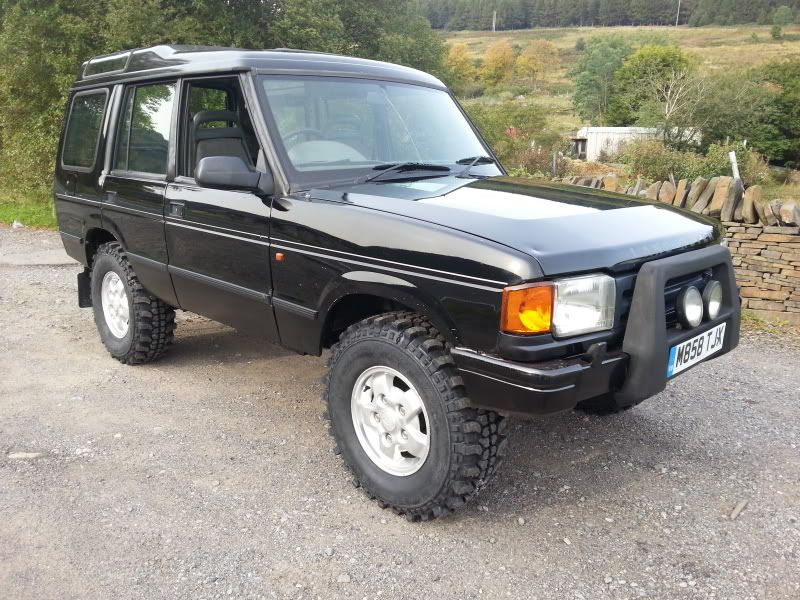

Finally got it out in the sun



[marc7]

thats come up well



[phil540uk]

That's made a huge difference!

Do your brackets change the position of the shock or just make it a pin type fixing?



[ellodave]

Yeah i knew it was a half decent disco underneath, well i hoped it was lol

And i think they just change it to the pin type. They are 5" front shocks all round



[ellodave]

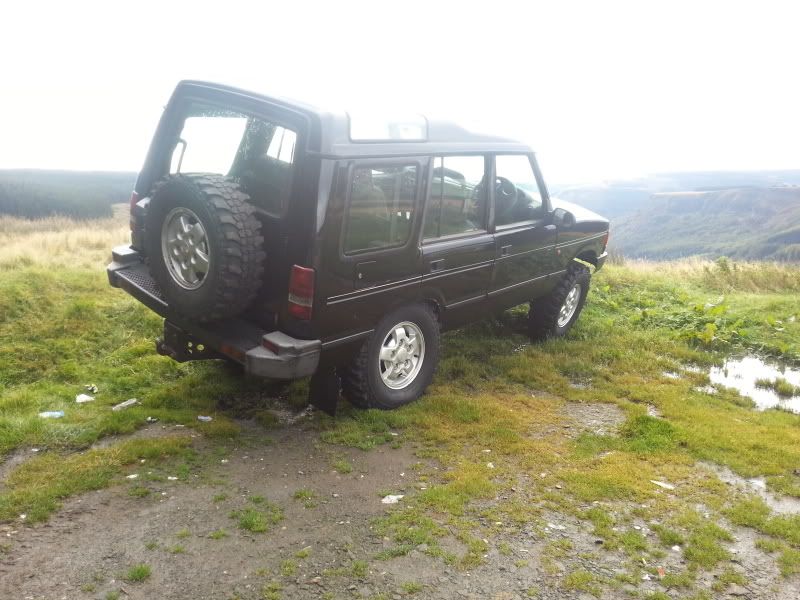

Just thought I would put a couple of pics up of me trying my disco on a small bumb to see what the flex is like. I have also added wheel spacers and a snorkle.



[cox325]

nice work mate, inspring too. Ive been holding out taking the dashboard out (find a leak!!) seems a little job compared to this!!



[bencorkill]

those 265 tyres?



[ellodave]

Yeah 265 75 16's I think any bigger I would either have to go higher or cut more away to get decent clearance. Ill wait till I have broken/damaged it before I get bigger tyres!



[bencorkill]

Nice, seeing that dont think 265s will fit on mine at standard height ha , u think would fit with cut arches ?
