Big Stripdown and Weld thread 300tdi

[resto_d1]

I assumed it was draining for pillar yes. When your done, still a dynax or similar nozzle up there and fill the pillar.

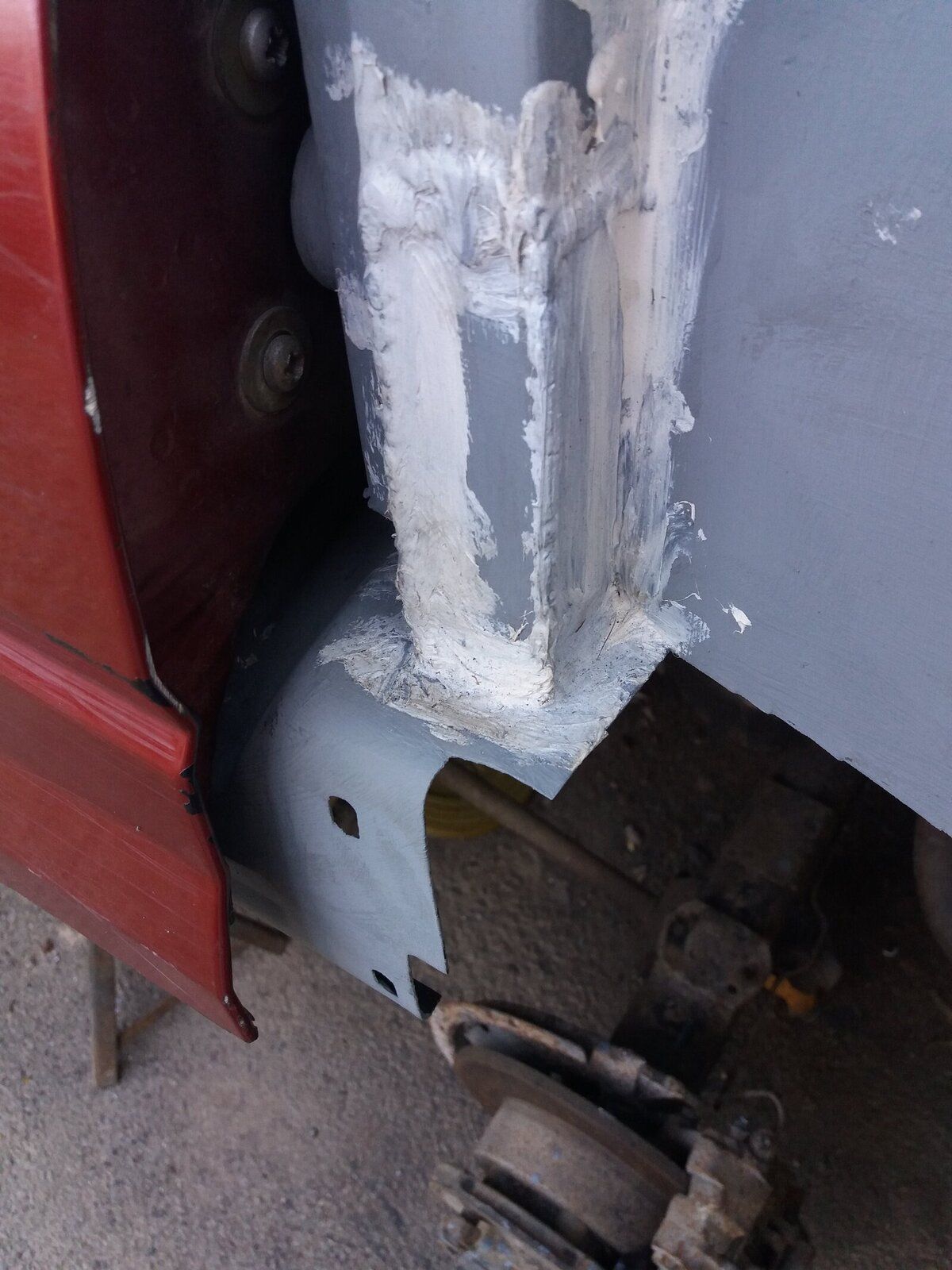

I extended the pillar down to the black and tied it in to the pillar. You'll see it lines up perfect. Then just attach your red. I'm not a pro remember but mine did line up nicely. I'll be attaching the red afterwards.



[resto_d1]

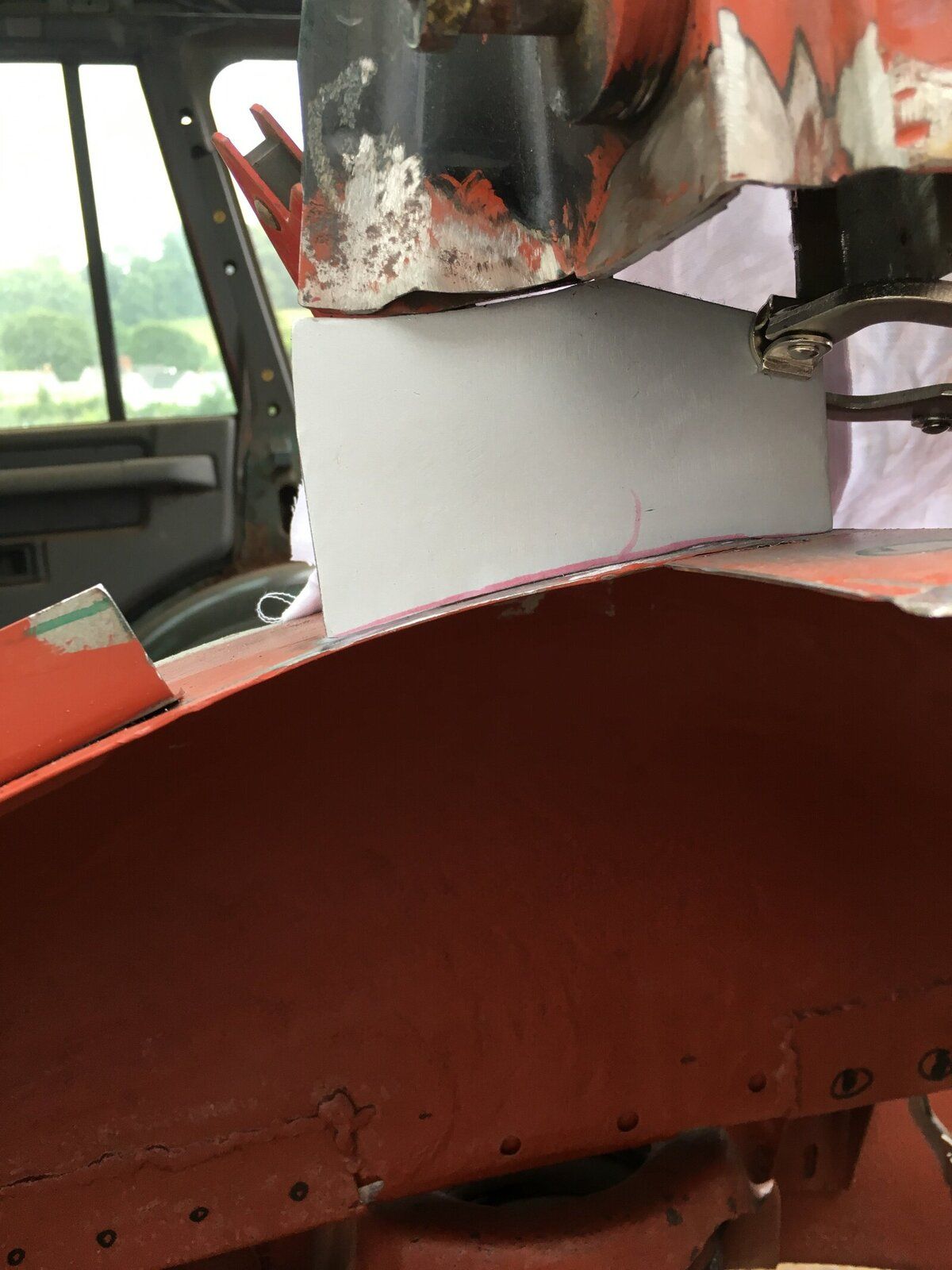

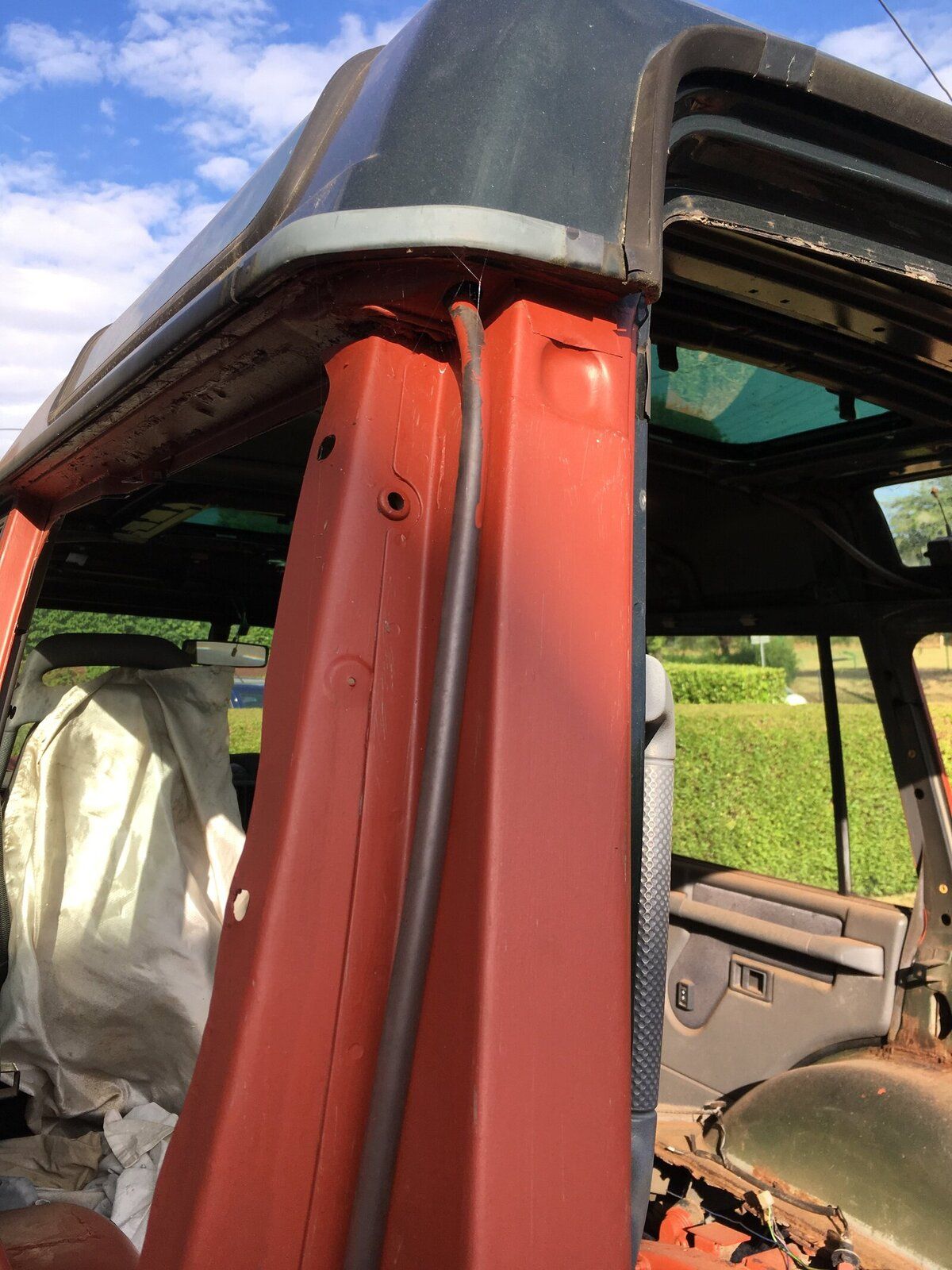

Just took pics for you- see how the outer lines up perfectly with pillar? Maybe it's coincidence but seemed perfect fit to me! Close the door on it also without knocking your clamps off to check no rub and that it's right



[Kev12]

The hole is for a drain, there should be a pipe in that pillar that pokes out the bottom of it



[The Mad Hat Man]

The hole is for a drain, there should be a pipe in that pillar that pokes out the bottom of it

only if its got sun roofs?



[Kev12]

Yeah I don't suppose the pipe would be there on a non sunroof one



[Chrisw8]

Just painting today ....

My drain pipes for rear sunroof come out of back of Disco , not through c pillar .

Not that it matters much ..... I’ve sealed the sunroofs up.



[The Mad Hat Man]

is that just red primer?



[Chrisw8]

Yup..bonda primer



[The Mad Hat Man]

Yup..bonda primer

ah! poxy.



[Chrisw8]

Poxy primer ? Or poxy primer ?



[The Mad Hat Man]

Ee I canna tell



[resto_d1]

Mate did you bend the froggats lower arch panel or have to reshape at all? I can't get a nice line up



[Chrisw8]

Which is the lower arch panel?
The one with the mud flap holes at rear??



[Chrisw8]

Ahhh just looked on froggarts site.

Yeah I made a few bends in it.

I found it helped to clamp the left hand boot floor to the wheel arch to pull the wheel arch into a bit of shape.

The centre hole but I left welding till last as it was about 4mm gap between it and sill mount.

When the outside was welded all over I bashed the hole with big hammer to get contact with sill mount to weld it.

If I remember tomorrow I’ll take side on pixie of it where you can see the bend



[resto_d1]

Cheers. I may have to work my way down from the other end instead



[Chrisw8]

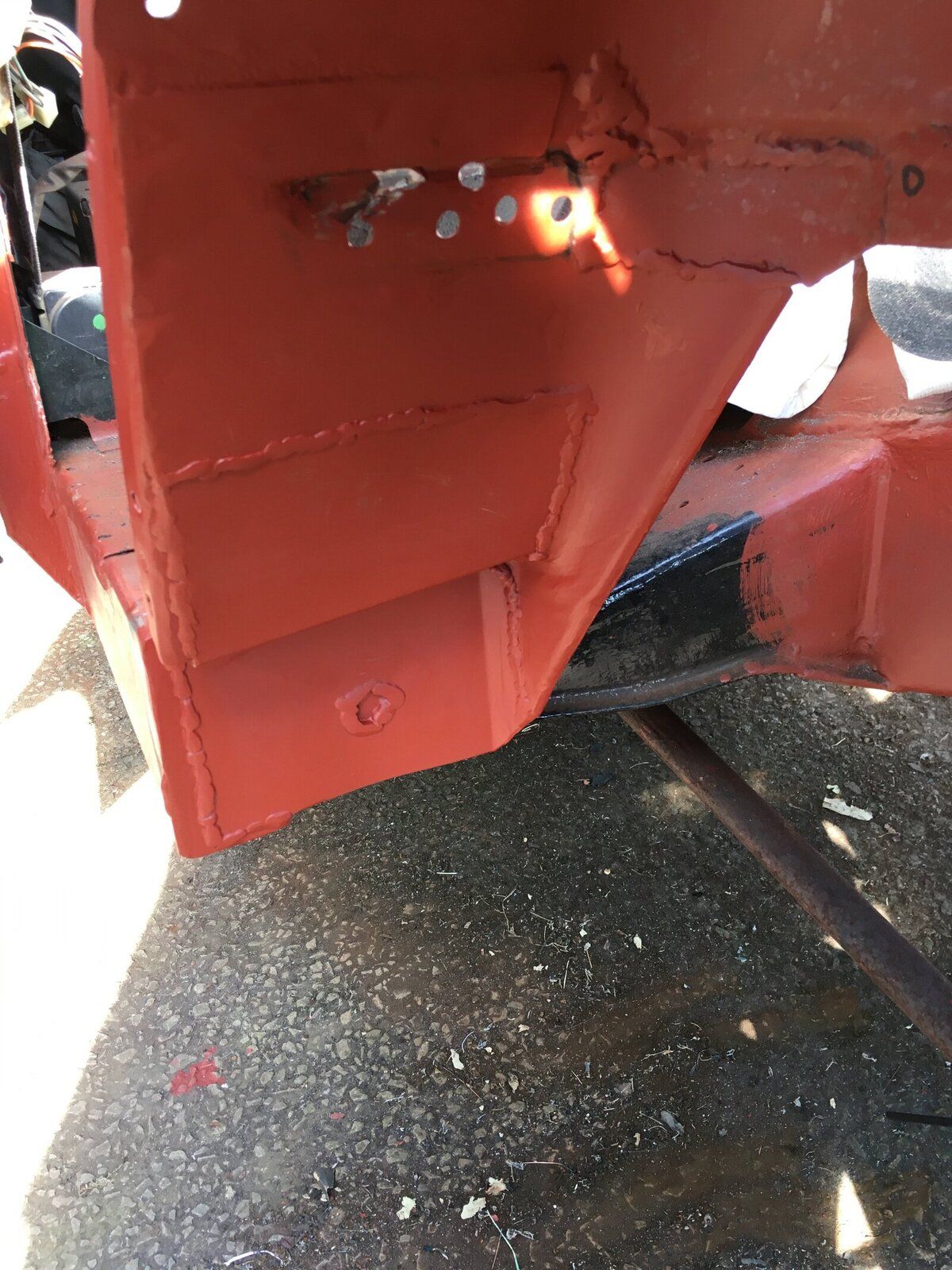

Here’s the pixie with the ‘bend’ showing.



[Chrisw8]

Why does it always rain when I get the welder out !!!!!!!!!

Ffs



[The Mad Hat Man]

Why does it always rain when I get the welder out !!!!!!!!!

Ffs

coz it gives yu an excuse not to do it



[Chrisw8]

I decided because I don’t need the hole on the wheel arch for drain pipes..... I won’t have one. That way there won’t be any water going into the hole from the wheel end.



[Chrisw8]

All ready ...... waiting for rain to stop
