Bias plate bolts (torque settings) + rave manual

fella31 · Dec 28, 2009

Hi guys, just fitted a new bias plate but can't seem to find the torque settings for the bolts in the Haynes manual (plus should I put on some locking compound on the threads??), any ideas? also I tried downloading a "Rave" manual from various sites (for a 1998 Discovery TDI) but without luck. Most of the links I found don't have working sites anymore, anyone done this recently?

Cheers
Al

discool · Dec 28, 2009

I had a look in my LR work shop manual and I can't find 'bias plate' so do they have another name.

fella31 · Dec 28, 2009

Hi, I'm not too sure actually. Can't find a sodding thing about them in the Haynes manual either, maybe gear linkage plate or something like that?

Rand · Dec 28, 2009

I just downloaded the service manual yesterday from here:

land_rover service manual

I didn't download the entire Rave...just the Disco2 manual...about 35MB if I remember correctly

listerdiesel · Dec 28, 2009

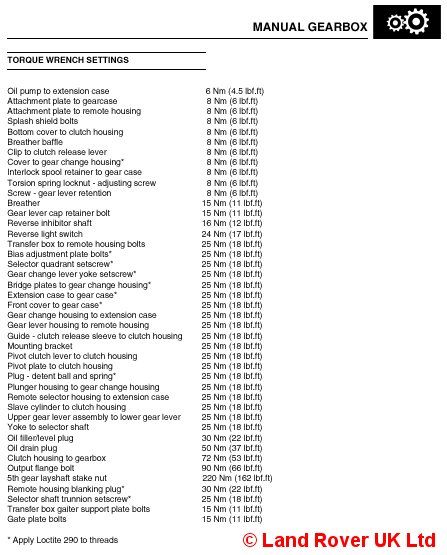

The attached page is from the Disco 1 RAVE manual, torque settings for the R380.

Peter

discool · Dec 29, 2009

listerdiesel said:
The attached page is from the Disco 1 RAVE manual, torque settings for the R380.

Peter

So not a lot Peter, 18 lbs ft and a dab of thread lock

fella31 · Dec 29, 2009

Cheers guys, I'll get on on it today!
Thanks

listerdiesel · Dec 29, 2009

discool said:
So not a lot Peter, 18 lbs ft and a dab of thread lock

Yep, surprising how disorganised the earlier RAVE is compared with the Disco 2 version.

Peter
