Freelander 1 ABS sensors - which one to buy?

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
rob_bell said:
Just thinking about it (out loud), what I shall try is raising the hub on a jack and try the two hammer technique and see how that goes.

Just wondering having watched Bodgit's YouTube video a few times where I should get the alloy bushing? Judging how everything else is going, might be a good investment: bet the wishbone will be rust-welded into the hub!!!
Click to expand...
See what it looks like first. I didnt have to replace mine as it is made of sturdy stuff. I do have poly replacements but won't use them until needed. might just slipped off with a bit O loosen juice :)

rob_bell said:
Just thinking about it (out loud), what I shall try is raising the hub on a jack and try the two hammer technique and see how that goes.

Just wondering having watched Bodgit's YouTube video a few times where I should get the alloy bushing? Judging how everything else is going, might be a good investment: bet the wishbone will be rust-welded into the hub!!!
Click to expand...
See what it looks like first. I didnt have to replace mine as it is made of sturdy stuff. I do have poly replacements but won't use them until needed. might just slipped off with a bit O loosen juice ;)

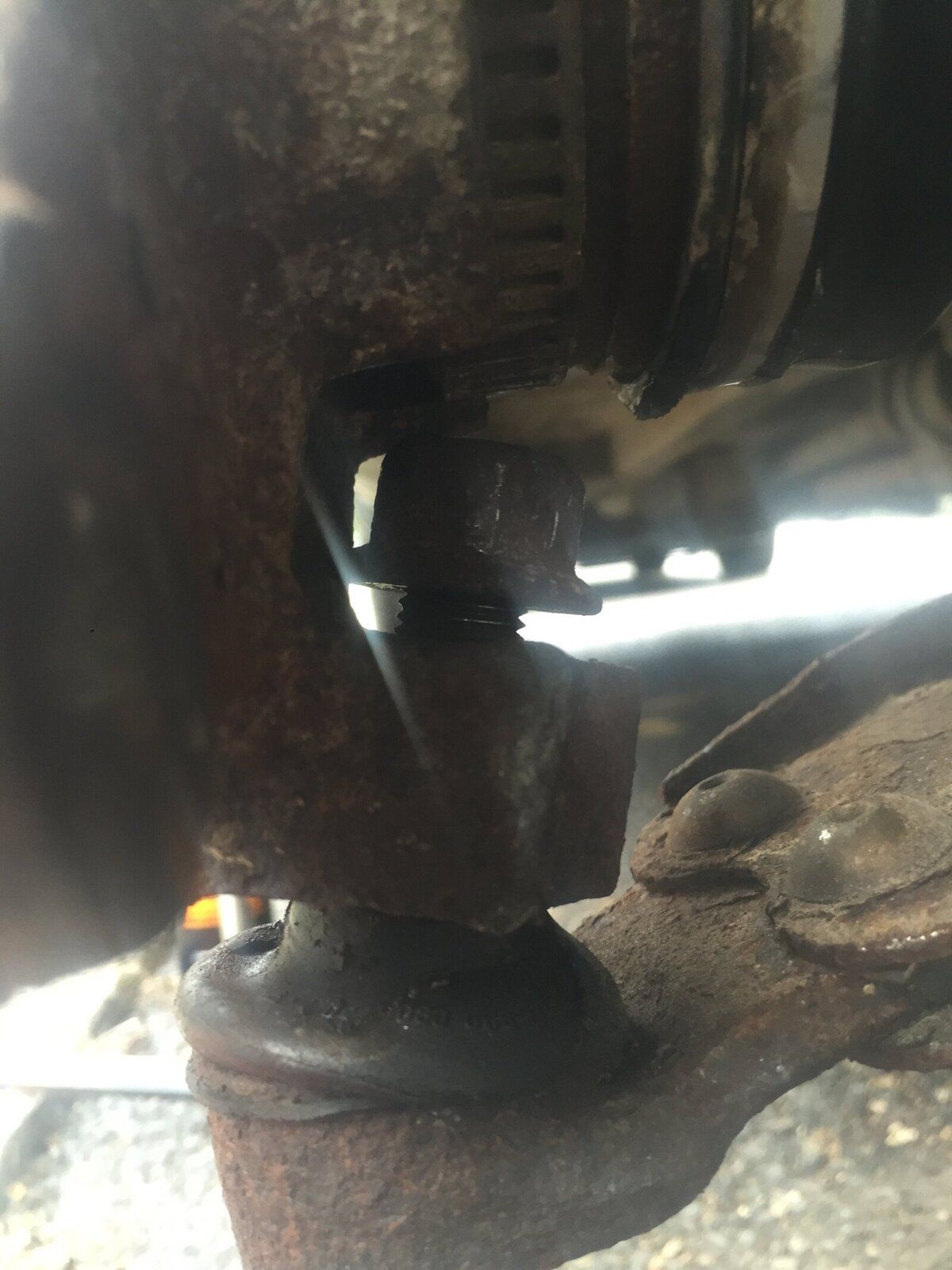

This is where I am at the moment. Beating it with one or two lump hammers (one as an anvil), with the lower wishbone chocked and the joint bearing the weight of the car through the hub made no difference.

There isn't space for a ball joint seperator with the drive shaft in place, so the next task will be to undo the top of the hub (two bolts to the strut), pull the drive shaft out and get the ball joint seperator in there.

Cup of tea first though!

Last edited:
If you have the drive shaft nut off and you are replacing the wishbone? Why don't you undo the wishbone inner pivots, so you can remove the complete hub and wishbone as one. Hang the driveshaft on a bungee from the spring to avoid over articulating the inner joint.

Once the whole assembly is off. Give the ball joint a good smack from the top. It will pop out without much trouble. ;)

Agree with Nodge it will never come out like that, Either take the Capilar and disc off then undo the hub to strut nuts and bolts also take hub nut off to bring the hub forward at a stright angle for you the knock it down or as Nodge says undo the wish bone clamp and pivot bolts like in the bodigt and legit video. Or saw throu the ball joint on the rubber side if all else fails

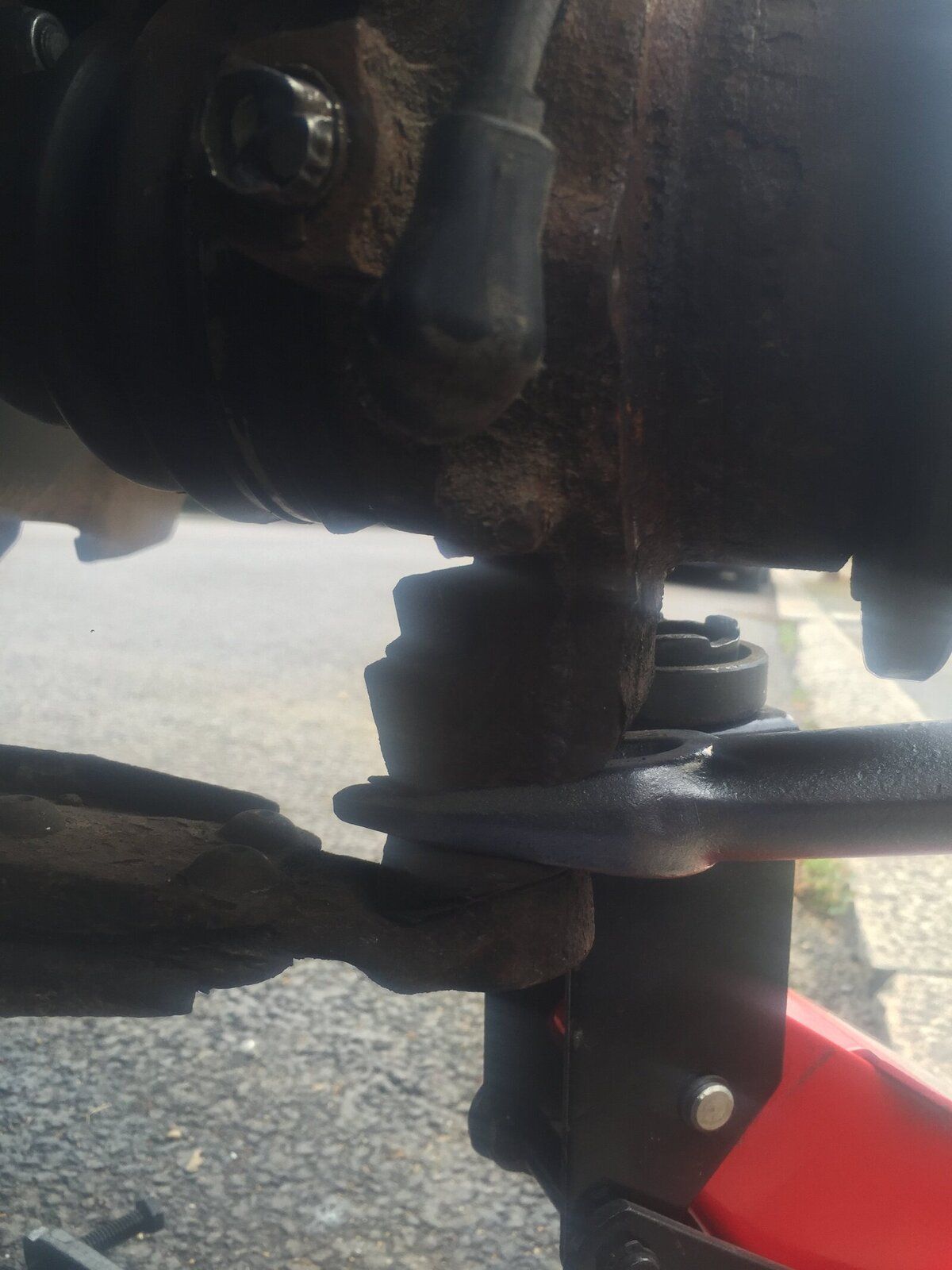

It went with with the wedge fork in the end: some load on the hub with the Jack and happily the taper let go:



Happy days :)

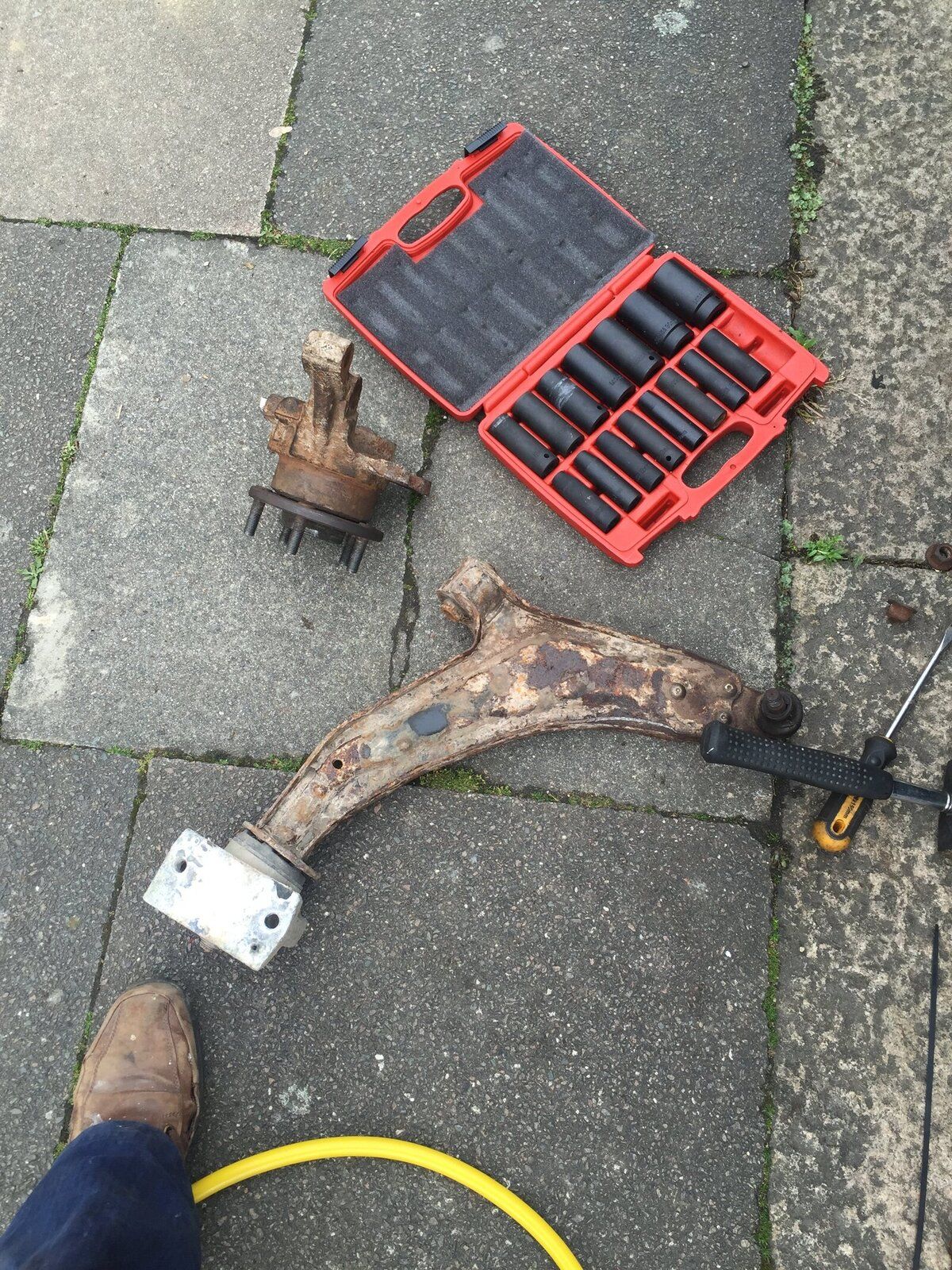

The wishbone and hub are off.

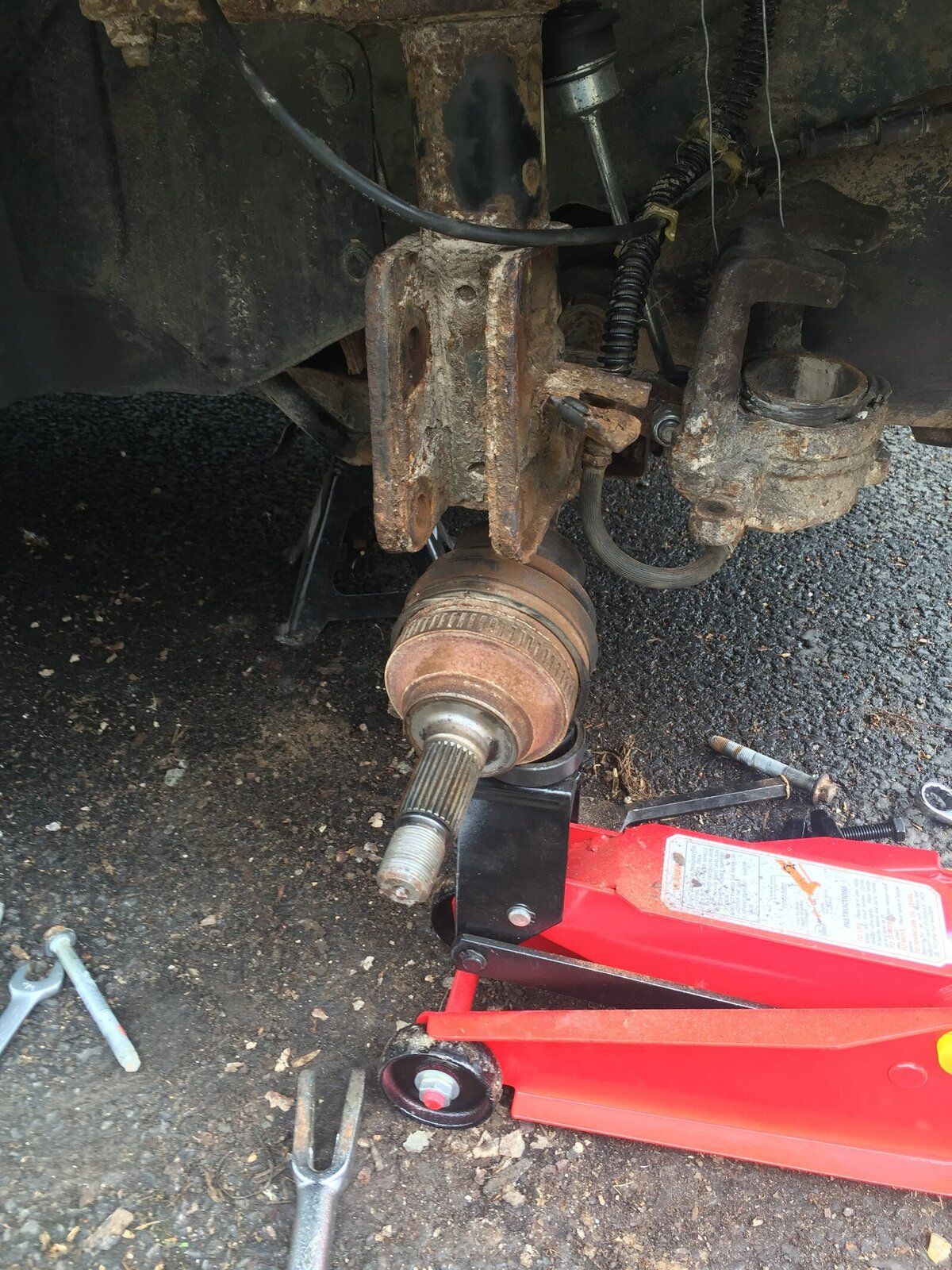

I'm supporting the drive shaft with the Jack for now, so as to not over load the CV joints.



I now have the task of seperating the rear alloy bush from the wishbone, and knocking out the remnants of the old ABS sensor from the hub!

May battle commence!

Well after another cup of tea and letting the bush stew in plus gas for a while ;)

Last edited:
rob_bell said:
It went with with the wedge fork in the end: some load on the hub with the Jack and happily the taper let go:

View attachment 124553

Happy days :)

The wishbone and hub are off.

View attachment 124554View attachment 124554

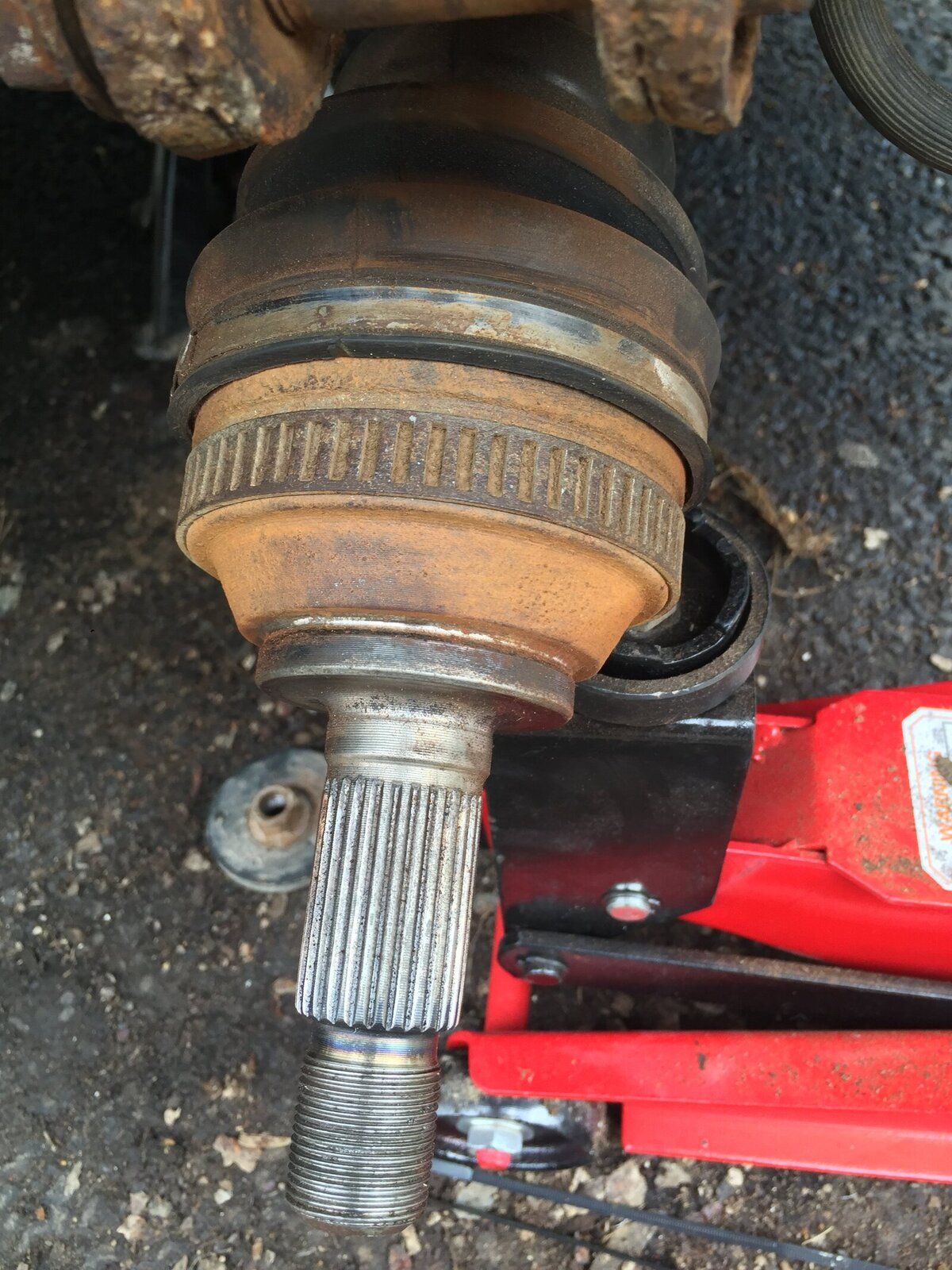

I'm supporting the drive shaft with the Jack for now, so as to not over load the CV joints.

View attachment 124555View attachment 124555

I now have the task of seperator G the rear alloy bush from the wishbone, and knocking out the tenants of the old and sensor from the hub!

May battle commence!

Well after another cup of tea and letting the bush stew in plus gas for a while ;)
Click to expand...
Well done sir! That bush should just twist off or if you have a puller that will also do the trick. Time for a cuppa for us all :)

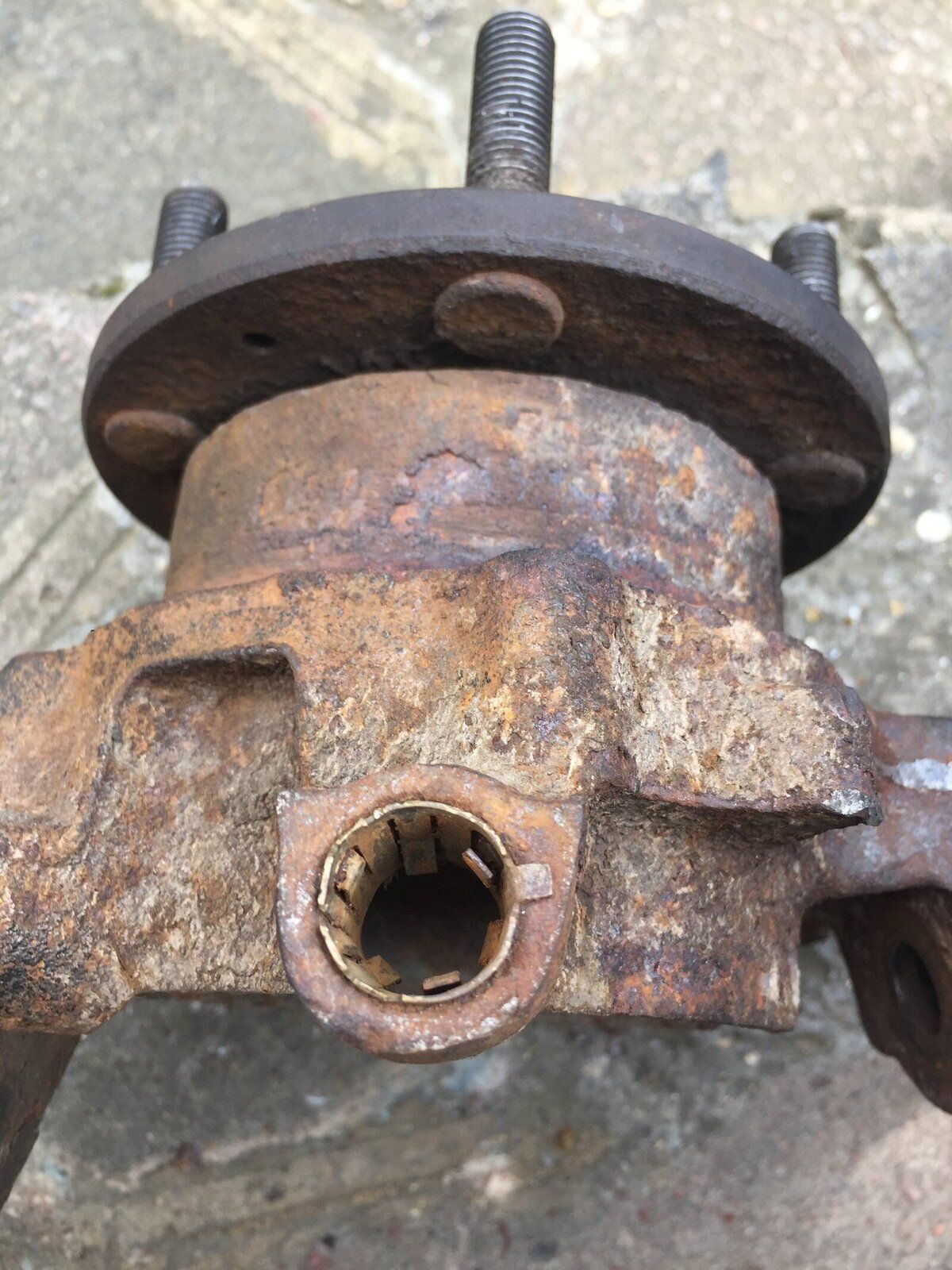

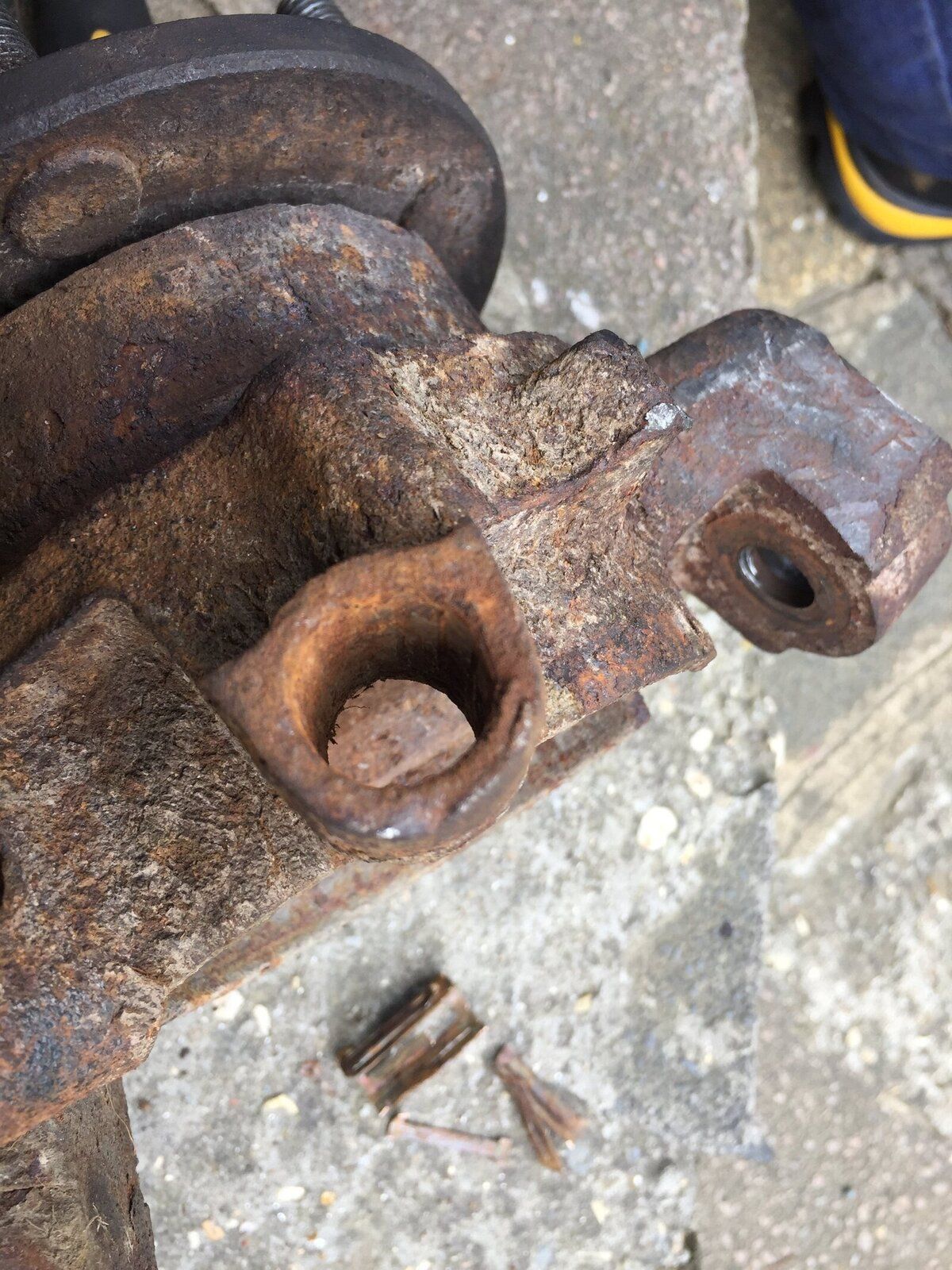

No chance the old sensor was ever going to be pulled out. It took a fair bit if persuasion!!!

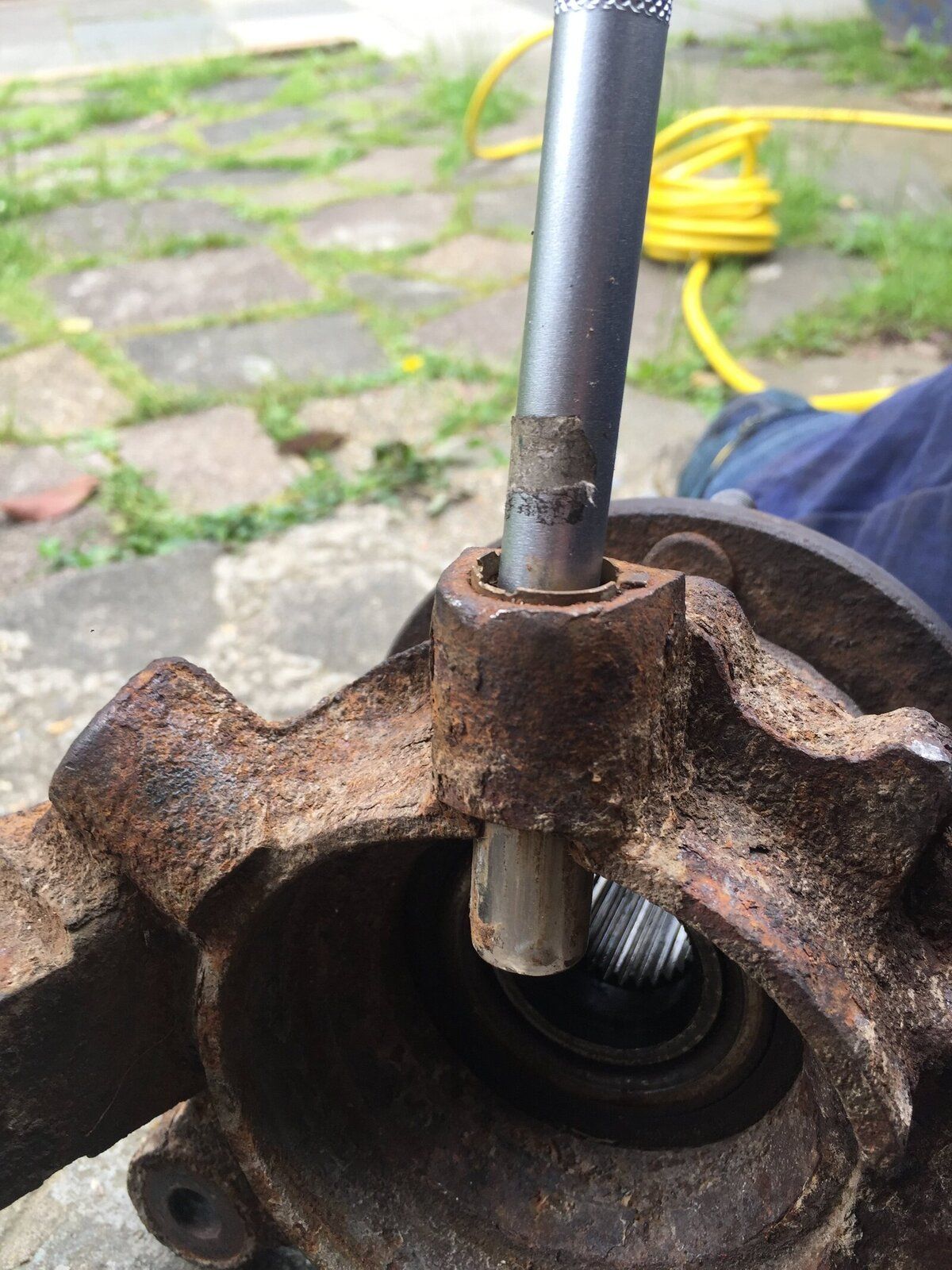

Mashed out with a 3/8" extension (apologies for the the tools abuse! :oops:)



Not nice in there. Will clean up the sensor bore with some emery paper (or what ever I can find!) ;)

Last edited:

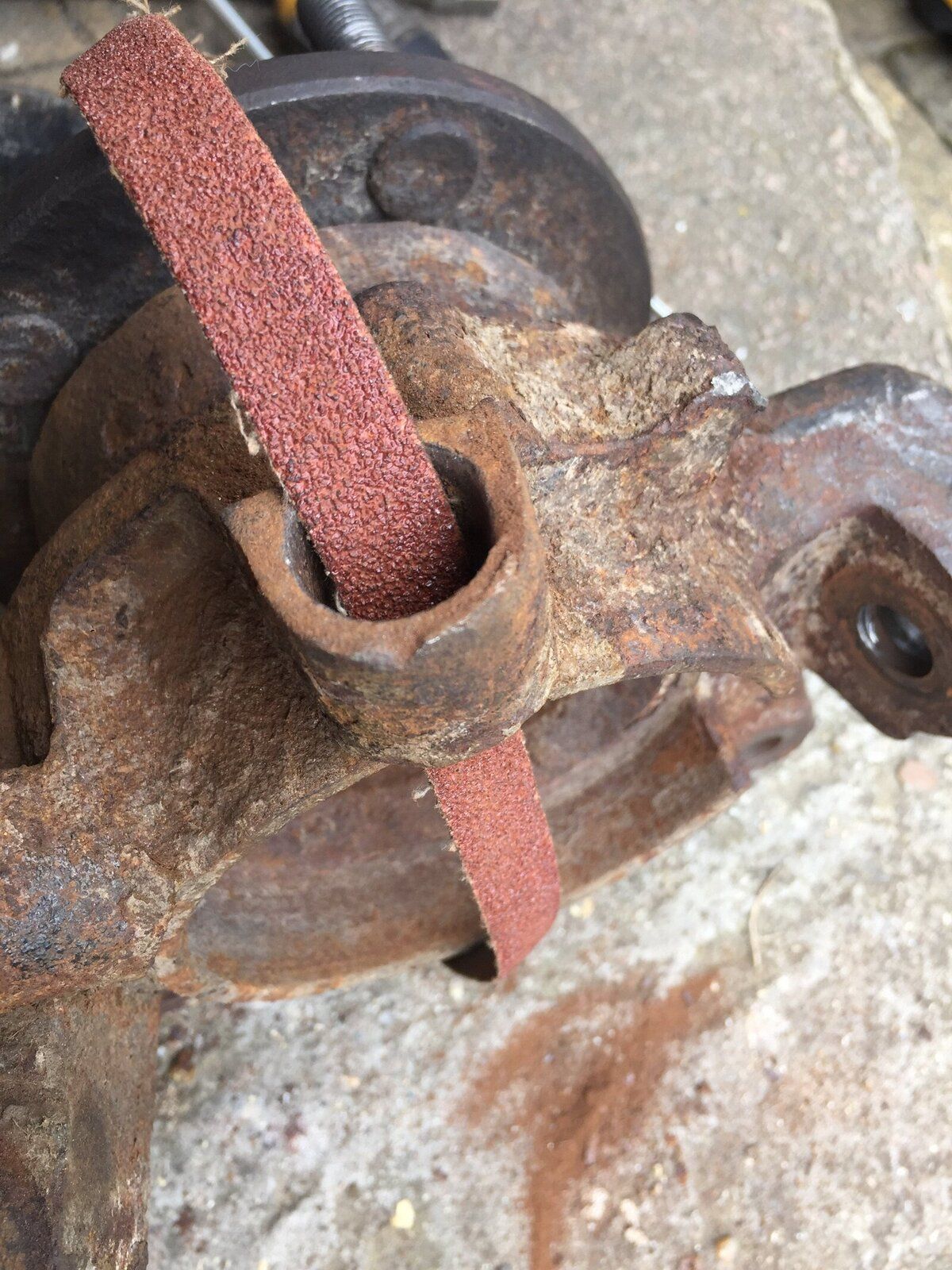

A snapped power file belt was ideal. The bore for the sensor is heavily pitted, and you can see the pile of oxidised iron below...

The reluctor ring looks fine (I'd bought a spare just in case). Not a 100% sure it's in quite the right place?

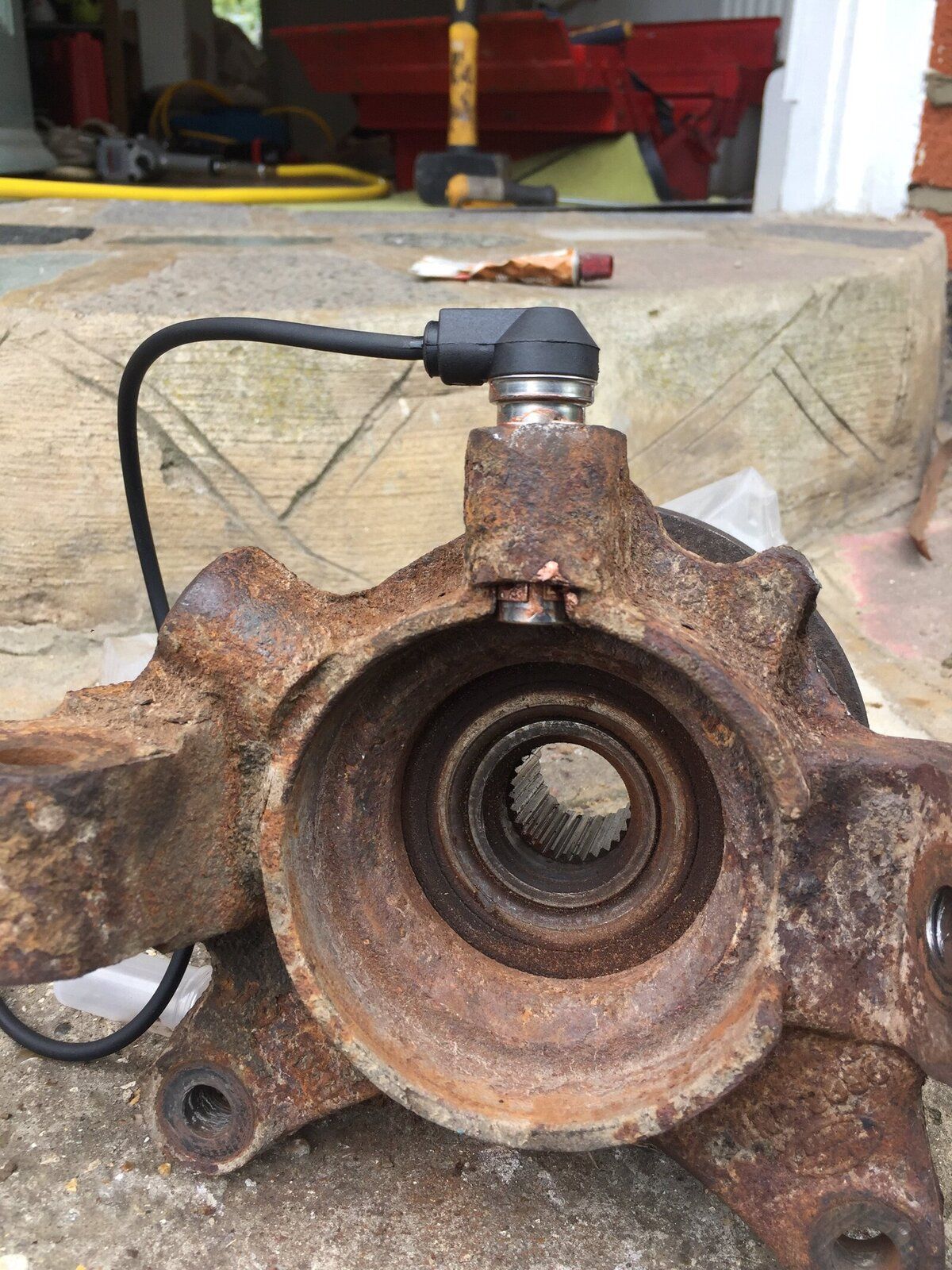

New ABS sensor is in. My eBay special didn't come with any lubricant, so I've used copper grease (light smear).

Ready to go back on! :)

Thanks :)

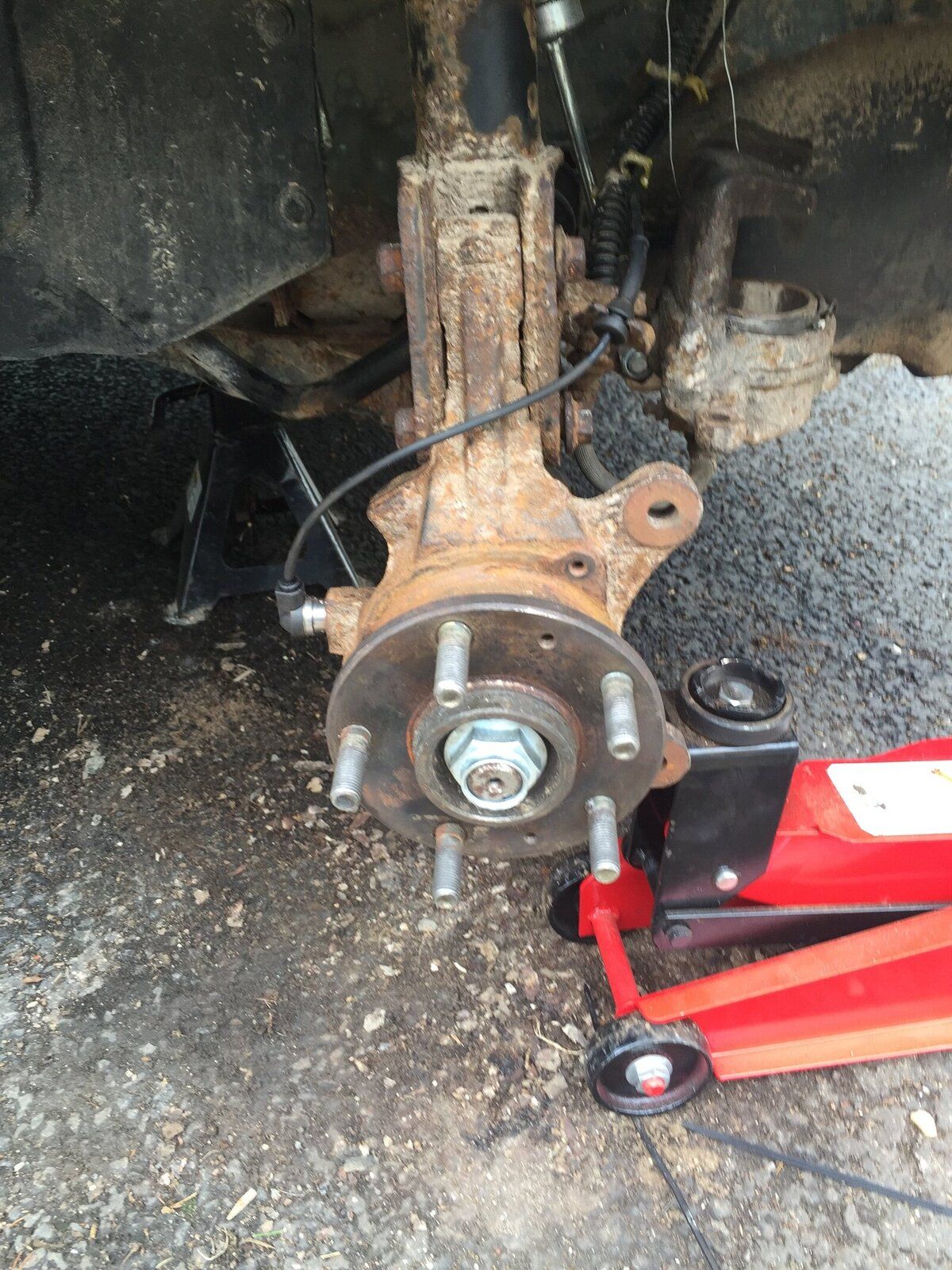

Hub back in loosely for now with fresh hub nut (old one used at least twice).

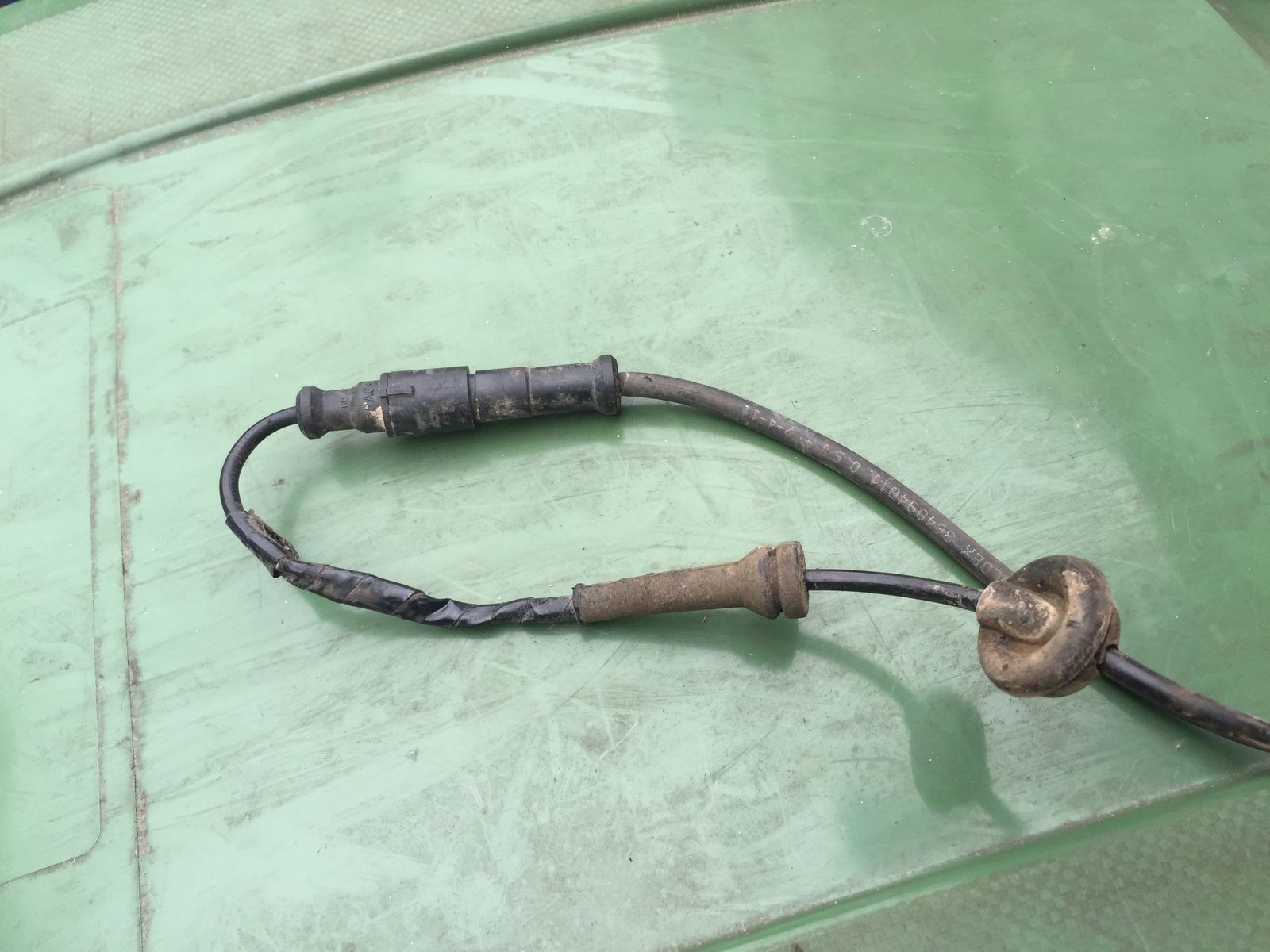

Old abs sensor cable looks like a mishmash of cables;



Much better now.

Now to tackle that wishbone! And now wishing I'd bought a new replacement bush - d'oh!!!

Last edited:
Hitting threaded section with 4lb hammer doesn't seem to be having much effect. Chances are that the insert has corroded to the wishbone.

Will leave to stew in penetrating oil for now, but will aim to buy two new bushes.

Are these Delphi parts too?

rob_bell said:
Hitting threaded section with 4lb hammer doesn't seem to be having much effect. Chances are that the insert has corroded to the wishbone.

Will leave to stew in penetrating oil for now, but will aim to buy two new bushes.

Are these Delphi parts too?
Click to expand...
Dont hit the end or you will flatten it and it will never come out. Can you not lever it with two screw drivers? Or do you have a two leg puller? Try twisting to free it up as well.
