they are pressed in to con rod,and piston needs supporting carefully otherwise it will distort
Classic 44 Year old, seized, corroded V8 rebuild thread.....
- Thread starter Saint.V8
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
- Posts
- 16,475

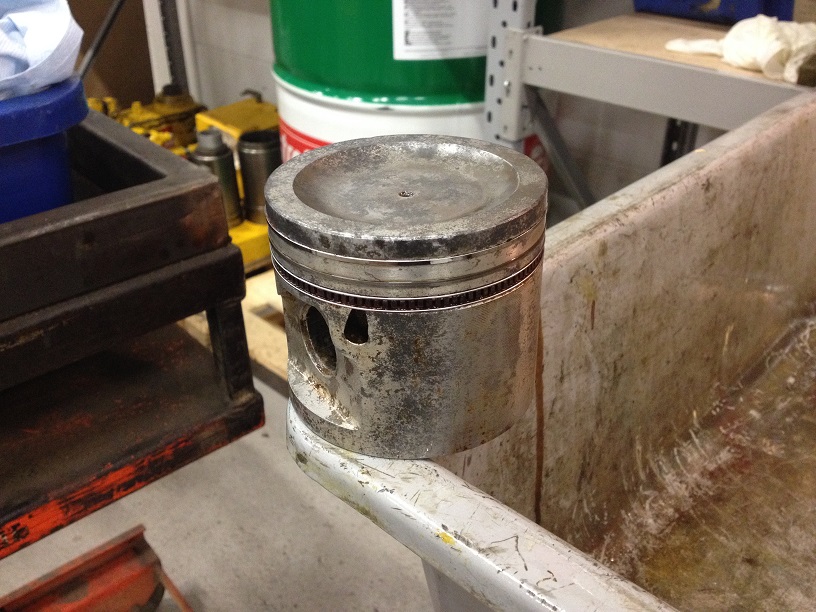

After a bit of time, and careful work the pins finally removed.
Spent the next couple of hours in the spirit washer and scrubbed with some Scotch Brite and a tooth brush.
Don't use a wire brush on the piston else you'll damage them....After scrubbing with Scotch Brite, they were placed in the soft jaw lathe and spun with Scotch Brite pad to polish them up a bit......then I hit my thumb on the chuck of the lathe....WHICH FECKING HURT.......
Next up is to remove the old piston rings and clean the grooves....
My thumb really hurts!!!...Only took a chunk out of the tip, but still enough to bleed like feck and for me to swear profusely!
Spent the next couple of hours in the spirit washer and scrubbed with some Scotch Brite and a tooth brush.
Don't use a wire brush on the piston else you'll damage them....After scrubbing with Scotch Brite, they were placed in the soft jaw lathe and spun with Scotch Brite pad to polish them up a bit......then I hit my thumb on the chuck of the lathe....WHICH FECKING HURT.......
Next up is to remove the old piston rings and clean the grooves....
My thumb really hurts!!!...Only took a chunk out of the tip, but still enough to bleed like feck and for me to swear profusely!
Last edited:
ukadamwest
Well-Known Member
- Posts
- 2,990
- Location
- Surrey
snap !
- Posts
- 16,475
Don't'cha just hate it when that happens!!!
ukadamwest
Well-Known Member
- Posts
- 2,990
- Location
- Surrey
my language would have made drunk sailor blush !
- Posts
- 16,475
Same....
I was spinning up the pistons in the lathe and running the Scotch Brite pad over them when I got my thumb to close to the spinning chuck and mashed the end my thumb.....
Luckily I cleaned the blood of the Piston before I went and bandaged it up!
I was spinning up the pistons in the lathe and running the Scotch Brite pad over them when I got my thumb to close to the spinning chuck and mashed the end my thumb.....
Luckily I cleaned the blood of the Piston before I went and bandaged it up!
- Posts
- 18,982
- Location
- Buckinghamshire, UK. ('95 DT)
Call that a scratch ...

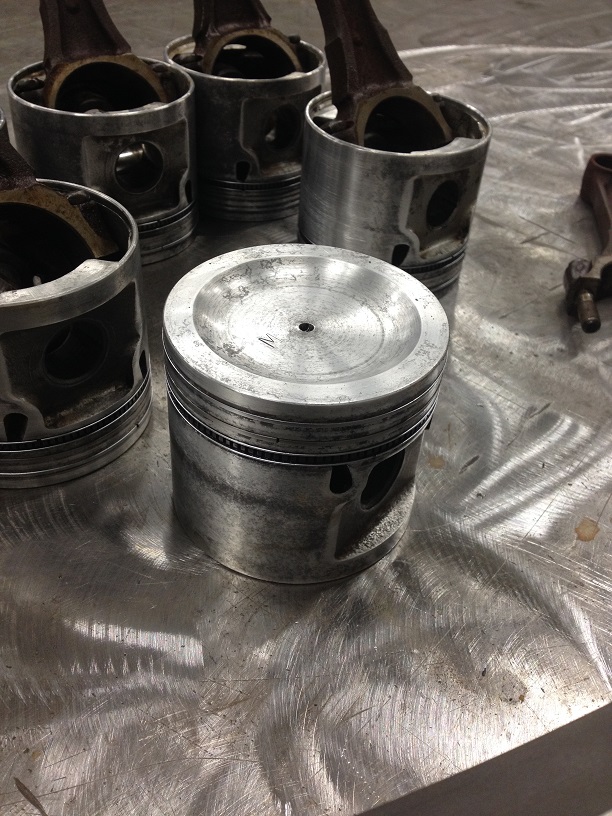

Pistons look good though!
Pistons look good though!
- Posts
- 16,475
Gotta figure a way to get the old rings out.....they are stuck fast!!!
- Posts
- 58,170
- Location
- Preston Lancs.
Jam1
Well-Known Member
- Posts
- 1,315
- Location
- Staffordshire
Heat (carefully obviously ) then quench often helps free stuck rings as the expansion/contraction rates of the rings and piston are different
TheWoodsmane
Member
- Posts
- 72
- Location
- Guildford, England.
I'm in awe. Dude, you rock, as they say. This is vicarious living in LandyZone.
- Posts
- 58,170
- Location
- Preston Lancs.
ukadamwest
Well-Known Member
- Posts
- 2,990
- Location
- Surrey
"Gotta figure a way to get the old rings out.....they are stuck fast!!!"
electrolysis ?
i was wondering, with a tub big enough to set the block in, would electrolysis have worked to free off the the pistons and gudgeon pins in one hit.
maybe a bit 'heath robinson' but from the chemistry of it it would theoretically work would it not ?
With the piston rings a small tub could be put together easily ? again with the chemistry of it it would theoretically work ?
electrolysis ?
i was wondering, with a tub big enough to set the block in, would electrolysis have worked to free off the the pistons and gudgeon pins in one hit.
maybe a bit 'heath robinson' but from the chemistry of it it would theoretically work would it not ?
With the piston rings a small tub could be put together easily ? again with the chemistry of it it would theoretically work ?
Last edited:
ukadamwest
Well-Known Member
- Posts
- 2,990
- Location
- Surrey
Yeah he does have big thumbs doesn't he.
I'm sure you've seen what the tumbs are attached to. He's a big slice is Ant.. Wouldn't get much in the way of aggro on a Saturday night in Aldersh*t.
- Posts
- 58,170
- Location
- Preston Lancs.
ukadamwest
Well-Known Member
- Posts
- 2,990
- Location
- Surrey
there's a mental image i didnt need.Yeah he is that's why he needs extra strong nipple clamps.
mind bleach please !
Last edited:
ukadamwest
Well-Known Member
- Posts
- 2,990
- Location
- Surrey
If this engine is recovered. i seriously want Ant to have the honour of first starting and think it should be on video too.
Also, when the Suffix A is done, Ant gets first crack behind the wheel too !
Edit to add.. second thought.. i'll put Ant as an additional named driver on the policy !
Also, when the Suffix A is done, Ant gets first crack behind the wheel too !
Edit to add.. second thought.. i'll put Ant as an additional named driver on the policy !
Last edited:
brianp38dse
Well-Known Member
- Posts
- 19,635
- Location
- heathrow
Ant would a piston ring removal tool help you, I have one in the garage you are welcome to use if it helps.
- Posts
- 58,170
- Location
- Preston Lancs.
Better with a small punch in the gap and work them out that way. Carefully so as not to damage the lands.
Last edited:
- Posts
- 16,475
I have a ring removal tool, thanks for the offer, but the rings are so well seated and stuck in, that there is no discernible gap to get anything in to spread the ring, not even a tiny punch or drift...I even sharpened a small watch makers screwdriver to a very fine blade and still no joy in getting in the tiny gap.....very mindful not to damage the land or groove....
I am desperately trying to save this engine, I think it can be done, and whilst I have rebuilt a few V8's I have never done one this seized, caked in corrosion or been left for so long with the spark plugs out allowing the world into the bores!!
once I get the rings out, it is time to turn attention to the heads.....which I think is the part I am really not looking forward to, as the valves, guides, seals and seats are no doubt shot.....
I have looked through our machine tools and I don't have a 46deg cutter of the right size to clean the valve seats, so hoping they are not too shot and can get way with a good scrubbing.....The LR tool for valve seat cutting is not a stock item, lead time is after Christmas and is about £140....
https://jlrequipment.service-solutions.com/en-GB/Pages/ItemDetail.aspx?itemID=47239&catID=331790
So that's out.....with luck they aren't burnt, pitted or cracked.....looking at how the rest of the engine has cleaned up not to bad, it is hoped the heads will do the same.
Researching other makes of 46deg cutters....America looks like the most common place for them
Once the heads are stripped....time for a cleaning spree...
I am desperately trying to save this engine, I think it can be done, and whilst I have rebuilt a few V8's I have never done one this seized, caked in corrosion or been left for so long with the spark plugs out allowing the world into the bores!!
once I get the rings out, it is time to turn attention to the heads.....which I think is the part I am really not looking forward to, as the valves, guides, seals and seats are no doubt shot.....
I have looked through our machine tools and I don't have a 46deg cutter of the right size to clean the valve seats, so hoping they are not too shot and can get way with a good scrubbing.....The LR tool for valve seat cutting is not a stock item, lead time is after Christmas and is about £140....
https://jlrequipment.service-solutions.com/en-GB/Pages/ItemDetail.aspx?itemID=47239&catID=331790
So that's out.....with luck they aren't burnt, pitted or cracked.....looking at how the rest of the engine has cleaned up not to bad, it is hoped the heads will do the same.
Researching other makes of 46deg cutters....America looks like the most common place for them
Once the heads are stripped....time for a cleaning spree...
