4.4 rv8 build thread (Doc evil need not post)

[fett]

cheers Mark, yeah the bloke in aus I speak to sometimes said his mate put one in and it lasted as long as the car- not sure which cam it was but it says a lot for quality I guess!

I am waiting for an email back but spoke to them on the phone and they seem pretty good!

The lope at idle sounds appealing for us v8 men



[discomark10]

best bet, measure how much more it will drop the valve down and check if you have the clearance.



[fett]

clearance where bud?



[discomark10]

between the top of the piston and the valve when opened ( got to add the gasket ) and take account for the timing of the opening



[fett]

I am gonna do a volume exercise when the heads arrive, no point doing it now as the ones coming have been skimmed once.

aussie seamail is slow!



[fett]

I never like adding to RPI's pockets but has anyone used these?

Billet V8 Rover JP Timing gear kit set TVR MGB Morgan Land Range Rover V8 cars | eBay

seems to be the best I can find and they are no cheaper anywhere else I could see



[jamesmartin]

if your straying from normal wouldnt vernier be better



[fett]

I belive the cam I am choosing doesnt need mods, I am trying to stay away from setting up the valve timing, it doesnt seem like fun!



[jamesmartin]

? why not fit std lr sprockets then ,and its not a mod just ensuring timings spot on ,tdc covers a few degrees if not done with a dti



[fett]

ive got a dti but I dont wanna use it lol, the sprocket has 9 keyways for adjustment so i should be able to get it on there ok.

I dont like the standard ones, always slack and then stretch more so after a year or two the timings off anyway, thats why I like the look of the duplex chain etc- I have sent them an email to see if its pre-stretched



[discomark10]

Oh I put my chain back on today and the timing marks are indeed half a tooth out. So it would help to get it spot on!



[fett]

did you got for a std one though mark? now many keyways they got?



[jamesmartin]

ive got a dti but I dont wanna use it lol, the sprocket has 9 keyways for adjustment so i should be able to get it on there ok.

I dont like the standard ones, always slack and then stretch more so after a year or two the timings off anyway, thats why I like the look of the duplex chain etc- I have sent them an email to see if its pre-stretched

you dont have to with std sprockets as they use center of cam and crank to line up, i wouldnt bother uchanging unless i was fitting vernier



[fett]

I know at least that much james

its more the qaulity of the bits is the reason I am changing, shame I cant just take a link out of the rollmaster one that was on there as it has stretched all its going to now lol

Good story tot ell you all about lifters next week too!



[discomark10]

did you got for a std one though mark? now many keyways they got?

I went for the steel but still std one over nylon. Its got 1 keyway. The oil hole on the cam onlylines up with one aanyways



[fett]

ok lads, just about to order 2nd cam down on this page CT37524A-110(a) , it aint cheap so any final thoughts or warnings?


CAMTECH CAMS -  Rover. Range Rover  & V8 3.5-4.6 Ltr 1986 - On Camshafts & Components



[discomark10]

Best choice from them imo



[fett]

cheers mark, I have to say it sounds perfect in the description! lets hope it is lol



[rappy1]

Hi Fett,

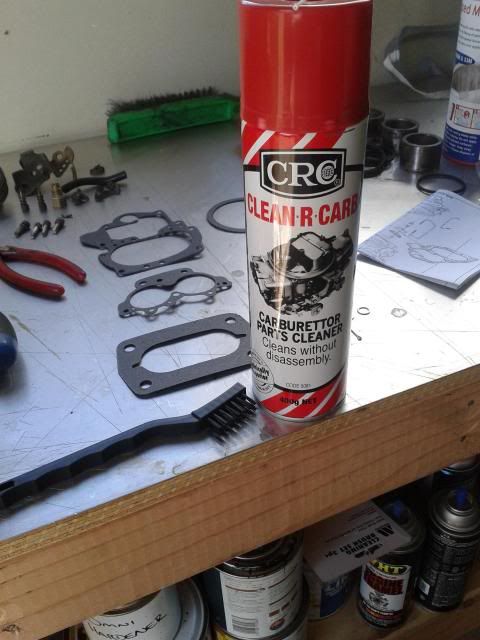

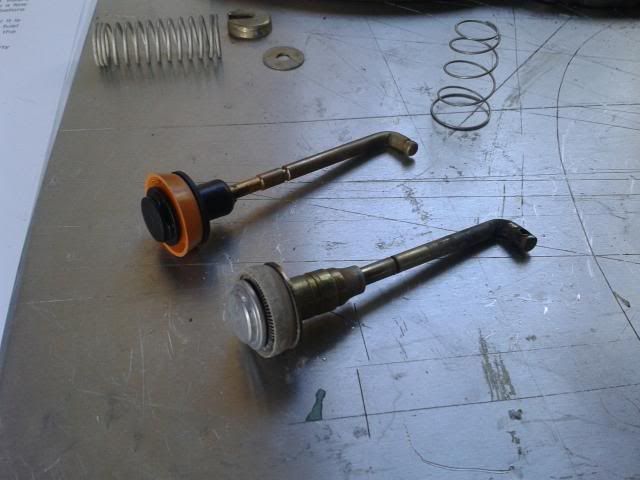

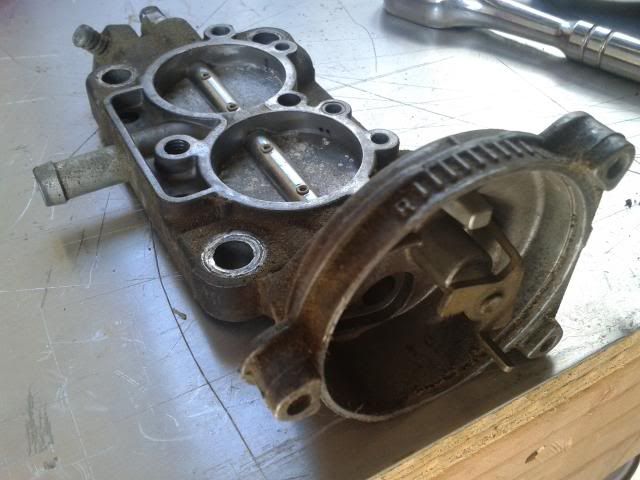

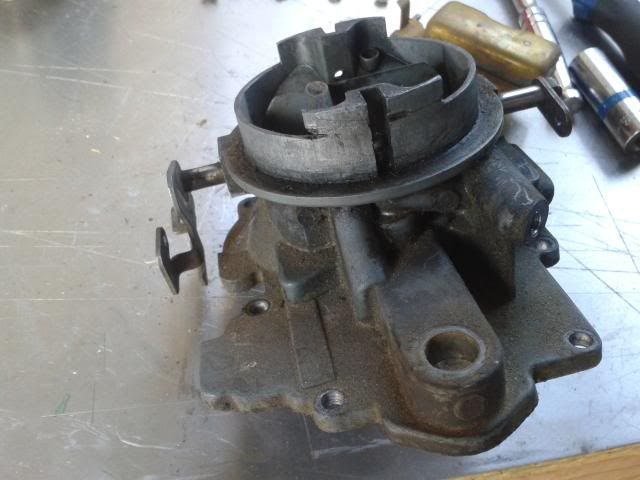

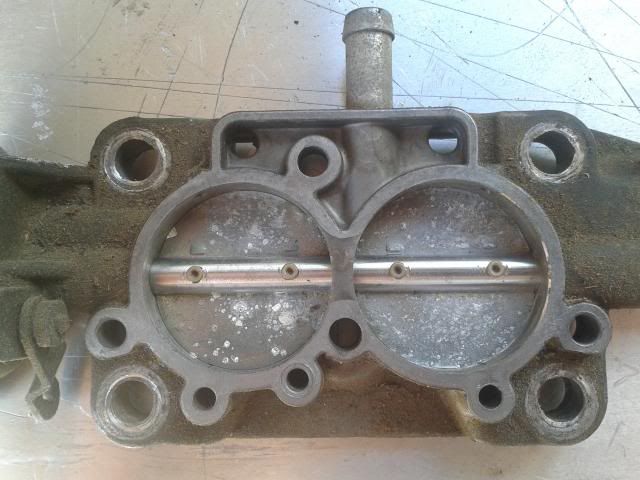

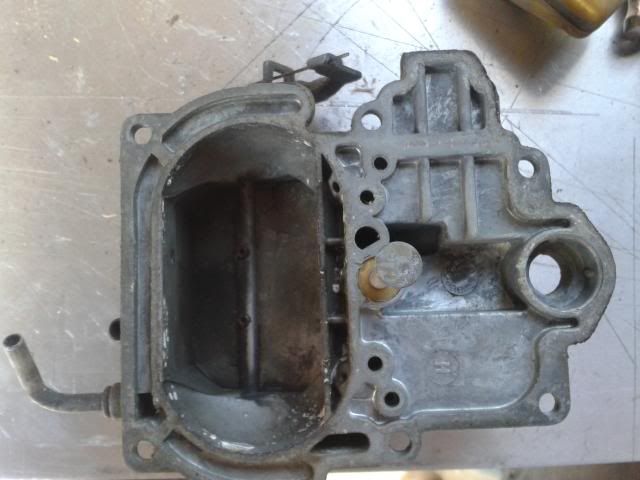

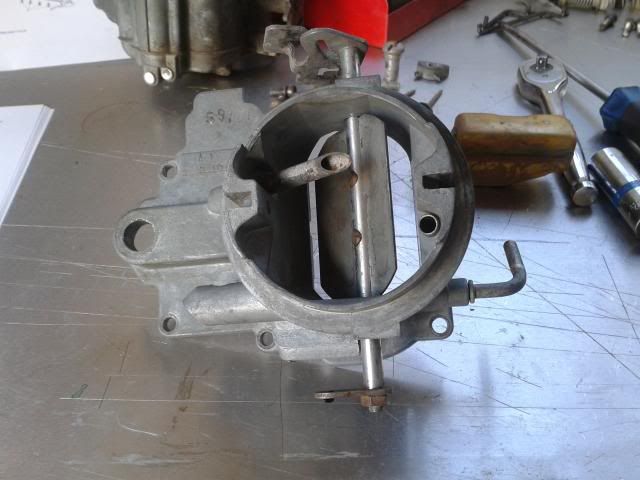

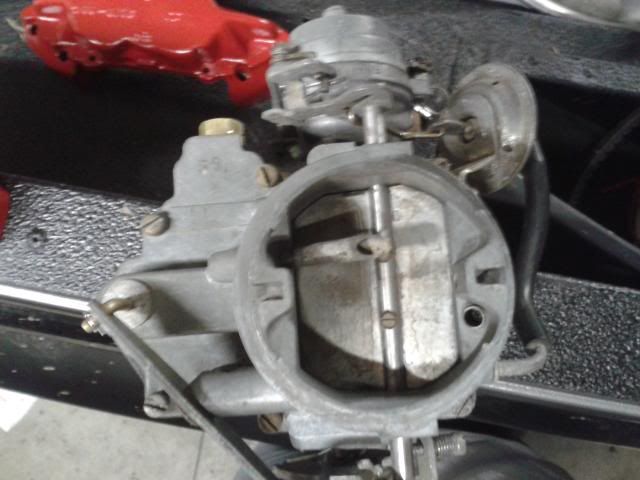

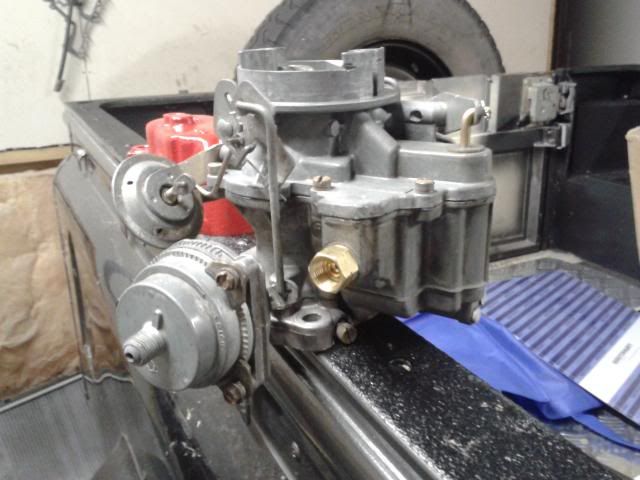

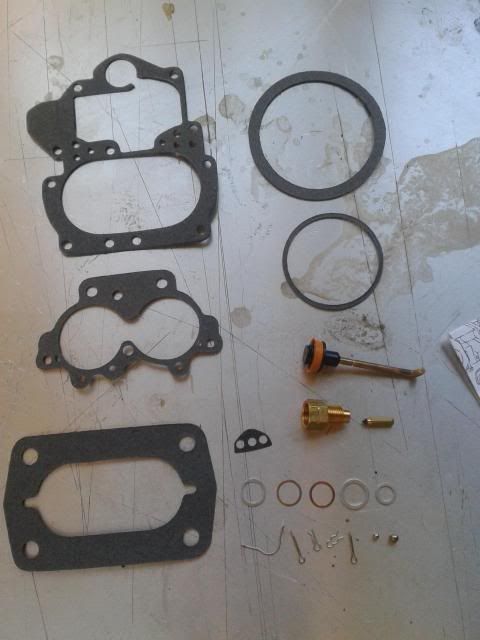

Thought i would send you some photos of the carb for your motor. I picked up the rebuild kit today. Wise choice, accelerator pump seal looked on its way out. The rest did not look too bad. I might have to make one new link for you.



[rappy1]

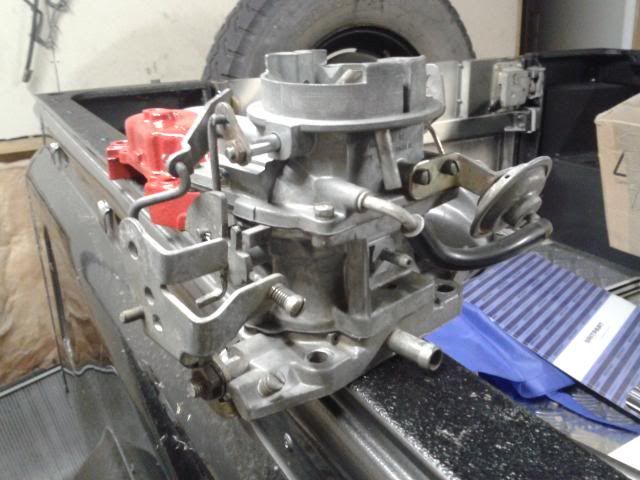

Now all finished. Just a question.. the cold start requires a exhaust feed to heat the bimetalic spring. Will you make a feed or convert to manual choke?
