'04 110 XS Strange Reverse Light Issue

Discussion in 'General Land Rover Forum' started by bankz5152, Oct 12, 2017 at 8:24 PM.

  1. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    5,882
    Likes Received:
    721
    Location:
    South London/North Kent
    This is an odd one...

    Got an RDX LED reverse light which has always worked. About 6 months ago I added another live & neutral into the reverse light connector which powers my rear parking sensors, light carried on working, as it should.

    Today I was fitting my reverse camera, I spliced into the live (behind the connector) for a signal feed for the head unit. Now the reverse light doesn't work...

    Heres the odd bit, according to my voltmeter I am getting 12v at the connector, parking sensors work fine too.

    The light itself works, tested on an external 12v car batt

    So what is happening here? Any ideas?

  2. The Mad Hat Man

    The Mad Hat Man Well-Known Member LZIR Despatch Agent

    Joined:
    Sep 11, 2005
    Posts:
    76,789
    Likes Received:
    4,082
    Location:
    Embasinga stocæ
    yes
    dont run it on mains :)

  3. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    5,882
    Likes Received:
    721
    Location:
    South London/North Kent
    Am i being thick? What ya mean? :confused:

  4. The Mad Hat Man

    The Mad Hat Man Well-Known Member LZIR Despatch Agent

    Joined:
    Sep 11, 2005
    Posts:
    76,789
    Likes Received:
    4,082
    Location:
    Embasinga stocæ
    :eek:

  5. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    5,882
    Likes Received:
    721
    Location:
    South London/North Kent
    As in more wires to feed the reverse cam! I chose poor words lol

    Not more power to feed the light!

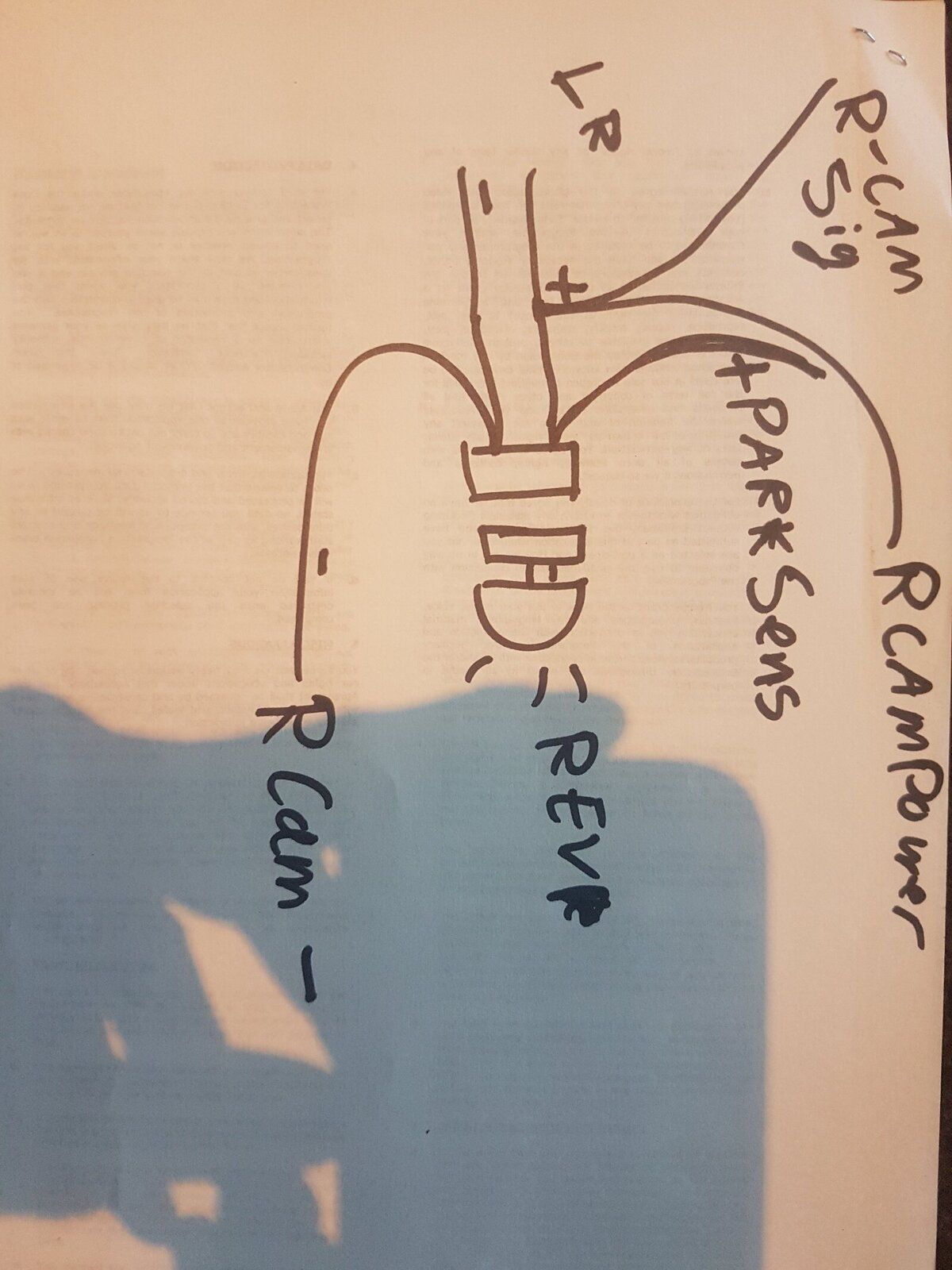

    So everything is normal going up to the reverse light connector
    At the connector I have - reverse cam signal wire
    Then two +/- coming off which feed the parking sensors and reverse cam

    Shi tty diagram

    Last edited: Oct 12, 2017 at 9:11 PM
  6. brian47

    brian47 Well-Known Member

    Joined:
    Jan 24, 2013
    Posts:
    6,147
    Likes Received:
    2,638
    Location:
    Bridgend, Mid Glam. Somebody's got to live here.
    Your diagram makes sense.
    Since you reckon that everything else works except the reversing light since you added the last item, I would be inclined to check that you haven't disturbed any ground wiring around the light and also recheck your splices to make sure that they're all OK too.

  7. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    5,882
    Likes Received:
    721
    Location:
    South London/North Kent

    I shall. Though if I had damaged anything surely it wouldnt be gettinf 12v?

  8. The Mad Hat Man

    The Mad Hat Man Well-Known Member LZIR Despatch Agent

    Joined:
    Sep 11, 2005
    Posts:
    76,789
    Likes Received:
    4,082
    Location:
    Embasinga stocæ
    It will only work if getting a 22v supply and an earth point

  9. brian47

    brian47 Well-Known Member

    Joined:
    Jan 24, 2013
    Posts:
    6,147
    Likes Received:
    2,638
    Location:
    Bridgend, Mid Glam. Somebody's got to live here.
    That would all depend on what you're using for your "measuring ground". Many people might use the negative of the voltmeter by connecting it to some point on the bodywork, a clean screw head for instance and in that case, you'd only be checking the +12 volts wiring and not the ground that the actual circuit is using.

    Thinking about this further, I don't quite understand why you have a power feed to the camera, on mine, the power is actually fed to the camera from the monitor set up and only the "reverse sensing wiring" was required.
    Essentially, what I'm saying is go back and recheck everything in the circuit, including the integrity of your ground wiring, and polarity if LEDs are in use.

    Last edited: Oct 13, 2017 at 11:40 AM
    bankz5152 likes this.
  10. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    5,882
    Likes Received:
    721
    Location:
    South London/North Kent
    No idea what i did but i rewired everything and now all works!

    Fairly big camera with a load of IR LEDs, the headunit doesnt supply the power for the camera.

    Thanks for the input though!
