Which Coolant cap, 140 or 200

2004 l322 vogue, 4.4 v8 petrol.

I have had a search around the net and this forum and i can find a few references to this but not a definitive answer but hopefully a quick one.

recently done a lot of work to the cooling system as some will know already, but i noticed my coolant cap had a section broken away so i ordered a new one after checking with britcar and a russian parts catalogue site i ordered a PCD000070, which has arrived and is a 140 cap with a yellow insert on the underside. my current cap is all black and has a 200 on it which i believe refers to the opening pressure.
my temp gauge was always bang in the middle, but we did notice a few areas where red coolant had been leaking slightly and had subsequently crystallised

can anyone say which is correct, or what are people using?
many thanks

Mine is all black and 200....

thanks Saint, you dont have any cooling issues do you ?

holidaychicken said:

thanks Saint, you dont have any cooling issues do you ?

Click to expand...

(Fingers crossed)

No, I had a dodgy electronic thermostat wire Summer last year, then a split Rad late last year and a bust water pump earlier this year, but no overheat issues in either case and the cause for each was obvious enough.

So luckily no mysterious faults.

Saint.V8 said:

(Fingers crossed)

No, I had a dodgy electronic thermostat wire Summer last year, then a split Rad late last year and a bust water pump earlier this year, but no overheat issues in either case and the cause for each was obvious enough.

So luckily no mysterious faults.

Click to expand...

thanks mate, i think i'll stick with the type i have for now, i could see why a low pressure and a high pressure could be beneficial but i dont have any issues with the 200 so i'll stick with that

me and loony are going for the first proper test drive in a a sec.........

saint.v8 said:

mine is all black and 200....

Click to expand...

+1

holidaychicken said:

thanks mate, i think i'll stick with the type i have for now, i could see why a low pressure and a high pressure could be beneficial but i dont have any issues with the 200 so i'll stick with that

me and loony are going for the first proper test drive in a a sec.........

Click to expand...

Has he made it back yet????

Saint.V8 said:

Has he made it back yet????

Click to expand...

:Cry:

wil2813 said:

+1

Click to expand...

thank you

mine is 140 all black....

??

donp38 said:

mine is 140 all black....

??

Click to expand...

the 140 cap i have has the yellow insert on the end that screws in to the tank, but the 140 is the significant part.

i think the 140 means it releases at lower pressure than the 200. good maybe for having less pressure exerted on the cooling system, possibly bad as the coolant will boil at a lower temperature.

do you have any cooling issues?
ta

From what I have read and can gather, the 140 cap is for the diesel and the 200 is for the petrol....there are even some 280caps out there...

I think replacement caps from dealers is now the 140, this, from what I can gather is to try and stop the common Expansion Tank splitting problem - results debatable.

Some have reported the 140 cap leaking coolant as it isn't quite up to holding the M62 cooling system pressure, but again, others have reported no issues.

the number represesnts the pressure holding capacity: 140 = 1.4 bar, 200 = 2.0 bar etc.

Recently I brought a new cap from local main dealer for my 4.6 v8 they supplied the 140

Didn't read thread properly sorry mines a p38

Saint.V8 said:

From what I have read and can gather, the 140 cap is for the diesel and the 200 is for the petrol....there are even some 280caps out there...

I think replacement caps from dealers is now the 140, this, from what I can gather is to try and stop the common Expansion Tank splitting problem - results debatable.

Some have reported the 140 cap leaking coolant as it isn't quite up to holding the M62 cooling system pressure, but again, others have reported no issues.

the number represesnts the pressure holding capacity: 140 = 1.4 bar, 200 = 2.0 bar etc.

Click to expand...

i still have the 140 cap unopened and i am reluctant to try it

just looked up the part numbers on microcat and got this, so for my 4A chassis number it says i should have the PCD000070 which is the 140 cap



and found this on another site which is what i have currently on the car



another pic from underneath as the other pic looks like 280 from the top



i think i'll order the PCD100200L and send this other one back

after a quick google

1.4 bar = 20 psi = 109 degrees c boiling point
2.0 bar = 29 psi = 120 degrees c boiling point

i think i have bigger fish to fry with my 04 rescue donkey

scotchgit said:

Didn't read thread properly sorry mines a p38

Click to expand...

no bother, i couldnt see the p38 on the microcat site or i would have looked up what they suggested, i am guessing its the same engine as the v8 efi disco 2?

holidaychicken said:

i still have the 140 cap unopened and i am reluctant to try it

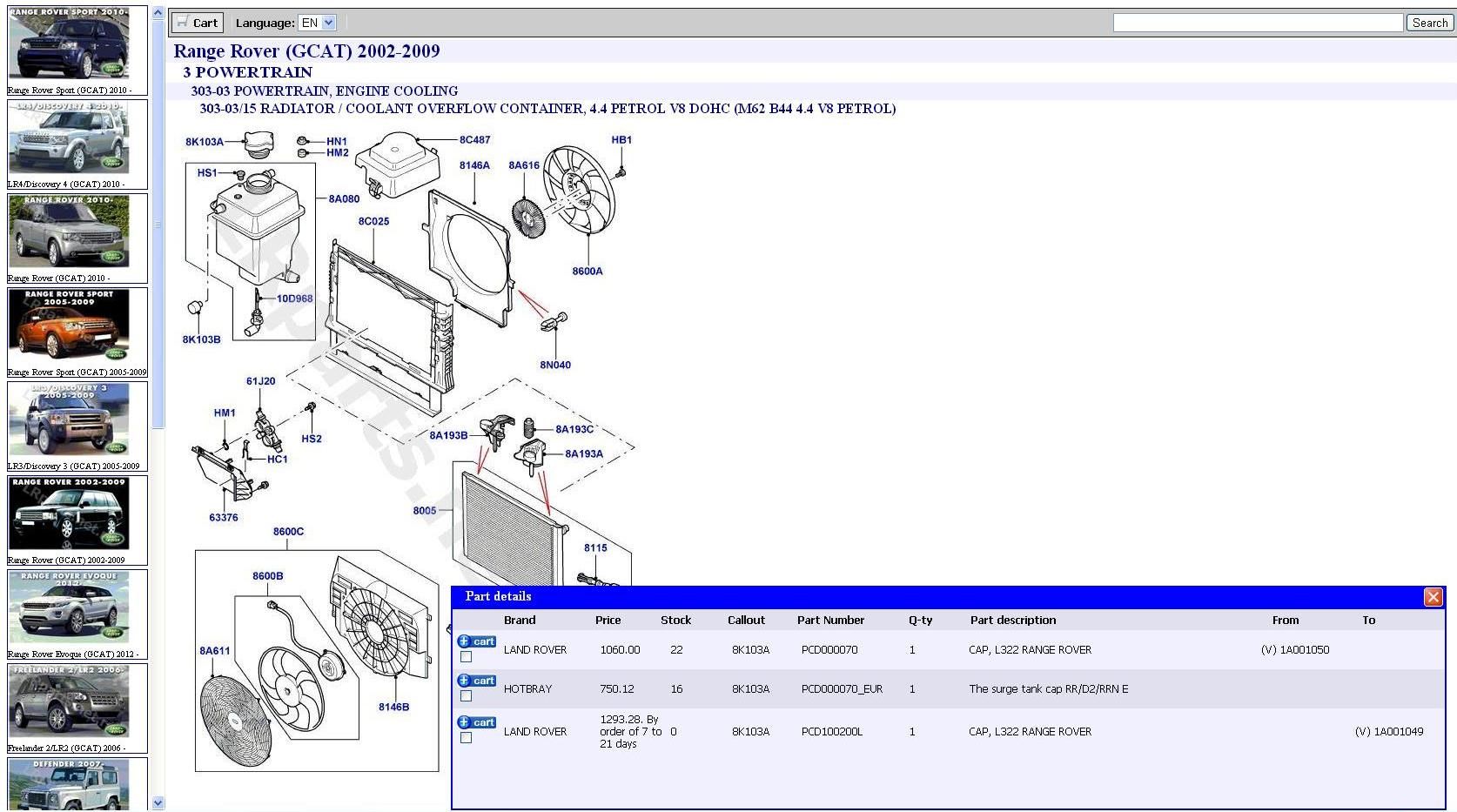

just looked up the part numbers on microcat and got this, so for my 4A chassis number it says i should have the PCD000070 which is the 140 cap

View attachment 51278

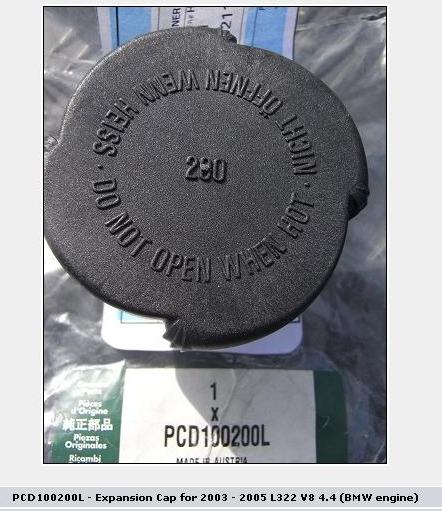

and found this on another site which is what i have currently on the car

View attachment 51279

i think i'll order the PCD100200L and send this other one back

after a quick google

1.4 bar = 20 psi = 109 degrees c boiling point
2.0 bar = 29 psi = 120 degrees c boiling point

i think i have bigger fish to fry with my 04 rescue donkey

Click to expand...

The 70 part number is P38 and TD6
the 200L part number is for the 4.4 V8

Range Rover 3 Pressure Cap at www.rimmerbros.co.uk

Saint.V8 said:

The 70 part number is P38 and TD6
the 200L part number is for the 4.4 V8

Range Rover 3 Pressure Cap at www.rimmerbros.co.uk

Click to expand...

thanks saint, i did check with britcar and they said it was the 140 so i'll return and get the right one as per your link

another little thread solved... what do you know about air bag lights being on?
mine has been on since we put the box back in.
allcomms says in the SRS section 'battery disconnect unit 1' or shall i start another thread?

thanks

holidaychicken said:

thanks saint, i did check with britcar and they said it was the 140 so i'll return and get the right one as per your link

another little thread solved... what do you know about air bag lights being on?
mine has been on since we put the box back in.
allcomms says in the SRS section 'battery disconnect unit 1' or shall i start another thread?

thanks

Click to expand...

Best start a new thread, that way others can find it and may have found a solution...

I am not sure the All Comms can clear all SRS related issues, it can read them, but not clear some of them....I guess this is a safety measure to ensure that the SRS (which can save your life) isn't just reset willy-nilly....

Check all the yellow connections and those under the seat, but your error seems to point to the pyrotechnic charge on the battery positive lead that disconnects the starter and engine power lead...

Most thing SRS related, I refer to a dealer - not worth making a mistake imho.

Saint.V8 said:

Best start a new thread, that way others can find it and may have found a solution...

I am not sure the All Comms can clear all SRS related issues, it can read them, but not clear some of them....I guess this is a safety measure to ensure that the SRS (which can save your life) isn't just reset willy-nilly....

Check all the yellow connections and those under the seat, but your error seems to point to the pyrotechnic charge on the battery positive lead that disconnects the starter and engine power lead...

Most thing SRS related, I refer to a dealer - not worth making a mistake imho.

Click to expand...

thanks saint, good advice, all my wiring is suspect, especially around the battery area, i may have a look at that to make sure its still connected, hopefully without blowing my head off..
