What have you done to your Freelander today

baptista said:

Fire extinguisher fitted

And fiddling around the steering wheel controls still not working but found out it's missing the loom between clock spring and radio.

Click to expand...

Hmm, which seat is that and how did you do it?

htr said:

Hmm, which seat is that and how did you do it?

Click to expand...

Driver's seat, got a small extinguisher and made the brackets, like part stc7999.

which one of the two wires under the cubby box in the centre console
is the live one? I never knew about them until I saw this post so thanks
guys I can now fit a couple of usb ports for my granddaughter but only
when I know which cable is live.

vinnieboy said:

which one of the two wires under the cubby box in the centre console
is the live one? I never knew about them until I saw this post so thanks
guys I can now fit a couple of usb ports for my granddaughter but only
when I know which cable is live.

Click to expand...

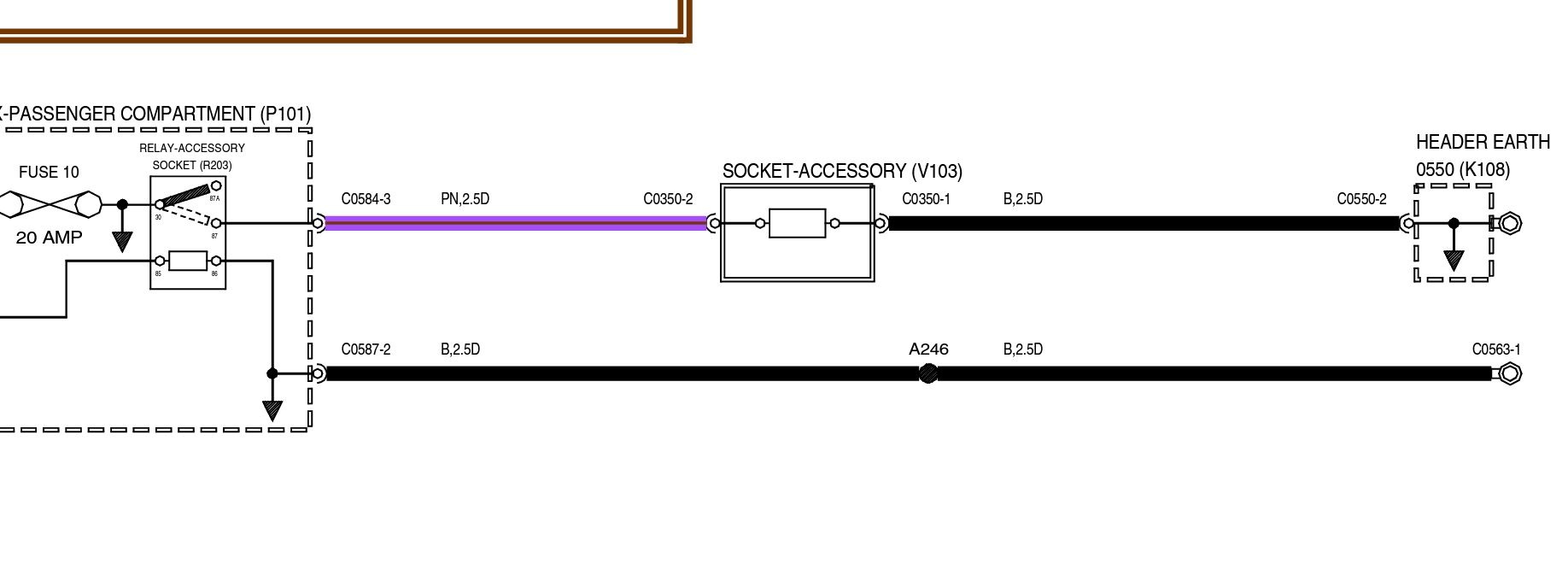

Purple/ Brown is accessory live. Black is ground or negative.

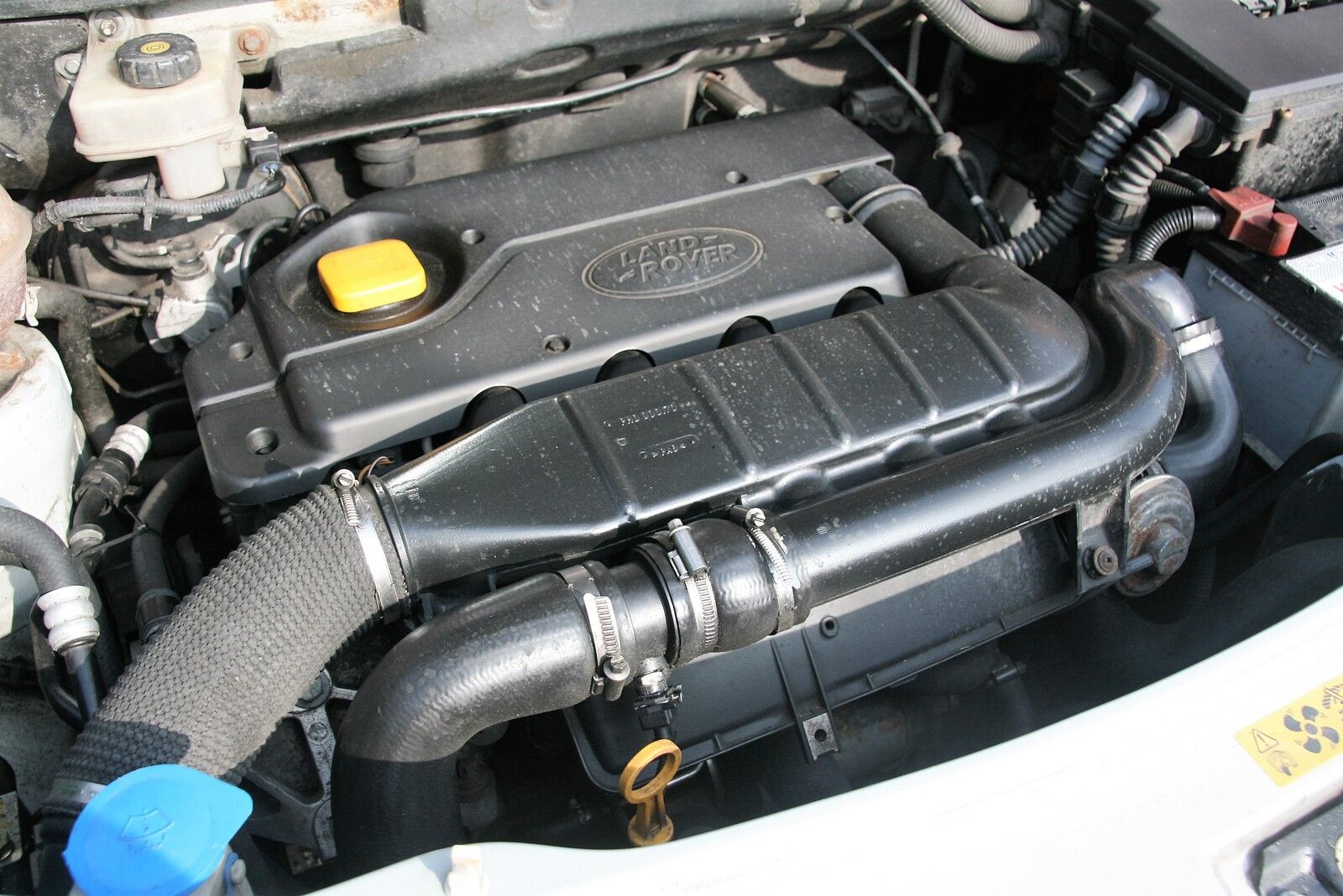

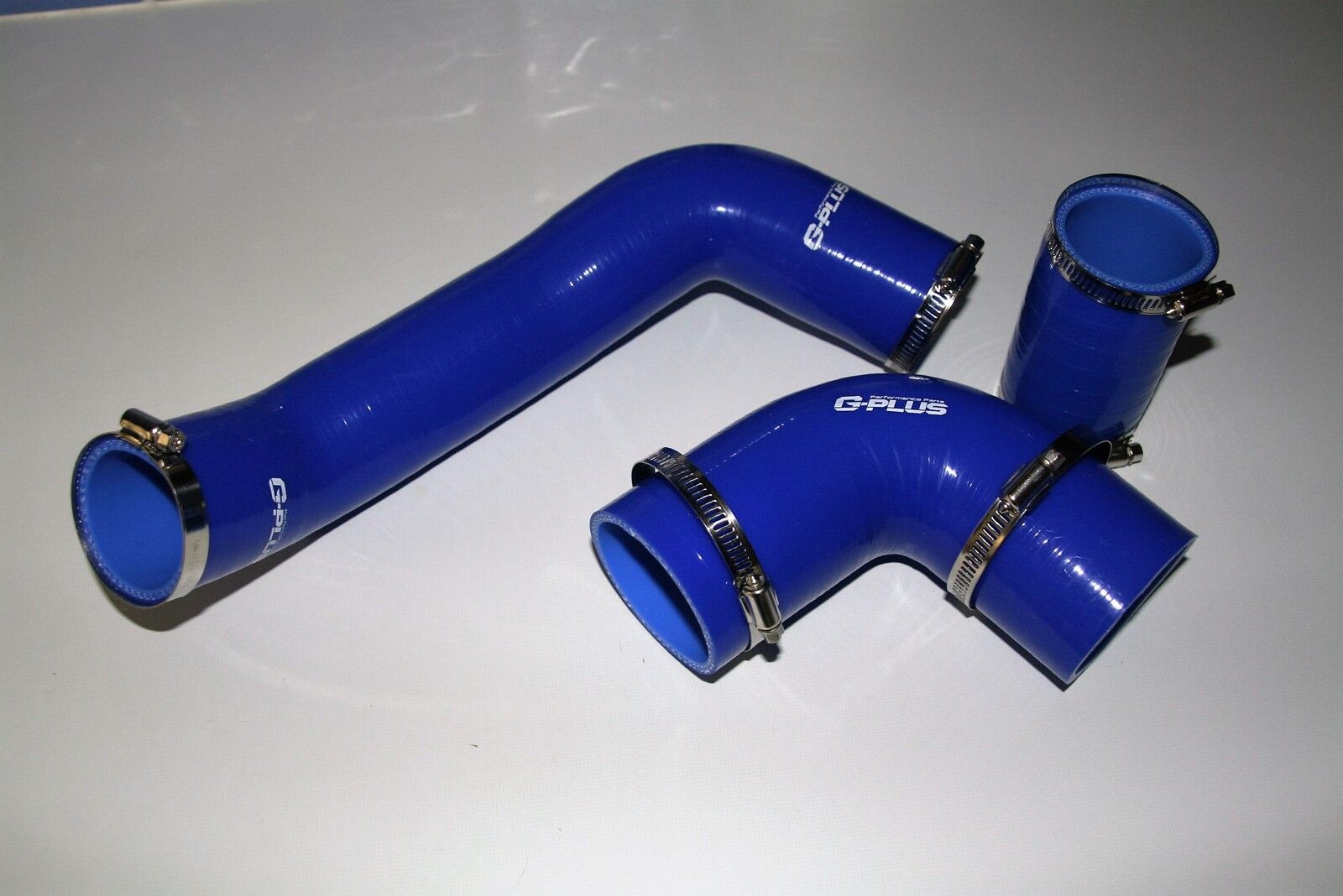

They've arrived. Now waiting to see if it's going to rain or not before fitting.

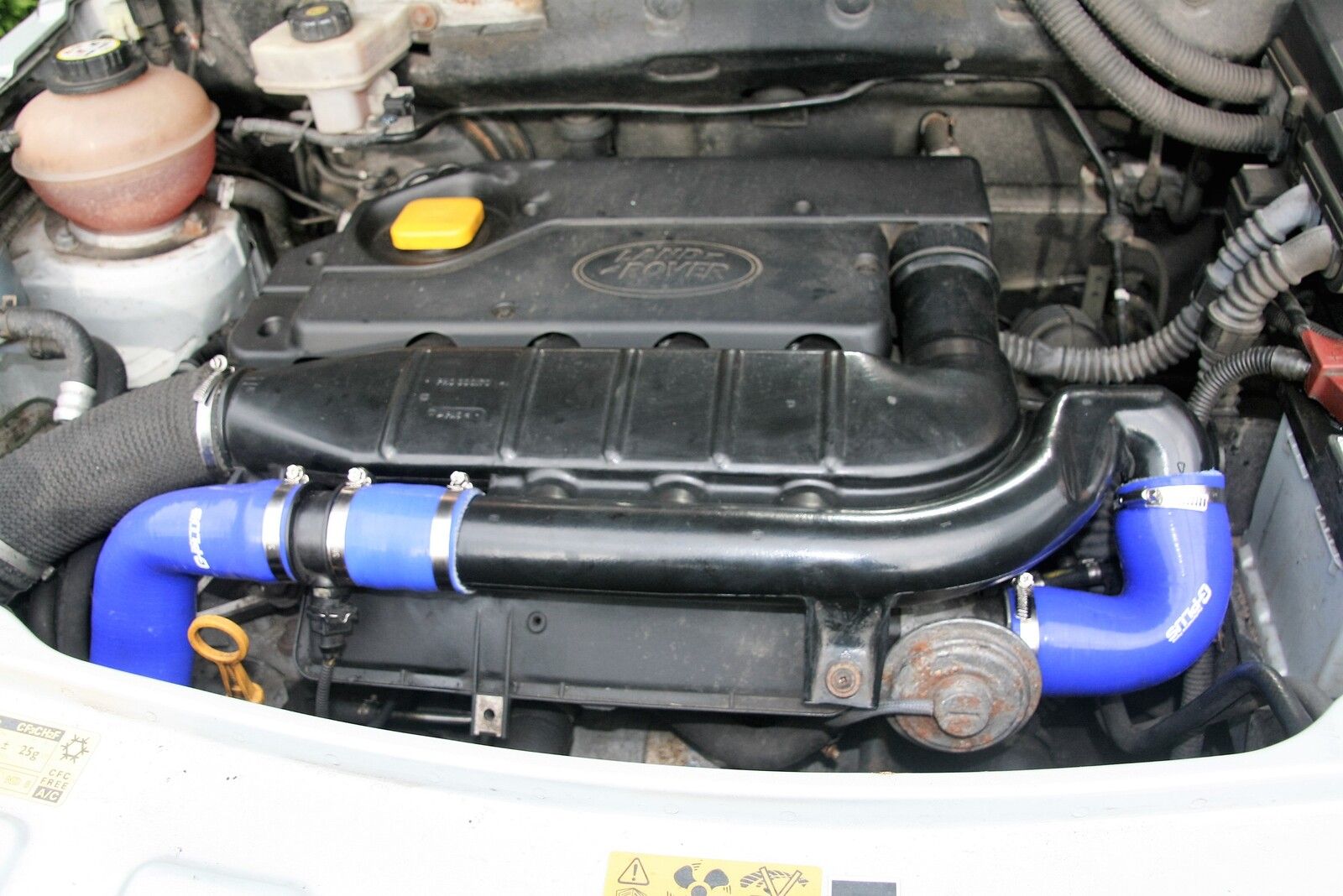

Job done. Last one was a bit of a fettlin' job.

Colonial said:

Job done. Last one was a bit of a fettlin' job.

Click to expand...

Was it the one on the egr that took the persuasion?

Mike

Replaced both the serpentine belt, which had snapped on my way home on Sunday, just about 10 yards from the house, and the air-con belt, which was showing signs of cracking on the vees. Quite pleased that I managed it without removing the front wheel, or even jacking it up. I just removed the splash shield, and managed without any difficulty, even though I was lying in the gutter beside the pavement, lol

Scott61 said:

I was lying in the gutter beside the pavement, lol

Click to expand...

Just a typical freelander driver then

cfwnotloB said:

Just a typical freelander driver then

Click to expand...

And that was without drink, lol

Skinny Mike said:

Was it the one on the egr that took the persuasion?

Mike

Click to expand...

My technical description will be thus. It was the one that disappears beneath the front grill of the car toward the radiator!
Apparently, when they built the Freelander they put the engine in place and the body on thereafter. That meant that access to the Jubilee clip is thwarted. A pair of long-nosed pliers was needed to start to loosen the head of the screw on the clip, followed by a tiny spanner to really undo it. Thereafter, undo the easy bit in the engine bay and wobble the hose free from down below. (Are you keeping up?).Having finally released the bottom connection the new silicone hose slipped onto both ends and was connected. The 'clip' that had been difficult was realigned, so that, in the future, the screw on the clip is situated so that it can be seen and undone.

Nodge68 said:

Purple/ Brown is accessory live. Black is ground or negative.
View attachment 120461

Click to expand...

Thanks Nodge 68 I will get to it before the grand kids arrive on Saturday,,much appreciated.

Nodge68 said:

Purple/ Brown is accessory live. Black is ground or negative.
View attachment 120461

Click to expand...

just a passing thought as is my want at 12.45 am... will the usb socket be permanently Live or
can I assume it will be neutral when the engine is turned off.?. My wife is thinking of a big
land rover bonfire during the night.

vinnieboy said:

just a passing thought as is my want at 12.45 am... will the usb socket be permanently Live or
can I assume it will be neutral when the engine is turned off.?. My wife is thinking of a big
land rover bonfire during the night.

Click to expand...

Both the rear accessory power and front cigarette lighter sockets are turned off with the key removed.

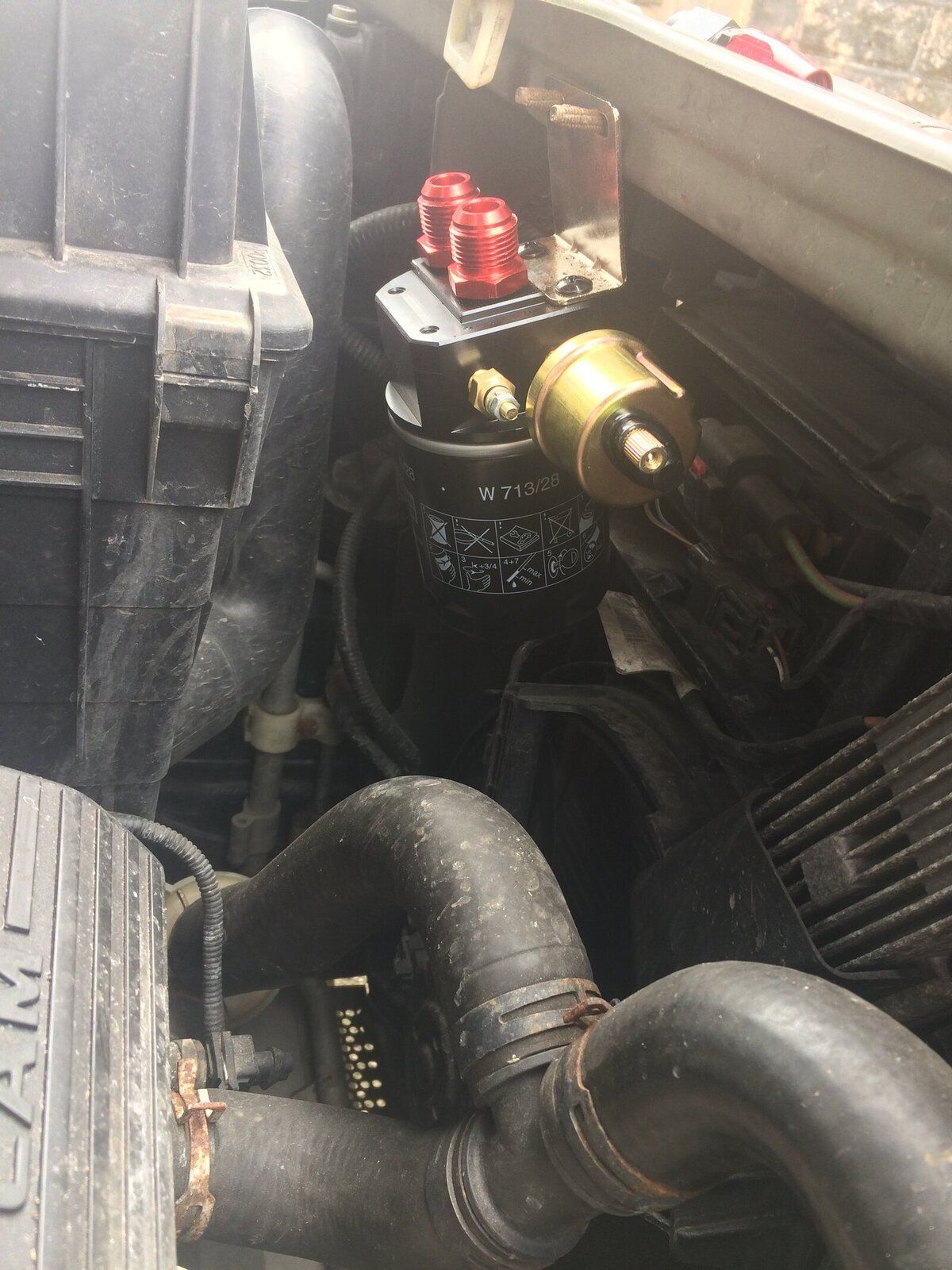

Started on the remote oil filter install, including temp and pressure gauges

Got the idle air valve off and cleaned it. Made loads of difference. Was stuck then when cleaned it , it's got some "play" in it now.
Should have seen the crap that came out!

As we don`t require rear fog lights here I have rewired the taillights to improve their visibility/brightness.
I have also repurposed the rear fog light switch to operate the relay to my front
driving lights. Works very well!


OK Here's a better picture!

Serviced the mother in law's V6 for the first time in 2 years.

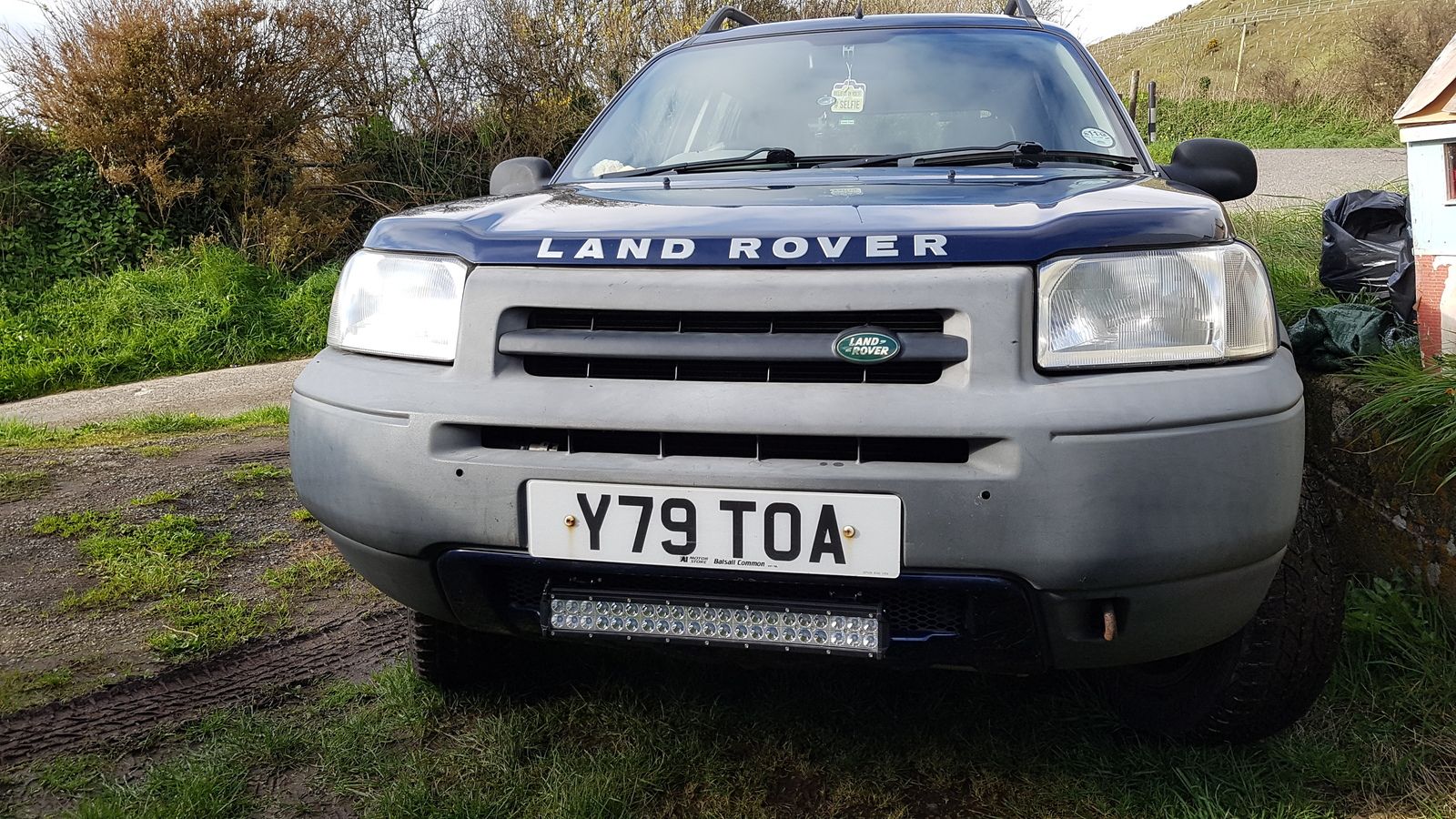

Also fitted an LED light bar because she was so impressed with mine.

She wanted it in a more discreet location though.

Kayos said:

View attachment 120601

Started on the remote oil filter install, including temp and pressure gauges

Click to expand...

First thing that crossed my mind when I saw that was, oil catch can. But i can see where your coming from.
Mike

Kayos said:

View attachment 120601

Started on the remote oil filter install, including temp and pressure gauges

Click to expand...

Interesting. I fitted a thermostatically controlled oil cooler take off to the existing mounting point. But I still have to drop the entire under tray /sump guard to change to oil filter. Hadn't thought about a remote filter mount. Keep us posted with pic's - especially ho you route the plumbing!
