welders
- Thread starter bebby
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
blue beasty
Leaks an prone to bits dropping off
- Posts
- 61,280
- Location
- Gloucestercotshirewolds
100A+ will give you enough penetration for anything on a Series though more powerful will give you a higher duty cycle and may be more useful for any other projects
BUT......probably more importantly you need to look for something with plenty of power settings because often the problem is turning them DOWN low enough for thin work like exhausts and door tops
BUT......probably more importantly you need to look for something with plenty of power settings because often the problem is turning them DOWN low enough for thin work like exhausts and door tops
rabbiter
New Member
- Posts
- 137
- Location
- NEWCASTLE UPON TYNE
im of the same thought,gonna get one too,would gas or no gas be better,i have heard that gas is better,but what would you suggest,sorry to hijack the thread mate!
- Posts
- 83,232
- Location
- Embasinga stocæ
gas every time.
rabbiter
New Member
- Posts
- 137
- Location
- NEWCASTLE UPON TYNE
nice one mate...
Fur Trapper
Banned
- Posts
- 8,481
- Location
- international
Yea beans and krought will do it everytime
johnny curt 1
Well-Known Member
- Posts
- 9,118
- Location
- manchester
anything around 100-150 amps as said a few things to watch out for are things like fan cooled ones that are better as they run a better working time and watch out for welders that are converted to pub gas bottles as theyre a damn sight cheaper to run than the bloody soda stream bottles from the diy shops

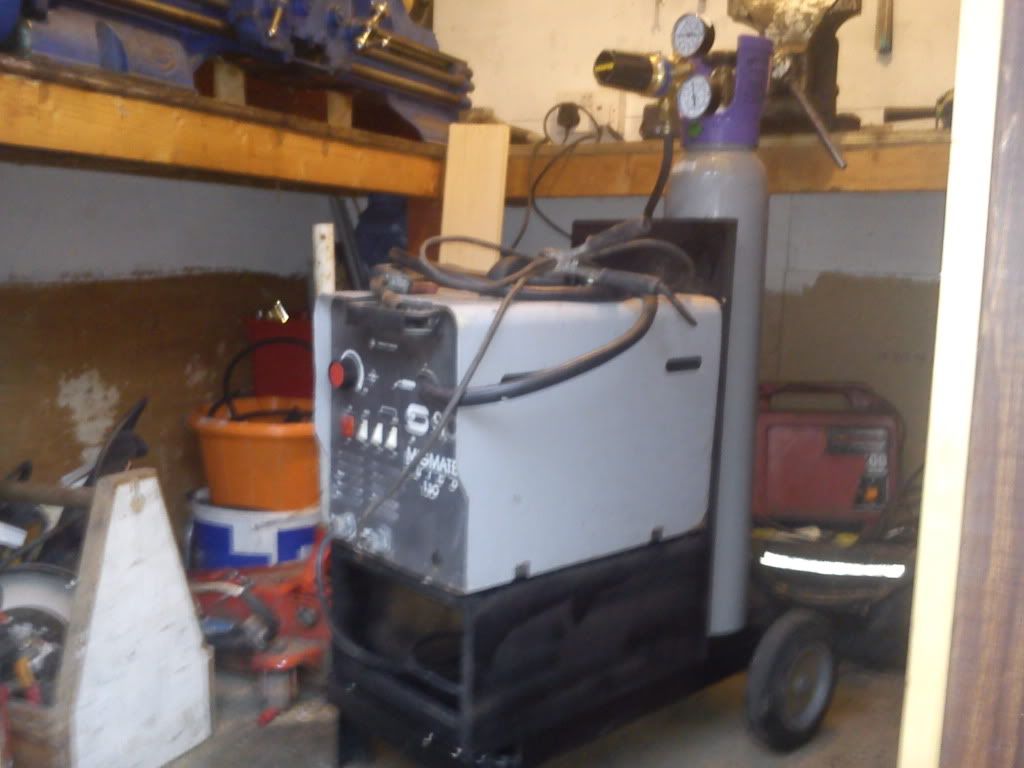

the setup i have is an old sip migmate 130 turbo
its heavily modified to do the whole range of welding such as ive been inside it and uprated the settings board and added switches to use previously non conected coils on the transformers so i have ultra low settings capable of welding the likes of bean tins if nessecary and another setting that boosts the output to a stupid level so itll breeze through anything up to 12mm thick
for most things on landys and vehicles in general the normal settings are fine
just dont be duped by the shop dickheads telling you 0.8mm is best its not for vehicles its just a struggle that doesnt need to happen
my rig is on straight co2 the co2 argon mix isnt any better and i use only 0.6mm wire as it can easily be used on a lot lower power and get good penetration with anything and doesnt transfer as much heat to the gun as the thicker wires will
for the thin stuff such as door tops and frames the general setting is 1cfh on the regulator output should just barely whisper out of the end of the gun and the wire speed round the 4-5 setting on the dial used in fairly short frequent blasts waiting for the glow of the last blast just about fading will turn out a weld stronger than the original metal just a little prouder than the surface quick and easy to file down and flatten off
doing chassis work with 3mm steel just speed the wire up to about 5-6 and on a medium amp rating a good idea is once youve tacked the plate in place use a small angle grinder with a thick grinding disc along the seam to be welded to create a v groove to fill with weld this guarrantees good penetration to both metals and is again just proud of the surface of the steel and is a lot less grinding and flatting after the job is done
hope this helps
the setup i have is an old sip migmate 130 turbo
its heavily modified to do the whole range of welding such as ive been inside it and uprated the settings board and added switches to use previously non conected coils on the transformers so i have ultra low settings capable of welding the likes of bean tins if nessecary and another setting that boosts the output to a stupid level so itll breeze through anything up to 12mm thick
for most things on landys and vehicles in general the normal settings are fine
just dont be duped by the shop dickheads telling you 0.8mm is best its not for vehicles its just a struggle that doesnt need to happen
my rig is on straight co2 the co2 argon mix isnt any better and i use only 0.6mm wire as it can easily be used on a lot lower power and get good penetration with anything and doesnt transfer as much heat to the gun as the thicker wires will
for the thin stuff such as door tops and frames the general setting is 1cfh on the regulator output should just barely whisper out of the end of the gun and the wire speed round the 4-5 setting on the dial used in fairly short frequent blasts waiting for the glow of the last blast just about fading will turn out a weld stronger than the original metal just a little prouder than the surface quick and easy to file down and flatten off
doing chassis work with 3mm steel just speed the wire up to about 5-6 and on a medium amp rating a good idea is once youve tacked the plate in place use a small angle grinder with a thick grinding disc along the seam to be welded to create a v groove to fill with weld this guarrantees good penetration to both metals and is again just proud of the surface of the steel and is a lot less grinding and flatting after the job is done
hope this helps
owl
Well-Known Member
- Posts
- 1,807
- Location
- Breaston Derbyshire
I have a portamig 185, 15 amp min setting, welds car panels just fine using broken arc technique and 0.6 wire, has 12 power settings and welds 6mm no prob. If you are building a ALRC roll cage they specify 6mm mounting plates.
I use Argon Co2 mix from Energas but it is expensive if you arn't doing a lot of welding, I am building a comp motor at the moment but once it is done I will look else were, I have seen these
welding Gases - (Powered by CubeCart)
Hobby Gas
I haven't used them and the cylinders don't hold as much as the BOC ones etc but you don't have to pay the annual rental
I use Argon Co2 mix from Energas but it is expensive if you arn't doing a lot of welding, I am building a comp motor at the moment but once it is done I will look else were, I have seen these
welding Gases - (Powered by CubeCart)
Hobby Gas
I haven't used them and the cylinders don't hold as much as the BOC ones etc but you don't have to pay the annual rental
johnny curt 1
Well-Known Member
- Posts
- 9,118
- Location
- manchester
GRATCH
HUGE MEMBER
- Posts
- 15,134
- Location
- North Cheshire
i have found a welding and fabricating shop with a BOC account and he just refills the 4 pub gas bottles i own for £12.50 each up to 100bar pressure from the big buggers hes got out back while i wait
I may want to come to some arrangement with you JC if that's argoshield type gas?
owl
Well-Known Member
- Posts
- 1,807
- Location
- Breaston Derbyshire
i have found a welding and fabricating shop with a BOC account and he just refills the 4 pub gas bottles i own for £12.50 each up to 100bar pressure from the big buggers hes got out back while i wait
Nice I wish I could fine something like that, would save me a fortune,
rabbiter
New Member
- Posts
- 137
- Location
- NEWCASTLE UPON TYNE
thanks for that mate,thats great info ...anything around 100-150 amps as said a few things to watch out for are things like fan cooled ones that are better as they run a better working time and watch out for welders that are converted to pub gas bottles as theyre a damn sight cheaper to run than the bloody soda stream bottles from the diy shops
the setup i have is an old sip migmate 130 turbo
its heavily modified to do the whole range of welding such as ive been inside it and uprated the settings board and added switches to use previously non conected coils on the transformers so i have ultra low settings capable of welding the likes of bean tins if nessecary and another setting that boosts the output to a stupid level so itll breeze through anything up to 12mm thick
for most things on landys and vehicles in general the normal settings are fine
just dont be duped by the shop dickheads telling you 0.8mm is best its not for vehicles its just a struggle that doesnt need to happen
my rig is on straight co2 the co2 argon mix isnt any better and i use only 0.6mm wire as it can easily be used on a lot lower power and get good penetration with anything and doesnt transfer as much heat to the gun as the thicker wires will
for the thin stuff such as door tops and frames the general setting is 1cfh on the regulator output should just barely whisper out of the end of the gun and the wire speed round the 4-5 setting on the dial used in fairly short frequent blasts waiting for the glow of the last blast just about fading will turn out a weld stronger than the original metal just a little prouder than the surface quick and easy to file down and flatten off
doing chassis work with 3mm steel just speed the wire up to about 5-6 and on a medium amp rating a good idea is once youve tacked the plate in place use a small angle grinder with a thick grinding disc along the seam to be welded to create a v groove to fill with weld this guarrantees good penetration to both metals and is again just proud of the surface of the steel and is a lot less grinding and flatting after the job is done
hope this helps
DAZ
johnny curt 1
Well-Known Member
- Posts
- 9,118
- Location
- manchester
its just standard co2 but such good stuff its equal if not verry close to argoshield but when i get me bottles filled again ill ask him if he does it
i do know he gets old empty pub gas cylinders and sells them full for £30 a pop and after the initial layout the bottle is yours and he will refill it for £12.50 there after
its just standard co2 but such good stuff its equal if not verry close to argoshield but when i get me bottles filled again ill ask him if he does it
i do know he gets old empty pub gas cylinders and sells them full for £30 a pop and after the initial layout the bottle is yours and he will refill it for £12.50 there after
**** and I supplied the bottle as well
I have finally caught up with the useless prick at gas place-he should be in again this week.
GRATCH
HUGE MEMBER
- Posts
- 15,134
- Location
- North Cheshire
its just standard co2 but such good stuff its equal if not verry close to argoshield but when i get me bottles filled again ill ask him if he does it
i do know he gets old empty pub gas cylinders and sells them full for £30 a pop and after the initial layout the bottle is yours and he will refill it for £12.50 there after
Ah right. I can get CO2 for 12.50 a refill and the initial one off bottle rental fee was 12.50 inorl. I'd be interested in an argoshield refill just to see the difference but if not ,no worries. Cheers anyway.
johnny curt 1
Well-Known Member
- Posts
- 9,118
- Location
- manchester
**** and I supplied the bottle as well
fancy doing a gas bottle rampage again fanny as i could do with 2 more bottles to my collection i got 4 on the go at the moment and still have to get a refill for them evry 3-4 weeks with the ammount of welding jobs comeing in lately it seems like im the only cnut welding in south manchester
fancy doing a gas bottle rampage again fanny as i could do with 2 more bottles to my collection i got 4 on the go at the moment and still have to get a refill for them evry 3-4 weeks with the ammount of welding jobs comeing in lately it seems like im the only cnut welding in south manchester
Could be tempted, just trying to tie the guy down as he is the organ grinder and the monkey I spoke to gave **** prices again.
If you start a thread and there is enough interest I could do it, realistically a minimum of 10 to be worth doing.
GRATCH
HUGE MEMBER
- Posts
- 15,134
- Location
- North Cheshire
Ya got PM JC
jai_landrover
Well-Known Member
- Posts
- 13,392
- Location
- Luton
Down the road to me I get CO2 for £16 inc bottle whenits empty just return the bottle and pay another £16 for another
