Once you fit the 3.9 give me the 3.5
V8 Loom
- Thread starter Idris
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Mr Noisy
Coming in your ears.
- Posts
- 10,146
- Location
- Altrincham, Cheshire
Kev is correct, I had tremendous problems with the vehicle cutting out when stopping for traffic lights because my speed sensor was faulty.
Had a dry joint on the board.
You will need it to successfully run 14cux in pretty sure there's no other way. Fits in the speedo cable from the transfer case BUT a 3.9 disco has a speed sensor SO how does a 3.9 DISCO (different to v belt 3.9 rangey) get a speed pulse to the ECU? Does it use the sensor in the transfer case directly?
Had a dry joint on the board.
You will need it to successfully run 14cux in pretty sure there's no other way. Fits in the speedo cable from the transfer case BUT a 3.9 disco has a speed sensor SO how does a 3.9 DISCO (different to v belt 3.9 rangey) get a speed pulse to the ECU? Does it use the sensor in the transfer case directly?
discool
Well-Known Member
- Posts
- 13,497
The 3.9 speed sensor is bolted with a single allen bolt to the transfer box, it's also used to send info to the speedo.
Mr Noisy
Coming in your ears.
- Posts
- 10,146
- Location
- Altrincham, Cheshire
Right cool, so I assume the 14cux loom is the same on 3.5 and 3.9 disco and the speed sense wire, from whatever type of sensor, I provided at the single white 9 pole multiplug where the 14cux meets the main loom.
The ECU only needs a pulse to switch idle control, any pulse = no idle control so it's not speed dependant once the vehicle is moving.
any ideas on that loom yet OP?
The ECU only needs a pulse to switch idle control, any pulse = no idle control so it's not speed dependant once the vehicle is moving.
any ideas on that loom yet OP?
Mr Noisy
Coming in your ears.
- Posts
- 10,146
- Location
- Altrincham, Cheshire

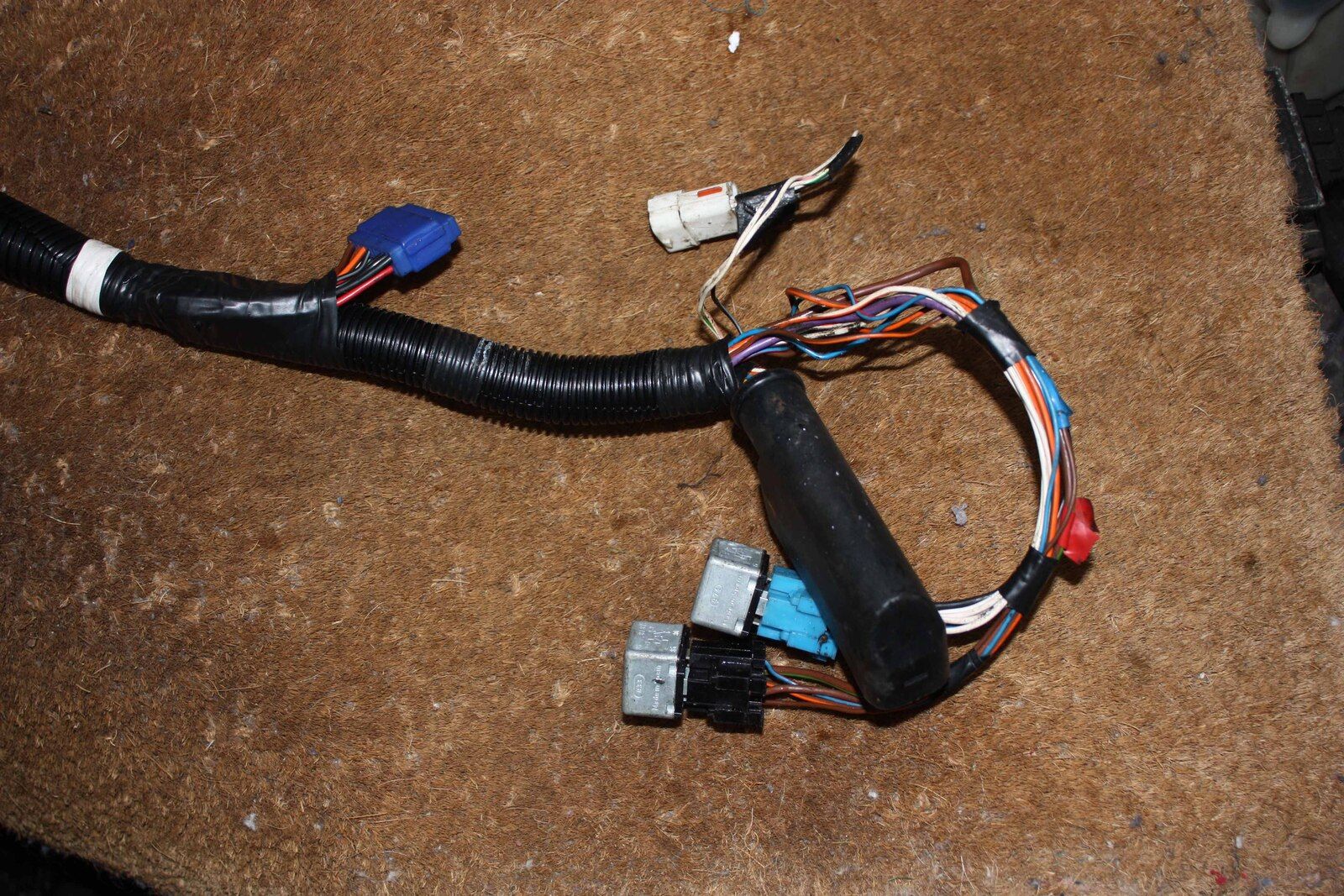

Looks a little different to the 3.5 loom I had out recently, this has probably got the diagnostic connector fitted also and the relay position is different, need an overview of the whole lot really so we can see if the Hotwire loom is standalone...
dirtydiscov8
New Member
- Posts
- 235
- Location
- Hertfordshire
dirtydiscov8
New Member
- Posts
- 235
- Location
- Hertfordshire
The hotwire loom is standalone. the little white plug is the testbook connector, will also have the resistor for speed signal in the bunch of wire by the coil not by the maf connection
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
it is or at least can be you only need 3 wires to run it 1 been pump feed
dirtydiscov8
New Member
- Posts
- 235
- Location
- Hertfordshire
The mysterious other 2 wires we we will never know!!
You have to have the neg from the coil or it won't inject so thats 2 wire...maf the other?
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
ignition feed and battery feed,coil wire is part of loom
dirtydiscov8
New Member
- Posts
- 235
- Location
- Hertfordshire
I though we were talking about ALL the wires...im not playing anymore!
Hotbulb
New Member
- Posts
- 18
- Location
- West Sussex
reading this thread with interest as i'm gearing up to transplant a 95 Disco 3.9 efi into a late Stage 1 series 111 but think i will put the transfer and auto box in as well
Mr Noisy
Coming in your ears.
- Posts
- 10,146
- Location
- Altrincham, Cheshire
To put a v8 EFi in anything you need the Hotwire loom.
You use the existing wiring for whatever is fitted to that vehicle, starter feed and temp senders etc.
Hotwire is a nice little loom on its own.
Idris, I would not entertain taking anything other that what you need over to your 90, and all you need is the Hotwire loom.
You could drop a v8 in a diesel with a Hotwire loom, plug and play!
You use the existing wiring for whatever is fitted to that vehicle, starter feed and temp senders etc.
Hotwire is a nice little loom on its own.
Idris, I would not entertain taking anything other that what you need over to your 90, and all you need is the Hotwire loom.
You could drop a v8 in a diesel with a Hotwire loom, plug and play!
