under bonnet fuel filter and egr question

Discussion in 'Land Rover Freelander' started by thebluemax, May 12, 2015.

< Previous Thread | Next Thread >
  1. thebluemax

    thebluemax Active Member

    Joined:
    Mar 12, 2015
    Posts:
    163
    Likes Received:
    10
    as part of my service for the TD4 I was going to change the underbonnet fuel filter, but looked all over for it, read somewhere that it is around the battery/fuses area....cant see a thing, also having just done an EGR bypass(all seams well) the one side that the vacuum pipe used to fit onto on the old unit will still push onto the new bypass thin arm, BUT this small arm is drilled straight through, presumably to fit a boost gauge (the seller said), so will it change anything if I just connect the vac pipe to it or should I blank off the thin arm altogether and also blank off the vac pipe ?
    sorry its a bit long winded.

  2. Zippy6971

    Zippy6971 Member

    Joined:
    Jun 22, 2013
    Posts:
    90
    Likes Received:
    5
    Location:
    Durham
    If the car your talking about is the one in your heading it has the fuel filter under the drivers rear wheel arch liner and I would say the pipe should be blanked off hope it helps

  3. PlattyR56

    PlattyR56 New Member

    Joined:
    Jan 4, 2014
    Posts:
    165
    Likes Received:
    0
    Location:
    Gatwick
    Yep, blank both the Vacuum pipe and stub off.

    The fuel filter is indeed behind the rear offside wheel. They're a bit of a pain to remove from the assembly. I had to use a hammer and piece of wood to tap the filter out of the holder.

    Well worth doing though as the fuel was really dirty.

  4. thebluemax

    thebluemax Active Member

    Joined:
    Mar 12, 2015
    Posts:
    163
    Likes Received:
    10
    Cheers Platty and Zippy for your advice, happy with the EGR, not so happy with the fuel filter location. :(

  5. Arctic2

    Arctic2 Well-Known Member

    Joined:
    Oct 2, 2014
    Posts:
    1,801
    Likes Received:
    373
    Location:
    Westmidlands

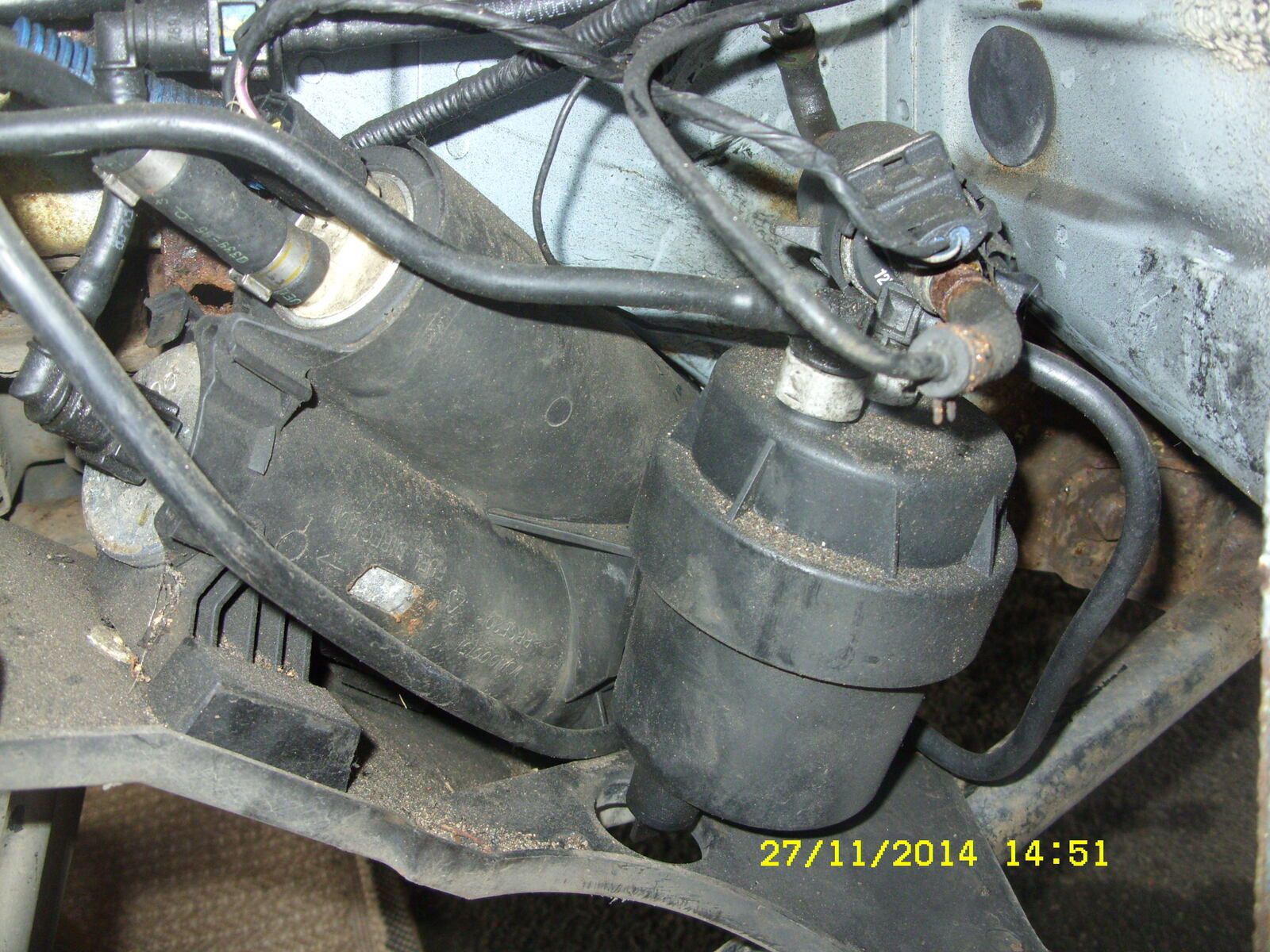

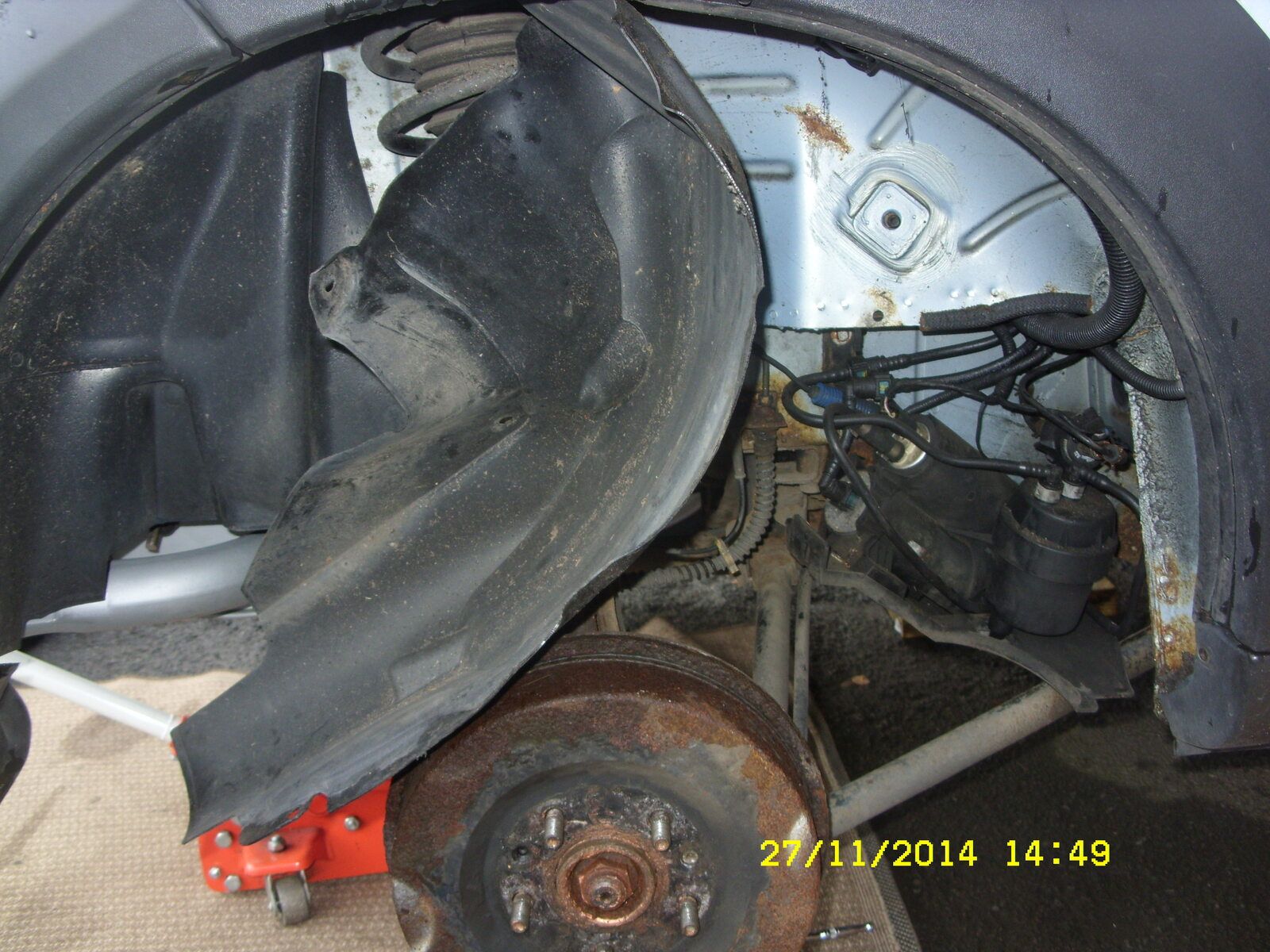

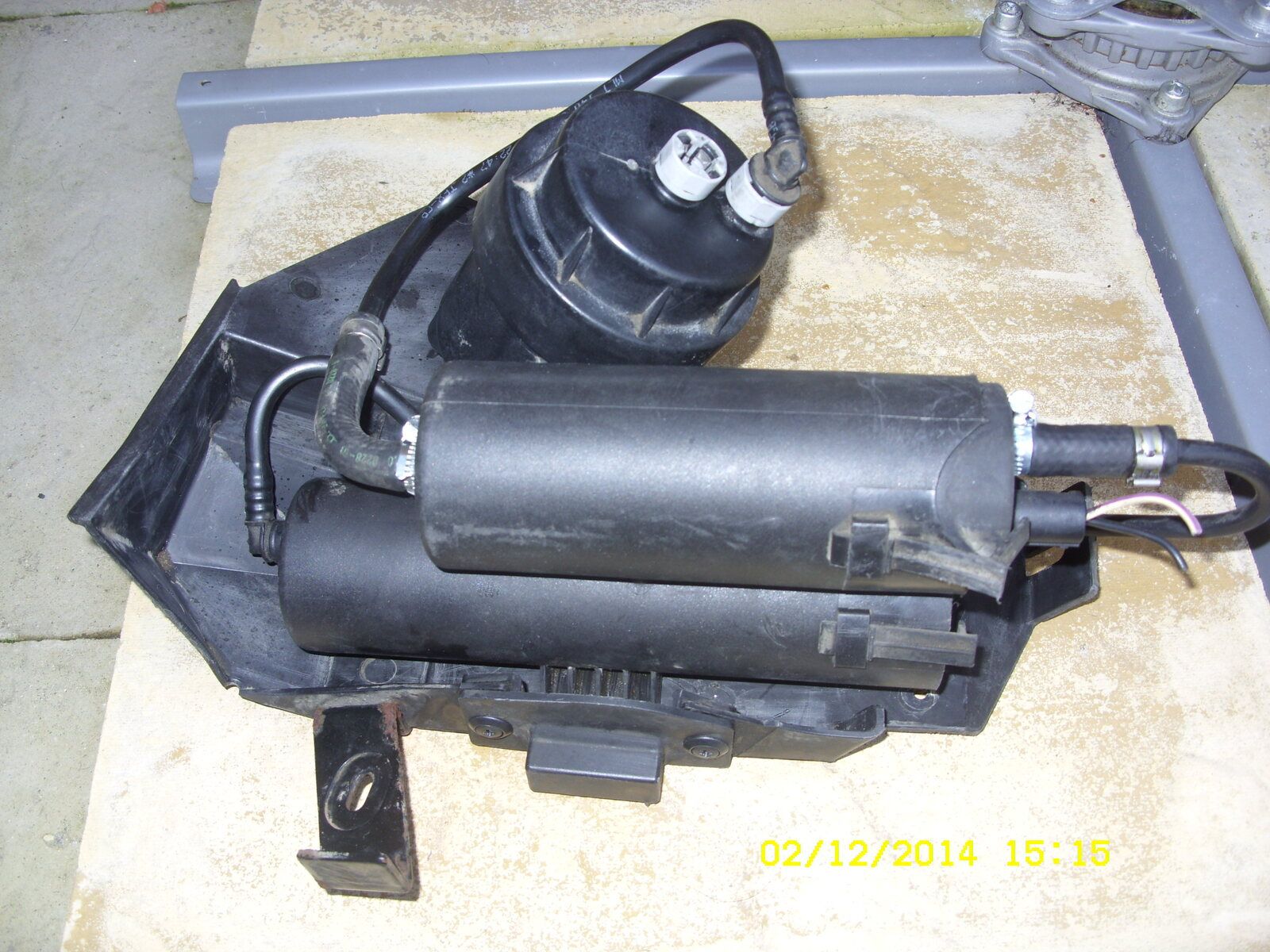

    Fuel filter and fuel pump in the same area not that bad to work on once you have removed the rear wheel & peeled back the wheel arch liner, you can remove the unit whole and then change the filter much easier, I now carry a spare unit with fuel pump and fuel filter fixed so if and when I need to change one or the other I will just change the whole lot over.

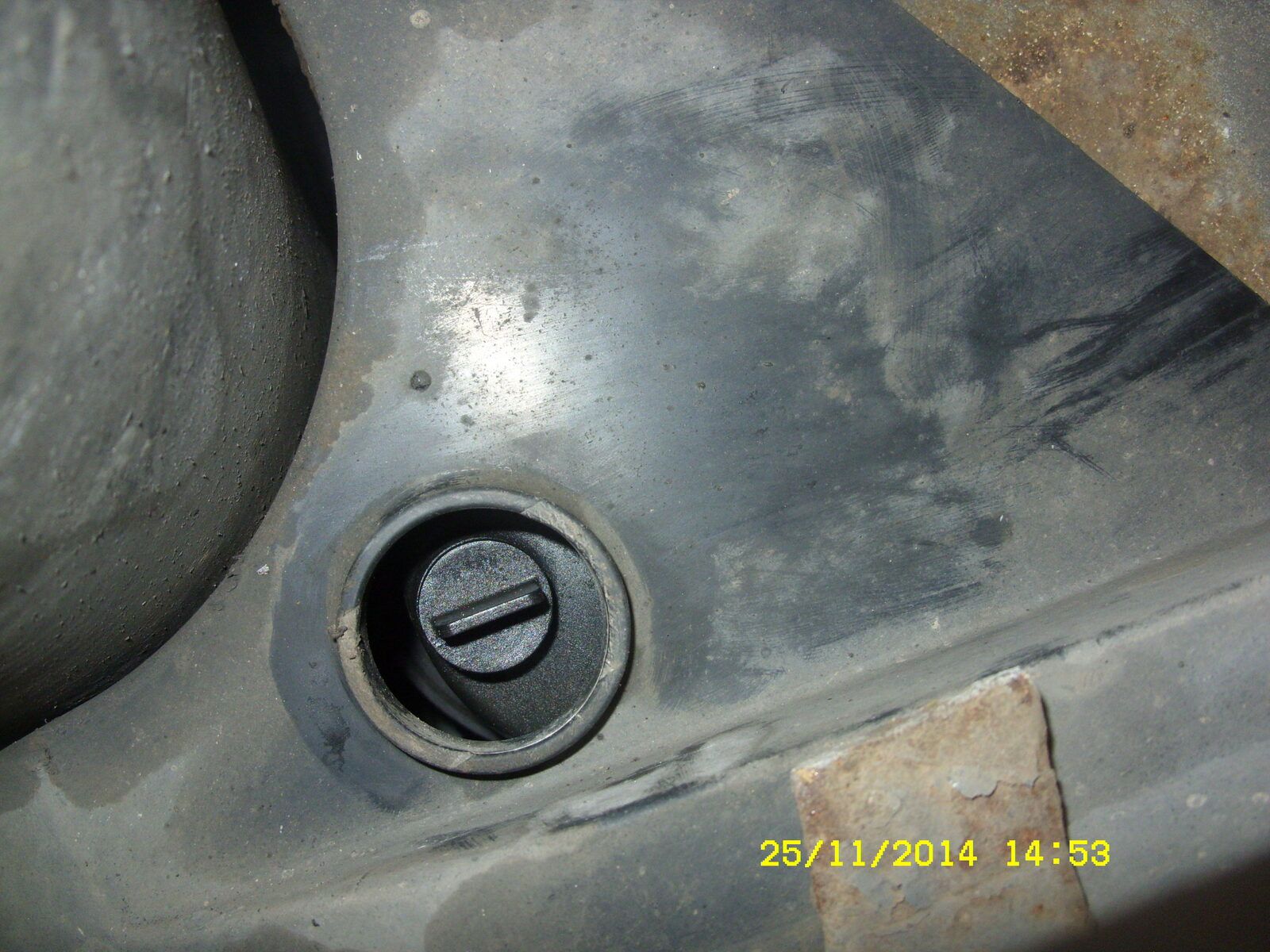

    While you are in there clean/drain out the fuel sedimenter pics attached Arctic2 ;)


    Attached Files:

  6. teddywood1

    teddywood1 Well-Known Member

    Joined:
    Jul 7, 2011
    Posts:
    5,541
    Likes Received:
    295
    Location:
    stoke-on-trent
    I shall be doing this next week is the fuel sediment that in picture one

  7. Arctic2

    Arctic2 Well-Known Member

    Joined:
    Oct 2, 2014
    Posts:
    1,801
    Likes Received:
    373
    Location:
    Westmidlands

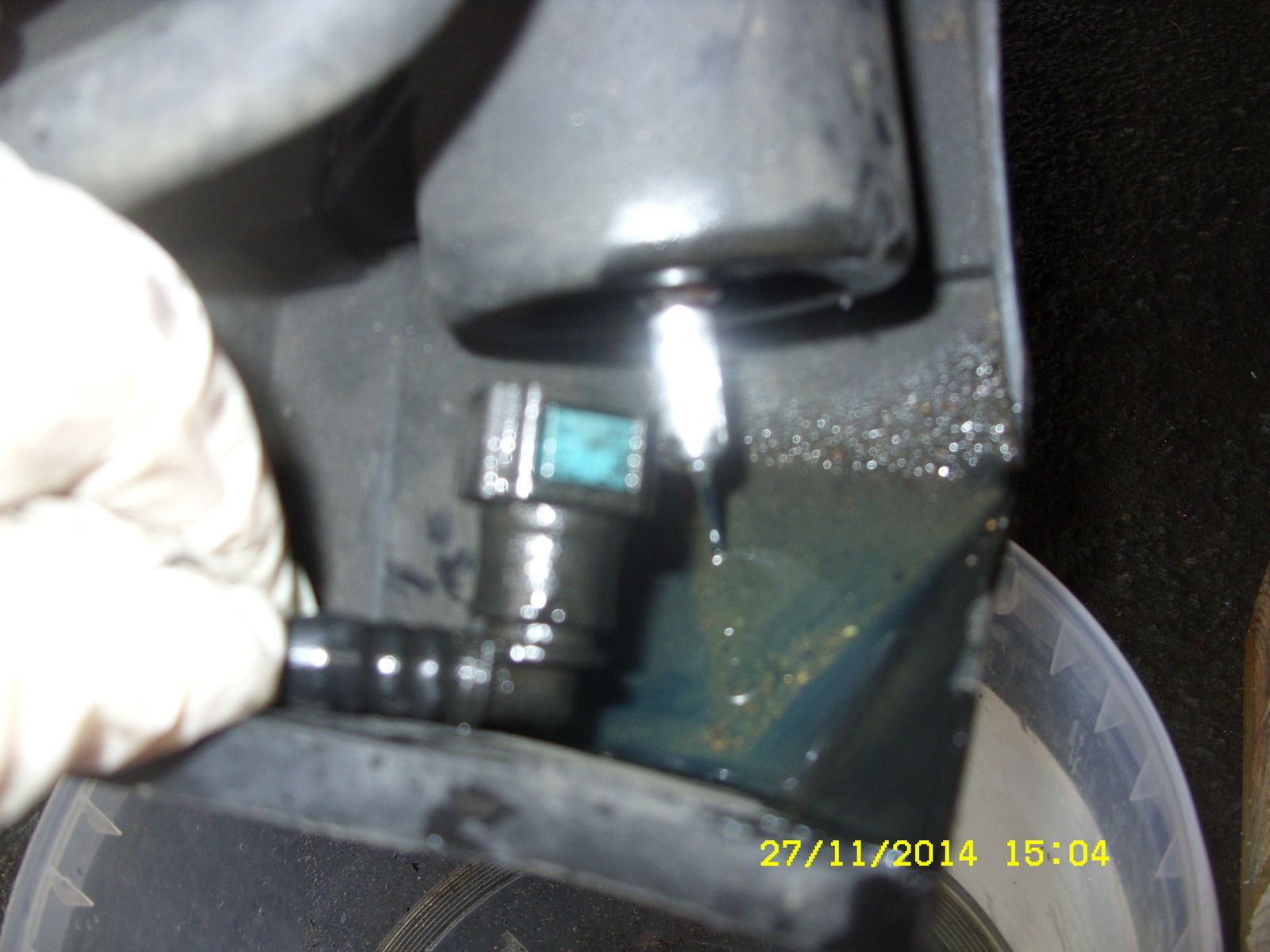

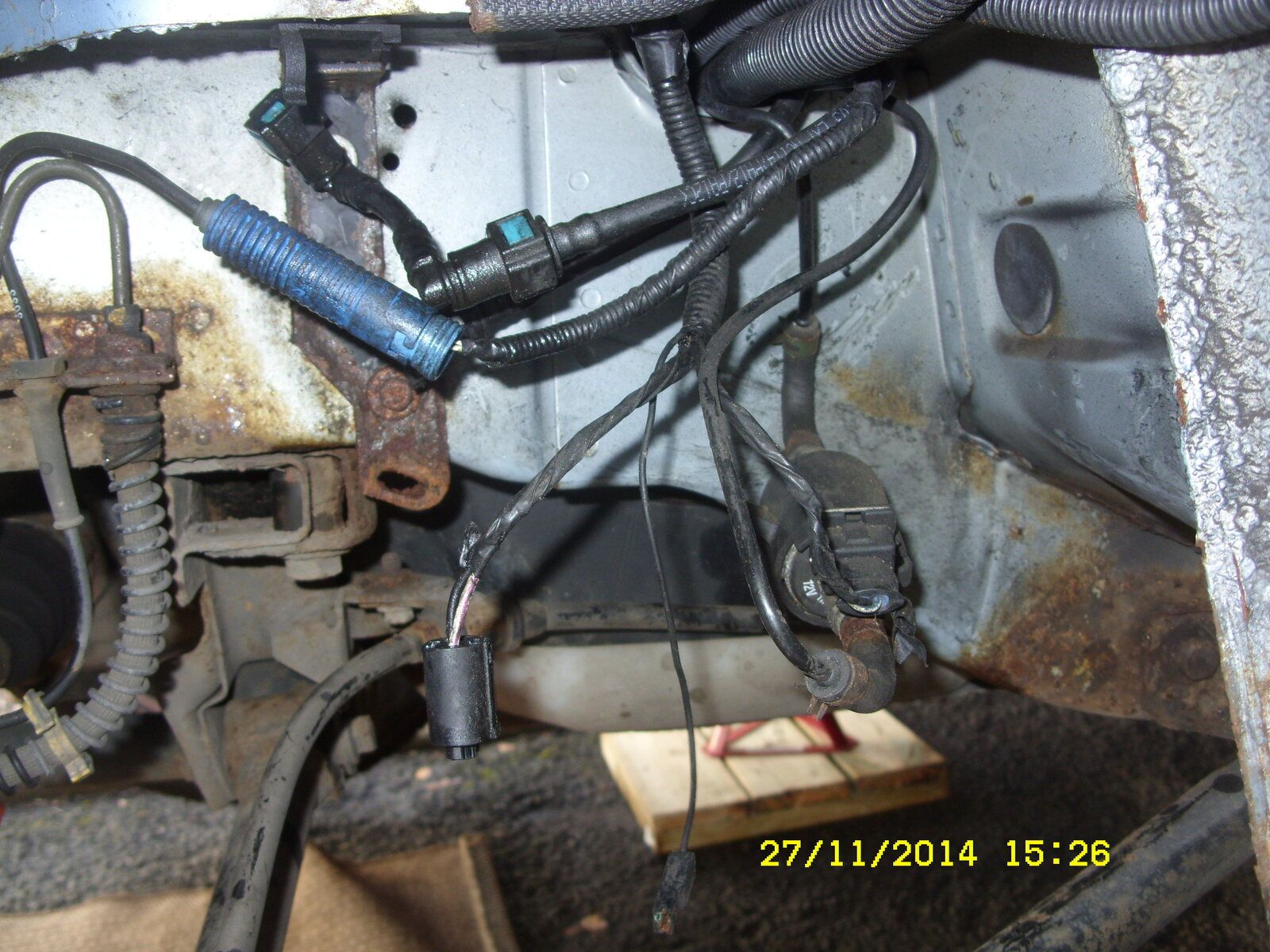

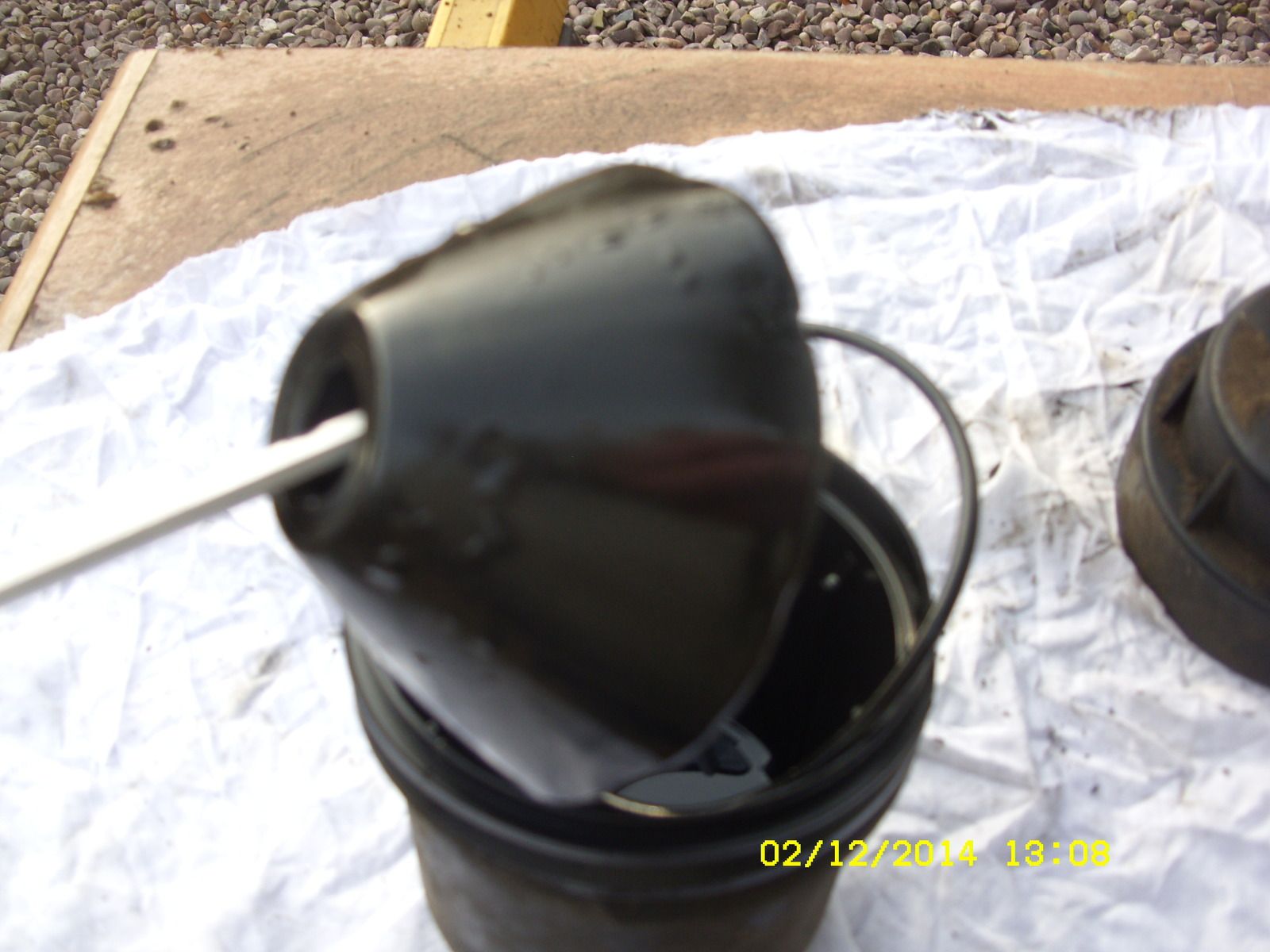

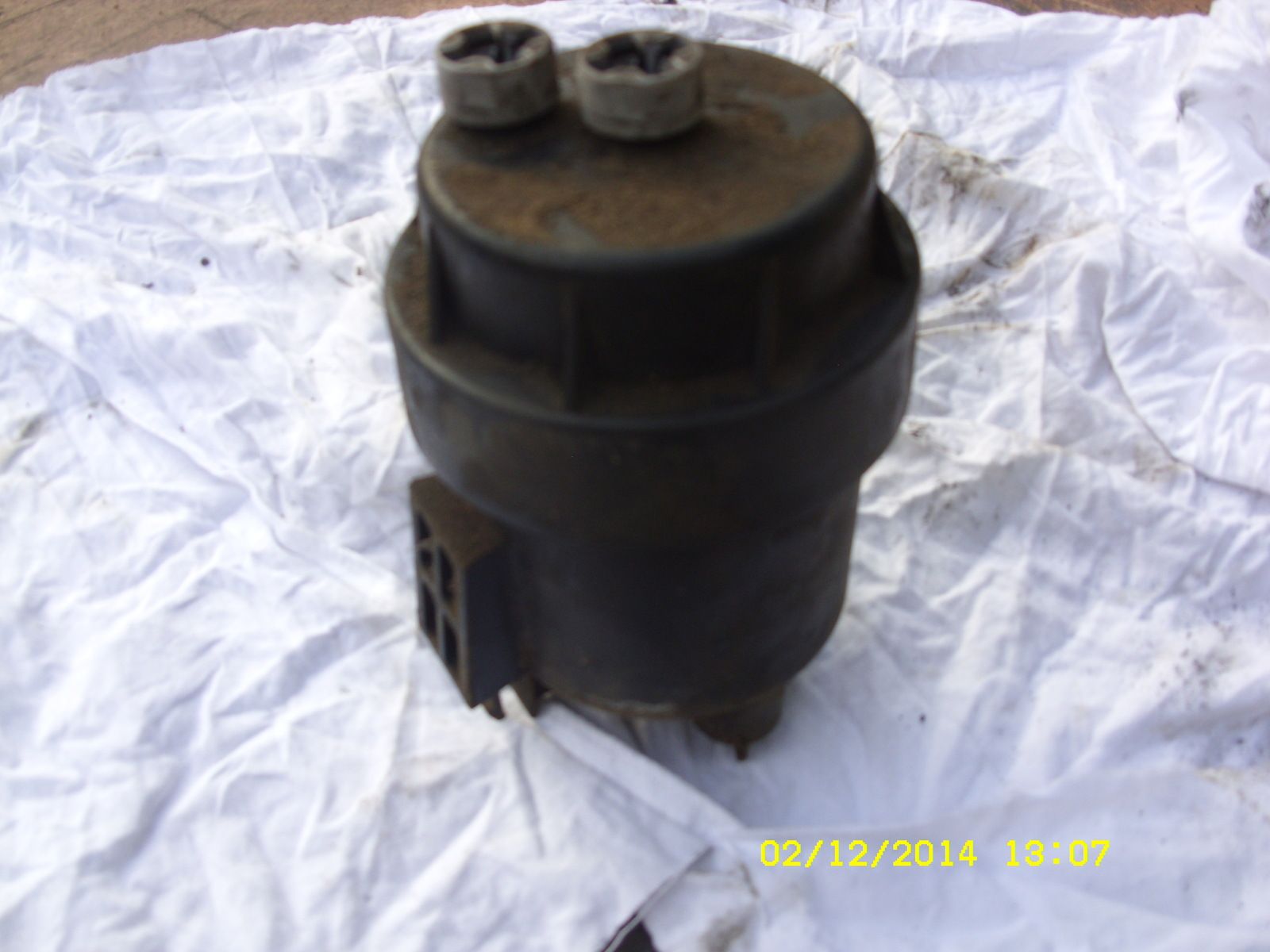

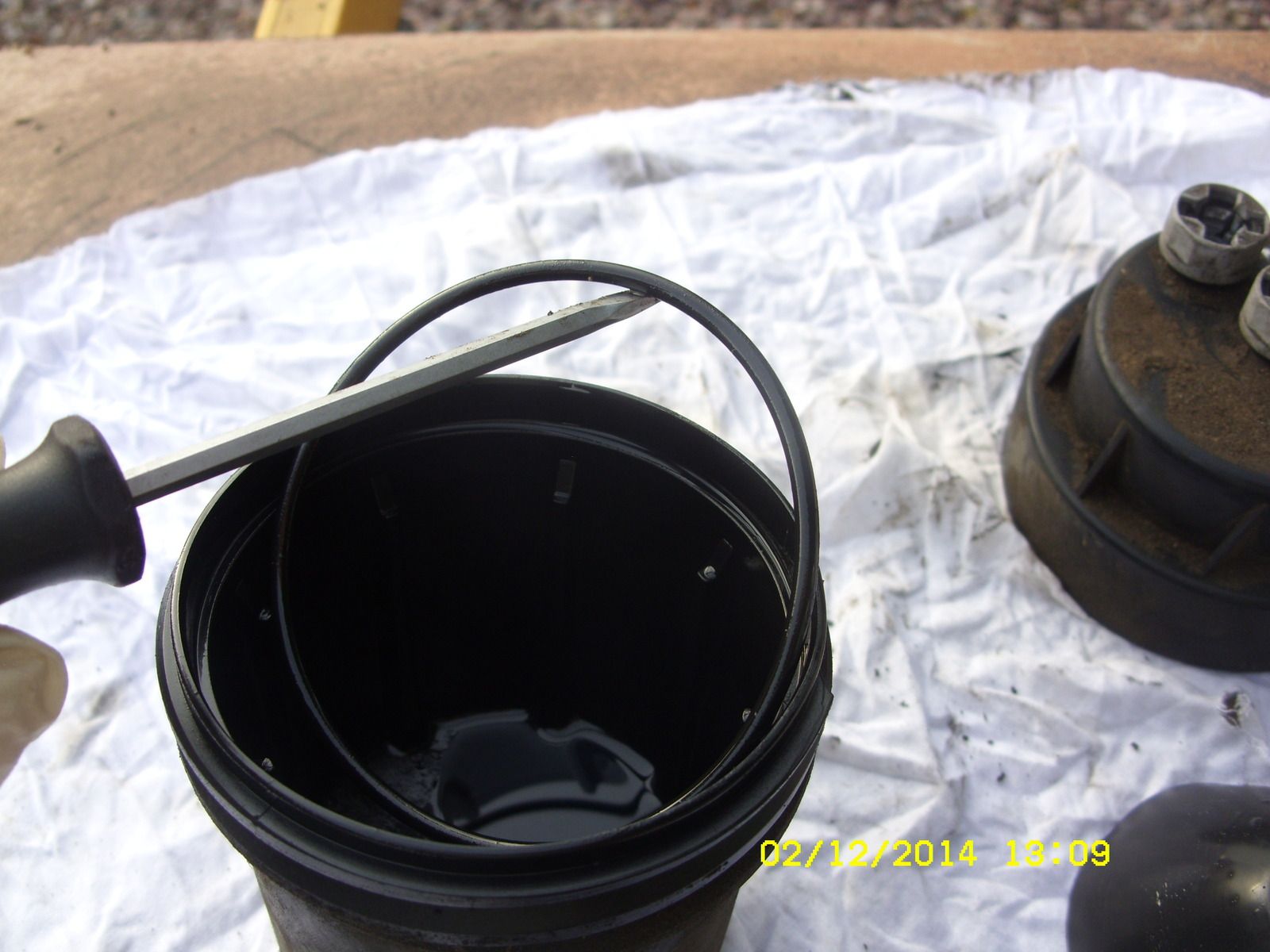

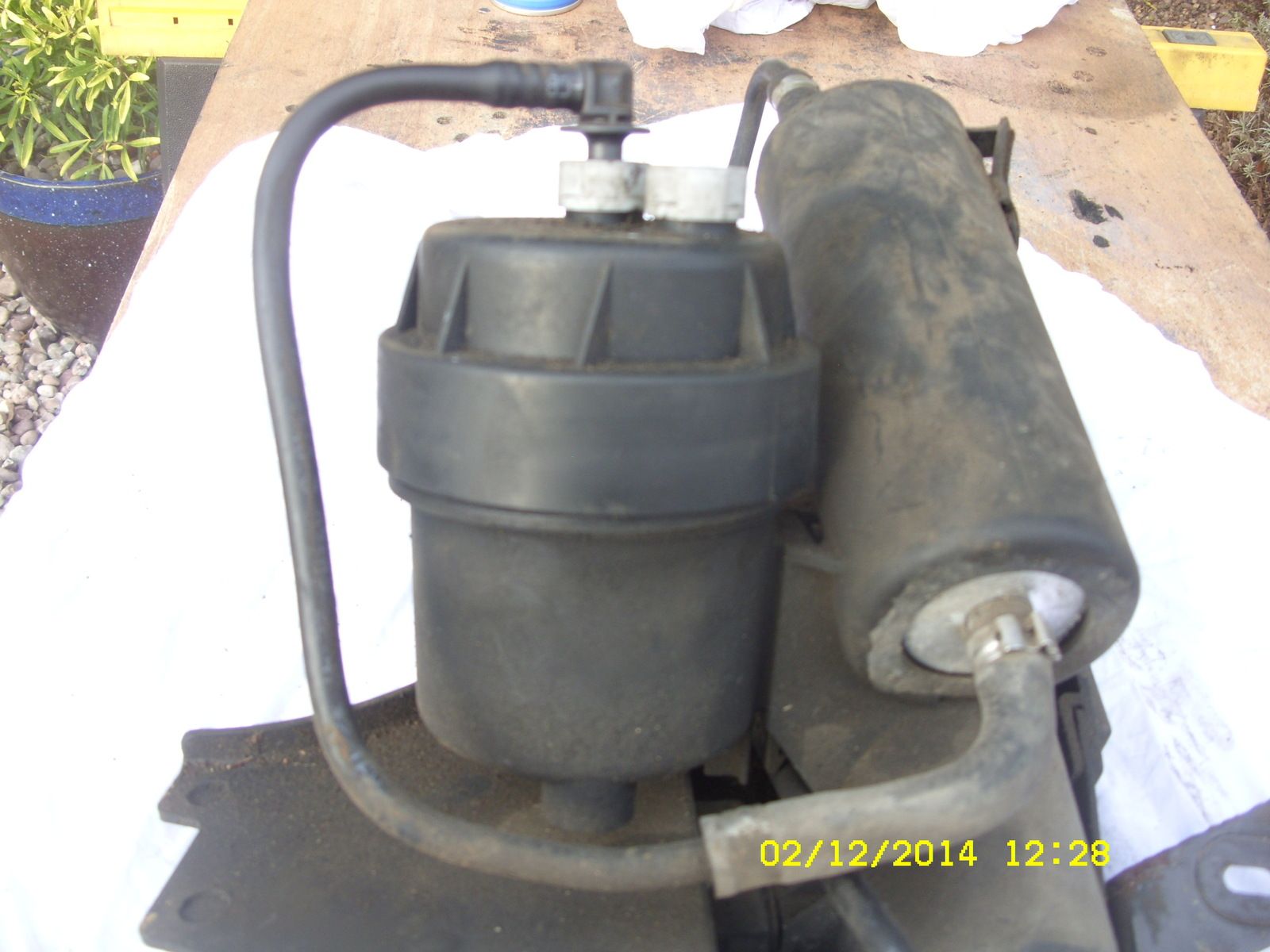

    Yes it can be drained with removing it from the car, drain it into a container until you can not see any water in the diesel more photo's of it off the car below Arctic2


    Attached Files:
