Trailer - challenge truck build

fanatic said:

wrap headers and downpipes

Click to expand...

Hmmm I dunno, I've always wrapped my exhaust systems right up to the back box but on the landy with its steel headers/system I thought the wrap would end up keeping wetness in and potentially rot the pipes through?

I have to agree... heat wrap on a vehicle that gets muddy allot wont help with rust. Most headers are not made from a high enough grade stainless, so they will still rust on a slower scale

I might have to wrap the manifolds as they are currently as they're blooming close to the bulkhead but I probably wouldn't wrap more than that

Cast manis will be fine but tubular steel (Hedman) I wouldn't fancy.

Probably no problem to wrap any type of stainless, will last long enough, just hedmans are steel and that's asking for trouble!

if you can find dakars you'll be sorted

A little more sorted tonight mainly just little jobs, painted up some of the water pipes, earthed some wires for the new ECU, fitted new door seals, touched up a few bits of paint, made a covering plate for the old clutch position wgere the fuel pump is going to fit and made some fuel hoses, little jobs like that, another night at it tomorrow try and get fuel sorted tomorrow and work towards getting air and water completely finished as there almost there. Then it's just engine wiring and interior

Woop

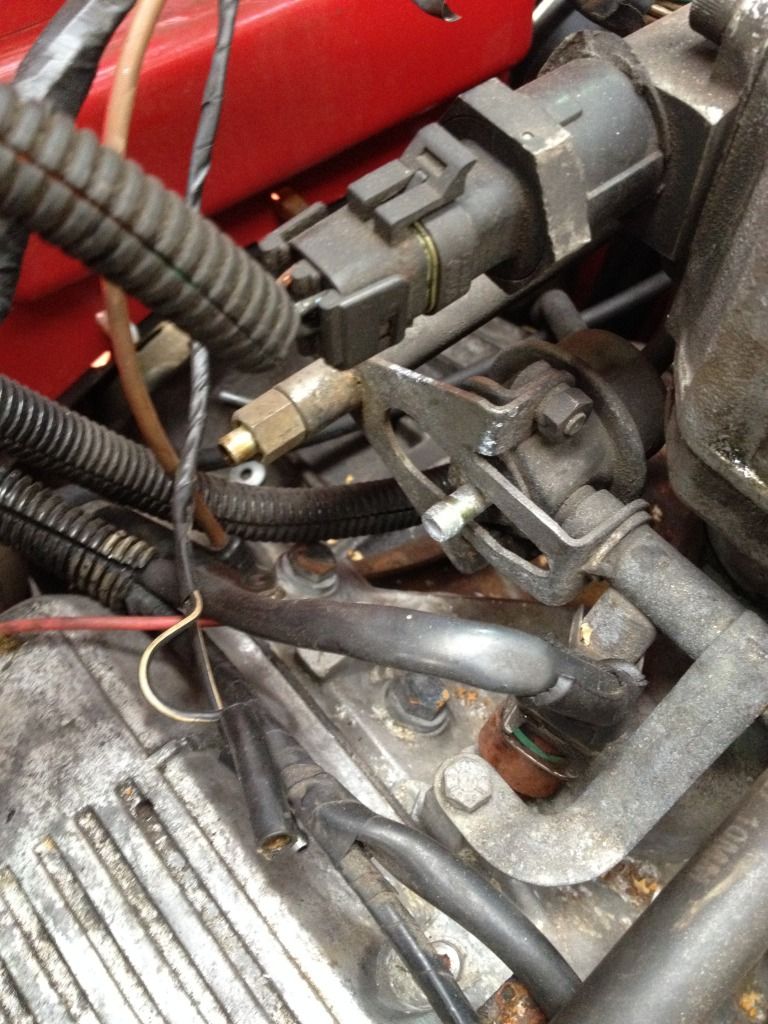

Stupid question which is in and which is out ?

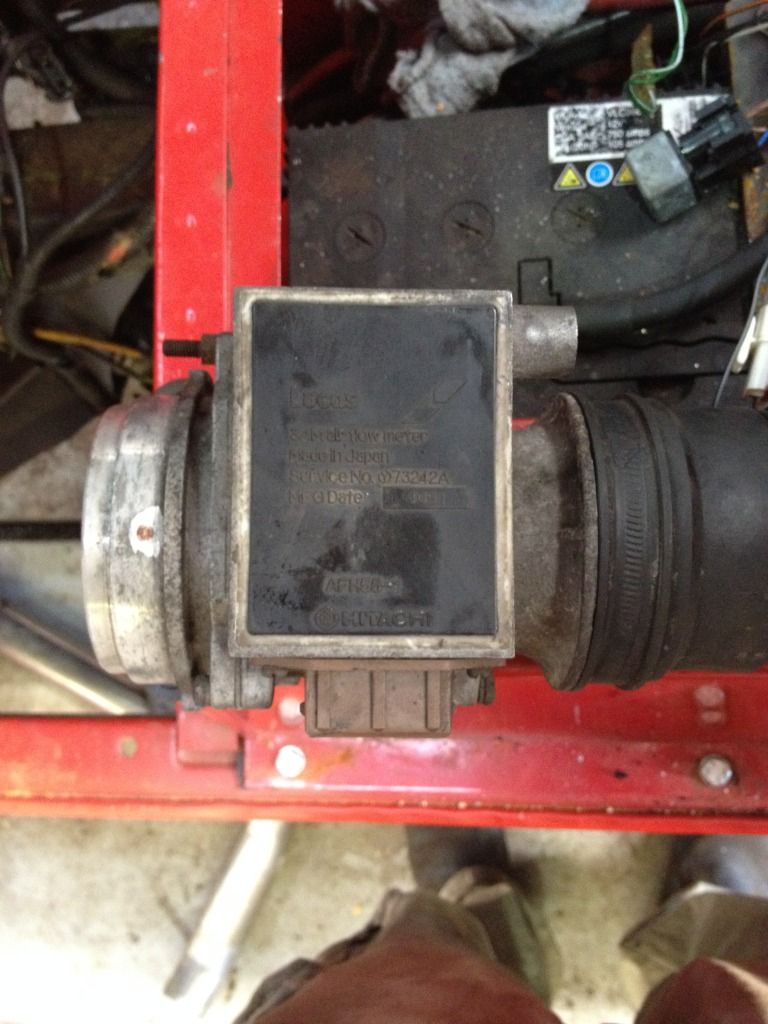

And am I right in thinking air flows from left to right through the MAF

Air is as u say. N I beleave the exit from the reg is the out as it lets uneeded fuel/pressure out of the rail

Yep, fuel flow has the union and fuel return is push fit

We have progress, fuel is done, air is basically done and we have it turning over off the key,

But we don't have power to the coil so where is this power fed from and when we add power we have a spark but it still doesn't start so the injectors arnt firing so we have a problem there too

Any help ? do we need to connect anything to the sensor on the side of the gearbox to tell the ECU it's out of gear ? Is so how

Anything obvious I'm missing ?

is it an auto or manual? I forget if you said

discomark10 said:

is it an auto or manual? I forget if you said

Click to expand...

Auto I know I need to have the disabling facility fitted for when it's not in park Or neutral but would it run without it fitted ?

you can just join the 2 inhibitor wires together if you dont want it to function and engine to start,presuming inhibitors wired into loom

discomark10 said:

is it an auto or manual? I forget if you said

Click to expand...

Auto I know I need to have the disabling facility fitted for when it's not in park Or neutral but would it run without it fitted ?

jamesmartin said:

you can just join the 2 inhibitor wires together if you dont want it to function and engine to start,presuming inhibitors wired into loom

Click to expand...

The selector sensor isn't connected currently which wires does it join to in the plug beging the dash in the loom, the one where the brown, white are etc

v8 loom has a branch with 4 wire round plug ,2 wires for reverse light 2 for inhibitor which just interupts starter solenoid, box doest need it

It lives !!! Before the doc too
Video is on YouTube I'll put a link on in a sec

Let's get it driving before I leave for aus

About bloody time anorl
