three amigos,'take a look might help..'

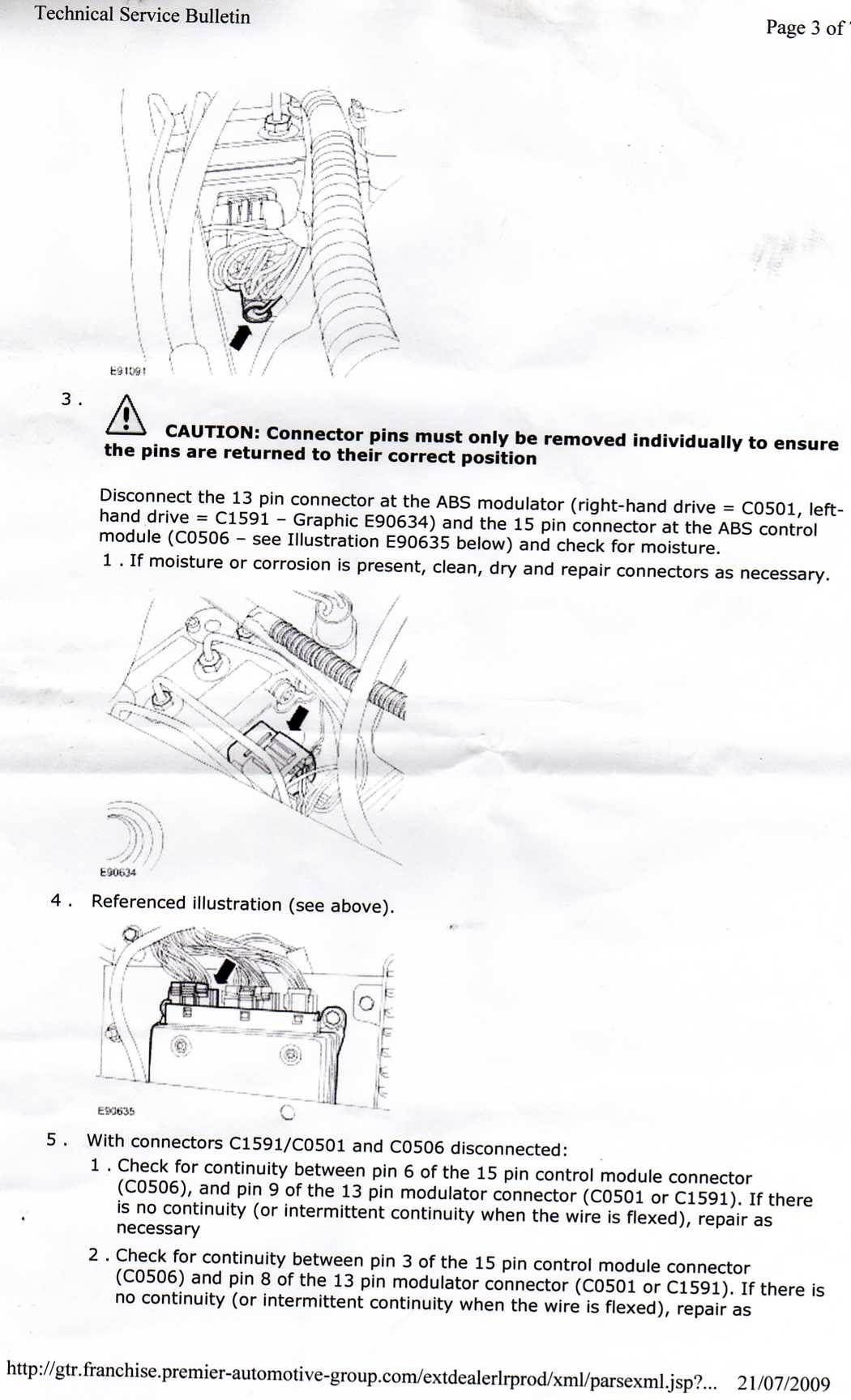

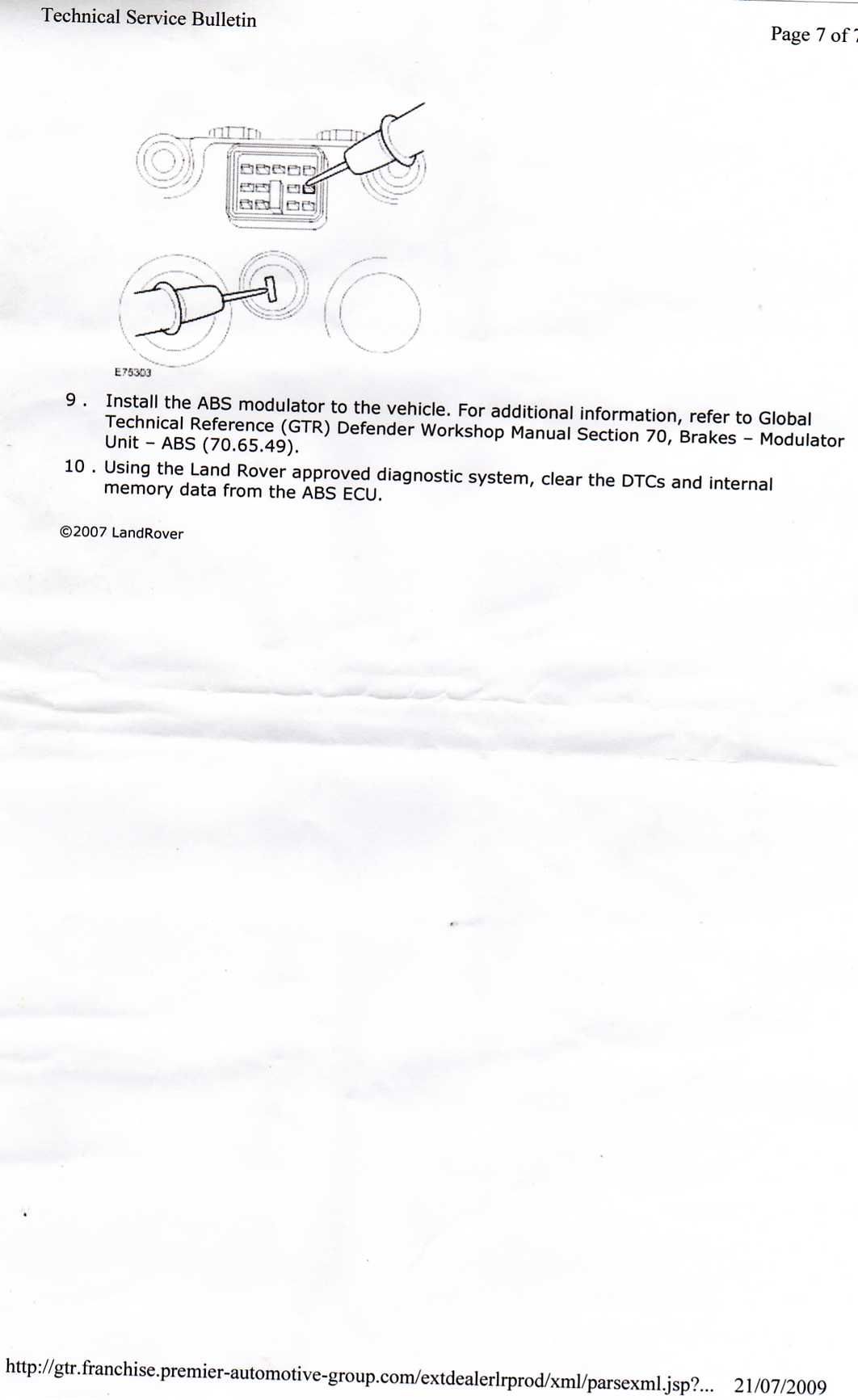

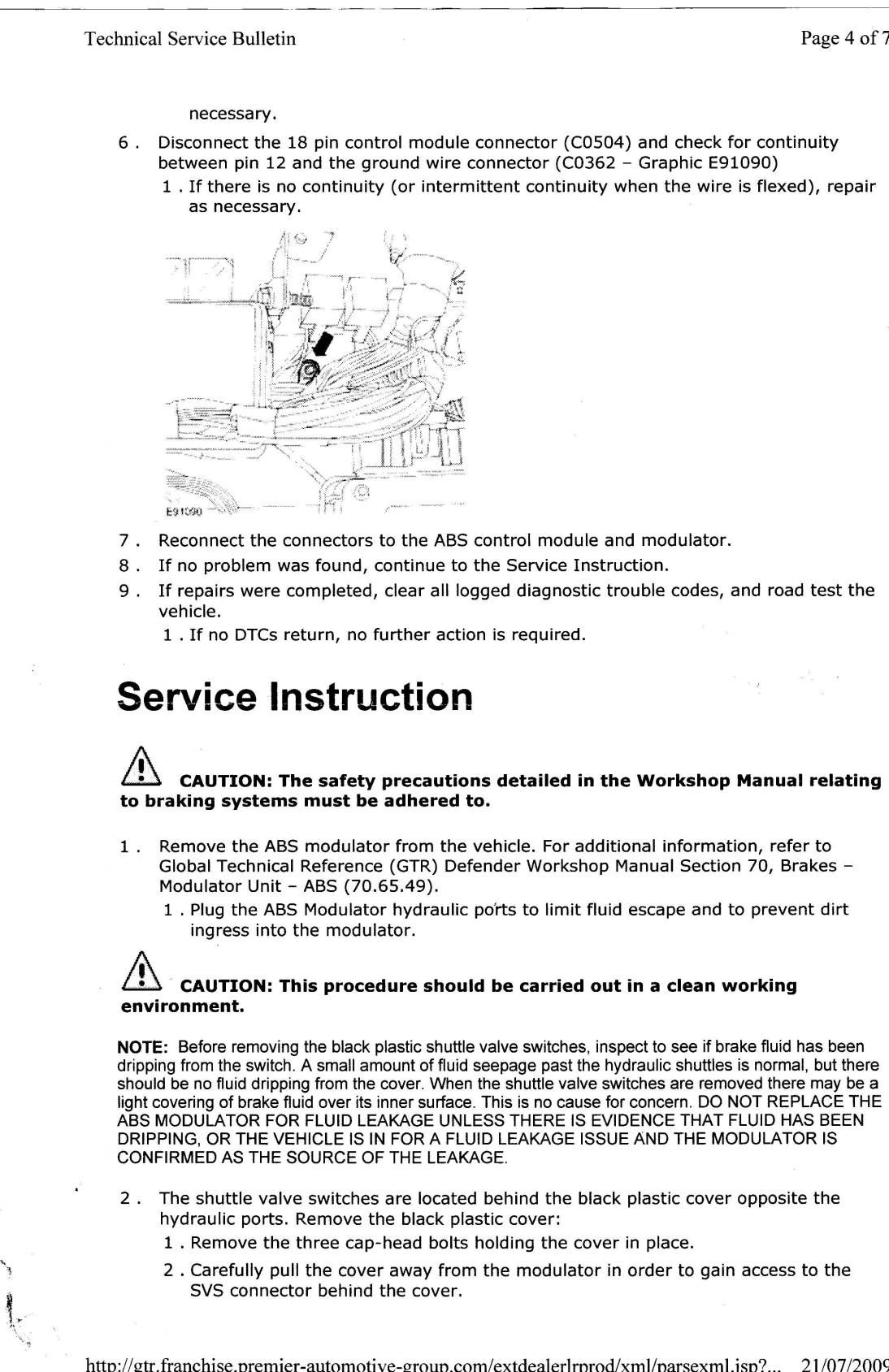

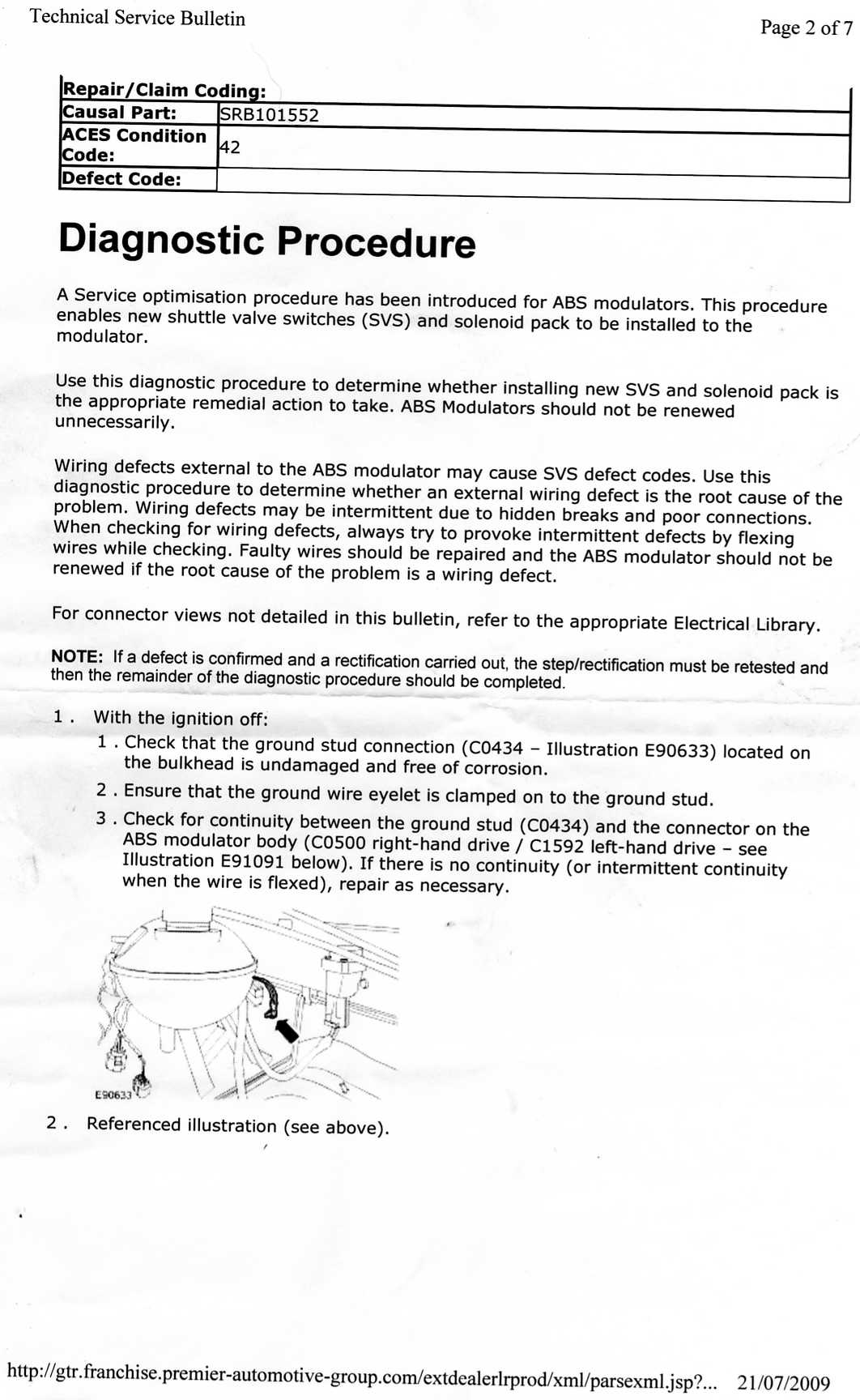

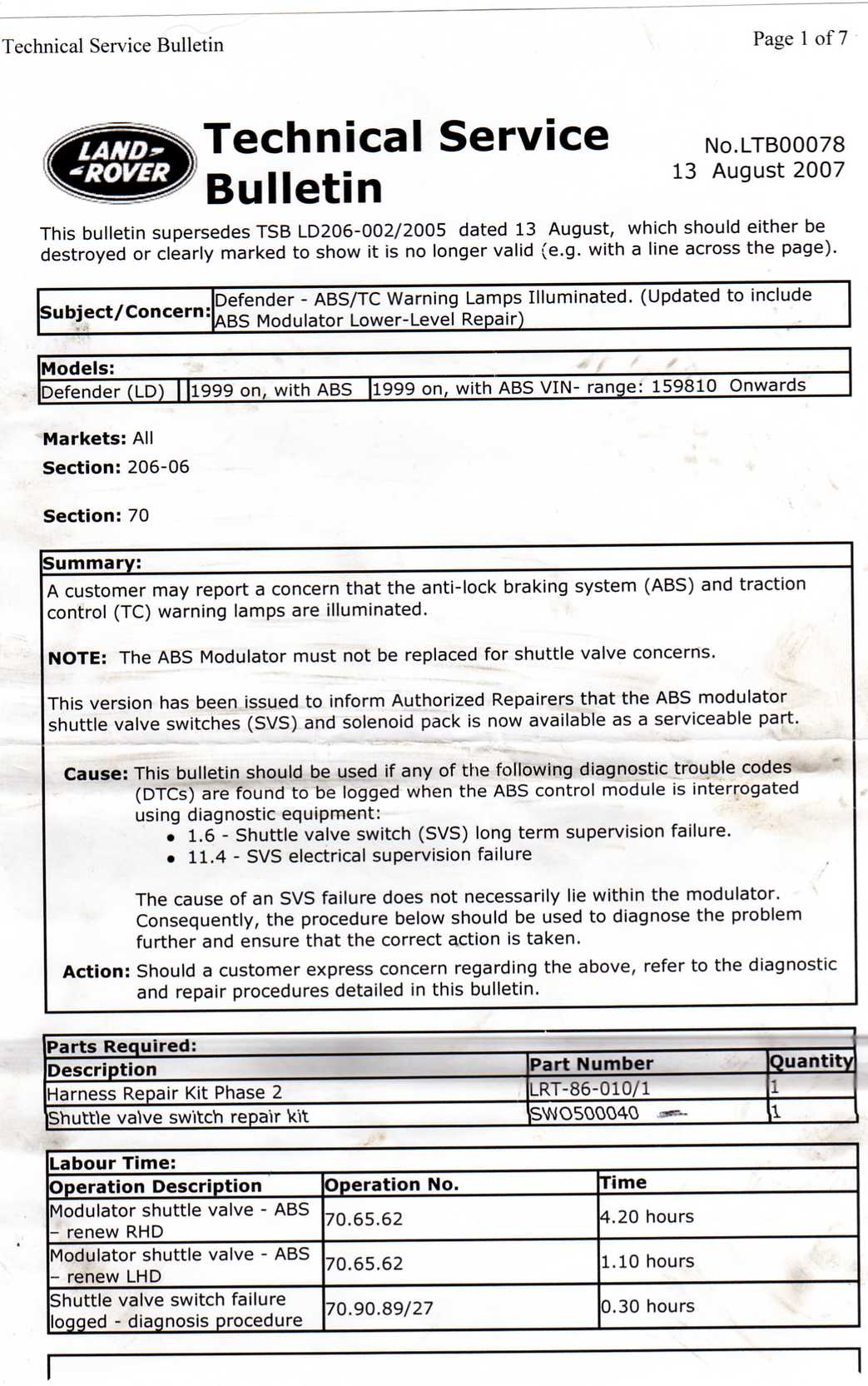

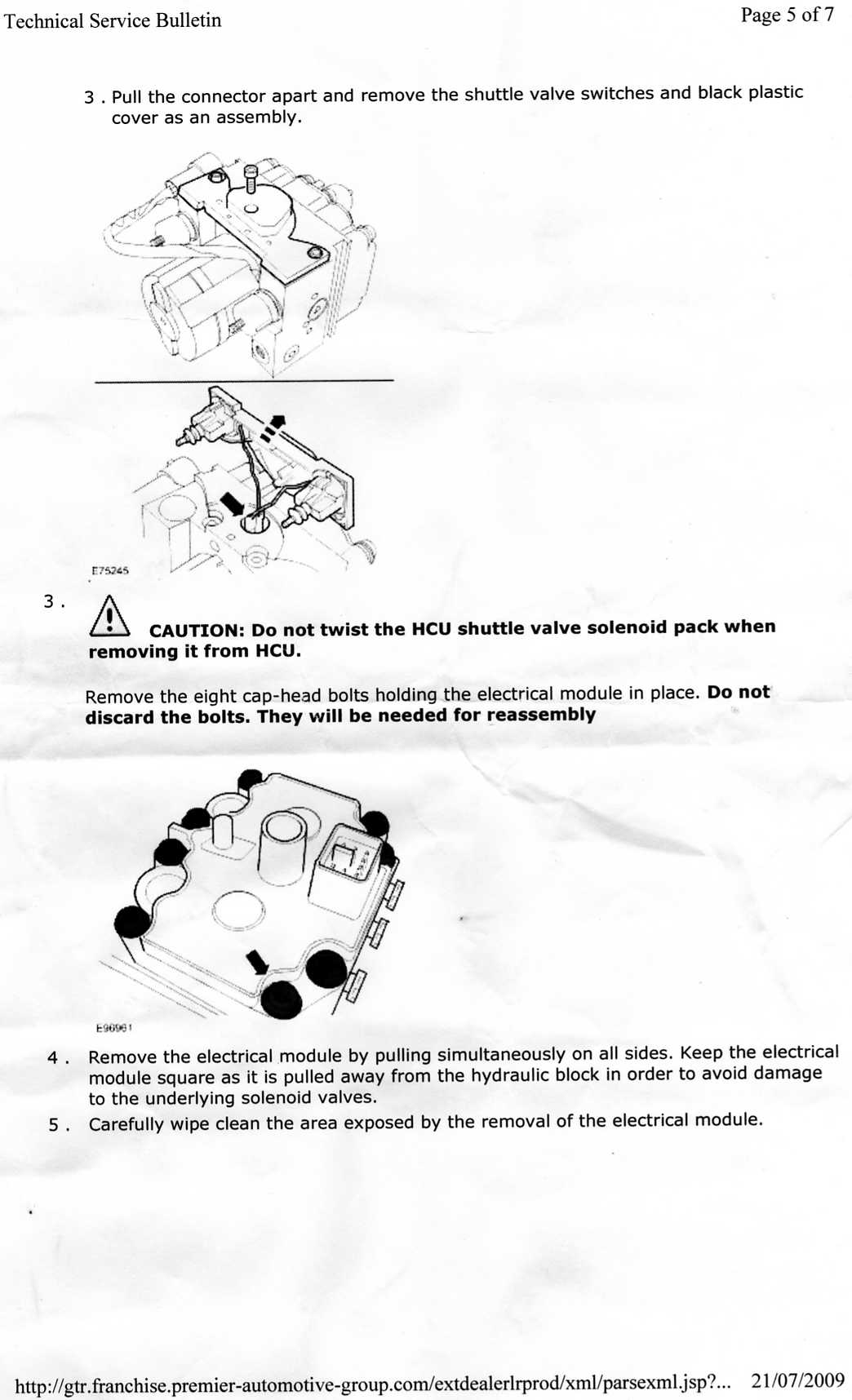

went down Dick Turpins today for price of new shuttle valve repair kit...£480 +vat..How come they are only $60.00 in USA.Have Landrover relocated from The Midlands??????Anyway , borrowed this from dealer..All you need is a multimeter..£7.50 from Wilkinsons..Check ur abs sensors aswell should read 1050ohms+-30. Give the wires a good working over whilst testing them.Lots of links with more info on here...Found my rear o/s to be out..When plugged into computer hey presto rear o/s sensor out of tolerance...Worth every penny of £7.50..Check attatchments..Have a look at this web page aswell very usefull..WWW.roverparts.com scroll to bottom of page and hit Tech Tips.Good luck

Very useful info Kingcarlos. Any chance that the thumbnails can be put up in a form that can be downloaded from this site. I tried but no joy. Tried the 'roverparts' site but ended up lost amongst the many.
Winjeel

Stand by, I got the thumbnails to print. Thanks. Also got the roverparts site, it is headed "Atlantic British" on the list of sites on Google. Excellent site. Great price for shuttle kit.
Winjeel
