td5 radiator

Hi

reconnecting everything after engine rebuild and can't remember the way the radiator hoses go on at the bottom next to the thermo.

With radiator out flushed the radiator and found that the three outlets at the bottom are
1 for thermo
1 with a small hole
1 seems to be blanked off

What do i connect to the blanked off one and what to the one with a small hole


Thanks in advance

John

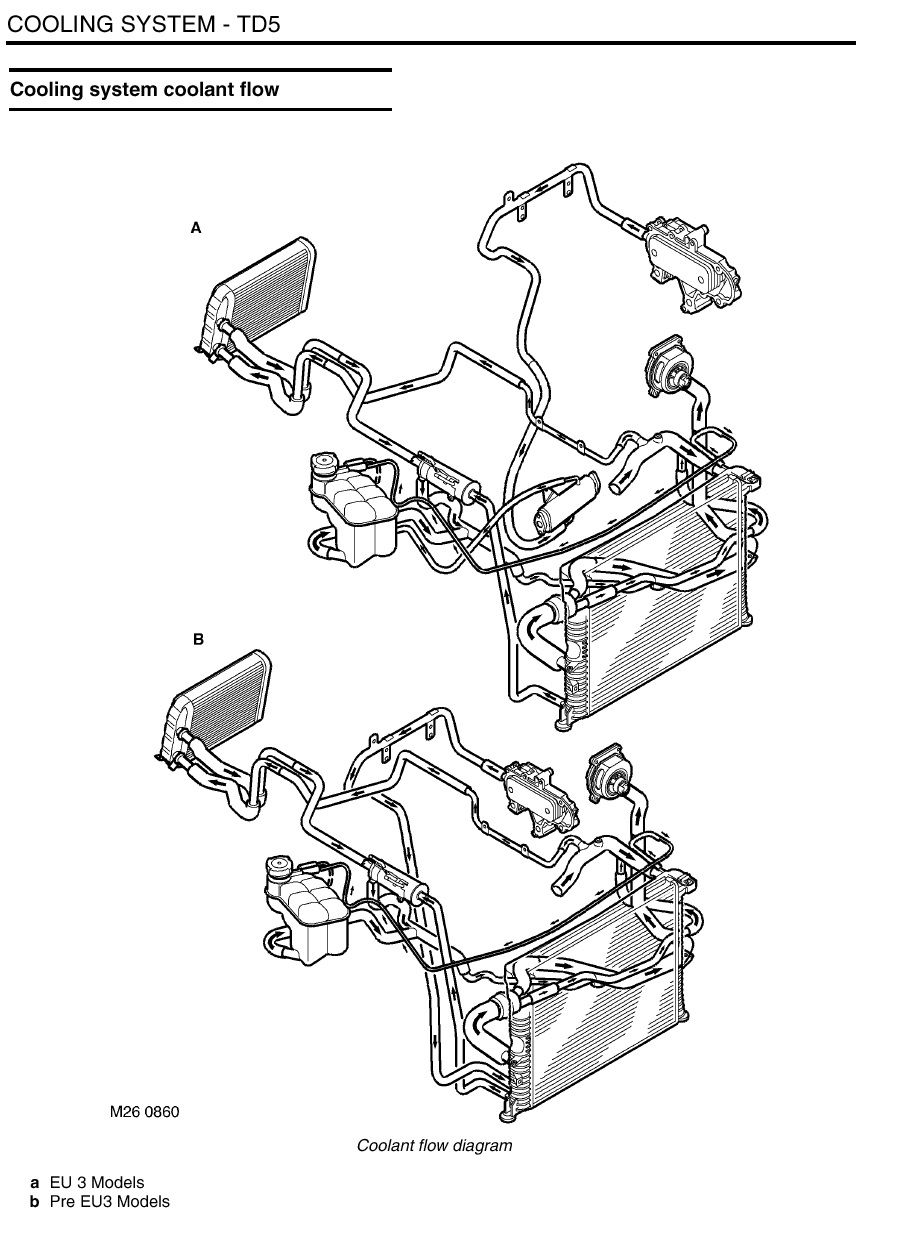

Hi, try to figure it out from the following scheme depending on what engine you have (Eu2 or Eu3)

sierrafery said:

Hi, try to figure it out from the following scheme depending on what engine you have (Eu2 or Eu3)

View attachment 190658

Click to expand...

Hi
yes I found this but question is is it normal that the bottom outlet doesn't have any flow and looks blocked off.. Is this normal

Then why didnt you ask that from the beginning ?... what engine you have Eu2 or Eu3 ?

With radiator out flushed the radiator and found that the three outlets at the bottom are
1 for thermo
1 with a small hole
1 seems to be blanked off

I did ask. And how do you tell which engine you have

Winter Rover said:

And how do you tell which engine you have

Click to expand...

I can tell as i know what engine i have ... do you have EGR cooler on it or not? if you have it's Eu3 if not it's Eu2... anyway there are some differencies between early Eu3s and late Eu3s but what's certain is that the hose which comes from the oil cooler doesnt need flow cos there are cases when the oil cooler's outlet is blanked from factory on late modells, important thing is that the one from the fuel cooler must have flow through it.

sierrafery said:

I can tell as i know what engine have ... do you have EGR cooler on it or not? if you have it's Eu3 if not it's Eu2... anyway there are some differencies between early Eu3s and late Eu3s but what's certain is that the hose which comes from the oil cooler doesnt need flow cos there are cases when the oil cooler's outlet is blanked from factory on late modells, important thing is that the one from the fuel cooler must have flow through it.

Click to expand...

perfect that's what i thought
thanks
