TD5 90 Project

Discussion in 'Members Vehicles/Projects' started by KISSMYAURA, Jun 9, 2016.

< Previous Thread | Next Thread >
  1. KISSMYAURA

    KISSMYAURA Well-Known Member

    Joined:
    Nov 26, 2012
    Posts:
    1,401
    Likes Received:
    971
    Location:
    KENT

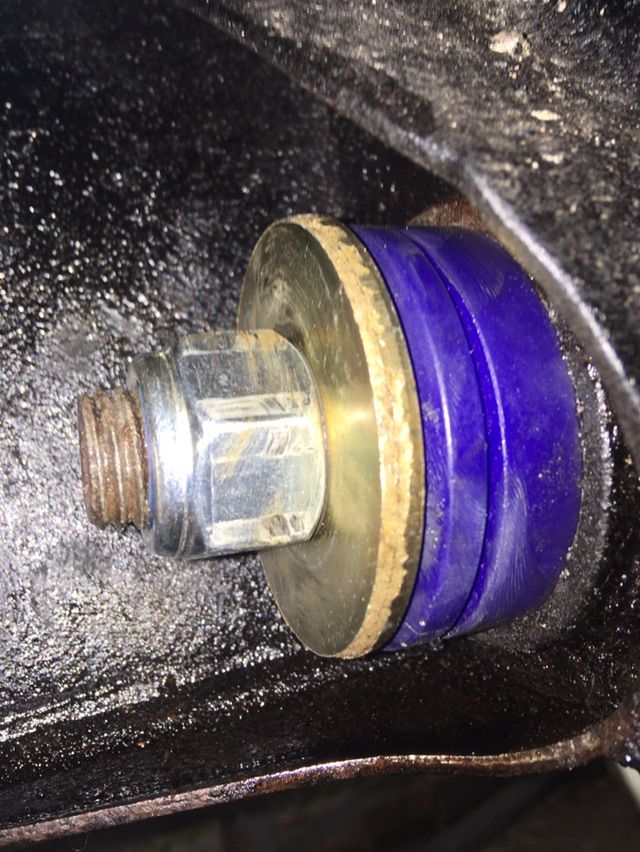

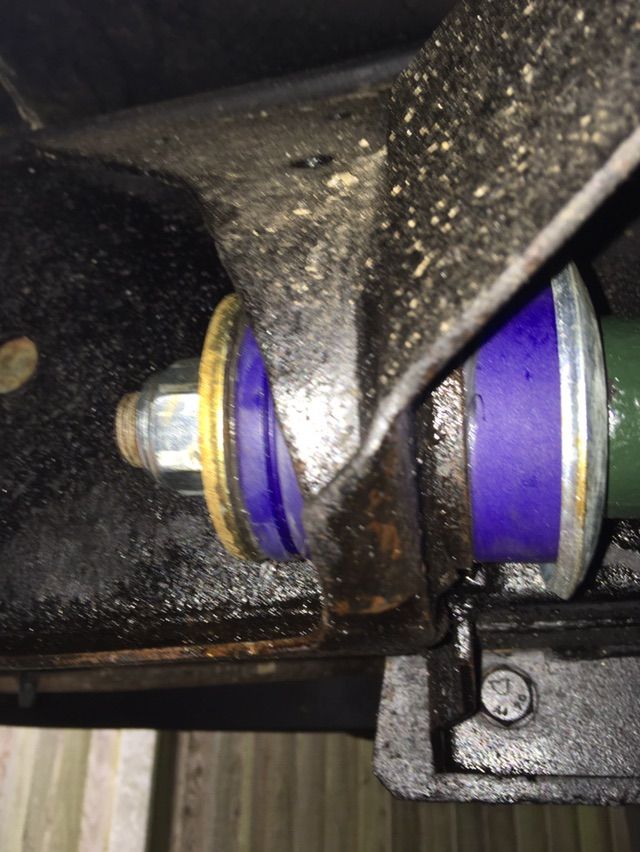

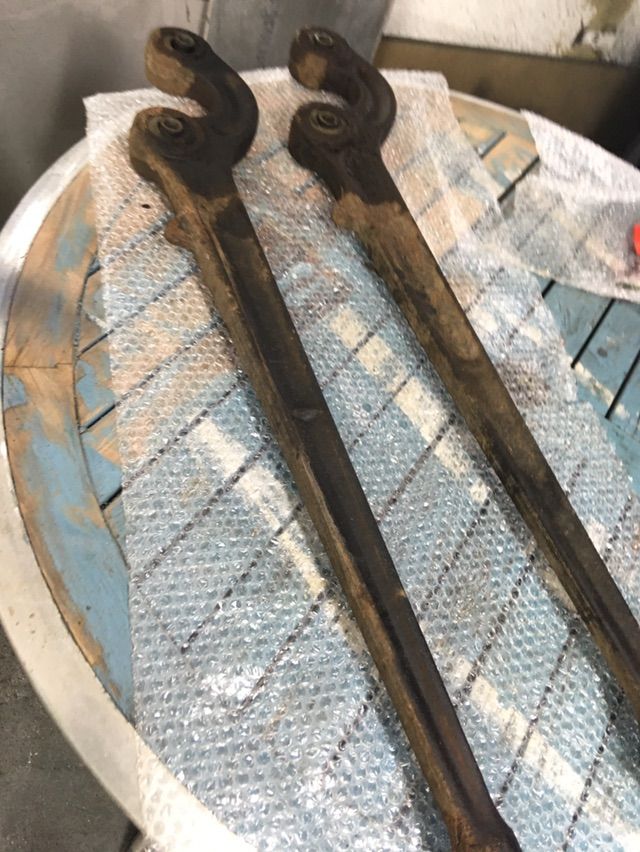

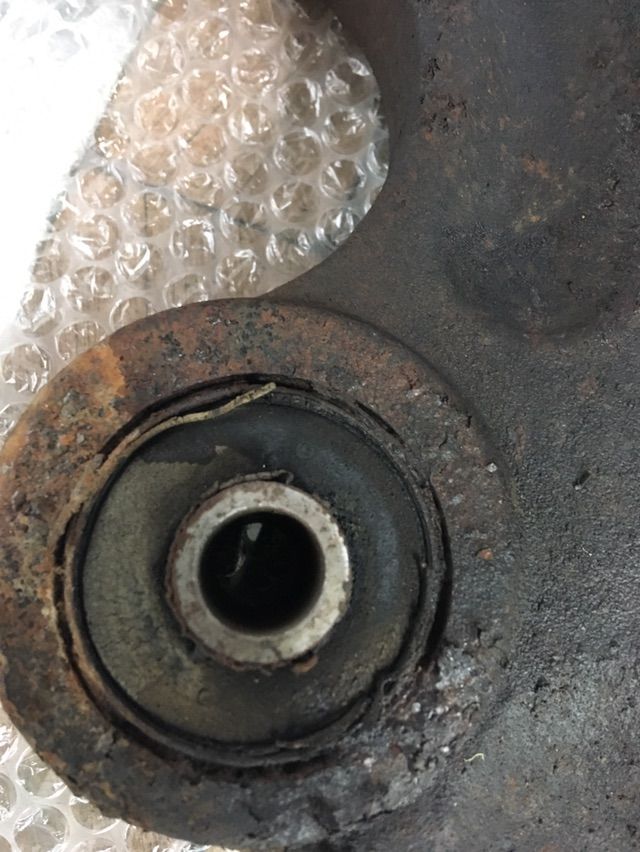

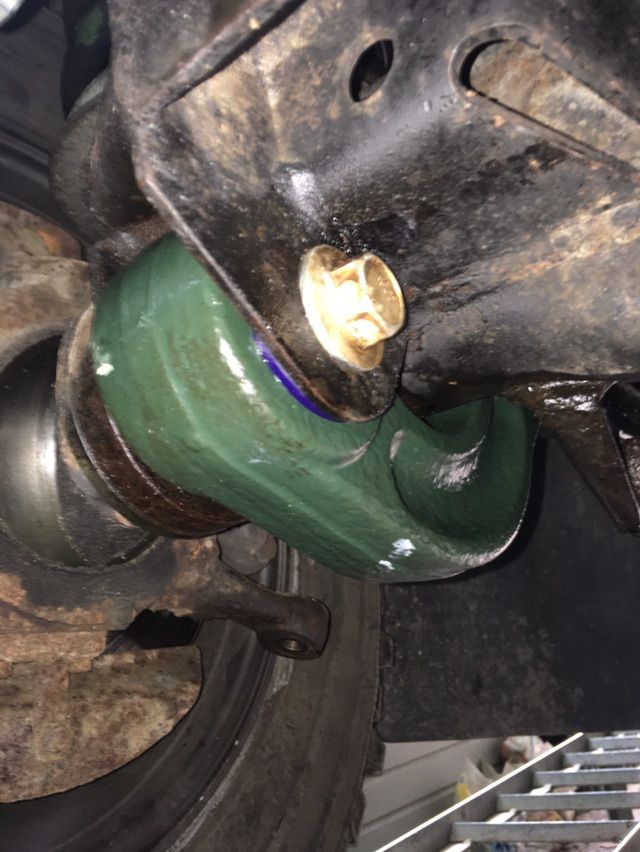

    Fronts done today, took about 2.5 hrs old ones not as bad as rears but still well on their way out! Also changed the track rod ends for Lemforder new ones while I was there.

    Next week A frame.
    No doubt that will be a right giggle........and chance to skin my knuckles, smash my fingers, shout CNUT very very loudly, chuck spanners and generally decide I should stop sodding about with midlands happy shopper rust buckets, and should have bought a Unimog and be done with it, so yes i will be throughly enjoying myself with my Fender! All will be forgiven once its down iff the ramps o course!
    Rumour has it that @bankz5152 has done three A Frames now, not sure its that cos the first two fell off though :p

    PS have a sticker if you spotted I used the wring bolts for the Front Radius arms, they will do for now, until the correct ones come, and have been fully anti fret-ceramic spray greased so should pop back in in a jiffy.

    IMG_8339.JPG IMG_8338.JPG IMG_8340.JPG IMG_8346.JPG IMG_8348.JPG IMG_8349.JPG IMG_8350.JPG

    Last edited: Aug 3, 2019
  2. resto_d1

    resto_d1 Well-Known Member

    Joined:
    Apr 30, 2018
    Posts:
    1,771
    Likes Received:
    1,018
    Location:
    Wiltshire
    If polybushing, aframe arms aren’t that bad to do. As you know, wire wheel on bolt threads and leave soaking. I did 110 a frame arm removal yesterday. I expected to be jumping on a scaffolding bar but cracked the nuts in 5 mins :D
    Loving the green arms :cool:

    Hicap phill likes this.
  3. KISSMYAURA

    KISSMYAURA Well-Known Member

    Joined:
    Nov 26, 2012
    Posts:
    1,401
    Likes Received:
    971
    Location:
    KENT
    cheers mate, yep radius was a doddle really heard lots of horror stories, just used a podger to line up holes etc.
    A frame is just a sod to get to etc.
    Mind you i have read that some have major problems with the oil filter on a TD5, honestly they want to try working on a Lancia......
    The main problem is corrosion, so soak, shock, heat if still not moving, don't waste anymore time or knuckles, just cut the thing off.

    Hicap phill likes this.
  4. resto_d1

    resto_d1 Well-Known Member

    Joined:
    Apr 30, 2018
    Posts:
    1,771
    Likes Received:
    1,018
    Location:
    Wiltshire
    I forgot that you’d be doing it with body on. Are you removing the brackets from subframe as I think you need to get a spanner on heads. Also, two point down, one points up on those brackets. They aren’t done up to a major torque but you’ll struggle to clean threads on the upwards facing bolts :rolleyes: .If not removing it’s obviously just the big arm bolts. I did mine with scaff bar on breaker. They don’t sit so close to chassis on fender.
    Fulcrum nut was a complete pita on d1. I cut that off. I’ve already started soaking that on the 110. When I undid the bolts through the fulcrum and arms the ball joint just sagged lol. Think it might be dead :D

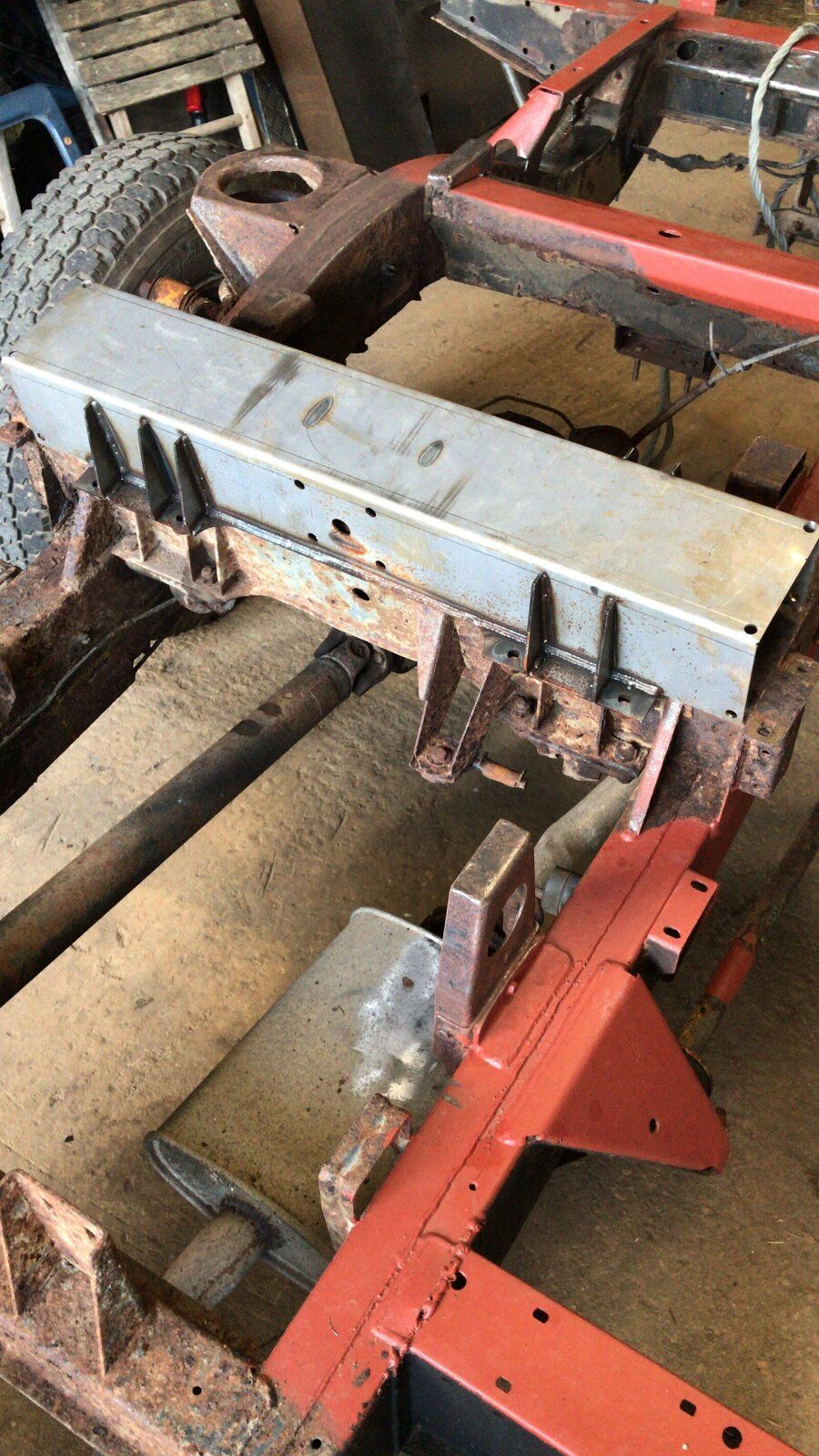

    You can see below one bolt on each side is upside down that connects the a frame arm brackets to cross member


  5. KISSMYAURA

    KISSMYAURA Well-Known Member

    Joined:
    Nov 26, 2012
    Posts:
    1,401
    Likes Received:
    971
    Location:
    KENT

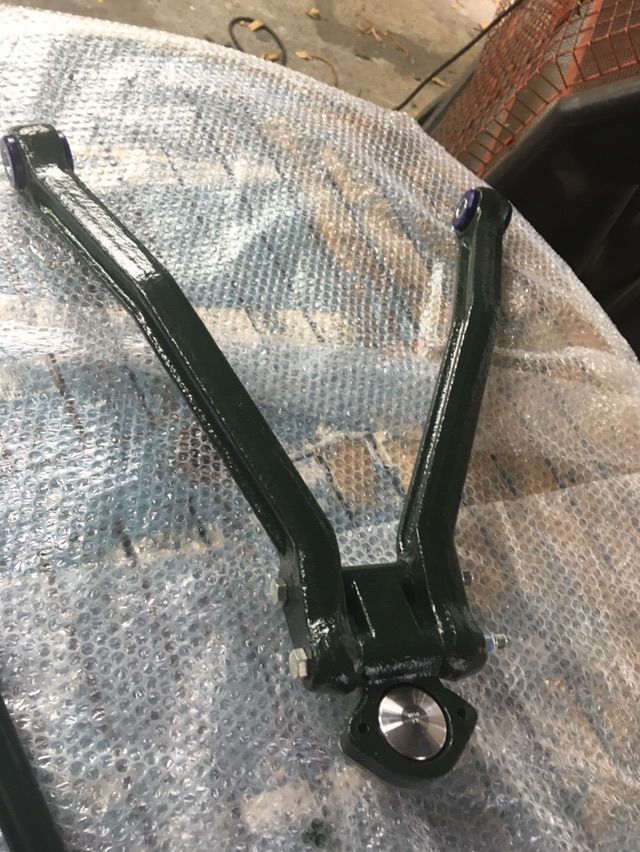

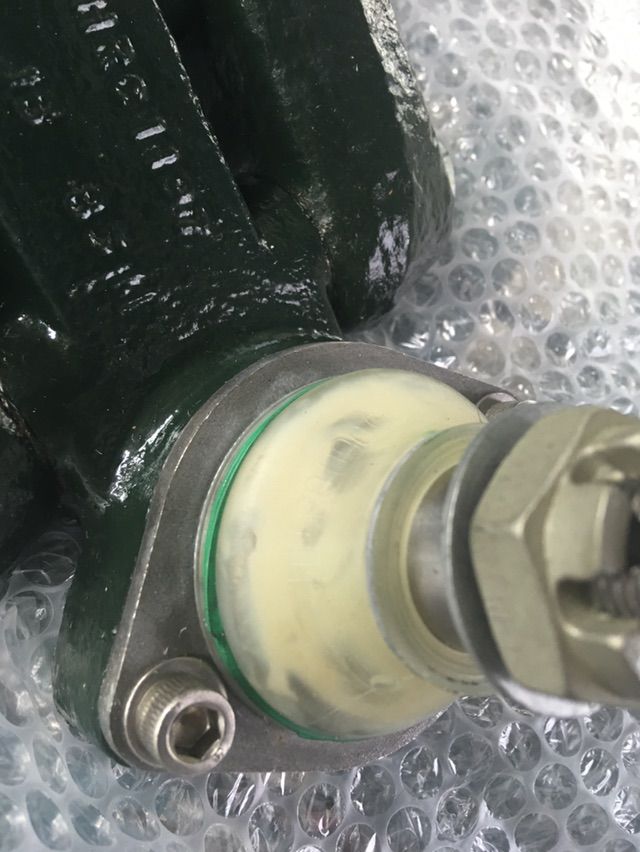

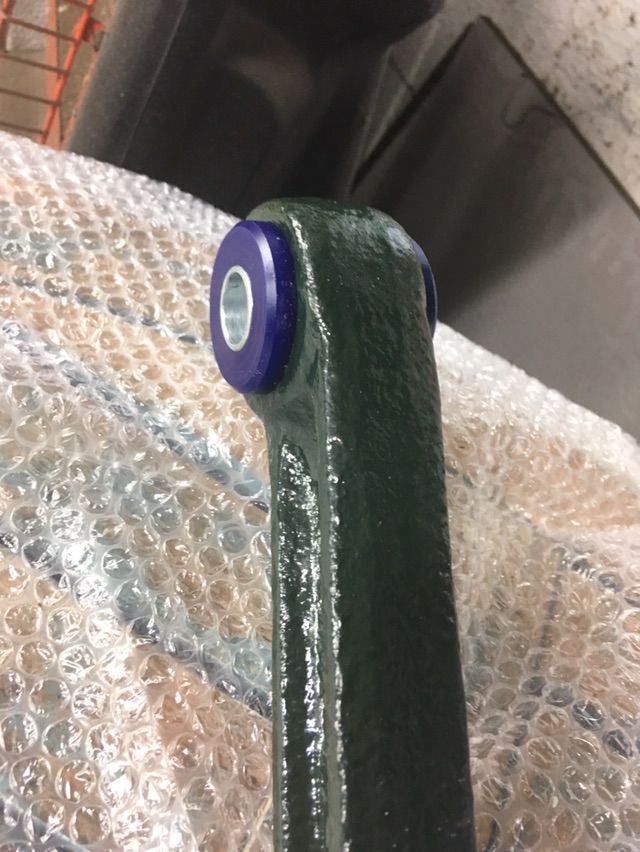

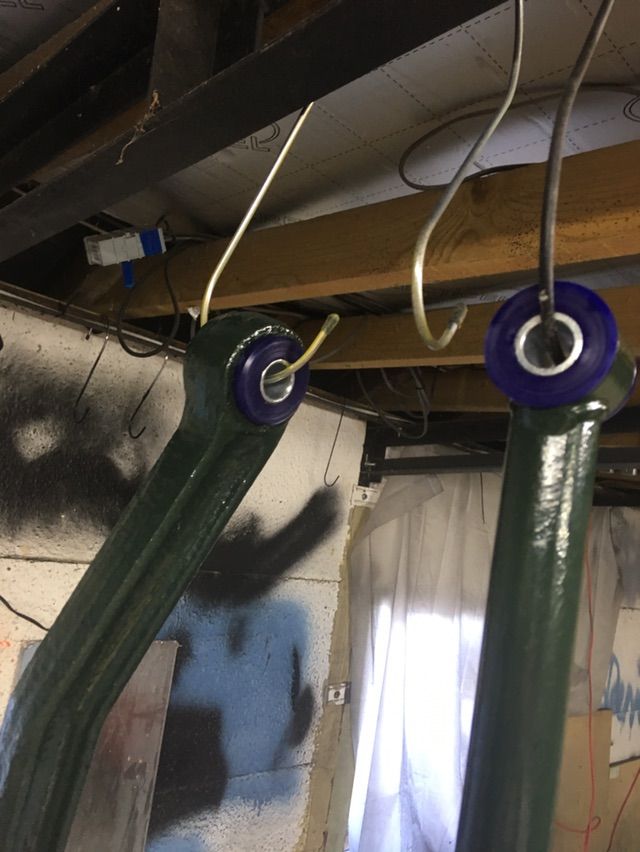

    NEXT UP:

    SupaPRo A-Frame complete with Lemforder BJ, all served with a side order of SupaPRo Panhard rod all garnished with Corroloess Glass reinforced paint......mmmmm tasty! ;):D



    IMG_8409.JPG IMG_8412.JPG IMG_8413.JPG IMG_8416.JPG

    SkillzTom likes this.
  6. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    8,006
    Likes Received:
    2,034
    Location:
    South London/North Kent
    Well done for painting. I really couldnt be assed to do mine :rolleyes:

    Mainly because i couldnt decide on a colour :oops:

    Looks good tho!

  7. KISSMYAURA

    KISSMYAURA Well-Known Member

    Joined:
    Nov 26, 2012
    Posts:
    1,401
    Likes Received:
    971
    Location:
    KENT
    LOL no could I , I wish i could take the credit, I just fit the things!
    Not looking fwd to this one though, tell me again any last min tips for TD5?

  8. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    8,006
    Likes Received:
    2,034
    Location:
    South London/North Kent
    Fitting the A Frame? **** easy just make sure youve the correct spanner :oops::rolleyes:

    Hicap phill likes this.
  9. haza88

    haza88 Well-Known Member

    Joined:
    Nov 10, 2009
    Posts:
    490
    Likes Received:
    121
    Have you noticed anything driving it after the new bushes?

  10. KISSMYAURA

    KISSMYAURA Well-Known Member

    Joined:
    Nov 26, 2012
    Posts:
    1,401
    Likes Received:
    971
    Location:
    KENT
    yep,
    The cab now goes in the same direction as the chassis, instead of two playing cards with one rotated a bit,& when you pull away cab moves with the wheels instead of like a slingshot a second later. :p:p
    Seriously though just all round much firmer, tighter and now the only thing that rattles when you hit bumps is the coins in the ashtray etc.
    The ride is perfect, more like a car, less sloppy and vague.
    The supa-pro are spot on ride wise, perfect slightly to the firm side of centre really.
    AFRAME is final piece ein puzzle, then its onto Swivels then repair doors n paint, and then.....

    Well I am truely stuck nothing else to do, so i guess i will go LED hunting and start sodding about with lights again, rally want to flush fit some "gandalf staff type" tiny reverse lights.

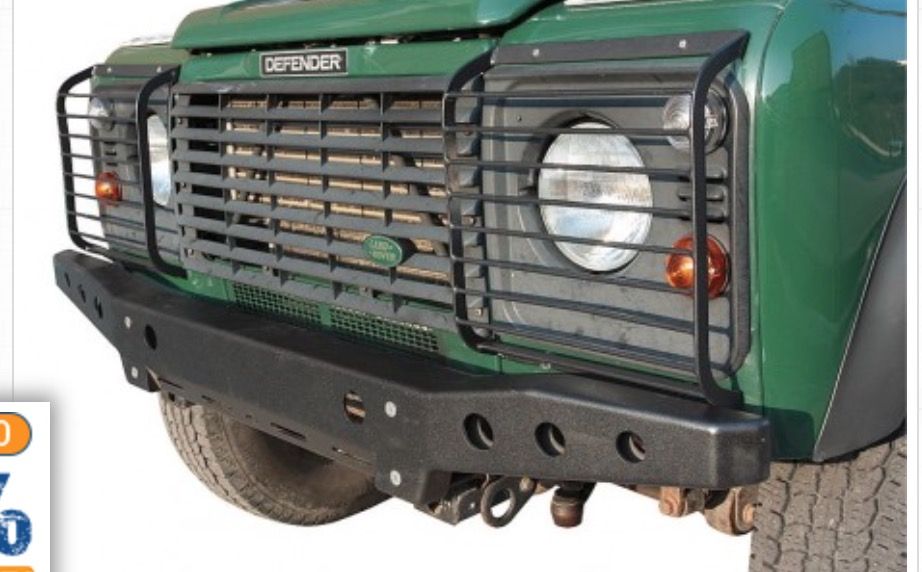

    Maybe @bankz5152 style bumpers I like what he has done with his front end, it looks like it wants to eat a Prius a day for breakfast, :Detc

    haza88 likes this.
  11. KISSMYAURA

    KISSMYAURA Well-Known Member

    Joined:
    Nov 26, 2012
    Posts:
    1,401
    Likes Received:
    971
    Location:
    KENT
    lol which is? imperial deep offset i think? obvious really when everything else on the thing is metric, how did i miss that?

    what size though?

  12. KISSMYAURA

    KISSMYAURA Well-Known Member

    Joined:
    Nov 26, 2012
    Posts:
    1,401
    Likes Received:
    971
    Location:
    KENT
    Primer............ Corroless Rust Inhibitor
    Paint.............. Corroless RF16 Glass reinforced chassis paint
    Colour............ RAL6009 (Closest match to LR Epsom Green)

  13. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    8,006
    Likes Received:
    2,034
    Location:
    South London/North Kent
    I think I ended up using a 33mm spanner after trying about 7 different ones :oops:

    I can check for you when im back from Croatia :cool:

    Well it has eaten a Golf and have a van a good lick :eek::p

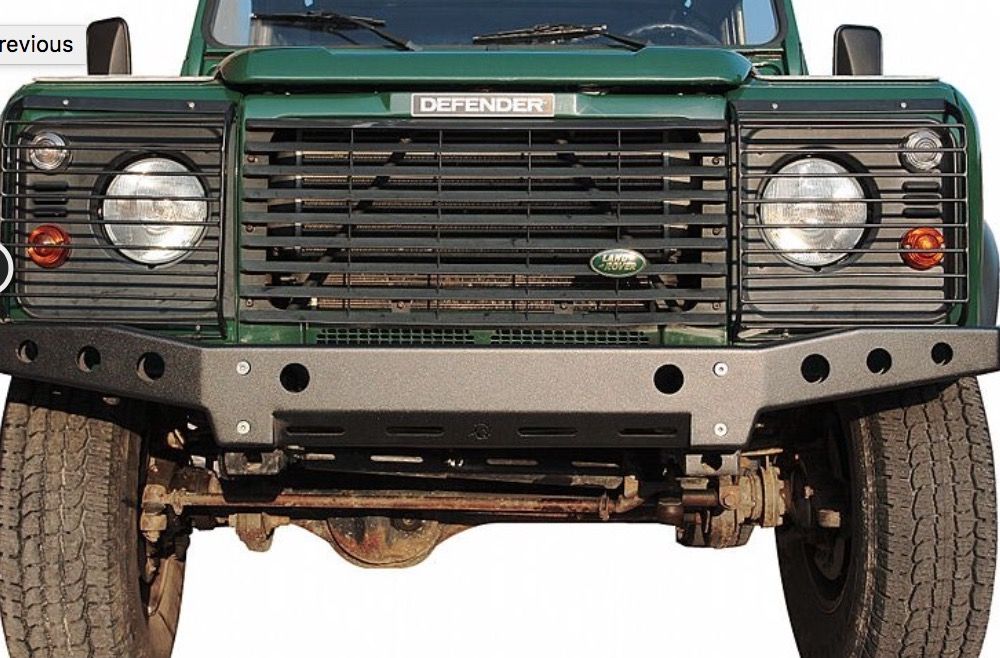

    Its a damn good bumper, very well made and very heavy duty. Though was on the spendier side being D44!

    As for lights Equipe do a very tidy reverse light mount that replaces the number plate light and adds a small top led. Might get one for when the canopy is fitted.

  14. KISSMYAURA

    KISSMYAURA Well-Known Member

    Joined:
    Nov 26, 2012
    Posts:
    1,401
    Likes Received:
    971
    Location:
    KENT
    Yea, i do like the D44 but its pricey etc, i dont tend to do as much 'tunnelling' as you though.;)

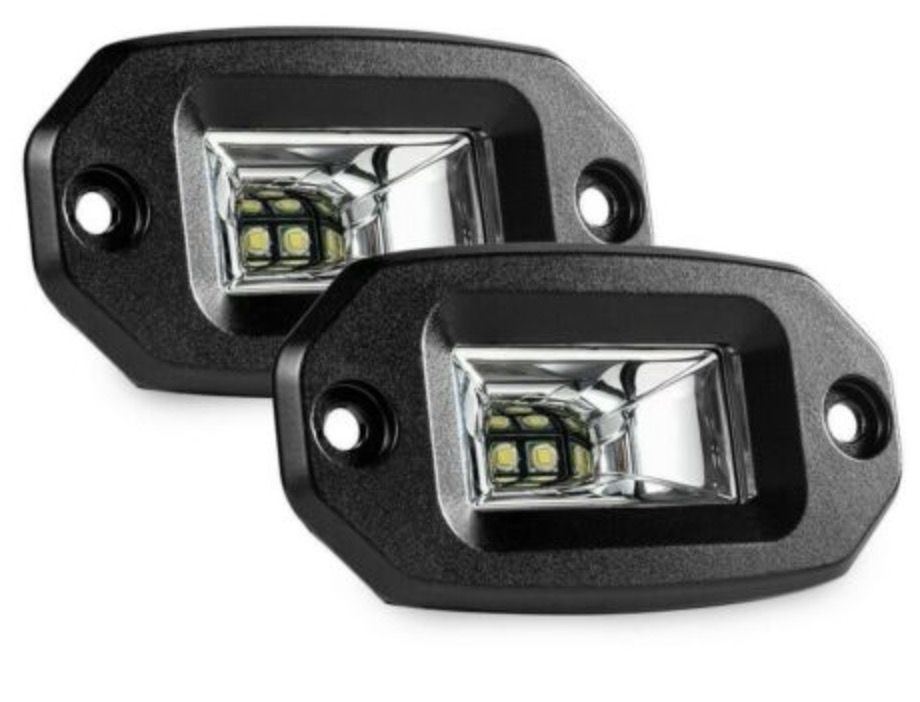

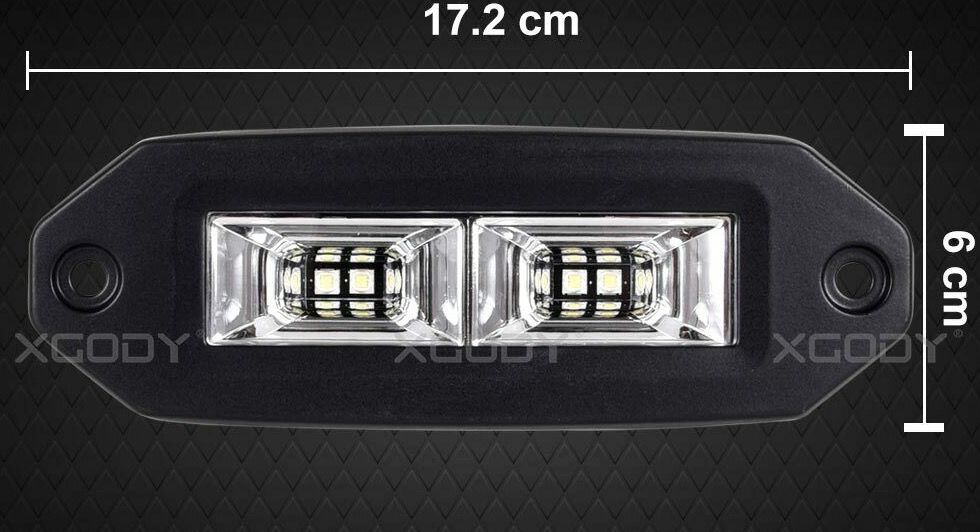

    I had a look at Equipe, they seem to do just the standard ebay Chinese led stuff, nice to see they don't bump up the price though, but I thinking about this for bumper and flush mount reverse etc


    Attached Files:

  15. KISSMYAURA

    KISSMYAURA Well-Known Member

    Joined:
    Nov 26, 2012
    Posts:
    1,401
    Likes Received:
    971
    Location:
    KENT

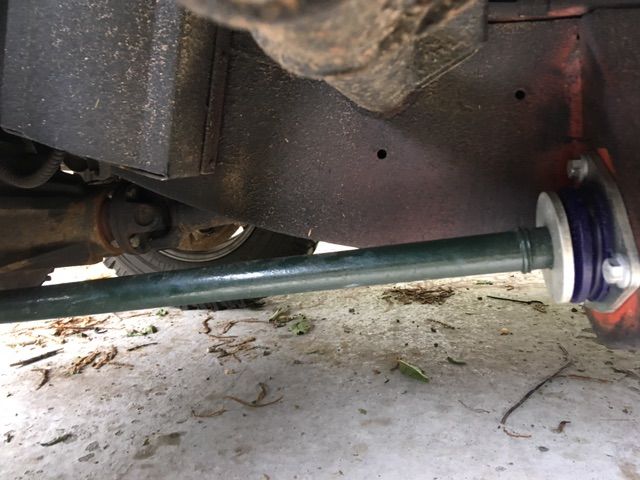

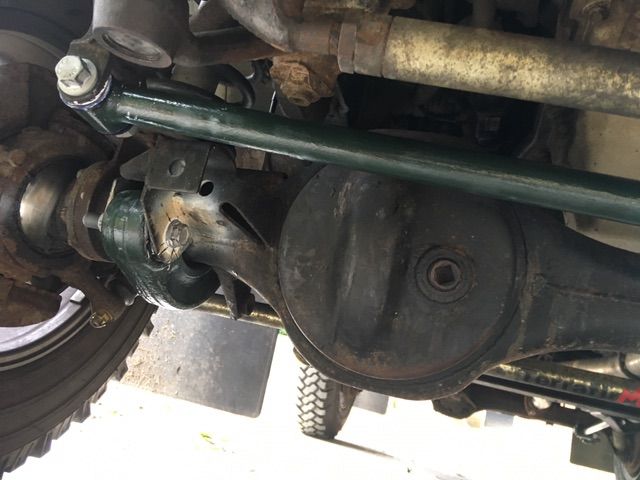

    New bolts swapped and panhard in. Ceramic Anti Fret gets everywhere! The ride now is weird, i have never driven a brand new Def, ( & I dont mean a pooomer) very solid!

    IMG_8456.JPG IMG_8459.JPG

    Last edited: Aug 11, 2019
    Dippypud, haza88 and Hicap phill like this.
  16. resto_d1

    resto_d1 Well-Known Member

    Joined:
    Apr 30, 2018
    Posts:
    1,771
    Likes Received:
    1,018
    Location:
    Wiltshire
    Laaaavly.

    KISSMYAURA likes this.
  17. KISSMYAURA

    KISSMYAURA Well-Known Member

    Joined:
    Nov 26, 2012
    Posts:
    1,401
    Likes Received:
    971
    Location:
    KENT

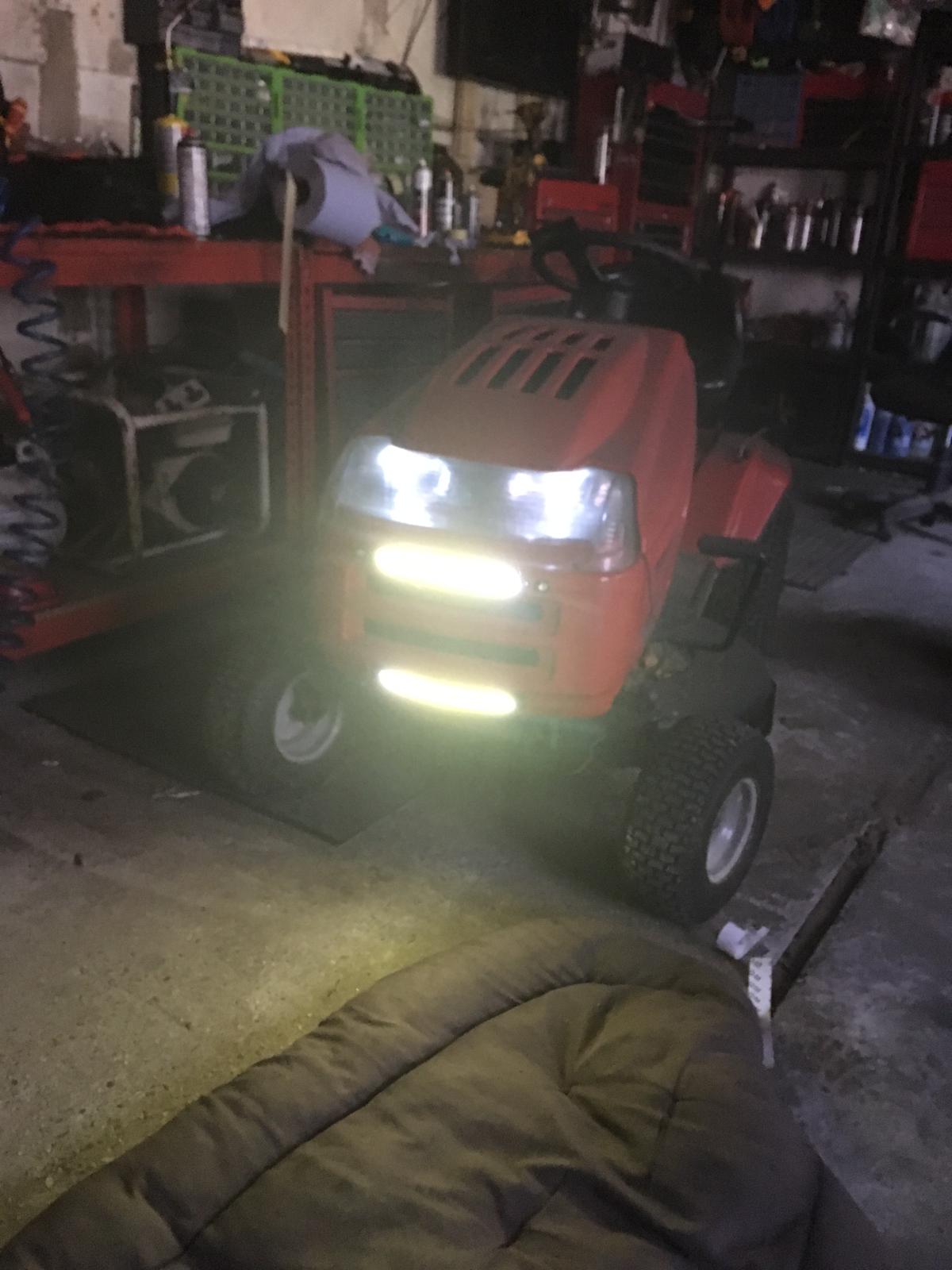

    Cant help it, they were just there not being used so...........its an led illness........

    WhatsApp Image 2019-08-18 at 12.24.40.jpeg

  18. KISSMYAURA

    KISSMYAURA Well-Known Member

    Joined:
    Nov 26, 2012
    Posts:
    1,401
    Likes Received:
    971
    Location:
    KENT

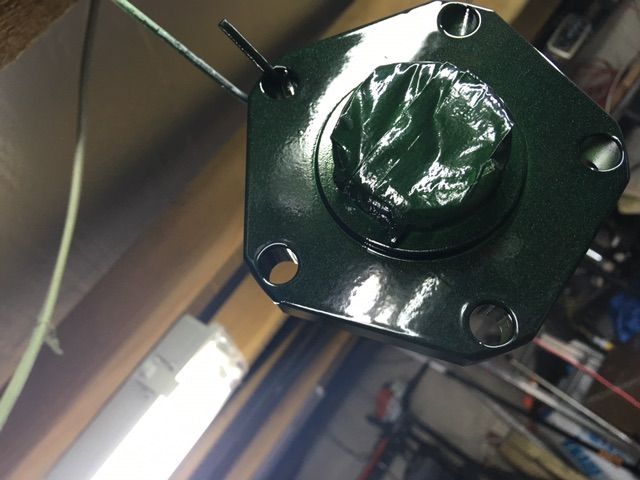

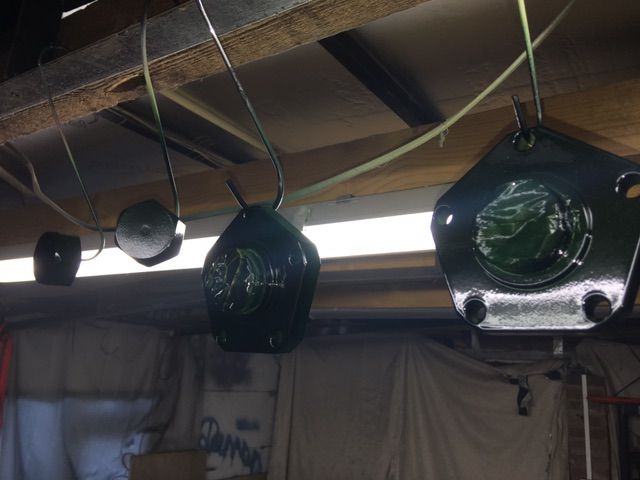

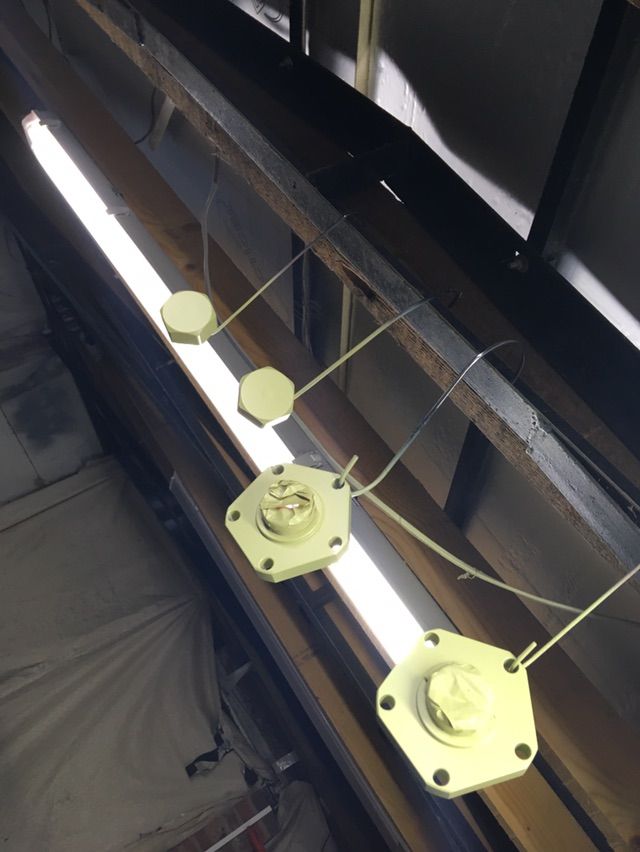

    Just an hex perry ment,
    The HD flanges are allegedly zinc coated, really? they have been in a room where someone once said the word zinc maybe just maybe....
    Any hooo I gots to finking, buzz wheeled em, 3 coats of my favourite primer and rub back and 3 x LR epsom green metallic No lacquer as yet ..
    IMG_8558.JPG IMG_8559.JPG View attachment 187807 IMG_8561.JPG

    dieseldog69 and Dippypud like this.
  19. KISSMYAURA

    KISSMYAURA Well-Known Member

    Joined:
    Nov 26, 2012
    Posts:
    1,401
    Likes Received:
    971
    Location:
    KENT

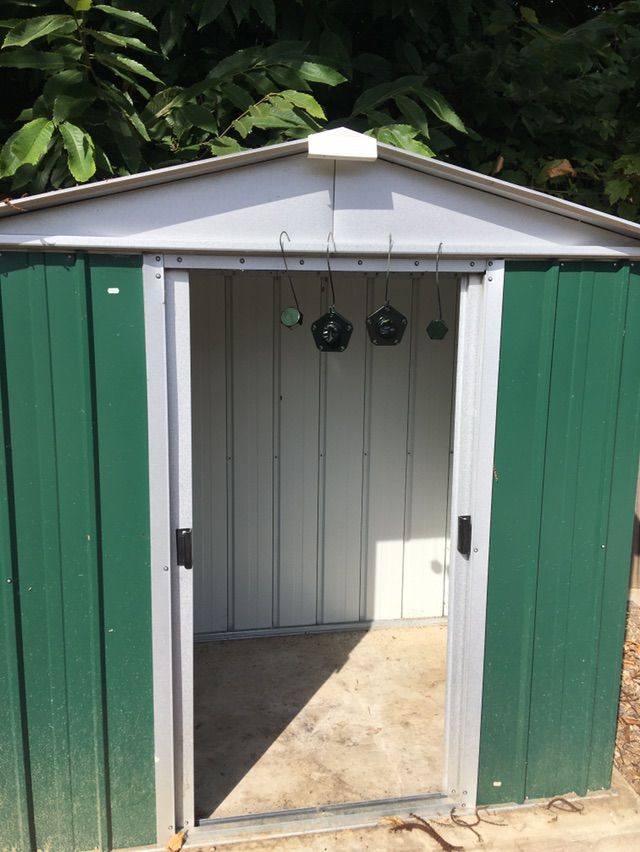

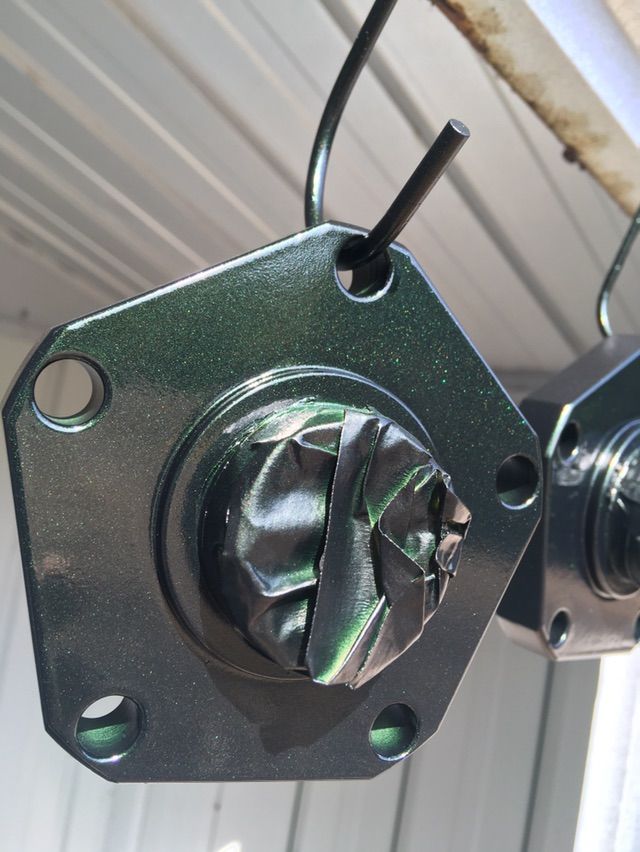

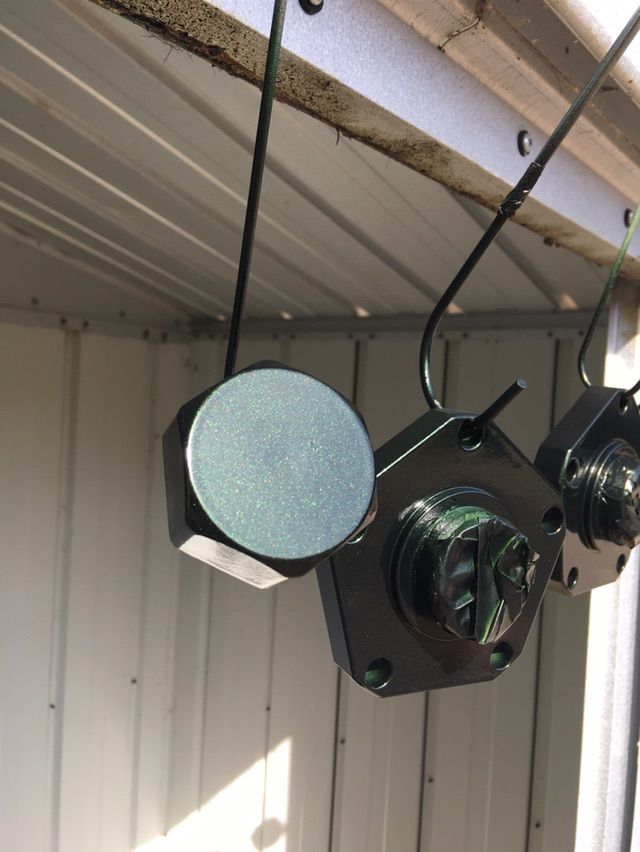

    This is my high spec professional spray booth and paint bake oven, looks surprising like a tin shed I grant you...:cool: Final bake the inside for Lacquer


    IMG_8564.JPG IMG_8568.JPG IMG_8569.JPG

    haza88 likes this.
  20. KISSMYAURA

    KISSMYAURA Well-Known Member

    Joined:
    Nov 26, 2012
    Posts:
    1,401
    Likes Received:
    971
    Location:
    KENT

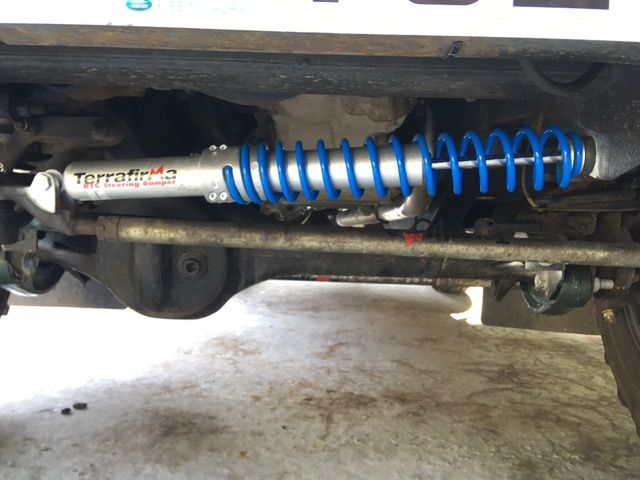

    Happy-Shopper-Firma RTC Damper fitted today, if it likey i will go OME once i change the steering drop arm etc.

    SkillzTom and dieseldog69 like this.
