TD5 90 Project

Discussion in 'Members Vehicles/Projects' started by KISSMYAURA, Jun 9, 2016.

< Previous Thread | Next Thread >
  1. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    8,063
    Likes Received:
    2,086
    Location:
    South London/North Kent
    What size are the bolts? Im going to order some!

    Lovely work.

  2. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    8,482
    Likes Received:
    6,130
    Location:
    Back in the UK, Sunny Hampshire.
    From memory they are M8 thread.

  3. KISSMYAURA

    KISSMYAURA Well-Known Member

    Joined:
    Nov 26, 2012
    Posts:
    1,404
    Likes Received:
    972
    Location:
    KENT
    M10x45mm


    Falcon Workshop Supplies Ltd (aka massiveattack007 on the bay)
    Unit 2, JGB Investment Park
    Stephens Way
    Wigan
    Greater Manchester
    WN3 6PH

    Just in case anyone is interested: (most stainless steel fixings for defenders or exhausts are A2 and only if your lucky! If its A4 it will have A4 stamped on it somewhere.........

    The two most commonly produced grades of stainless steel are 304 (known as 'A2') and 316 (known as A4). Both of these grades will offer excellent corrosion resistance, cleanability, and the ability to handle extremely low (cryogenic) and high temperatures.

    Grade 316 is also known as marine grade stainless steel due to its increased resistance to chloride corrosion compared to type 304.

    The basic chemical compositions of these two grades are as below:

    Grade 304 stainless steel (A2): chromium 18% + nickel 8% (known as '18/8')
    Grade 316 stainless steel (A4): chromium 18% + nickel 8% + molybdenum 3% (known as '18/8/3')
    Stainless steel can also be classified by their crystalline structure, which is determined by their chemical composition. The two grades mentioned above are Austenitic stainless steels. Other types include Ferritic, Martensitic, and Duplex.

    Last edited: Jun 30, 2019
  4. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    8,482
    Likes Received:
    6,130
    Location:
    Back in the UK, Sunny Hampshire.
    I was out by a country mile then, was sure they were M8 :(

    Hicap phill and KISSMYAURA like this.
  5. KISSMYAURA

    KISSMYAURA Well-Known Member

    Joined:
    Nov 26, 2012
    Posts:
    1,404
    Likes Received:
    972
    Location:
    KENT

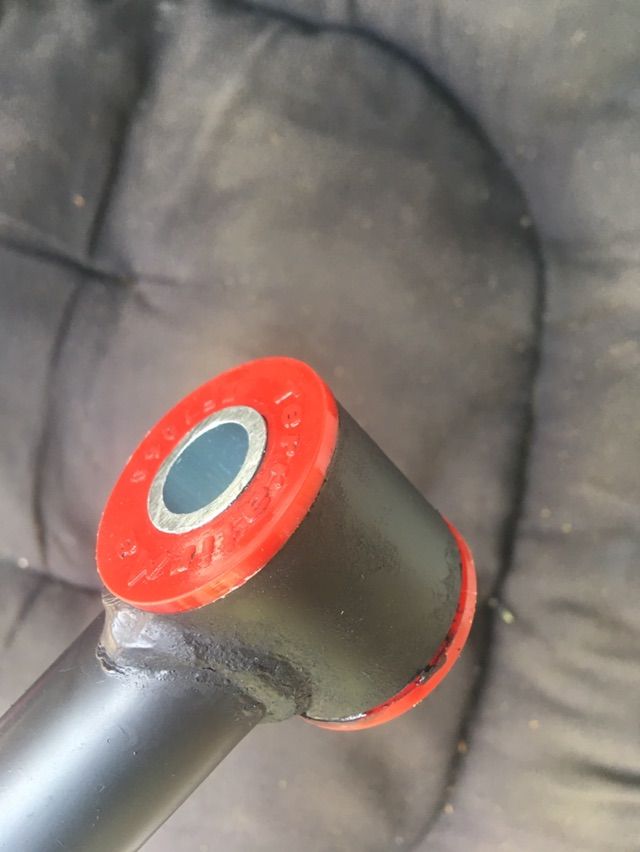

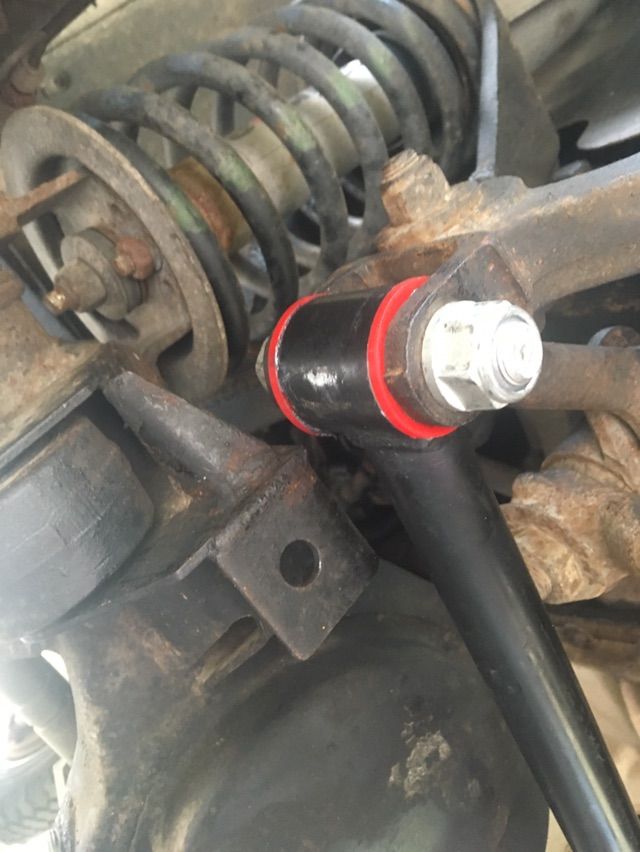

    Changed Panhard rod to poly.

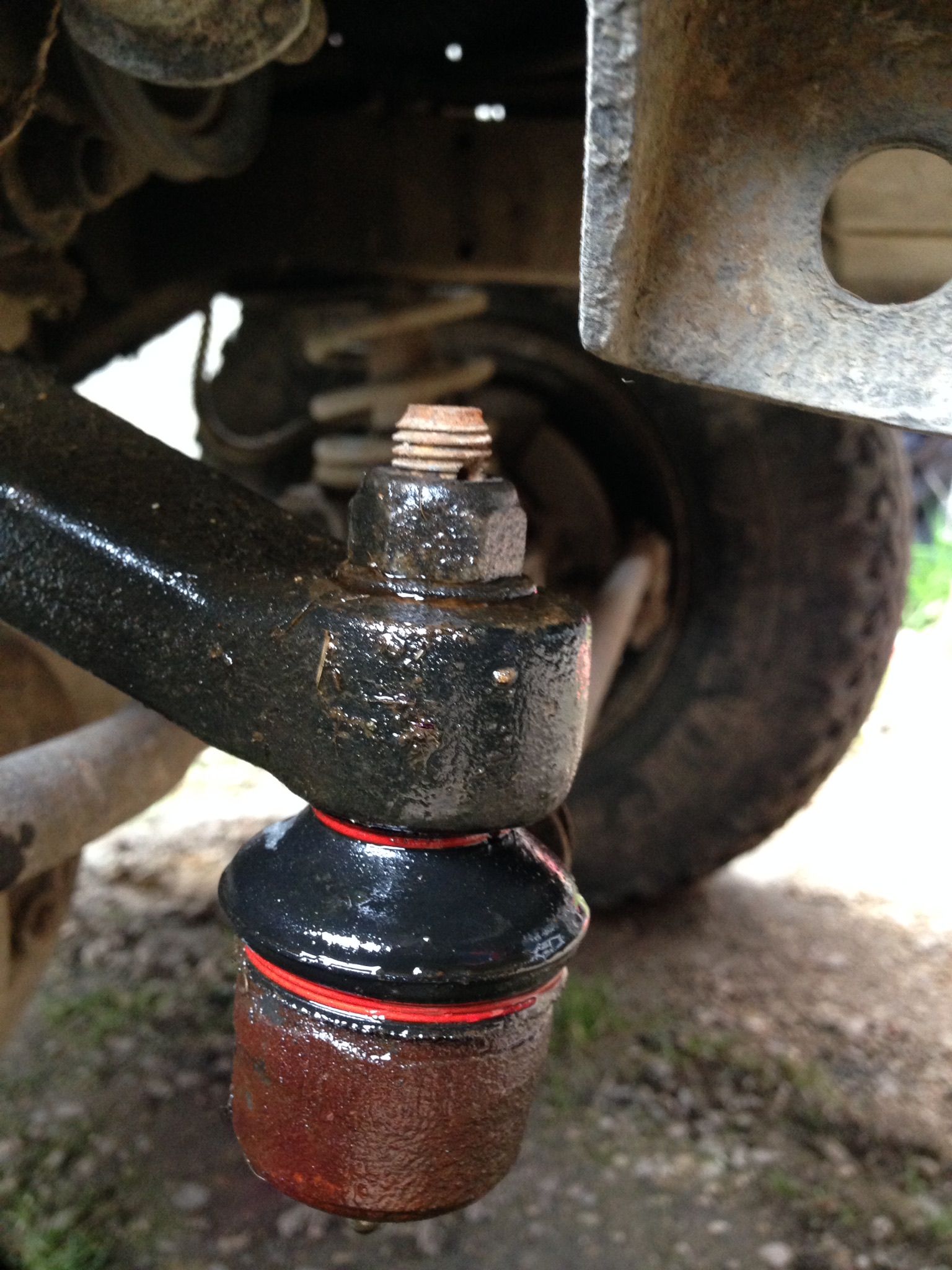

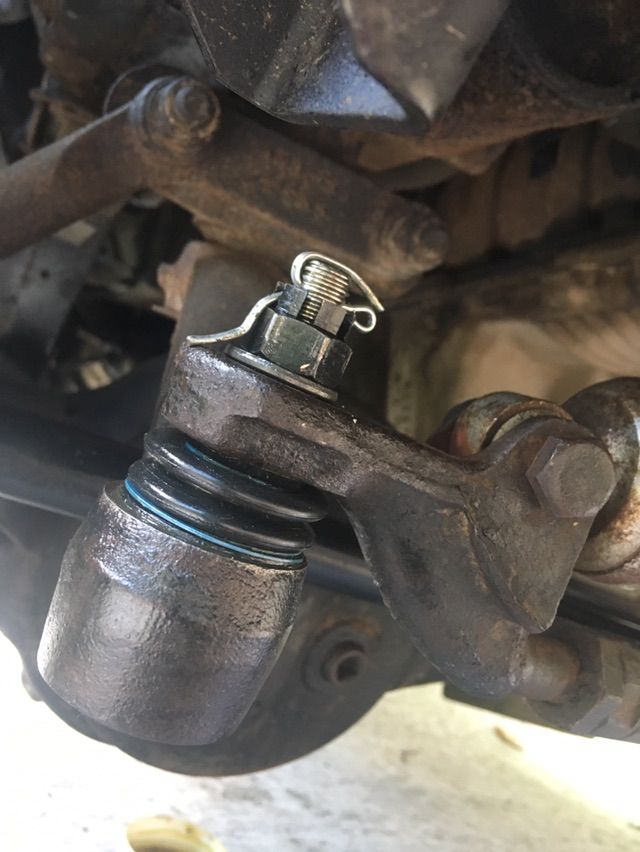

    :mad: Had to change the steering ball joint again this type to a Borg & Beck,

    I am so done with Bearmach cheap crap.....

    I need to re-align


    IMG_8010.JPG IMG_8011.JPG IMG_8012.JPG

    Last edited: Jul 14, 2019
  6. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    8,063
    Likes Received:
    2,086
    Location:
    South London/North Kent
    Exactly why I just remove it and fit the disco conversion. Pricey yes but only have to do the job once!

    Hicap phill likes this.
  7. KISSMYAURA

    KISSMYAURA Well-Known Member

    Joined:
    Nov 26, 2012
    Posts:
    1,404
    Likes Received:
    972
    Location:
    KENT
    explain?
    You mean like the sumo straight arm thing?

    What bits do i need?

  8. Hicap phill

    Hicap phill Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    5,625
    Likes Received:
    5,660
    Location:
    Wiltshire
    1 disco arm & extended ball joint to suit.
    Some change the steering tube as they think it’s too short.
    Unsure if a disco steering tube is longer?


    I would say @KISSMYAURA turn the panard bolt the other way to protect the threads off roading ;)

    KISSMYAURA likes this.
  9. KISSMYAURA

    KISSMYAURA Well-Known Member

    Joined:
    Nov 26, 2012
    Posts:
    1,404
    Likes Received:
    972
    Location:
    KENT
    1 disco arm & extended ball joint to suit.


    yep seen this, but as i understand getting the drop arm off is a royal PIA?
    Already have the HD arms, and would much happier with what you suggest, just think i may have to remove steering box to get the arm off!

  10. Hicap phill

    Hicap phill Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    5,625
    Likes Received:
    5,660
    Location:
    Wiltshire
    Undo the big nut till it’s nearly off & wiggle the steering with engine running. (Depends on if it’s tight on taper it may come off)
    Or puller on the arm
    Think you can leave the box on.

  11. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    8,063
    Likes Received:
    2,086
    Location:
    South London/North Kent

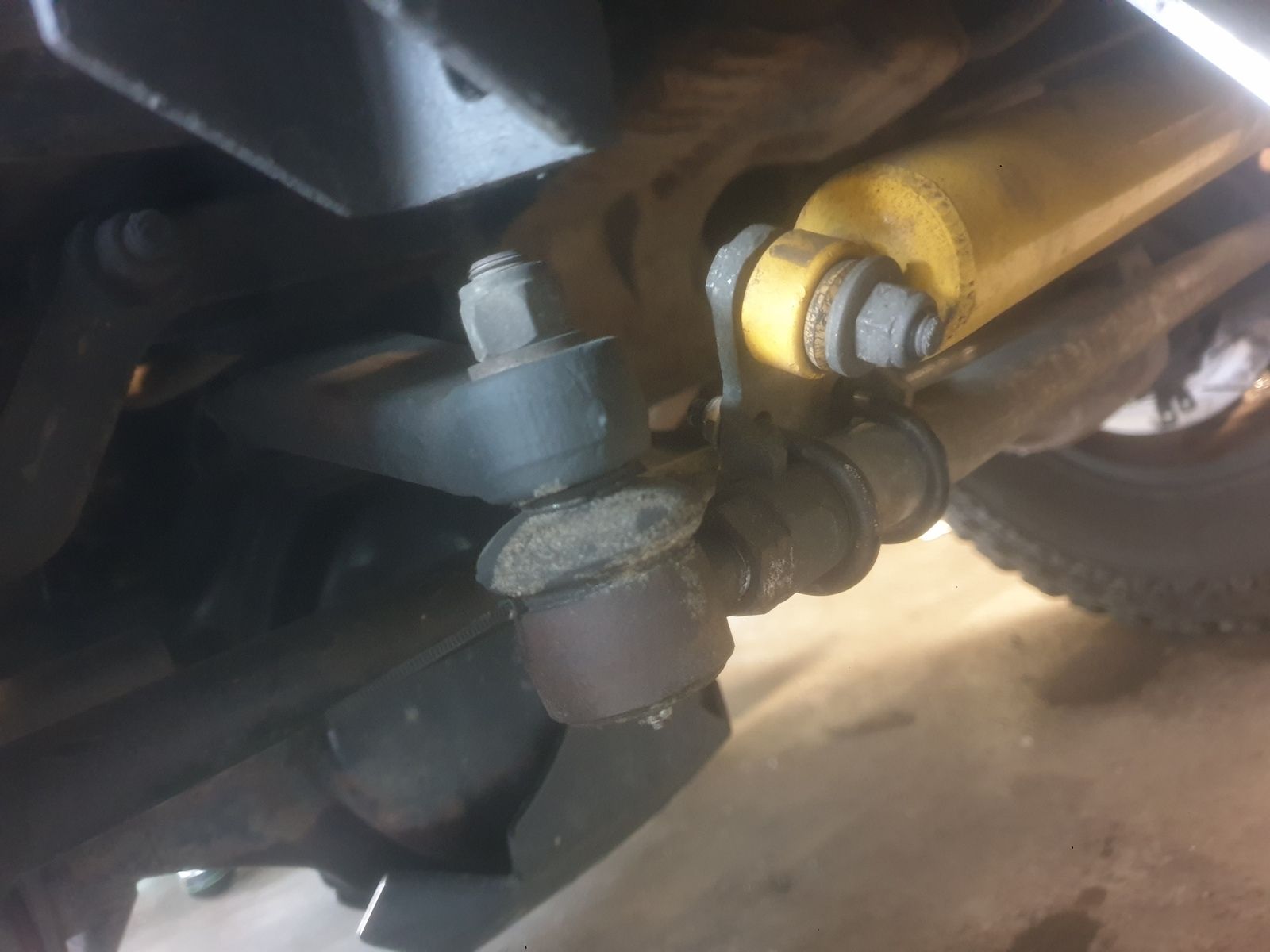

    Like so 20190714_132249.jpg

    Theres a full kit available from Gywn Lewis bout £150 i believe. Includes a new HD sumo bar.

    Also results in tighter more "refined" steering. Much less wallowy.

    As for getting the arm off ive always gone down the route of CAREFULLY cutting a 1mm slot in the side to release the pressure then smacking it off.

    SkillzTom and Hicap phill like this.
  12. Hicap phill

    Hicap phill Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    5,625
    Likes Received:
    5,660
    Location:
    Wiltshire
    @KISSMYAURA i would go with @bankz5152 idea... forgot to say I don’t have a steering damper on mine :oops:

    KISSMYAURA and bankz5152 like this.
  13. KISSMYAURA

    KISSMYAURA Well-Known Member

    Joined:
    Nov 26, 2012
    Posts:
    1,404
    Likes Received:
    972
    Location:
    KENT
    can get the arm cheap enough, just need the brackety fing for the damper! cheers chaps.
    PS me n grinders n carefull tend not to go hand in hand !

  14. KISSMYAURA

    KISSMYAURA Well-Known Member

    Joined:
    Nov 26, 2012
    Posts:
    1,404
    Likes Received:
    972
    Location:
    KENT

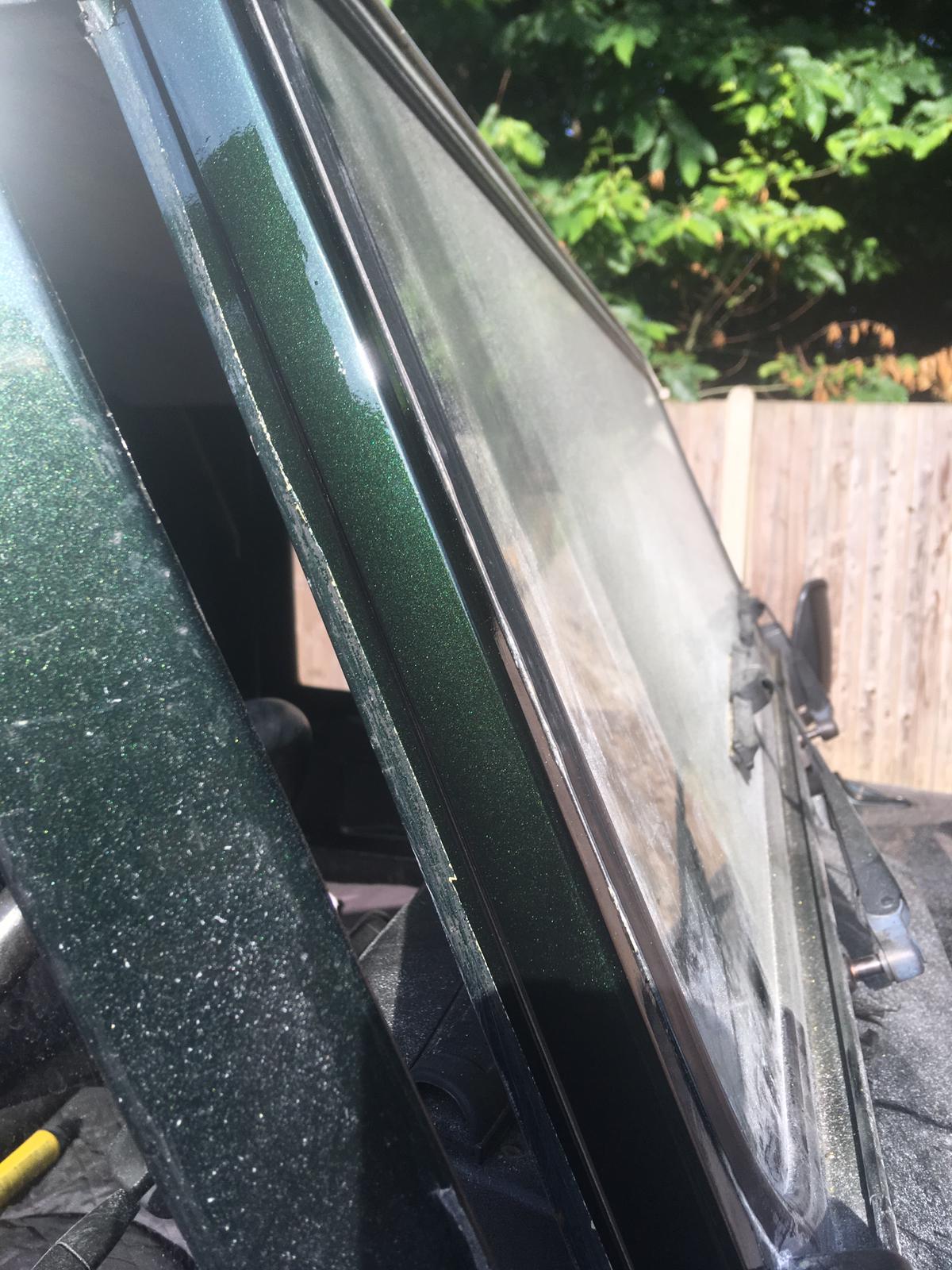

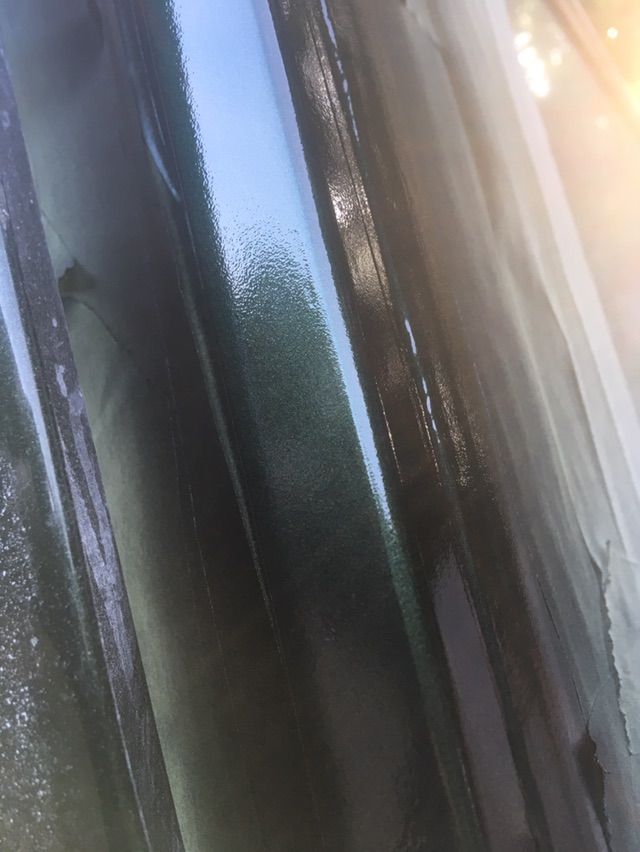

    Finally go around to jigging on the horror show that was previous keepers attempts to bolt a snorkel to screen frame, 8 holes I kid you not, and one rivntut!

    LIDL doing 400ml spray 2 for £4.00 primer, matt black and re rust stuff, the primer is superb, just dropped £24 on 12 cans...( my lot have a lot of body work to do this year! the primer is high build and is a yellow/green colour. Superb stuff used it before on 2 pac ;)

    Only a temp fix fitting new screen surround soon, hence isoposn p38 and halfords LR epsom green, will lacquer tomorrow. and Yes I know I mask like i am in a war zone......

    IMG_8089.JPG IMG_8090.JPG

    haza88 and bankz5152 like this.
  15. KISSMYAURA

    KISSMYAURA Well-Known Member

    Joined:
    Nov 26, 2012
    Posts:
    1,404
    Likes Received:
    972
    Location:
    KENT
    with laquer very happy with it,was just a chuck on test, etc got a wing and two doors to do properly now!


    bankz5152, SkillzTom and haza88 like this.
  16. haza88

    haza88 Well-Known Member

    Joined:
    Nov 10, 2009
    Posts:
    509
    Likes Received:
    129
    Looks pretty good to me mate

    KISSMYAURA likes this.
  17. KISSMYAURA

    KISSMYAURA Well-Known Member

    Joined:
    Nov 26, 2012
    Posts:
    1,404
    Likes Received:
    972
    Location:
    KENT
    thanks mate hate bodywork n painting!

    Kev12 and haza88 like this.
  18. KISSMYAURA

    KISSMYAURA Well-Known Member

    Joined:
    Nov 26, 2012
    Posts:
    1,404
    Likes Received:
    972
    Location:
    KENT

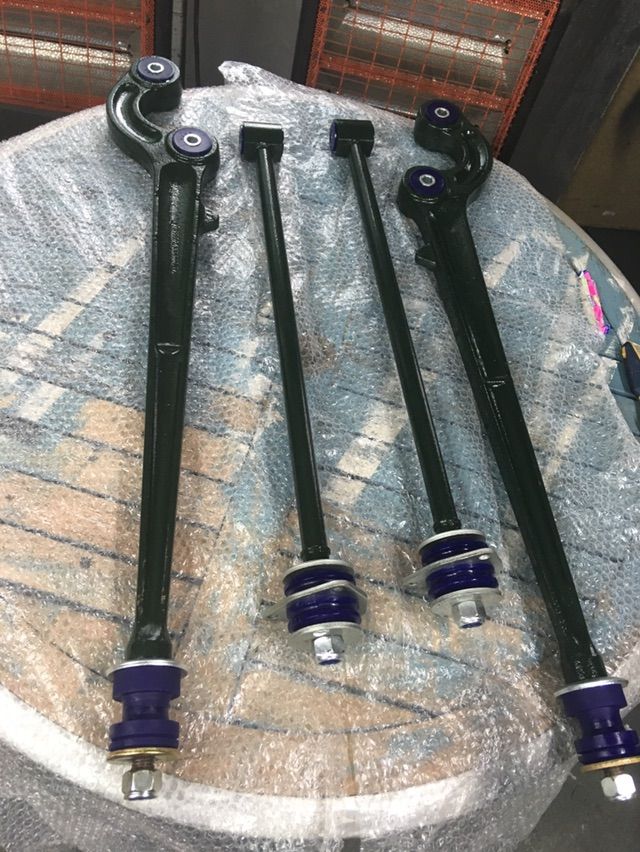

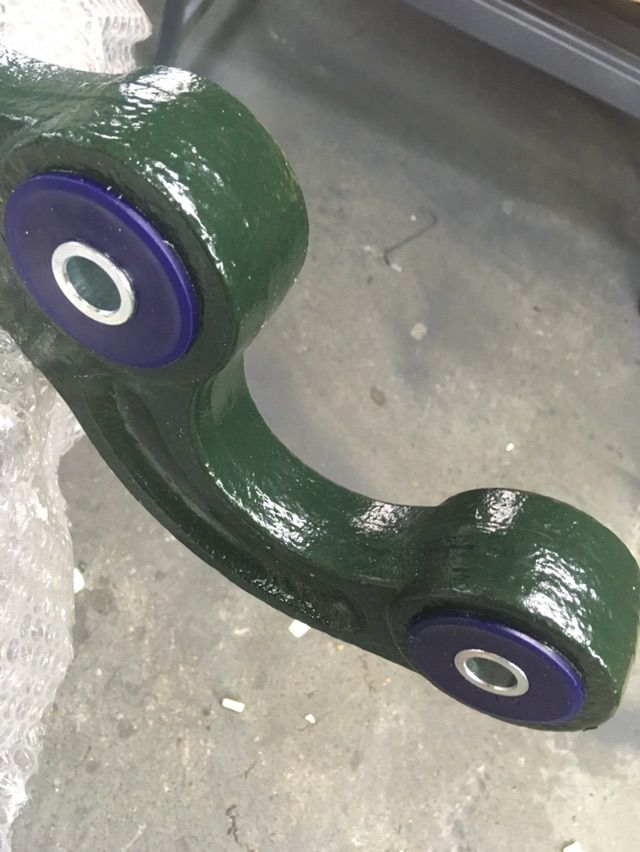

    Corroless + SupaPro = Nice ;) Watch this space for swearing and spanner throwing.....

    IMG_8228.JPG IMG_8235.JPG

    Last edited: Jul 28, 2019
    SkillzTom, haza88 and Hicap phill like this.
  19. KISSMYAURA

    KISSMYAURA Well-Known Member

    Joined:
    Nov 26, 2012
    Posts:
    1,404
    Likes Received:
    972
    Location:
    KENT

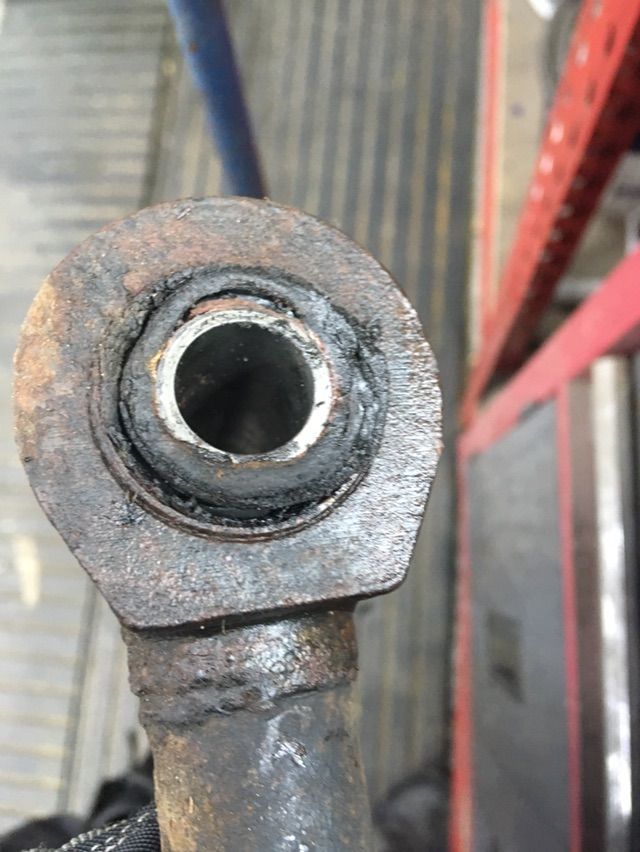

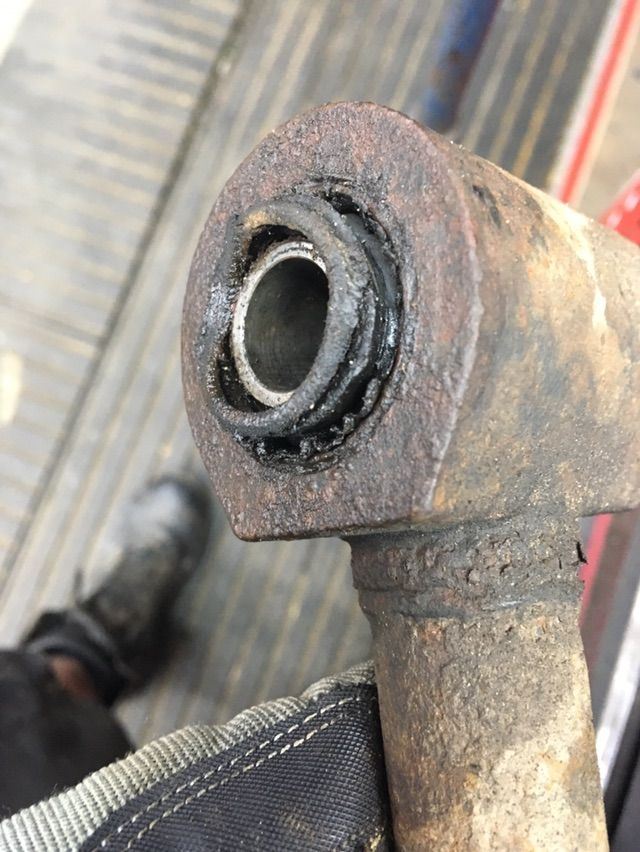

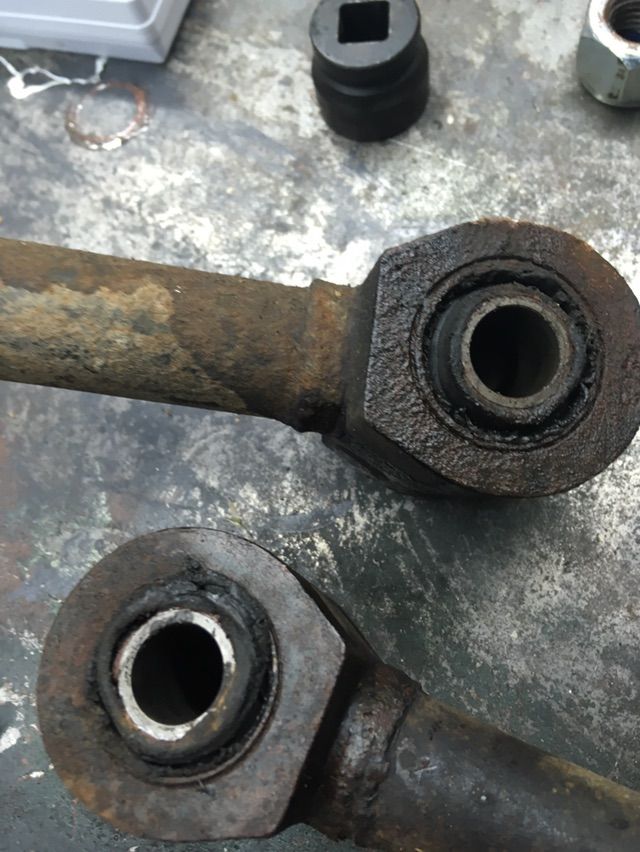

    As suspected Trailing arms bushes are well and truly spanked....
    Have to say, been a fan of Plusgas for 20 years, it has eaten through many triumphs and a few Lancia's ( dont ask ), used some XCP ONE, manual squirt bottle on these bolts.
    Gave then a wire brushing last night and a good squirting. Then again this morning early and set to around 11am. I had my slitting disc on the grinder and was fully prepared for cutting them off, thought I would give them a turn just for fun, i have a 1m breaker then both turned with the smallest of grunts. The grinder went back in the drawer for another day.
    Bolts were in a bit of a state and as i suspected the last few turns were the hardest due to the thread pretty much being re cut buy the bolt on the vinegar strokes, However very impressed with XCP one.

    I use ceramic anti fret paste and spray when re fitting, thats the white stuff you can see on the new ones.


    IMG_8298.JPG IMG_8300.JPG IMG_8301.JPG

    Last edited: Aug 2, 2019
    bankz5152 likes this.
  20. KISSMYAURA

    KISSMYAURA Well-Known Member

    Joined:
    Nov 26, 2012
    Posts:
    1,404
    Likes Received:
    972
    Location:
    KENT

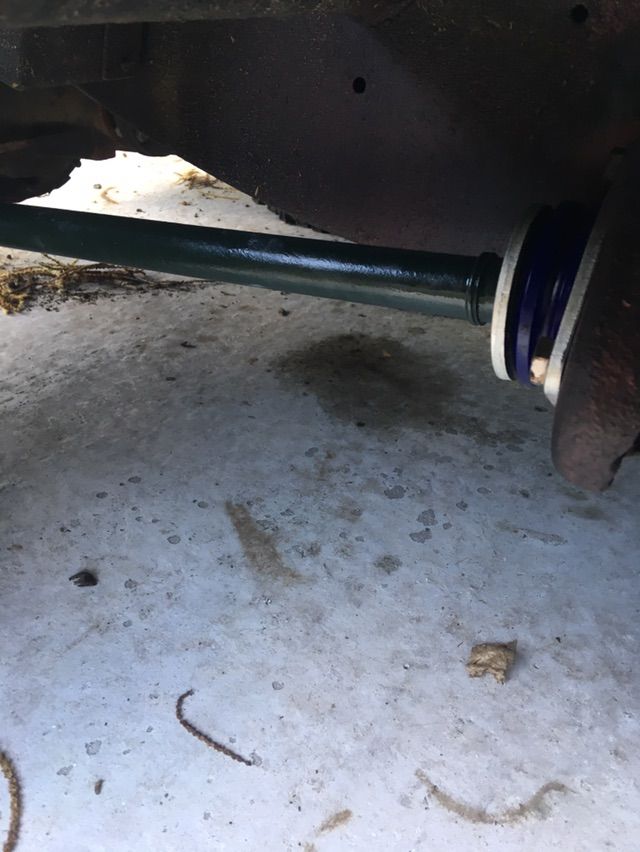

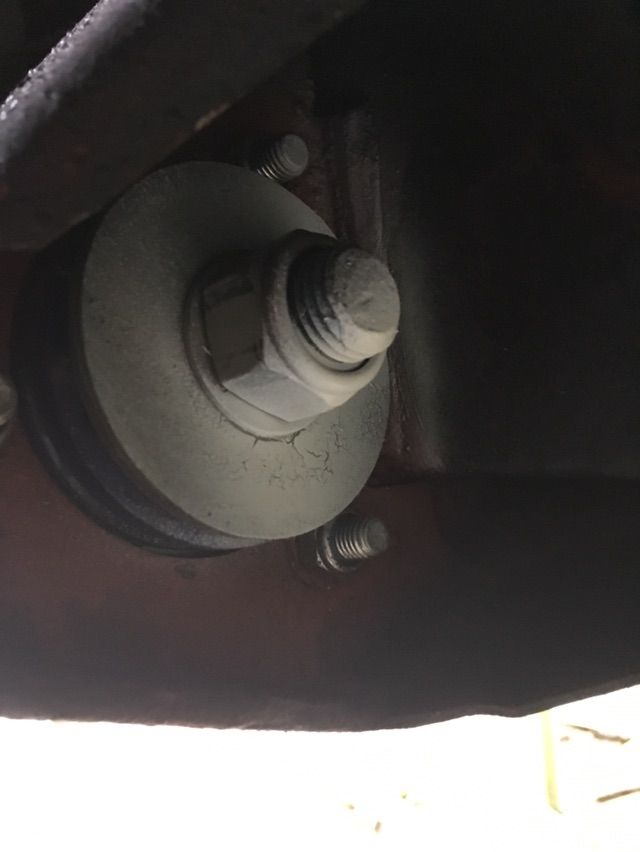

    IMG_8308.JPG IMG_8303.JPG .

    Last edited: Aug 2, 2019
    bankz5152, SkillzTom and Hicap phill like this.
