Freelander 1 Tailgate Window wont close

FeistyFreelander

Member

Posts

49

Location

Windsor

• Jul 8, 2021

• #1

Hi all

OK so 2004 Freelander 5Dr HSE TD4

If i open tailgate window drops as normal but doesn't close again

TO close i have to open fully, slam boot closed and then use window switch to close....but if i slip off button i have to repeat process...plus door open light stays on permanently and interior lights stay on

Is that the regulator or lock or what?

Want to order bits but not sure what lol

Cheers

Peter



Nodge68

Well-Known Member

Posts

32,954

Location

Cornwall

• Jul 8, 2021

• #2

It sounds like door closed sensor isn't working, which is why the window isn't going up.



FeistyFreelander

Member

Posts

49

Location

Windsor

• Jul 8, 2021

• #3

Nodge68 said:

It sounds like door closed sensor isn't working, which is why the window isn't going up.

Click to expand...

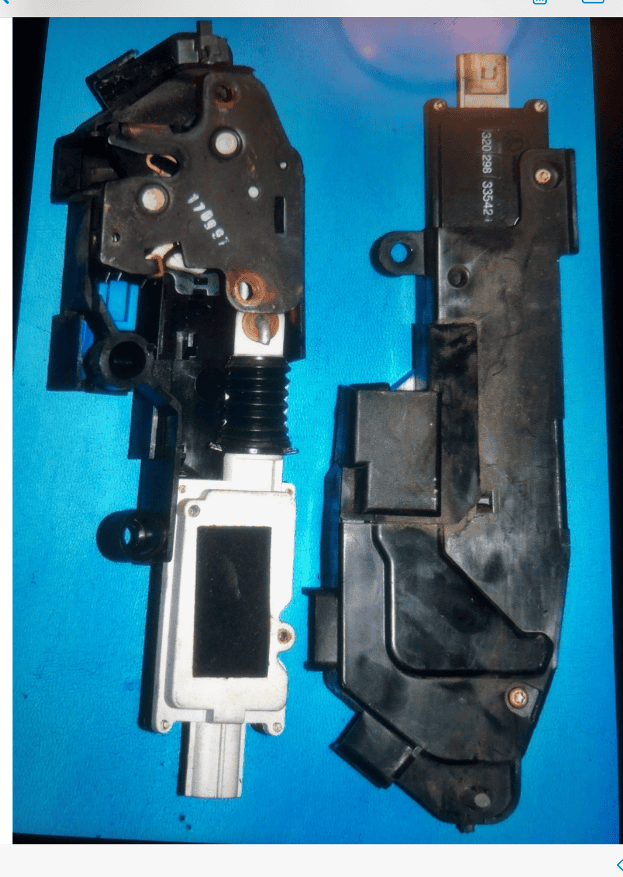

Now is that the part that's attached to the lock:



Nodge68

Well-Known Member

Posts

32,954

Location

Cornwall

• Jul 8, 2021

• #4

FeistyFreelander said:

Now is that the part that's attached to the lock:

View attachment 242270

Click to expand...

The part that sticks out is the actuator.
The door sensor is integrated into the latch assembly, but from memory it is just visible, it's blue in colour, iirc.



FeistyFreelander

Member

Posts

49

Location

Windsor

• Jul 8, 2021

• #5

Nodge68 said:

The part that sticks out is the actuator.
The door sensor is integrated into the latch assembly, but from memory it is just visible, it's blue in colour, iirc.

Click to expand...

Cool, many thanks, have ordered the entire latch assembly, similar to the picture so hopefully will sort the issues
