Stubborn Driveshaft nut....aaaarghh!

Northern Irelander · Oct 4, 2010

Trying to remove two driveshaft nuts which are welded on,

the other two came off by unstaking the flange then sheering the flange off with small bolster. (small groove was made with dremel bit, flange tore off like cheese

)

These nuts just arent budging, managed to break a 1/2 square bit on the extension bar due to the leverage

Think I'll dremel through the nut and try and split it

Any tricks to removing a seized driveshaft nut with conventional tools are welcome? (note no airgun)

Cheers

Pikey · Oct 4, 2010

Have you tried unbending the tabs on the locking washer

Northern Irelander · Oct 4, 2010

redhand said:
Have you tried unbending the tabs on the locking washer

The flanges are staked into the groove on the shaft (standard Rover setup)

they were all unstaked using a wedge/drift, then soaked in Holts anti-seize for a day or two....still no movement

after this the flange was torn off completely...........only then, did the penetrating fluid start to work its way round the threads. passenger side is done, drivers side which has the most corrosion.

piggysteve · Oct 4, 2010

Being a farmer my usual tools of choice for stubborn nuts involve oxy acetelene and a big pair of stilsons

Northern Irelander · Oct 4, 2010

piggysteve said:
Being a farmer my usual tools of choise for stubborn nus involve oxy acetelene and a big pair of stilsons

Handy if you have gas bottles and gear, Not going near it with naked flame until petrol is drained out of her

jaycraft21 · Oct 4, 2010

Nut splitter from Halfords or local auto factors, bough a set a few years ago and they've got me outta the dodoos a few times.

Other thing thats worked is securing a ring spanner or socket with a power bar to the nut on the motor attaching a nice heavy rope and towing it with another motor.

Will eventually buy an air gun or battery impact driver.

oxides · Oct 4, 2010

Big stilson wrench and a length of scaff pole sounds good to me - if you can stop the other end rotating.

OldIrishWulf · Oct 4, 2010

jeezis... get a + cross shaped wheel brace and a short extender for a 3/4" socket set .
Then get a good 40 - 50mm tube 1m or a bit less , place the tube over the + wheel brace .

do i need to go on . I'm surprised to see you had started this thread NI . doh .

Northern Irelander · Oct 4, 2010

oxides said:
Big stilson wrench and a length of scaff pole sounds good to me - if you can stop the other end rotating.

Cant get clearance to get an open wrench on to it, nut is recessed. If I remove the wheel for access, I have little to stop the hub spinning, no gearbox or diff in place to lock it...............more awkward than anything

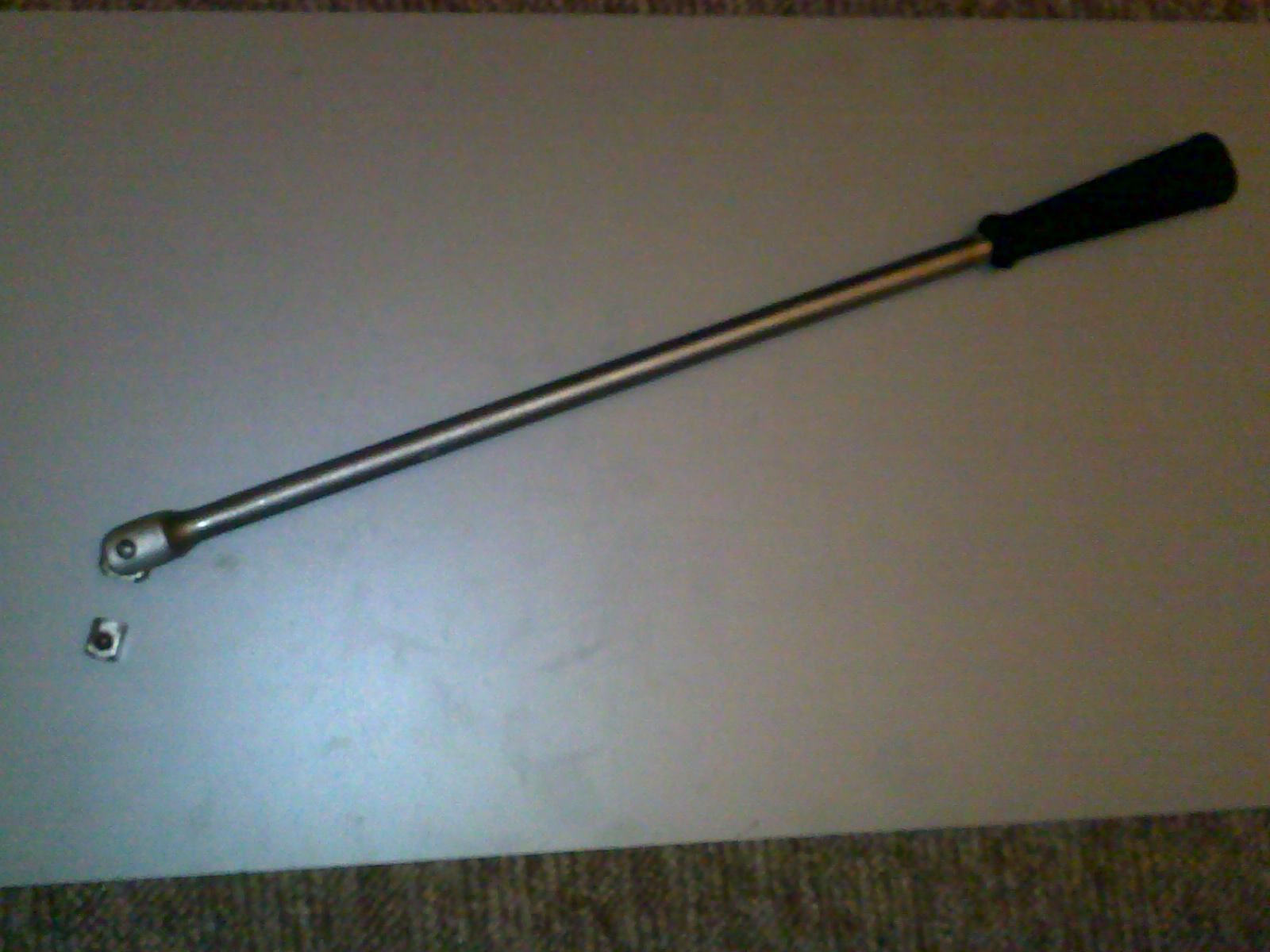

For leverage, had the handle from a 3ton jack on it (1metre)........worked for the first two, until the third broke the 1/2 square bit on the 42cm bar.

Had a crow bar wedged in the wheel to stop rotation.

All I can say is glad it was the bar not my knuckles, kinda liked that bar too, owned it for about 15years

Northern Irelander · Oct 4, 2010

OldIrishWulf said:
jeezis... get a + cross shaped wheel brace and a short extender for a 3/4" socket set .
Then get a good 40 - 50mm tube 1m or a bit less , place the tube over the + wheel brace .

do i need to go on . I'm surprised to see you had started this thread NI . doh .

I'm always up for brute force and ignorance, but this motor has been run without the centre caps on the wheels, I'm guessing the drivers side gets more salt spray from oncoming traffic with winter driving.......need I go on

busted 1/2 drive bit says it all, dremel is looking more and more likely.

freelance · Oct 5, 2010

need threequarter inch stuff with impact type socket but i think you will have more success with your dremel, it will save your driveshaft threads.

Northern Irelander · Oct 6, 2010

freelance said:
need threequarter inch stuff with impact type socket but i think you will have more success with your dremel, it will save your driveshaft threads.

Cheers, but TBH never had any issues with driveshaft nuts, 1/2" drive 32mm socket has always been adequate.

the nut is crap, too shallow, with over sized flange, what ever happened to good old castle nuts and split pins.

shadowster · Oct 7, 2010

Northern Irelander said:
I'm always up for brute force and ignorance, but this motor has been run without the centre caps on the wheels, I'm guessing the drivers side gets more salt spray from oncoming traffic with winter driving.......need I go on

busted 1/2 drive bit says it all, dremel is looking more and more likely.

go on go on go on

Northern Irelander · Oct 15, 2010

shadowster said:
go on go on go on

I did, and I got there many cups of tea later.

The remaining two nuts were drilled through just above the groove in the driveshaft, then split using a junior bolster.

Both came off without damaging the driveshaft threads
