Sport/Manual Help!!

Beating44Time · Aug 20, 2020

Hi folks,
Re '99 TD5 Auto...
I have both the manual and sports lights flashing on the dashboard when ignition in position 2.
Any idea why?
May or may not be related, but I have a loose cable/connector being the glove box... see attached pic. The connector is the lever type.
I've done a lot of work on the Disco and currently it won't start. I think the M and S lights could be the reason why...
Thanks in advance

Spong · Aug 20, 2020

Not familiar with that actual cable, but by the length of it I'd say it went to one of the boxes on the left - can't remember what's mounted on the passenger side footwell though... Try out various possible cable routes and see if there's anything within reach that has a spare connector! Is there a label on it?

sierrafery · Aug 20, 2020

I need to see the connector's face and what colour wires are going into it to be able to help but i doubt it has anything to do with your problem and the shortest route to find out is to read the fault code stored in the autobox ECU

Beating44Time · Aug 21, 2020

Spong said:
Not familiar with that actual cable, but by the length of it I'd say it went to one of the boxes on the left - can't remember what's mounted on the passenger side footwell though... Try out various possible cable routes and see if there's anything within reach that has a spare connector! Is there a label on it?

Hi, I can't see any obvious sockets for it, so I suspect it's for a component my model doesn't have e.g. air con...
Regards, Darren

Beating44Time · Aug 21, 2020

sierrafery said:
I need to see the connector's face and what colour wires are going into it to be able to help but i doubt it has anything to do with your problem and the shortest route to find out is to read the fault code stored in the autobox ECU

Hi,

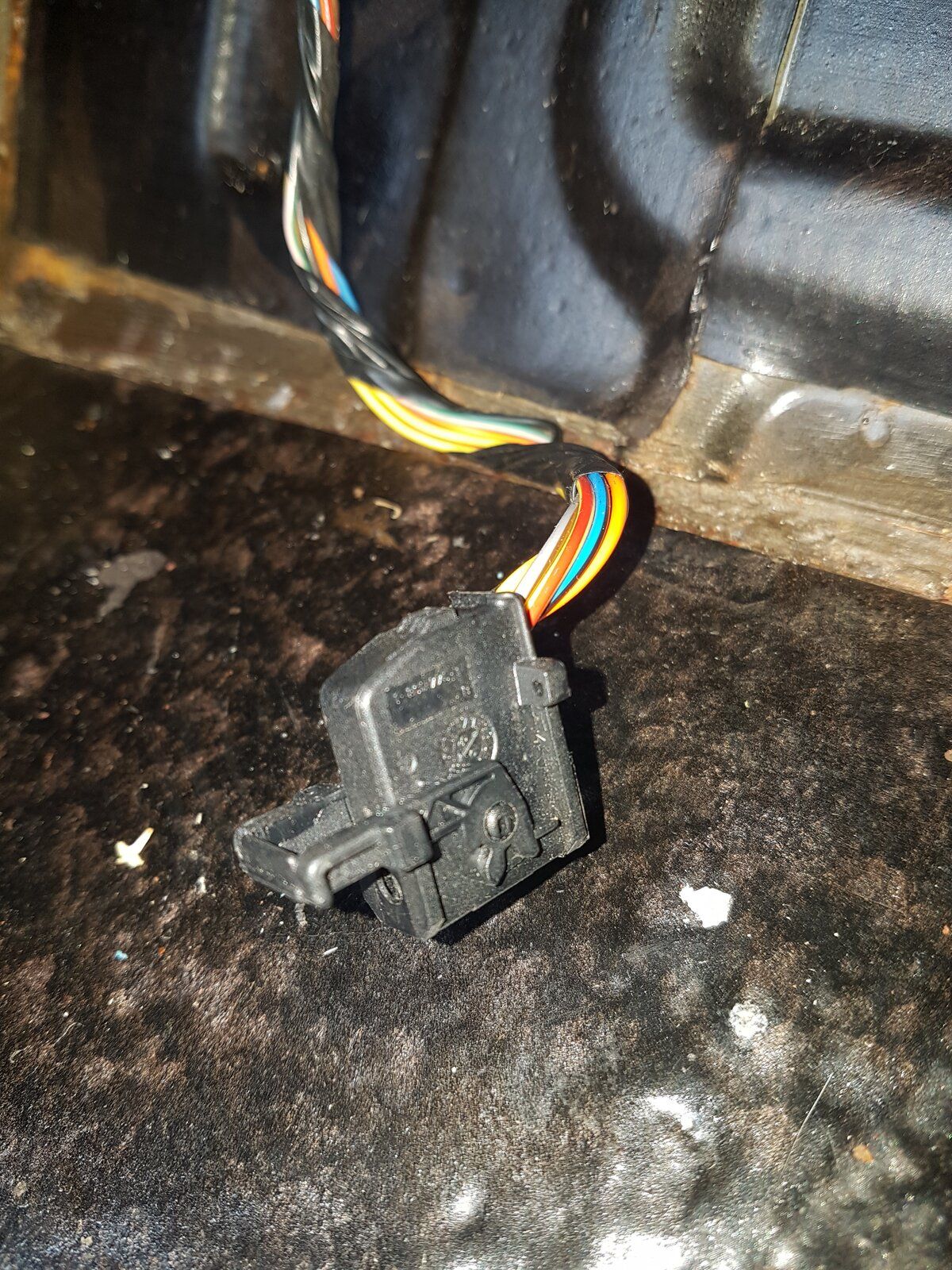

I've attached a better pic of the connector. I only have Hawkeye and as cannot start the truck I cannot detect live fault codes. I cannot locate any other issues with the relatively limited scope of a Hawkeye
Hoping you can shed more light when you view the picture!!
Regards, Darren.

sierrafery · Aug 21, 2020

As long as i can't see the conector's face which means the side with the pins i can't say more about it... as about the main issue, read the fault code strored in the autobox ECU
