Disco 3 (LR3) Project D3 Pic heavy
- Thread starter gstuart
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Hats off to you for devoting your time to something practical, rather than spending all day in front of that daft box with moving pictures... Gotta be good for your back - keeping moving .... I know I have to - even with physio and Osteo most weeks (
And.... regarding the cable ties .... yep, me too
Properly fused is a fine idea too --- years ago we had a fire on a digger caused by no fuses - it took the batteries out, the alternator out, the heater plug out ..... and the throttle stepper motor too
Bless u and many thks, nice to hear I’m doing something right for a change
Indeed I’ve just done as much as I can then stopped when my back begins to burn or I feel sick with the pain
Ah yes fuses , I had a series 3 , driving down Orpington high street I started to see white smoke from behind the dashboard , managed to pull over in time and get the battery leads off, towed home and the entire dashboard ooom was knackered
Removed it and slowly rebuilt an entirely new dashboard loom on my kitchen table as I couldn’t afford a loom from a company , just took it one wire at a time
So here’s a few items planned
Fuse boxes in my upper glove box for ancillaries, will have switched lives and aux battery lives
So my aux power doesn’t stay on all the time when I switch the engine off going to use a relay for that
Fuse box is split into 3 x sections so u can build it as u wish
It’s taken me since last year working things out, where to buy bits etc

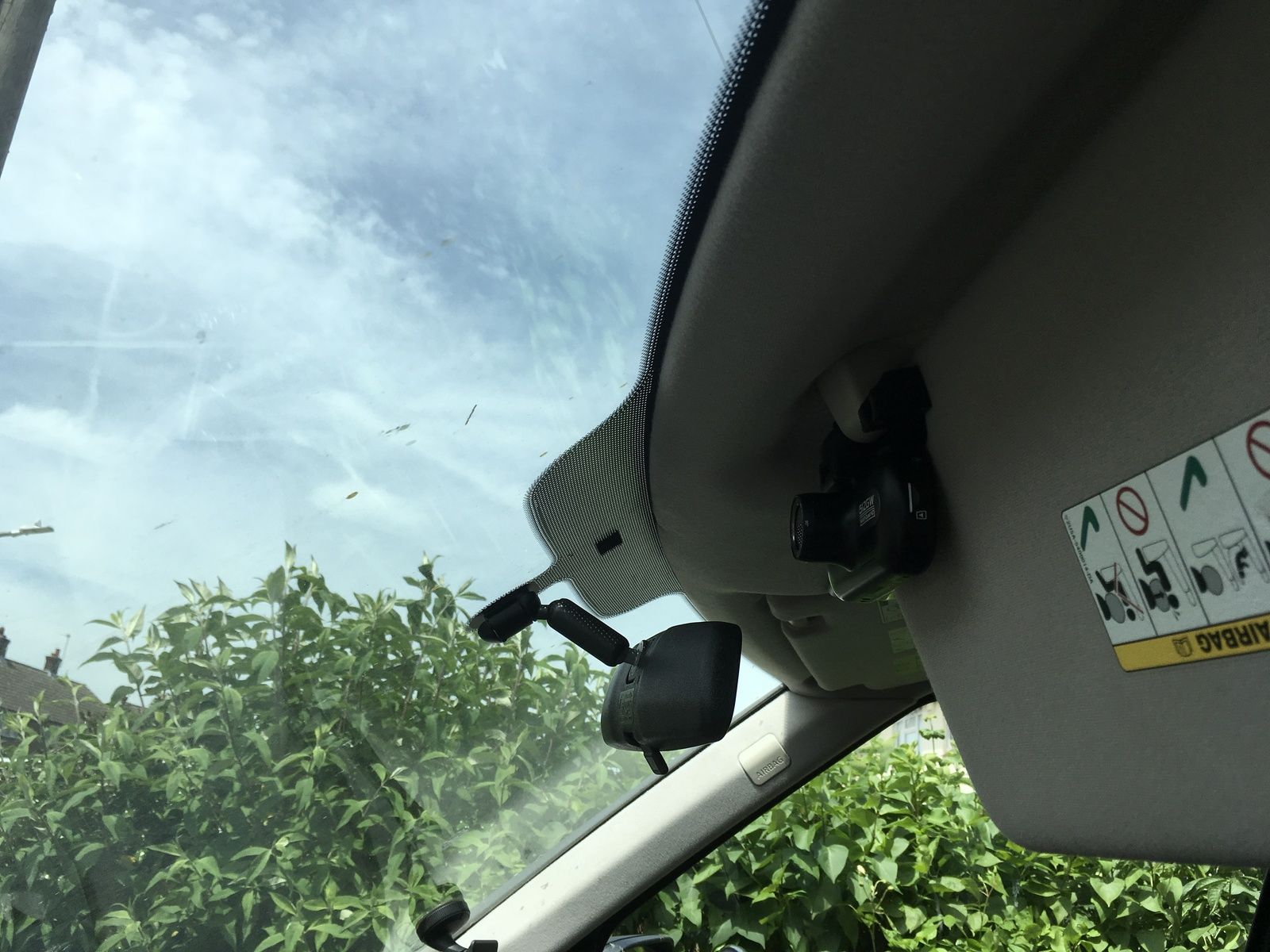

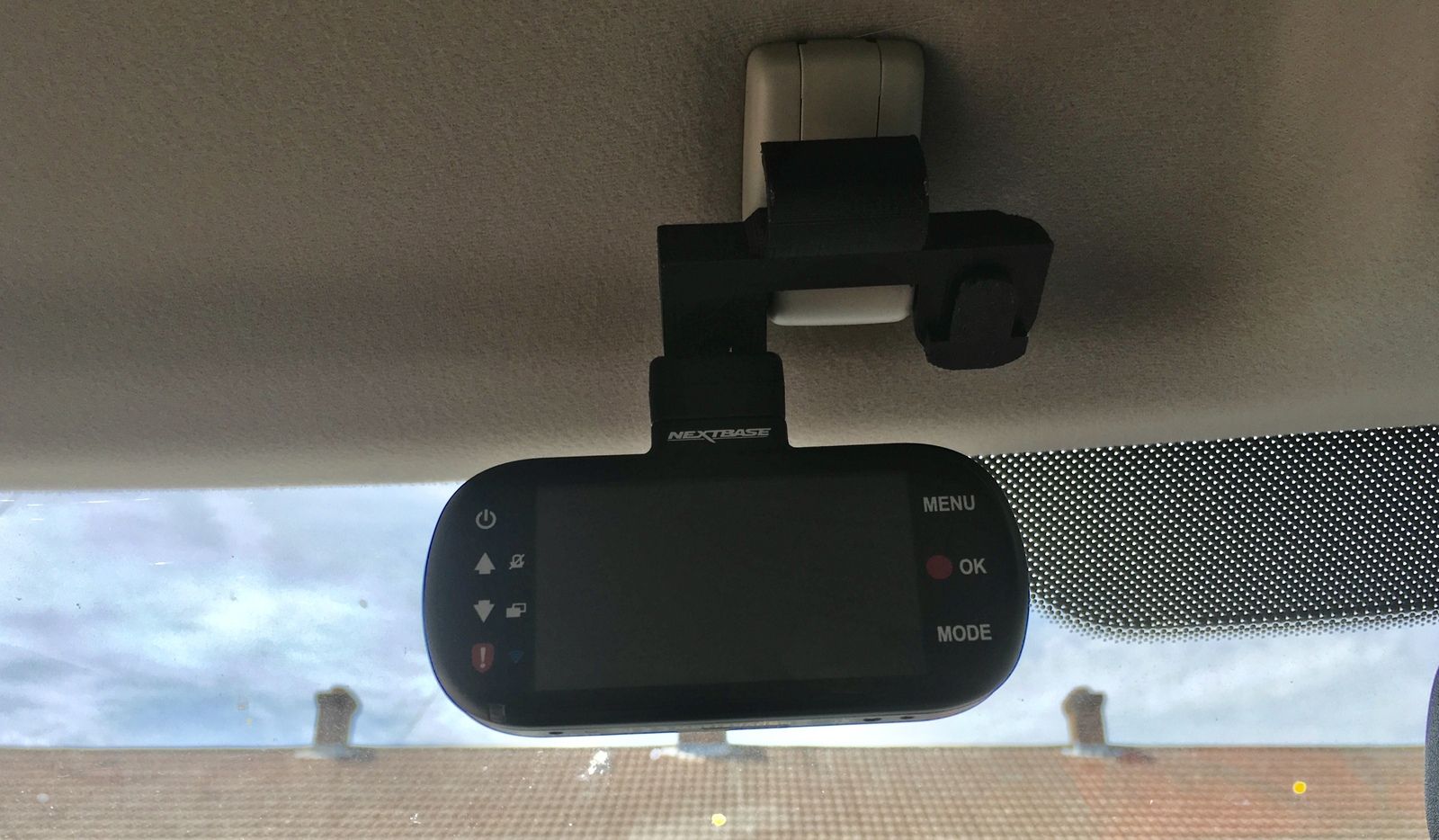

Dashcam clip is in the planning process, company is modifying the 3D printed clip to fit better
Hopefully I haven’t made it very boring and may be of interest , if so will keep the thread going
Also wished to say a massive thks for the help behind the scenes from many members
Any links, info etc as always don’t hesitate to ask
Thks as always
Web site picture
Planning the gauges to fit as above

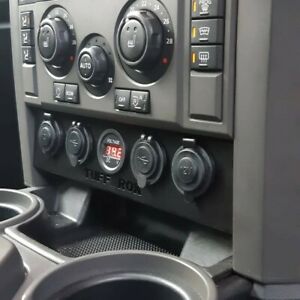

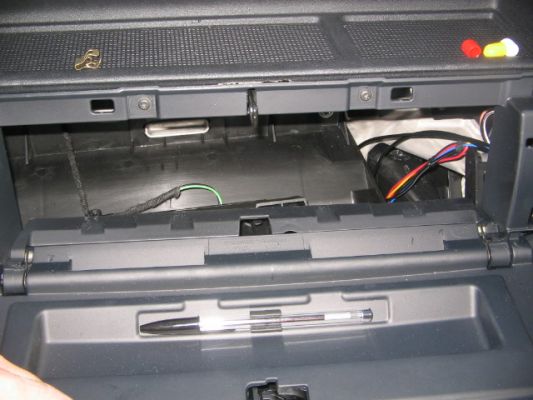

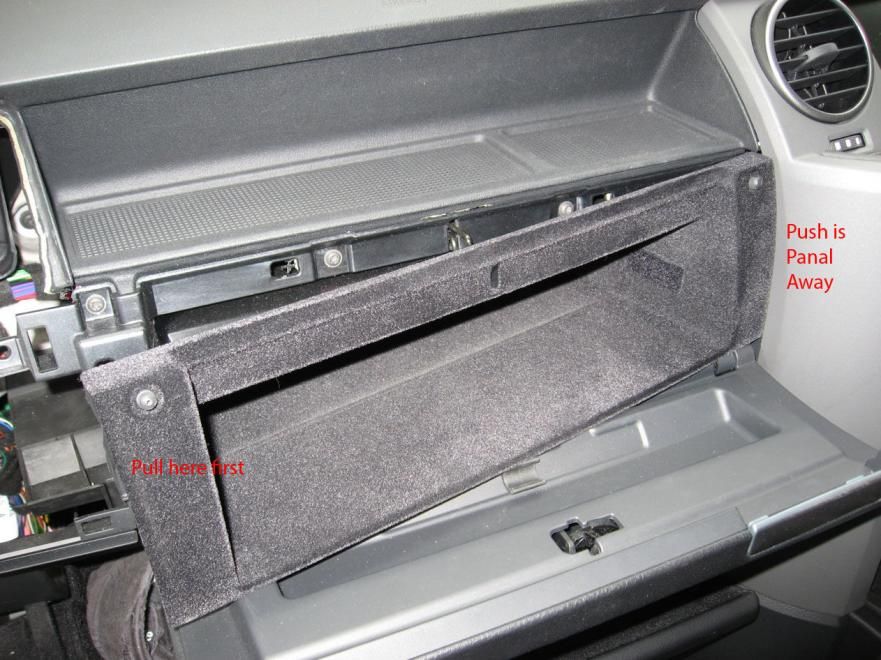

Example pic of the upper glove box
Pic of glove box removed showing space behind for me running wires

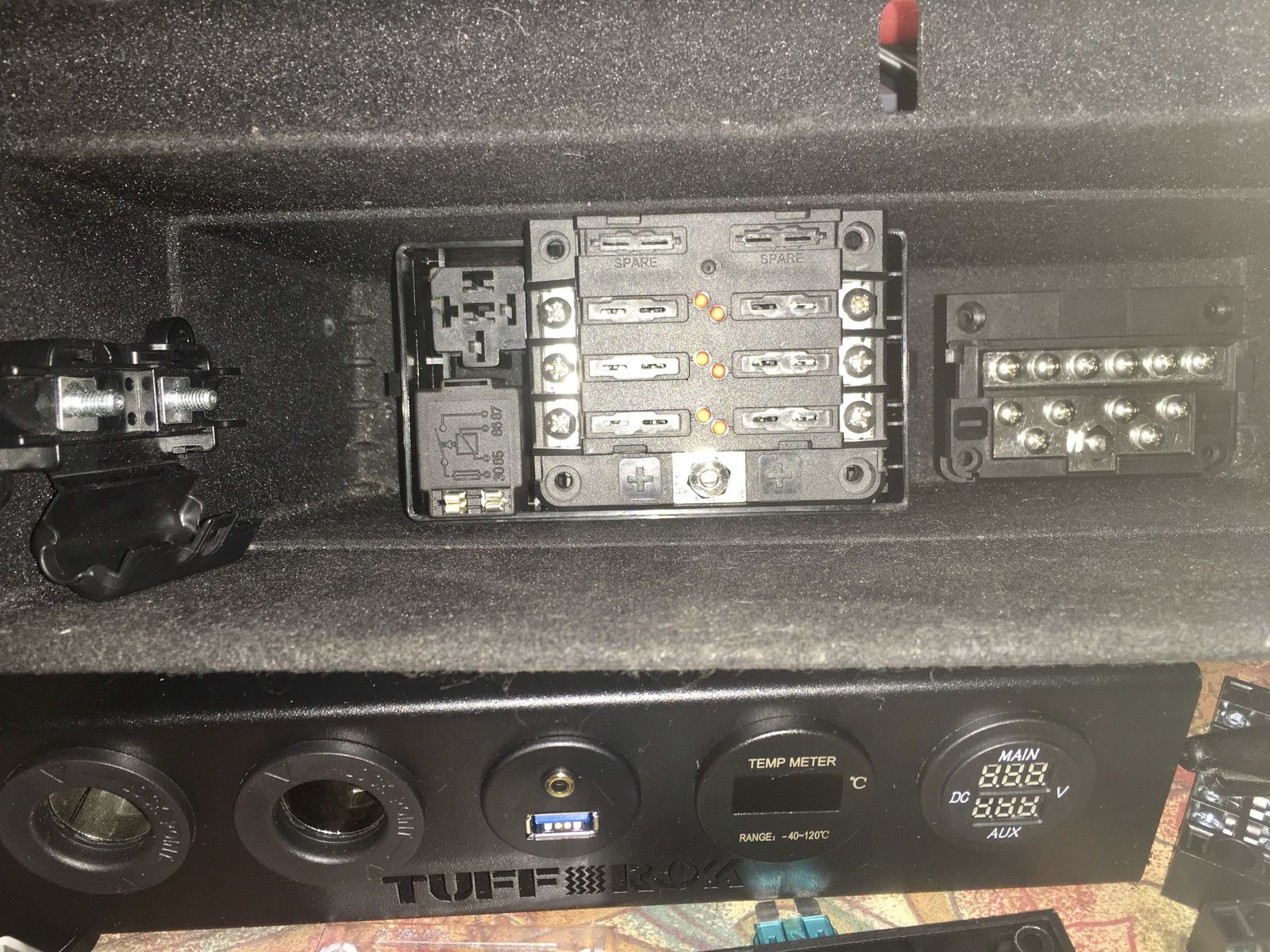

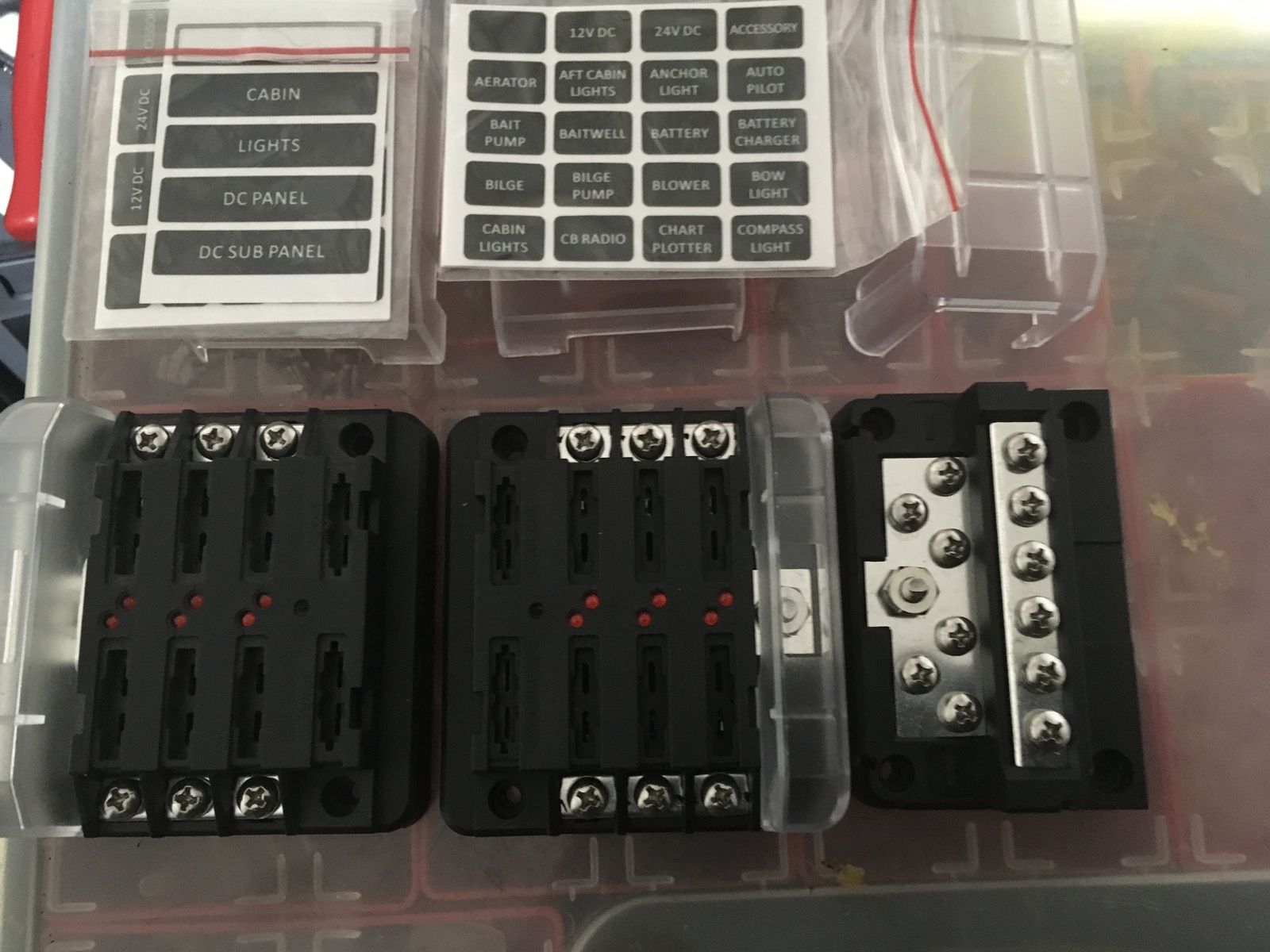

Proposed installation of fuse boxes
Left , trigger wire from my main fuse box
Middle fuse box
RH is my earth block
Fuse box will go off when my ign is turned off, but gains power from my aux battery
Ie
Hard wire for dashcam

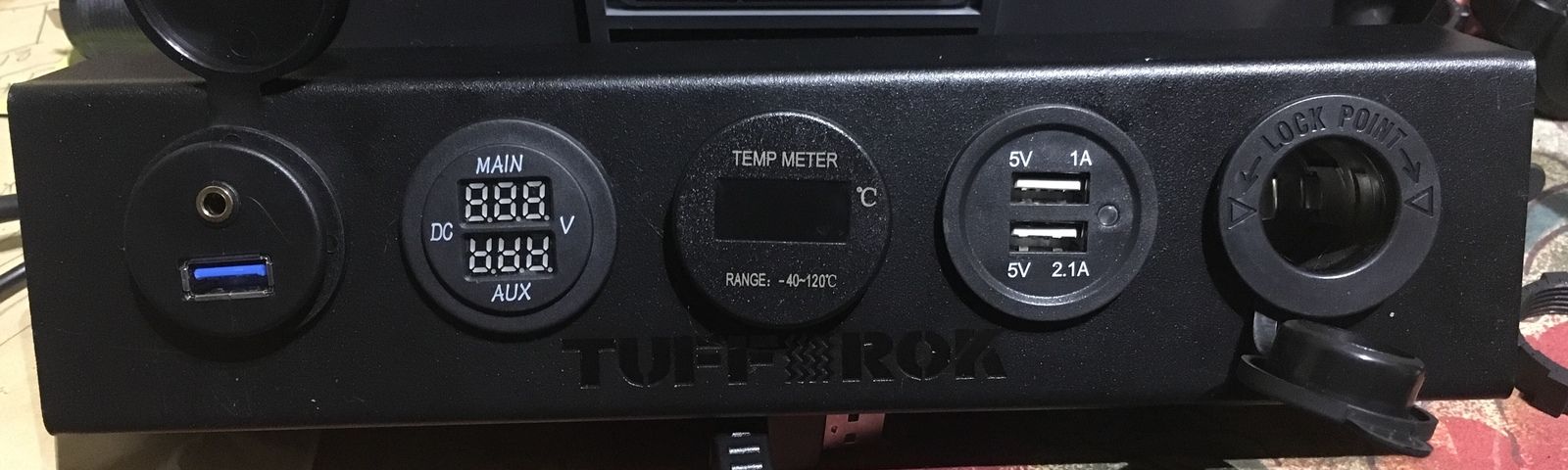

Aux battery volts on gauge
Gauge panel is just there to hold the glove box up and whilst I also mess around with the gauge positions , finally gauges to be fitted as earlier pics

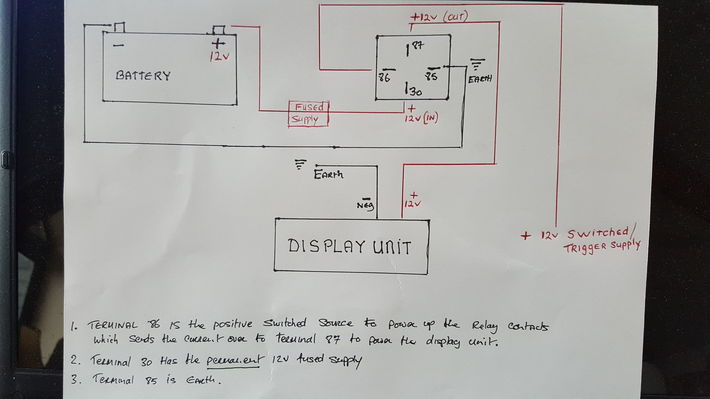

Where it says Display unit , positive wire will go to that middle fuse box as a live , fuse box will only be supplying around 10-15 amps max,
Fuse boxes in my upper glove box for ancillaries, will have switched lives and aux battery lives
So my aux power doesn’t stay on all the time when I switch the engine off going to use a relay for that

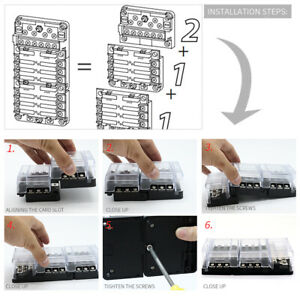

Fuse box is split into 3 x sections so u can build it as u wish
It’s taken me since last year working things out, where to buy bits etc
Dashcam clip is in the planning process, company is modifying the 3D printed clip to fit better
Hopefully I haven’t made it very boring and may be of interest , if so will keep the thread going
Also wished to say a massive thks for the help behind the scenes from many members
Any links, info etc as always don’t hesitate to ask
Thks as always
Web site picture
Planning the gauges to fit as above
Example pic of the upper glove box
Pic of glove box removed showing space behind for me running wires
Proposed installation of fuse boxes
Left , trigger wire from my main fuse box
Middle fuse box
RH is my earth block
Fuse box will go off when my ign is turned off, but gains power from my aux battery
Ie
Hard wire for dashcam
Aux battery volts on gauge
Gauge panel is just there to hold the glove box up and whilst I also mess around with the gauge positions , finally gauges to be fitted as earlier pics
Where it says Display unit , positive wire will go to that middle fuse box as a live , fuse box will only be supplying around 10-15 amps max,
Last edited:
1988smithy
Well-Known Member
- Posts
- 3,899
- Location
- West midlands
Thread watched, it's about time!
I think you're gonna have one of the most sorted, well maintained D3s in the country
I think you're gonna have one of the most sorted, well maintained D3s in the country
Does it ever go anywhere though, it’s always in bitsThread watched, it's about time!
I think you're gonna have one of the most sorted, well maintained D3s in the country
The only time it was off the road was when I done my suspension , apart from that I plan ahead as much as a can and do the work over a few days so can still use it , must admit I haven’t been able to do much since Xmas but feel I’m slowly being able to do little bits at a time without pushing my luck with my back
Plus u know u like the threads really , lol
Thread watched, it's about time!
I think you're gonna have one of the most sorted, well maintained D3s in the country
yeh right , lol
Must admit Started getting bits last year , then taking months planning ahead as much as I can
Hope I don’t make the thread too boring , just thought everyone else has a thread and felt left out , lol
Plus don’t mind being the guinea pig
^^^ OM*G !! I think you've missed an extra you could fit ....
Lol,
Must admit when I bought it 3 x years ago I knew it was going to be a project , alas though as I put one thing right it opened another can of worms where previous owners tried to cut corners
Have done so far
Rebuild entire suspension system
All timing belts , aux belt, oil pump cover , back fuel pump
Fitted front electric seats
Upgraded steering wheel to a D4 one inc the D4 steering wheel stalks
Set of new tyres , cooper at3
Dual batteries
Also really hope that I don’t make this thread boring as hell, but just sharing the upcoming projects in the pipeline
But know at the end if the day couldnt have got this far without a lot of help
Pick brains time please and I never mind admitting when I’ve dropped a clanger
The combined 3.5mm / usb socket in that lower panel
It has premade plugs on the back, will cut the 3.5mm one off and connect it properly into the terminal connector on the back of my radio for an AUX supply
Will also cut off the usb connector plug off and was going to run that to my switched 12v supply , however I need to drop it to 5v , because it will be too much for charging phones etc
Won’t need the data cables just the pos and neg
Been looking at voltage step down boxes but can’t find any and wondering if anyone knows some please
Apologises for the daft questions but seeing I’m so good at asking them it seems a shame to break the habit, snigger
Thks
The combined 3.5mm / usb socket in that lower panel
It has premade plugs on the back, will cut the 3.5mm one off and connect it properly into the terminal connector on the back of my radio for an AUX supply
Will also cut off the usb connector plug off and was going to run that to my switched 12v supply , however I need to drop it to 5v , because it will be too much for charging phones etc
Won’t need the data cables just the pos and neg
Been looking at voltage step down boxes but can’t find any and wondering if anyone knows some please
Apologises for the daft questions but seeing I’m so good at asking them it seems a shame to break the habit, snigger
Thks

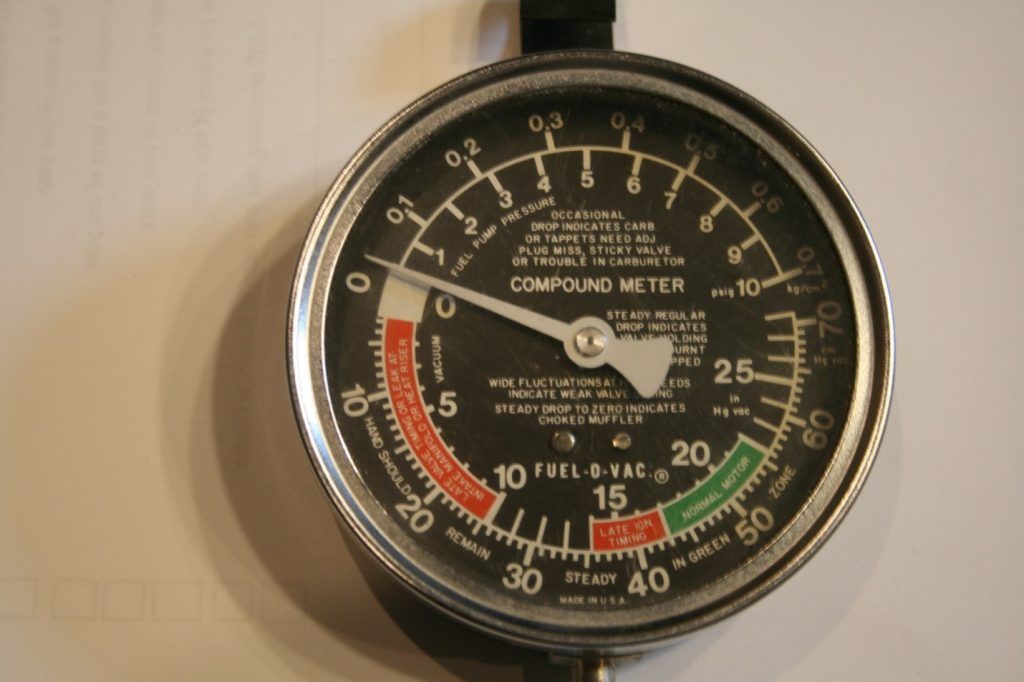

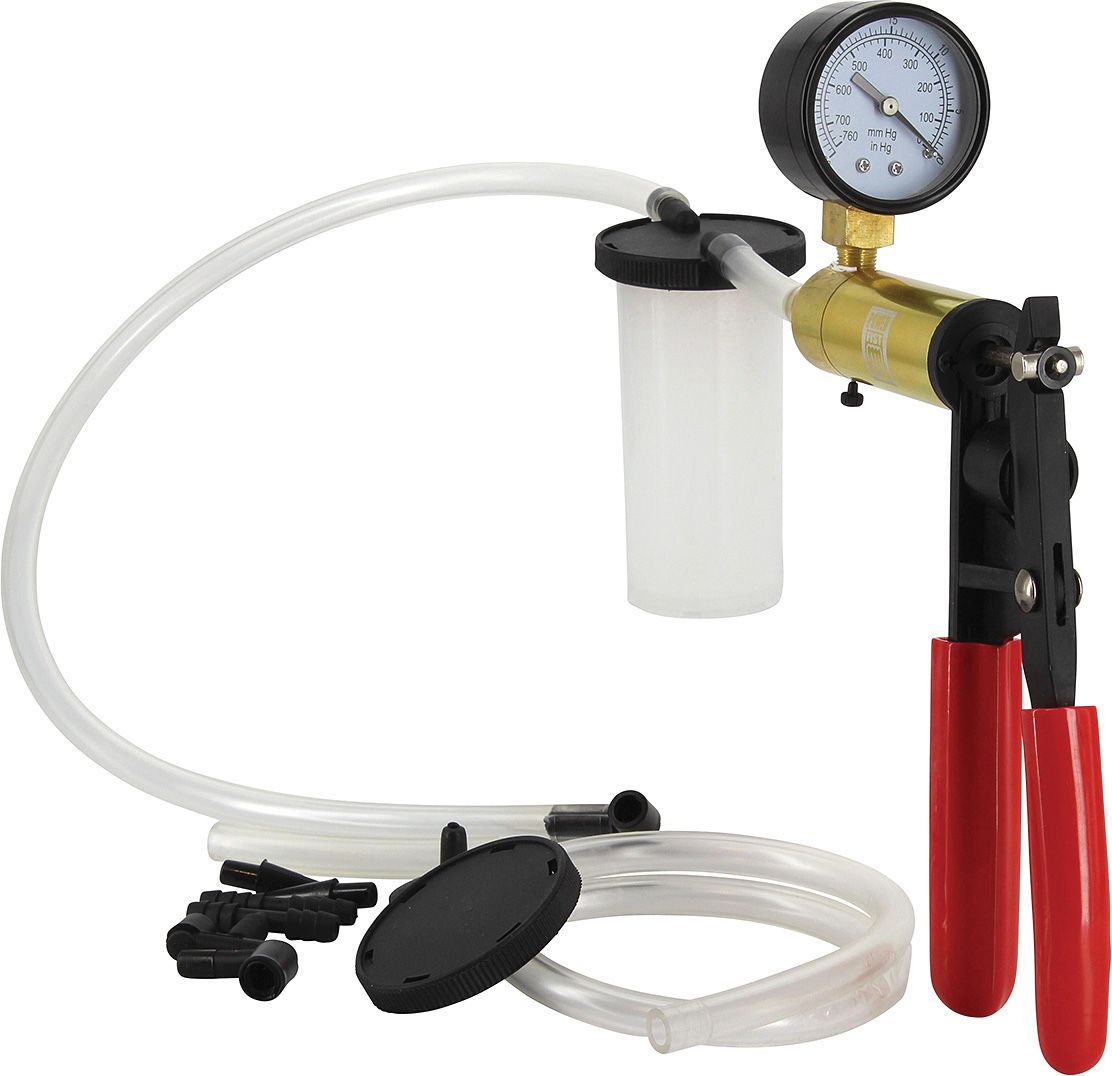

As a side note , I found using a vacuum gauge was an excellent way to test valve blocks , to ensure the seals are sound and not letting by
Will also use it to track down a leak in my AC system

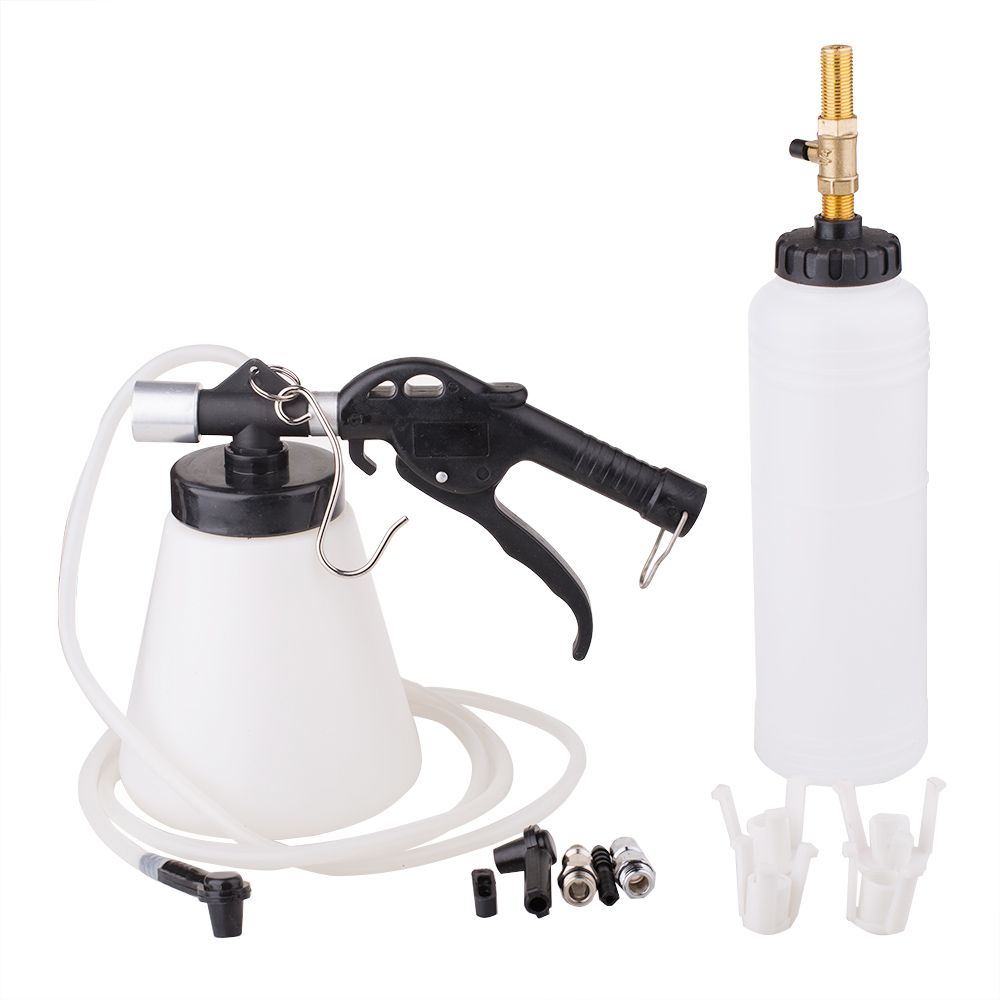

Also found the following items invaluable which I hope helps
Will also use it to track down a leak in my AC system

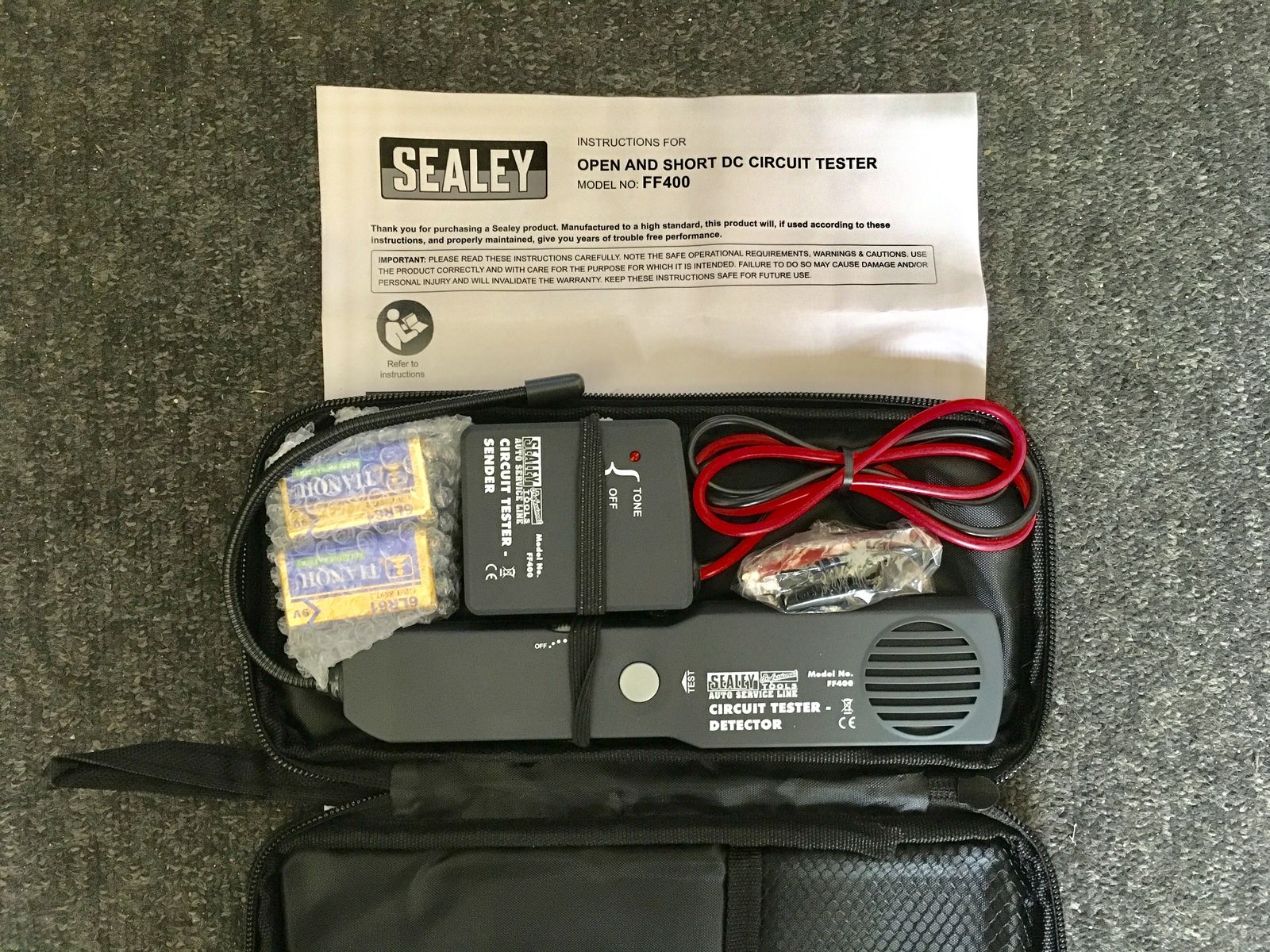

Also found the following items invaluable which I hope helps
Only having a joke with you
1988smithy
Well-Known Member
- Posts
- 3,899
- Location
- West midlands
I've got less than no idea about all this caper, but could you cannibalise one of these?
Oh I knew u were, hope my reply didn’t come across as rude mate ,
Is nice we’ve all been here long enough to have plenty of banter without anyone getting offended
Once again hope my reply didn’t come across wrong buddy
Thks buddy , now there’s a thought , think I do have a couple somewhere , so assume there’s a circuit board inside then that drops the voltage

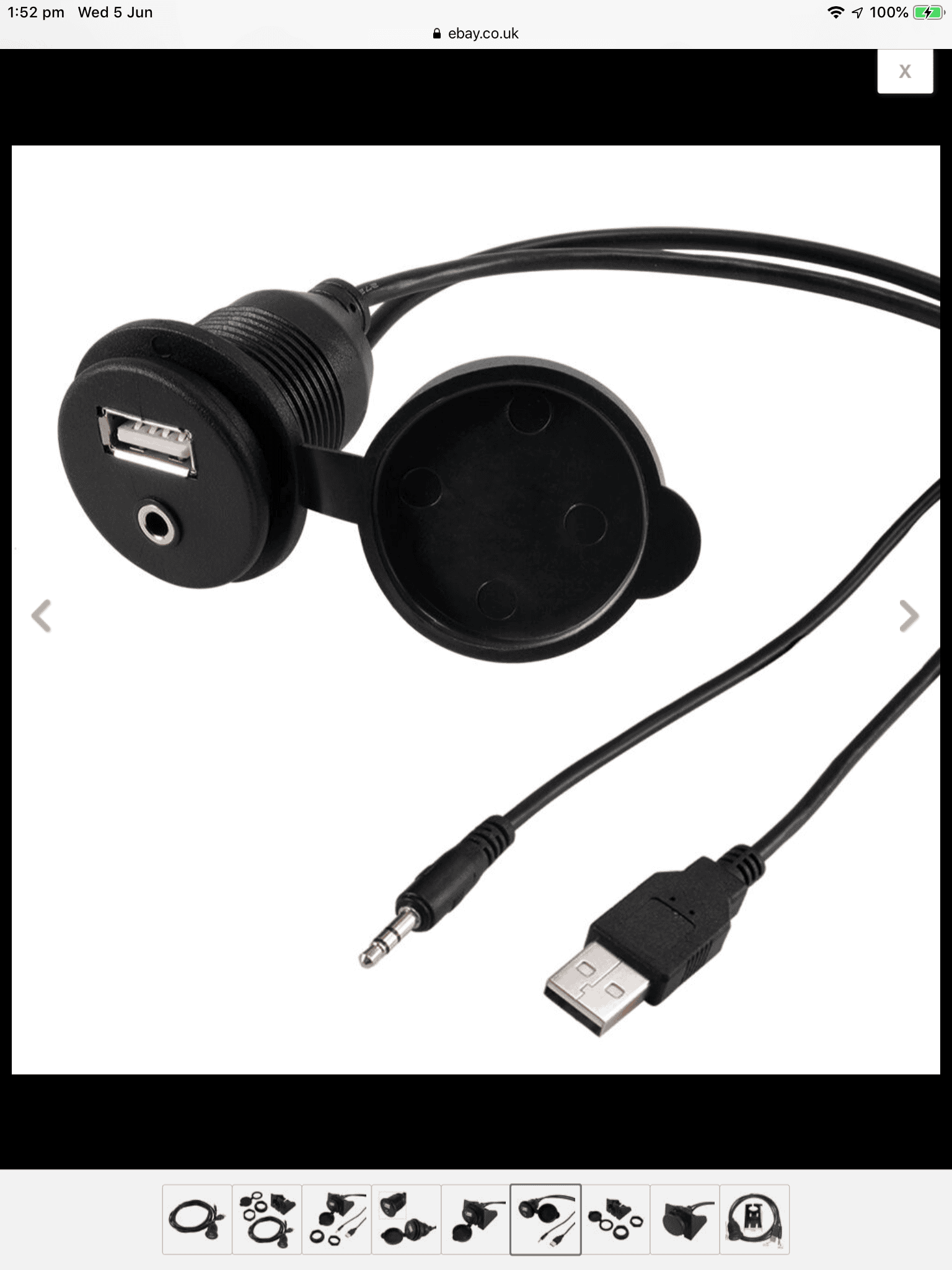

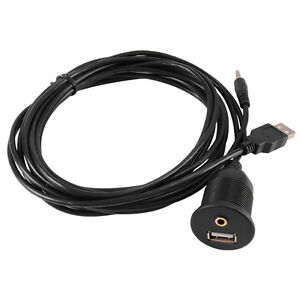

Here’s the one I bought , typical when things should be easy, lol
https://www.ebay.co.uk/itm/Car-Boat-Dash-Flush-Mount-USB-3-5mm-2-0-Aux-Extension-Cable-Lead-Mounting-Panel/232058167601?_trkparms=aid=555018&algo=PL.SIM&ao=1&asc=57924&meid=79c25a26ee384b8fa578b615e0c19078&pid=100005&rk=4&rkt=12&sd=152952095170&itm=232058167601&_trksid=p2047675.c100005.m1851

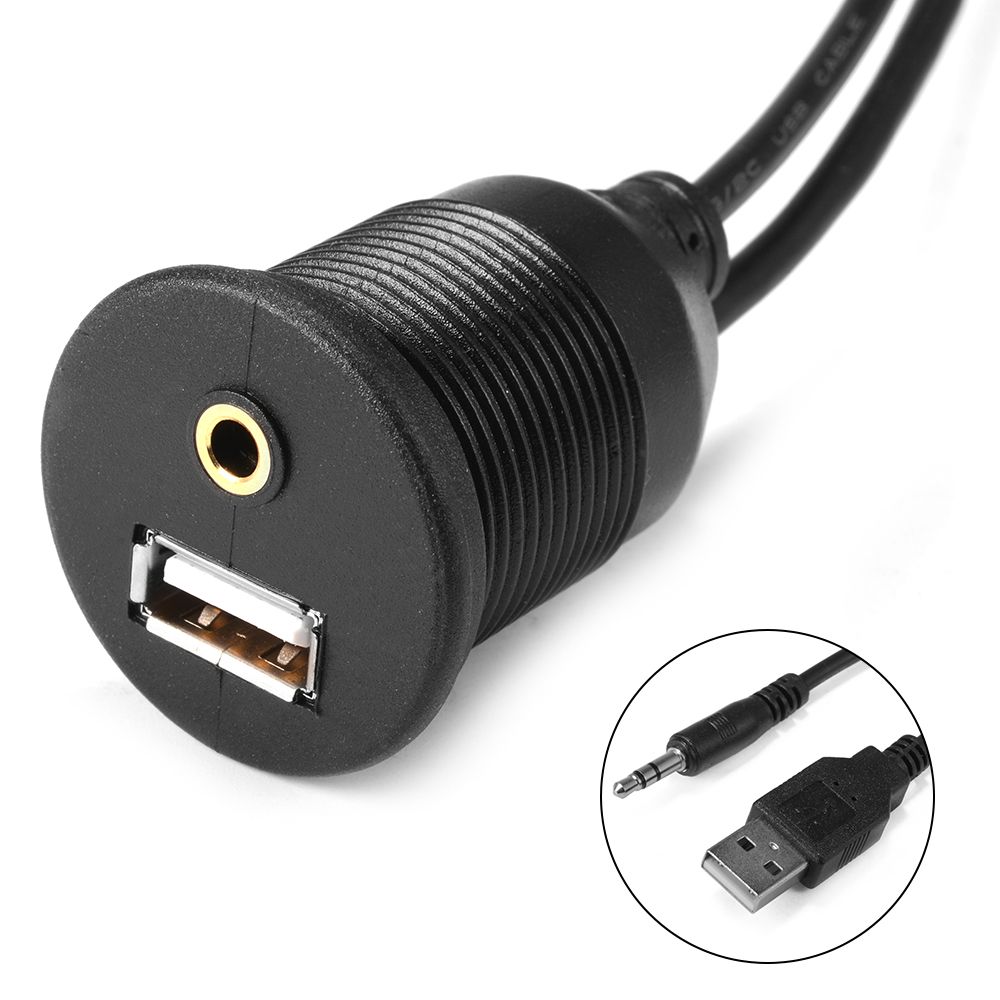

Thought a better pic would make my rambling easier to understand
Just thought , if I plug that usb into a 12volt supply I could always use a multimeter couldnt I to double check what the output is , lol
Have a spare 12 v battery outside
Thks so much once again
Do hope this thread wont drive everyone nuts, lol
1988smithy
Well-Known Member
- Posts
- 3,899
- Location
- West midlands
That was my caveman logic towards it!
I thought I had exclusive rights for caveman logic , lol
Just need to 100% check what the output is otherwise i might see an item starting to smoke,

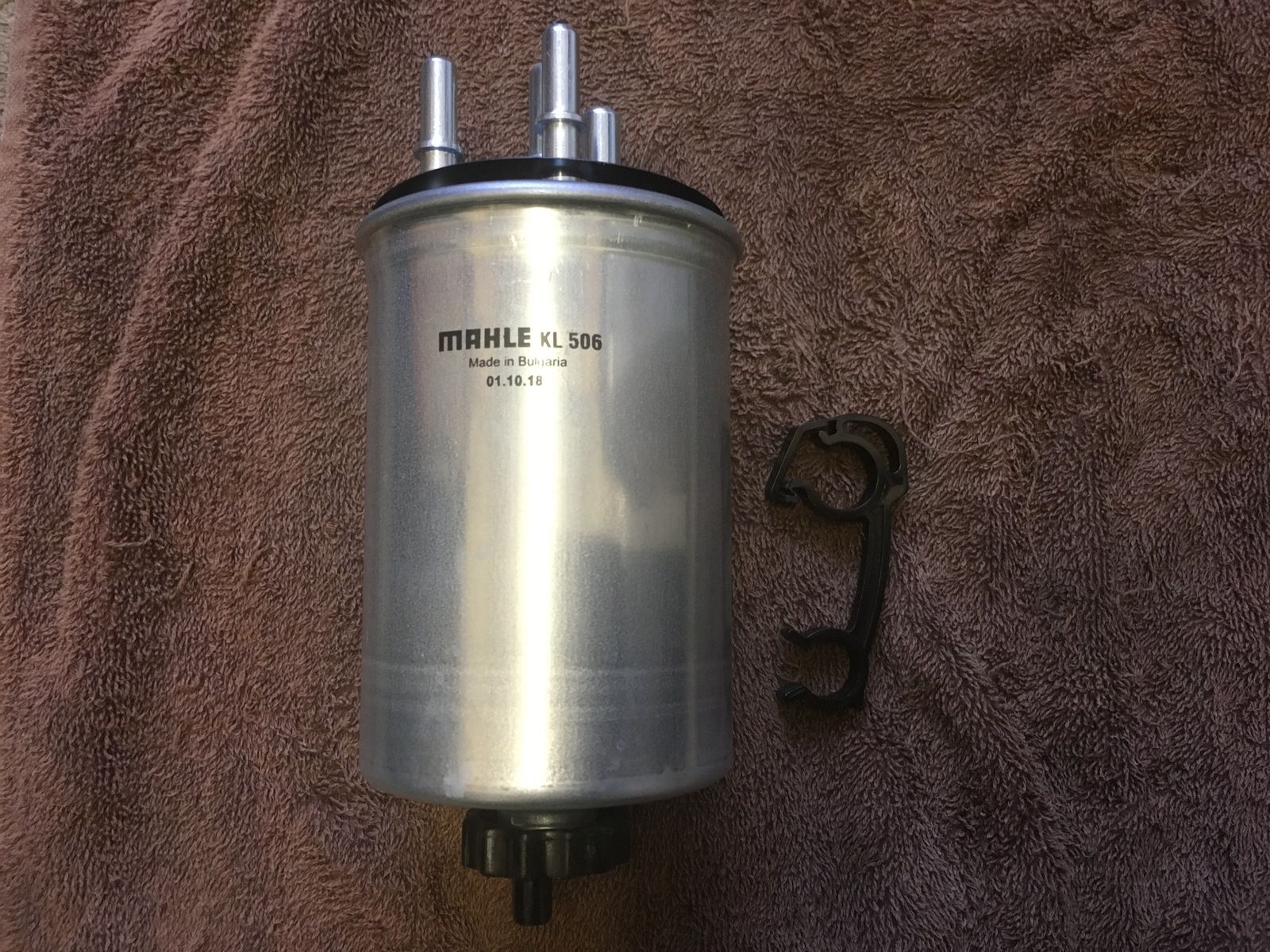

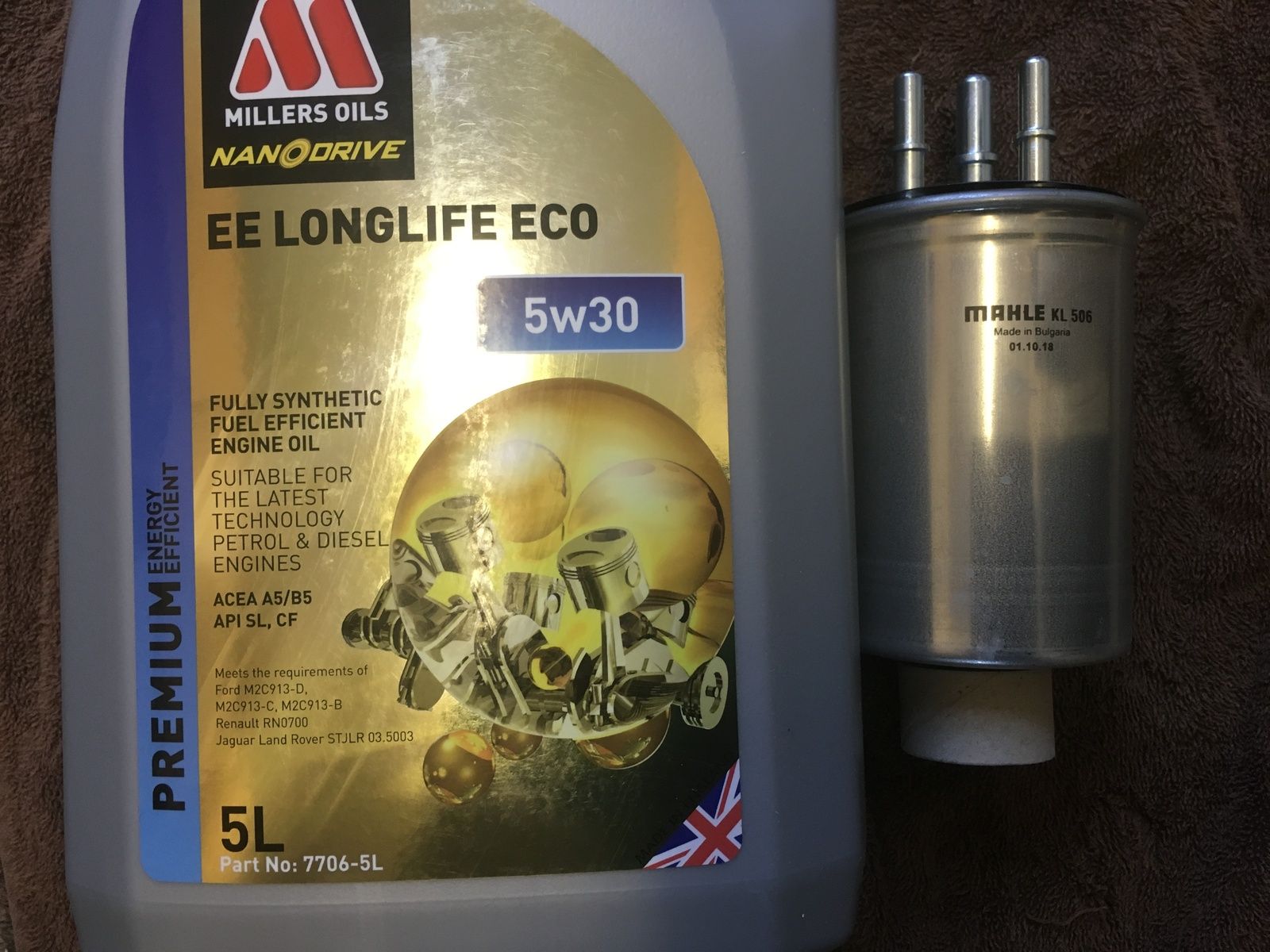

Engine oil and fuel filter turned up today , bought 10 x litres as it was more cost effective than 6 x litres

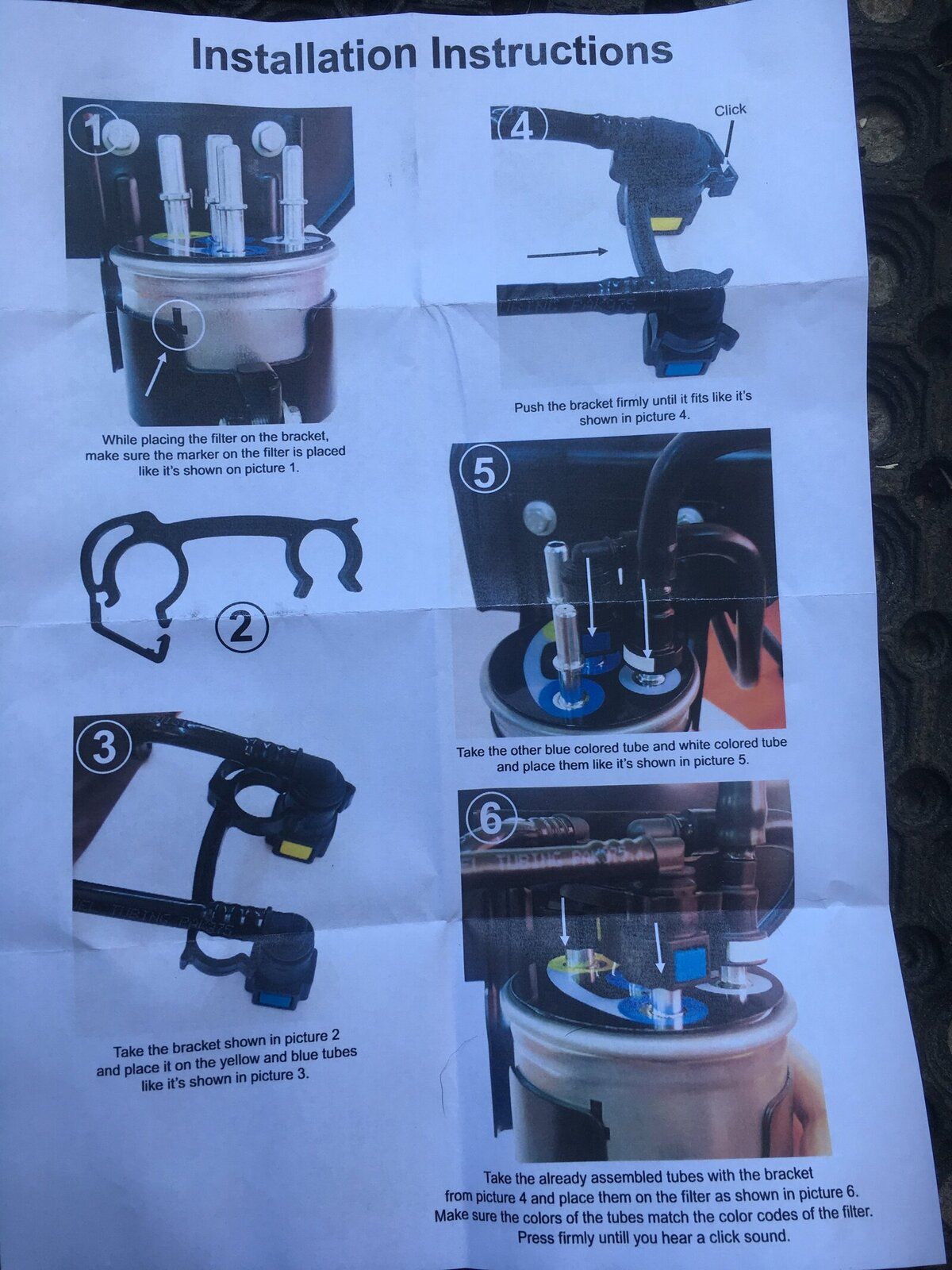

Also enclosed fuel filter instructions so may help others in the future, made sure it was a decent one as heard so many stories of cheap fuel filters causing issues
Also enclosed fuel filter instructions so may help others in the future, made sure it was a decent one as heard so many stories of cheap fuel filters causing issues
Henry_b
Think outside, no box required.
- Posts
- 15,353
- Location
- somewhere else
Looks great Gary..
Plan to do some of those electrical addon's into my P38 namely the split charge dual setup and USB's
Plan to do some of those electrical addon's into my P38 namely the split charge dual setup and USB's
Henry_b
Think outside, no box required.
- Posts
- 15,353
- Location
- somewhere else
Any exterior and interior pic's of the 'olde D3
