Disco 3 (LR3) Project D3 Pic heavy

1988smithy said:

Never mind mate, worth a shot! Nice to see lots of pics

Click to expand...

Indeed , got a few more ideas , lol, waiting for a nice dry day so can start spraying

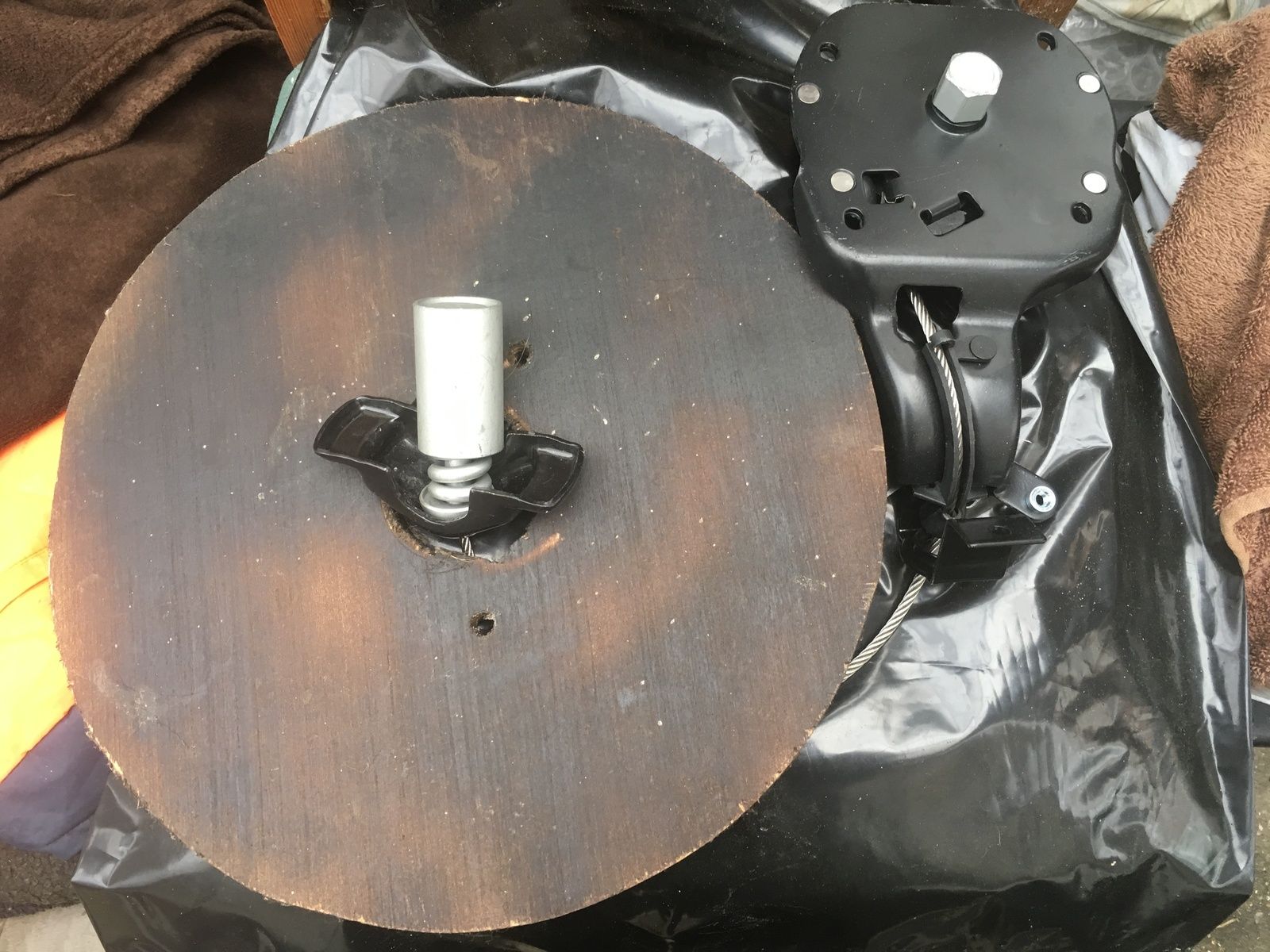

Made up a crude spare wheel security cover, thought it’s better than nothing until I can get a second hand metal 17 inch plate

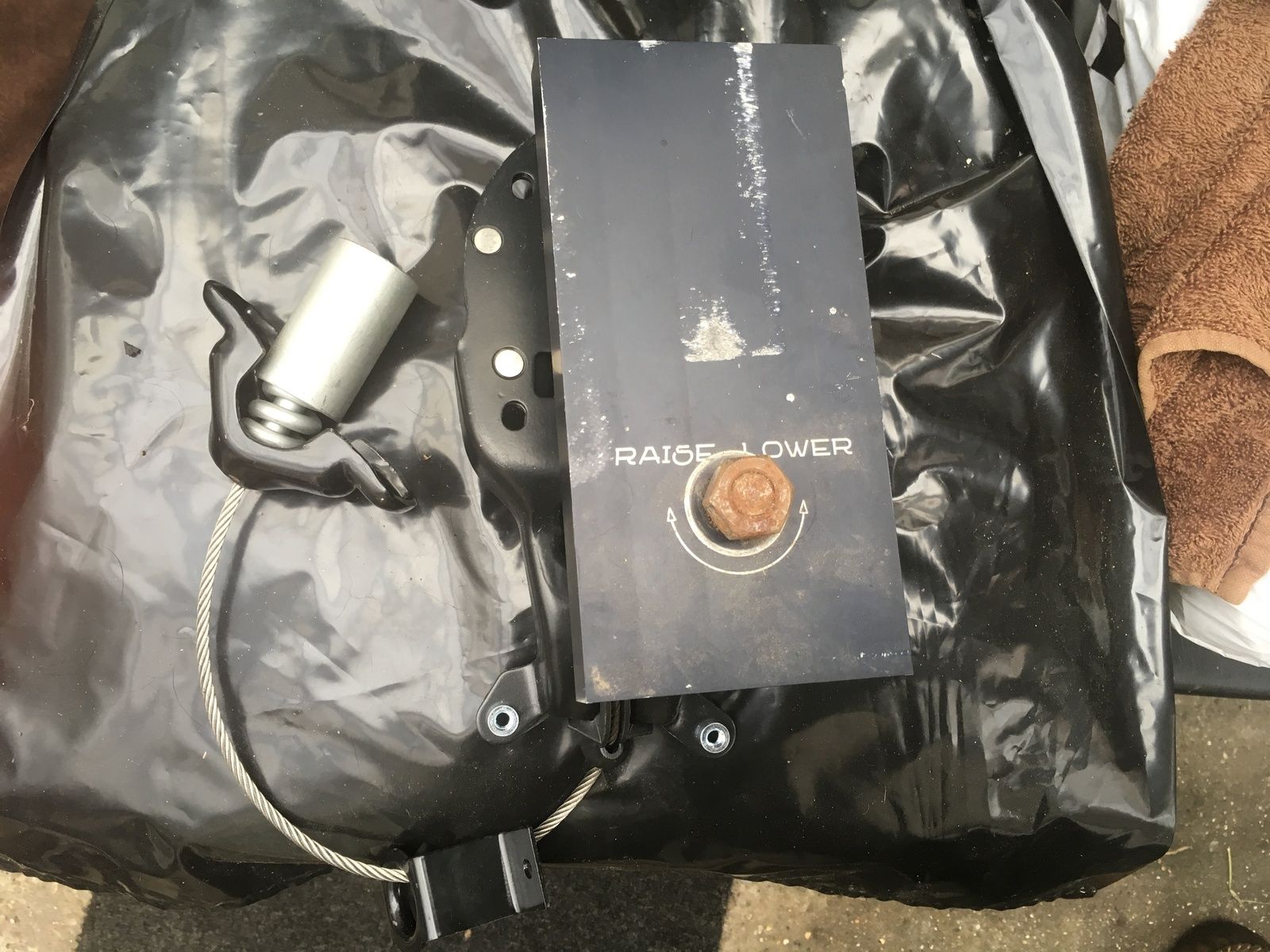

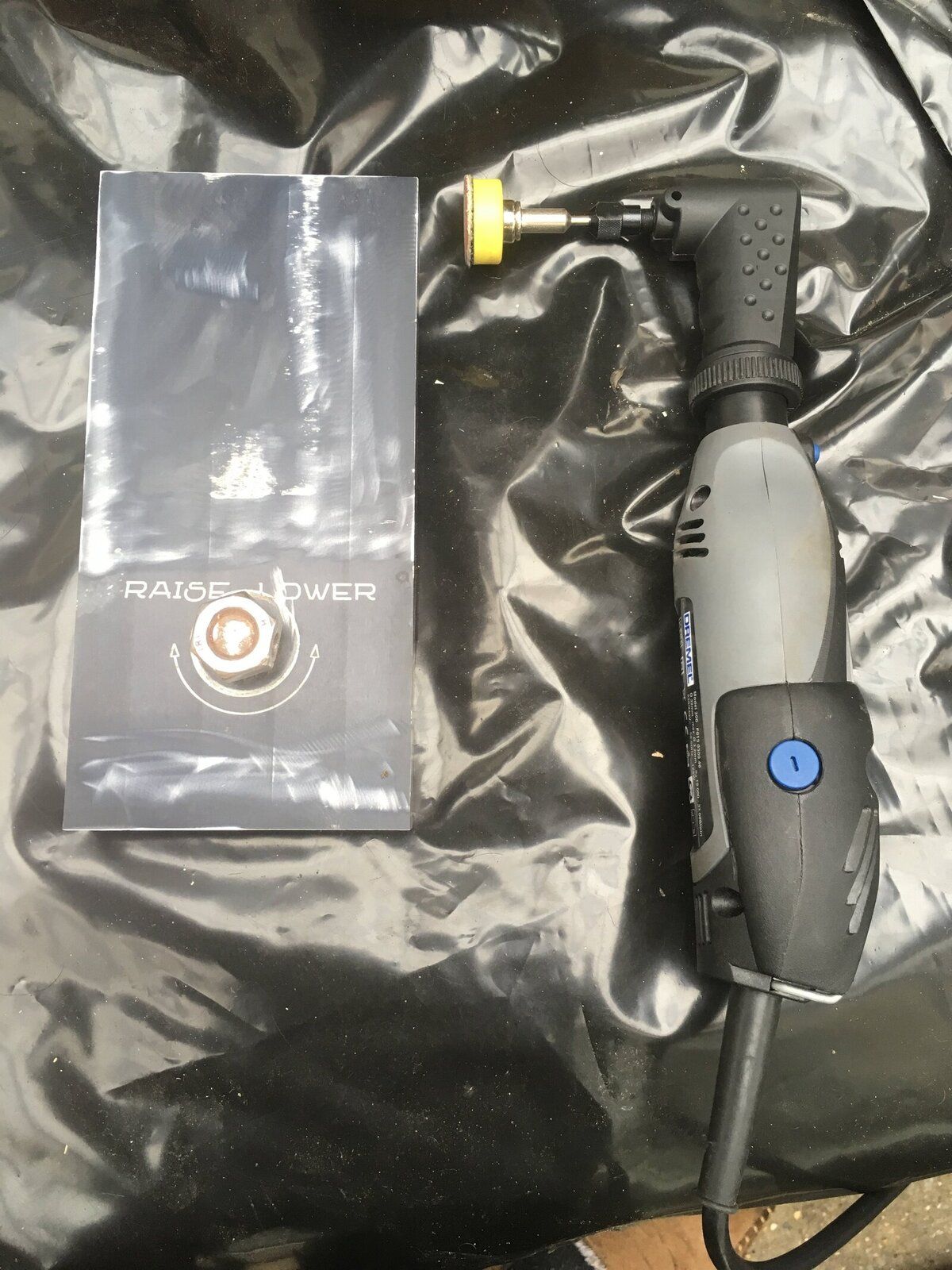

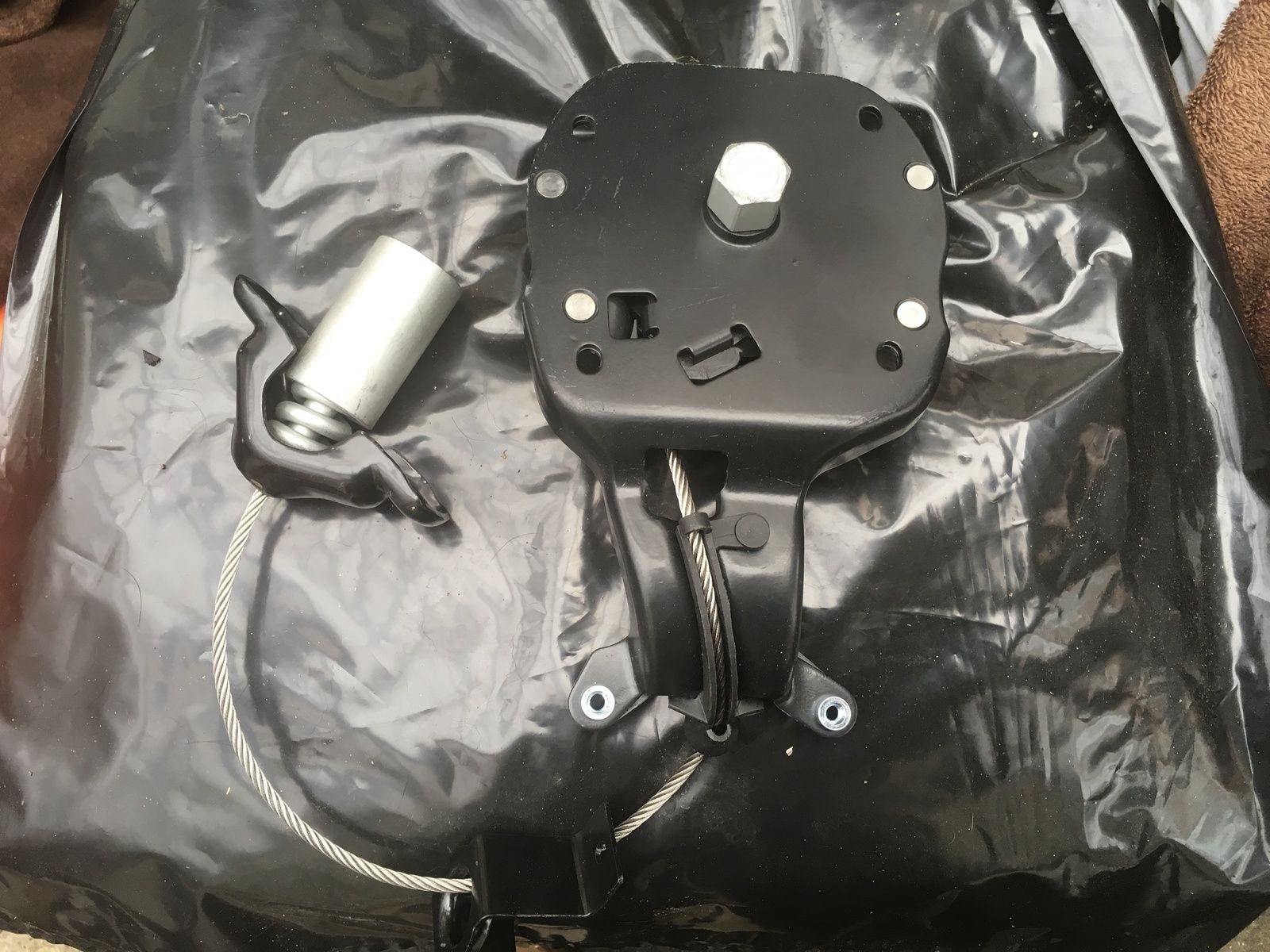

Cleaned up the spare wheel winch box

Made up a bed for candy so she wasn’t laying on the concrete , she’s 12 now

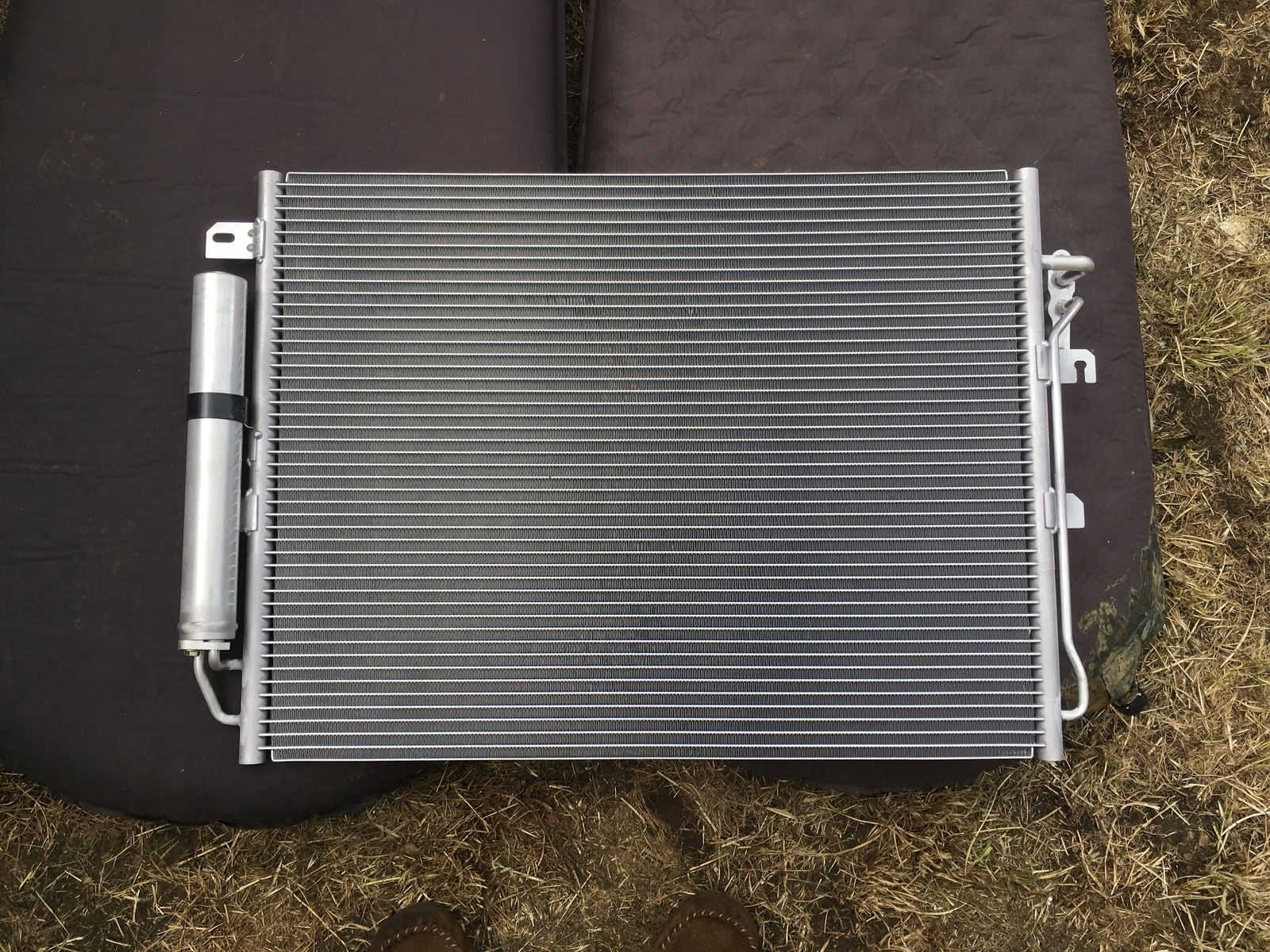

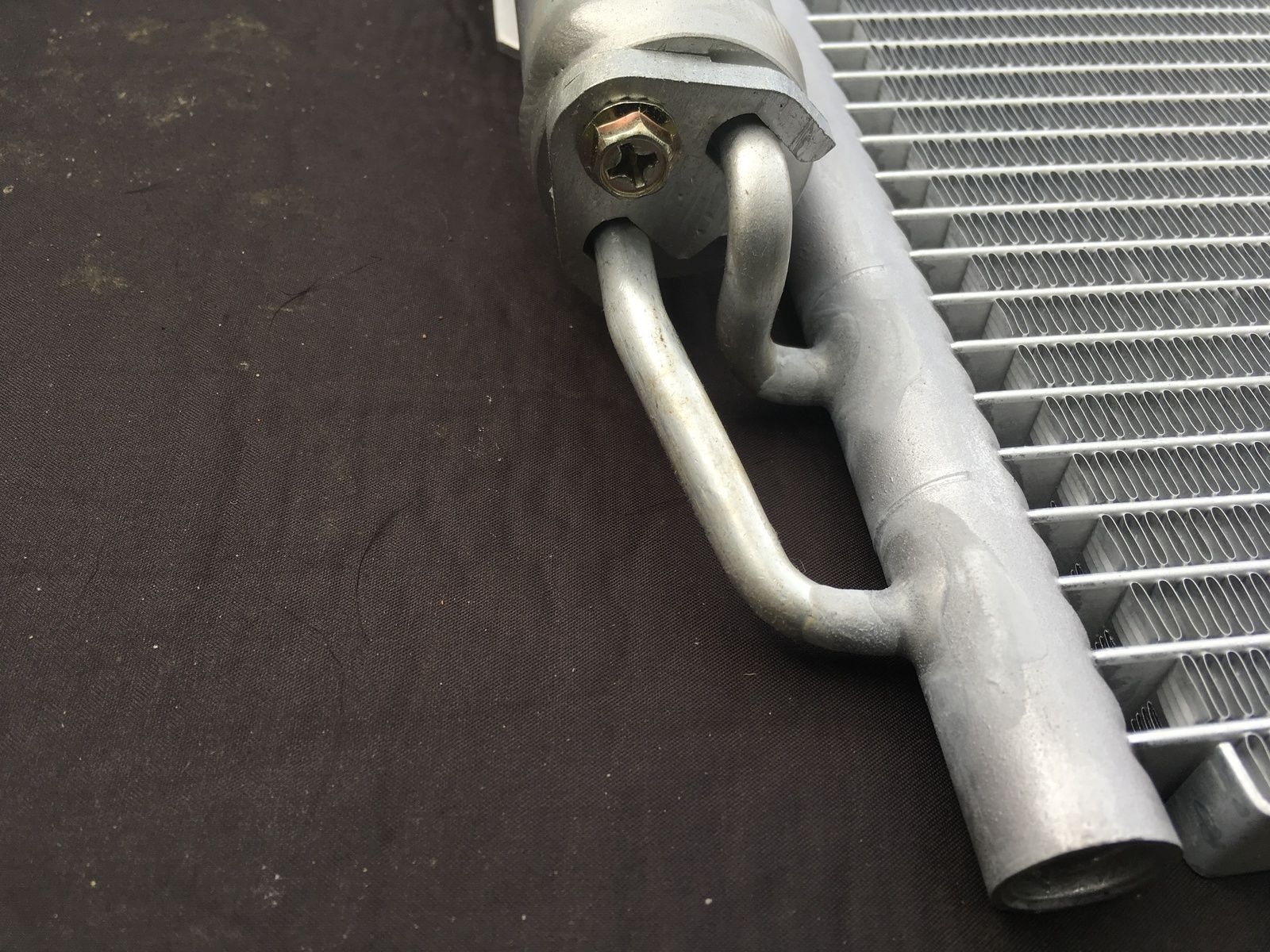

New item turned up today which is on the cards

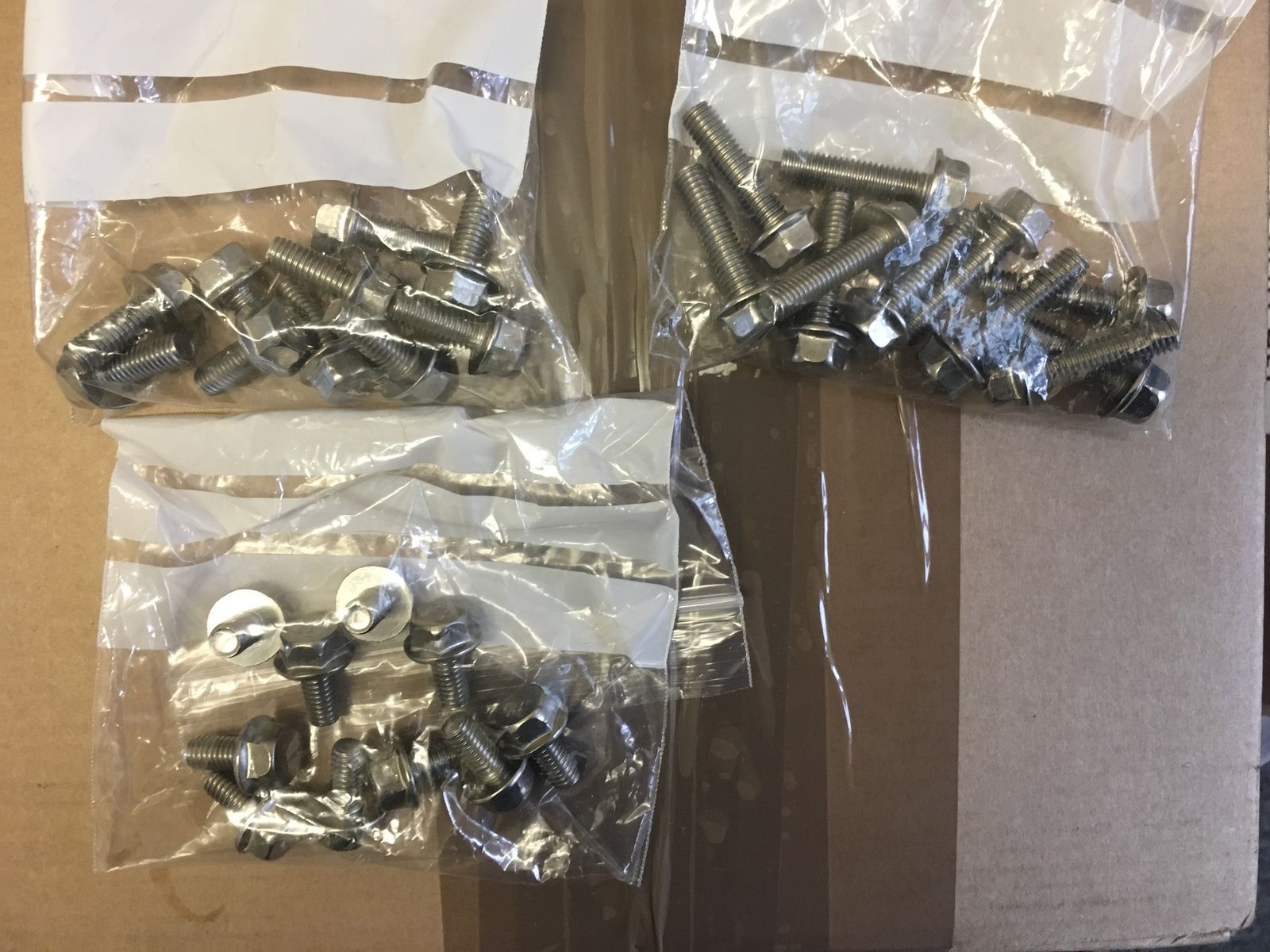

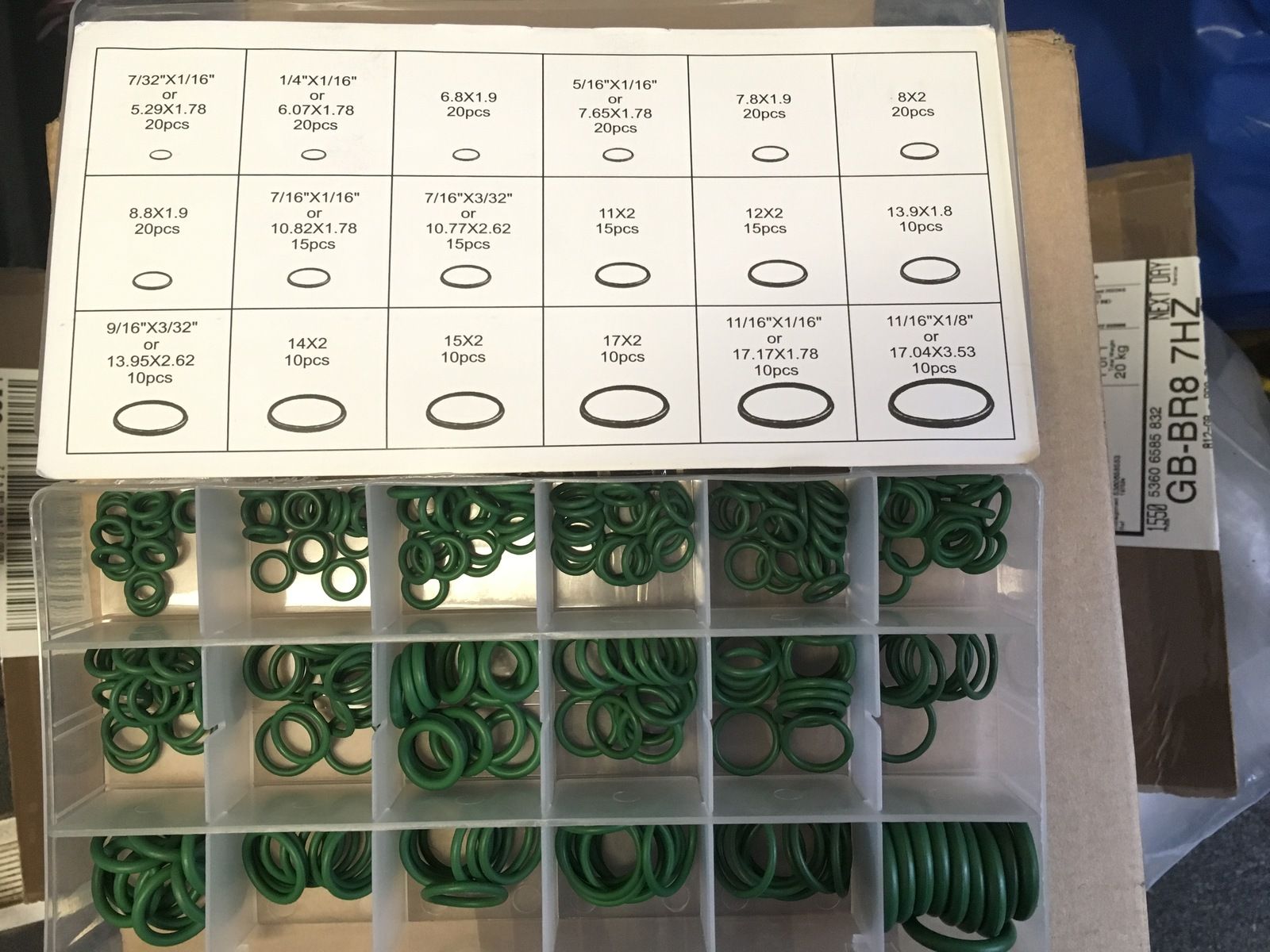

Bought new bolts and O rings , hope stainless steel is ok with Ali

Think I may end up removing most of the front , inc the slam panel and front bumper

So I can inject some areas with dinirtol and then better access to put a vacuum test on the AC system and check everything hidden behind the front bumper

Know I’ll also have to be careful with the impact sensors as there tucked away

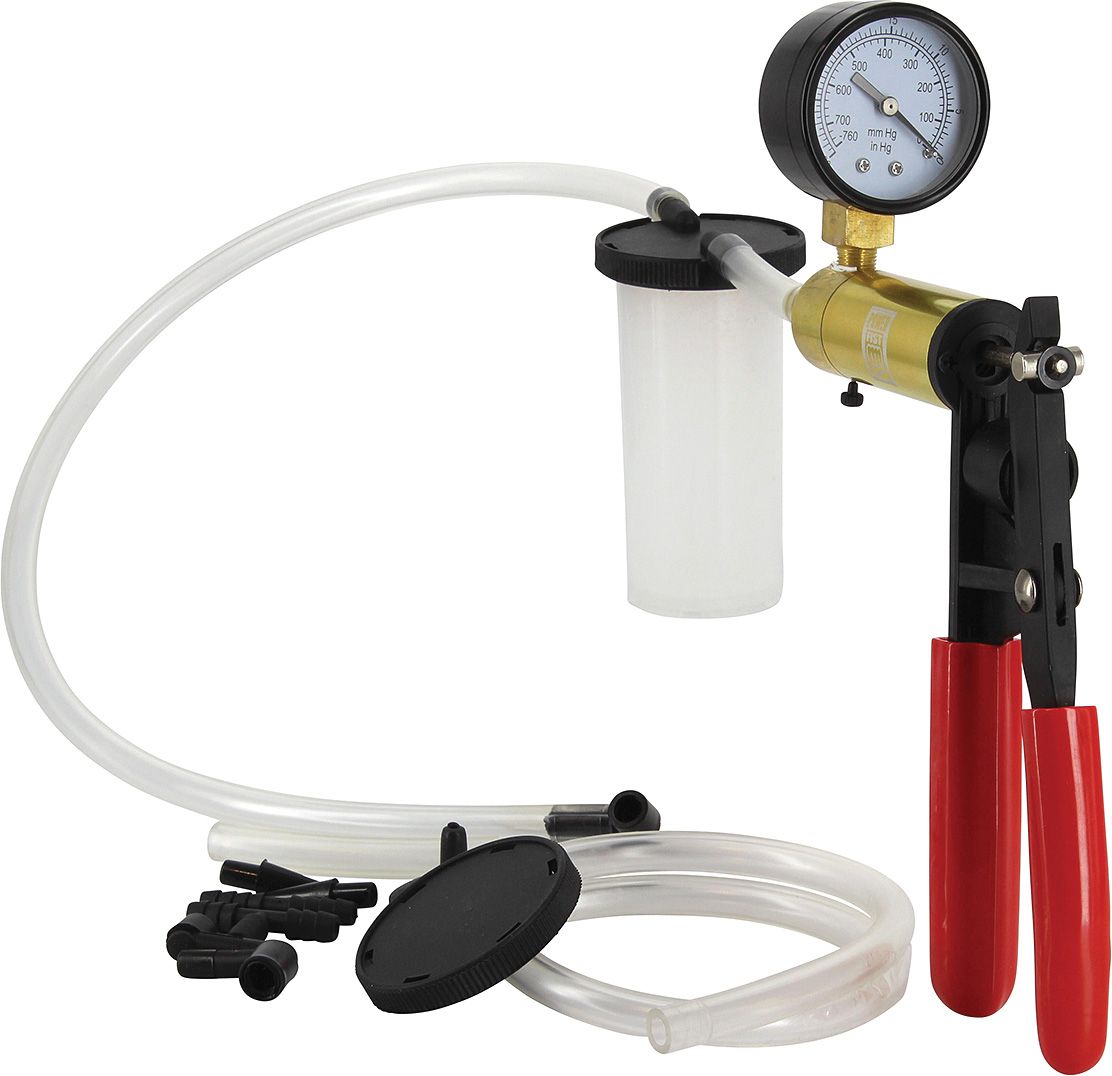

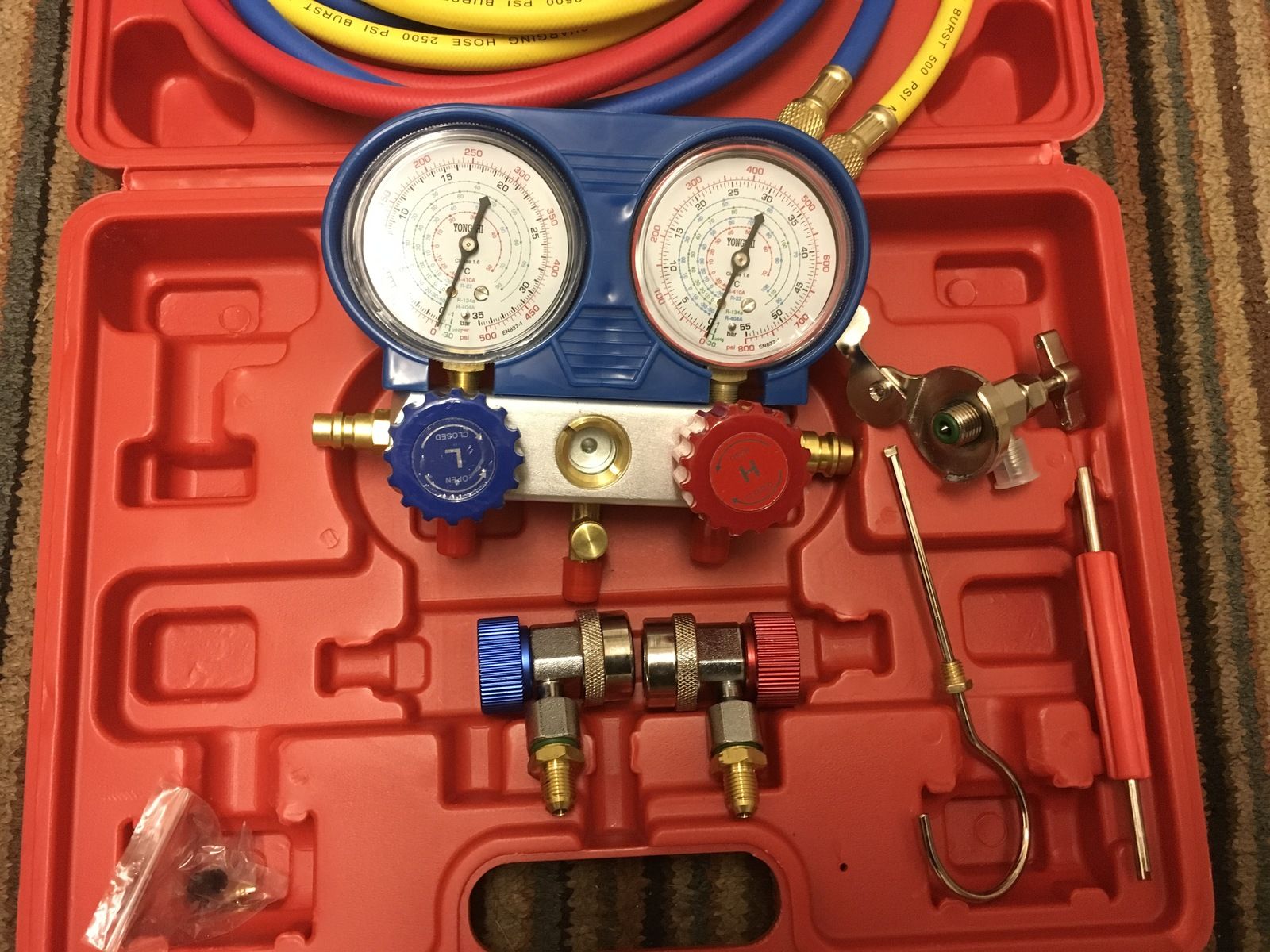

Also got all my gauges etc so after a vacuum can use the dryer via my air compressor to slightly charge it and then recheck before I get it recharged knowing that’s it’s sound and get them to pull a vacuum again to ensure it’s sound and remove any moisture

As we all know it can sometimes leak when pulling either s vacuum or pressure

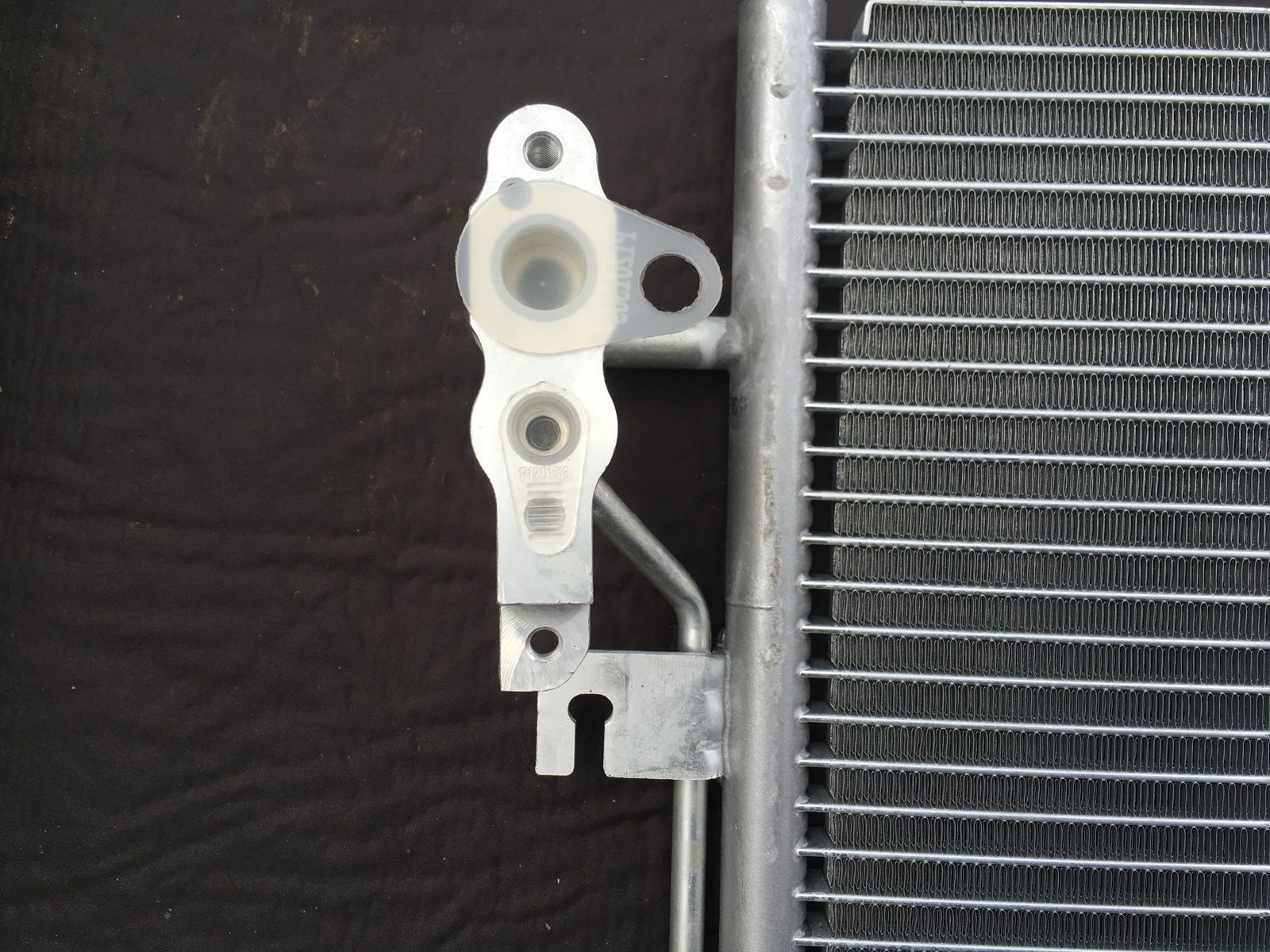

Can’t wait to get the ac all up and running as before I install the new condenser will vacuum test the entire AC system

Really enjoy doing this this

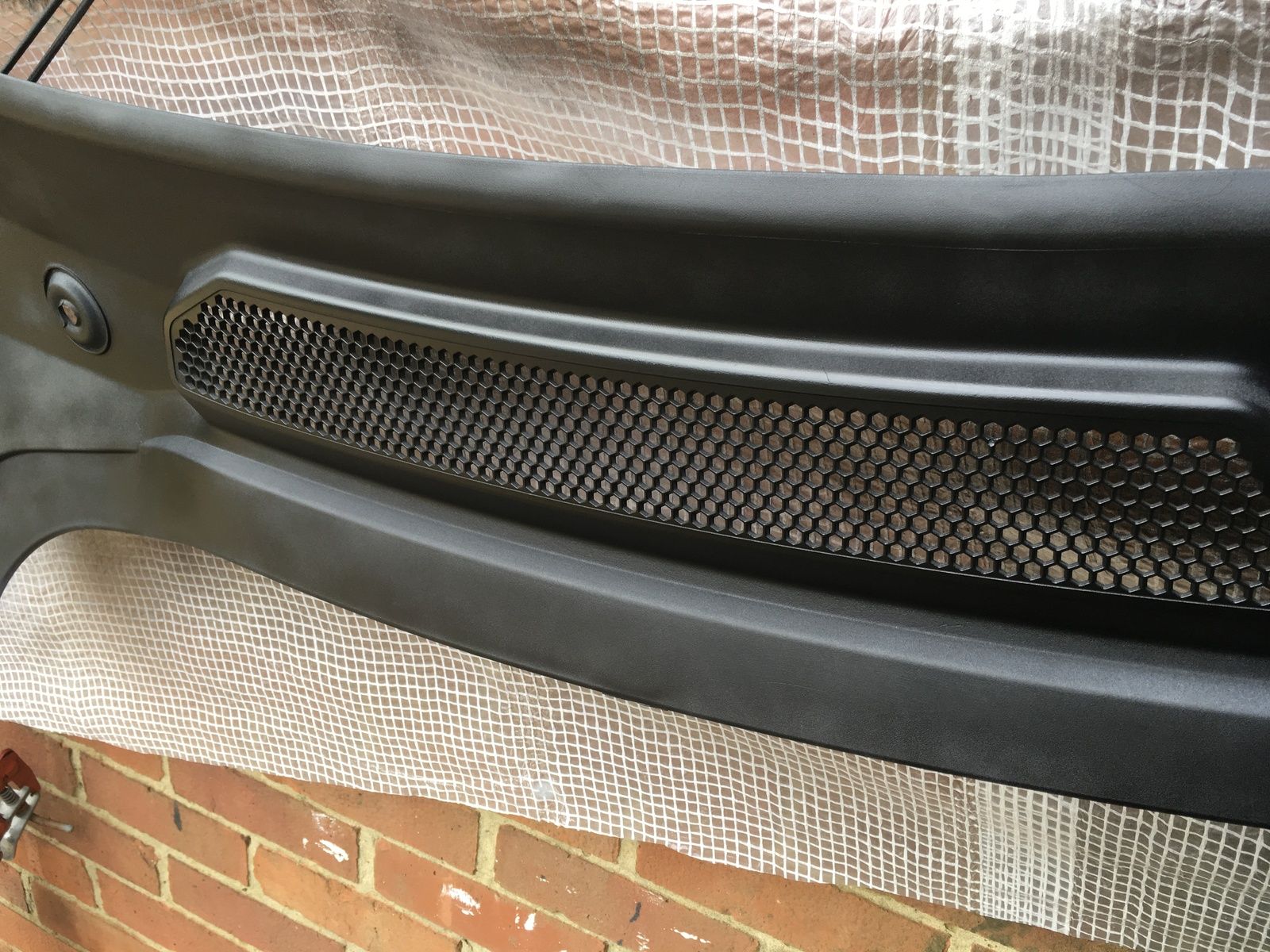

2nd coat now applied of the Matt black paint

I’ve Certainly had enough for today

Glad I moved the panels undercover

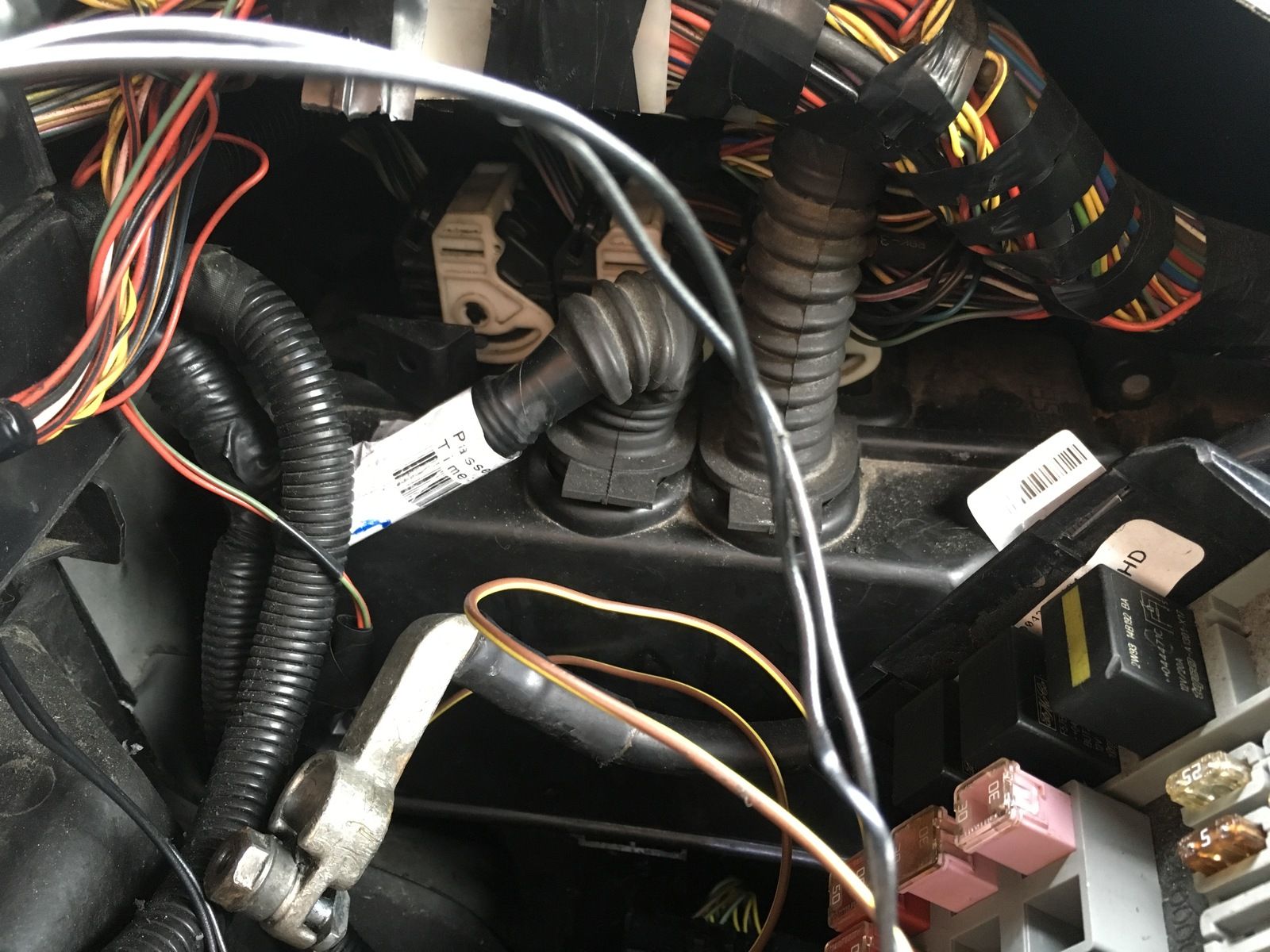

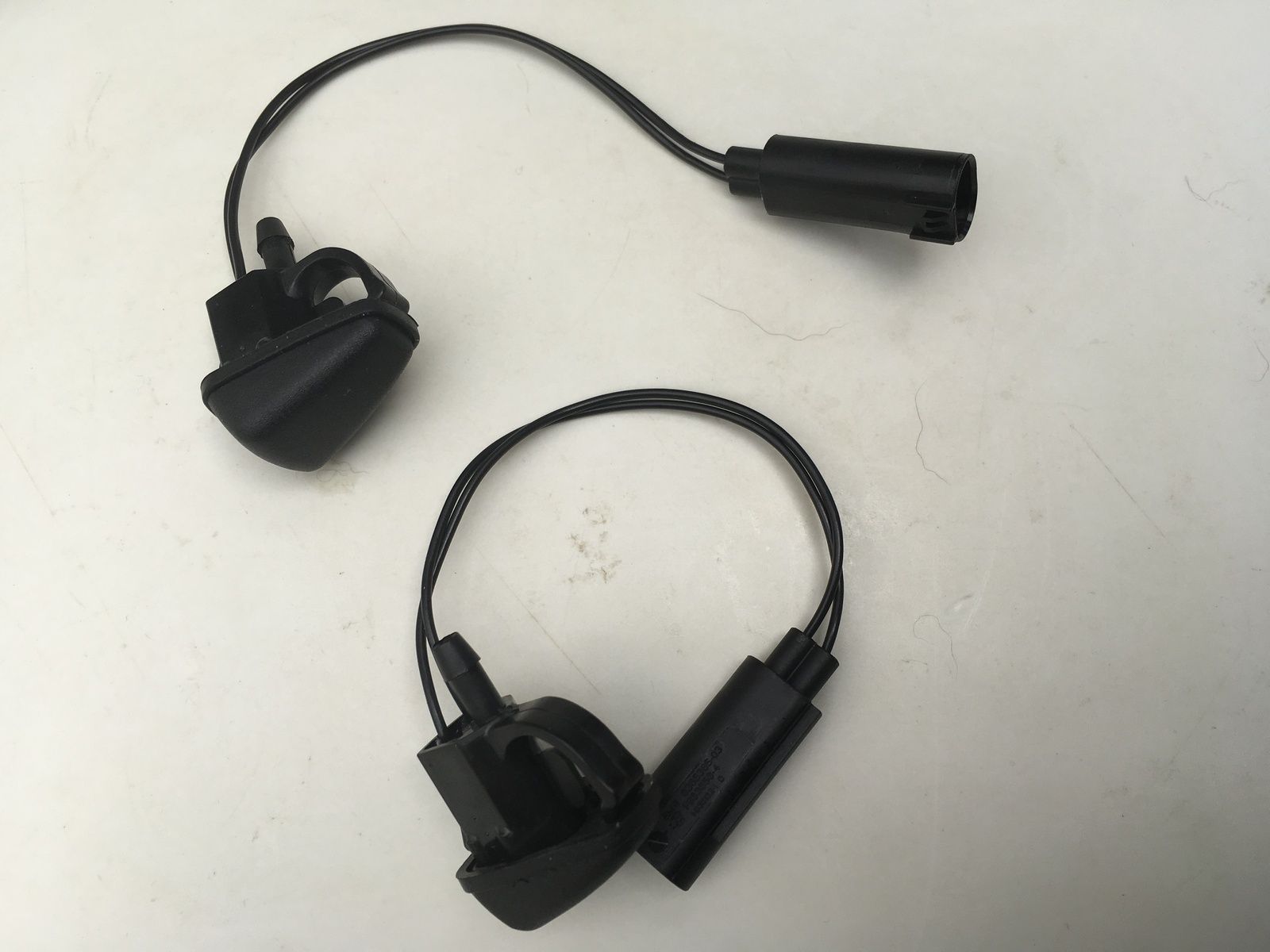

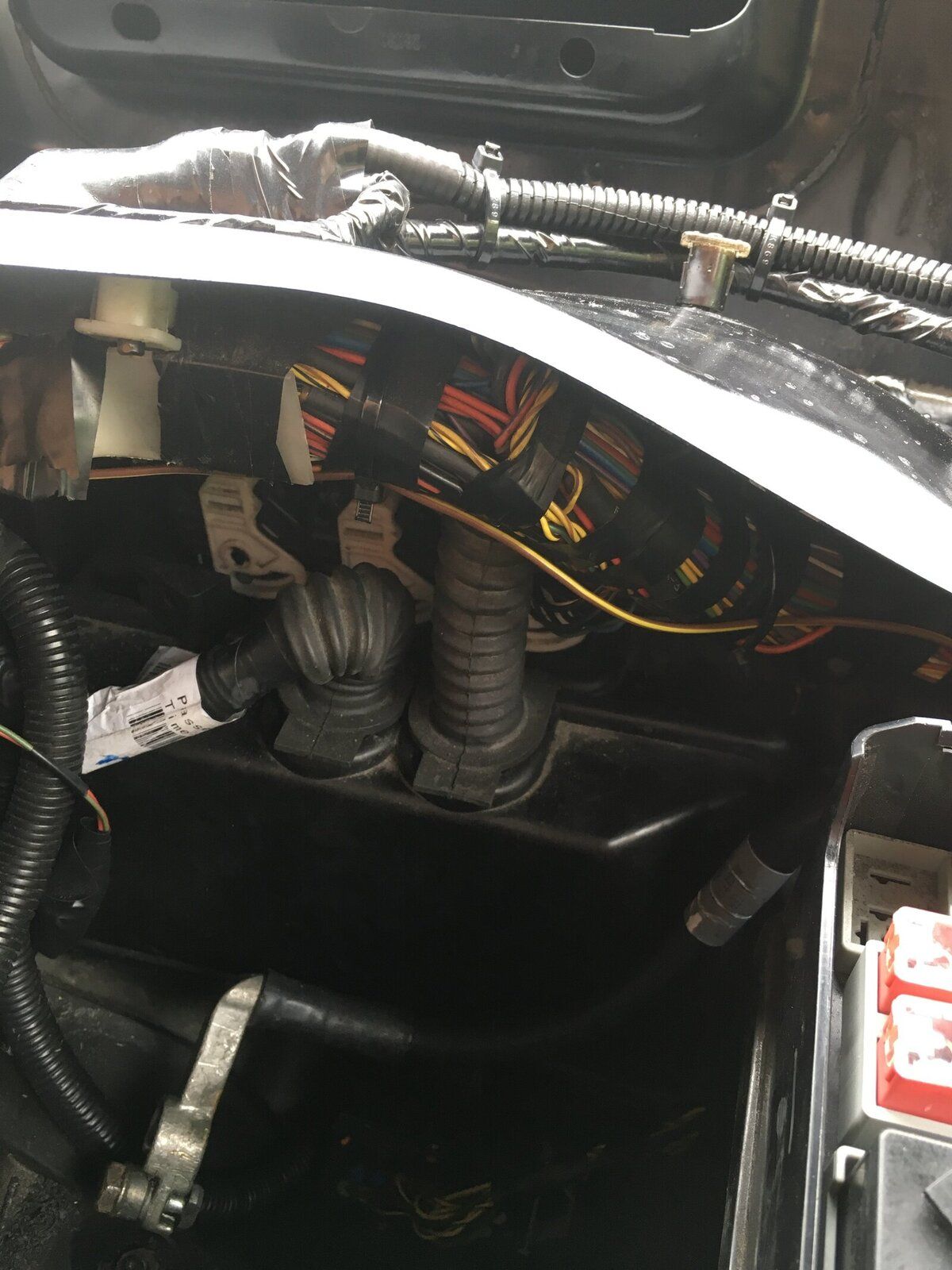

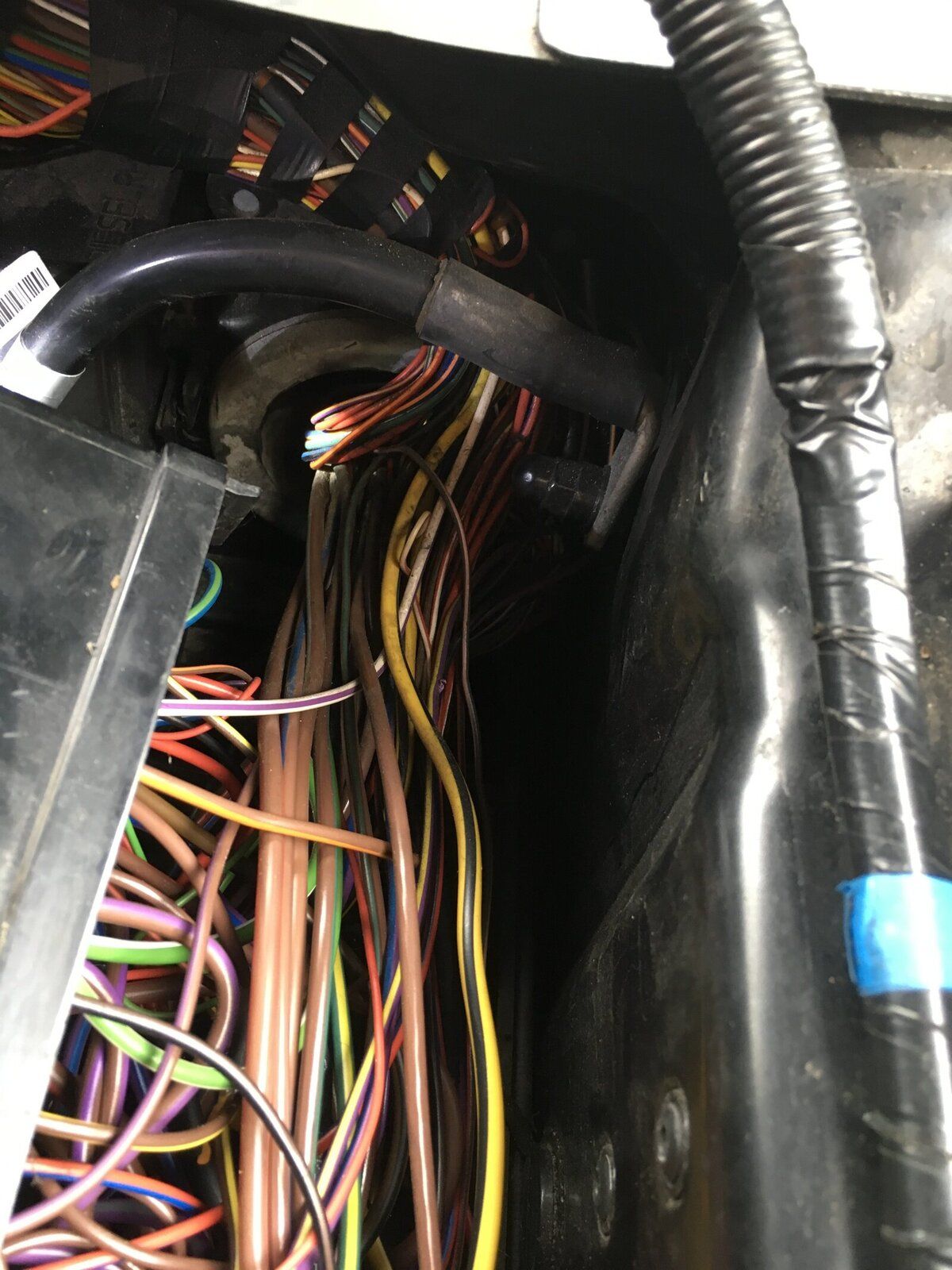

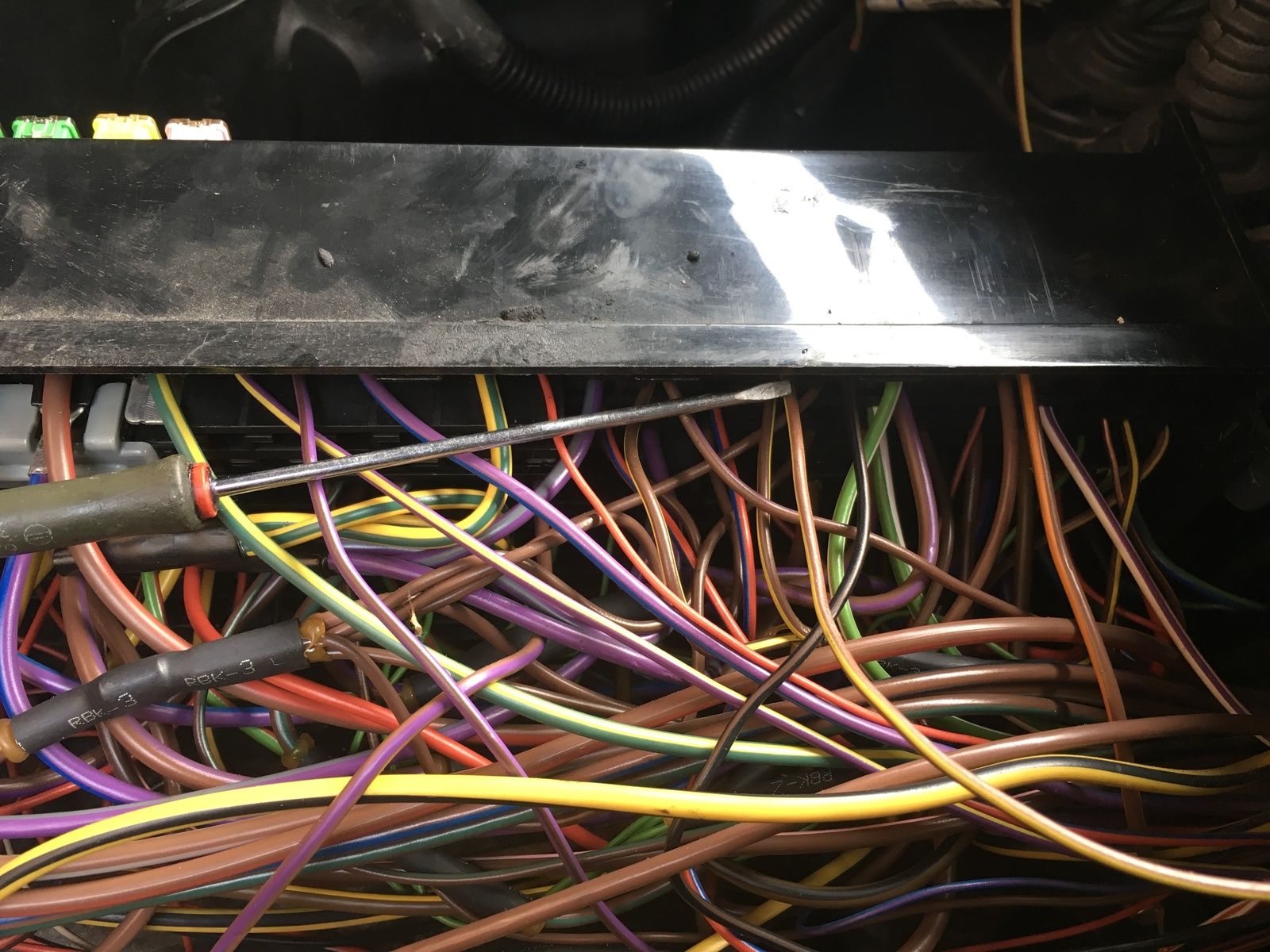

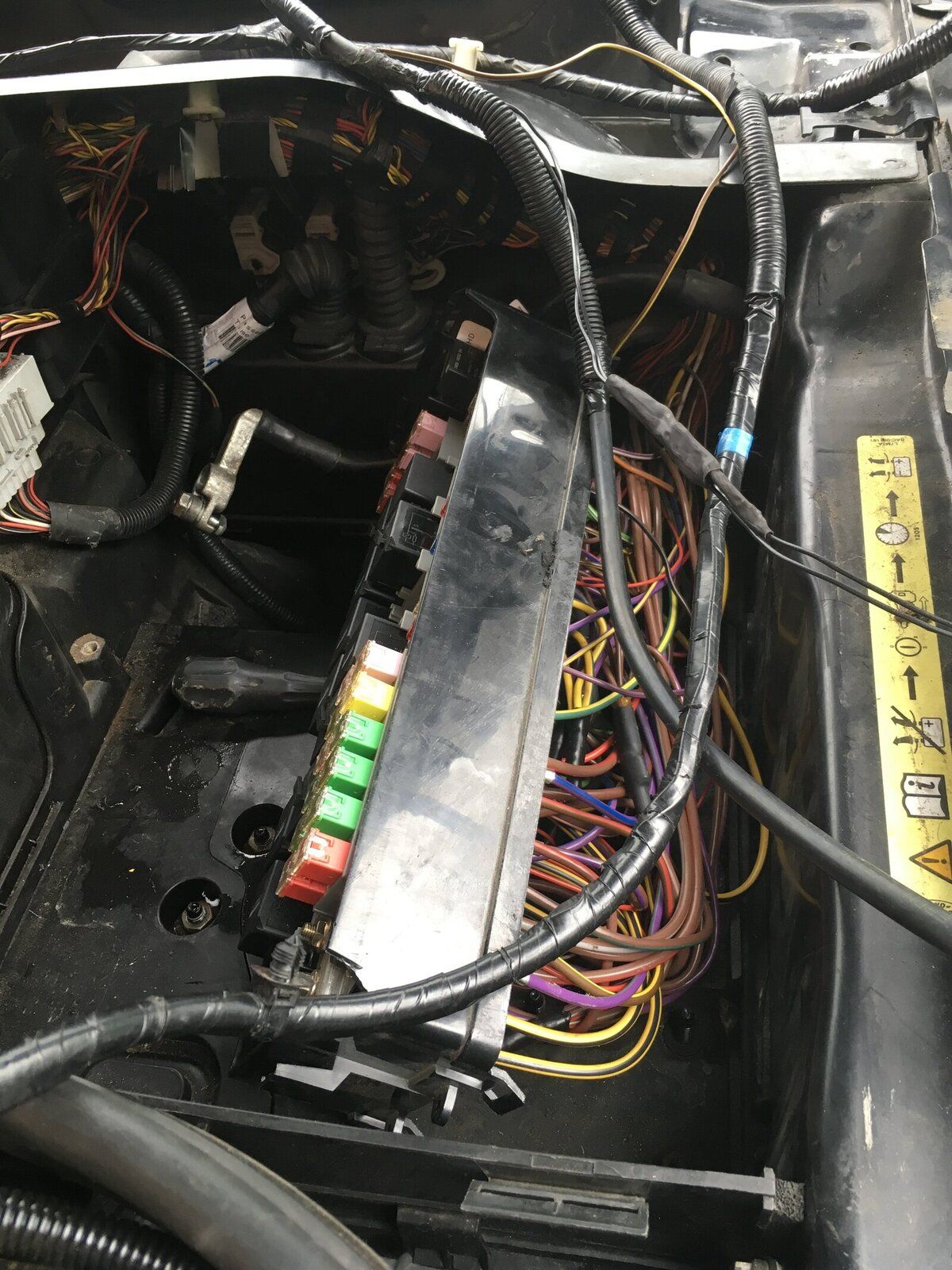

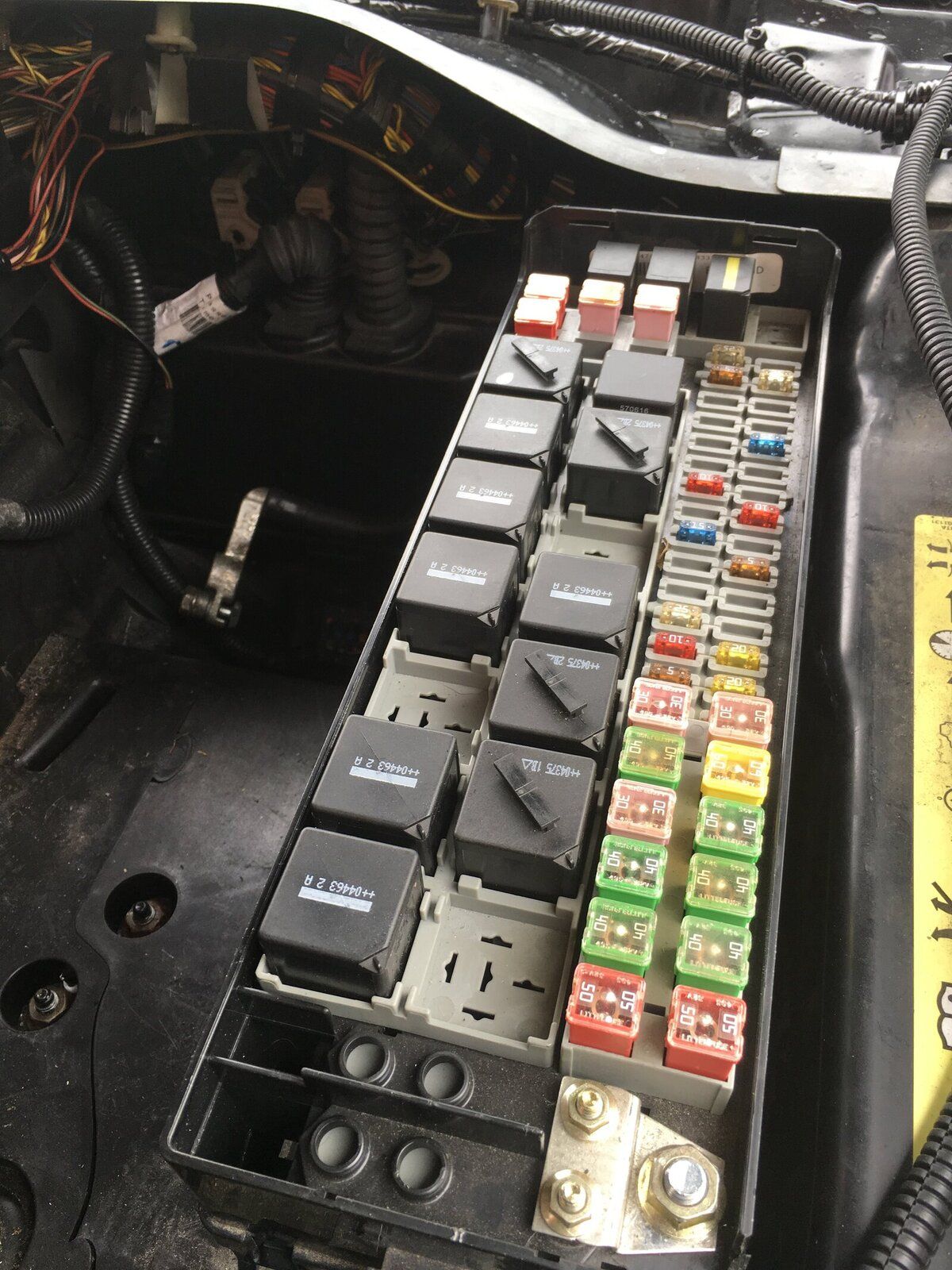

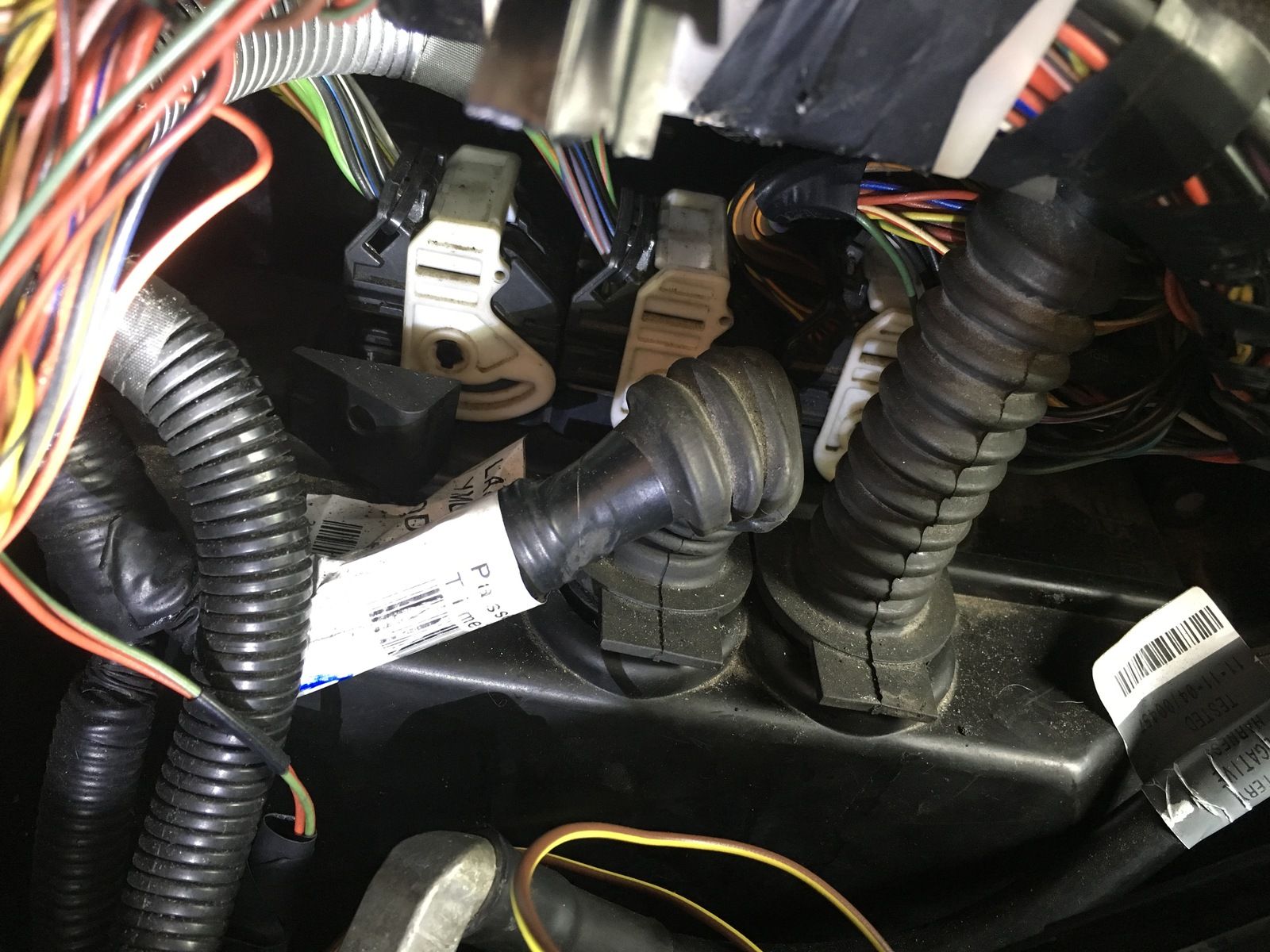

Now have my fuse box out in order I can retrofit the windscreen heated washer jets

gstuart said:

Now where did I leave that pin, snigger

View attachment 180368

Click to expand...

Wow..

Looks complex that does

Well versed in the ways of the wire I see

Loving the progress so far..

Hi @Henry_b

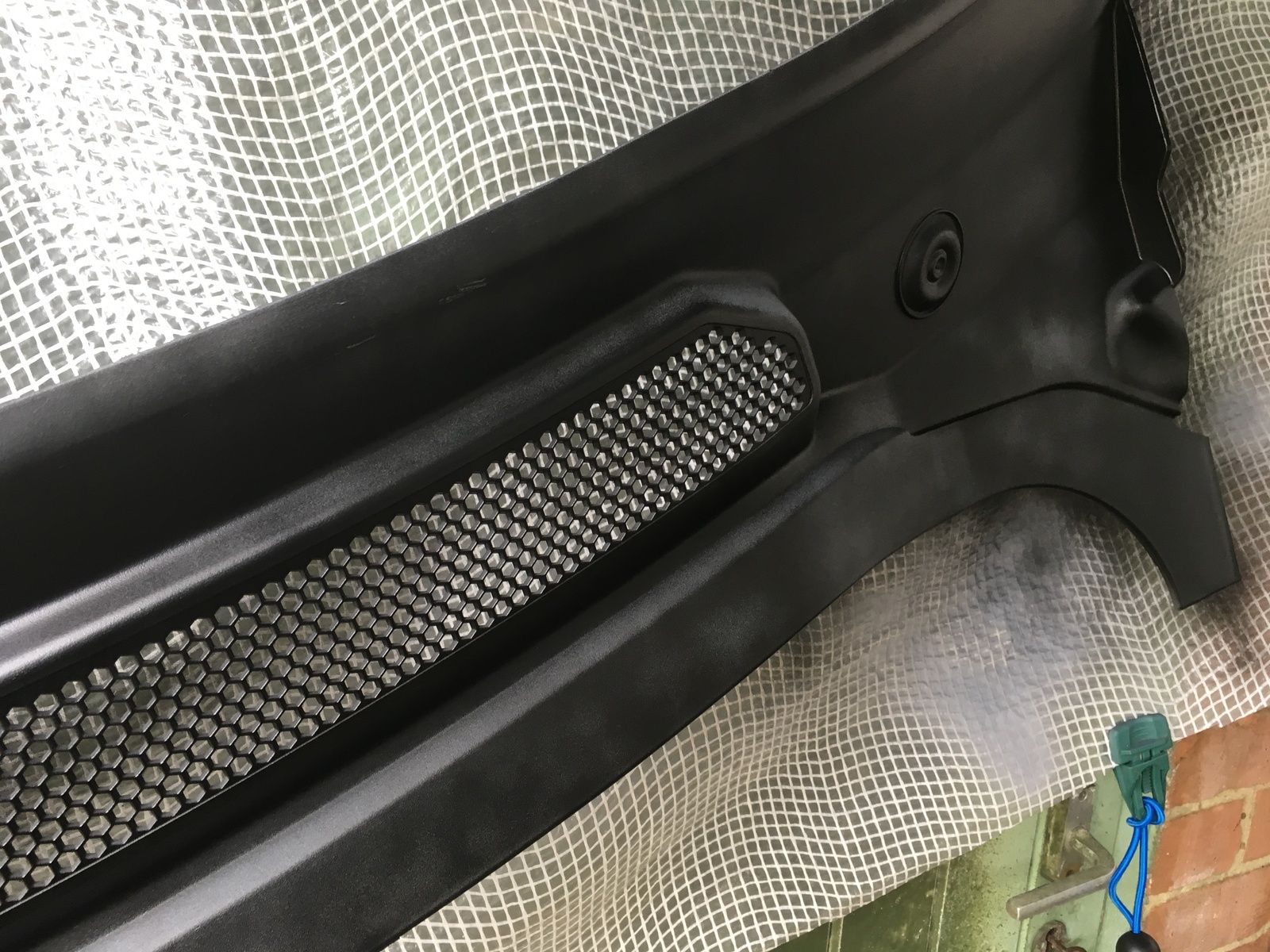

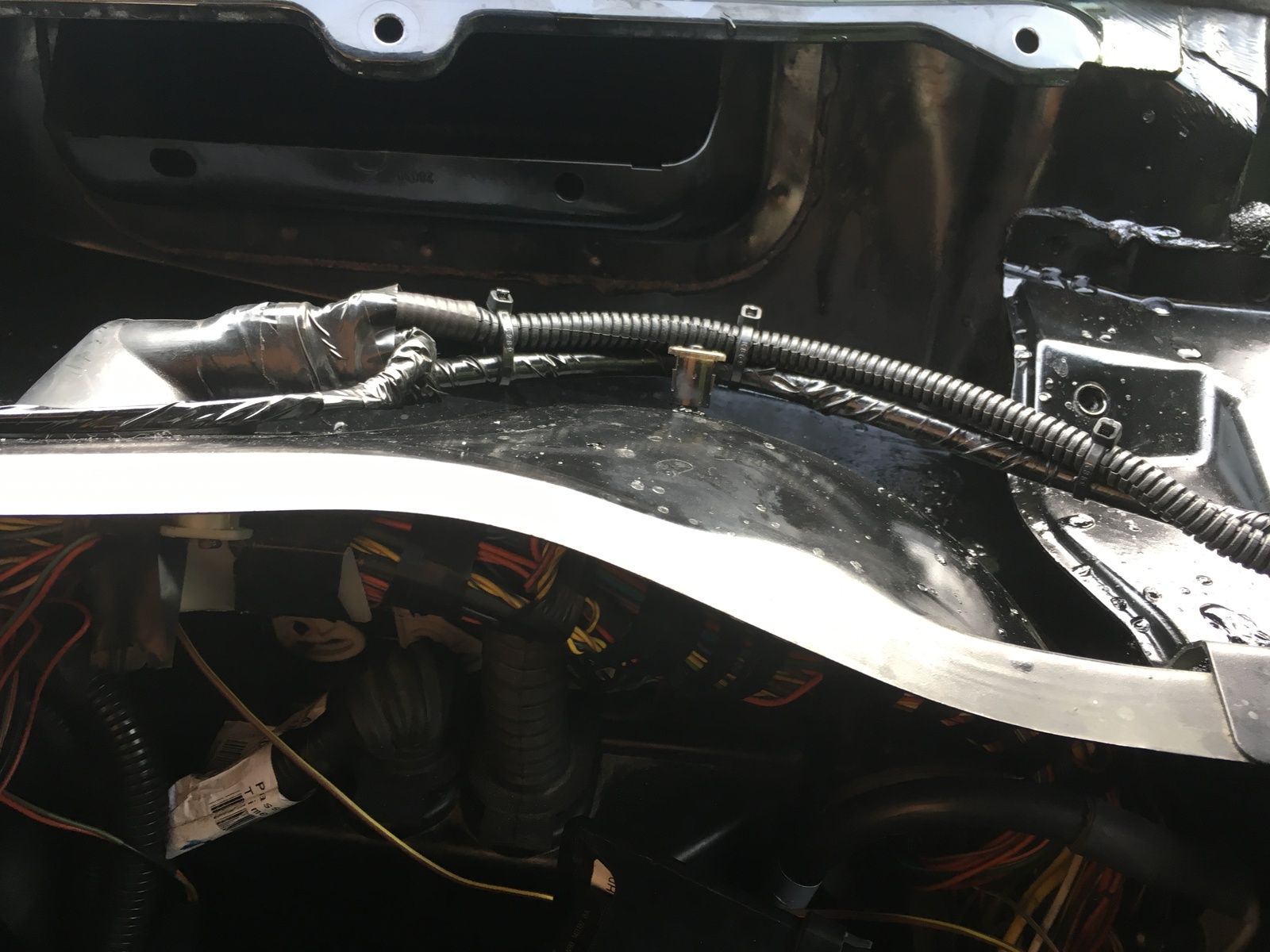

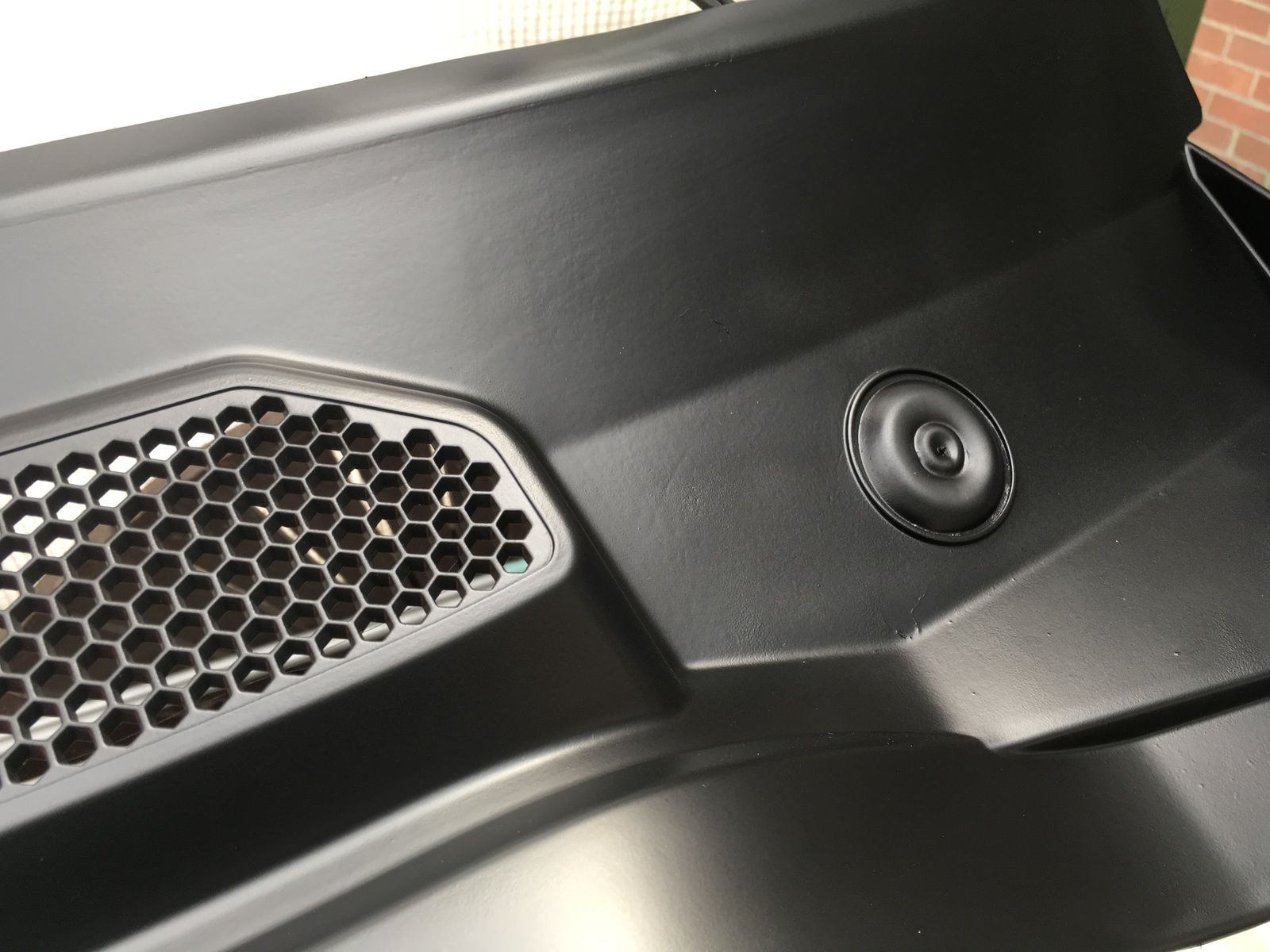

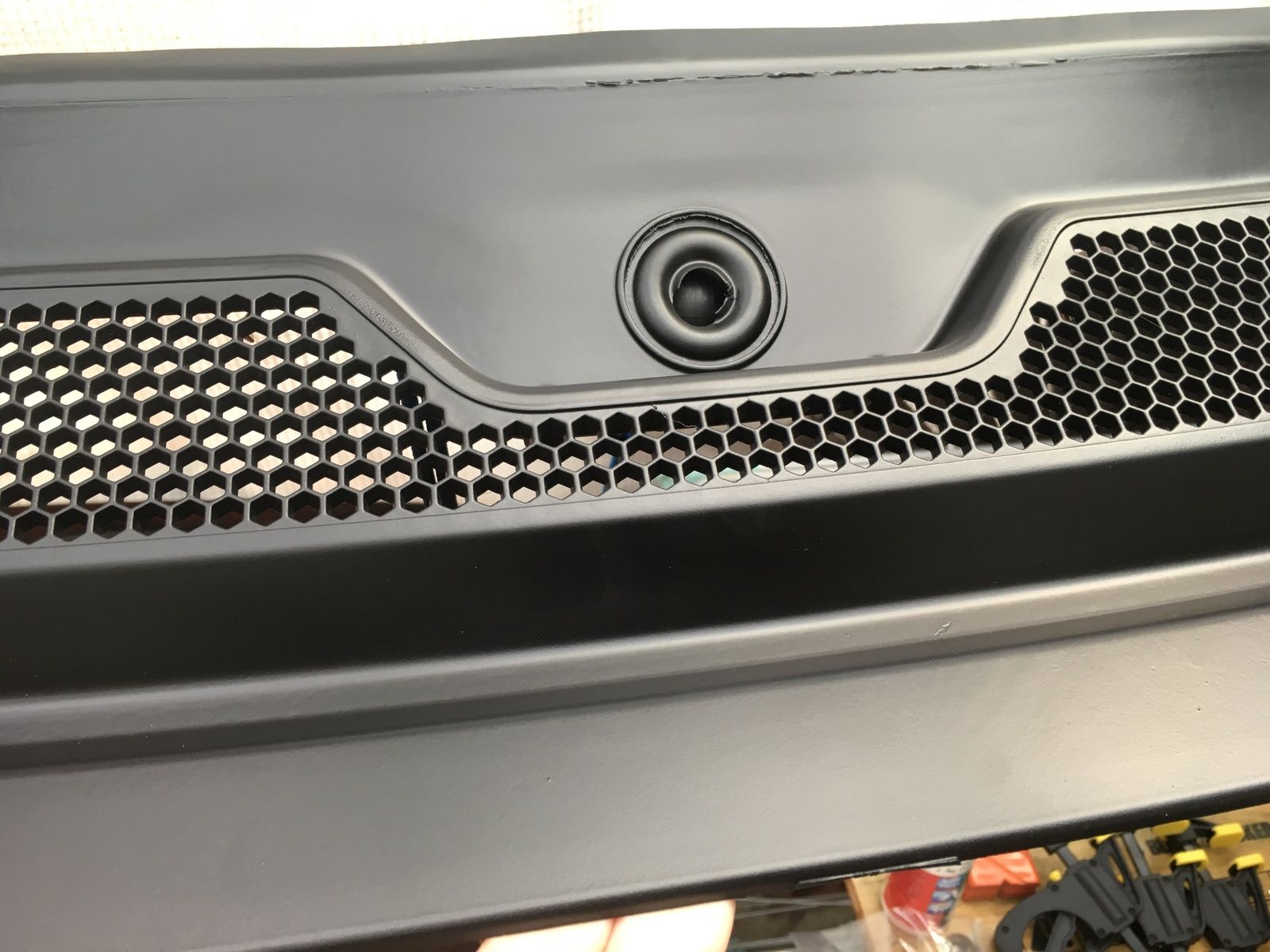

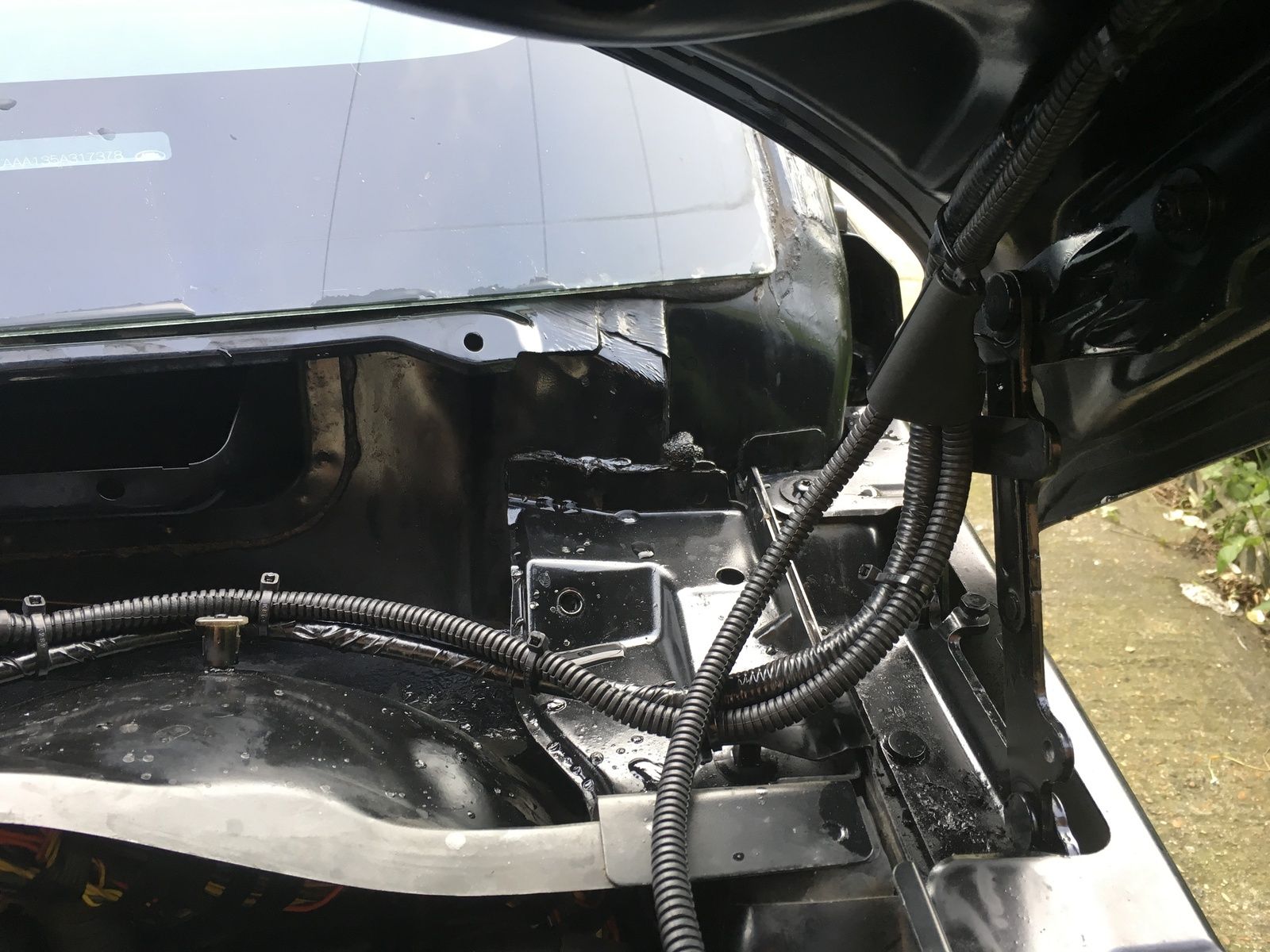

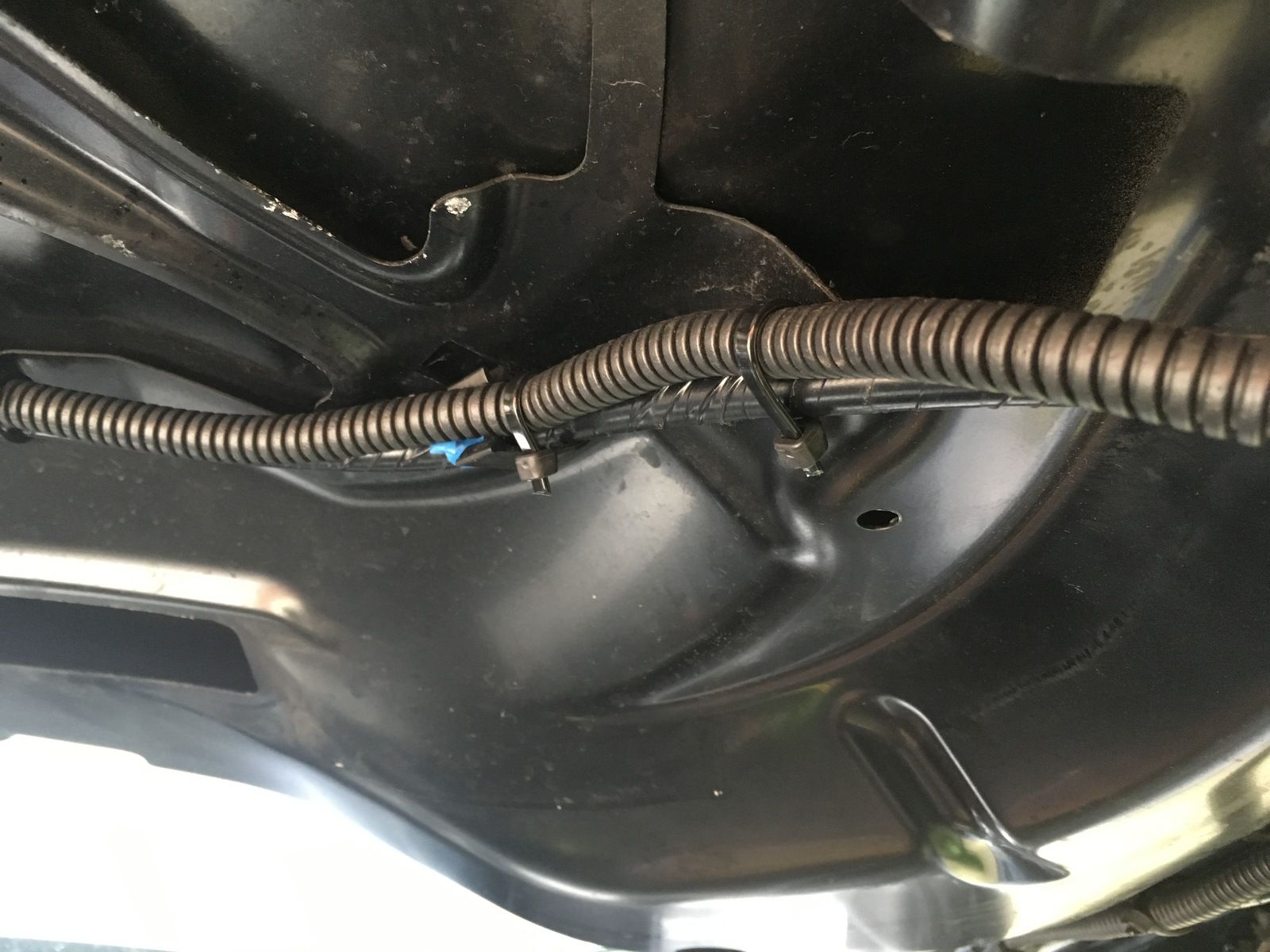

Many thks, have been able to get things rolling again, got the scuttle and A pillars sprayed , wires all in for the heated windscreen washer jets and started the wiring for the lower panel

Slowly but surely getting there, sad part is I really enjoy doing this

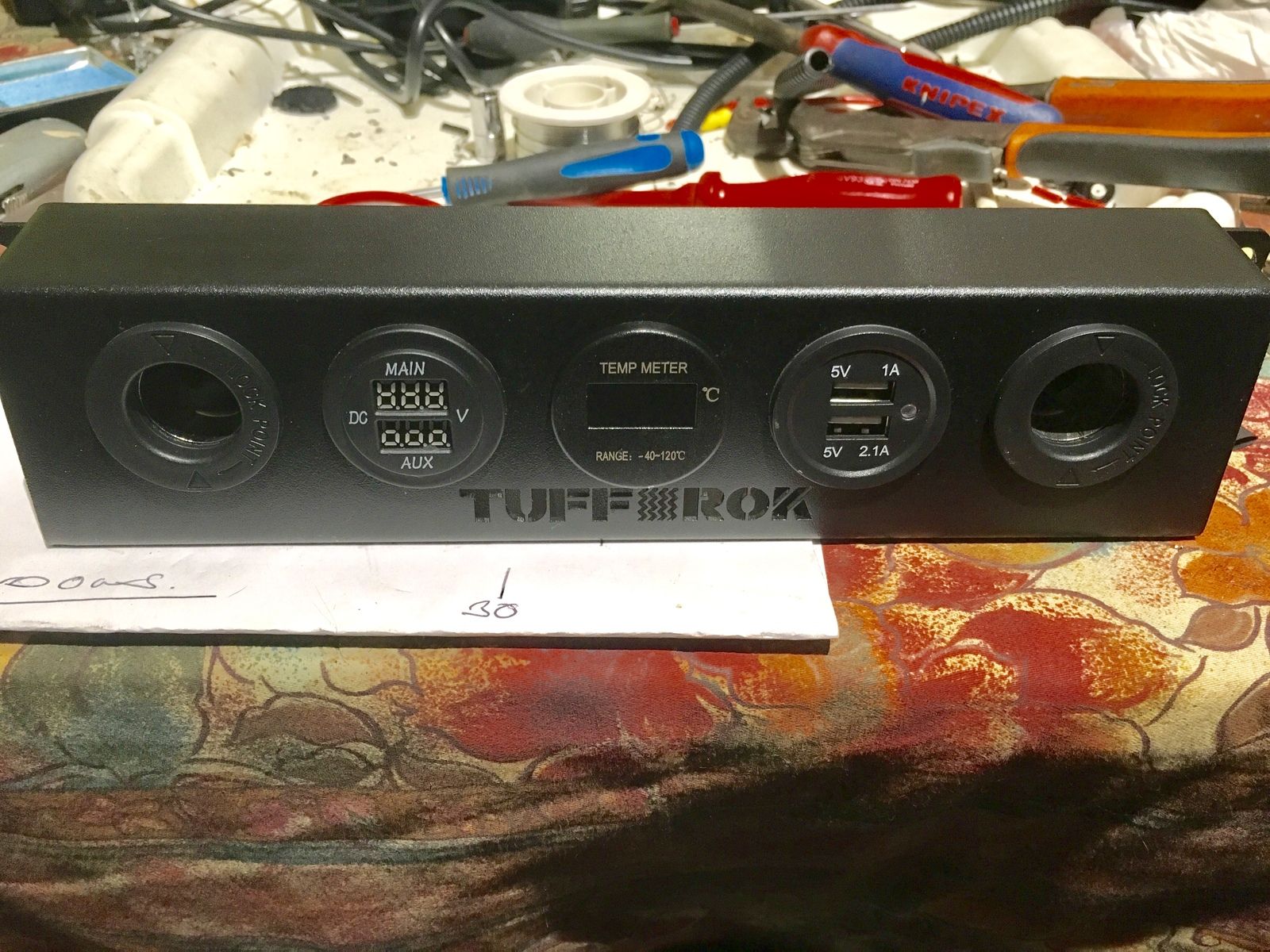

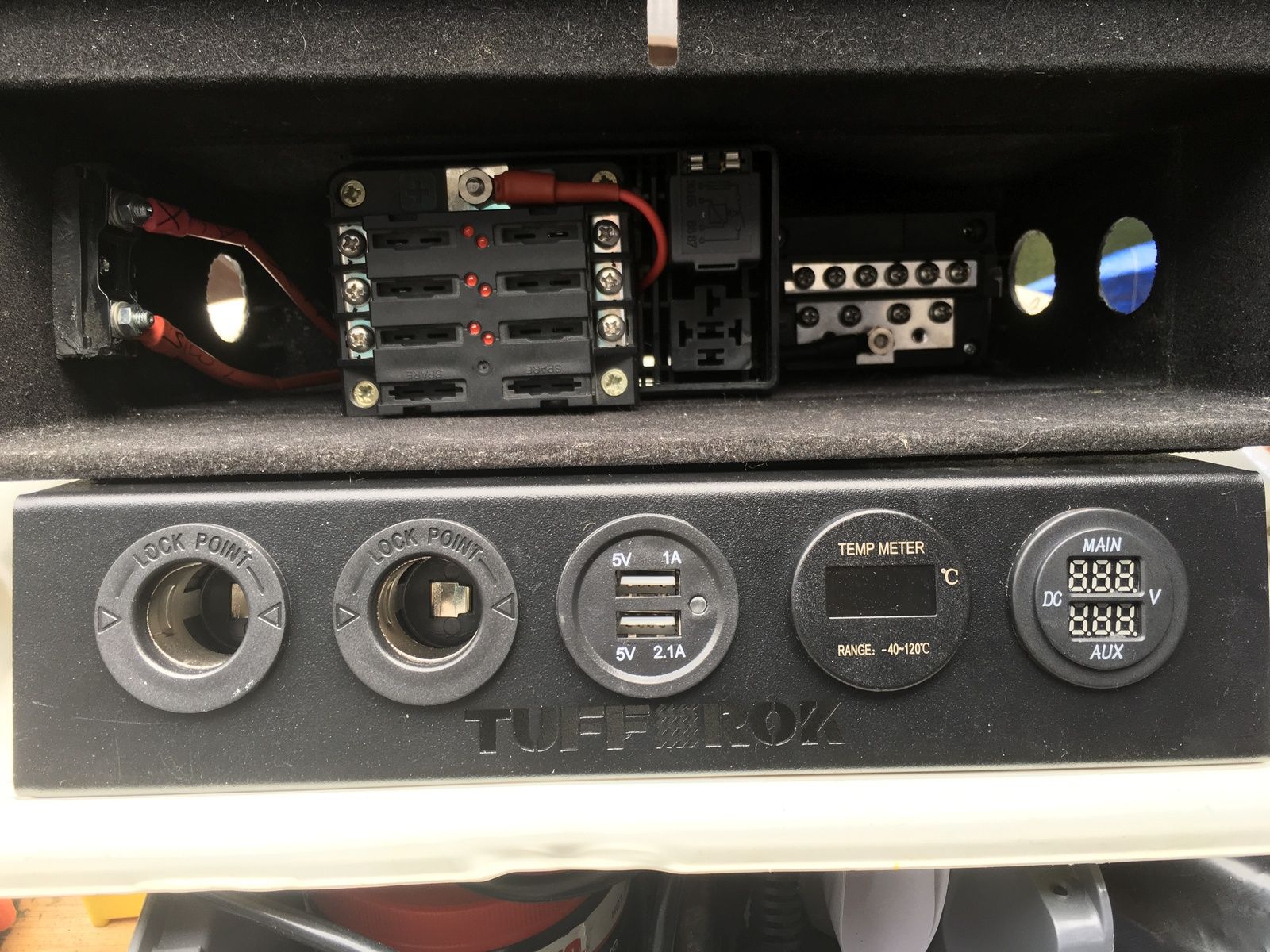

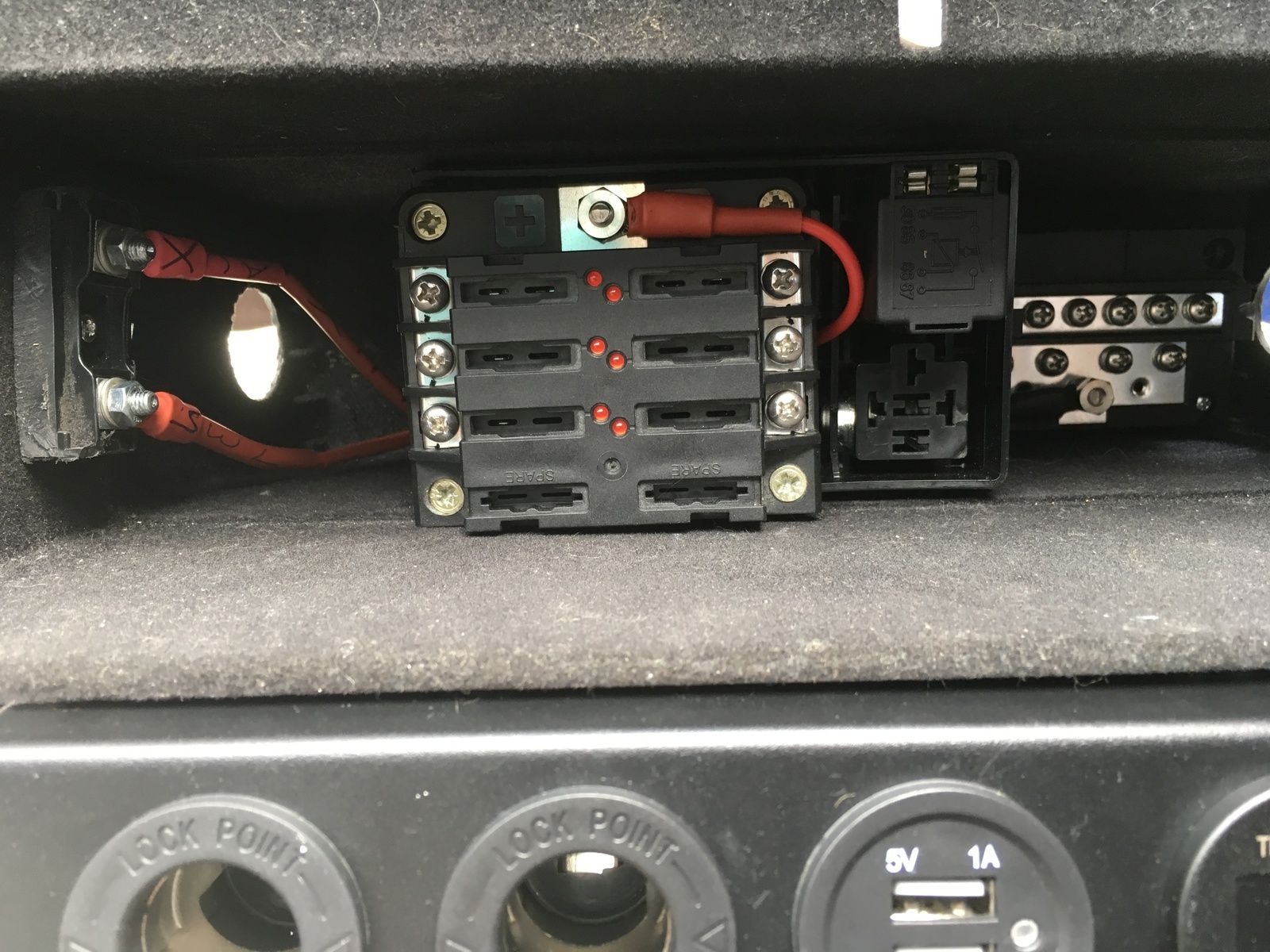

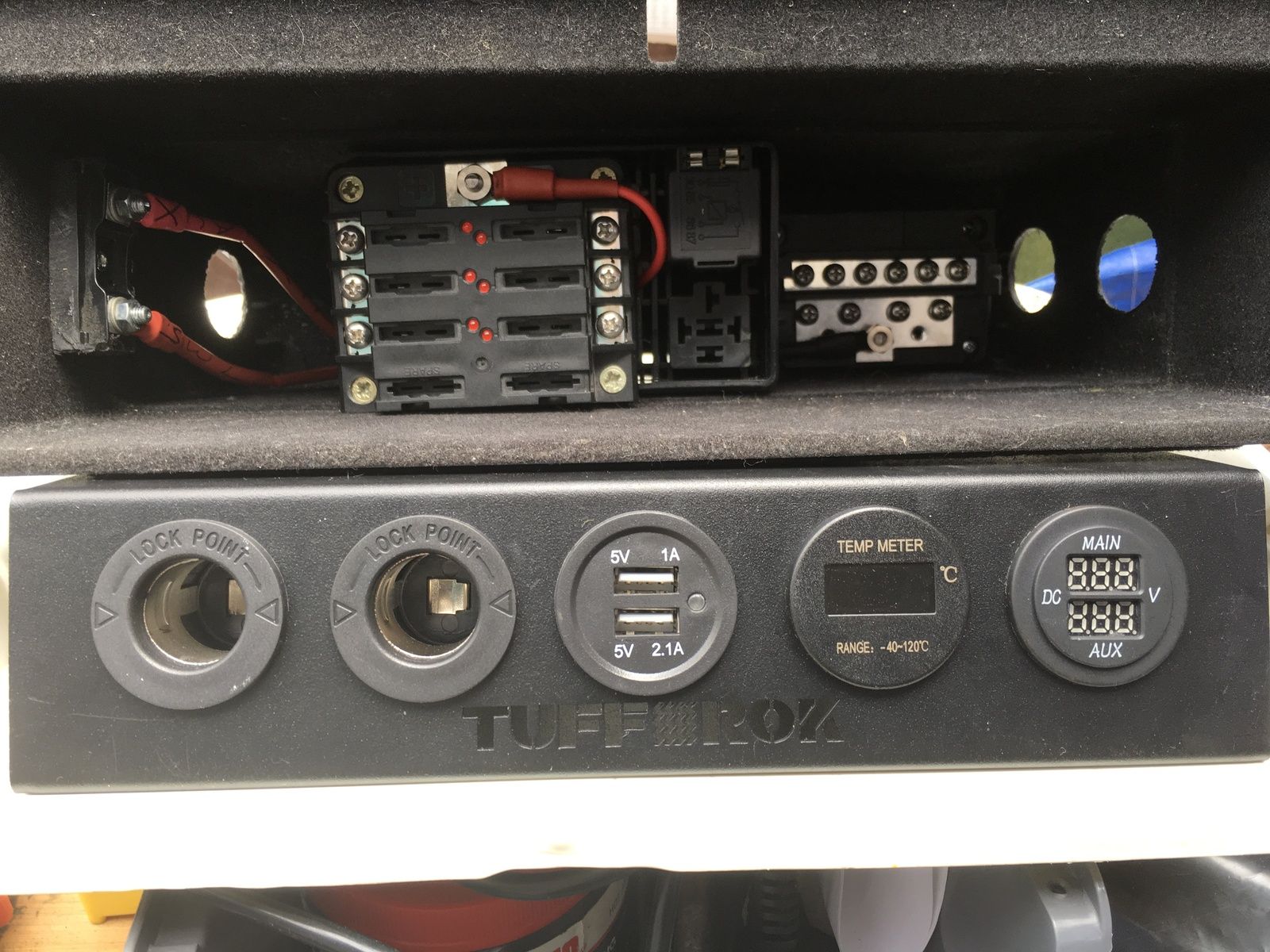

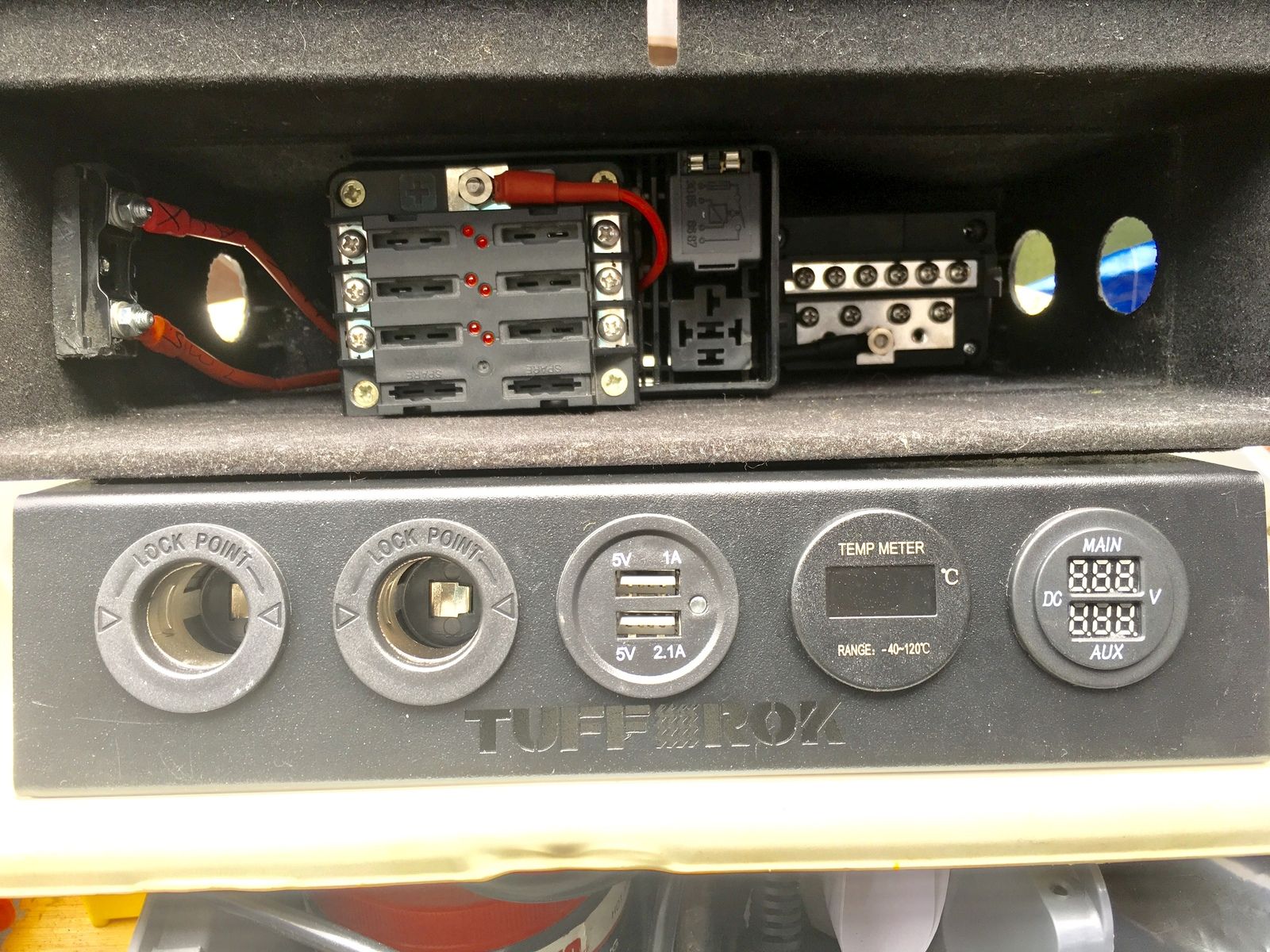

Wired fuse box up to come off my aux battery , via a relay so when the ign live is removed it kills the power to the fuse box, therefore the aux battery is switched off when I alarm the landy

Will be used for dashcam, aux power feed to my dual battery gauge showing aux volts

Temperature gauge shows inside air cabin temp , there’s a factory outside temp meter on the instrument panel

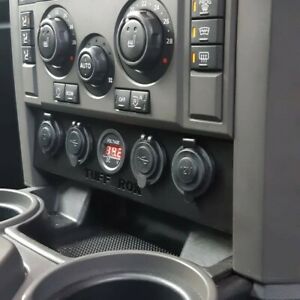

Panel should look like this when installed

gstuart said:

Hi @Henry_b

Many thks, have been able to get things rolling again, got the scuttle and A pillars sprayed , wires all in for the heated windscreen washer jets and started the wiring for the lower panel

Slowly but surely getting there, sad part is I really enjoy doing this

View attachment 181756 View attachment 181758 View attachment 181759 View attachment 181760 View attachment 181761 View attachment 181762 View attachment 181763 View attachment 181764 View attachment 181765 View attachment 181766 View attachment 181767 View attachment 181768 View attachment 181769 View attachment 181770

Click to expand...

looks great Gary.

Would be a hash if you didn't enjoy it lol

It's good you enjoy it

Henry_b said:

looks great Gary.

Would be a hash if you didn't enjoy it lol

It's good you enjoy it

Click to expand...

Thks buddy , god knows I’ve put some hours into this, but know we’re all guilty of that, lol

Well chuffed with it , only job I hated was the wishbones, Christ what a @&&@£#&@@they were

Plus my son has been chomping at the bit trying to get a test drive , I might give in one day and let him drive , he’s 28

gstuart said:

Thks buddy , god knows I’ve put some hours into this, but know we’re all guilty of that, lol

Well chuffed with it , only job I hated was the wishbones, Christ what a @&&@£#&@@they were

Plus my son has been chomping at the bit trying to get a test drive , I might give in one day and let him drive , he’s 28

Click to expand...

It's the getting him out thats the issue

Wishbones are a pain i bet

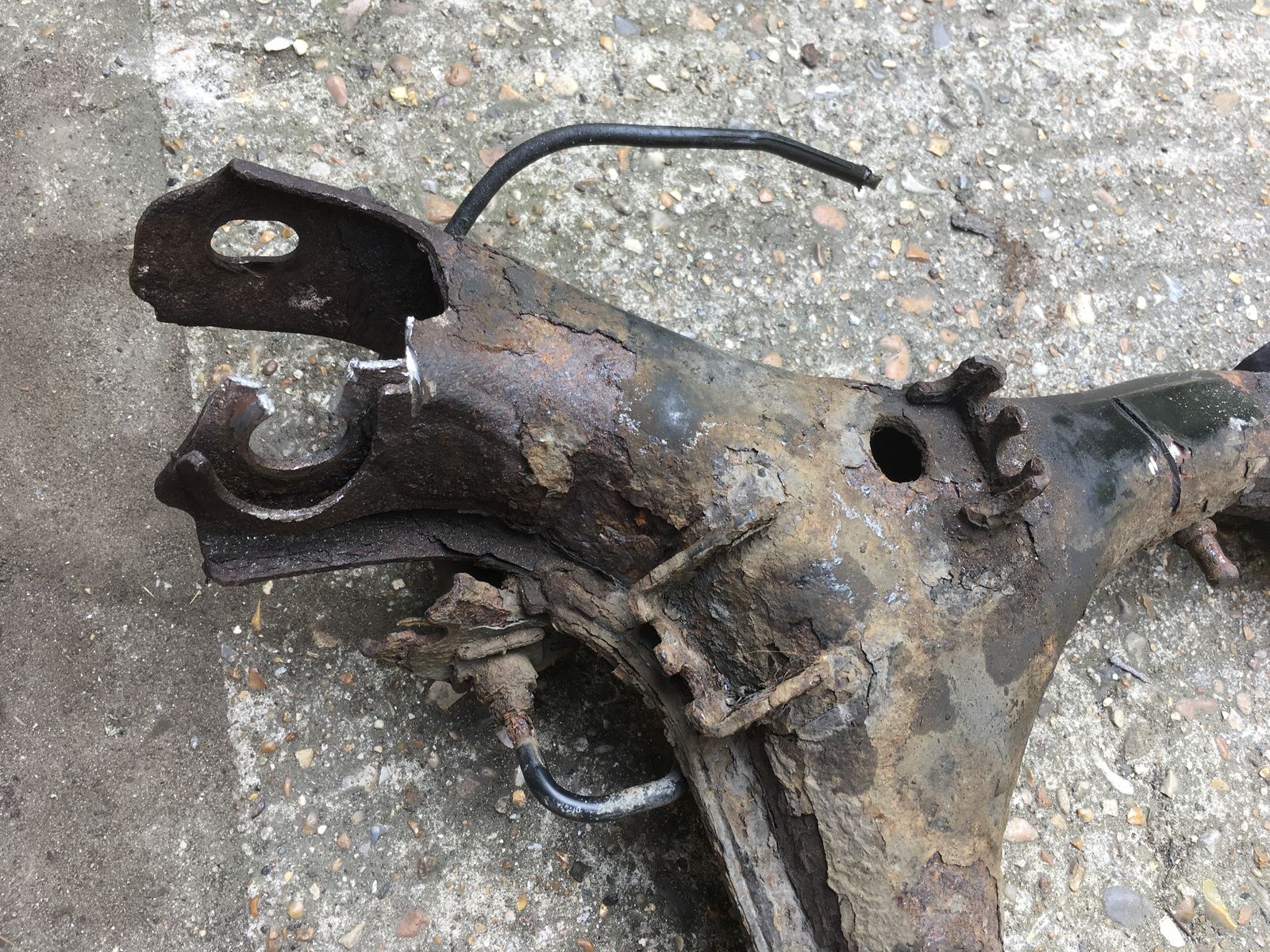

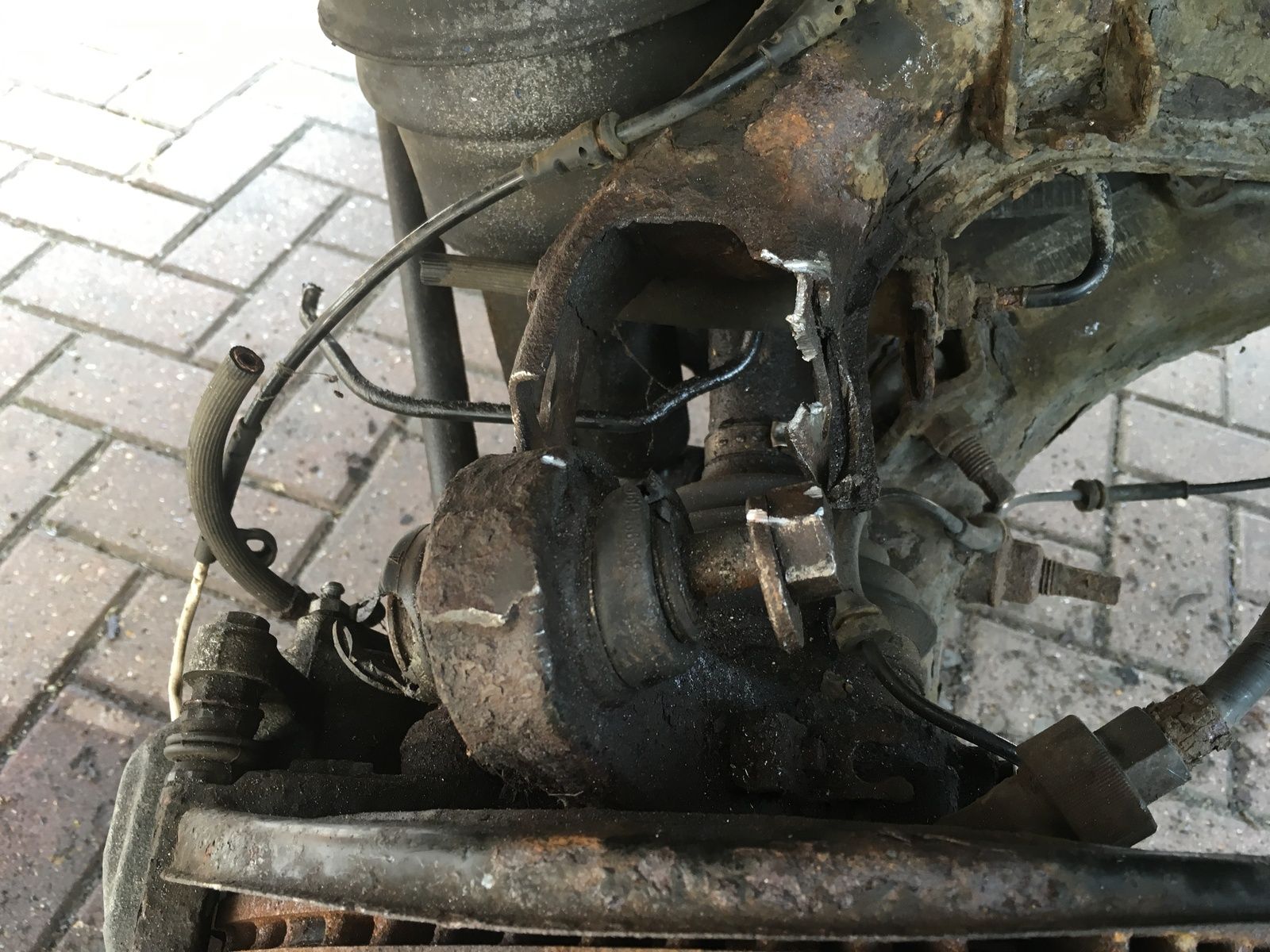

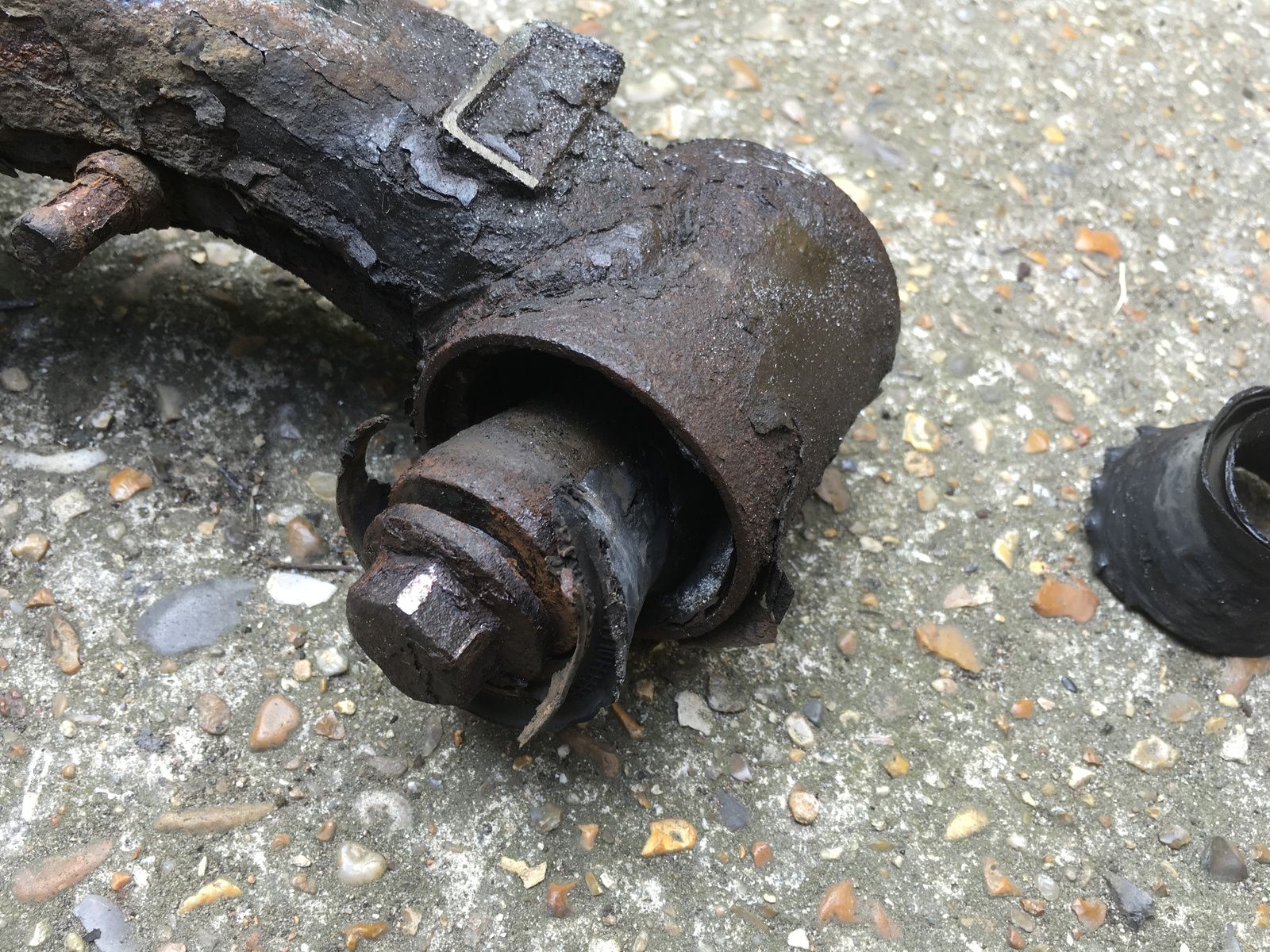

Any that the truth , think u might have seen these already , complete @£#£&#&## to remove

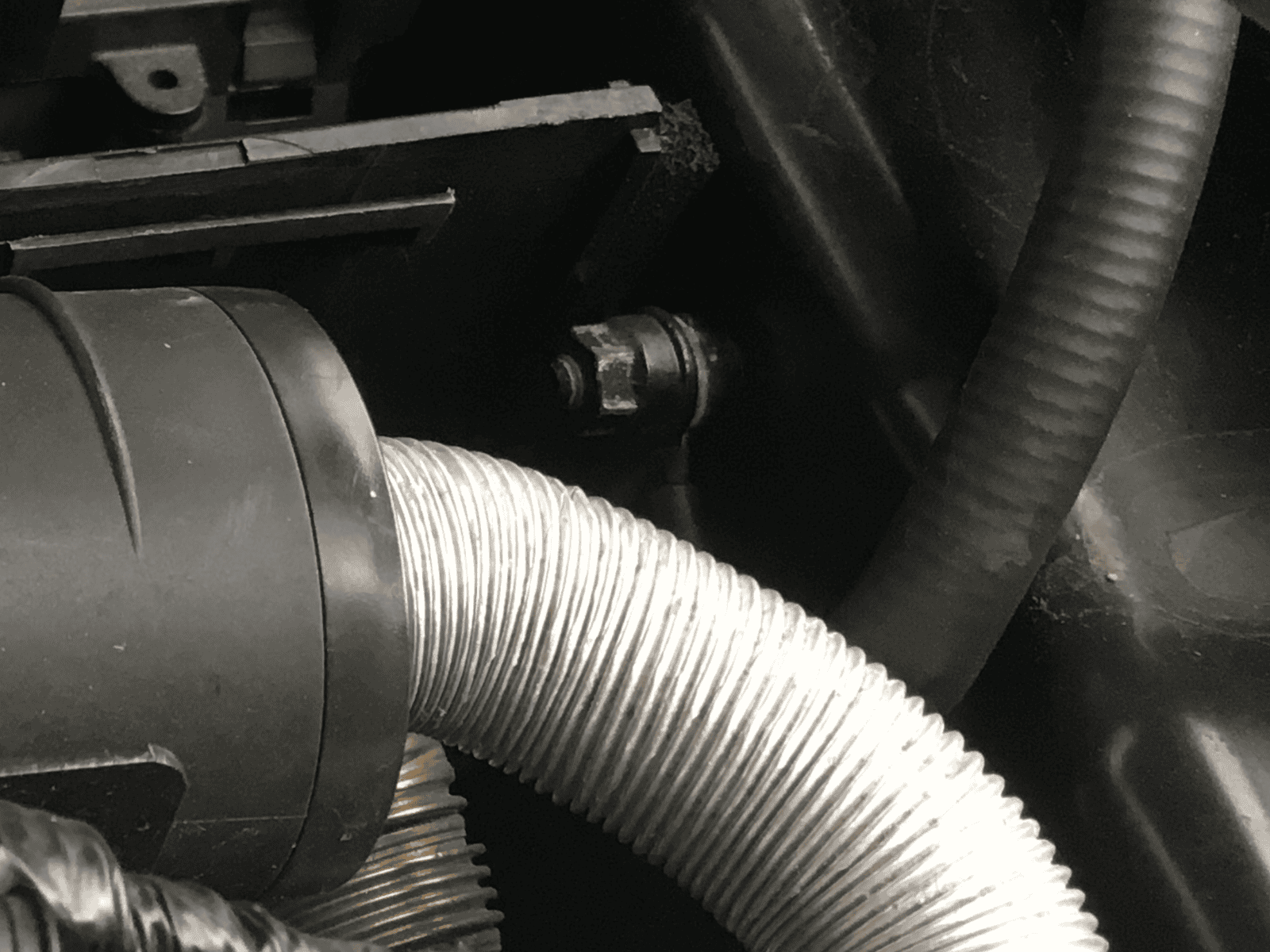

Plus few pics inside the bodywork

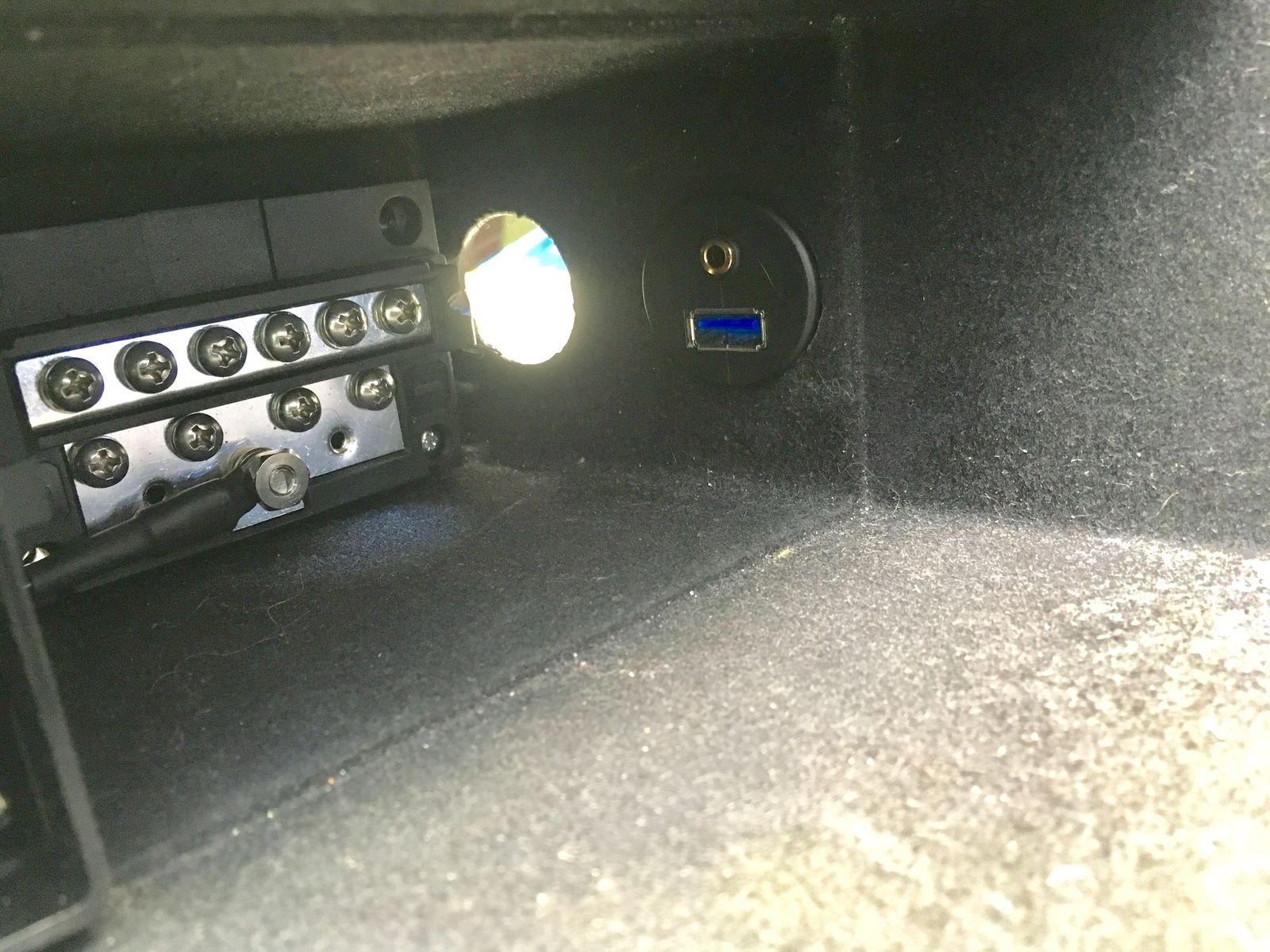

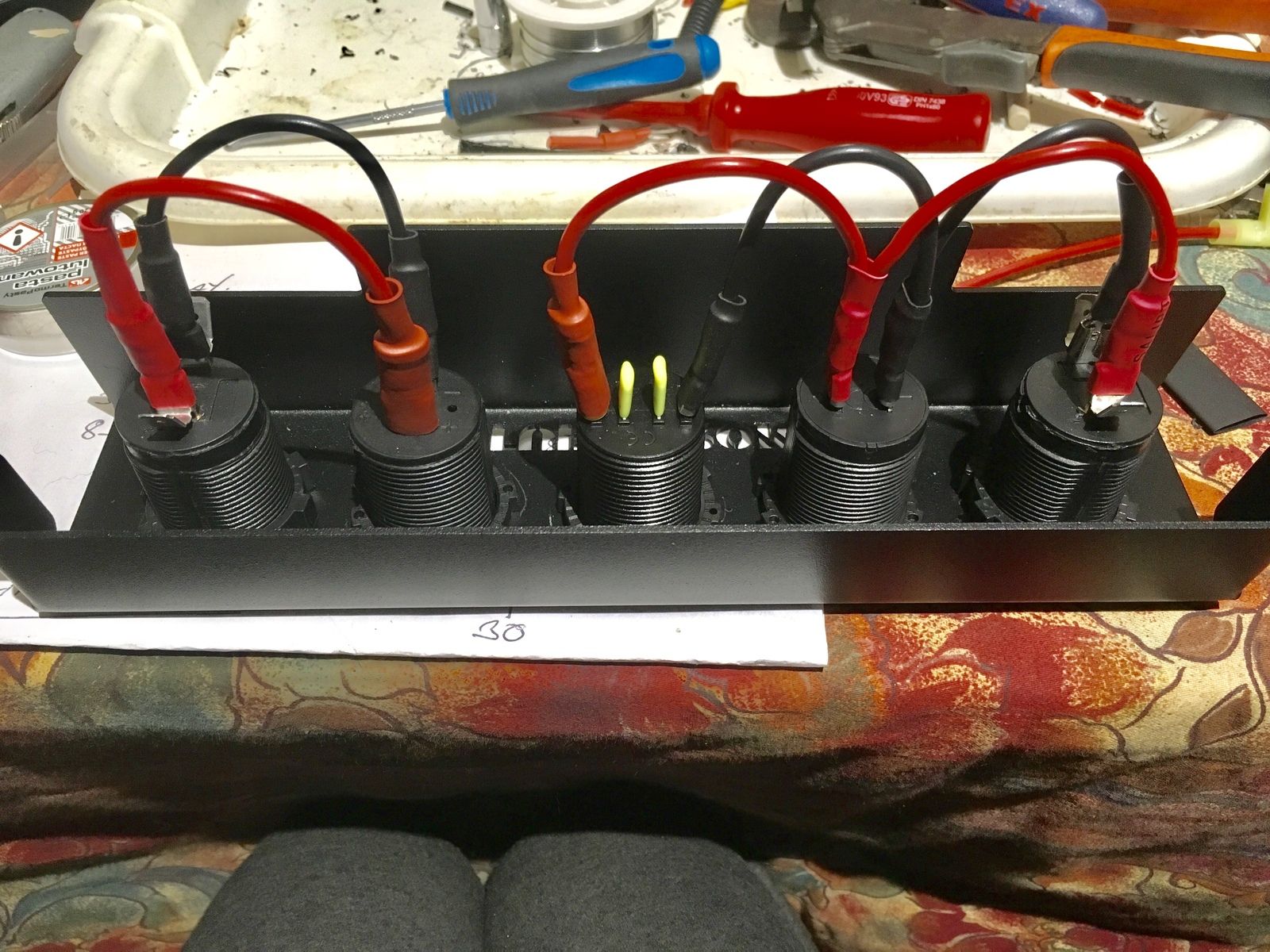

Just finished wiring up the bottom panel , as there’s 2 x existing cig lighters I’ve split the panel wiring into 2 x parts

So each cig lighter connection can go on either side

Don’t think it looks too bad

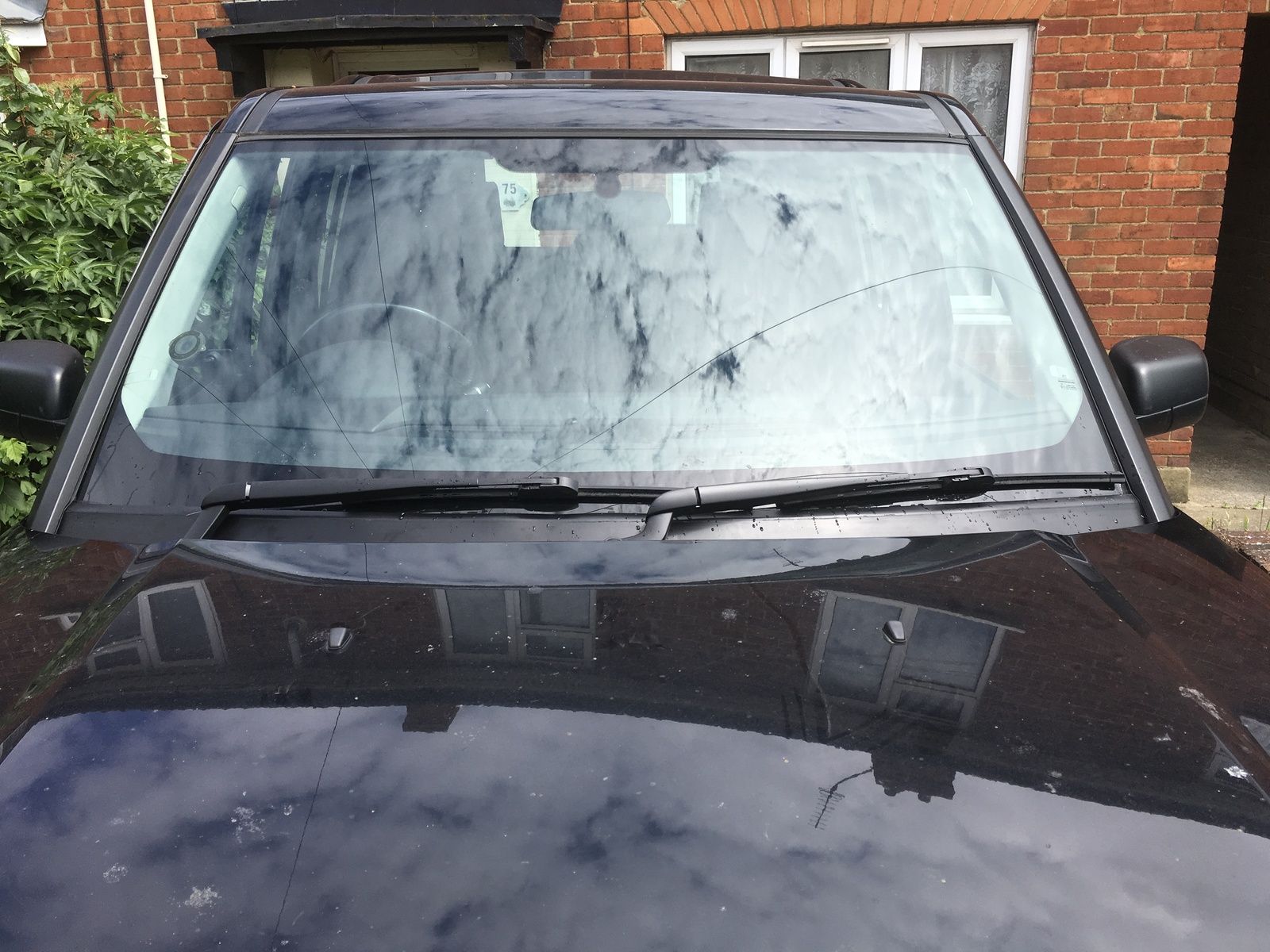

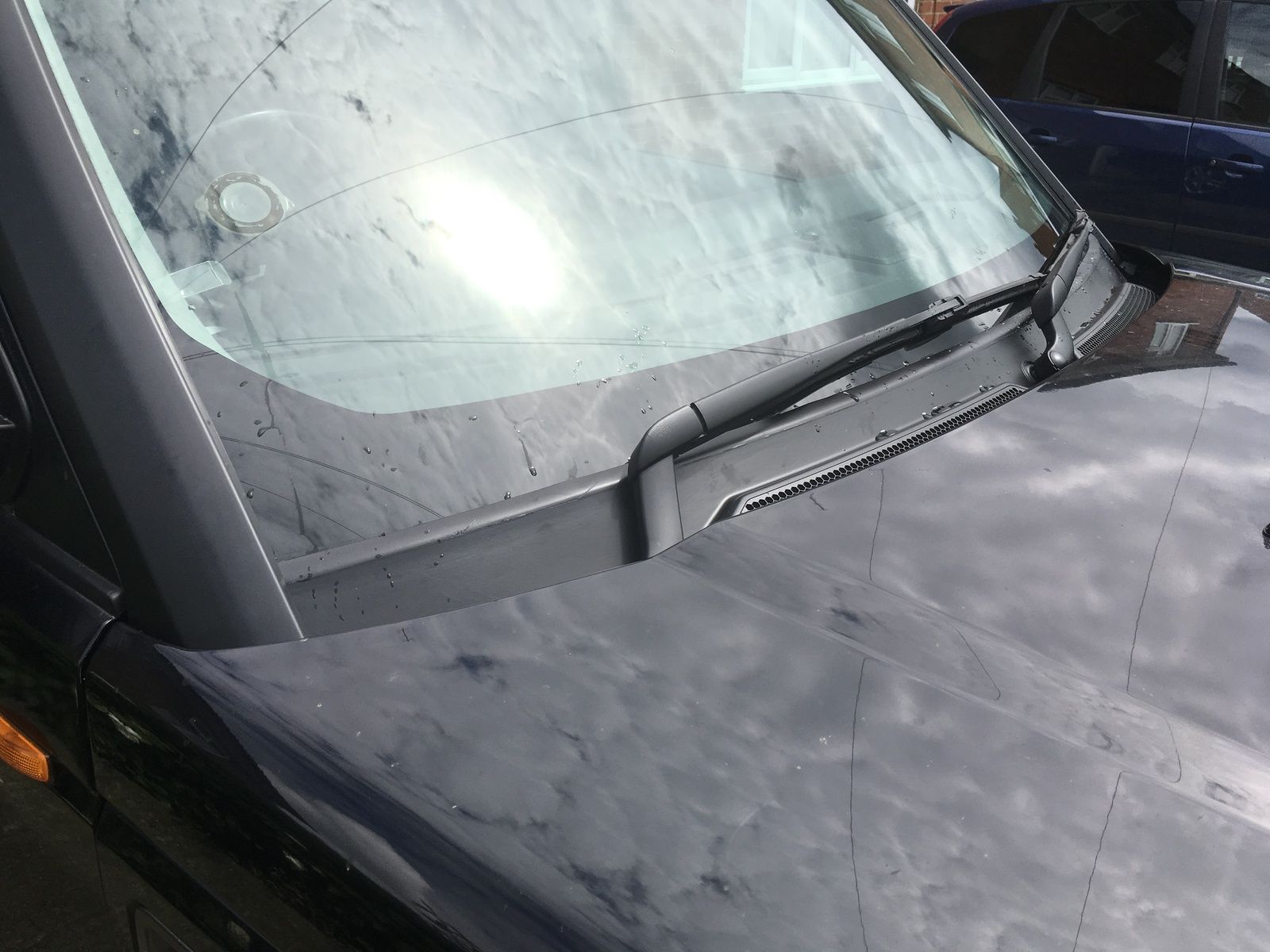

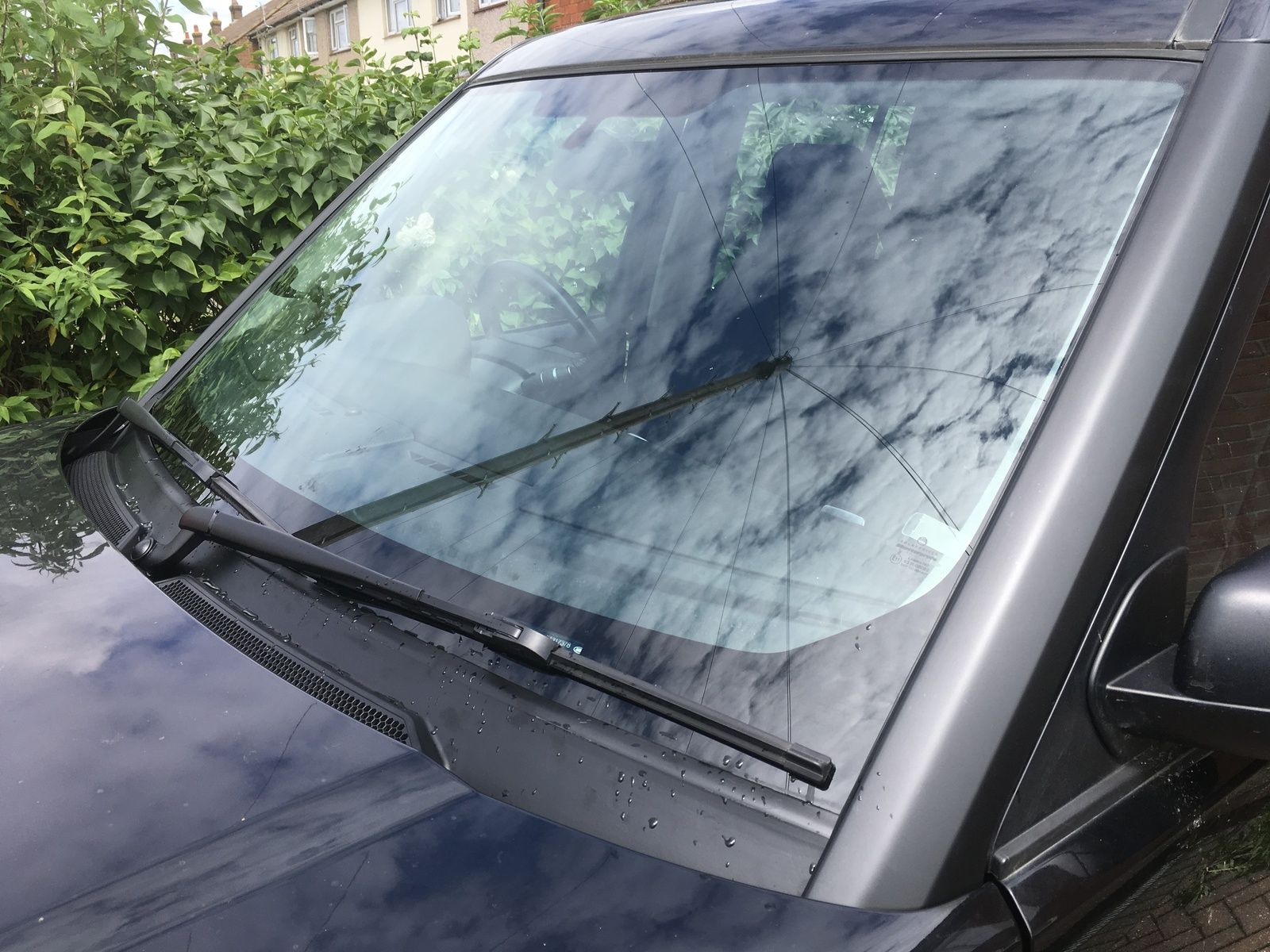

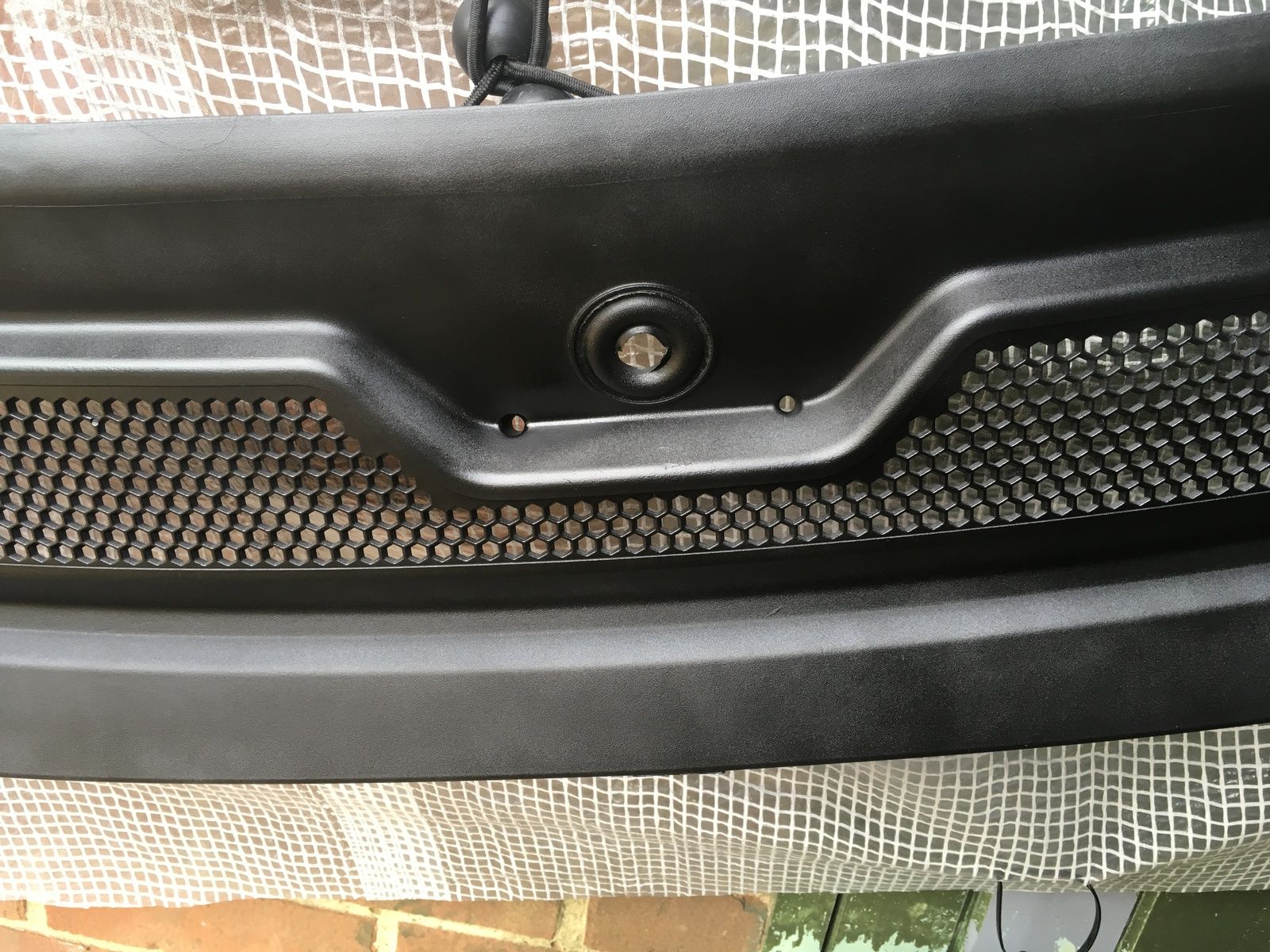

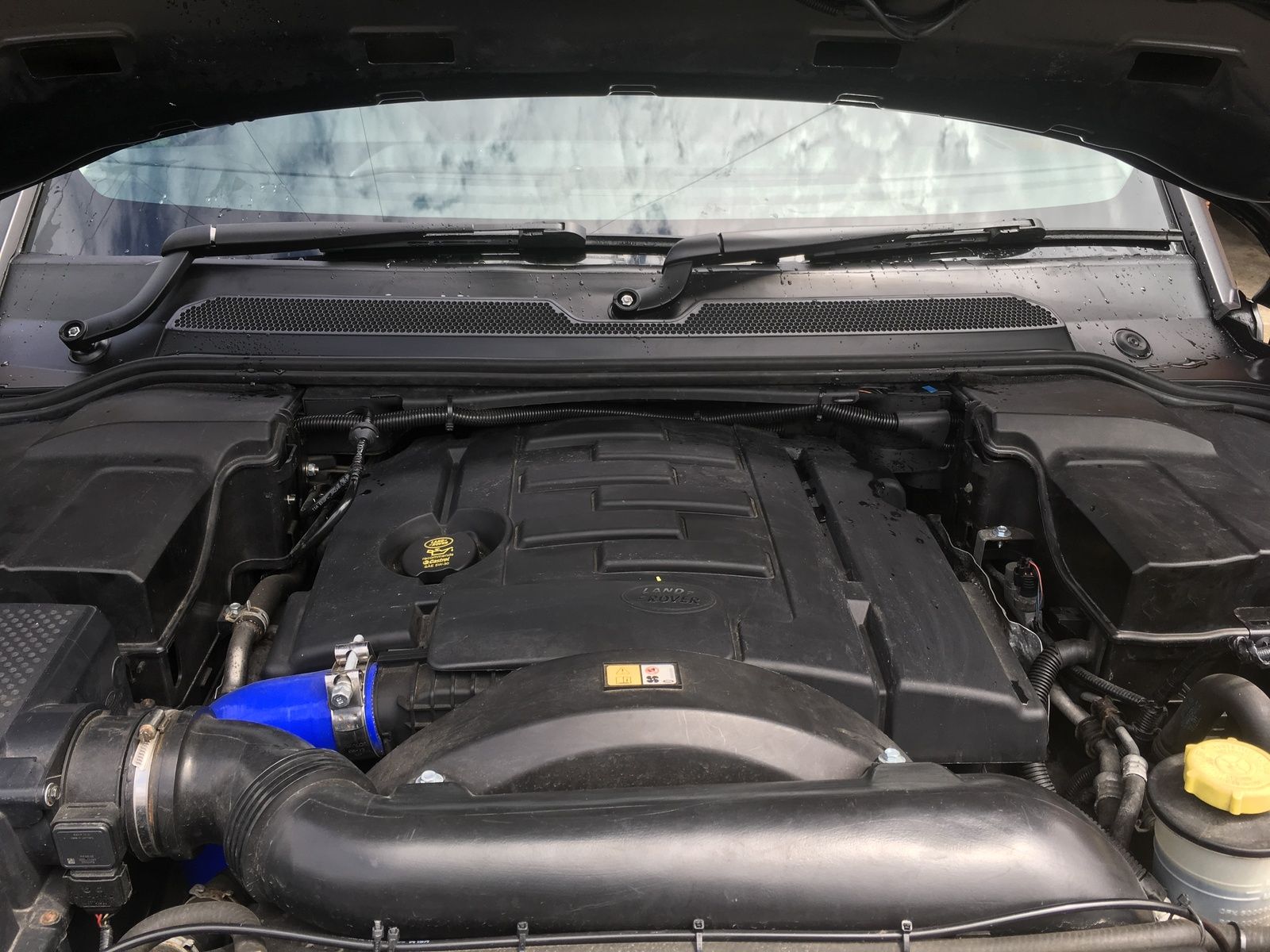

Refitted scuttle panels, A trims, new wiper arms and blades , pair of windscreen heated jets

Got to tidy up the wiring and put the bonnets soundproofing back , fitted the blanks on the wiper arms after I took the pics

Great project this

Henry_b said:

Great project this

Click to expand...

I know , I know , lol

Must update it

@Henry_b

here’s a few piccies just to keep u happy, lol

please remind me if I forget it for a while

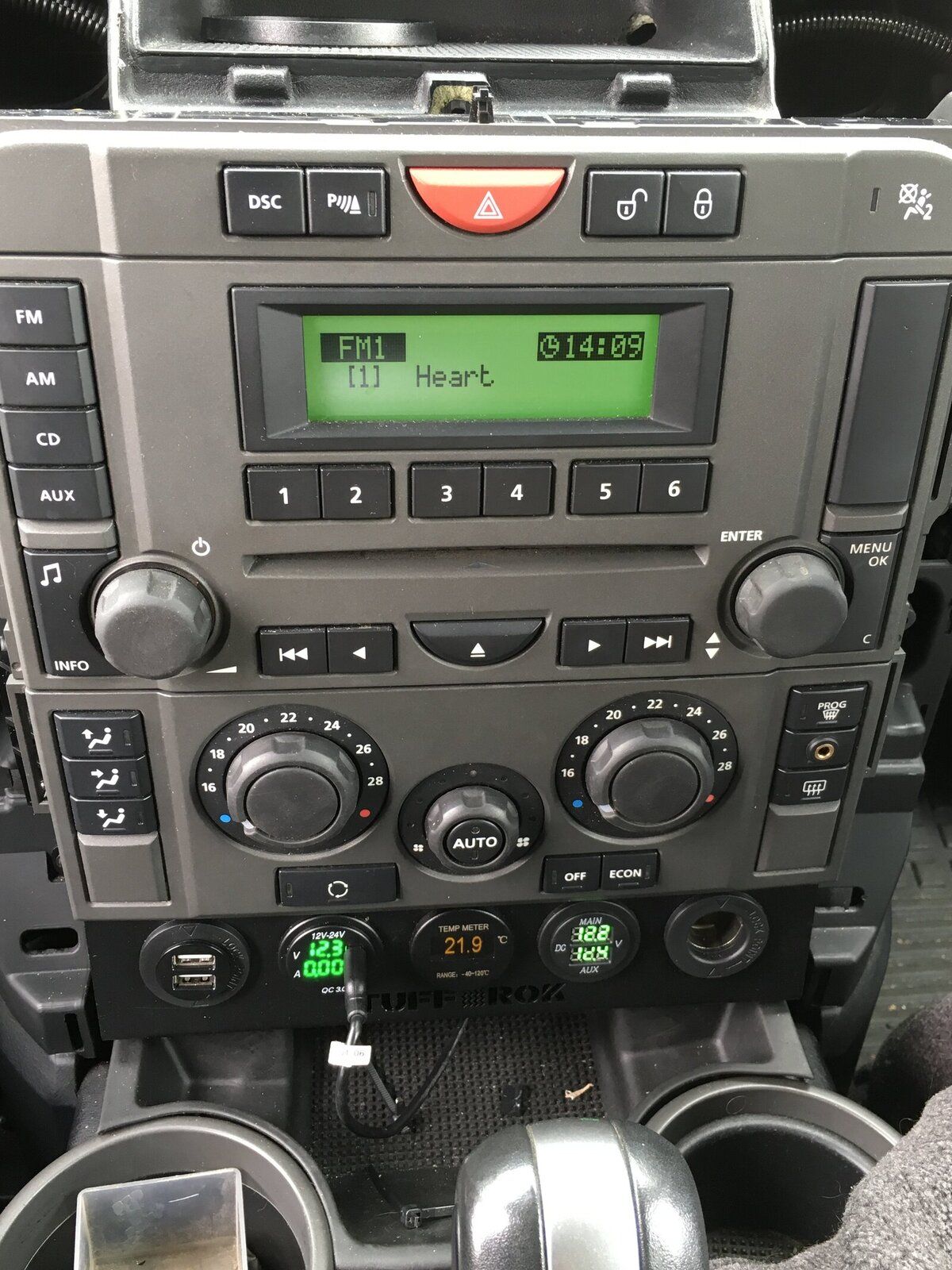

so finished off fitting the centre gauge panel, but planning to add another one below, as per the example pic where it shows an empty panel,

that will be for the solar panels monitor gauges , plan to fit 2 x of , either 80 or 100watt panels

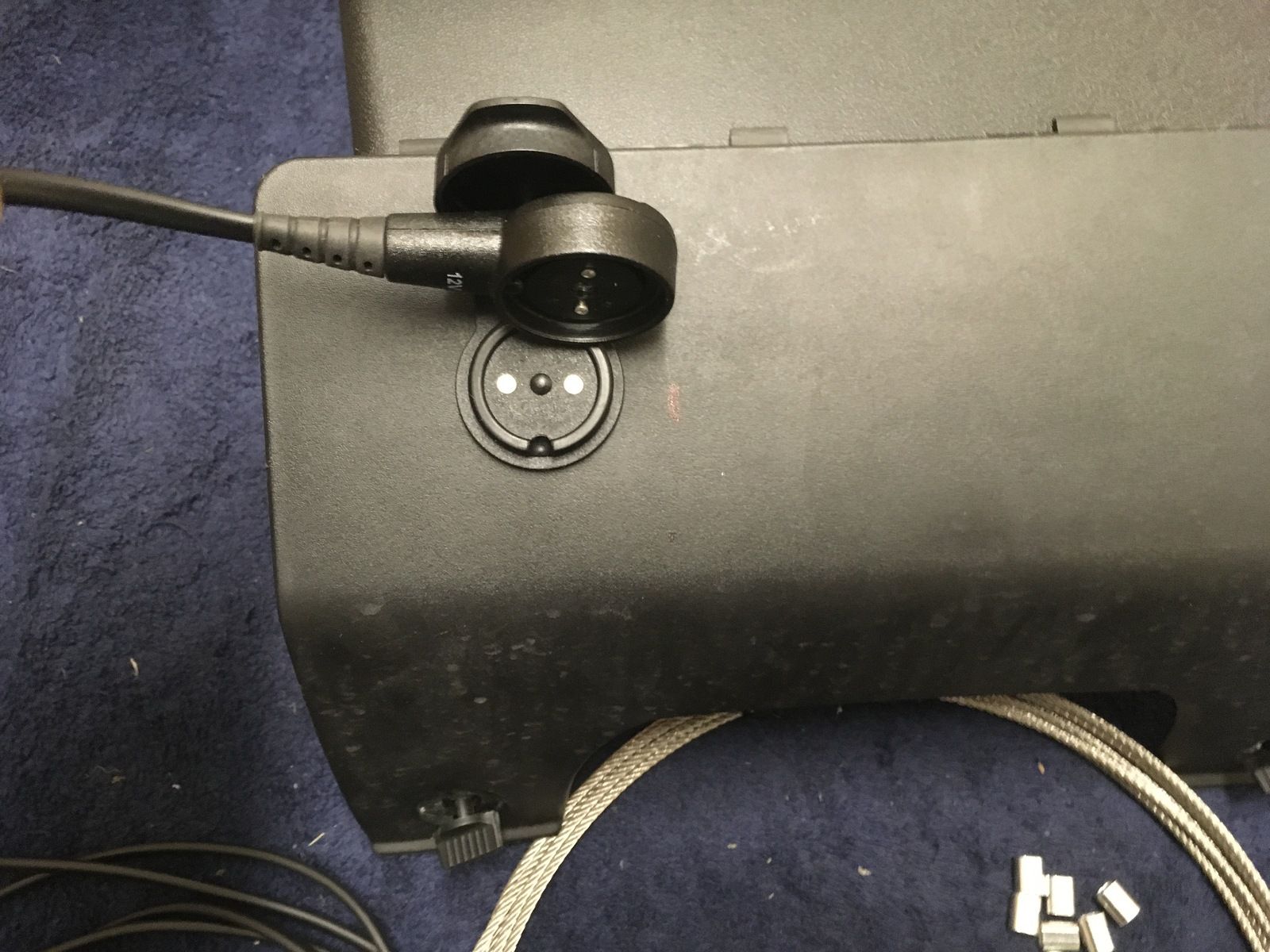

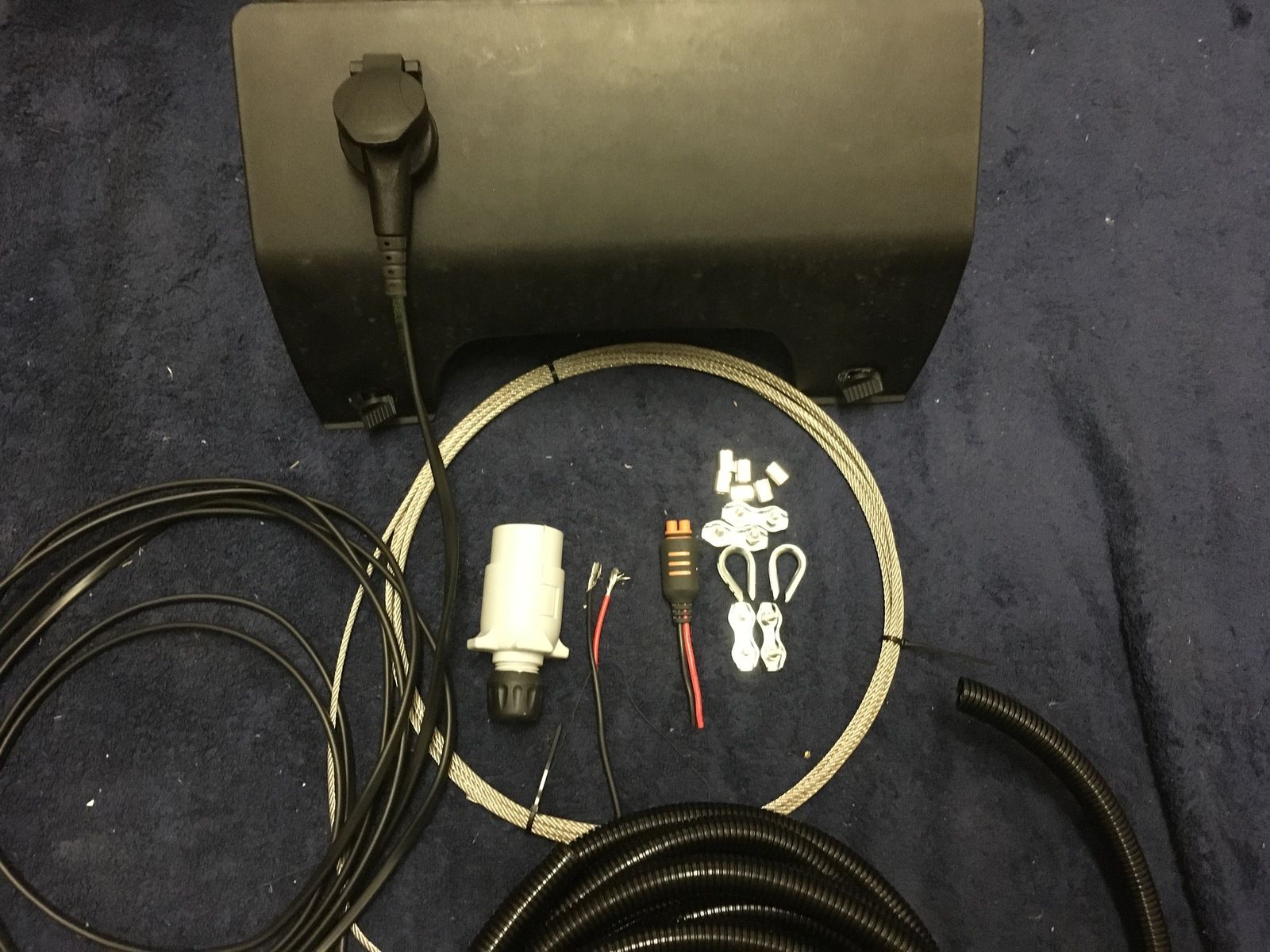

making up a new 12s battery charging lead, best thing about this it’s magnetic, so if I drive away it will automatically disconnect without causing any damage

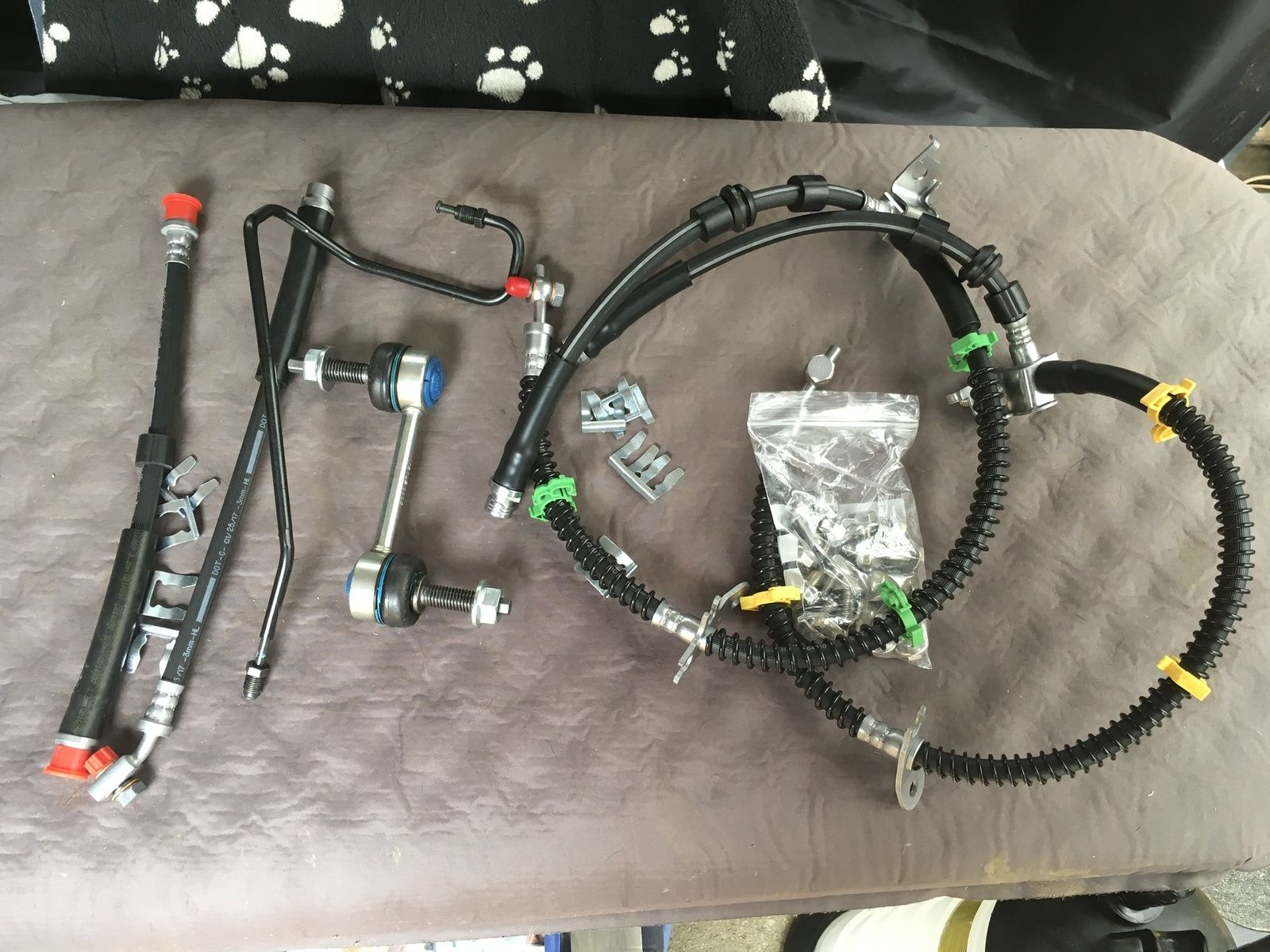

next few projects are, to design and fit a sliding dog ramp, finish 12s towing socket , install dashcam , new brake hoses , rear drop links , got the HD drop links and seen many reports of the cheap ones getting snapped in not being up to the job

sanding down my spare wheel rim, remove front drivers wheel as it has a leak on the allow rim,

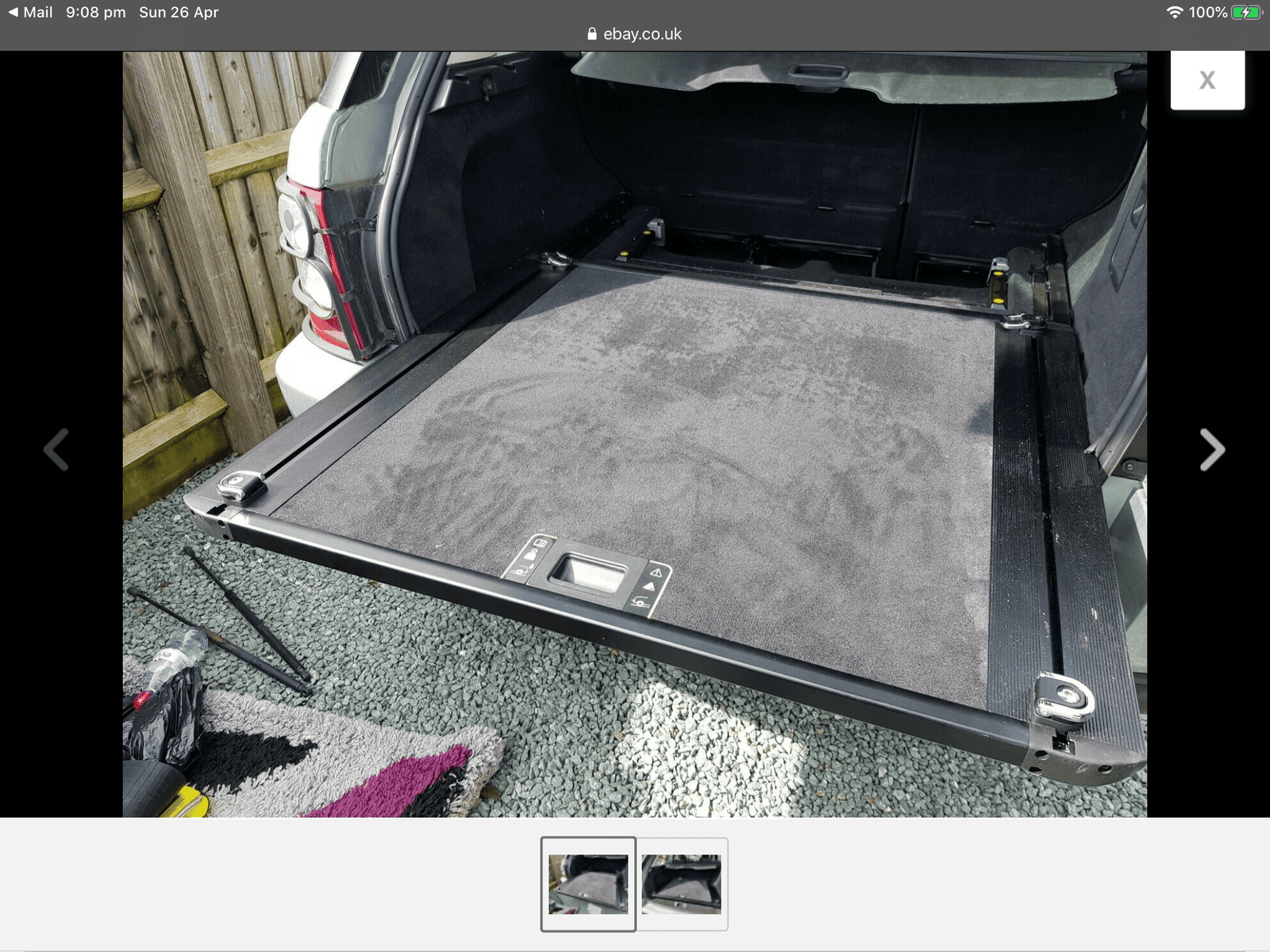

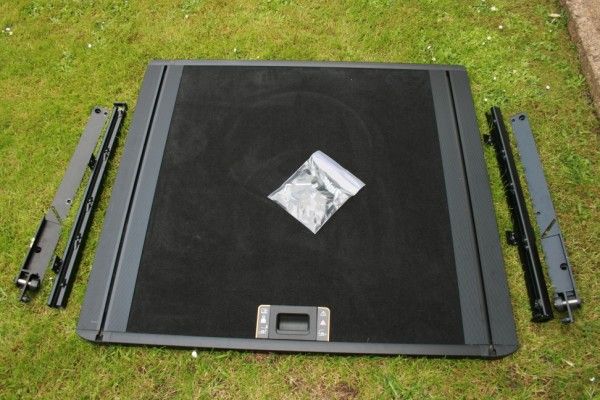

managed to win an ebay genuine sliding boot tray , example pics , as it needs to be collected from Bristol

Also another D3 owner is also helping with the design of the boot dog ramp to also help others who wish to follow the same type of design

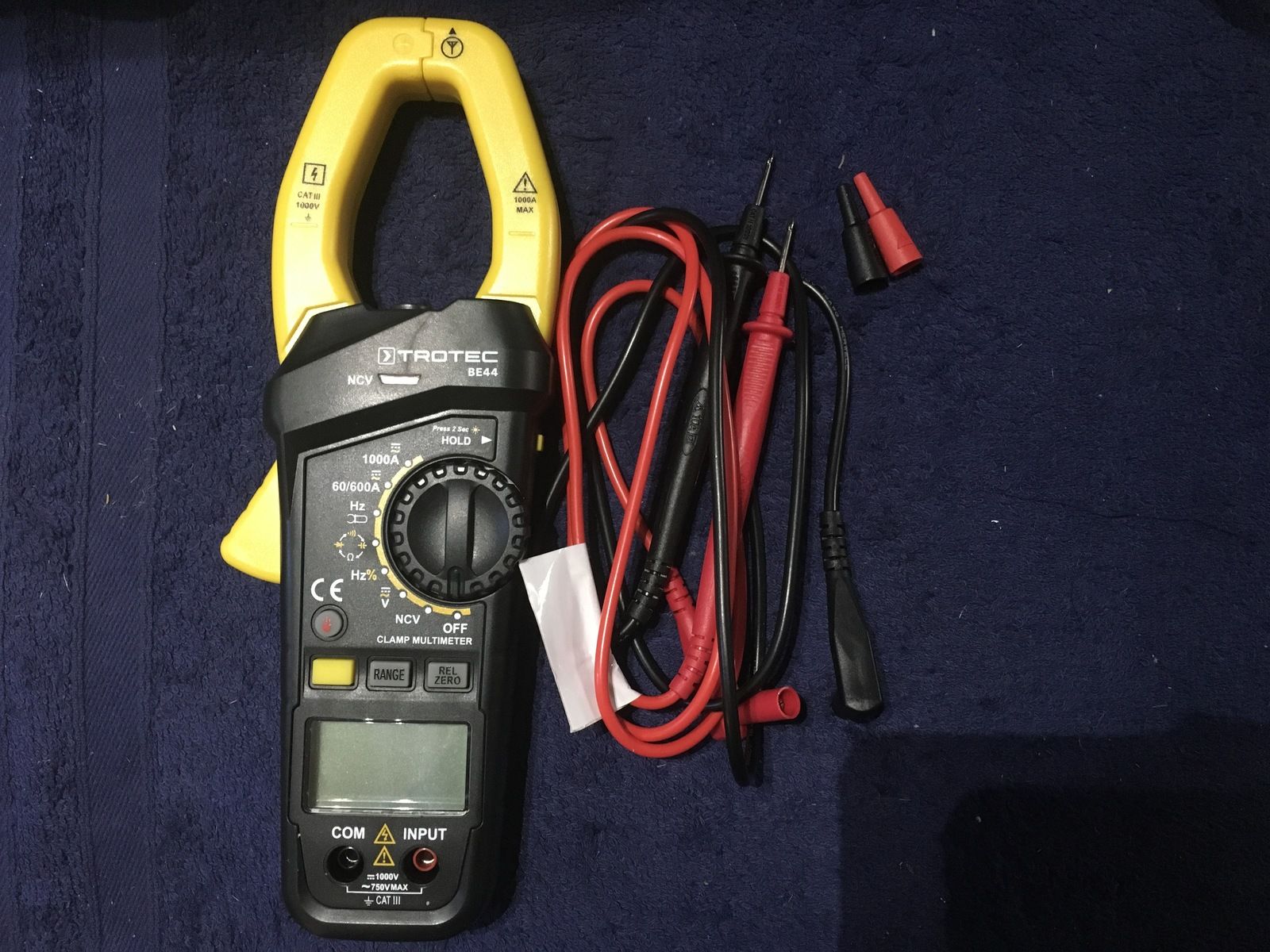

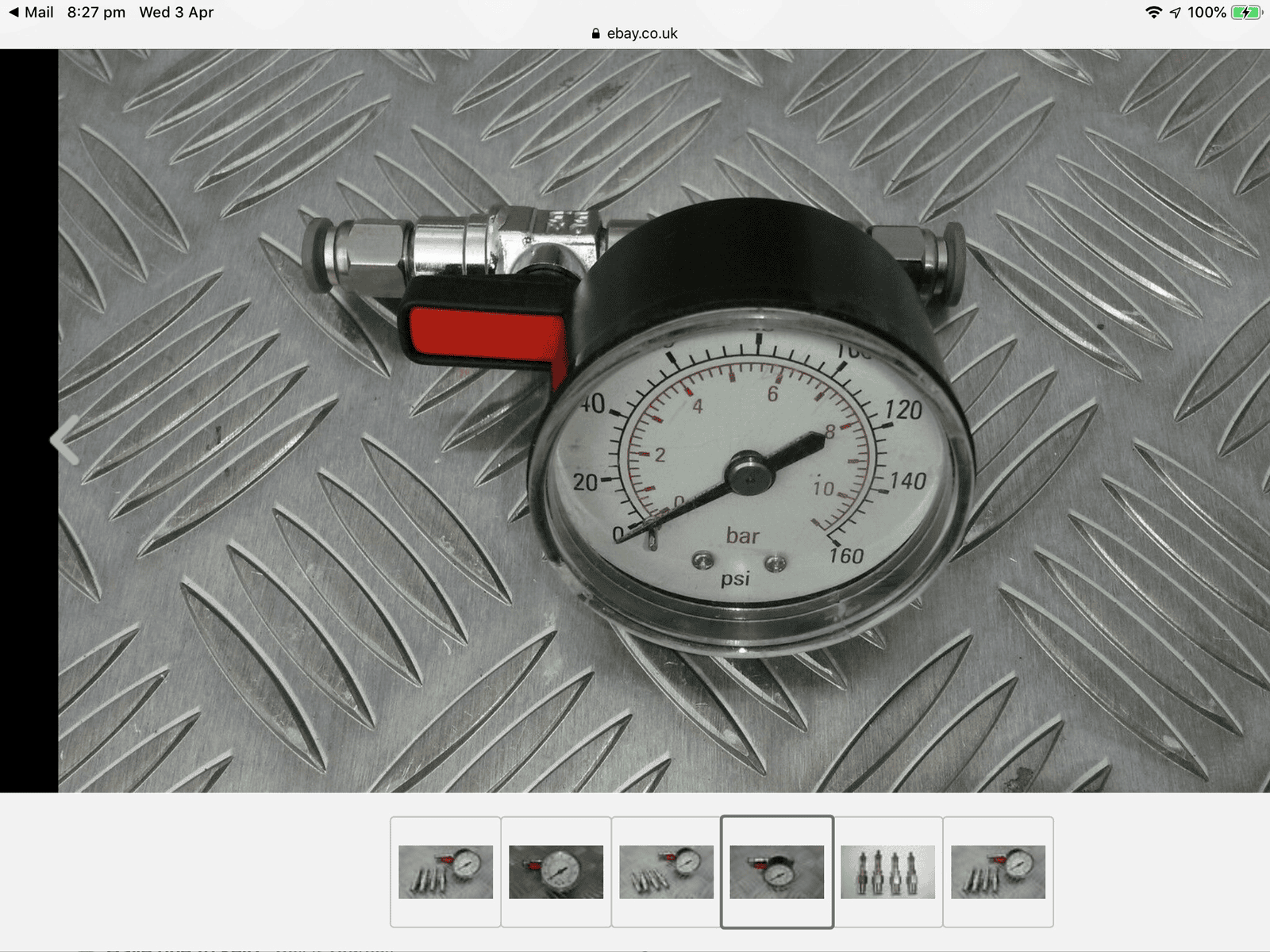

plus as usual got a few more tools and test gauges

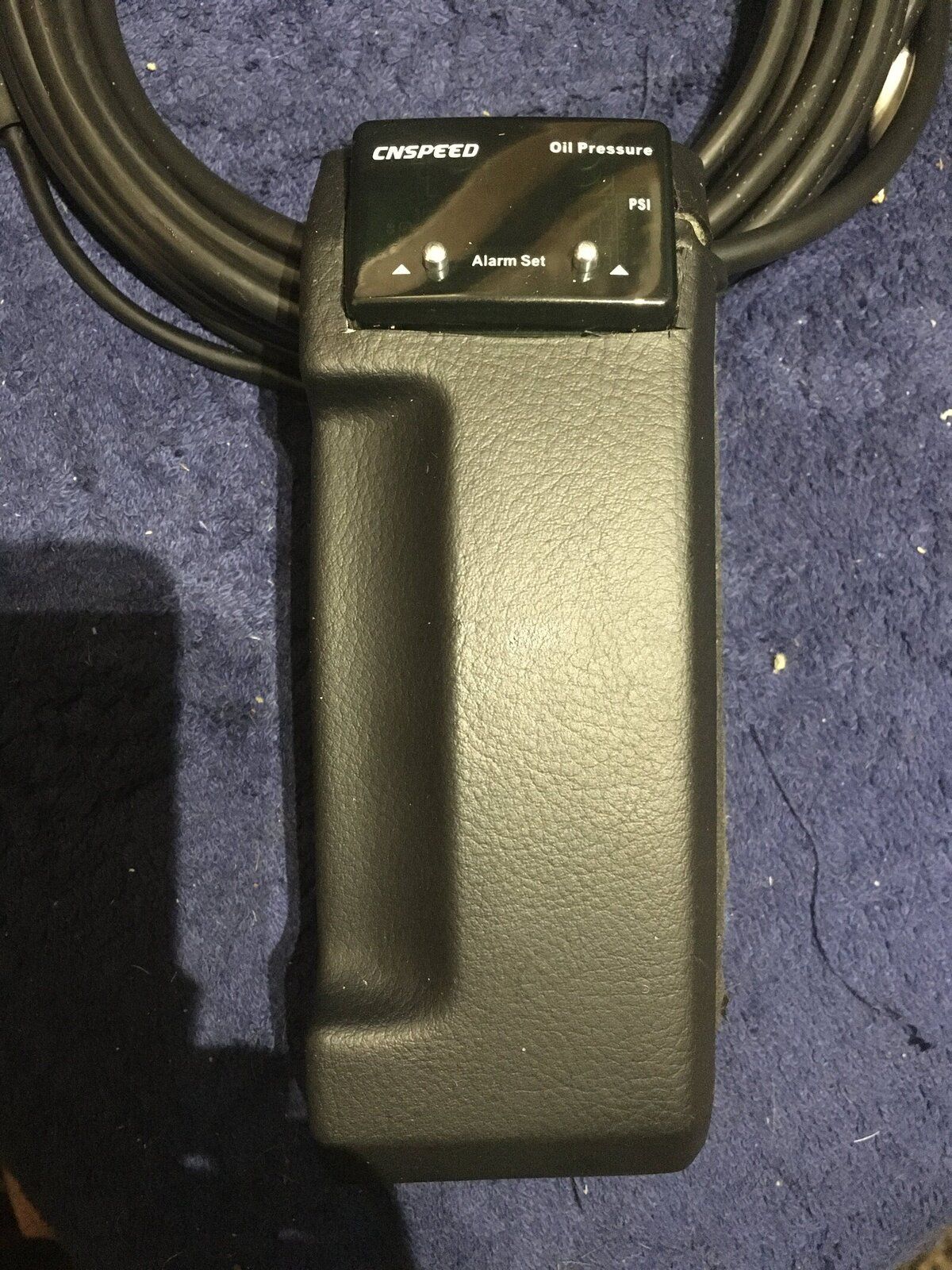

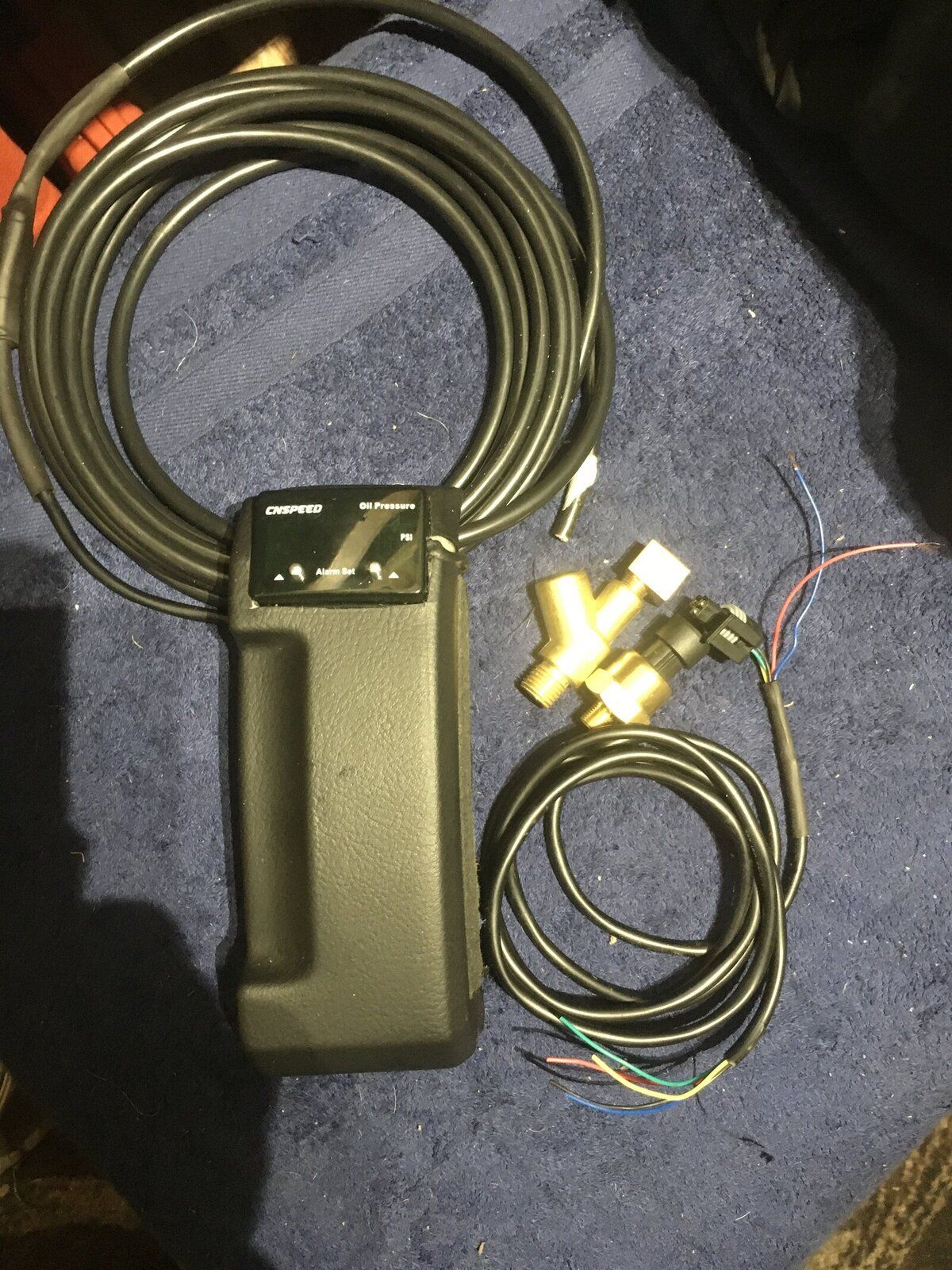

also started to put together an Engine oil pressure gauge , started to fit the monitor in the panel , has an an adjustment low pressure alarm

so that’s about it for now, but will update as I progress

Looking good! and here is me fretting over changing the alternator next week! ha ha
