Disco 3 (LR3) Project D3 Pic heavy

gstuart · Jun 6, 2019

Henry_b said:
Any exterior and interior pic's of the 'olde D3

Thks buddy

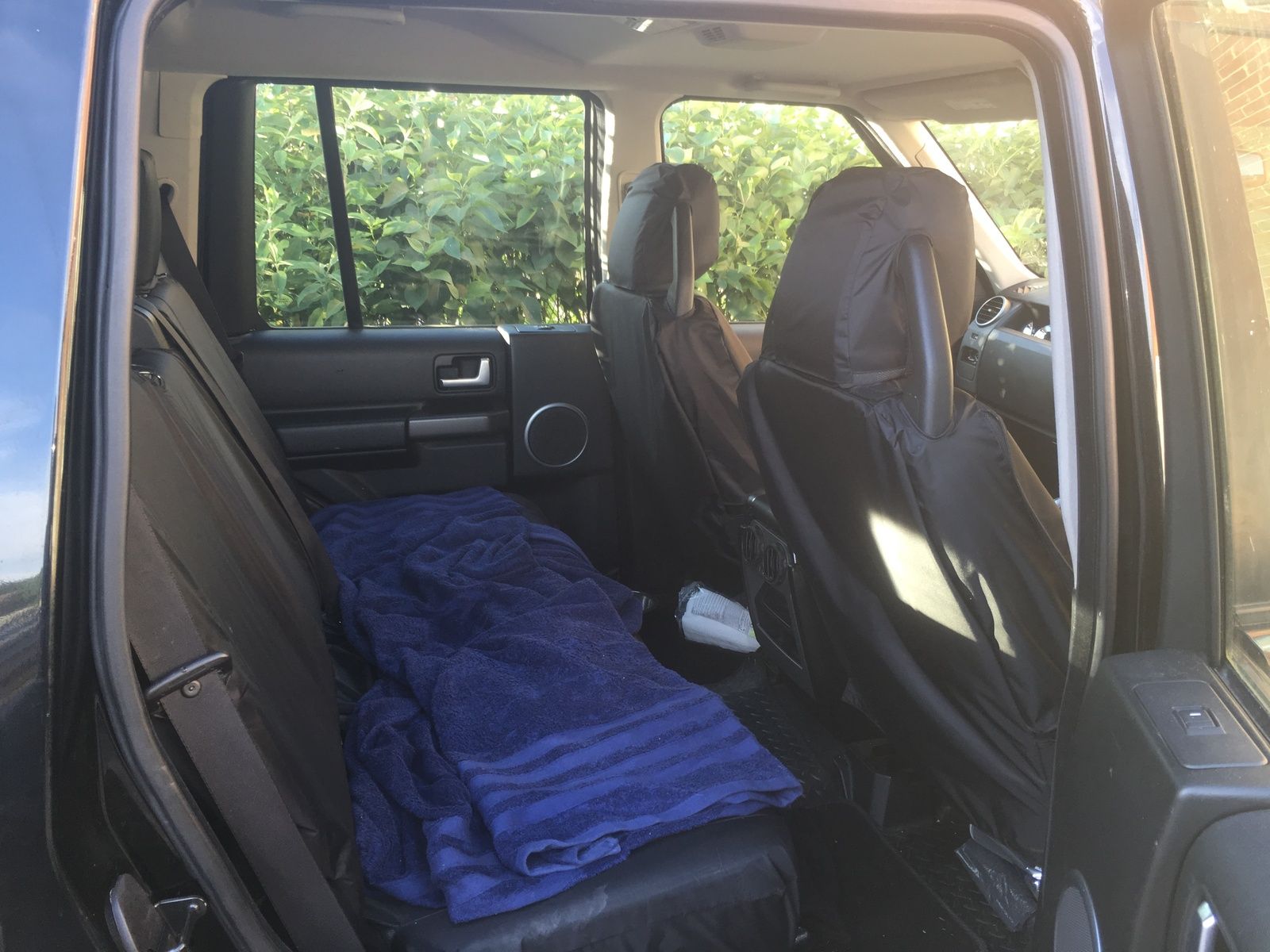

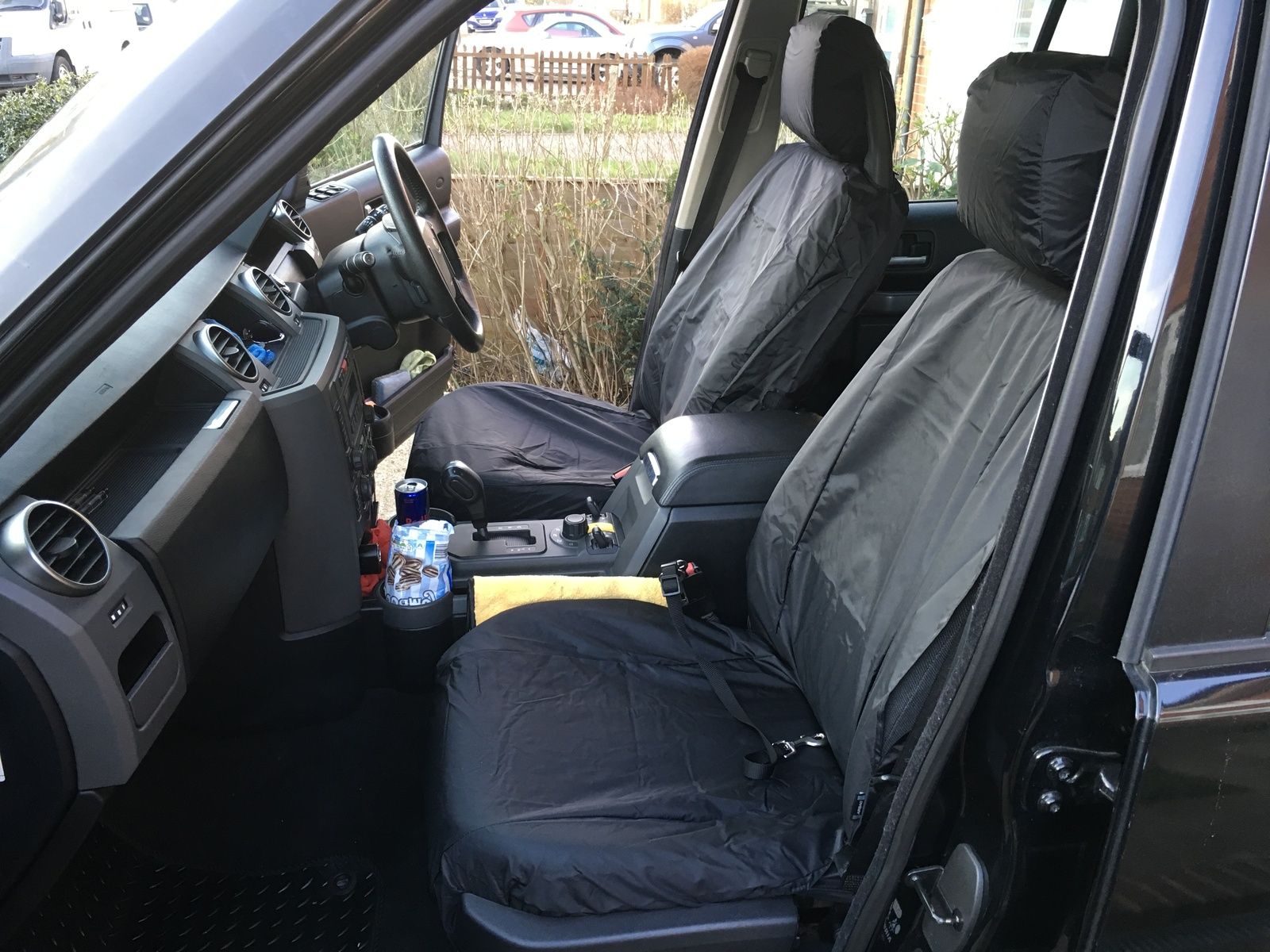

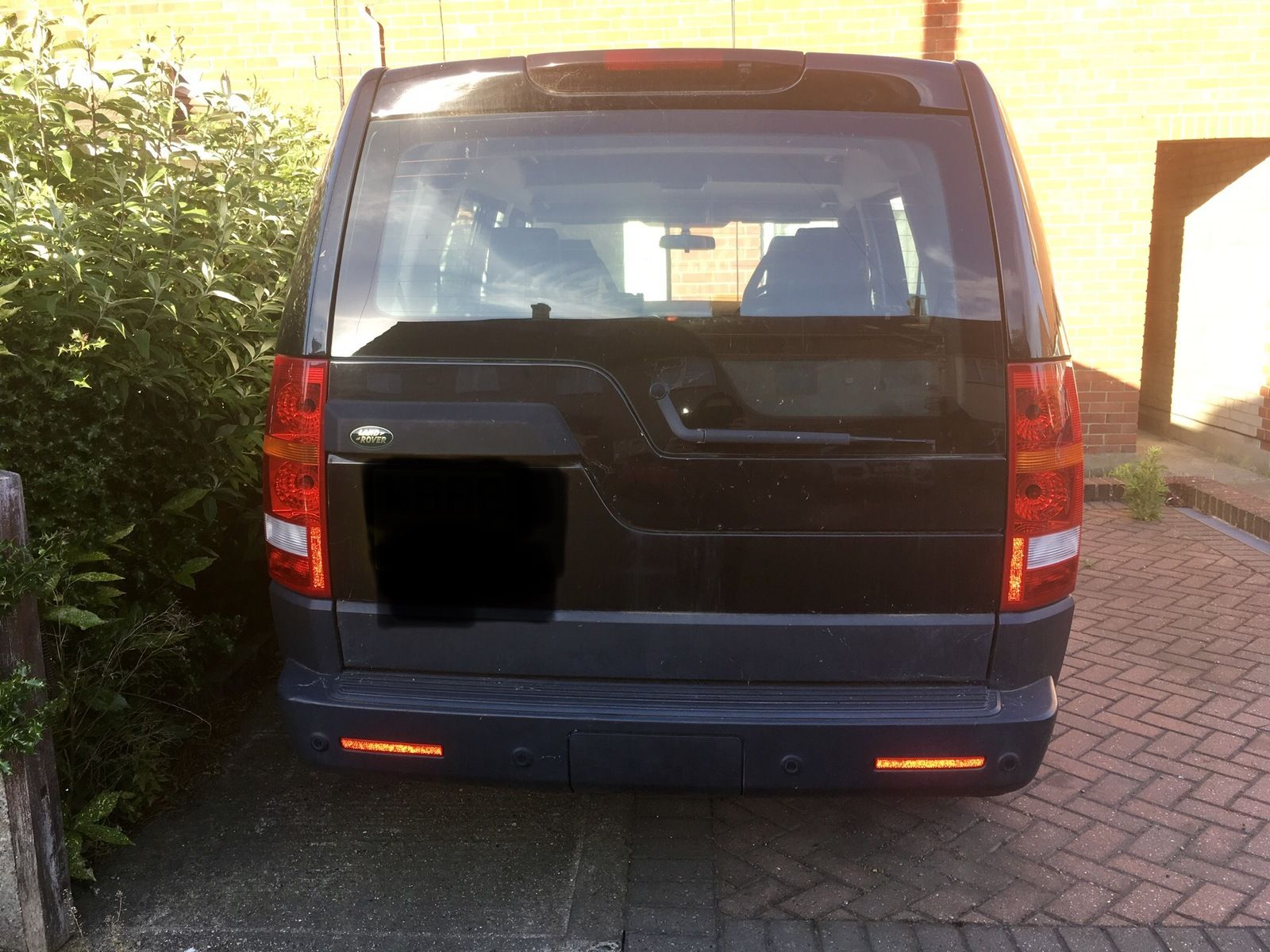

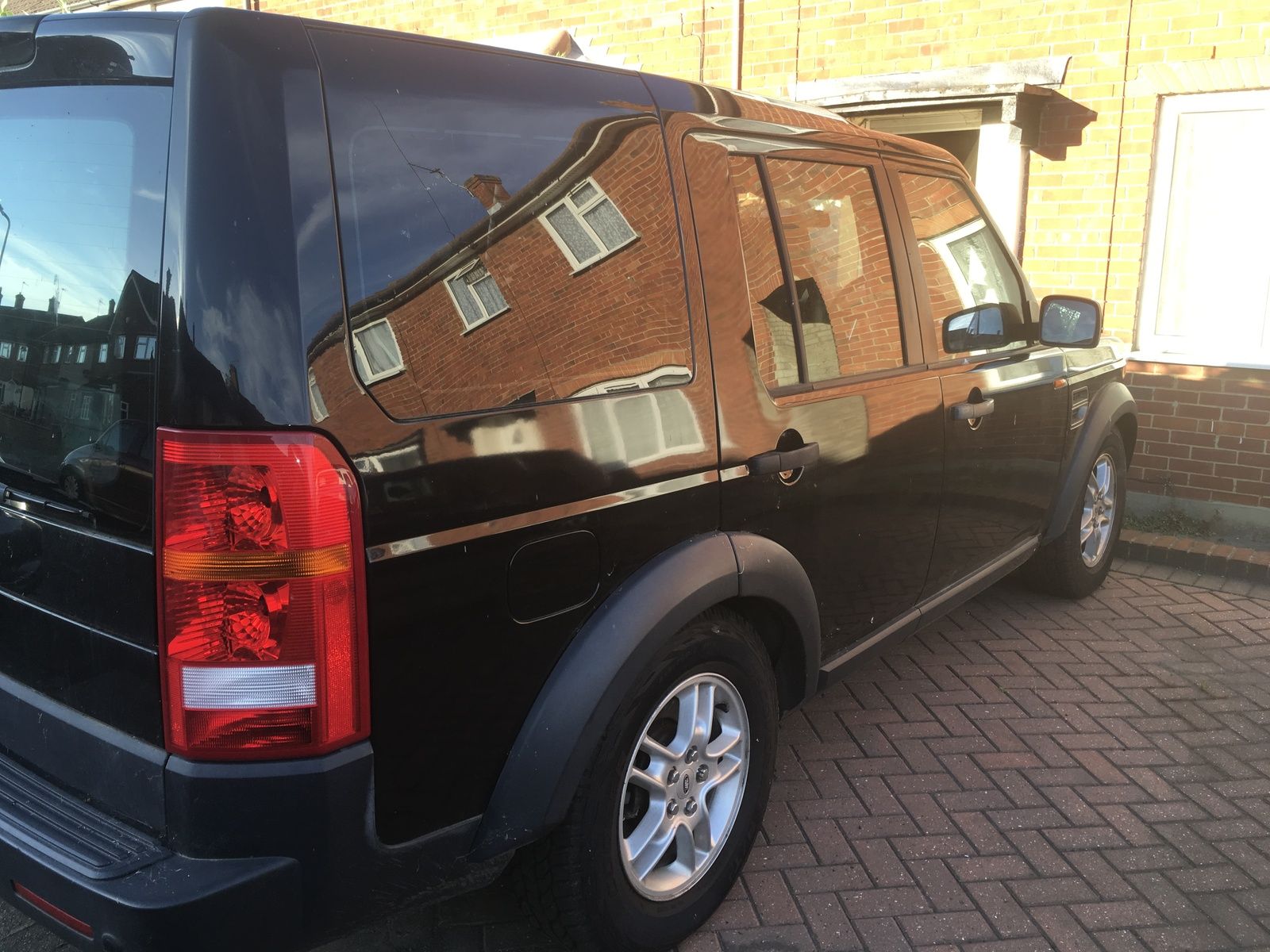

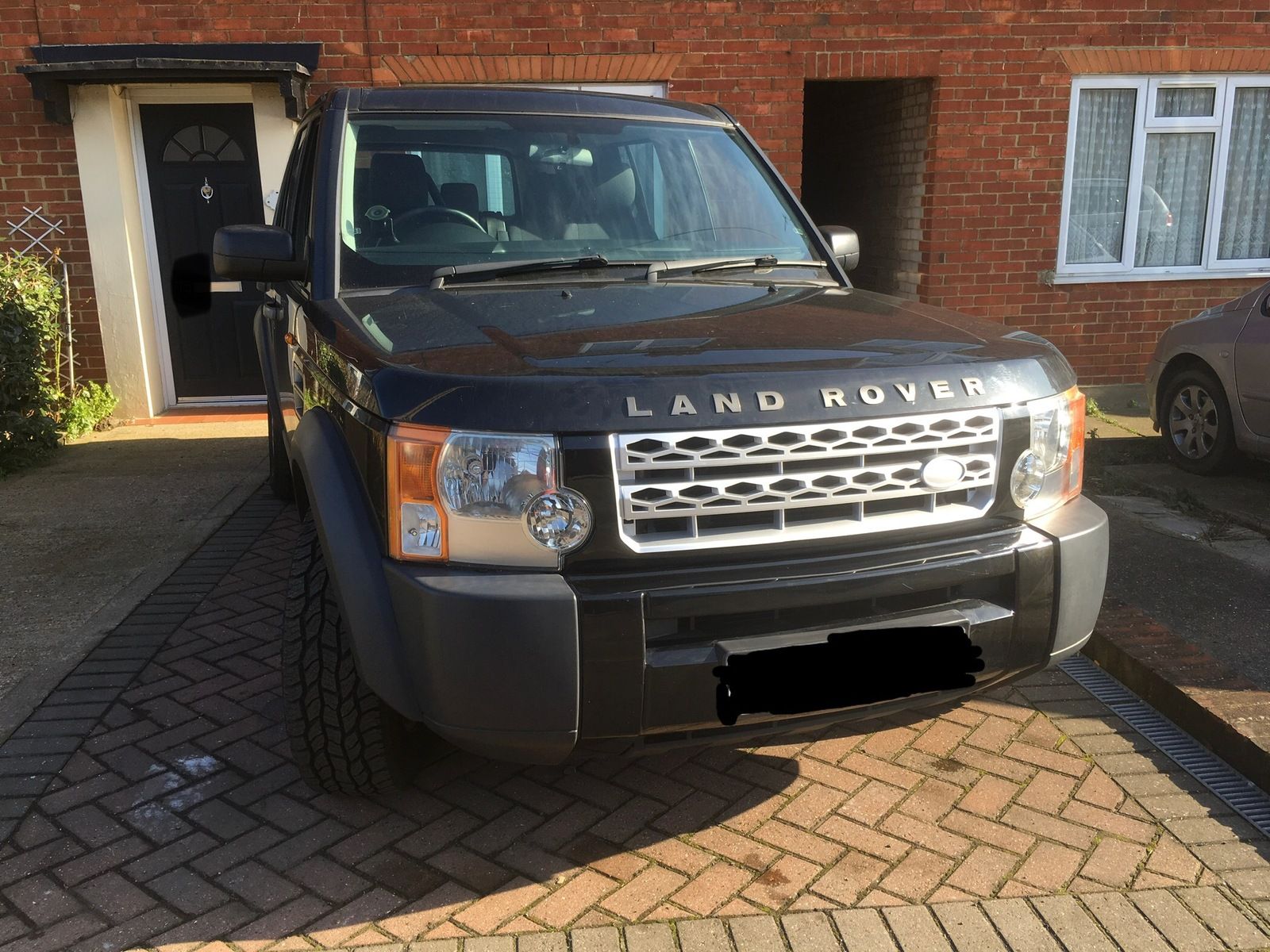

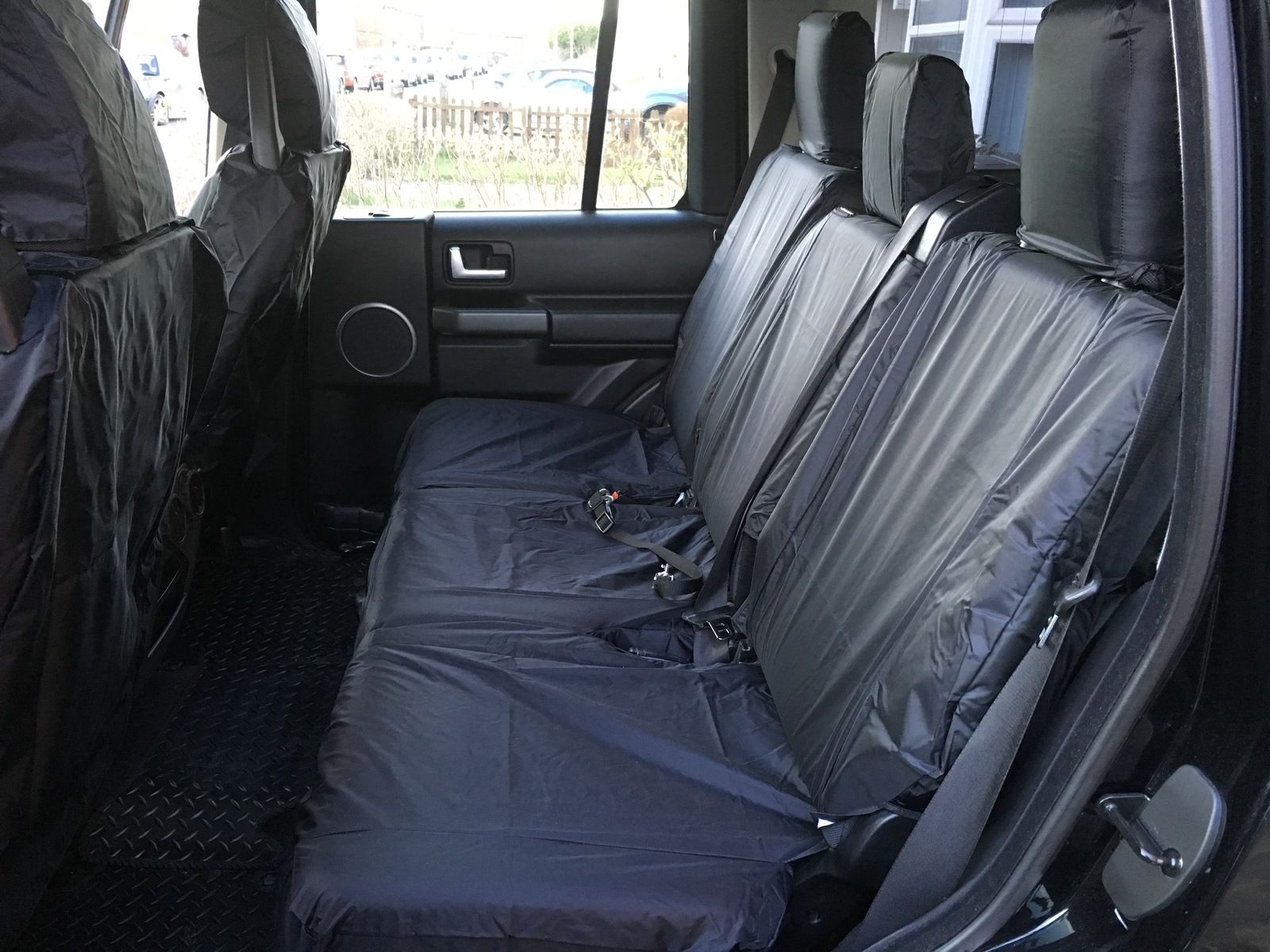

Here’s a few piccies

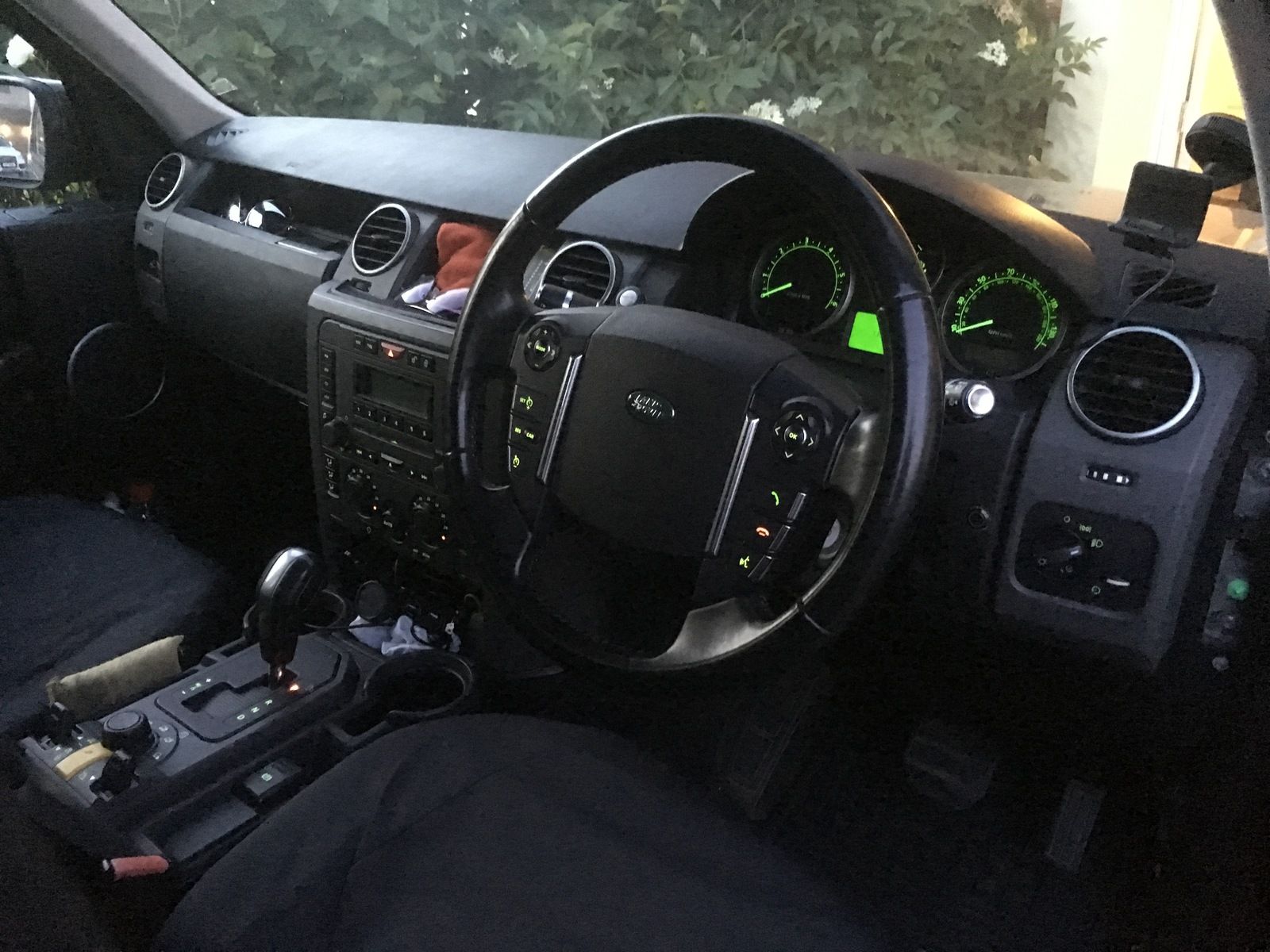

Noticed I haven’t got a pic of the entire dashboard , will go and take a few pics for u

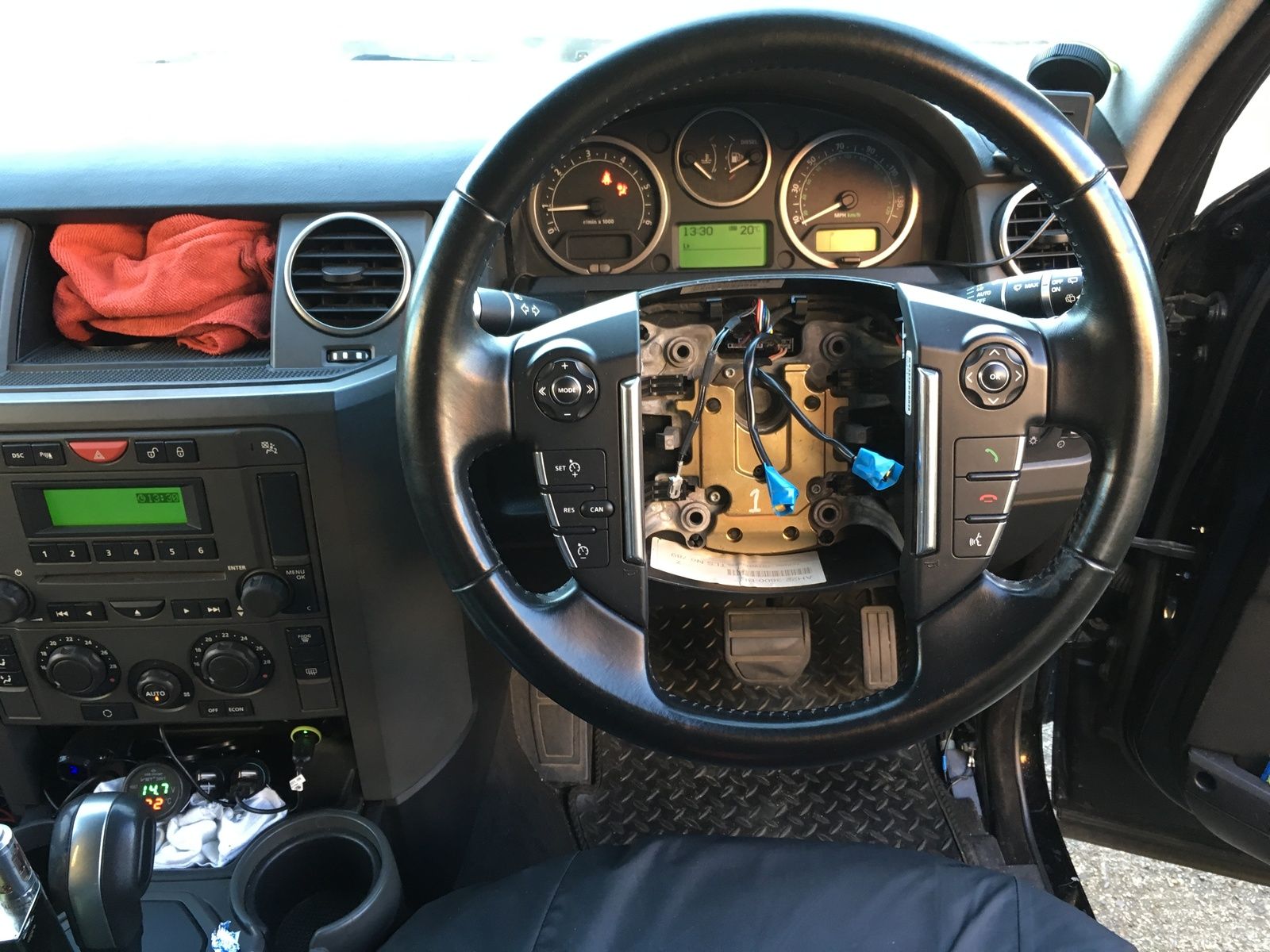

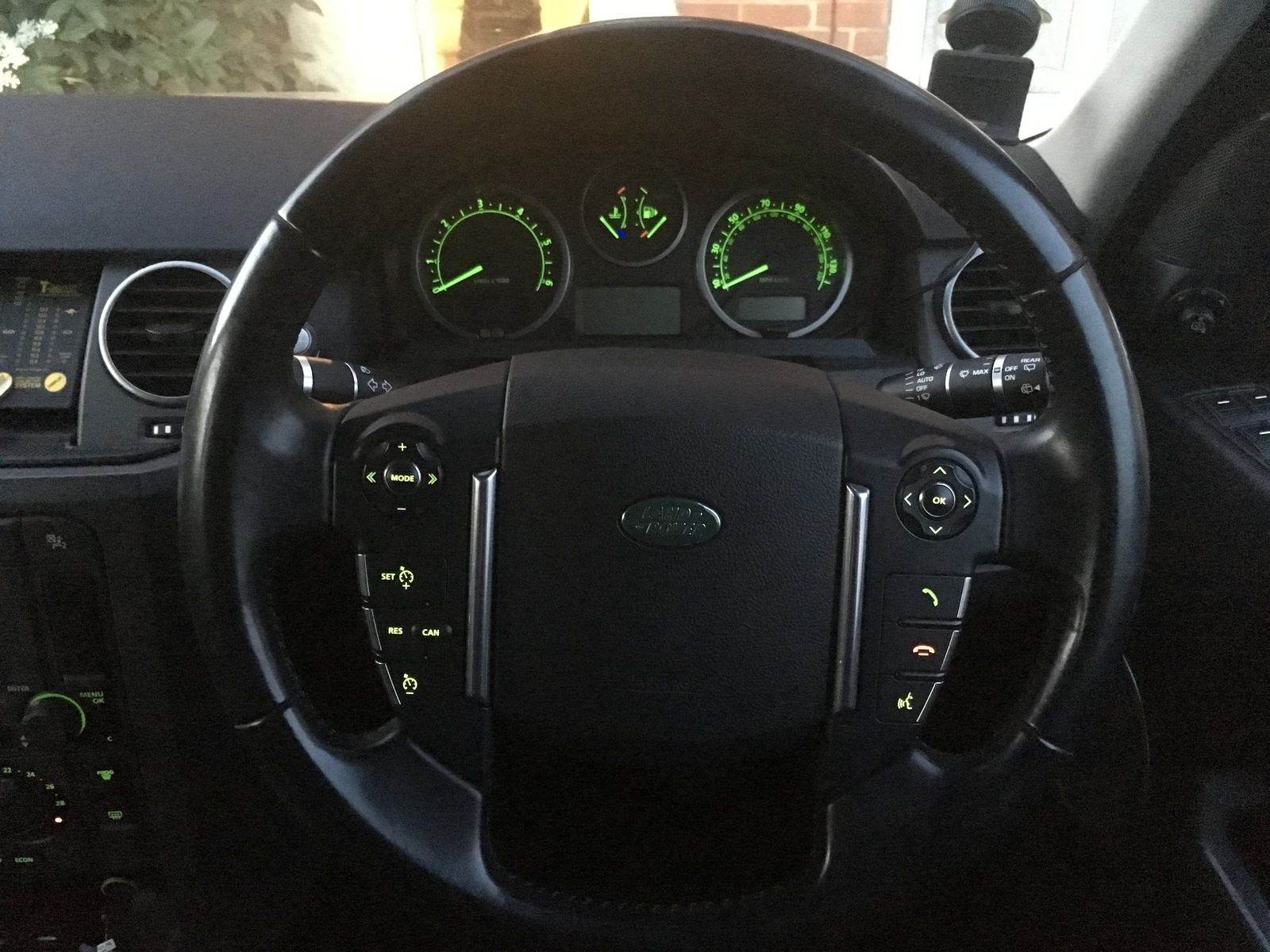

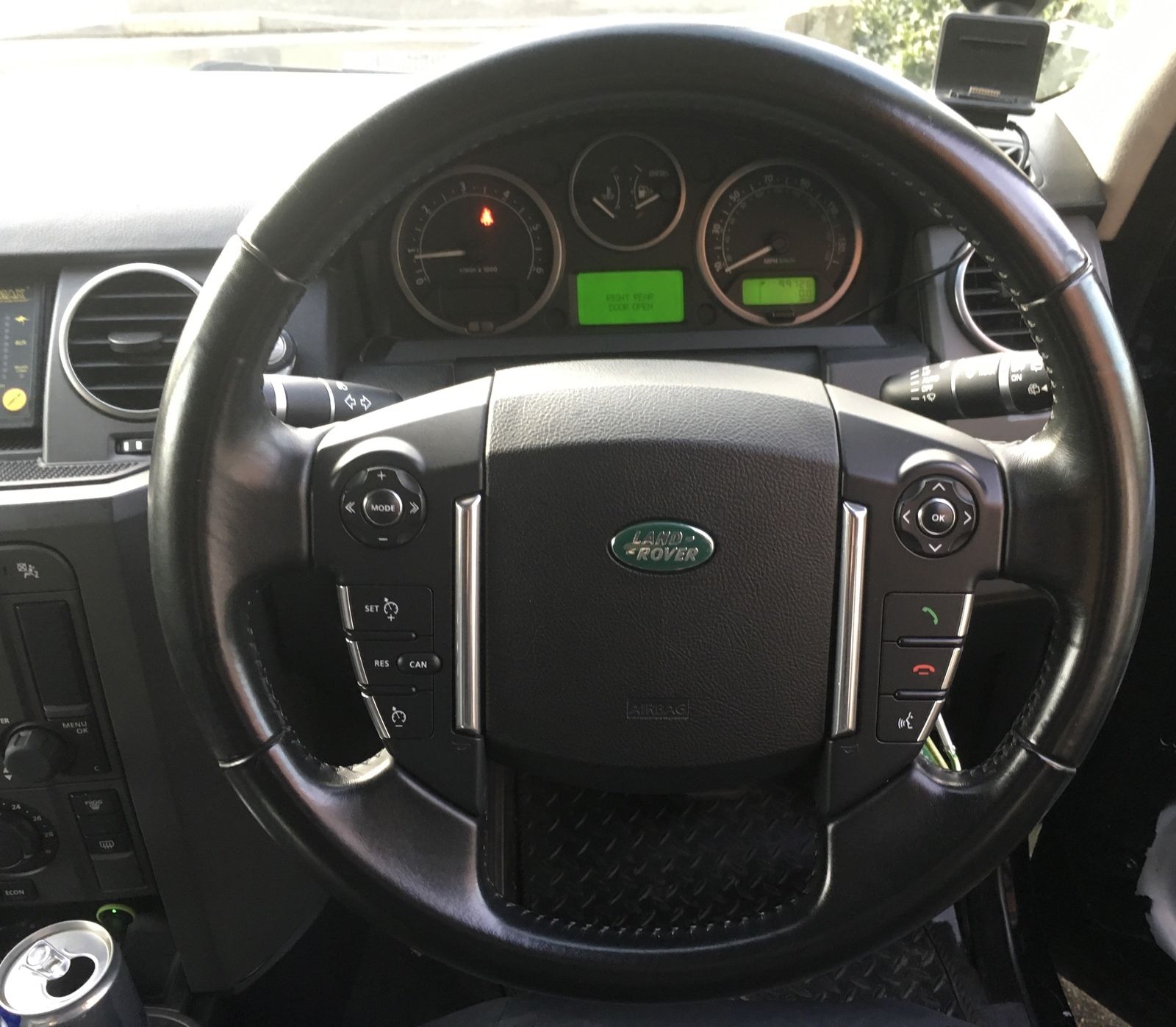

Upgrading to a D4 steering wheel and the D4 stalks

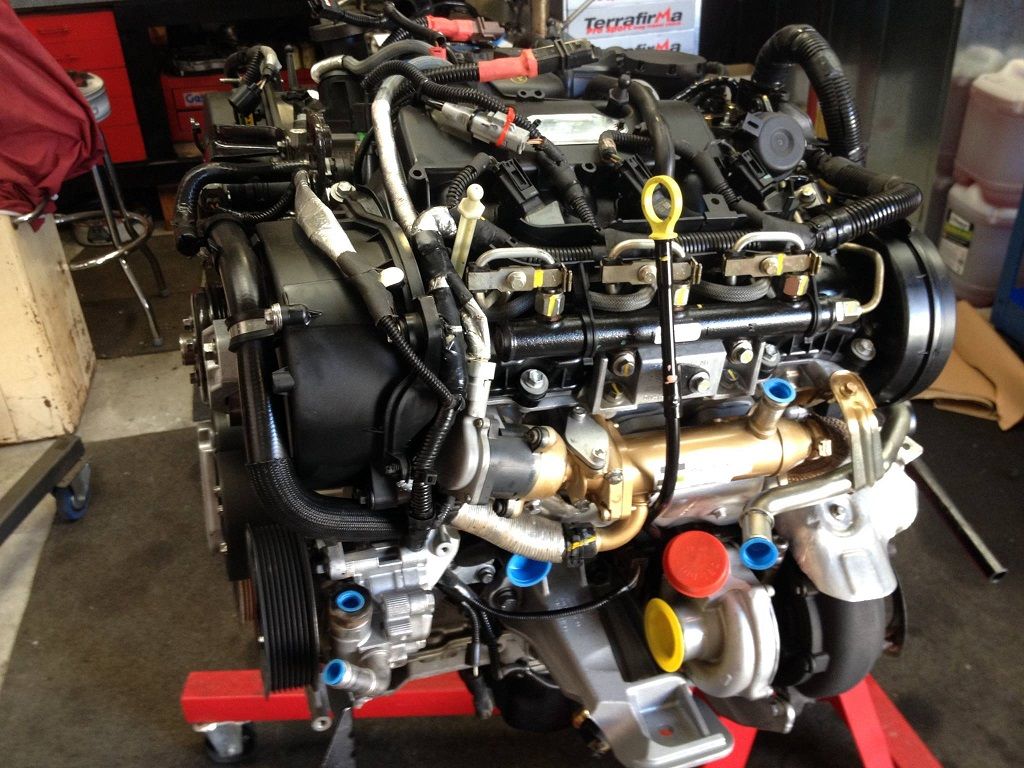

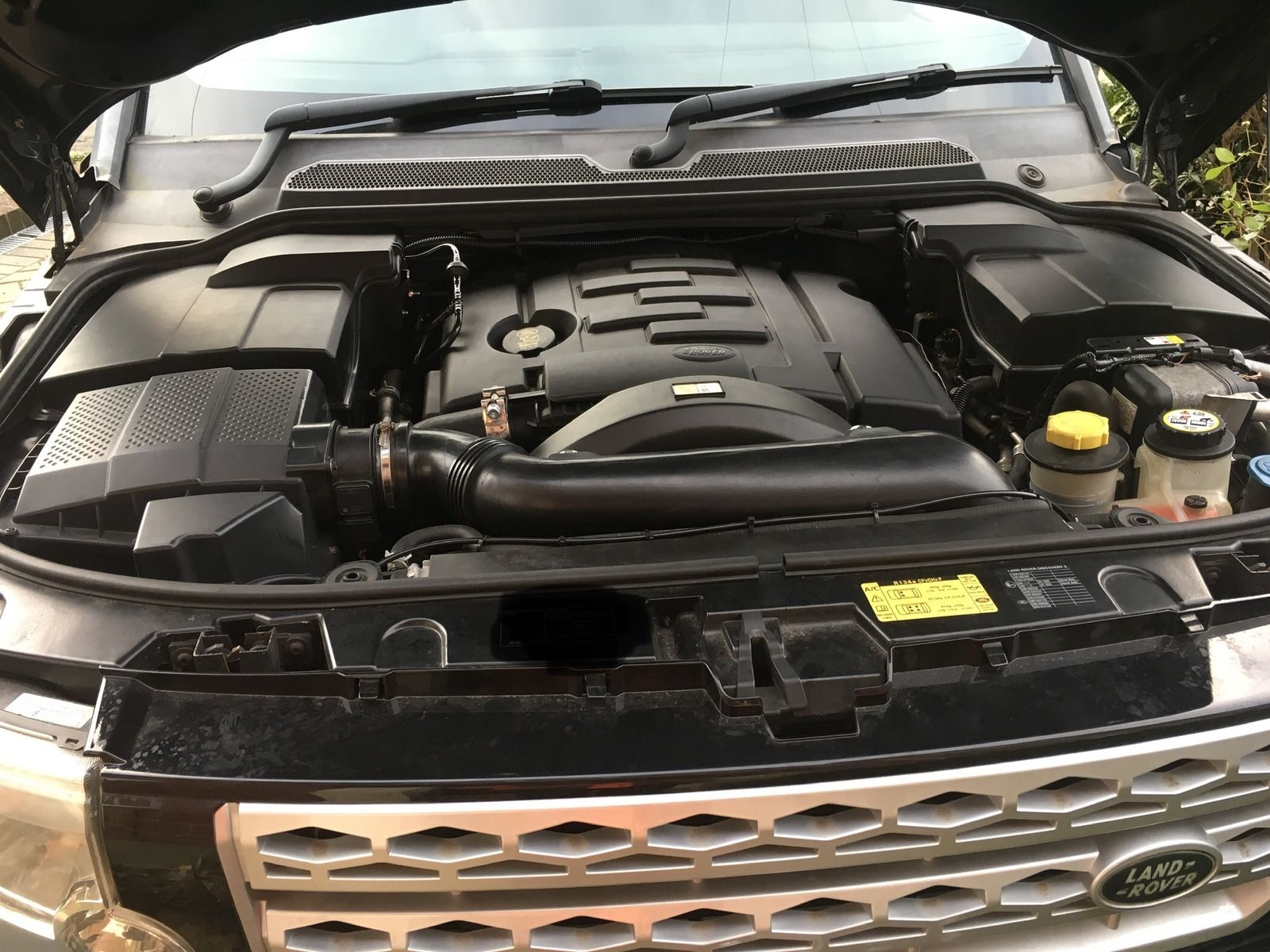

Just to show what a TDV6 engine looks like

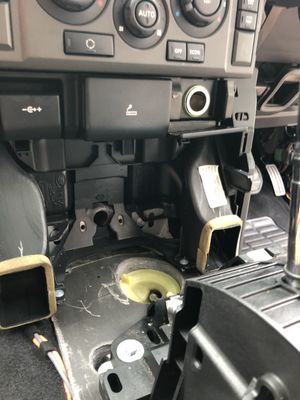

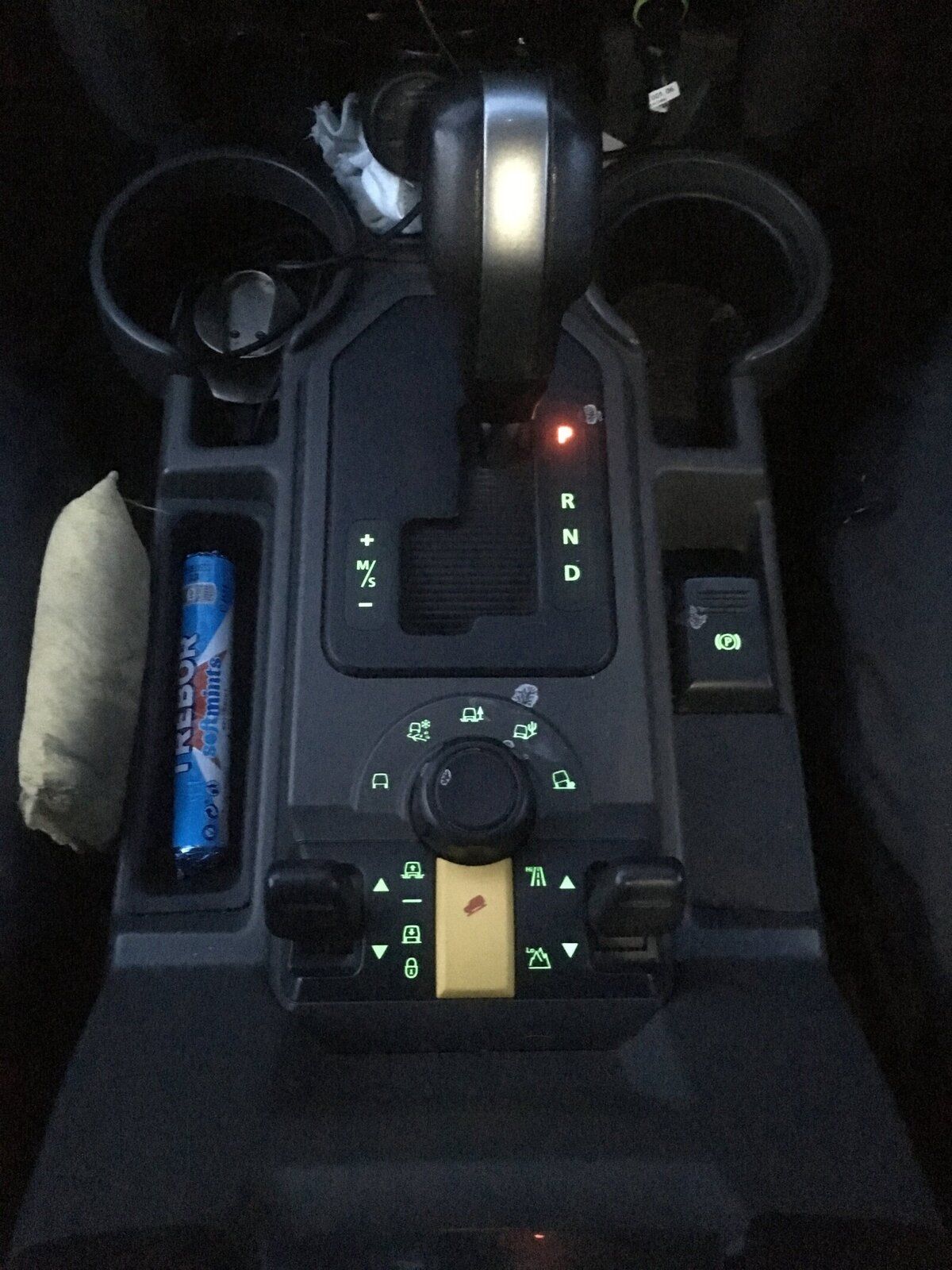

Will be replacing the part where it has the ash tray symbols with new switch panel

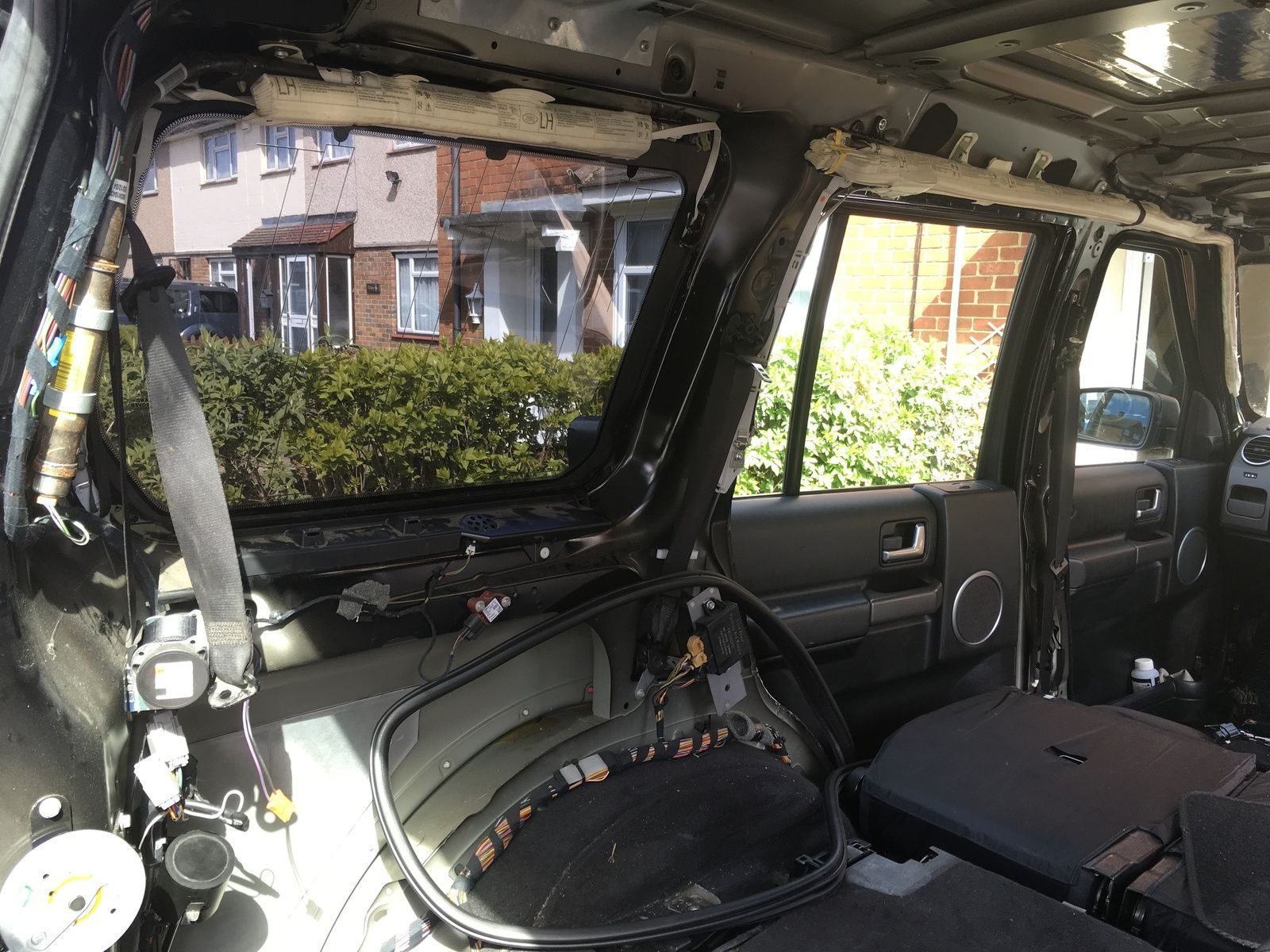

This was when I had to replace my curtain airbags

1988smithy · Jun 6, 2019

Bloody hell you've been in deep there mate

Henry_b · Jun 6, 2019

gstuart said:
Thks buddy

Here’s a few piccies

Noticed I haven’t got a pic of the entire dashboard , will go and take a few pics for u

Upgrading to a D4 steering wheel and the D4 stalks

View attachment 180288 View attachment 180289 View attachment 180290 View attachment 180291 View attachment 180292 View attachment 180293

Just to show what a TDV6 engine looks like
View attachment 180294

Will be replacing the part where it has the ash tray symbols with new switch panel

View attachment 180295

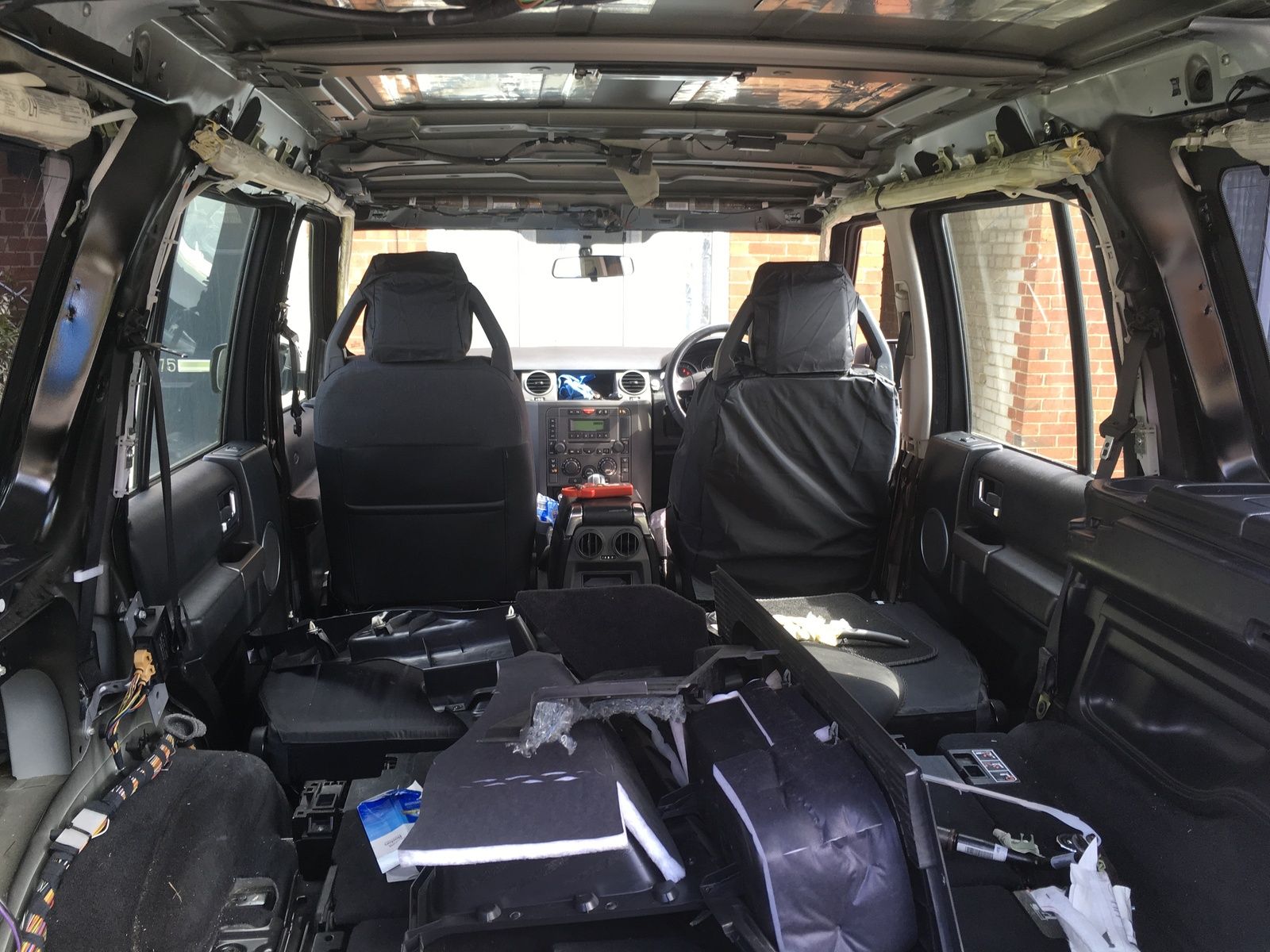

This was when I had to replace my curtain airbags

View attachment 180296 View attachment 180297

Very smart motor those D3's

That interior is nice.

Last pic looks like my P38 exept mine is only partially gutted due to no space to put stuff that i take off

Disco1BFG · Jun 6, 2019

gstuart said:
Do hope this thread wont drive everyone nuts, lol

Pah! - we're already nuts or we wouldn't be here

- You carry on - I, for one enjoy reading about your exploits

gstuart said:
made sure it was a decent one as heard so many stories of cheap fuel filters causing issues

Amen. Nothing worse that cheap filters .... I've mentioned this before --- but.... I ordered an engine oil filter for me digger, as one does

... some noname box came, which was so light, I genuinely thought there was nothing in it .... I weighed the "filter" within - just about 200 grams

..... I then bought a genuine Hitachi filter ... and weighed that ... 780 grams .... Draw your own conclusions... but I sent the noname thing back.... Funny thing is, there wasn't much price difference

- 25% more for the genuine

gstuart · Jun 6, 2019

Just quickly posting a few more pics for now before my battery runs out on the iPad

Haven’t ignored the threads

gstuart · Jun 6, 2019

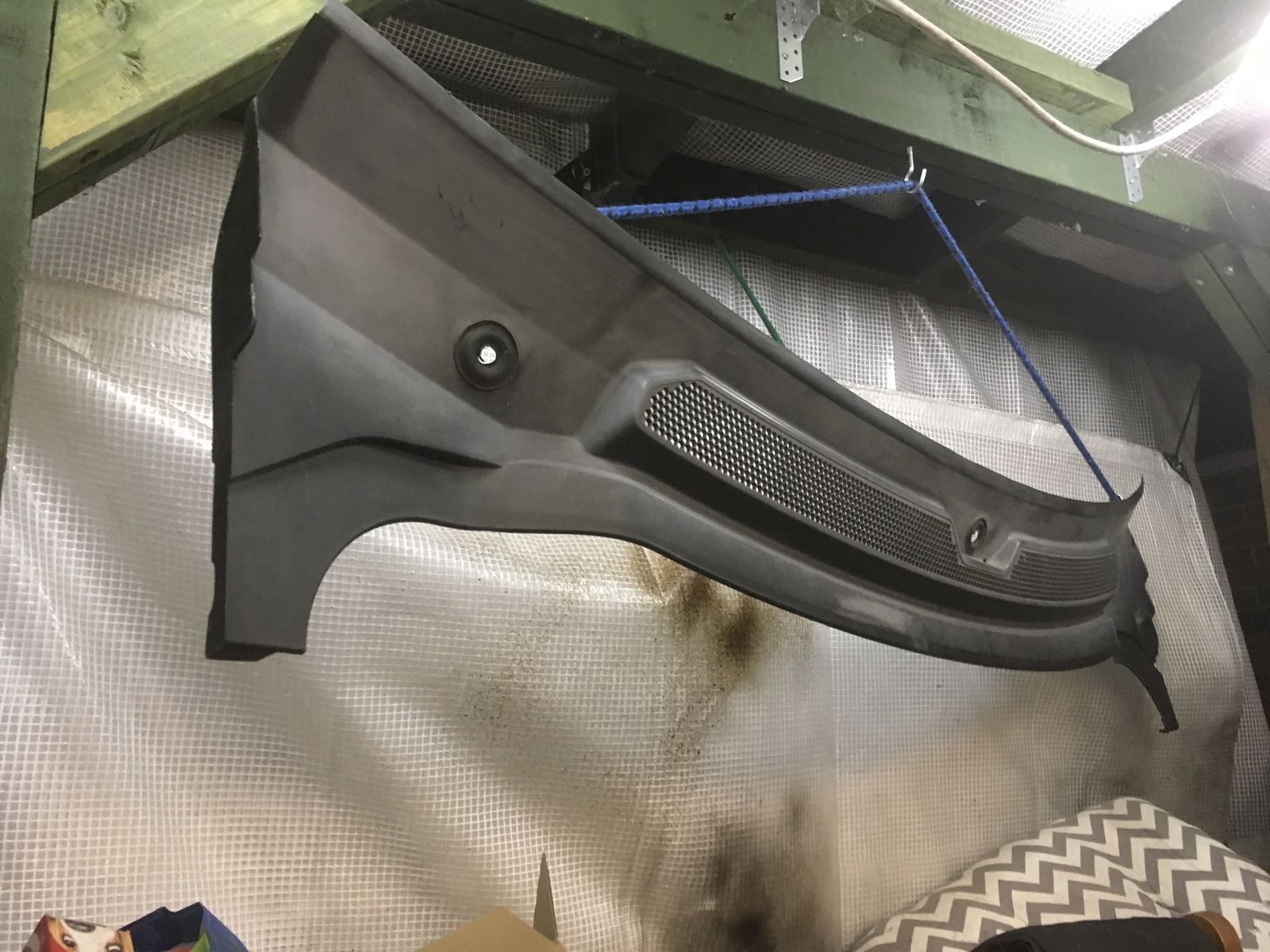

Just hung the panel up as a test so I know where I can hang it after I start spraying, plus won’t be a problem if it starts raining as with it being under this cover

gstuart · Jun 6, 2019

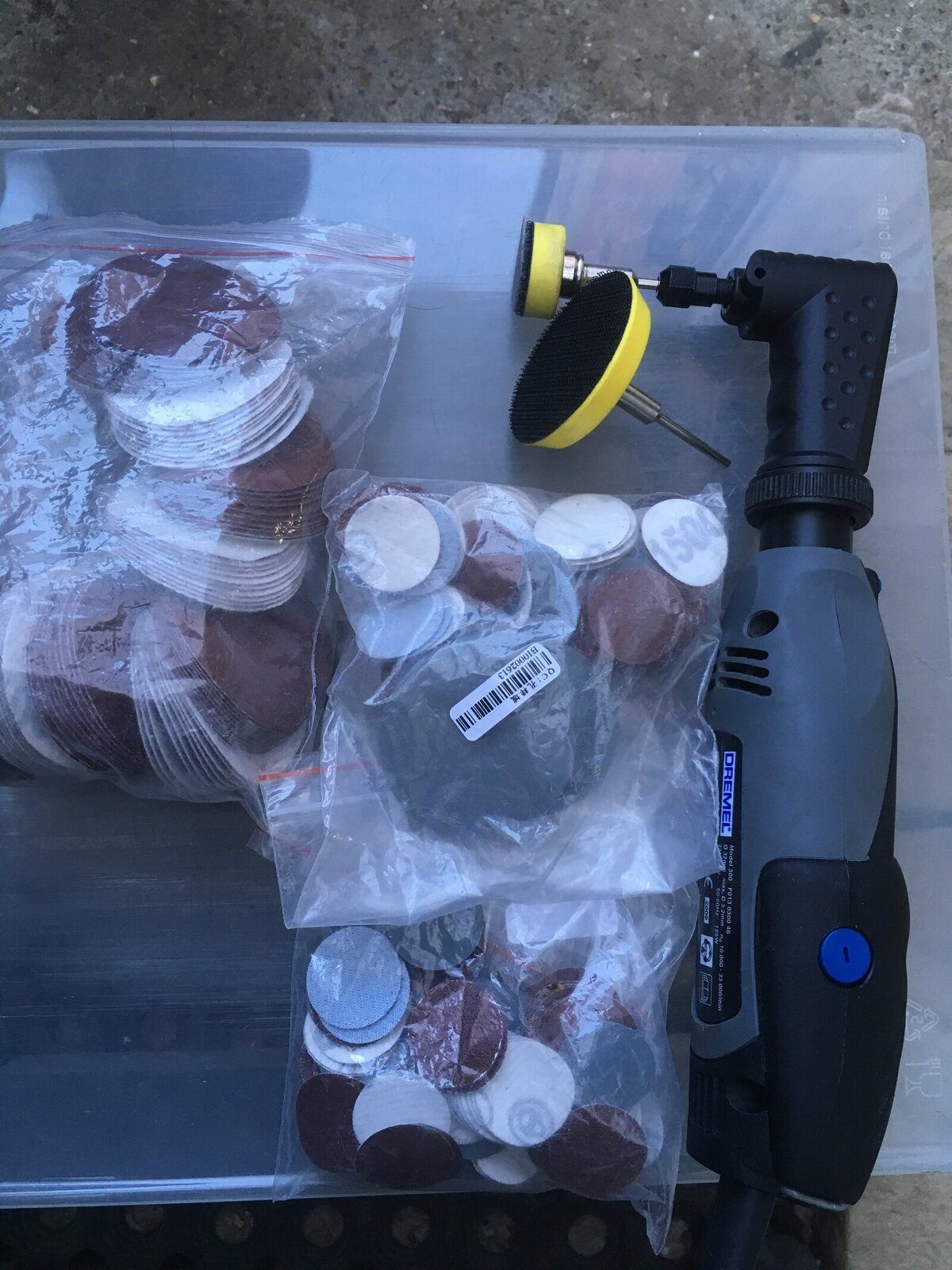

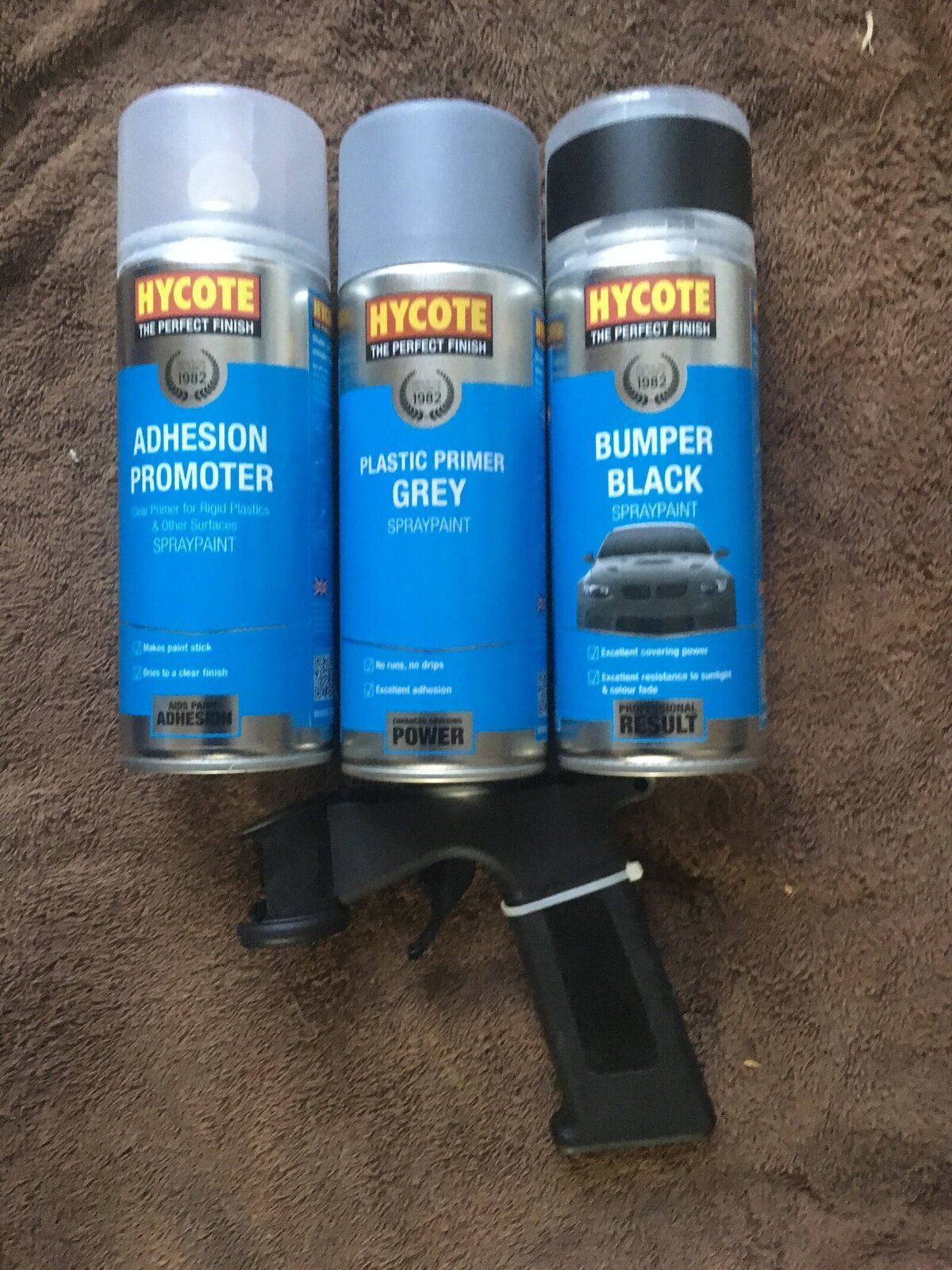

Plus now got the paint I need and some extra wet and dry pads for my Dremel , along with some wet and dry sheets for hand Sanding , thought the Dremel would be ideal because of its adjustable speed and small sanding pads

Need to just use the Dremel to take off some rough spots on the edges so that it will sit flat on the body panel

Oh and my best pal that’s always by my side , will shut her indoors when I spray and ensure all the windows are closed

gstuart · Jun 7, 2019

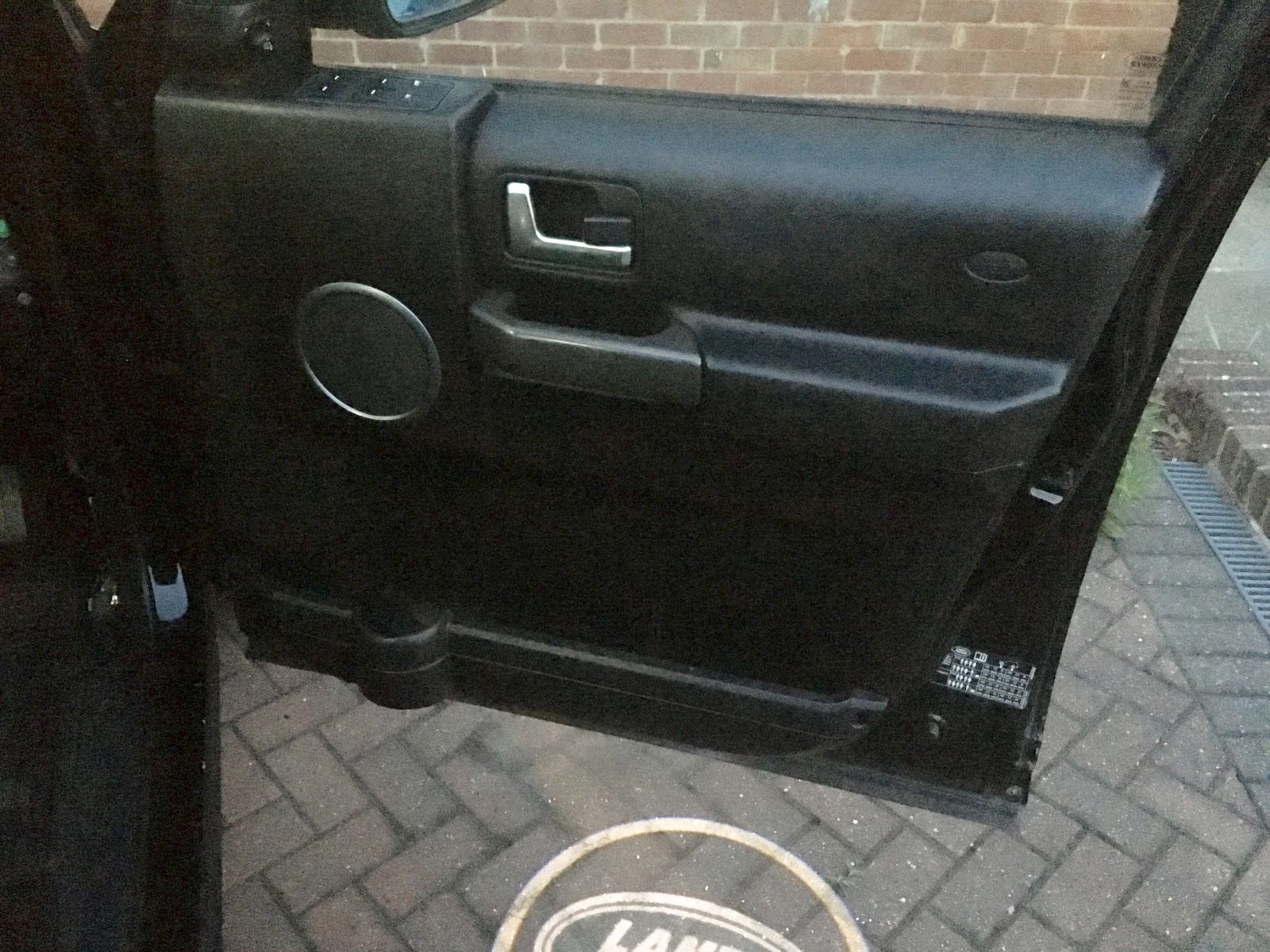

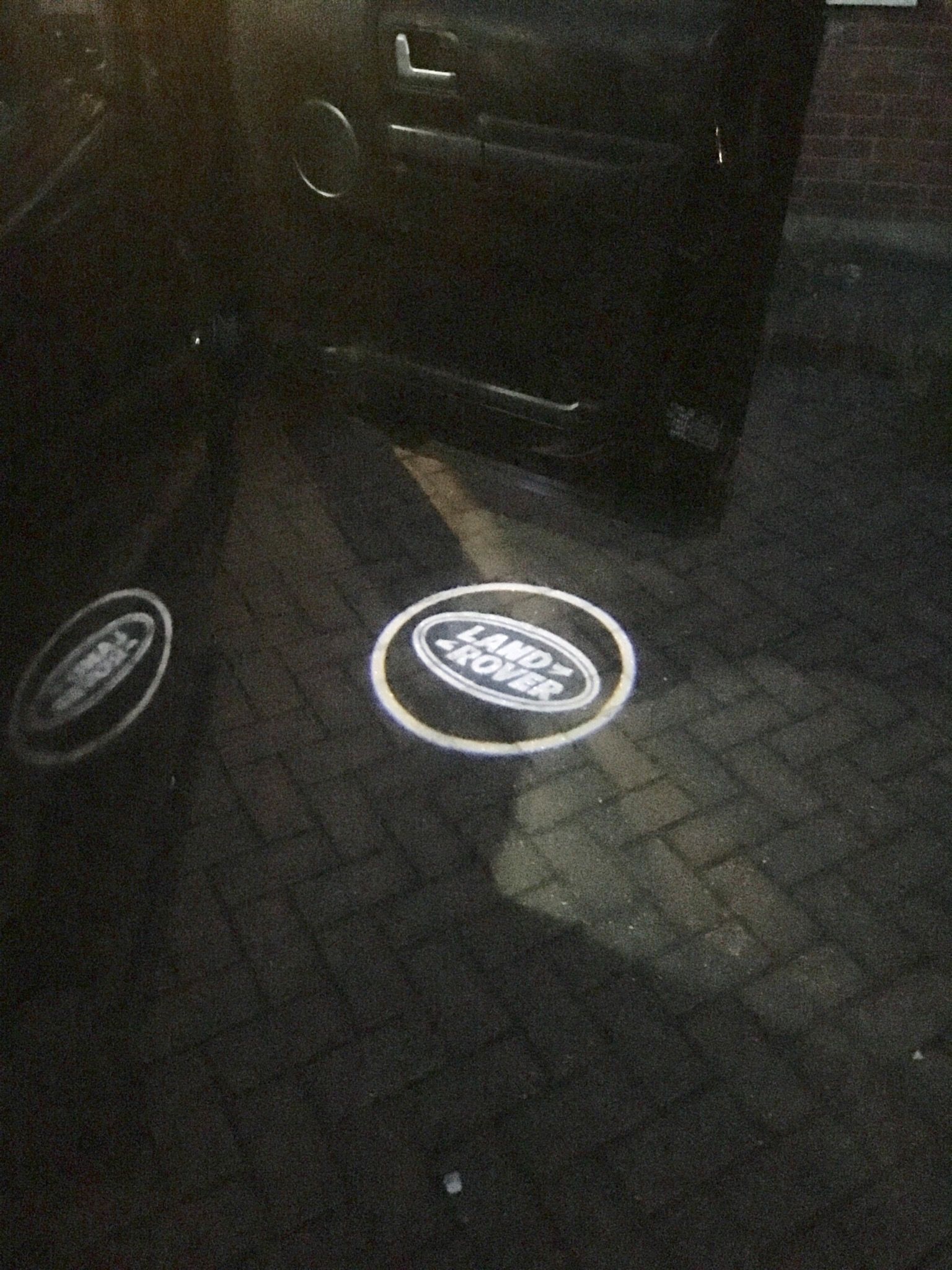

Door light now done

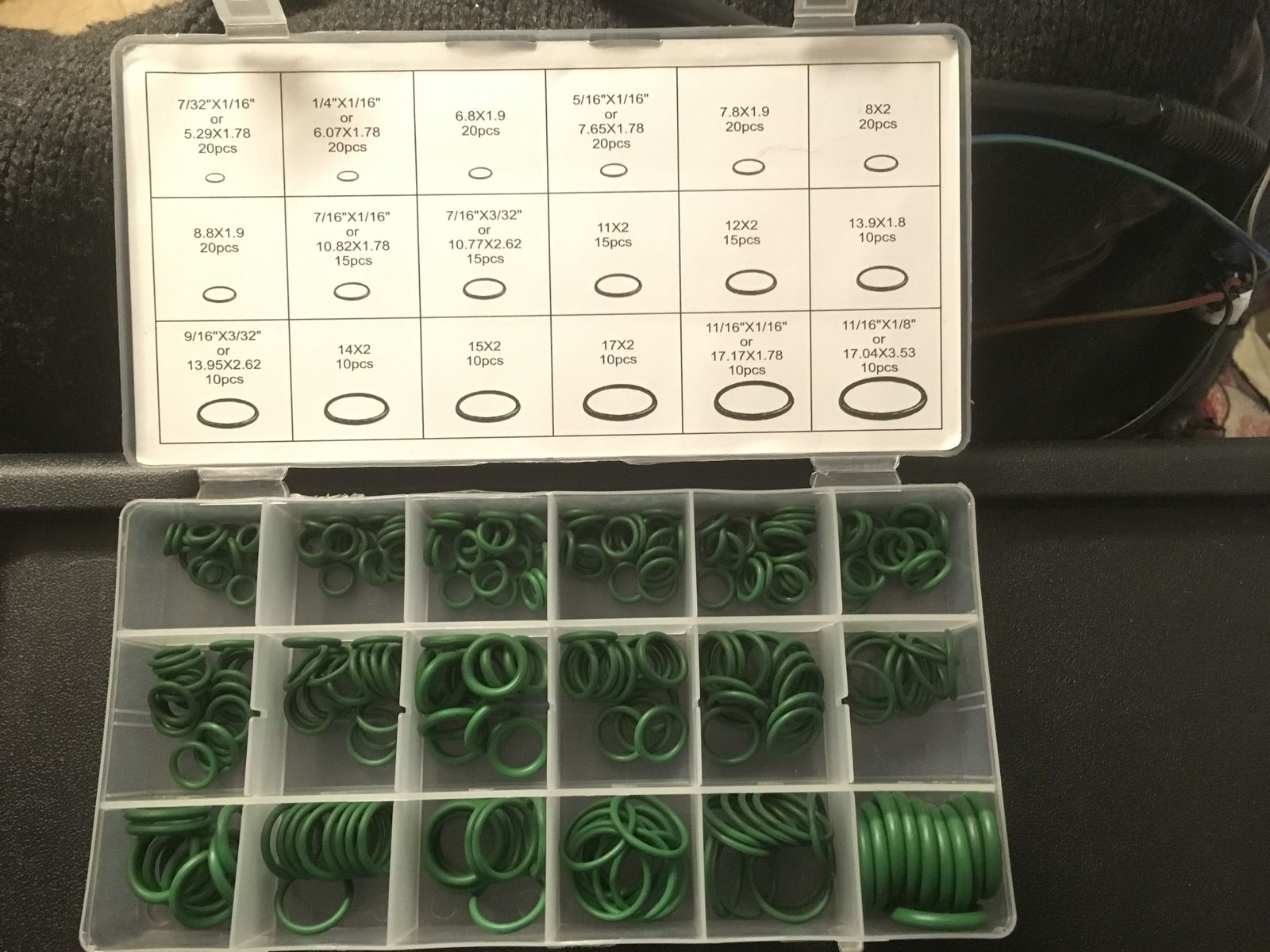

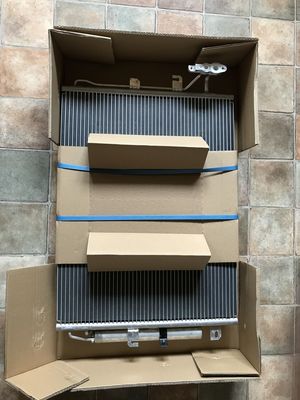

Waiting for my AC condenser to turn up, , got one off the D3 forum brand new for £50 , doesn’t come with the O rings and refused to buy them one by one at outrageous prices,

So bought kit and some stainless A2 bolts for the condenser , comes with a new dryer as well , pretty sure the A2 stainless won’t react with aluminium

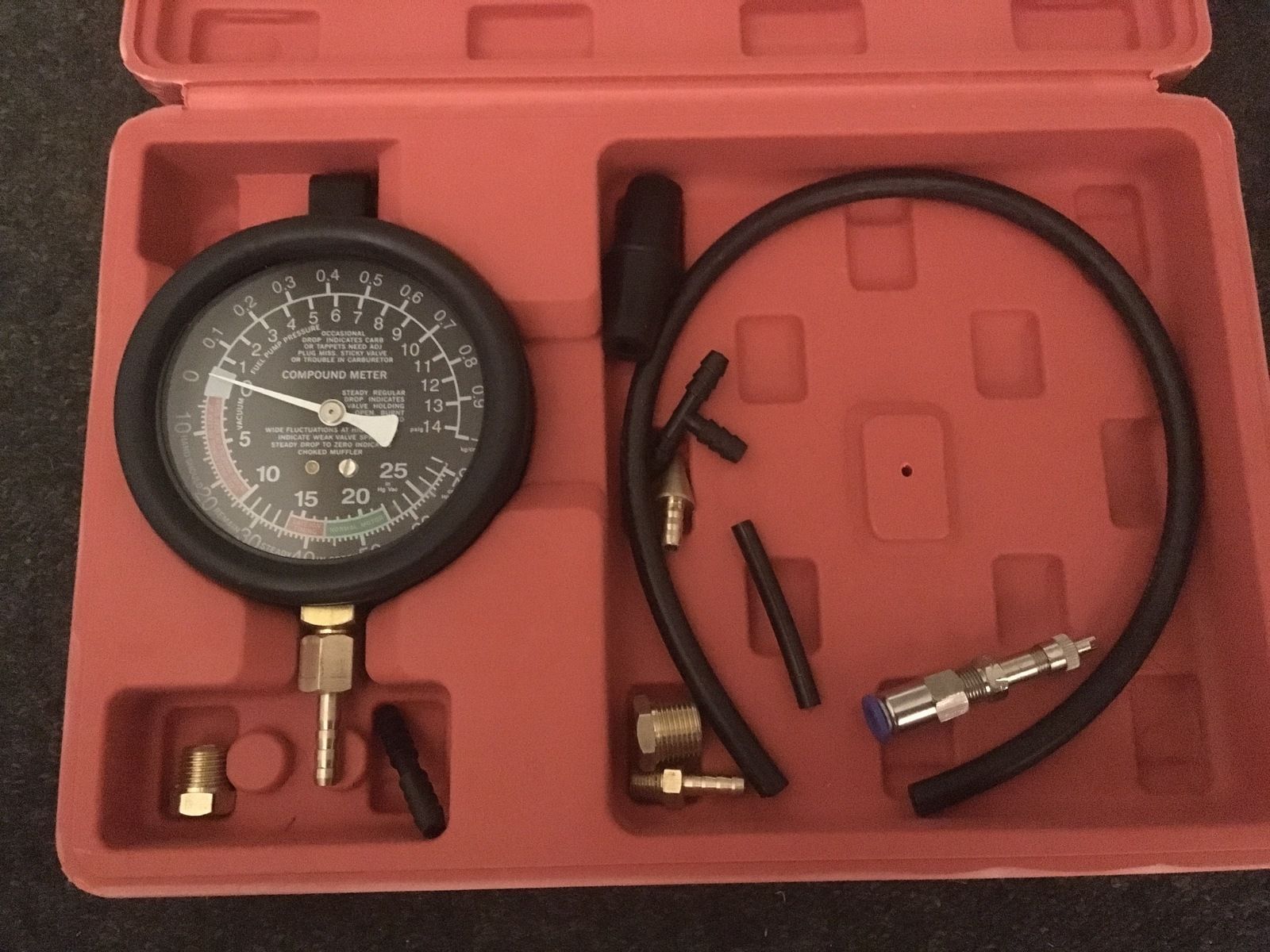

Got plenty of gauges / vacuum gauges etc so can recheck for any leaks after fitting the new condenser

Will be replacing front bumper so will do it when I remove that

But need to get the scuttle panel done first then one step at a time

gstuart · Jun 7, 2019

Disco1BFG said:
Pah! - we're already nuts or we wouldn't be here - You carry on - I, for one enjoy reading about your exploits

Amen. Nothing worse that cheap filters .... I've mentioned this before --- but.... I ordered an engine oil filter for me digger, as one does ... some noname box came, which was so light, I genuinely thought there was nothing in it .... I weighed the "filter" within - just about 200 grams ..... I then bought a genuine Hitachi filter ... and weighed that ... 780 grams .... Draw your own conclusions... but I sent the noname thing back.... Funny thing is, there wasn't much price difference - 25% more for the genuine

Thks and pleased to hear its of interest , it’s going to be a long thread, hold on to ur hat , lol

Plus 1 ref the filters , another thing that I don’t understand when some buy K and N air filters and remove the external air intake to the outside

So then the air filter is sitting inside a hot engine bay , even though the car manufacturer have spent extensive technical tests to ensure the factory fitted designed system works to its optimum

Also D3s like genuine Denso alternator, cheap ones by the looks of it can make the dashboard light up like a xmas tree

Engine oil filter I’ve personally always bought genuine only

gstuart · Jun 7, 2019

1988smithy said:
Bloody hell you've been in deep there mate

Am just warming up, just wait until i start opening up the main engine fuse box, to retrofit some looms in that I’ve already prepared

Must have spent a good 12 x months sitting down doing little projects whilst sitting at the table and working things out

Know I’m my own worst enemy , ensuring everything is done just right

Same as we all are to be honest , super landy ocd

gstuart · Jun 7, 2019

Now where did I leave that pin, snigger

gstuart · Jun 7, 2019

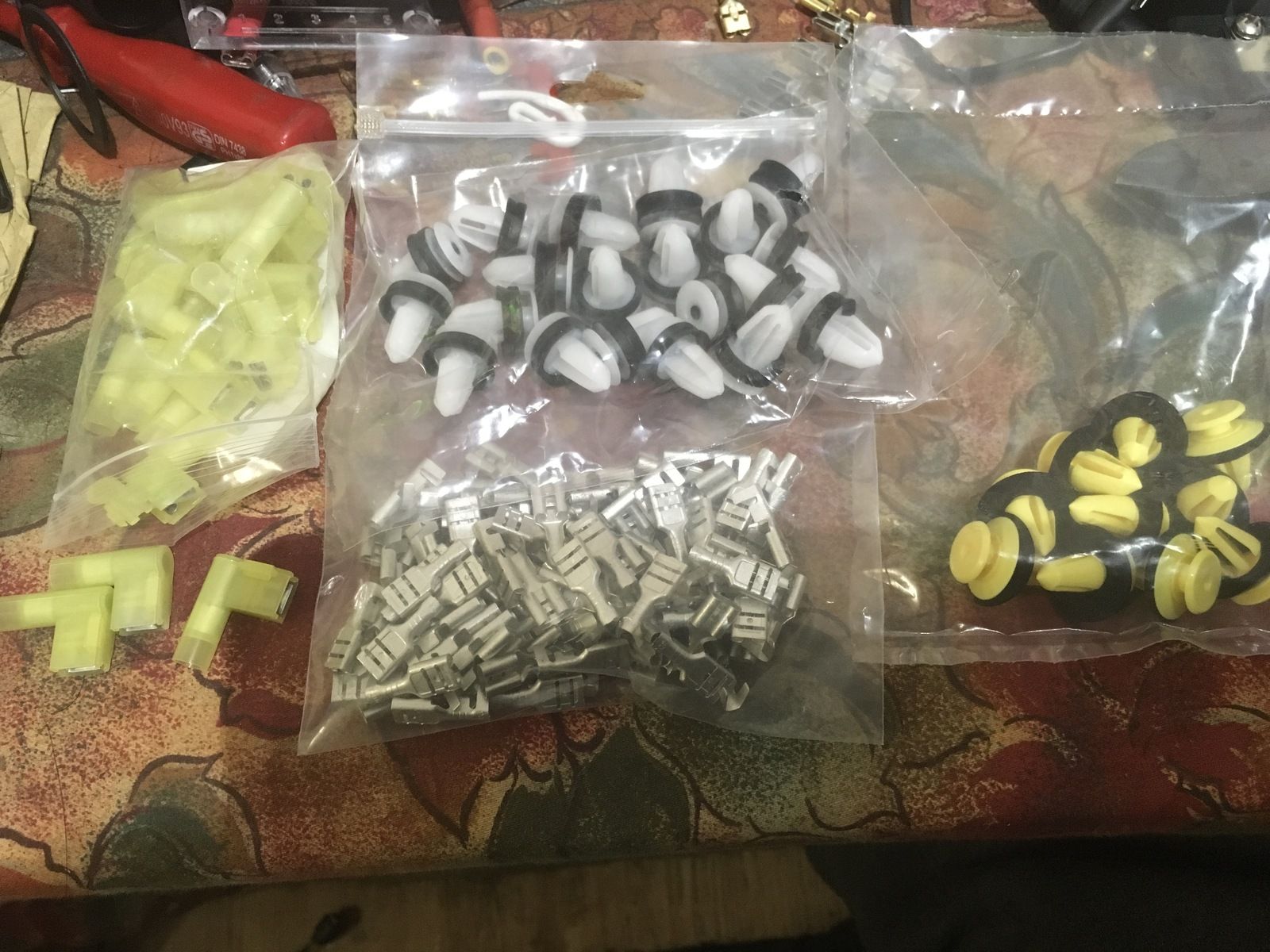

There they are lol, got all new clips for the A pillar panels and scuttle

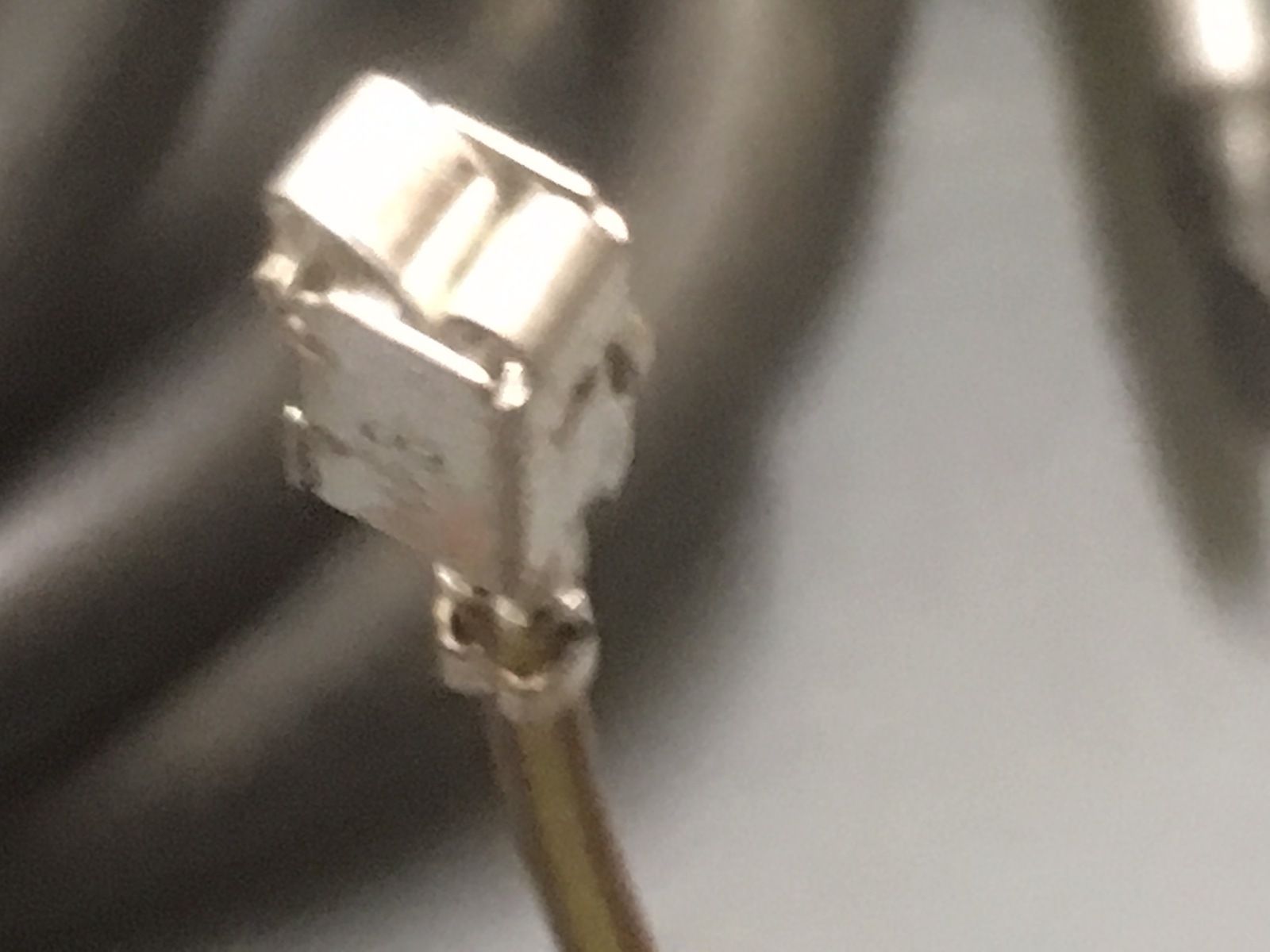

Also some 90 degree terminals so will sit better on the back of the new dashboard gauge panel

gstuart · Jun 7, 2019

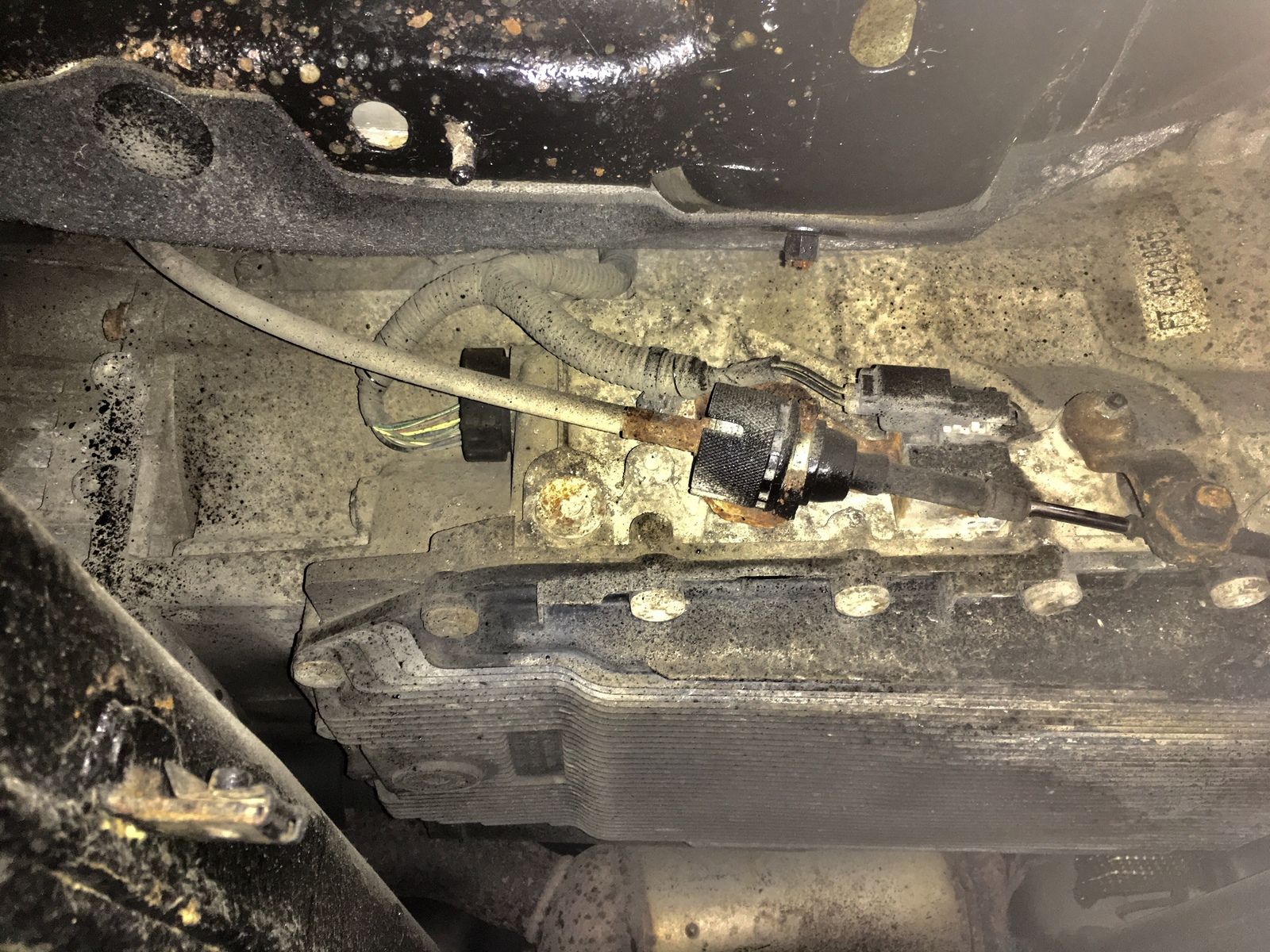

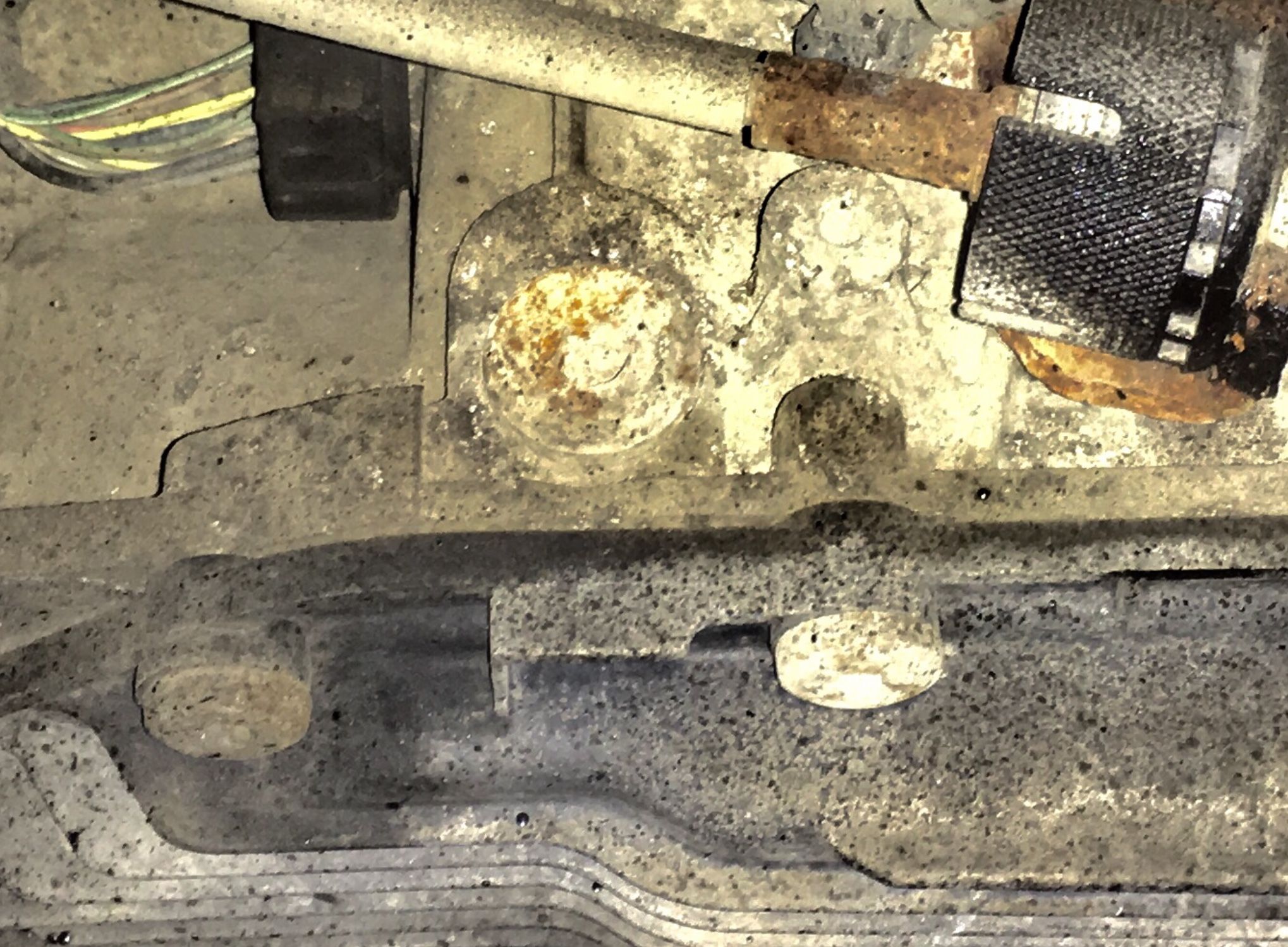

Filler , level plug on the ATF looks like they’ve never been out

Alas this is going to be a no no for me this year , won’t stand a chance getting underneath the landy

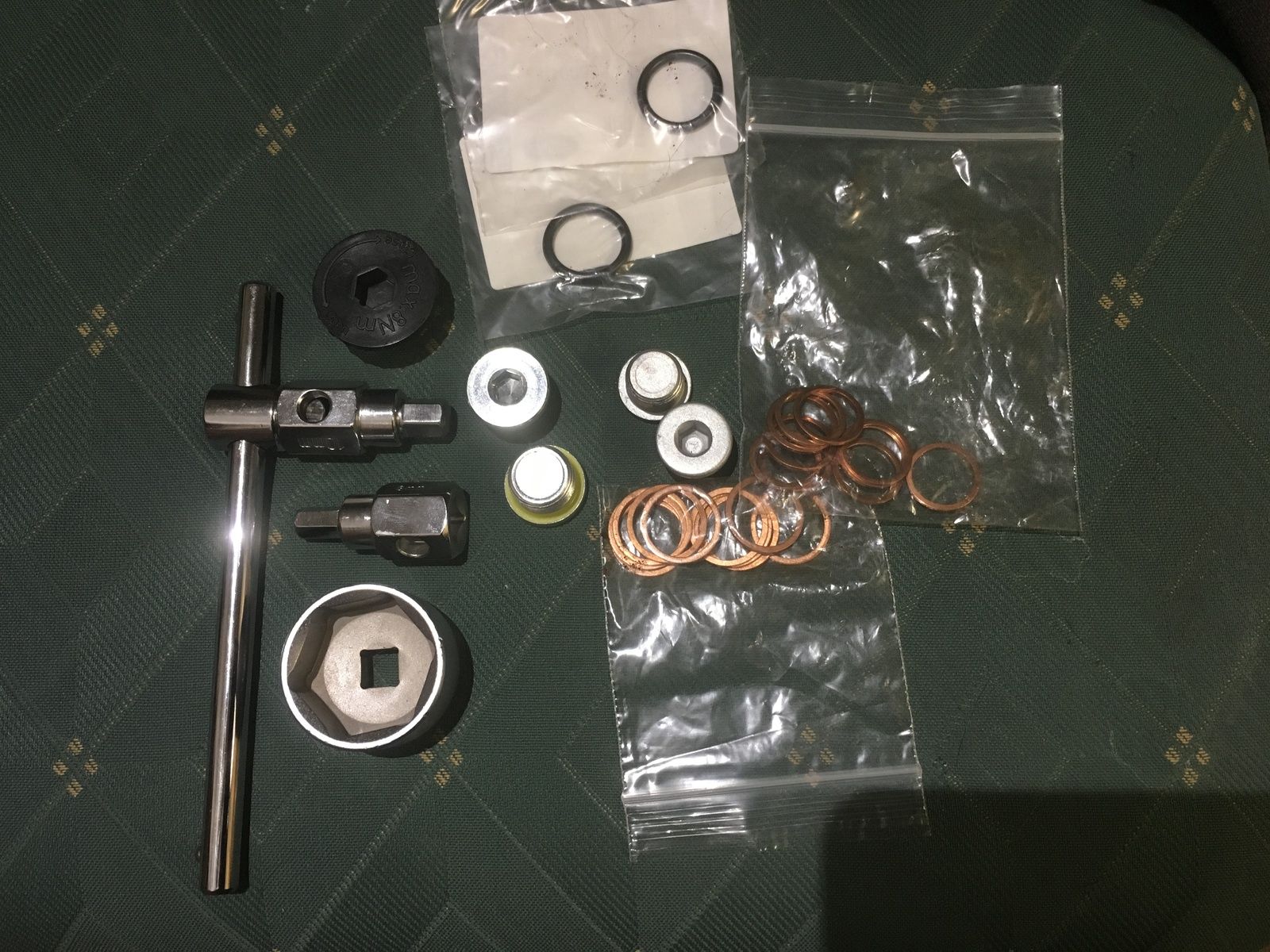

Have bought all new level/ plugs

@Henry_b

Hope u didn’t mind me tagging u , what do u think ref the AT level plug , looks like it’s never moved

Don’t know if you’ve heard of these plugs snapping plse

Thks as always and this thread finds u well

gstuart · Jun 7, 2019

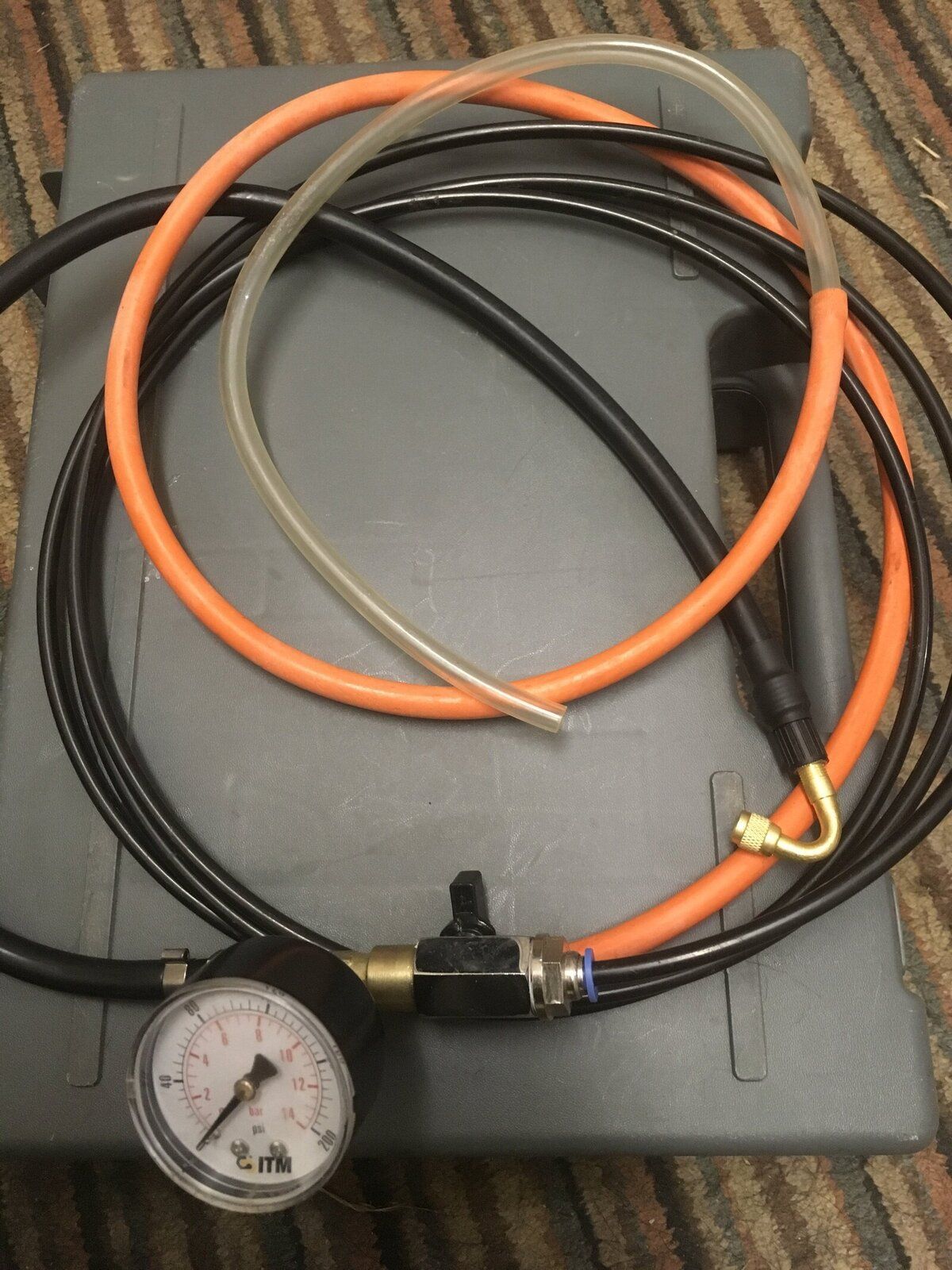

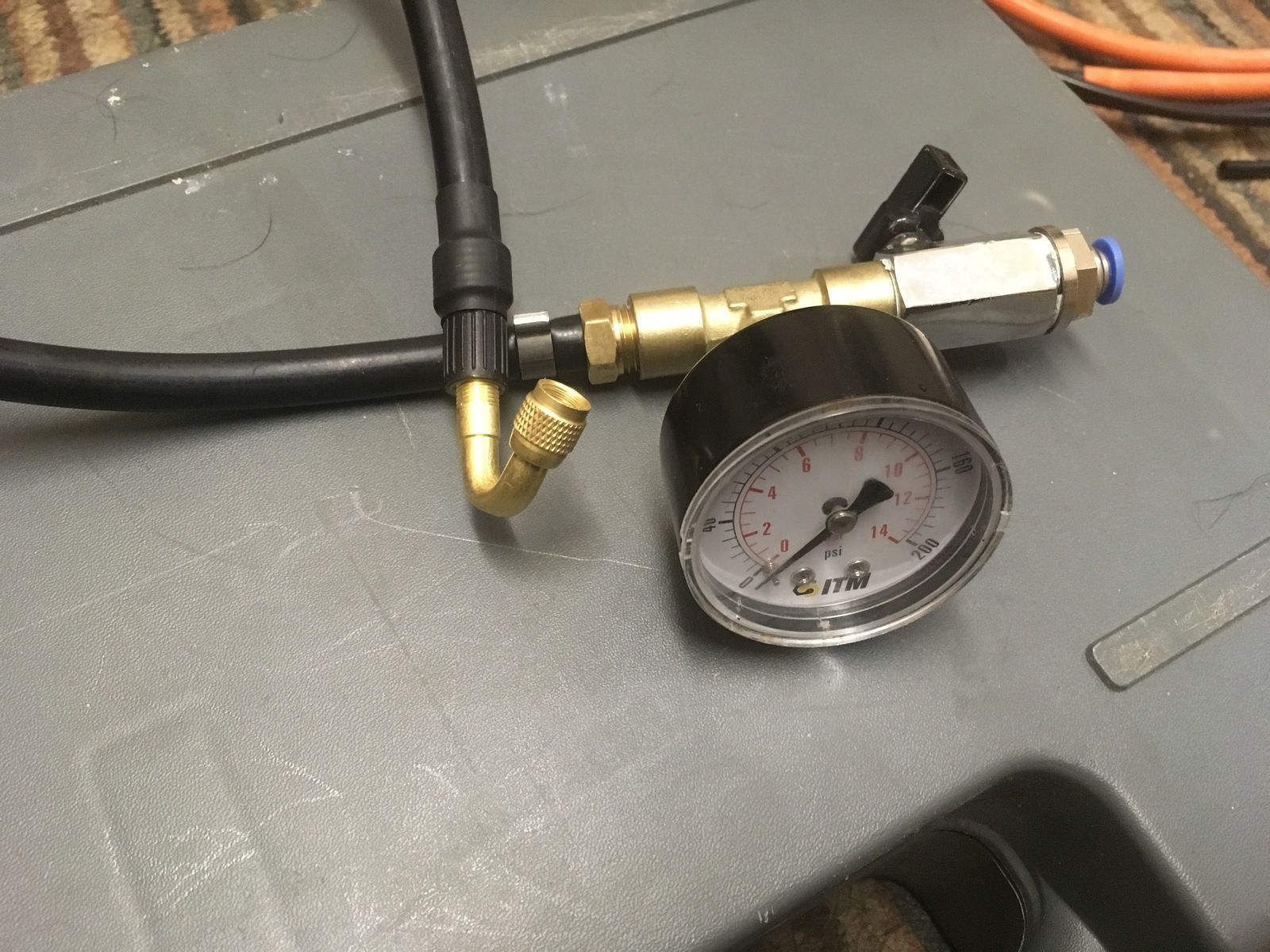

Also got a hose and gauge for the filter change , has the shrieder valve at the back of the engine used as a test point for the LP fuel side

So though fit the hose I’ve got , turn ign on and allow fuel into a clean jam jar, then use that to pre fill the new fuel
filter

Know I won’t be able to lean across the engine to do the oil filter

gstuart · Jun 7, 2019

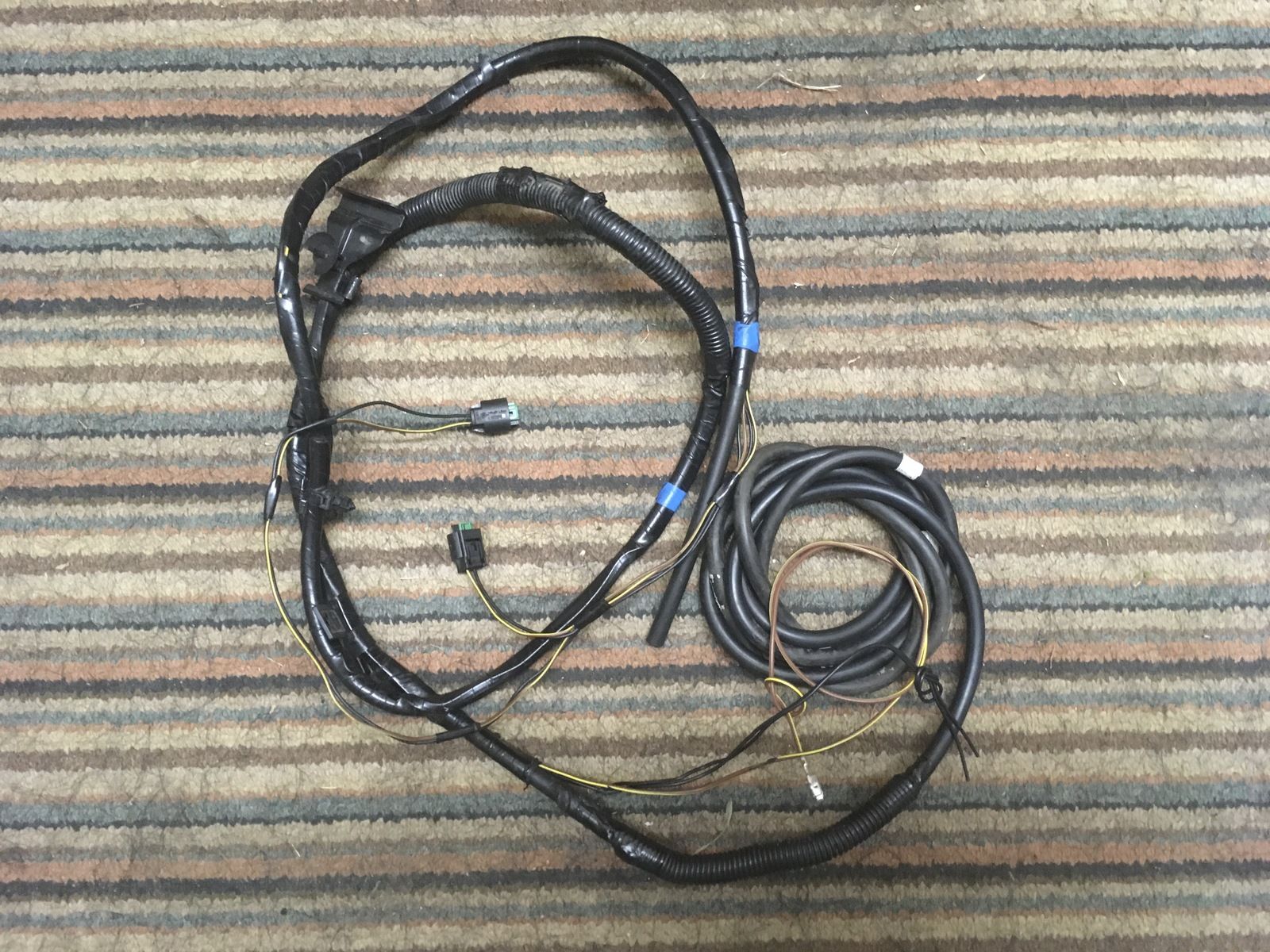

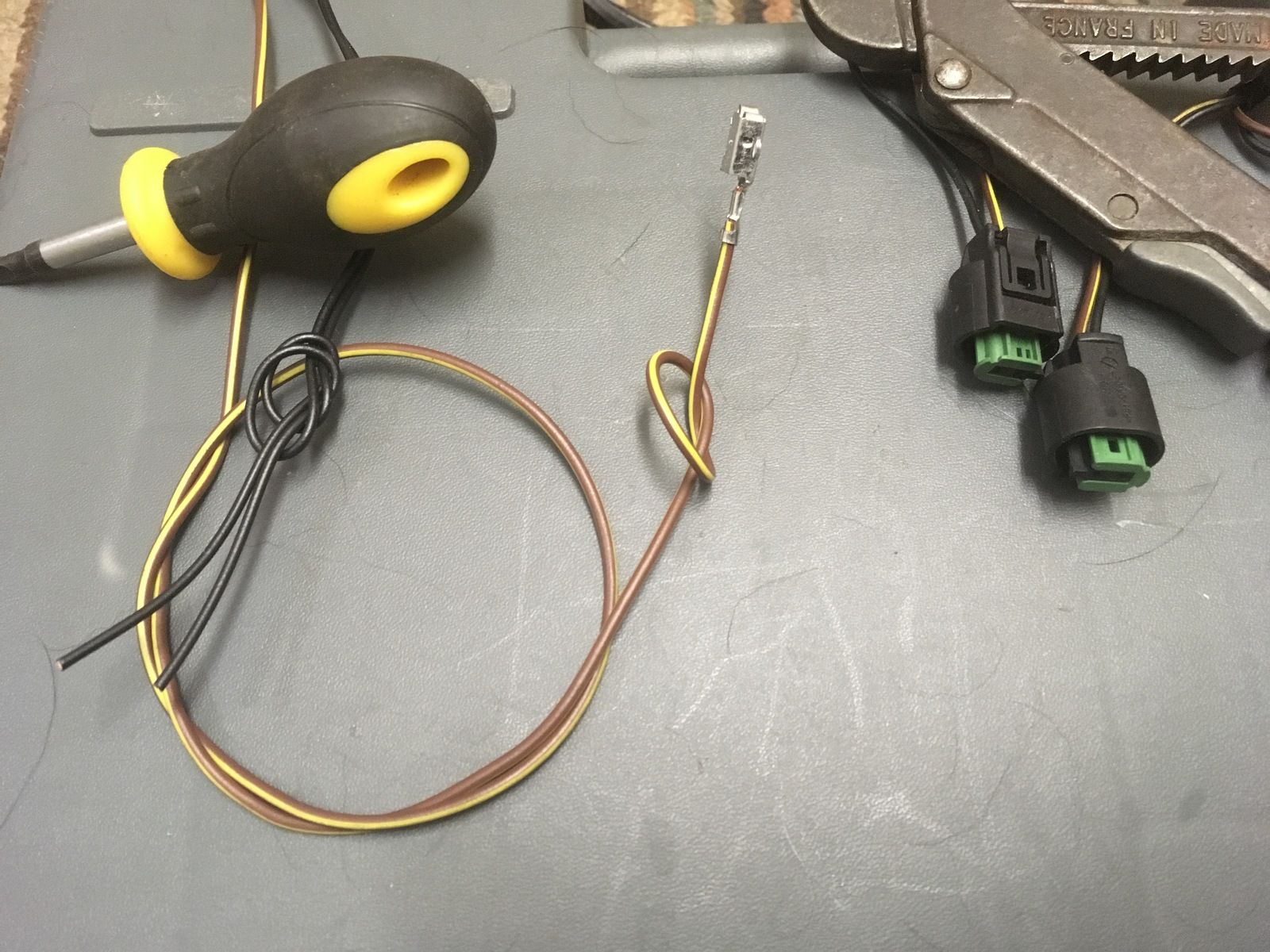

Spent tonight this morning sorting out the loom to retrofit the heated windscreen washer jets

Also used a multimeter and tested each wire is sound and no breaks in the wires

gstuart · Jun 7, 2019

Well, the little jobs should keep me busy for a while,lol

Will worry about the other bits later, as when there done will really bring it up to a good standard

gstuart · Jun 7, 2019

@1988smithy

Hi mate

Well sat down and tested that usb , no good as it’s supplying 12 volts at 1.2 amps , so back to the drawing bored for that

So will fit a factory usb in the panel and get an aux socket small enough so can drill it into that metal panel , something like a 10mm hole

But before I do anything I’m wondering ref the blanking plates either side of the factory radio , to see what access is like

Will wire it directly into the back of my radio but at least can get on with the other bits

Added a few more pics for ur entertainment, lol

1988smithy · Jun 7, 2019

Never mind mate, worth a shot! Nice to see lots of pics

Disco1BFG · Jun 7, 2019

@gstuart - I had a nosy for DC to DC converters for you ... this is a 6V output:-

https://uk.rs-online.com/web/p/fixed-installation-car-power-adapters/2184807/

Plus, there is a large amount of info here:-

https://www.xppower.com/Products/DC-DC-Converters

gstuart · Jun 7, 2019

Disco1BFG said:
@gstuart - I had a nosy for DC to DC converters for you ... this is a 6V output:-

https://uk.rs-online.com/web/p/fixed-installation-car-power-adapters/2184807/

Plus, there is a large amount of info here:-

https://www.xppower.com/Products/DC-DC-Converters

Bless u , will check them out
