Passed mot but dangerous advisory

You fancy giving him a hand with a once over?

Danjo said:

Aye. Im still a novice. So think will have to see a speciallist to find out what prop i need.

Not sure what you mean by splines.

But here is tube link to what the furthest back uj is like.


Cheers

Click to expand...

Seems like my input is too late but I've scrapped far better uj's than that. Just imagine that coming apart and spinning round under your backside. If you were local to me I'd take a look around for you, so I'm sure somebody nearby will offer the same.

Discokids said:

Seems like my input is too late but I've scrapped far better uj's than that. Just imagine that coming apart and spinning round under your backside. If you were local to me I'd take a look around for you, so I'm sure somebody nearby will offer the same.

Click to expand...

I don't need to imagine

Never heard of the words worn and dangerous on an advisory, that is some uj play you got there.

The Mad Hat Man said:

might be worth checking the other grease points pretty soon too.

@mpower
@hoopfish
@flat

Click to expand...

You tagged me? Read the thread, I wouldn’t drive that with that prop attached. It’s literally at failure point.

New UJ’s

All you need is a vice or BIG g clamp, a grinder, handful of sockets (as spacers), circling pliers and some new UJ’s - DONT buy pattern/britpart ones.

Google what to do, I hadn’t rebuilt propshafts before and did both mine in an afternoon.

I first tried pressing them out, takes ages, so cut them out instead. DONT damage the actual prop shaft though, just cut the UJ

If you know your way round a toolbox it’s easy tbh

flat said:

You tagged me? Read the thread, I wouldn’t drive that with that prop attached. It’s literally at failure point.

New UJ’s

All you need is a vice or BIG g clamp, a grinder, handful of sockets (as spacers), circling pliers and some new UJ’s - DONT buy pattern/britpart ones.

Google what to do, I hadn’t rebuilt propshafts before and did both mine in an afternoon.

I first tried pressing them out, takes ages, so cut them out instead. DONT damage the actual prop shaft though, just cut the UJ

If you know your way round a toolbox it’s easy tbh

Click to expand...

Cheers. I going to give it a shot.. just need to work out what size hardy splicers i need. Would i need to take one off to measure it properly?

Think you can get a good idea without stripping, I'm sure there's limited options regarding size.

Discokids said:

Think you can get a good idea without stripping, I'm sure there's limited options regarding size.

Click to expand...

Ok from a rough look they look like just over 8cm.

Discokids said:

Think you can get a good idea without stripping, I'm sure there's limited options regarding size.

Click to expand...

@flat @Discokids

Do these sound about right?
http://www.paddockspares.com/universal-joint-2.html

Yes.
Make a note of the grease nipple orientation on your old one. It's possible (on a front prop at least) to get it wrong, the UJ will still work but you won't be able to get a grease gun on it once it's fitted back on to the truck.

@Danjo depending upon where you buy your uj's from this can make life easier



You'll also need a 9/16 " spanner if you haven't already got one

And some circlip pliers

Marmaduke said:

And some circlip pliers

Click to expand...

not circling pliers then?

(see post#45)

If the fender is your daily drive. Drop the bad prop off totally and put it in diff lock then you can still drive.

If it’s the rear prop shaft you take off put the nuts back on the handbrake drum so it doesn’t all fall off lol.

Also bear in mind that if you drop a rear prop off then you don’t have a hand brake anymore as it works on the transmission. So make sure you chock the vehicle.

Danjo said:

@flat @Discokids

Do these sound about right?
http://www.paddockspares.com/universal-joint-2.html

Click to expand...

Stump up the few quid more for OEM ones (hardy spicer) rather than blue box ones imo

flat said:

If the fender is your daily drive. Drop the bad prop off totally and put it in diff lock then you can still drive.

If it’s the rear prop shaft you take off put the nuts back on the handbrake drum so it doesn’t all fall off lol.

Also bear in mind that if you drop a rear prop off then you don’t have a hand brake anymore as it works on the transmission. So make sure you chock the vehicle.

Click to expand...

you have hand brake if you put it in difflock

jamesmartin said:

you have hand brake if you put it in difflock

Click to expand...

Yeah I know, I meant When he takes the prop off on his drive to repair it, not chocked and the car will roll when the prop is off. Easy thing to over look but could be nasty :/

All great advice guys. Cheers. Shame i cant find anywhere that sells them off the shelf near me. So might take it off and use in diff lock until they arrive .

Thanks

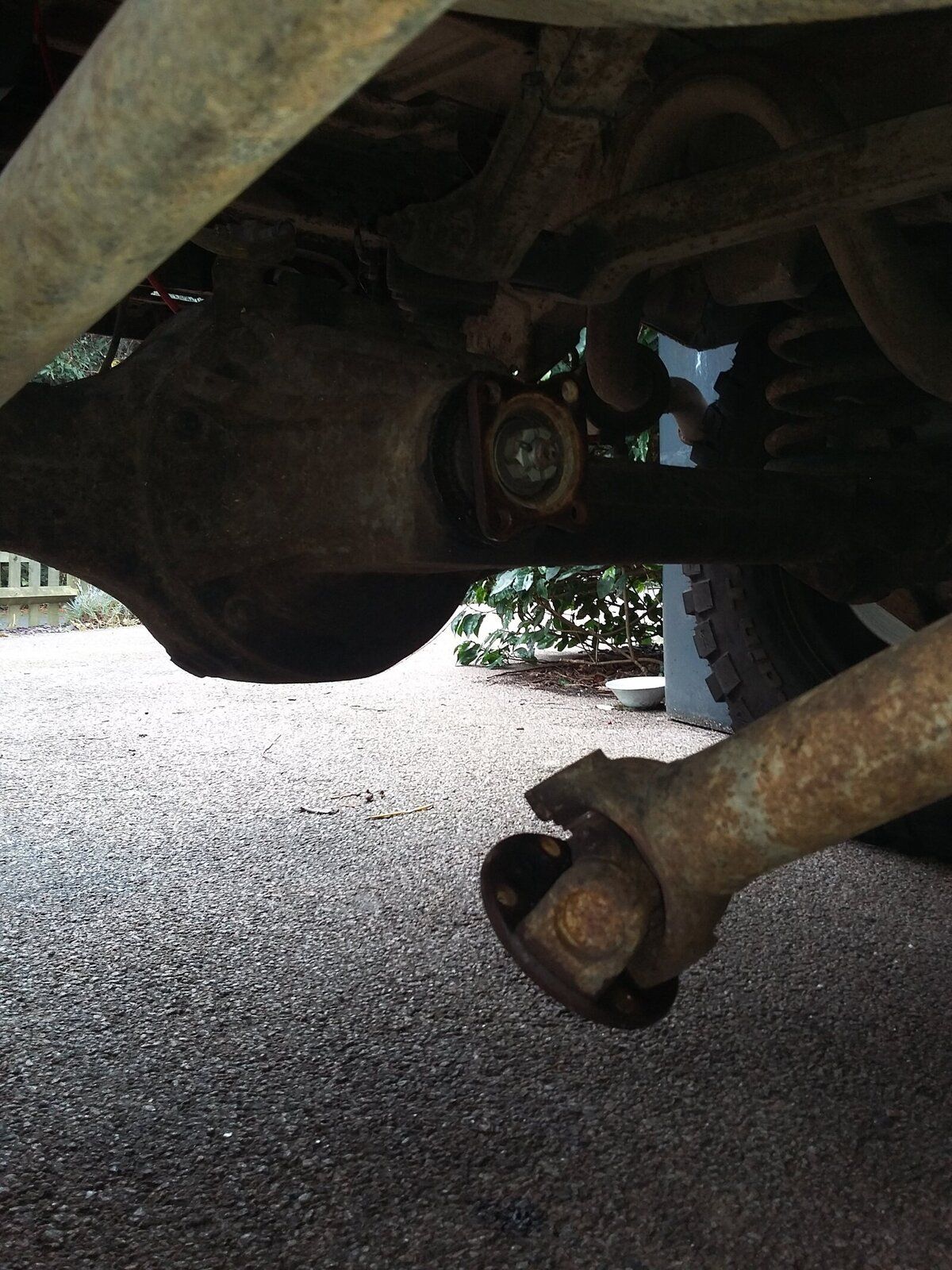

But cold out but rear end down

All out and just ordered ujs.

Cheers
