Nut sizes...

tom1979 · Jan 20, 2019

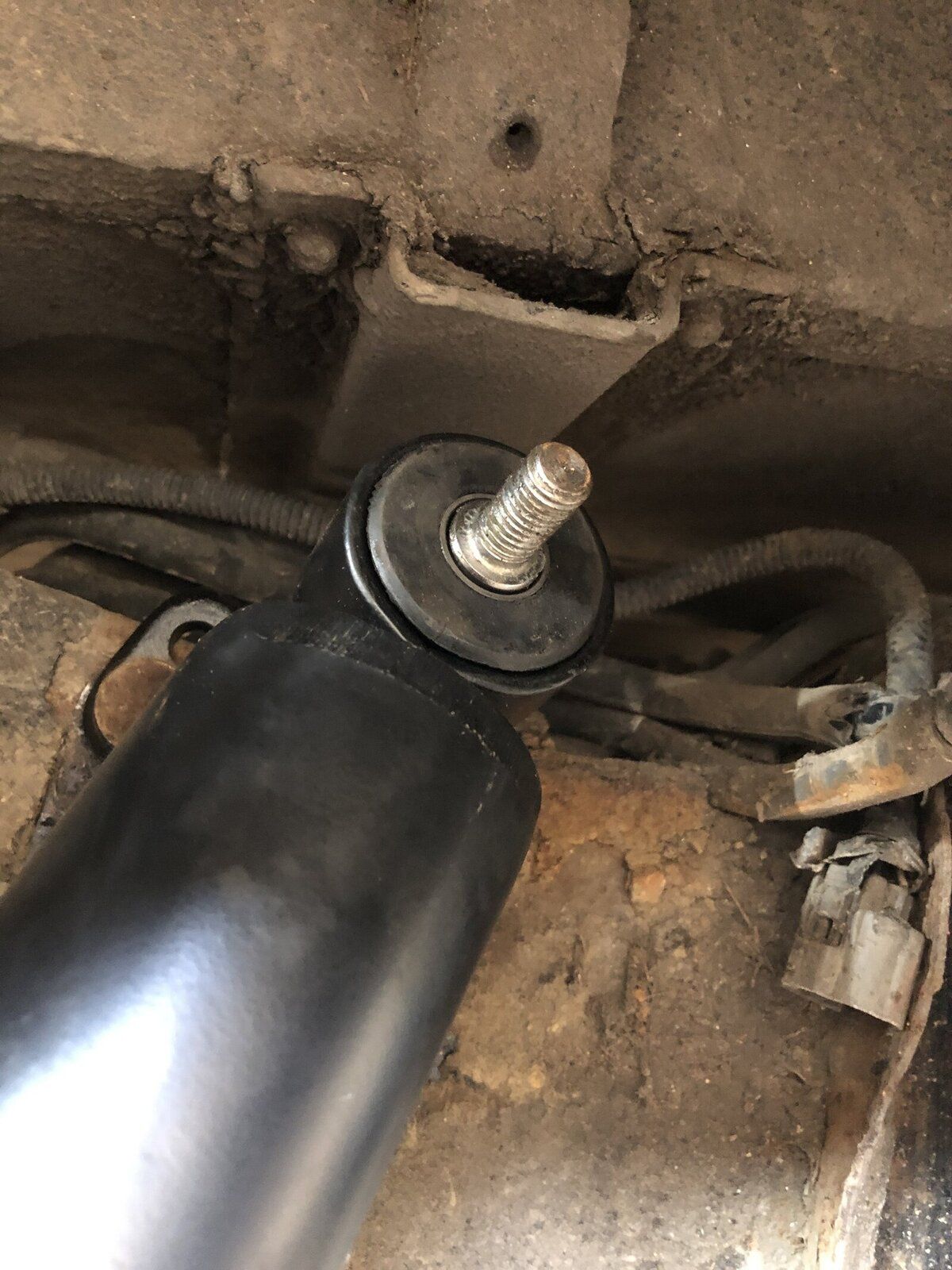

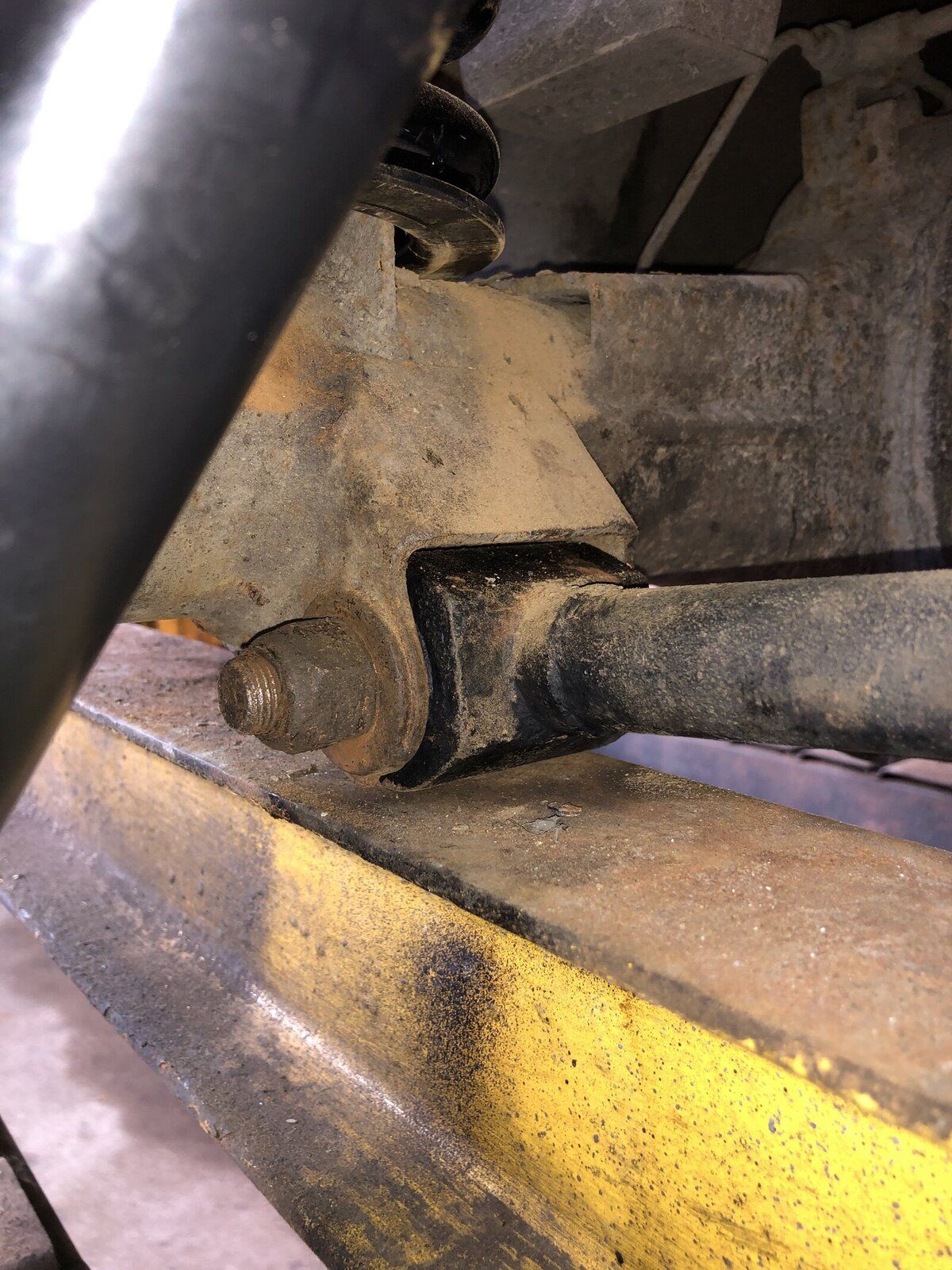

changing my suspension back to standard and that Russian microcat doesn’t work. Can anyone tell me what size nuts I need for the upper rear shock mounts and also the rear nuts for the rear trailing arms? Pics attached, 2000 TD5 Defender 90
Thank you

bluedog333 · Jan 20, 2019

For long term benefit you’re better off buying a selection of nuts in all sizes, both nyloc and standard.
I think the nuts you need are M10 or M12, but just get a selection and you’ll be fine.

mick 1986 · Jan 20, 2019

tom1979 said:
changing my suspension back to standard and that Russian microcat doesn’t work. Can anyone tell me what size nuts I need for the upper rear shock mounts and also the rear nuts for the rear trailing arms? Pics attached, 2000 TD5 Defender 90
Thank you

View attachment 167832 View attachment 167833

I bought a SS nut/bolt kit for the rear shocks. The nuts I received were metric, but my threads are imperial. I would suggest trying your best to measure them or get them off without breaking them.

The front of the trailing arms, I think, are M20. The bolts through the trailing arms should be M16.

Beneagles · Jan 20, 2019

M12 nylok for the shocks.
Radius arm nuts: https://www.island-4x4.co.uk/trailing-rear-bolt-britpart-ny610041l-p-37573.html
5/8 unf are mentioned for this. Discovery ones are M16 if that helps....

neilly · Jan 20, 2019

My top suspension damper nuts were not metric. But that was on a 1987 90.

Cheers

tom1979 · Jan 20, 2019

I got two new brackets as the old ones were the terrafirma ones, the top nuts are M12 one side is fine the other the M12 nut wouldn’t go on. I’m wondering if it’s a faulty bracket although I’d had thought that’s fairly unlikely.
