nsr window inoperative

The nsr window has stopped working ! ( lol this car is tryin my patience ). All others work but neither drivers window control panel or the nsr door window switch will operate it ? There is no clicking noise from anywhere like a relay or anything any idead ???

Dead motor, broken wires from B post to door are possibilities. Have you checked all fuses? Otherwise diagnostics.

No not yet plugged it in not checked fuses been busy as work another death on the track . Does it have individual fuses per window ?

Windows are BeCM controlled...

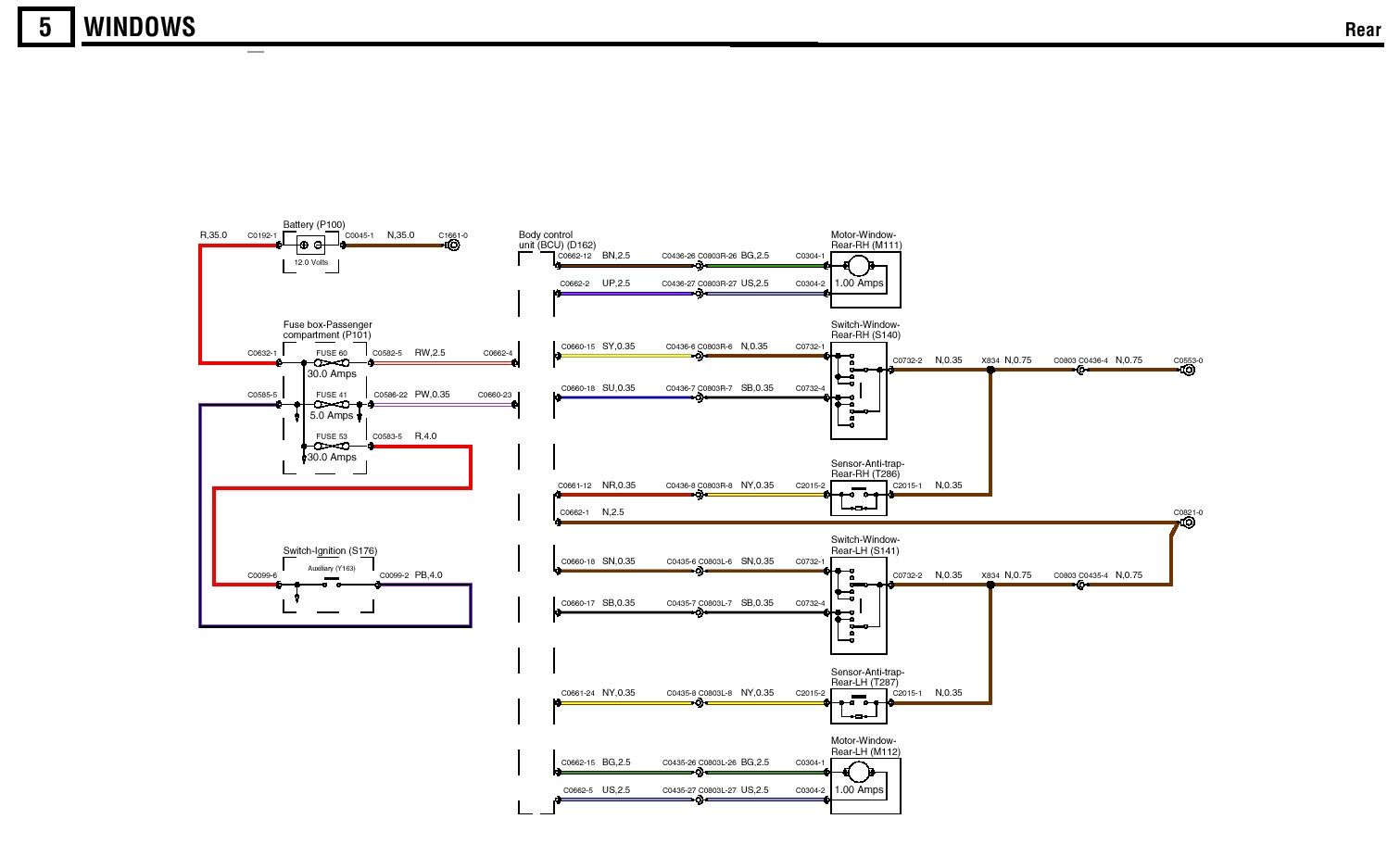

Check the fuses as per the attached schematic...

Sometimes you get lucky and spraying a bit of electrical contact cleaner in the switch works.

Ya feelin' lucky?

Saintv8 thats great but i dont understand one bit of it sorry but is it easier to tell me where fuses are ? Apologies for my ignorance ! Also grrrrrrr it dunt work from drivers door control either

Check fuses 41 and 60 in the fusebox behind the Glove Box...these two guys feed to the Body Control Unit....

On the right of the schematics is the two switch packs for the Left and Right rear doors, the two motors (Left & Right) and also the safety antitrap sensors....

When you toggle one of the switches, this signal goes to the BCUto tell it to open/close the window, the BCU then checks the antitrap sensor isn't sensing a blockage and then supplies power to the motor....

Check the fuses, and if they are good, time to check you get power to the motor (this will mean pulling the door card, or disconnecting the connection to the door and metering across the two wires to the motor.

If you have power - motor is fecked
If no power - time to check the switches....but seeing as though BOTH switches don't activate the window - it is unlikely to be that.

My money is on dirty door connections or a duff motor.

Brilliant can check fuses but wat do u mean schematic switches where r they wat do they look like sorry again still learning

sestorious said:

Brilliant can check fuses but wat do u mean schematic switches where r they wat do they look like sorry again still learning

Click to expand...

I was just explaining the schematic I attached...

When I mentioned switches, I was referring to the Door window switch and the drivers main switch pack....

But considering that the window won't work with either the door switch pressed or the drivers main switch pressed....I am guessing it is a dirty connection or duff motor!

i know it might be a daft comment, but is there a rear window inhibitor switch? to stop little fingers opening the windows? could that have been pressed?

sas1810 said:

i know it might be a daft comment, but is there a rear window inhibitor switch? to stop little fingers opening the windows? could that have been pressed?

Click to expand...

There is but this wouldn't stop the Drivers Master switch pack from operating the window though!

well, not tried it on mine, but i know on the Mitsi i had, if it was pressed, only the drivers window would open from the master switch, none of the others would operate.

Good comment i dont know saintv8????
