My first ever land rover, series 3, 88"

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

pegibson

New Member
Posts
202
Hi All,
Back in March/April I decided to have a go at off roading, so bought a 88" 3 series.
It was in need of a bit of work, chassis etc, and also had a Nissan engine fitted.

I started eagerly, bit here, bit there, welding chassis, cleaning, de rusting parts.
The down side with the Nissan engine (2.5 diesel) it was badly fitted, poor welding on homemade engine mounts, poor welding on homemade exhaust, bodged wiring, it goes on and on.
I also wanted to go for the army olive drab look too, but its all changed again.

By this time its into June, and I have still not driven it yet, slowly loosing the will to go on.
It was then I decided, "bugger it" lets get a new chassis, and put an original Series engine in, so at least when it was running I could get stock parts for it, and as it is a tax exempt, I though it would be worth it.
Now it is October, still not on the road, but the rstoration is coming on a treat. I have even managed to knock up a temp shelter now in the garden, so raining, dark, I have no excuse..




The temp shelter is working a treat, shame the lawn is dying, but I guess it will grow back next year.
Although having the shelter has got me back in the mood to crack on, hopefully ready for the winter.

This landy was meant to be a quick turn around, lick of paint, MOT, £1000'sss later, its still not running..
Just a quick list of things to date.

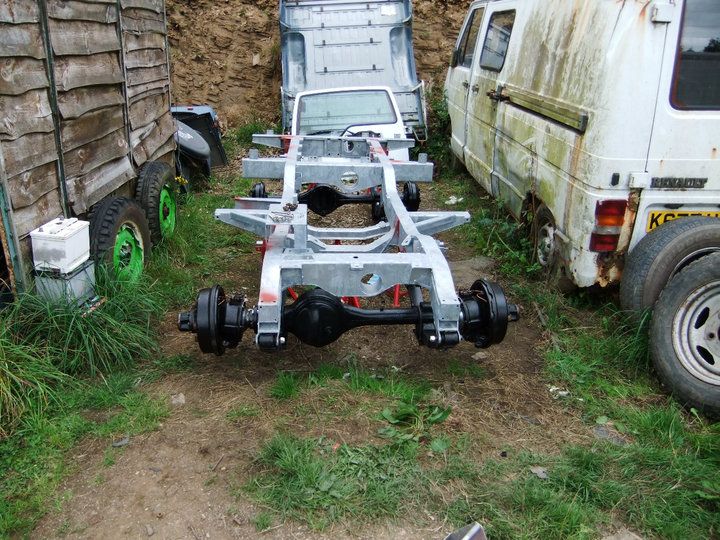

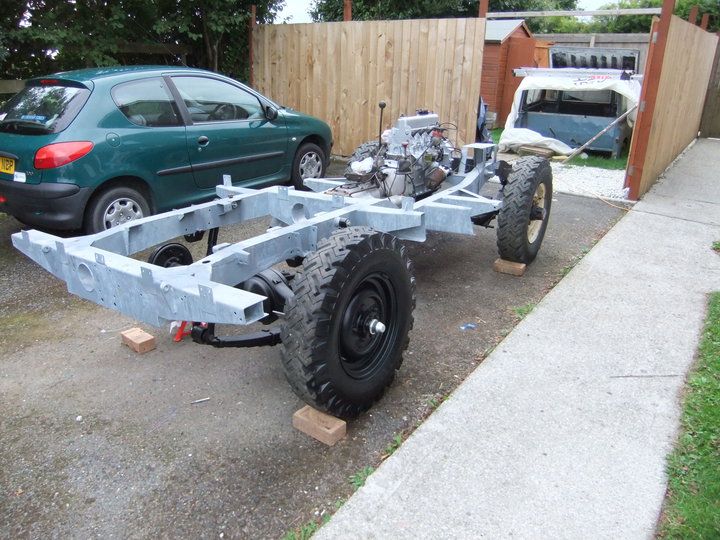

New galvanised chassis
New wring loom complete
New leaf springs x4
New hanger shackles + bolts
New shocks

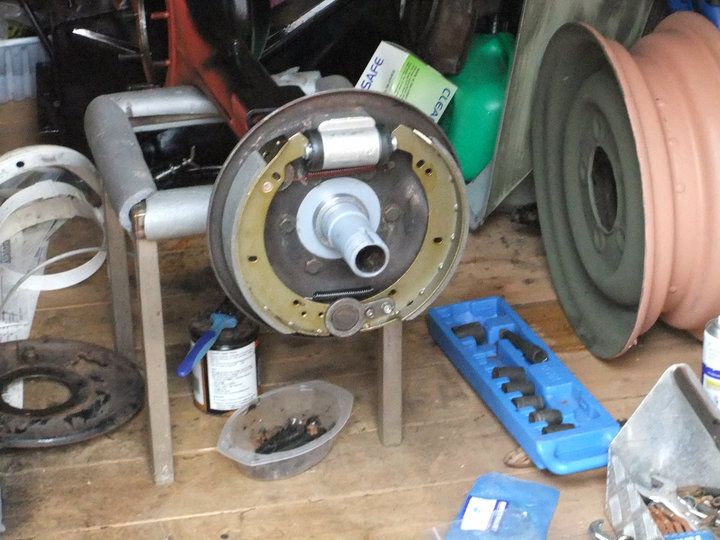

New brakes all around ( shoes, cylinders, springs, seals)
New brake hose's
New brake pipe set
New fastenings all around, original spec + stainless
New stainless bulkhead brackets (homemade)
New exhaust, front & middle, home made stainless back box to come.

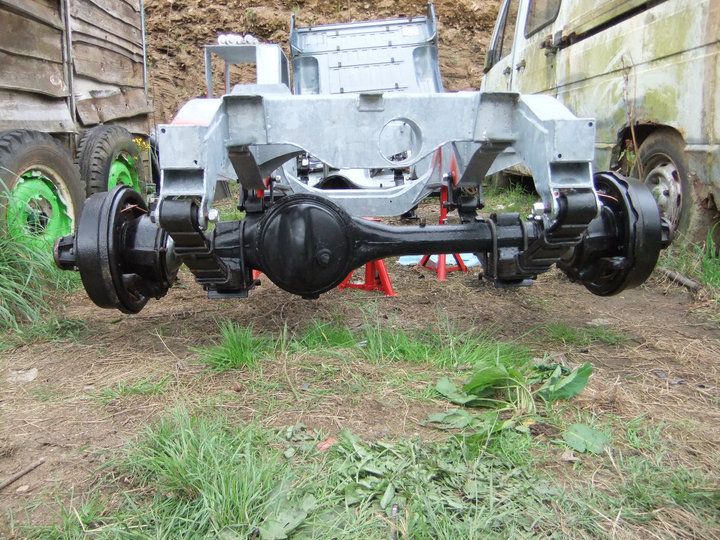

Refurbished axles, front and back.
Refurbished front hubs, new swivel seals etc.
New door bottoms
New fuel tank
New clutch + release plate
New clutch slave cylinder
Replacement engine (2 1/4 petrol)

My girlfriend has started on the interior, new black vinyl head lining for the safari roof, using the old one as a template.

All brackets cleaned and de rusted using electrolysis, (bucket of water with soda crystals and a 12v charger)
This method works a treat, after 12 or so hours in the bucket, the rust just falls off, give it a quick wire brush, then re paint.


Attachments

  • landy10.jpg
    99 KB · Views: 1,221
  • landy19.jpg
    96.4 KB · Views: 1,113
  • landy18.jpg
    89 KB · Views: 1,267
  • landy17.jpg
    8 KB · Views: 1,047
  • landy16.jpg
    9.2 KB · Views: 1,190
  • landy15.jpg
    124.1 KB · Views: 1,442
  • landy14.jpg
    121.1 KB · Views: 1,121
  • landy13.jpg
    72.5 KB · Views: 1,290
  • landy12.jpg
    109.5 KB · Views: 6,468
  • landy11.jpg
    93.2 KB · Views: 1,141

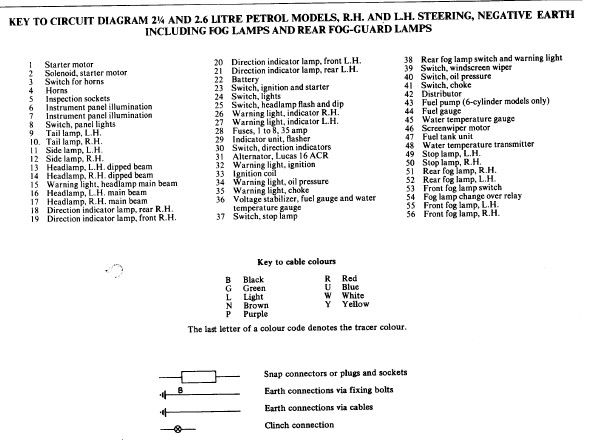

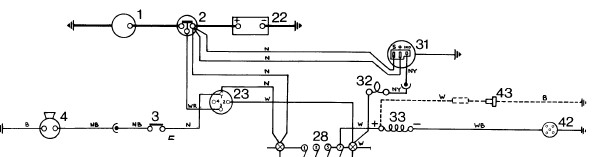

I need an idiots guide to wiring, I found one today, cant remember if it was here or not.
I have a diagram already, but its all just lines and symbols, but I cant understand it..
The wires in diagram I saw today were drawn in the correct colours etc, can anybody help?

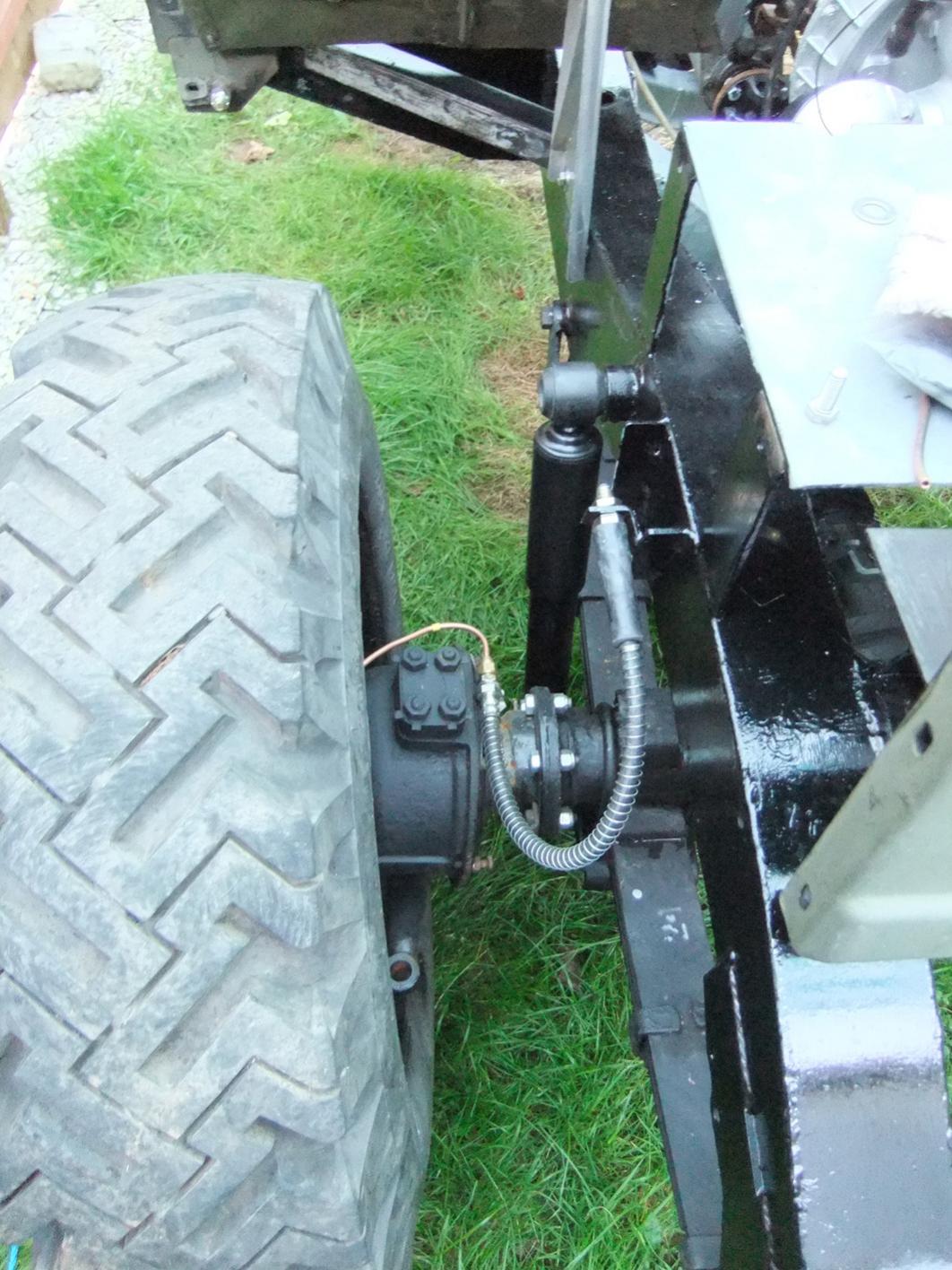

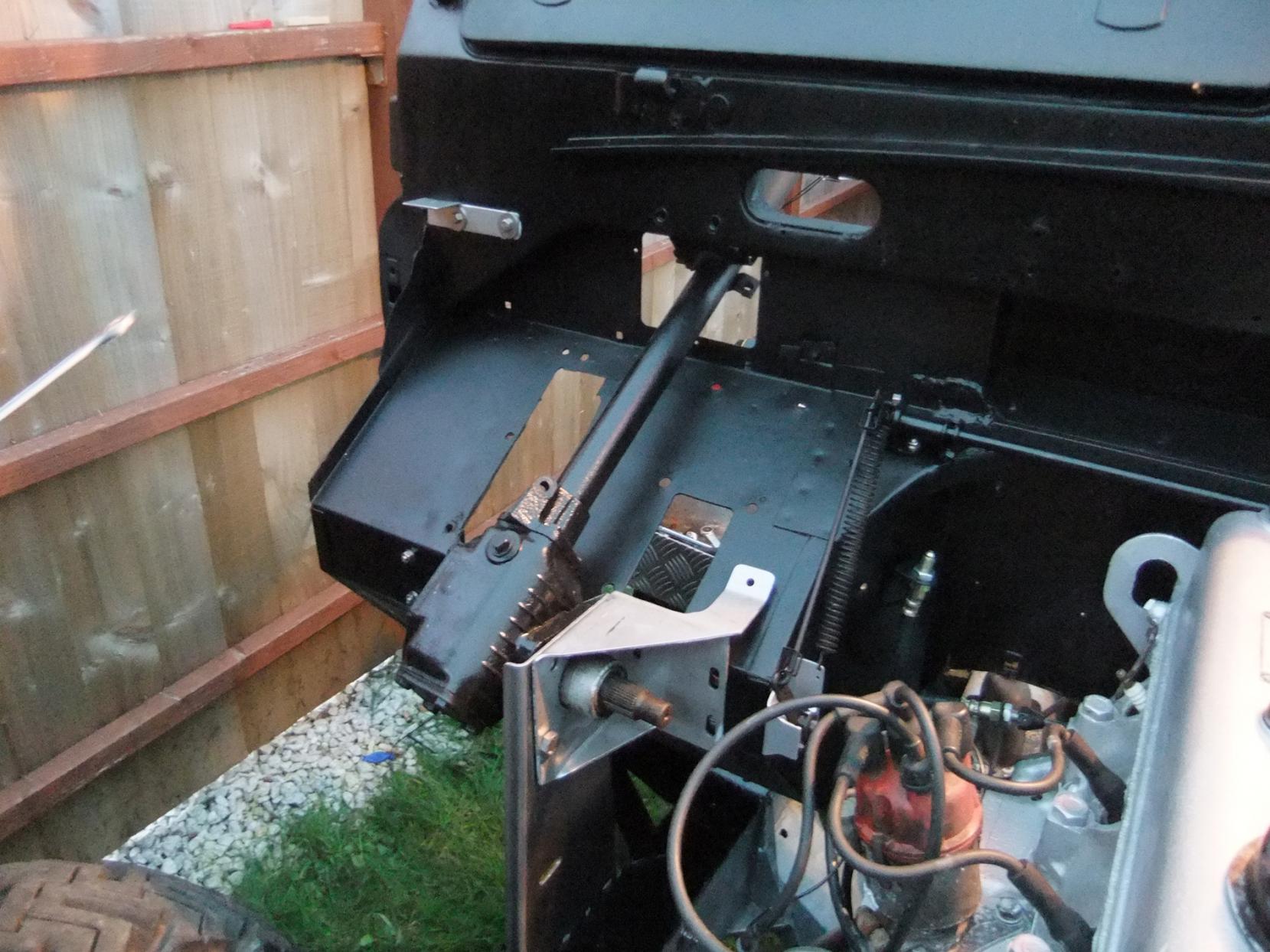

A few extra pics, showing home made stainless steel bulkhead brackets and steering rack bracket.

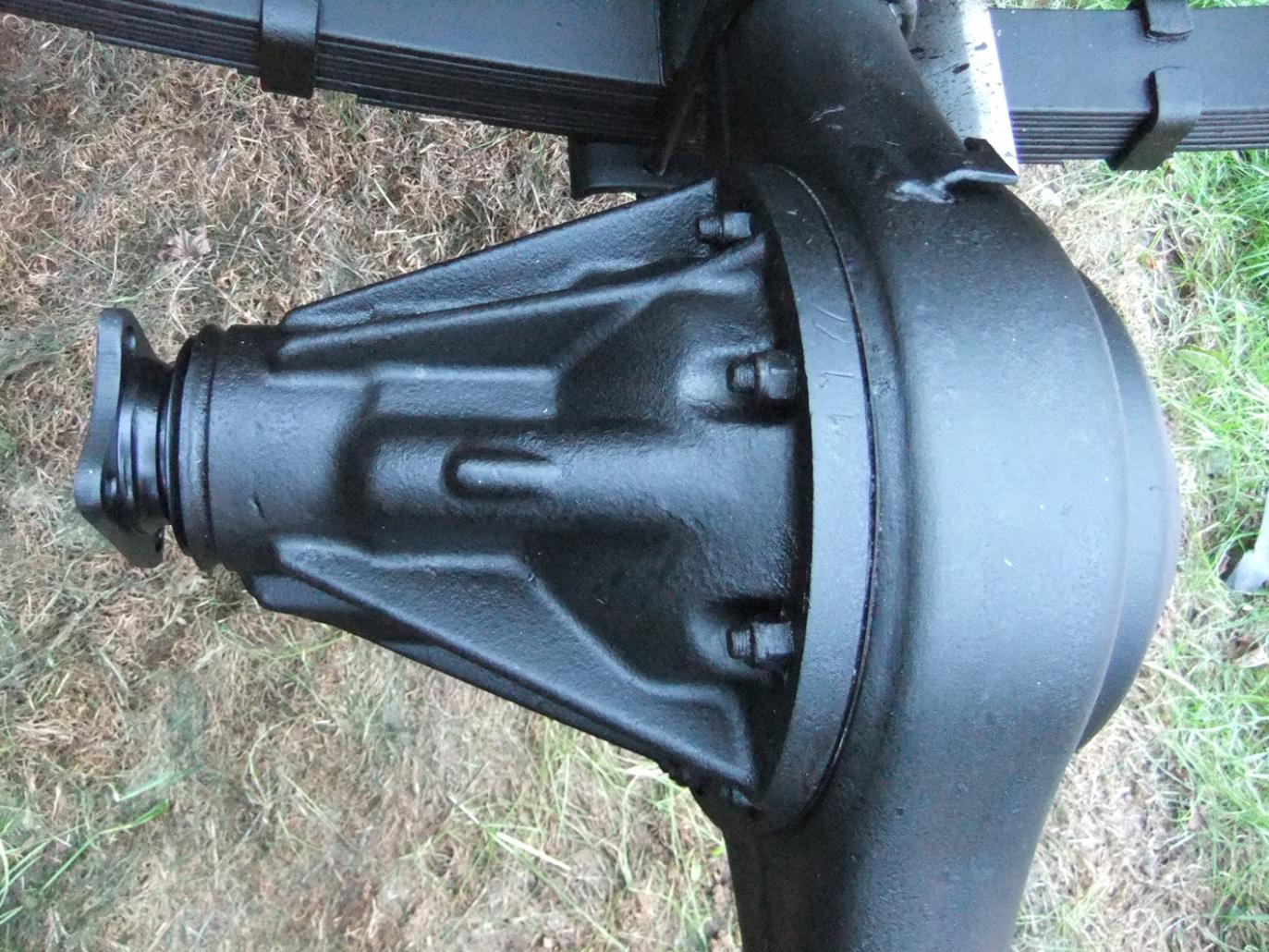

Cleaned and painted throttle linkages, and painted then waxoyled rear axle.
DXF's available for brackets if anyone needs it..:D


Attachments

  • DSCF1751.jpg
    244.2 KB · Views: 2,940
  • DSCF1753.jpg
    236.3 KB · Views: 4,454
  • DSCF1748.jpg
    203.6 KB · Views: 2,451
  • DSCF1745.jpg
    202.8 KB · Views: 4,368

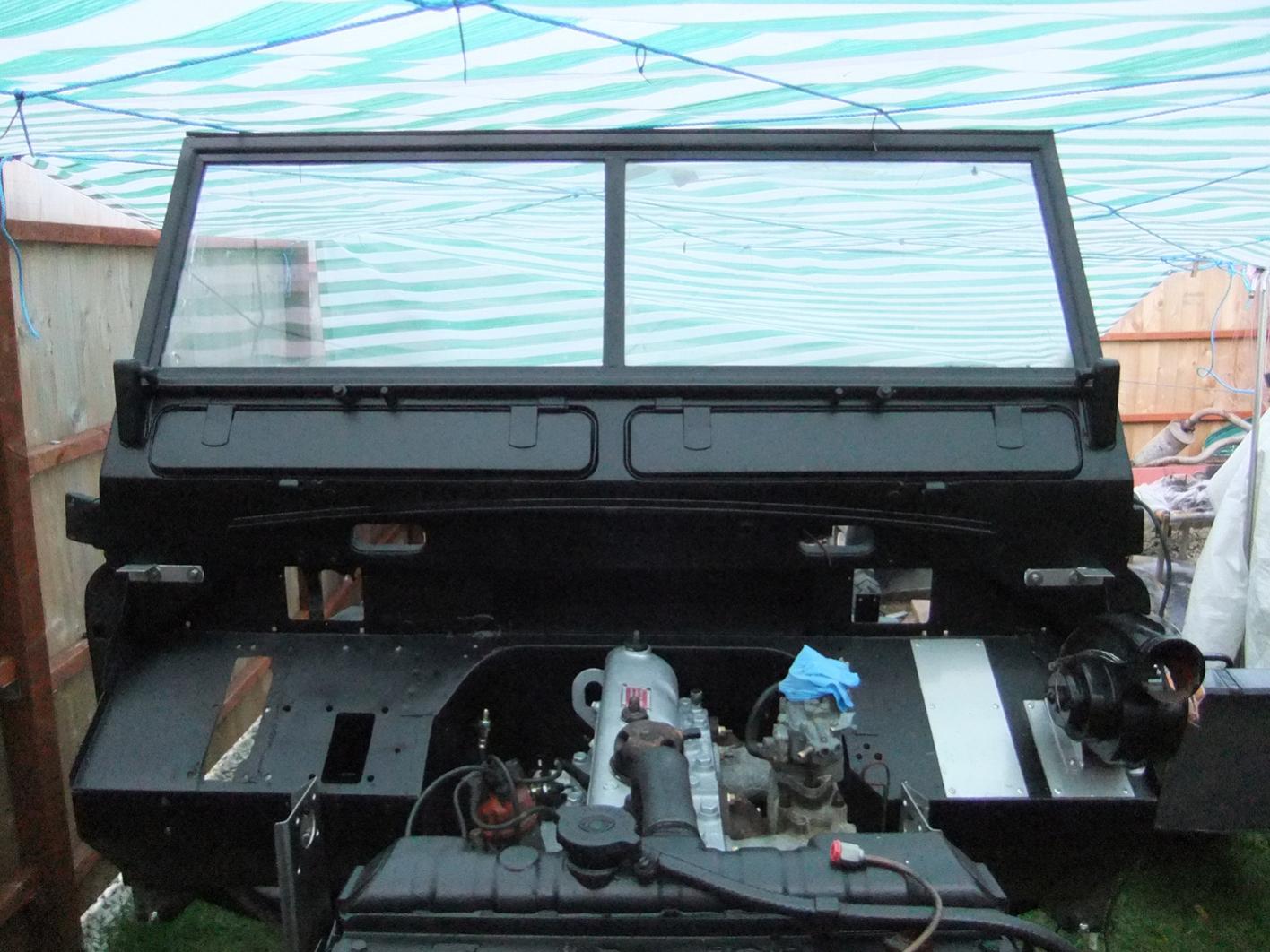

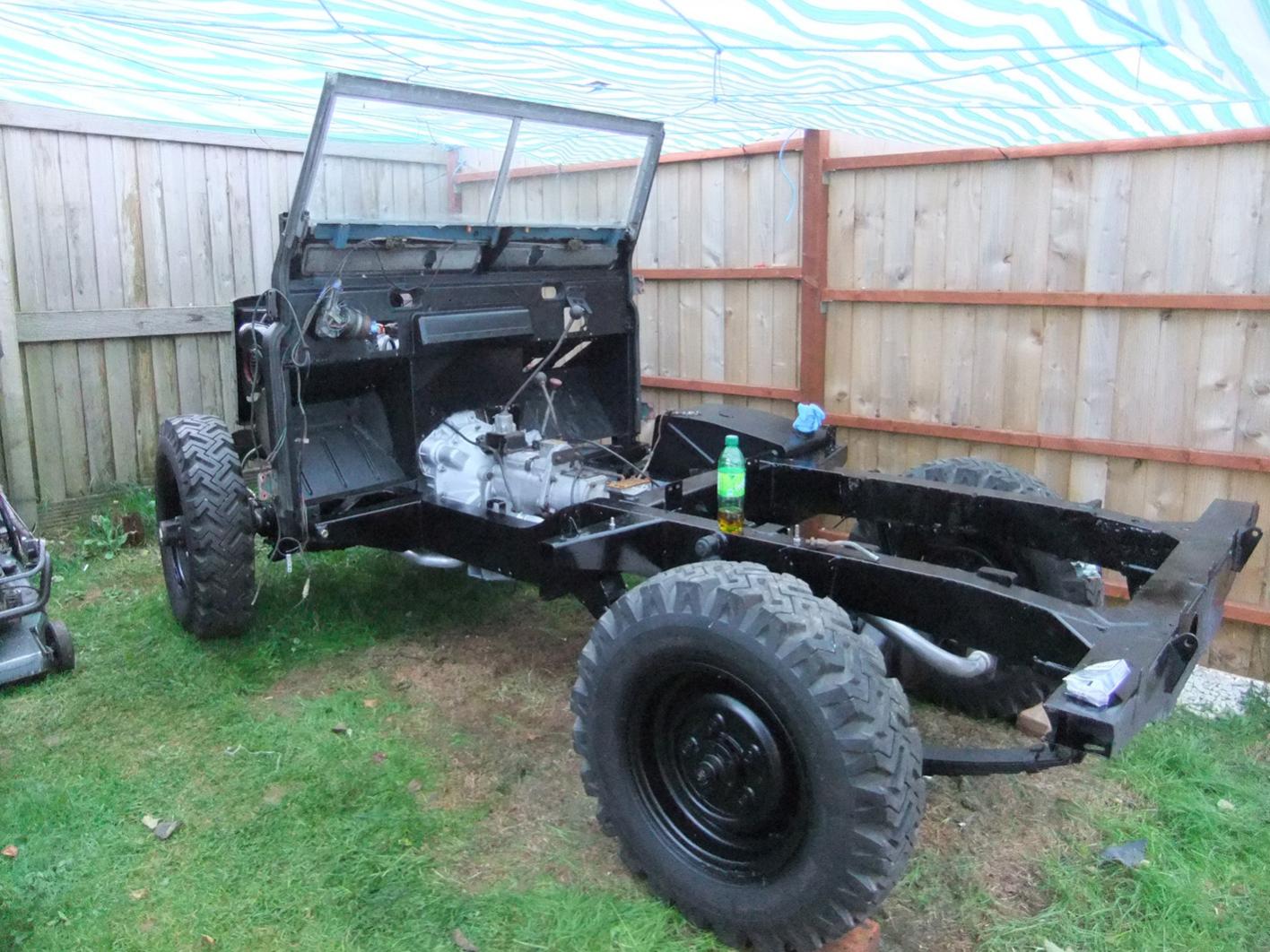

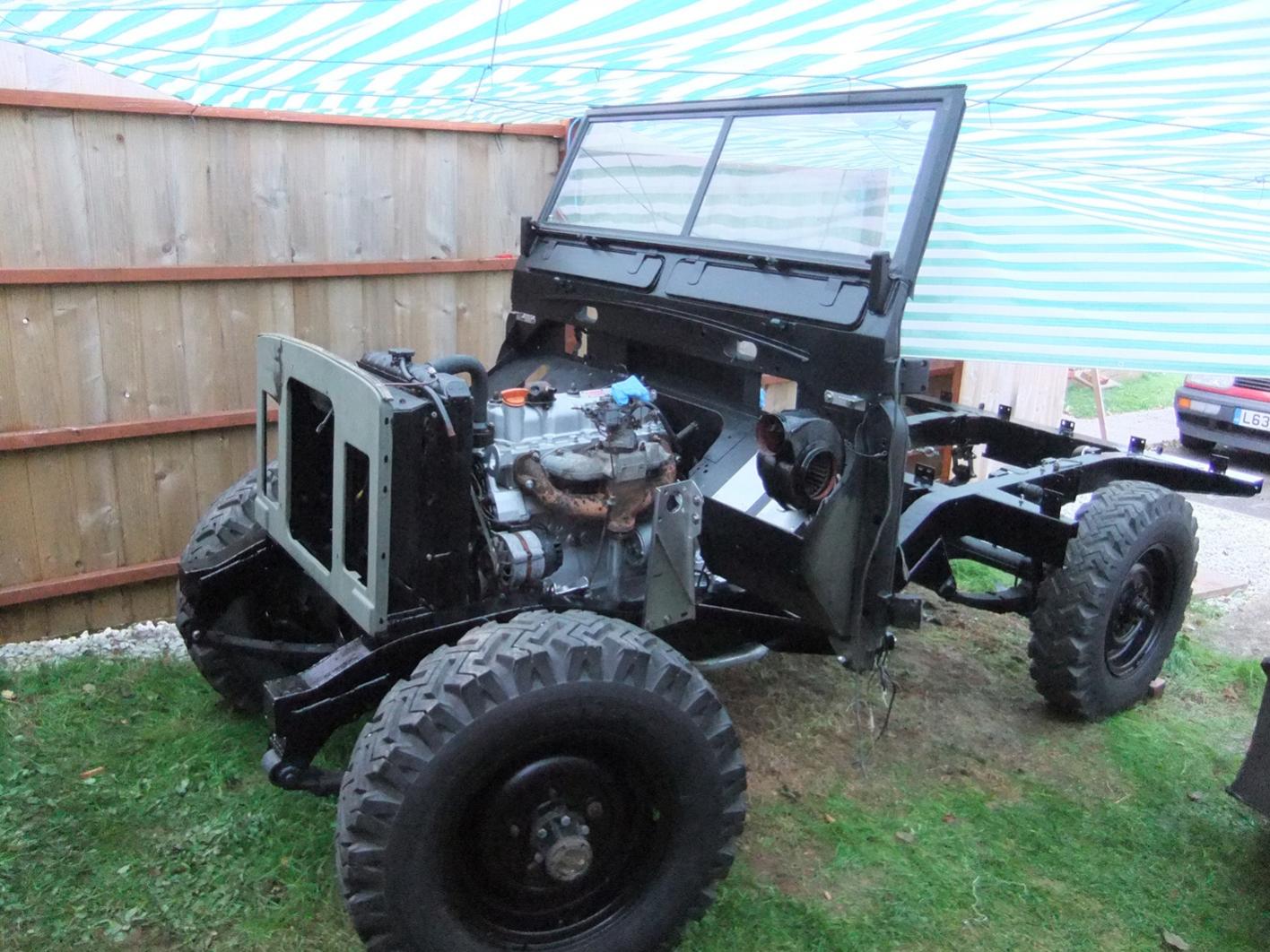

Here's the pics, couldn't upload for some reason...


Attachments

  • DSCF1733.jpg
    217.3 KB · Views: 4,032
  • DSCF1739.jpg
    210 KB · Views: 11,970
  • DSCF1743.jpg
    180.2 KB · Views: 2,127
Looking really good, do you not fancy painting the exhaust manifold? I once used the halfords stuff but it just peels off shortly after. POR 15 make one that seems to adhear very well.

Looking really good, do you not fancy painting the exhaust manifold? I once used the halfords stuff but it just peels off shortly after. POR 15 make one that seems to adhear very well.

I used POR15 engine enamel,not cheap, but its a great product, So I might do manifold, but my credit cards a bit maxed for the moment. :eek:

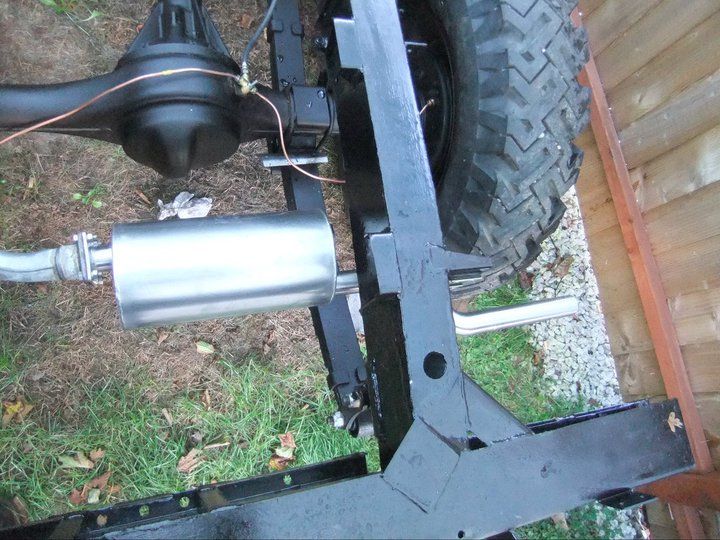

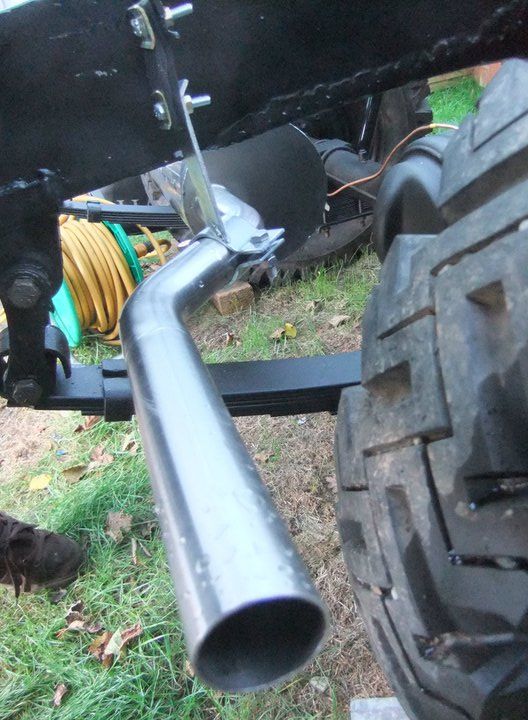

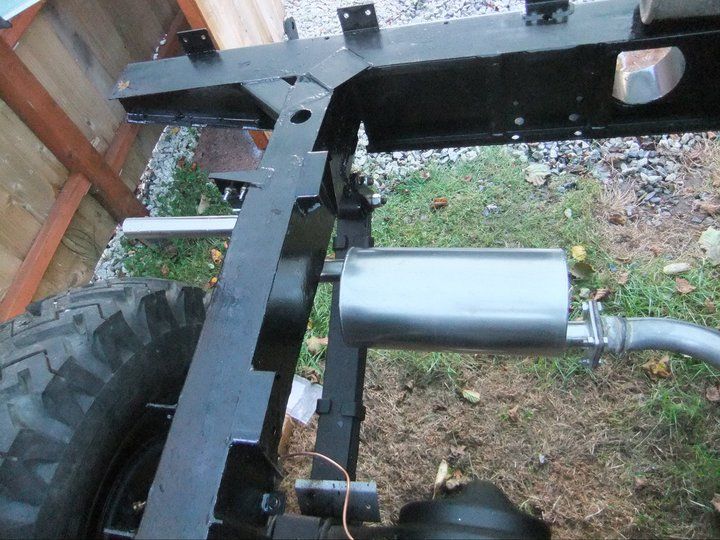

Heres the exhaust pics, ignore the untidy brake pipes for now, just waiting for some clips to come...


Attachments

  • exh.jpg
    99.3 KB · Views: 1,145
  • exh2.jpg
    84.7 KB · Views: 1,324
  • exh3.jpg
    97.2 KB · Views: 1,128

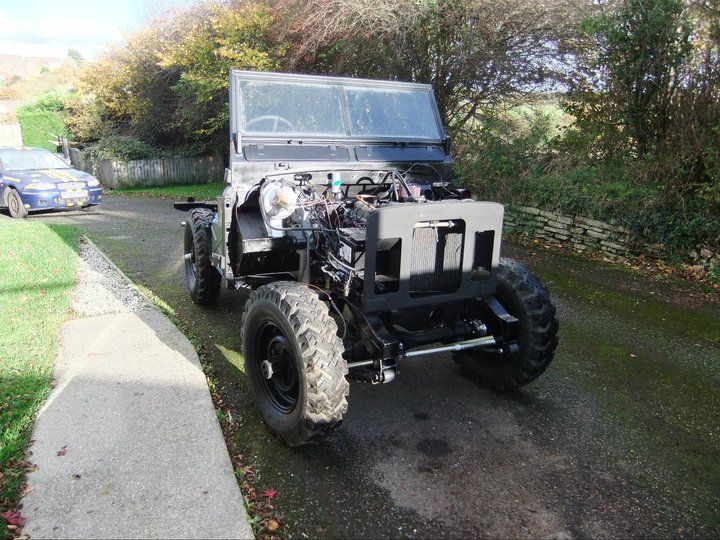

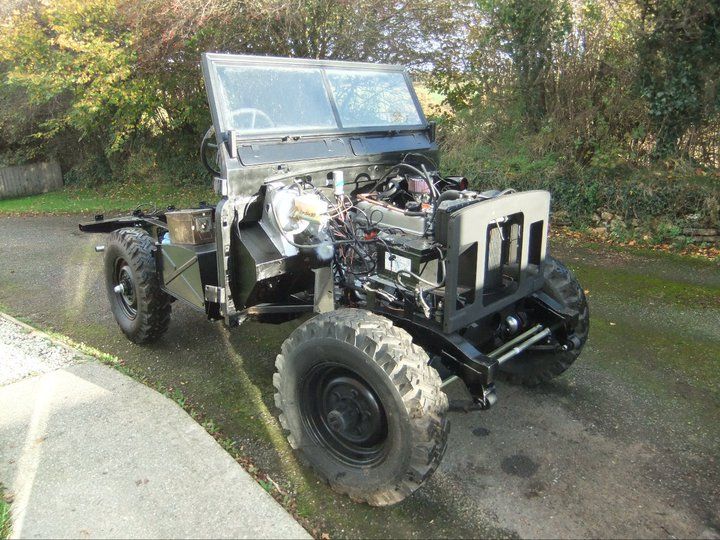

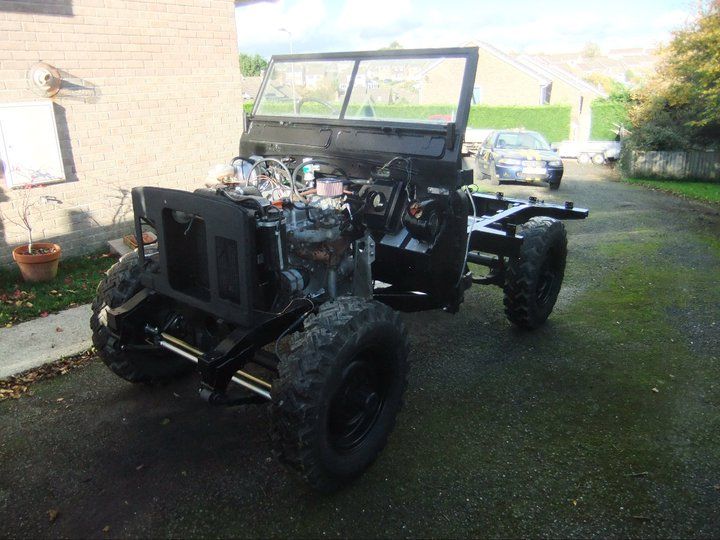

Today I fired it up, and moved it out of the temp cover for a bit!


Attachments

  • land rover2.jpg
    land rover2.jpg
    76.6 KB · Views: 1,120
  • land rover.jpg
    land rover.jpg
    112.5 KB · Views: 3,624
  • land rover3.jpg
    land rover3.jpg
    116.2 KB · Views: 1,035
