Classic LSE rear seat removal - bolts

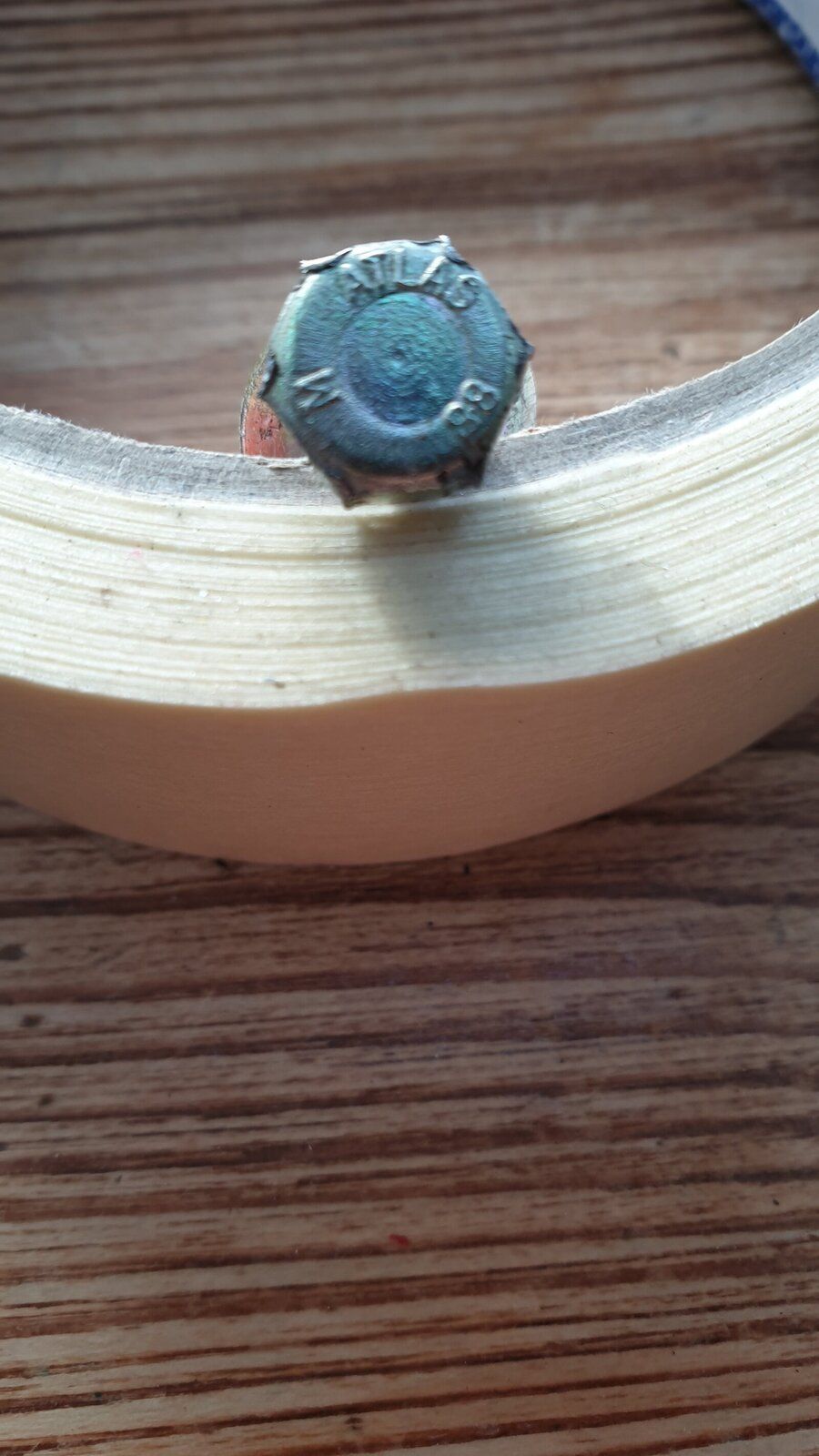

Hi - wondering if anyone can help. Ive been stripping my LSE ready for some resto work and have snapped a couple of bolts that hold the seat frame brackets onto the body. The bolts have a hex head (10mm i think) and are sort of bare/tapered (with no thread) at the end and it looks like they have the word ATLAS stamped on them.There should be 8 No. of these in total , 4 on each part of the floors.
Does anyone know the part number for these as ive searched/looked and cant find anything - need to order some up ASAP and ant to make sure i get the right bits.
Also - on reinstalling - is there a sequence to tighten the bolts as these were extremely tight when removing - hence the snapped ones?!
Thanks
Matt

Hi

don’t know how much help this is but the following company are very good for bolts etc

https://www.ebay.co.uk/str/Kays-Fasteners?_trksid=p2047675.l2563

can only find the following in the 1986-1991 years

http://new.lrcat.com/#!/1230/77619/77681/6166

Thanks for the quick reply and the link - 67000 products!!!!!
Hopefully the picture link has worked. Its for the rear seats, i think your picture is for the front seats though
Thanks
Matt

fattboy said:

Thanks for the quick reply and the link - 67000 products!!!!!
Hopefully the picture link has worked. Its for the rear seats, i think your picture is for the front seats though
Thanks
Matt

Click to expand...

hi

quickly changed it for the rear seats

gstuart said:

hi

quickly changed it for the rear seats

Click to expand...

HAHA - just re-opened and wondered why it had changed . Thanks -its number 17 by the looks of it
5/16 X 7/8 HT SETS Z/YELLOW SCREW
SH605071L
5/16 X 7/8 HT SETS Z/YELLOW SCREW
Will have a look and see if i can find some from a supplier - many thanks again

fattboy said:

HAHA - just re-opened and wondered why it had changed . Thanks -its number 17 by the looks of it
5/16 X 7/8 HT SETS Z/YELLOW SCREW
SH605071L
5/16 X 7/8 HT SETS Z/YELLOW SCREW
Will have a look and see if i can find some from a supplier - many thanks again

Click to expand...

lol

https://www.brit-car.co.uk/product...._rover_classic_1986_1994___defender_1987_2006

Hope that helps

fattboy said:

HAHA - just re-opened and wondered why it had changed . Thanks -its number 17 by the looks of it
5/16 X 7/8 HT SETS Z/YELLOW SCREW
SH605071L
5/16 X 7/8 HT SETS Z/YELLOW SCREW
Will have a look and see if i can find some from a supplier - many thanks again

Click to expand...

Just had a look - its not those ones, or at least it looks different?
https://www.johncraddockltd.co.uk/sh605071l-set-screw-516-unf-78-inch-v-a.html

fattboy said:

Just had a look - its not those ones, or at least it looks different?
https://www.johncraddockltd.co.uk/sh605071l-set-screw-516-unf-78-inch-v-a.html

Click to expand...

typical , lol, alas on lrcat it doesn’t list any seat parts for 1993 , so don’t know if there’s any difference on the LSE

What the diameter and length of the old bolt plse

gstuart said:

typical , lol, alas on lrcat it doesn’t list any seat parts for 1993 , so don’t know if there’s any difference on the LSE

What the diameter and length of the old bolt plse

Click to expand...

the likely difference if any is whether they are metric or imperial, earlier certainly imperial but later ?

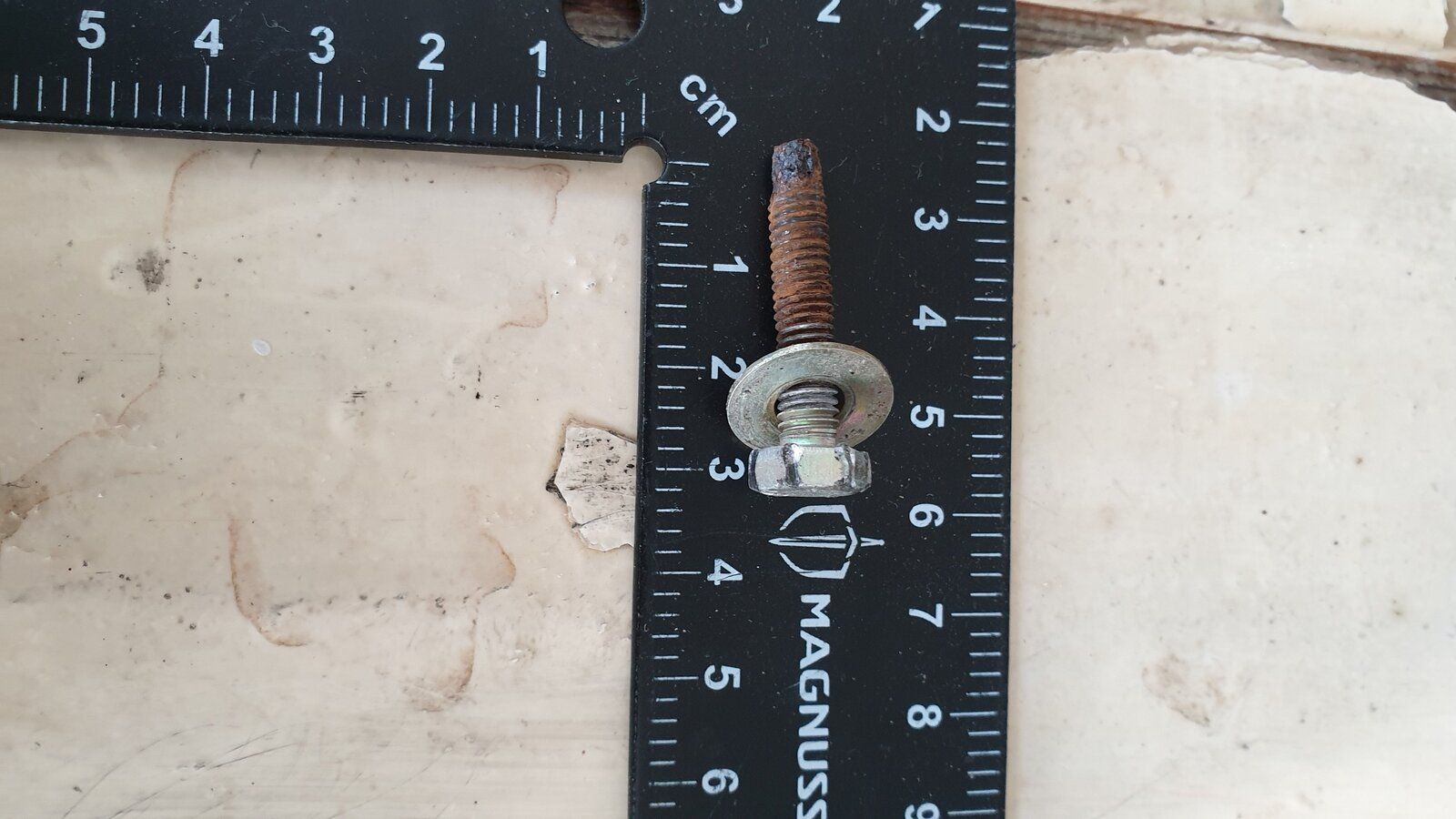

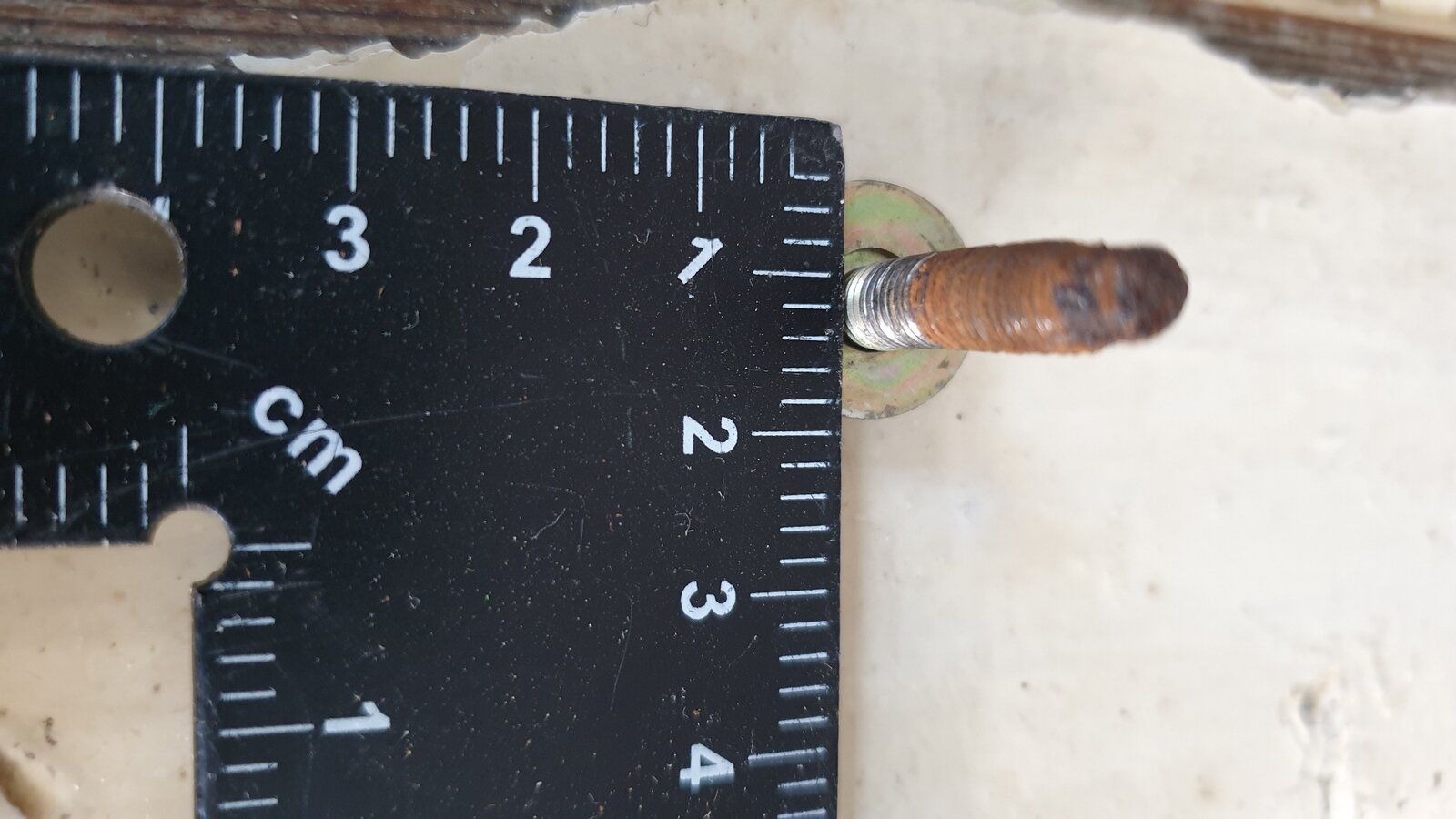

just spoken to craddocks who say the are now NLA - just listed as m6 domed bolt , if theyve got the correct one. I dont have any measuring guages so hopefully the pictures will upload again

What about this


LR001764

Number 4

https://parts.jaguarlandroverclassic.com/parts/index/part/id/L7.L7N.L7N02.L7N02130/brand/land-rover/

other seats

https://parts.jaguarlandroverclassic.com/parts/index/hierarchy/id/L7.L7N.L7N02/brand/land-rover/

jamesmartin said:

the likely difference if any is whether they are metric or imperial, earlier certainly imperial but later ?

Click to expand...

hi mate

is that a hardened steep bolt , can’t see if it has the 8.8 on it
