hse no heated seats???

can I retro fit them?

what wiring will the seats have hanging about if they have the elements in?

You want to fit the complete HSE seats or just the heaters from them?

kust the heaterrs !! my hse must be te only one on the planet without heated seats !

gordoncoll said:

kust the heaterrs !! my hse must be te only one on the planet without heated seats !

Click to expand...

I thought heated seats were standard in the SE and HSE.
It's easier to replace the seats, than fit the heaters. Fitting the heat pads requires stripping the covers off and fitting the pads. However I believe that the heated seat foams and covers are different between heated and non-heated. Best bet is find some heated seats and fit those.

well not on mine ! although I do appear to have a lot of connectors under the seats going nowhere !!!!! is there a way to tell if the poewr for the heaters has been run off to provide power elsewhere ie the cd players in the headrests???

gordoncoll said:

well not on mine ! although I do appear to have a lot of connectors under the seats going nowhere !!!!! is there a way to tell if the poewr for the heaters has been run off to provide power elsewhere ie the cd players in the headrests???

Click to expand...

Are there yellow relays under the seats? It is possible that it has heated seats, but the switches have been replaced with blanking covers.

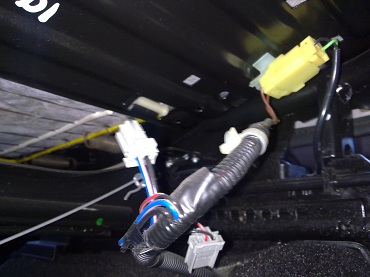

just had a look, there are yellow connectors but as I suspected the wires from them now run to the dvd players in the headrests !!!I will get a photo at some point. there are also connectors coming down from the seats that plug into nothing !!!

I have all of that !!!

gordoncoll said:

just had a look, there are yellow connectors but as I suspected the wires from them now run to the dvd players in the headrests !!!I will get a photo at some point. there are also connectors coming down from the seats that plug into nothing !!!

Click to expand...

Maybe someone has used the heated seat power, to feed DVD player's, disconnecting the seat heaters in the process. I'm 99.9% all SE and HSE had heated seats.

Yellow plug it the belt pre-tensioner. The other wiring looks like the seat heater wiring, off the top of my head. I'll look at my own seats later.

looks suspiciously ike that is what has happened. I wonder if it is possible to get the seat heaters back connected!!! they must have blanked off the switches in the dash as well, ****s

Nodge68 said:

Maybe someone has used the heated seat power, to feed DVD player's, disconnecting the seat heaters in the process. I'm 99.9% all SE and HSE had heated seats.

Click to expand...

That's what I think. The switch blanks are easily found on Ebay cheap. Seat switches are also available, but expensive.

so they have used the power from the seats but had to disconnect the switches as this would turn the power off when the seats were hot enough and this would have turned the dvd/s off !! knobends. they even put a 12/240 inverter in they could have used the power for that instead

gordoncoll said:

so they have used the power from the seats but had to disconnect the switches as this would turn the power off when the seats were hot enough and this would have turned the dvd/s off !! knobends. they even put a 12/240 inverter in they could have used the power for that instead

Click to expand...

Seat power is fed with an ignition supply. The relay and seat sensors do the rest.

Edited for accuracy.

ok but to keep the dvd players on if they had wires off the heated seats rather than dissconecting and using the wiring you would need the heated seats ON at all times to provide power?? hence disconnecion and removing the switch

I stand corrected. The seat heater uses thermal sensors. However they are part of a self contained system on the seat. The switch simply supplies ignition controlled power. The sensors and relays connected at the seat do the rest.

It is in for some work tommorow, i will ask the guy if he can work out a power supply for the dvds and reinstate the heated seats !!!!

gordoncoll said:

It is in for some work tommorow, i will ask the guy if he can work out a power supply for the dvds and reinstate the heated seats !!!!

Click to expand...

The power for the DVDs can be taken from the accessory feed. This is under the centre arm rest, behind the handbrake. That is accessory switched and supplies 20 Amps. This is the same capacity as the seat heater circuit. That's where I would have got the power from anyway. Not from the seat heater circuit.

Nodge68 said:

The power for the DVDs can be taken from the accessory feed. This is under the centre arm rest, behind the handbrake. That is accessory switched and supplies 20 Amps. This is the same capacity as the seat heater circuit. That's where I would have got the power from anyway. Not from the seat heater circuit.

Click to expand...

Powers the240 inverter in mine

gordoncoll said:

Powers the240 inverter in mine

Click to expand...

An inverter will need more than a 20 Amp supply, unless it's a 150 Watt unit . I'd be running a heavier 50 Amp circuit for that a modest size unit.
My 1000 Watt inverter needs a 100 Amp supply. For this reason, I clip it straight onto the battery terminals.
