Now that I've successfully finished the EAS air strut issue on the L322, back to the Classic for some overdue projects. Looking but not finding a simple how-to video/picture diary of installing fog lights. I've mounted them on the brush guard, and wanted to wire them to work via the toggle switch so I can run them at anytime. Hooking to high beams is fine too if much simpler. I've seen various things out there, but just need some baby steps here. thanks in advance if you can point me to something.

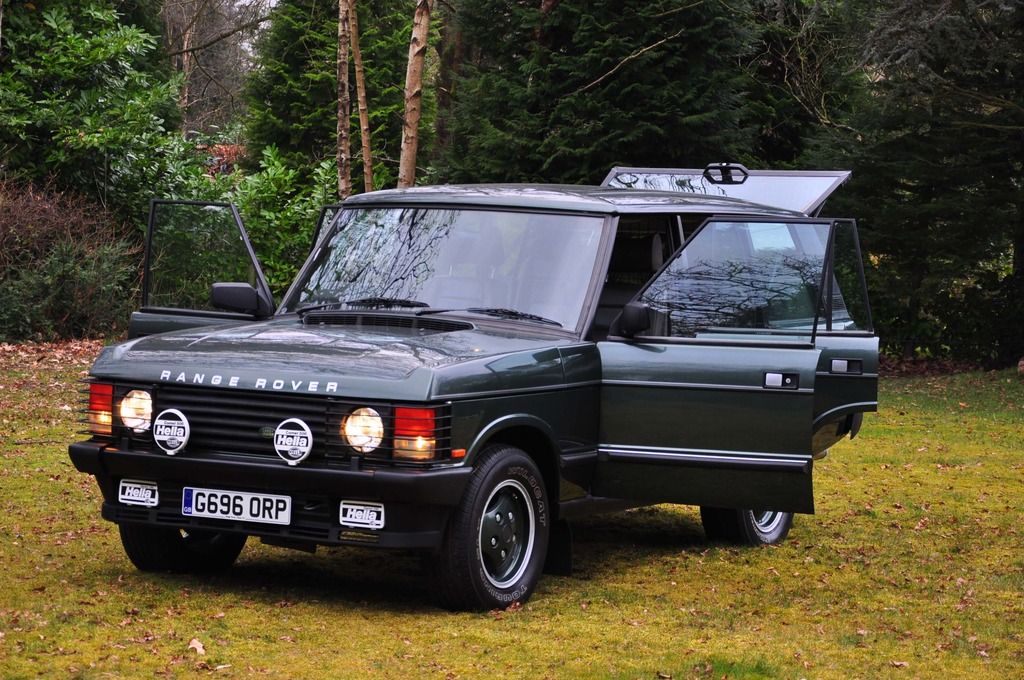

Did the fogs to the OEM switch on the dash switch panel with the relay, in line fuse as per the Hella wiring diagram, the Aux driving lamps using the OEM wiring plug in the wheel well again wired to the OEM switch panel light switch marked Lights (2) .

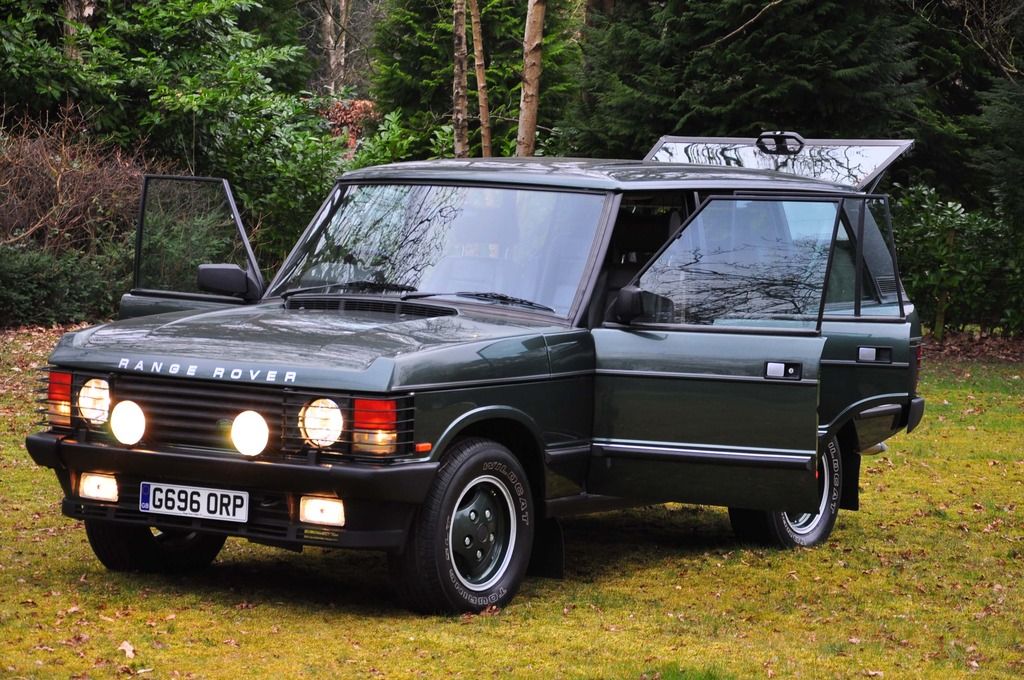

Fogs can be on/off with the sidelights, aux driving lights only with full beam
